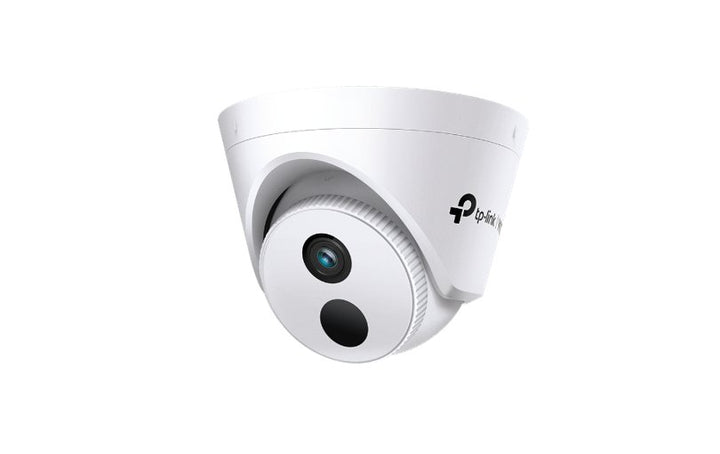

TP-Link VIGI C430I 3MP IR Turret Network Camera, 4mm Lens
Email sales@sourceit.com.sg or use Request for Quotation below and our team will confirm the latest price, availability and lead time.
PRODUCT DESCRIPTION
TP-Link VIGI 3MP IR Turret Network Camera (VIGI C430I 4mm) - 3 Years Local Warranty
The TP-Link VIGI C430I is a 3MP (2304 x 1296) turret camera with a 4 mm F2.0 fixed lens, an 850 nm IR LED with a 30 m range, human and vehicle classification and power from either PoE (802.3af/at) or 12V DC. It is designed to record to a VIGI NVR and is managed through the web UI, NVR UI, VIGI App or VIGI Security Manager.
3MP Detail With IR Night Vision
A 1/2.8" progressive scan CMOS sensor delivers 2304 x 1296 video with colour down to 0.01 Lux and 0 Lux with the IR light, supported by Smart IR, WDR, 3D DNR, BLC and HLC.
Human & Vehicle Classification
The camera distinguishes humans and vehicles from other objects for more accurate event notifications, alongside area intrusion, line-crossing, region entering/exiting and object abandoned/removal detection, with push-message alerts.

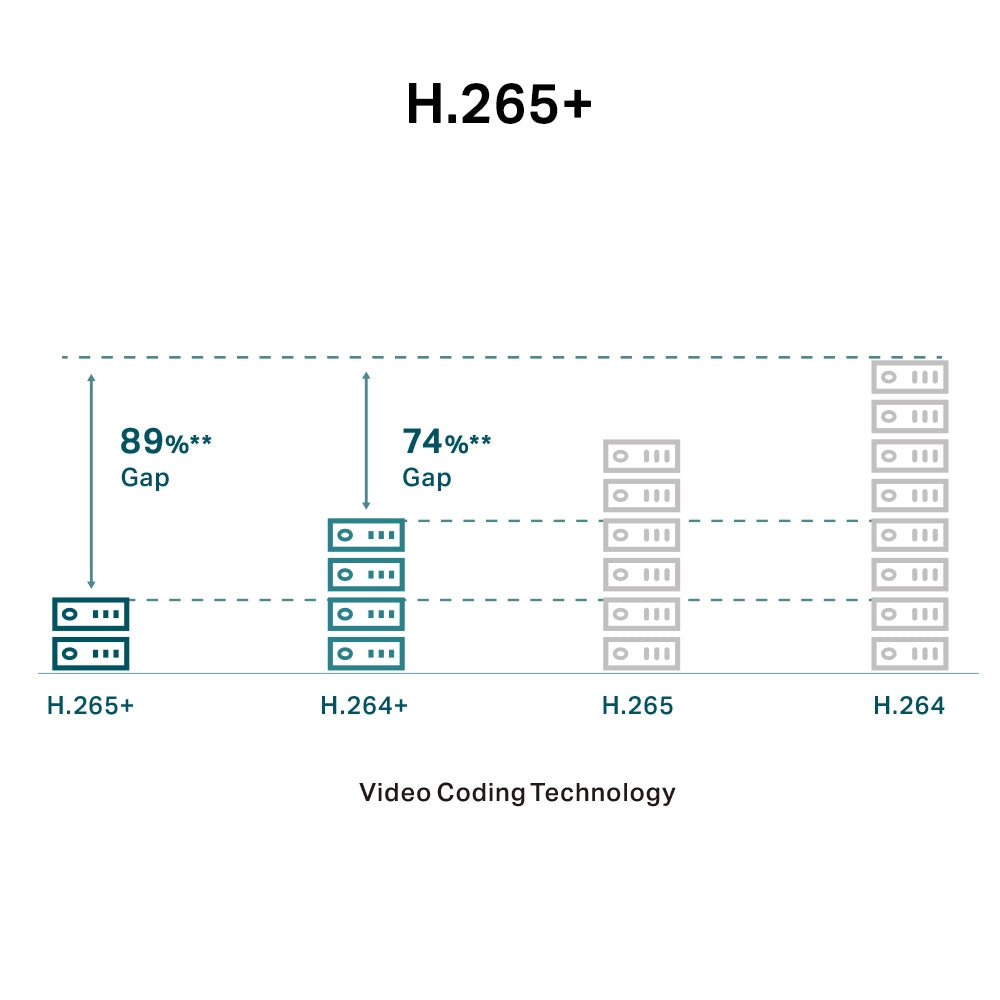

Corridor Mode & H.265+
Image rotation of 90°/270° changes the aspect ratio from 16:9 to 9:16 for long, narrow areas. The main stream supports H.265+, H.265, H.264+ and H.264 to reduce bandwidth and storage.
12V DC or PoE
Power comes from PoE (802.3af/at, max. 5.5 W) or a 12V DC supply (max. 5 W), and the camera is managed from the web UI, NVR UI, VIGI App or VIGI Security Manager.
Ideal For
Offices, shops, corridors, reception areas and other indoor or covered spaces that need 3MP recording to a VIGI NVR. Supplied by SourceIT with local Singapore warranty and GST invoice.
VIGI C430I 4mm Datasheet — Technical Specifications
General
| Model | VIGI C430I 4mm |
| Official Product Name | VIGI 3MP IR Turret Network Camera |
| Brand | TP-Link |
| Warranty | 3 Years Local Warranty (Singapore) |
Camera
| Image Sensor | 1/2.8" Progressive Scan CMOS |
| Shutter Speed | 1/3 to 1/10000 s |
| Slow Shutter | Yes |
| Minimum Illumination | Color: 0.01 Lux; 0 Lux with IR Light |
| Day/Night Mechanism | IR Cut Filter |
| Day/Night Switch | Unified/ Scheduled/ Auto |
Lens
| Type | Fixed Focal Lens |
| Focal Length | 4 mm |
| Aperture | F2.0 |
| FOV | Horizontal FOV: 82.5°, Vertical FOV: 44.9°, Diagonal FOV: 99.3° |
| Lens Mount | M12 |
| DORI Distance | Detect: 65 m (214 ft), Observe: 27 m (89 ft), Recognize: 13 m (43 ft), Identify: 7 m (21 ft) |
| Angle Adjustment (Manual) | Pan: 0° to 360°, Tilt: 0° to 85°, Rotate: 0° to 360° |
Illuminator
| IR LED | Quantity: 1, Range: 30m, Wavelength: 850nm |
| White LED | N/A |
| Illuminator On/Off Control | Auto/Scheduled/Always on/Always off |
Video
| Max. Resolution | 2304 x 1296 |
| Main Stream | Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps. Resolution: 2304x1296, 2048x1280, 1920x1080, 1280x720. Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. |
| Sub-Stream | Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps. Resolution: 704x576, 640x480, 352x288, 320x240. Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. |
| Bit Rate Control | CBR, VBR |
| Video Compression | Main Stream: H.265+/H.265/H.264+/H.264; Sub-Stream: H.265/H.264 |
| H.264 Type | Main Profile/High Profile |
| H.264+ | Main Stream Supported |
| H.265 Type | Main Profile |
| H.265+ | Main Stream Supported |
| Video Bit Rate | Main Stream: 256 Kbps to 4 Mbps; Sub-Stream: 64 Kbps to 512 Kbps |
| Image Settings | Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, Prevent Overexposure to Infrared Light, HLC Adjustable by Client Software, Rotation (90°/270°) |
| Image Enhancement | BLC/3D DNR/HLC/SmartIR |
| Wide Dynamic Range | WDR |
| SNR | ≥ 52 dB |
| Image Parameters Switch | Yes |
| Privacy Mask | Up to 4 Masks |
| ROI | 1 Region |
| OSD Setting | Yes |
Audio
| Audio Communication | N/A |
| Audio Input | N/A |
| Audio Output | N/A |
Network
| Protocol | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS |
| ONVIF | Yes |
| API | ONVIF |
| Simultaneous Live View | 3 Main Streams & 3 Sub-Streams |
| Client | VIGI App, VIGI Security Manager, Web UI |
| Web Browser | Google Chrome 57 and above, Firefox 52 and above, Safari 11 and above, Microsoft Edge 91 and above |
| Cloud | Yes |
| Security | Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication |
Alarm and Event Management
| Smart Event | Human & Vehicle Classification, Area Intrusion Detection, Line-Crossing Detection, People Detection, Vehicle Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection |
| Basic Event | Motion Detection, Video Tampering Detection, Exception (Illegal Login) |
| Alarm Linkage | Message Push |
| Output Notification | Message Push |
Interfaces
| Network Interface | 1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE |
| Alarm | N/A |
| Reset Button | N/A |
| Power | DC Power Port |
| On-board Storage | N/A |
| Built-in Microphone | N/A |
| Built-in Speaker | N/A |
Physical & Environment
| Operating Temperature | -30-60 °C |
| Storage Temperature | -40-60 °C |
| Operating Humidity | 95% or Less (Non-Condensing) |
| Storage Humidity | 95% or Less (Non-Condensing) |
| Material | Plastic |
| Net Weight | 0.19 Kg |
| Gross Weight | 0.34 Kg |
| Power Supply | 12V DC ± 5%, Max. 5 W, 5.5mm Coaxial Power Plug; PoE: 802.3af/at, class 0, Max. 5.5 W |
| Protection | N/A |
| Product Dimensions (L x W x H) | 123 x 83 x 123 mm |
| Certifications | CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC |
The VIGI C430I has no built-in microphone, speaker, audio interface or memory card slot; recording is to an NVR. TP-Link publishes no ingress-protection (IP) rating for this model (Protection: N/A).
Compatibility & Software Support
| Management | Web UI, NVR UI, VIGI App, VIGI Security Manager |
| Cloud | Yes |
| NVR / VMS integration | ONVIF |
| Web Browser | Google Chrome 57+, Firefox 52+, Safari 11+, Microsoft Edge 91+ |
| Local Storage | None (On-board Storage: N/A) |
Package Contents & Ordering Information
Package Contents
| Item 1 | VIGI Network Camera |
| Item 2 | Quick Start Guide |
| Item 3 | Mounting Accessories |
Ordering Information
| Model | VIGI C430I 4mm |
| Other focal lengths | VIGI C430I 2.8mm |
| SKU | VIGI C430I |
| Warranty | 3 Years Local Warranty (Singapore) |
Datasheet & Downloads
Frequently Asked Questions — VIGI C430I 4mm
Which focal length should I choose?
This version uses the 4 mm lens (Horizontal FOV: 82.5°; identify distance 7 m (21 ft)). The 2.8 mm version covers a wider area; the 4 mm version gives more detail at distance.
Does the VIGI C430I record audio or to a memory card?
No. TP-Link lists audio and on-board storage as N/A for this model, so it is intended for recording on a VIGI NVR.
How is the camera powered?
Either by PoE (802.3af/at, class 0, max. 5.5 W) or by a 12V DC supply through a 5.5 mm coaxial plug (max. 5 W).
What warranty does SourceIT provide?
SourceIT supplies the VIGI C430I 4mm with 3 years local warranty in Singapore, together with a GST invoice.
Can SourceIT quote this for an office or a project?
Yes. SourceIT prepares quotations for offices, retail sites and multi-camera projects, including VIGI cameras, NVRs, PoE switches and hard drives. Send the quantities and site details to sales@sourceit.com.sg for a formal quote with GST invoice.
