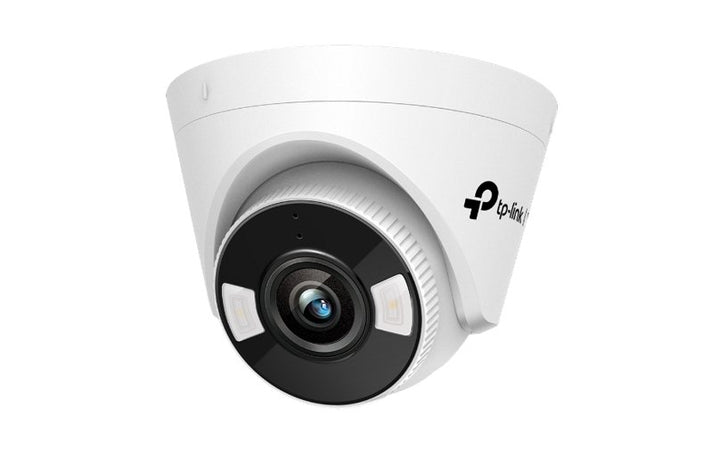

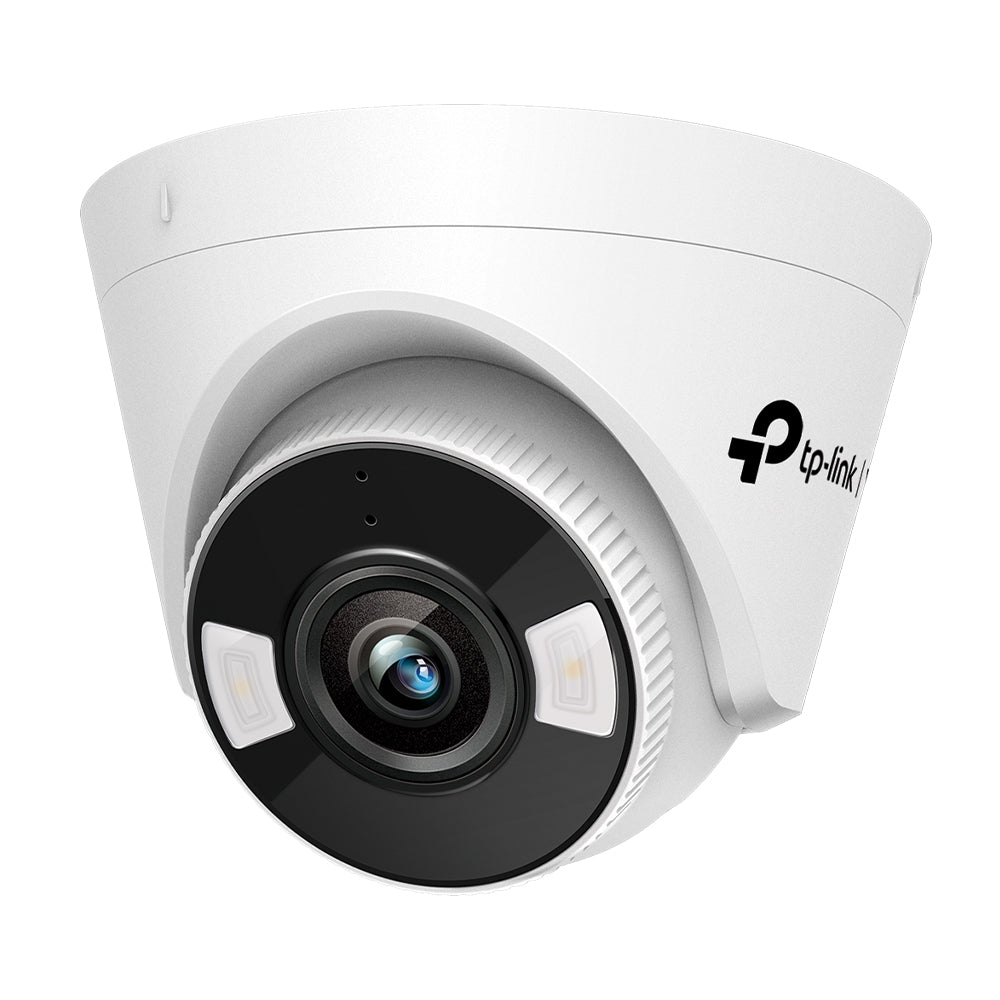

TP-Link VIGI C430 3MP Full-Color Turret Network Camera, 4mm Lens
Email sales@sourceit.com.sg or use Request for Quotation below and our team will confirm the latest price, availability and lead time.
PRODUCT DESCRIPTION
TP-Link VIGI 3MP Full-Color Turret Network Camera (VIGI C430 4mm) - 3 Years Local Warranty

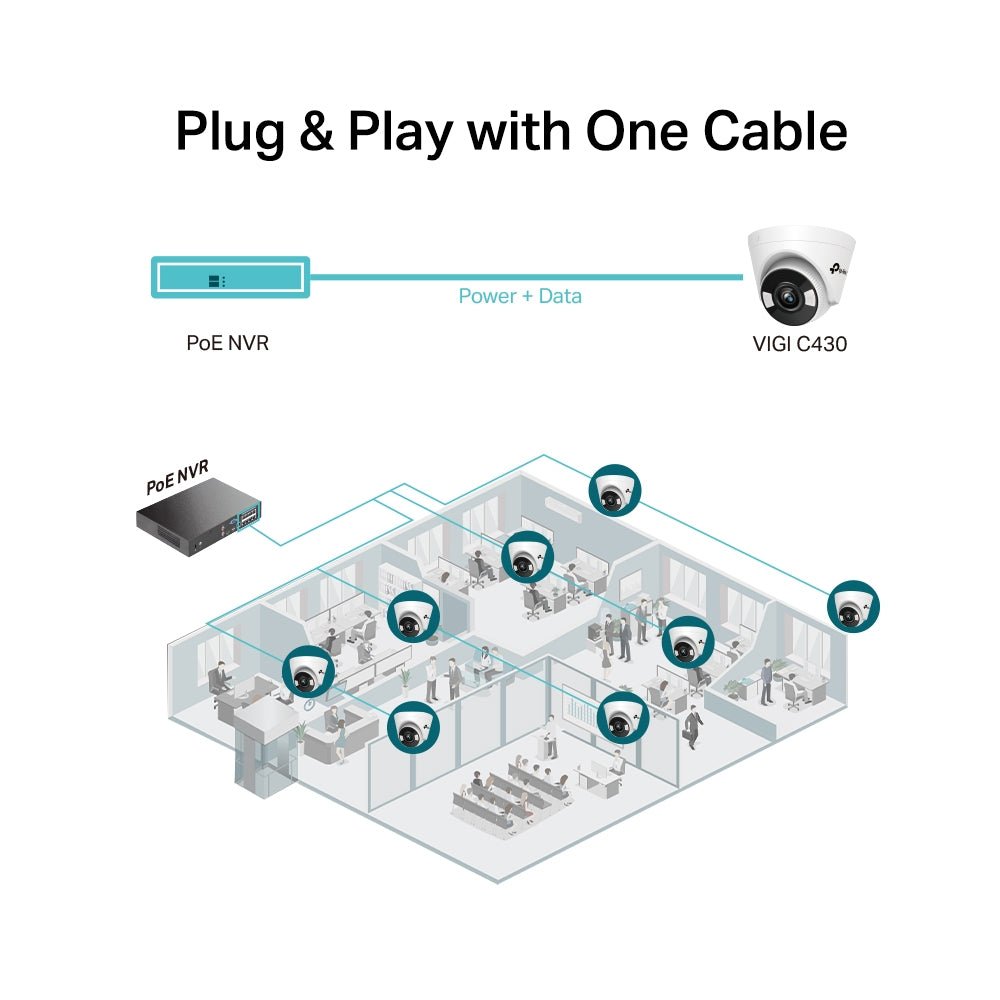

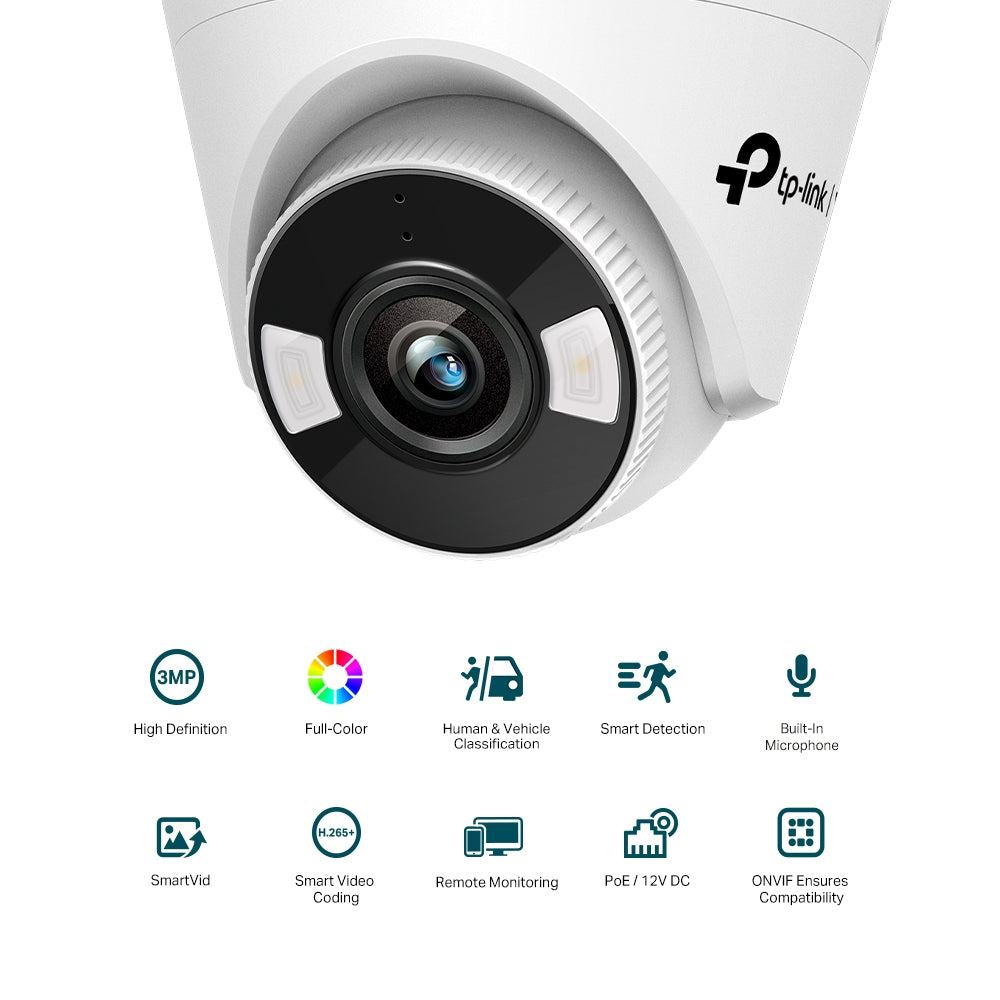

The TP-Link VIGI C430 is a 3MP full-colour turret network camera, here with the 4 mm fixed lens. A 1/2.8" progressive scan CMOS sensor, F1.6 aperture and two white LEDs alongside two 850 nm IR LEDs (30 m range each) keep night footage in colour, and AI-based human and vehicle classification cuts down false alerts. A single PoE cable carries power and data, with a 12V DC port as an alternative.

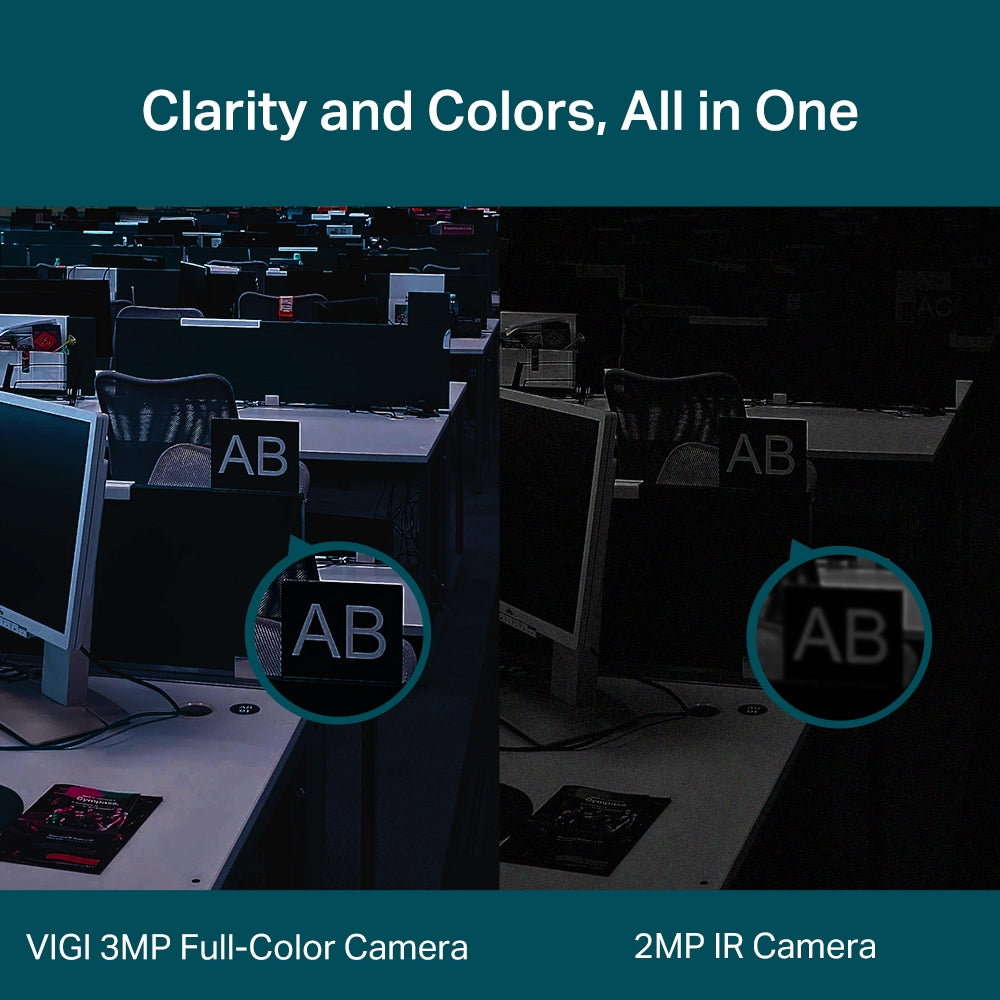

3MP Full-Colour Monitoring
Maximum resolution is 2304 x 1296. TP-Link quotes a minimum illumination of 0.005 Lux, and 0 Lux with IR or white light.
Human & Vehicle Classification and Smart Detection
Smart events include area intrusion, line-crossing, people and vehicle detection, region entering and exiting, and object abandoned and removal detection. Alarm linkage supports white-light flashing and message push.
Built-In Microphone
Audio is recorded within a 5 m (16.4 ft) radius of the camera. The C430 has no built-in speaker and does not support two-way audio.

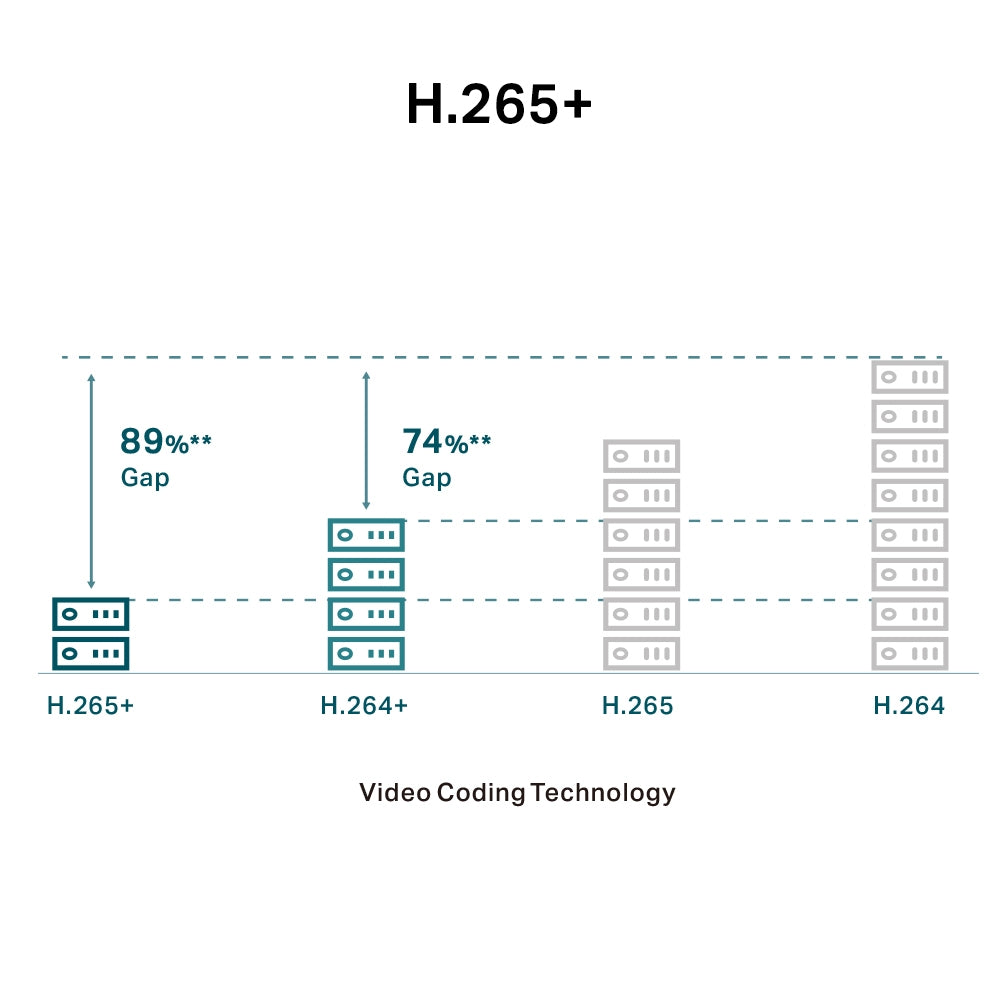

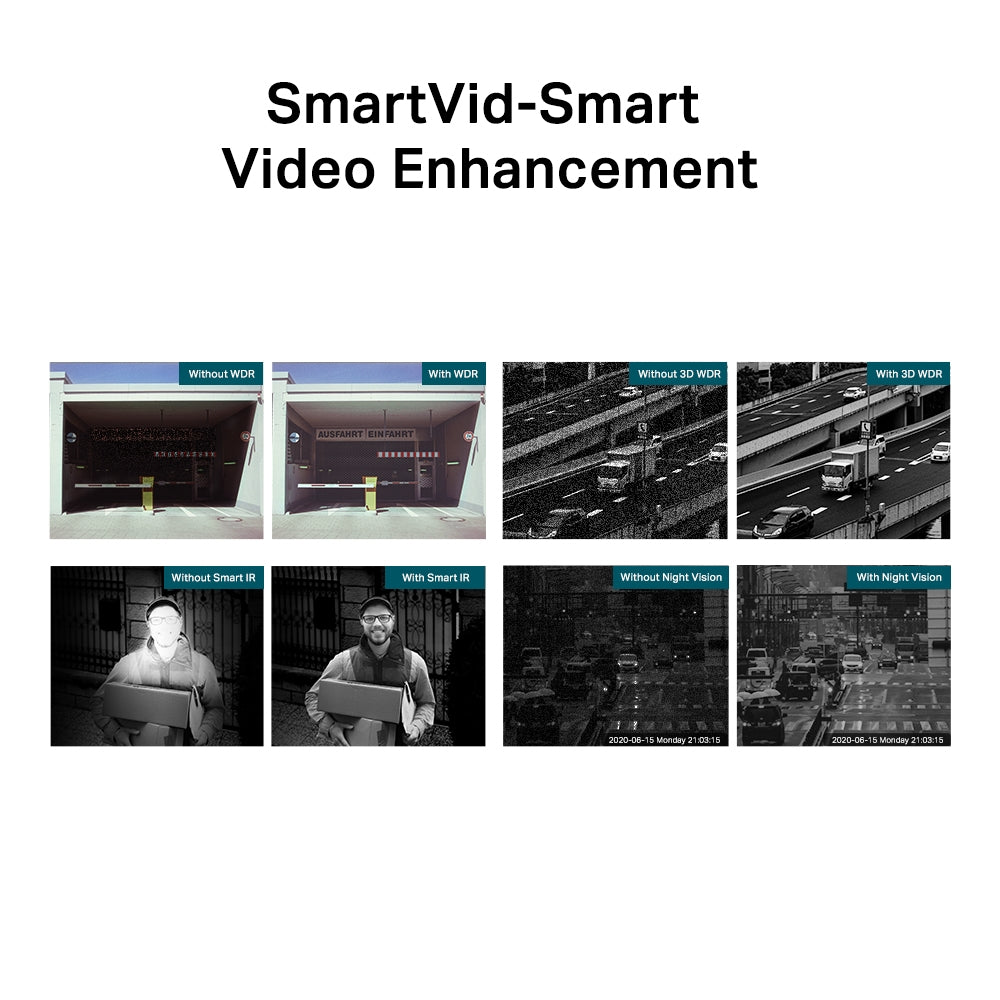

SmartVid Enhancement and H.265+
BLC, 3D DNR, HLC, Smart IR and WDR processing are supported, and the main stream can use H.265+ to save bandwidth and storage.
Ideal For
Reception areas, corridors, retail floors, offices and other indoor or covered areas that need colour footage around the clock and are recorded to a VIGI NVR. Supplied by SourceIT with local Singapore warranty and GST invoice.
VIGI C430 Datasheet — Technical Specifications
General
| Model | VIGI C430(4mm) |
| Official Product Name | VIGI 3MP Full-Color Turret Network Camera |
| Brand | TP-Link |
| Warranty | 3 Years Local Warranty (Singapore) |
Camera
| Image Sensor | 1/2.8" Progressive Scan CMOS |
| Shutter Speed | 1/3 to 1/10000 s |
| Slow Shutter | Yes |
| Minimum Illumination | 0.005 Lux; 0 Lux with IR/White Light |
| Day/Night Mechanism | IR Cut Filter |
| Day/Night Switch | Unified/ Scheduled/ Auto |
Lens
| Type | Fixed Focal Lens |
| Focal Length | 4 mm |
| Aperture | F1.6 |
| FOV | Horizontal FOV: 89.1°, Vertical FOV: 45.1°, Diagonal FOV: 106.9° |
| Lens Mount | M12 |
| DORI Distance | Detect: 70 m (230 ft); Observe: 29 m (96 ft); Recognize: 14 m (46 ft); Identify: 7 m (23 ft) |
| Angle Adjustment (Manual) | Pan: 0° to 360°, Tilt: 0° to 85°, Rotate: 0° to 360° |
Illuminator
| IR LED | Quantity: 2; Range: 30m; Wavelength: 850nm |
| White LED | Quantity: 2; Range: 30m |
| Illuminator On/Off Control | Auto/Scheduled/Always on/Always off |
Video
| Max. Resolution | 2304 x 1296 |
| Main Stream | Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps. Resolution: 2304x1296, 2048x1280, 1920x1080, 1280x720. Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. |
| Sub-Stream | Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps. Resolution: 704x576, 640x480, 352x288, 320x240. Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. |
| Bit Rate Control | CBR, VBR |
| Video Compression | Main Stream: H.265+/H.265/H.264+/H.264; Sub-Stream: H.265/H.264 |
| H.264 Type | Main Profile/High Profile |
| H.264+ | Main Stream Supported |
| H.265 Type | Main Profile |
| H.265+ | Main Stream Supported |
| Video Bit Rate | Main Stream: 256 Kbps to 4 Mbps; Sub-Stream: 64 Kbps to 512 Kbps |
| Image Settings | Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, Prevent Overexposure to Infrared Light, HLC Adjustable by Client Software, Rotation (90°/270°) |
| Image Enhancement | BLC/3D DNR/HLC/SmartIR |
| Wide Dynamic Range | WDR |
| SNR | ≥ 52 dB |
| Image Parameters Switch | Yes |
| Privacy Mask | Up to 4 Masks |
| ROI | 1 Region |
| OSD Setting | Yes |
Audio
| Audio Communication | N/A |
| Audio Input | Yes |
| Audio Output | N/A |
| Audio Compression | Yes |
| Audio Sampling Rate | 8KHz |
| Environment Noise Filtering | Yes |
| Audio Bit Rate | 64 Kbps (G.711 alaw) |
Network
| Protocol | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS |
| ONVIF | Yes |
| API | ONVIF |
| Simultaneous Live View | 3 Main Streams & 3 Sub-Streams |
| Security | Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication |
Alarm and Event Management
| Smart Event | Human & Vehicle Classification, Area Intrusion Detection, Line-Crossing Detection, People Detection, Vehicle Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection |
| Basic Event | Motion Detection, Video Tampering Detection, Exception (Illegal Login) |
| Alarm Linkage | White Light Flashing, Message Push |
| Output Notification | Message Push |
Interfaces
| Network Interface | 1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE |
| Alarm | N/A |
| Reset Button | N/A |
| Power | DC Power Port |
| On-board Storage | N/A |
| Built-in Microphone | Yes; Records Anything Going on within a 16.4-ft (5 m) Radius of the Camera |
| Built-in Speaker | N/A |
Physical & Environment
| Operating Temperature | -30–60 °C |
| Storage Temperature | -40–60 °C |
| Operating Humidity | 95% or Less (Non-Condensing) |
| Storage Humidity | 95% or Less (Non-Condensing) |
| Material | Plastic |
| Net Weight | 0.21 Kg |
| Gross Weight | 0.36 Kg |
| Power Supply | 12V DC ± 5%, Max. 5.5 W, 5.5mm Coaxial Power Plug; PoE: 802.3af/at, class 0, Max. 6 W |
| Protection | N/A |
| Product Dimensions (L x W x H) | 123 x 83 x 123 mm |
| Certifications | CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC |
TP-Link lists Protection as N/A for the VIGI C430 and publishes no IP water or dust rating, so it is not described here as weatherproof. The C430 has no memory card slot; recording is handled by an NVR.
Compatibility & Software Support
| Client | VIGI App, VIGI Security Manager, Web UI |
| Cloud | Yes |
| ONVIF | Yes |
| Web Browser | Google Chrome® 57 and above, Firefox® 52 and above, Safari® 11 and above, Microsoft® Edge 91 and above |
| Local Storage | None on the camera (On-board Storage: N/A) |
Package Contents & Ordering Information
Package Contents

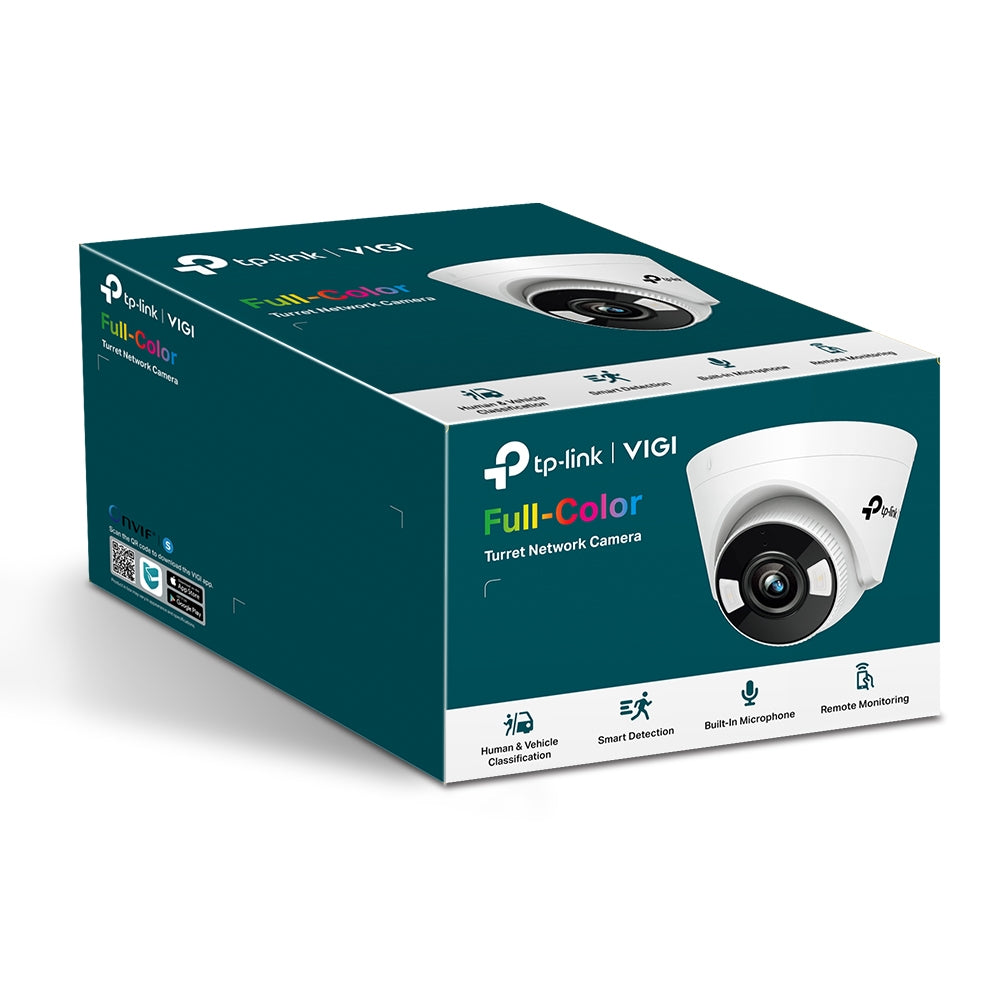

| In the Box | VIGI Network Camera, Quick Start Guide, Mounting Accessories |
Ordering Information
| Model | VIGI C430(4mm) |
| Other Focal Lengths | VIGI C430(2.8mm) |
| SKU | VIGI C430 |
| Warranty | 3 Years Local Warranty (Singapore) |
Datasheet & Downloads
Frequently Asked Questions — VIGI C430
Does the VIGI C430 record in colour at night?
Yes. It has two white LEDs and two 850 nm IR LEDs, each with a 30 m range, and TP-Link rates minimum illumination at 0 Lux with IR or white light.
Does the VIGI C430 have a memory card slot or speaker?
No. TP-Link lists on-board storage and the built-in speaker as N/A. It has a built-in microphone only, so recording is normally to a VIGI NVR.
What does the 4 mm lens cover?
Horizontal FOV: 89.1°, Vertical FOV: 45.1°, Diagonal FOV: 106.9°. TP-Link rates DORI distances at Detect: 70 m (230 ft); Observe: 29 m (96 ft); Recognize: 14 m (46 ft); Identify: 7 m (23 ft).
What warranty does SourceIT provide?
The VIGI C430 4mm is supplied with a 3-year local warranty in Singapore, handled through SourceIT together with TP-Link.
Can SourceIT quote this for an office or a project?
Yes. SourceIT can quote the VIGI C430 in volume together with VIGI NVRs, PoE switches, cabling and storage for offices, retail premises and multi-site projects, with a GST invoice.
