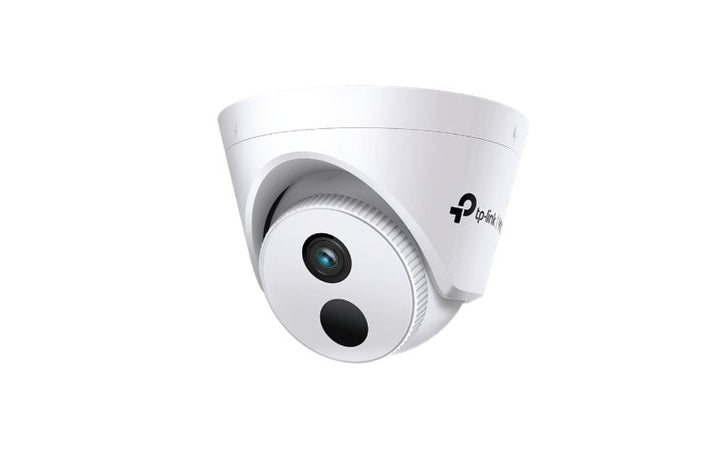

TP-Link VIGI C420I 2MP IR Turret Network Camera, 4mm Lens
Email sales@sourceit.com.sg or use Request for Quotation below and our team will confirm the latest price, availability and lead time.
PRODUCT DESCRIPTION
TP-Link VIGI 2MP IR Turret Network Camera (VIGI C420I 4mm) - 3 Years Local Warranty

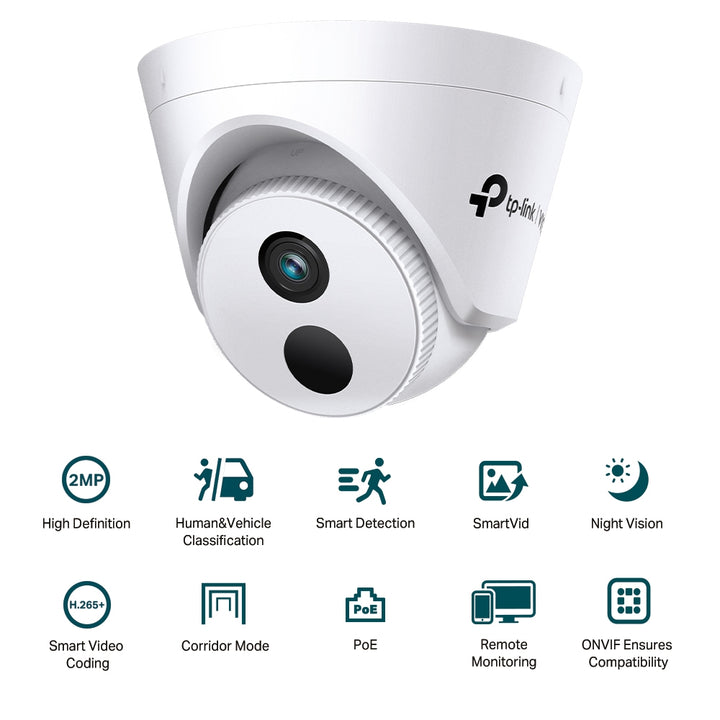

The TP-Link VIGI C420I is a 2MP turret network camera with a 4 mm fixed lens, 30 m IR night vision, human and vehicle classification and a built-in microphone. It is powered over PoE and records to a VIGI NVR, with management through the VIGI app and VIGI Security Manager.
2MP Full HD with Smart IR
A 1/3" progressive scan CMOS sensor records at up to 1920 x 1080. One 850 nm IR LED gives a stated IR range of 30 m, supported by Smart IR, DWDR and 3D DNR.
4 mm Fixed Lens
The 4 mm lens is the narrower of the two C420I versions (75.2° horizontal) with longer DORI distances, suited to corridors, counters and larger rooms.

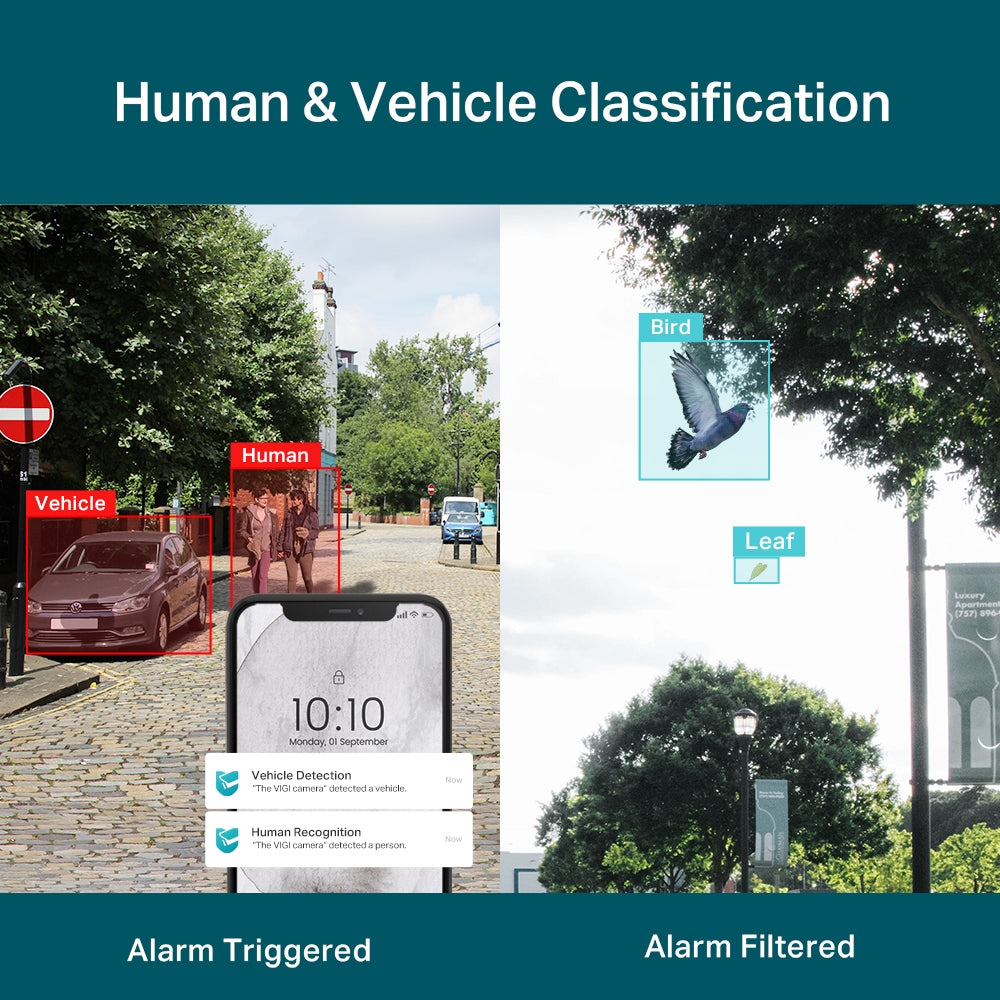

Human & Vehicle Classification and Corridor Mode

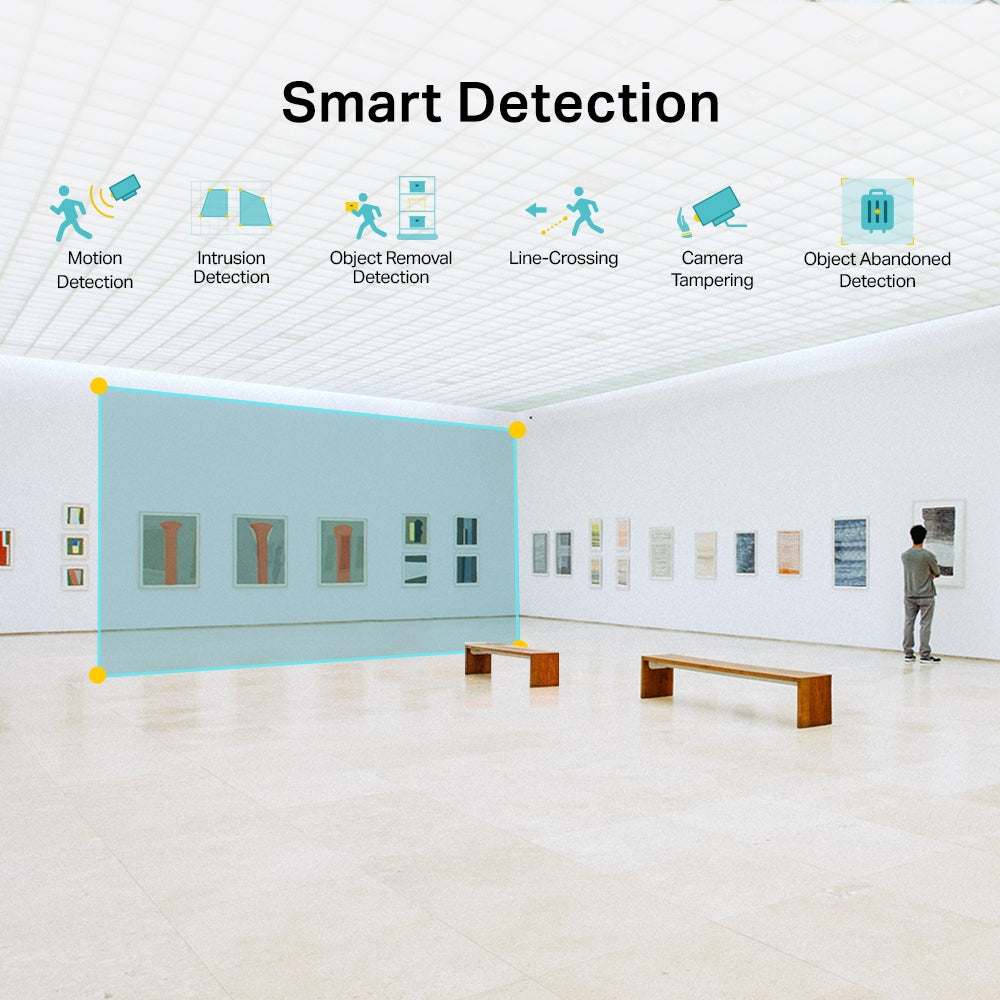

On-camera analytics separate people and vehicles from other movement, with intrusion, line-crossing, region entering/exiting, object abandoned/removal and abnormal sound detection. Corridor mode rotates the image from 16:9 to 9:16 for long, narrow areas.
Single-Cable PoE Installation
The C420I is powered only by 802.3af/at PoE (max. 5.5 W); TP-Link lists no DC power port. One RJ45 cable carries both data and power.
Ideal For
Indoor coverage in offices, retail shops, clinics, reception areas and corridors, recording to a VIGI NVR and managed through the VIGI app or VIGI Security Manager. Supplied by SourceIT with local Singapore warranty and GST invoice.
VIGI C420I 4mm Datasheet — Technical Specifications
General
| Model | VIGI C420I(4mm) |
| Official Product Name | VIGI 2MP IR Turret Network Camera |
| Brand | TP-Link |
| Warranty | 3 Years Local Warranty (Singapore) |
Camera
| Image Sensor | 1/3" Progressive Scan CMOS |
| Shutter Speed | 1/3 to 1/10000 s |
| Slow Shutter | Yes |
| Minimum Illumination | Color: 0.01 Lux; 0 Lux with IR Light |
| Day/Night Mechanism | IR Cut Filter |
| Day/Night Switch | Unified/ Scheduled/ Auto |
Lens
| Type | Fixed Focal Lens |
| Focal Length | 4 mm |
| Aperture | F2.0 |
| FOV | Horizontal FOV: 75.2°, Vertical FOV: 40.8°, Diagonal FOV: 88.3° |
| Lens Mount | M12 |
| DORI Distance | Detect: 60 m (198 ft) Observe: 25 m (83 ft) Recognize: 12 m (40 ft) Identify: 6 m (20 ft) |
Angle Adjustment (Manual)
| Range | Pan: 0° to 360° Tilt: 0° to 85° Rotate: 0° to 360° |
Illuminator
| IR LED | Quantity: 1 Range: 30m Wavelength: 850nm |
| White LED | N/A |
| Illuminator On/Off Control | Auto/Scheduled/Always on/Always off |
Video
| Max. Resolution | 1920 x 1080 |
| Main Stream | Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps Resolution: 1920x1080, 1280x960, 1280x720 Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. |
| Sub-Stream | Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps Resolution: 704x576, 640x480, 352x288, 320x240 Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. |
| Bit Rate Control | CBR, VBR |

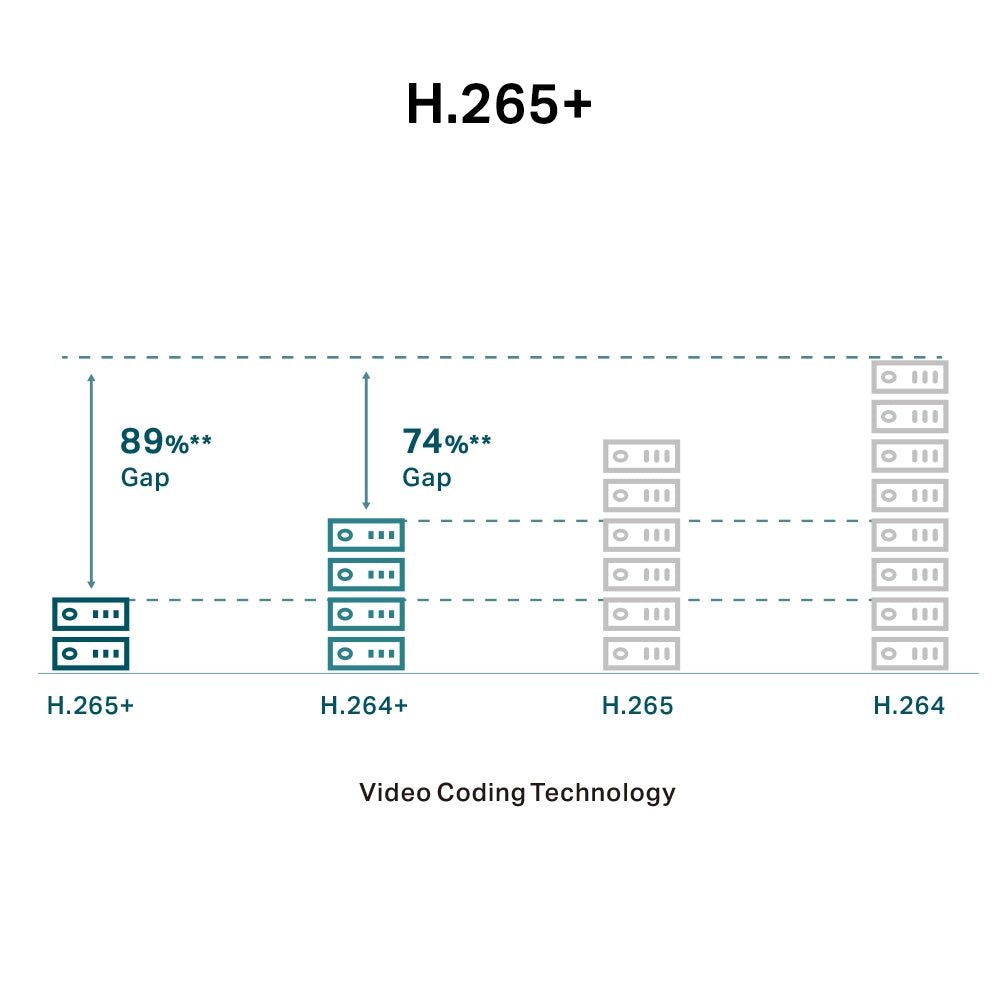

| Video Compression | Main Stream: H.265+/H.265/H.264+/H.264 Sub-Stream: H.265/H.264 |
| H.264 Type | High Profile |
| H.264+ | Main Stream Supported |
| H.265 Type | Main Profile |
| H.265+ | Main Stream Supported |
| Video Bit Rate | Main Stream: 256 Kbps to 4 Mbps Sub-Stream: 64 Kbps to 512 Kbps |
| Image Settings | Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, DWDR, White Balance, Prevent Overexposure to Infrared Light, HLC Adjustable by Client Software, Rotation (90°/270°) |
| Image Enhancement | BLC/3D DNR/HLC/SmartIR |
| Wide Dynamic Range | DWDR |
| SNR | ≥ 52 dB |
| Image Parameters Switch | Yes |
| Privacy Mask | Up to 4 Masks |
| ROI | 1 Region |
| OSD Setting | Yes |
Audio
| Audio Communication | N/A |
| Audio Input | Yes |
| Audio Output | N/A |
| Audio Compression | Yes |
| Audio Sampling Rate | 8KHz |
| Environment Noise Filtering | Yes |
| Audio Bit Rate | 64 Kbps (G.711 alaw) |
Network
| Protocol | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, ARP |
| ONVIF | Yes |
| API | Open Network Video Interface (Profile S) |
| Simultaneous Live View | 3 Main Streams & 3 Sub-Streams |
| Client | VIGI App, VIGI Security Manager, Web UI |
| Web Browser | Google Chrome® 57 and above Firefox® 52 and above Safari® 11 and above Microsoft® Edge 91 and above |
| Cloud | Yes |
| Security | Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication |
Alarm and Event Management
| Smart Event | Intrusion Detection Line-Crossing Detection Region Entering Detection Region Exiting Detection Object Abandoned/Removal Detection Abnormal Sound Detection People Detection Vehicle Detection |
| Basic Event | Motion Detection (Enhanced with Human & Vehicle Classification for more accurate alerts) Video Tampering Detection Exception (Illegal Login) |
| Alarm Linkage | Message Push |
| Linkage Method | N/A |
| Output Notification | Message Push |
Interfaces
| Network Interface | 1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE |
| Alarm | N/A |
| Reset Button | N/A |
| Power | N/A |
| On-board Storage | N/A |
| Built-in Microphone | Yes; Records Anything Going on within a 16.4-ft (5 m) Radius of the Camera |
| Built-in Speaker | N/A |
| Audio | N/A |
General
| Operating Temperature | -30–60 °C |
| Storage Temperature | -40–60 °C |
| Operating Humidity | 95% or Less (Non-Condensing) |
| Storage Humidity | 95% or Less (Non-Condensing) |
| Material | Plastic |
| Net Weight | 0.19 Kg |
| Gross Weight | 0.34 Kg |
| Power Supply | PoE: 802.3af/at, class 0, Max. 5.5 W |
| Protection | N/A |
| Product Dimensions (L x W x H) | 123 x 123 x 83 mm (4.84 x 4.84 x 3.27 in) |
| Certifications | CE, NTRA, VCCI, BSMI |
TP-Link lists the aperture, field of view and DORI distances separately for the 2.8 mm and 4 mm versions; only the figures for this lens are shown above. TP-Link lists the Protection rating as N/A, so no IP weatherproof rating is published for the C420I.
Compatibility & Software Support
| Management (product page) | NVR UI, VIGI app and VIGI Security Manager |
| Client (spec table) | VIGI App, VIGI Security Manager, Web UI |
| ONVIF | Yes — Open Network Video Interface (Profile S) |
| Cloud | Yes |
| Web Browser | Google Chrome® 57 and above, Firefox® 52 and above, Safari® 11 and above, Microsoft® Edge 91 and above |
| On-board Storage | N/A — recording is to a network video recorder |
| Power | PoE only: 802.3af/at, class 0, max. 5.5 W |
TP-Link's product page describes three management methods (NVR UI, VIGI app, VIGI Security Manager), while its specification table also lists Web UI as a client. Both are shown as published.
Package Contents & Ordering Information
Package Contents
| 1 | VIGI Network Camera |
| 2 | Quick Start Guide |
| 3 | Mounting Accessories |
Ordering Information
| Model | VIGI C420I(4mm) |
| SKU | VIGI C420I |
| Warranty | 3 Years Local Warranty (Singapore) |
| Other focal lengths in this range | VIGI C420I(2.8mm) |
Datasheet & Downloads
Frequently Asked Questions — VIGI C420I
Can the VIGI C420I be installed outdoors?
TP-Link lists the Protection rating as N/A and publishes no IP weatherproof rating for the C420I, so it is best treated as an indoor camera. For outdoor positions, consider an IP67-rated VIGI model.
How is the C420I powered?
Over PoE only (802.3af/at, class 0, max. 5.5 W). TP-Link lists no DC power port, so a PoE switch or PoE injector is required.
How far can it see at night?
TP-Link states an IR range of 30 m. For the 4 mm lens, the published detect distance is 60 m (198 ft) and the identify distance is 6 m (20 ft).
Does it record audio?
Yes. TP-Link lists a built-in microphone that records within a 5 m (16.4 ft) radius. There is no built-in speaker, so two-way audio is not supported.
What warranty does SourceIT provide?
The VIGI C420I is supplied with a 3 Years Local Warranty (Singapore). Keep your SourceIT invoice as proof of purchase.
Can SourceIT quote this for an office or a project?
Yes. SourceIT supplies the VIGI C420I for single sites and multi-camera projects in Singapore. Send the quantity, focal lengths and any matching VIGI recorder or PoE switch you need, and SourceIT will return a quotation with a GST invoice.
