TP-Link VIGI NVR4032H 32 Channel Network Video Recorder
Email sales@sourceit.com.sg or use Request for Quotation below and our team will confirm the latest price, availability and lead time.
PRODUCT DESCRIPTION
TP-Link VIGI 32 Channel Network Video Recorder (VIGI NVR4032H) - 5 Years Local Warranty
The TP-Link VIGI NVR4032H is a 32-channel network video recorder with four SATA bays (up to 16 TB each), dual Gigabit Ethernet ports, 4K HDMI and VGA outputs and 16/4 alarm in/out. It records IP cameras at up to 8MP with H.265+ compression and supports ONVIF Profile S/T.
32 IP Channels at up to 8MP
The NVR4032H accepts 32 IP camera channels with 320 Mbps incoming bandwidth and records at resolutions up to 8MP using H.265+/H.265/H.264+/H.264. TP-Link rates decoding at 16 channels of 2MP or 32 channels of 720p at 25fps, and 4 channels of 8MP at 30fps.
Four SATA Bays
Four SATA interfaces each take a hard disk of up to 16 TB (disks not included), with HDD power and data cables supplied in the box.
Dual Gigabit Ethernet Ports
Two 10/100/1000 Mbps RJ-45 ports support multi-address mode, network fault-tolerance and port aggregation. Note that the NVR4032H has no built-in PoE ports, so cameras are powered by a separate PoE switch or their own supplies.
4K HDMI Output, Alarm I/O and Auto Initialize
Local monitoring is via HDMI (up to 3840x2160 at 30Hz) and VGA outputs, independently or simultaneously. 16 alarm inputs, 4 alarm outputs, RS232 and RCA audio in/out connect external devices, and the Auto Initialize function sets up basic camera and hard-disk parameters in one step.
Ideal For
Offices, warehouses, schools, retail chains and multi-floor sites running up to 32 VIGI or ONVIF cameras, with remote access from Android and iOS devices and a web browser. Supplied by SourceIT with local Singapore warranty and GST invoice.
VIGI NVR4032H Datasheet — Technical Specifications
General
| Model | VIGI NVR4032H |
| Official Product Name | VIGI 32 Channel Network Video Recorder |
| Brand | TP-Link |
| Warranty | 5 Years Local Warranty (Singapore) |
Video and Audio
| IP Video Input | 32-Channel |
| Incoming Bandwidth | 320 Mbps |
| Outgoing Bandwidth | 320 Mbps |
| HDMI Output Resolution | 1 Channel, Resolution: 3840x2160/30Hz, 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz |
| VGA Output Resolution | 1 Channel, Resolution: 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz |
| Video Output Mode | HDMI and VGA Independent / Simultaneous Output |
| Multi-View Display | 1/4/6/8/9/16/25/32/36 |
Decoding
| Audio Compression | G.711A/G.711U/G.726 |
| Video Compression | H.265+/H.265/H.264+/H.264 |
| Record Resolution | 8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Synchronous Playback | 16-Channel (The number of simultaneously playable channels may be fewer than 16, or none, if the total resolution exceeds 32MP.) |
| Capability | 25fps: 16-ch@2MP, 32-ch@720P 30fps: 4-ch@8MP, 6-ch@5MP, 8-ch@4MP |
Record Management
| Record Mode | Manual Recording, Scheduling Recording, Motion Detection Recording |
| Playback Mode | Instant Playback, Regular Playback, Tag Playback, Event Playback |
| Backup Mode | Regular Backup, Video Clip Backup |
| Playback Function | Play, Pause, Stop, Fast Forward, Fast Backward, Play By Frame, Full Screen, Video Clip, Export Clip, Digital Zoom, Lock Recording, Audio On/Off |
Network
| Protocol | UPnP (Plug and Play), NTP (Network Timing), SMTP, DNS, TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, RTSP, SSL/TLS, RTP, IPv4, ARP, IPv6, SNMP |
| Mobile Phone Access | Android, iOS |
| Web Browser | Chrome (57+), Firefox (52+), Edge (91+) |
| Interoperability | ONVIF Profile S/T, CGI |

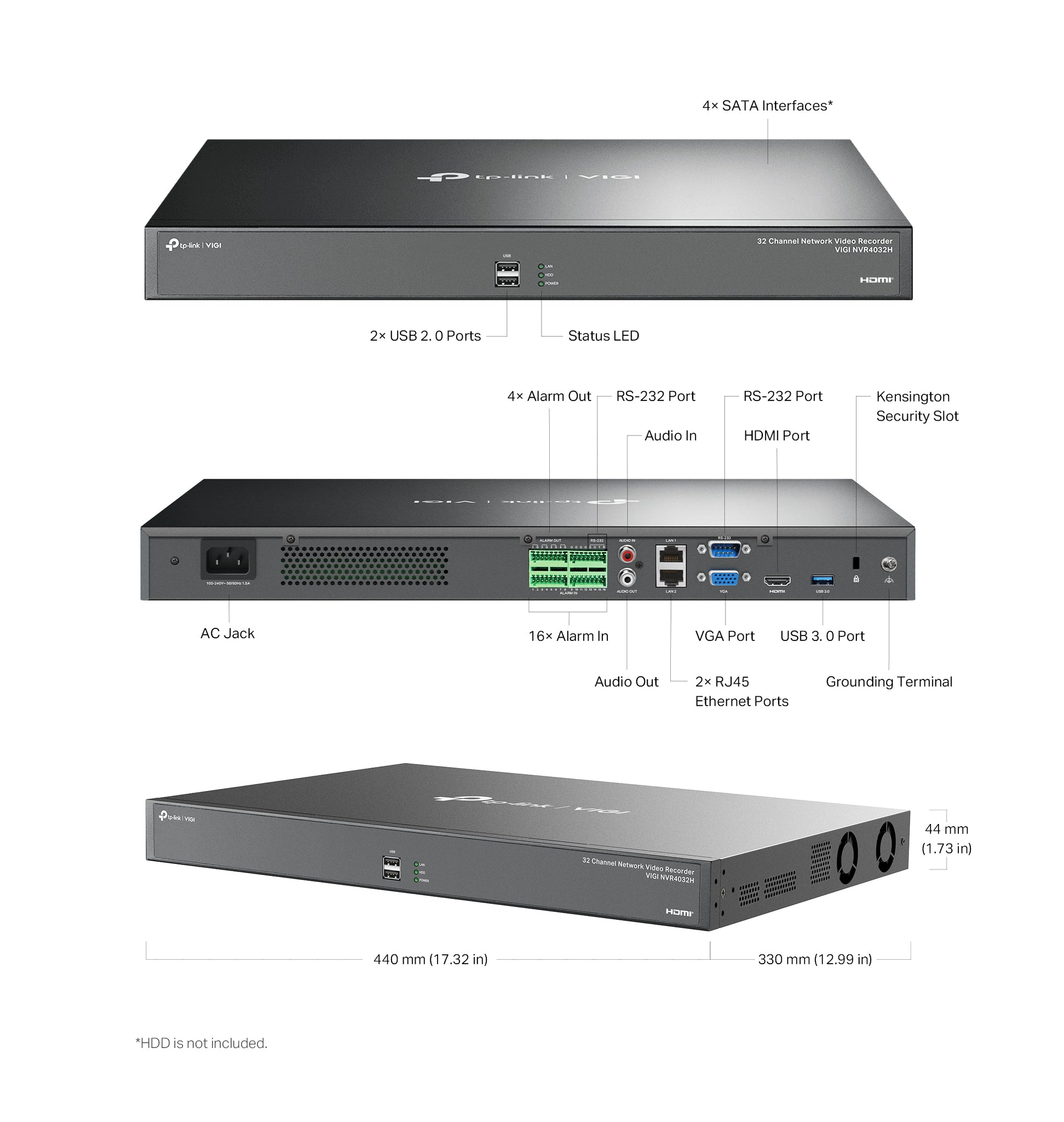

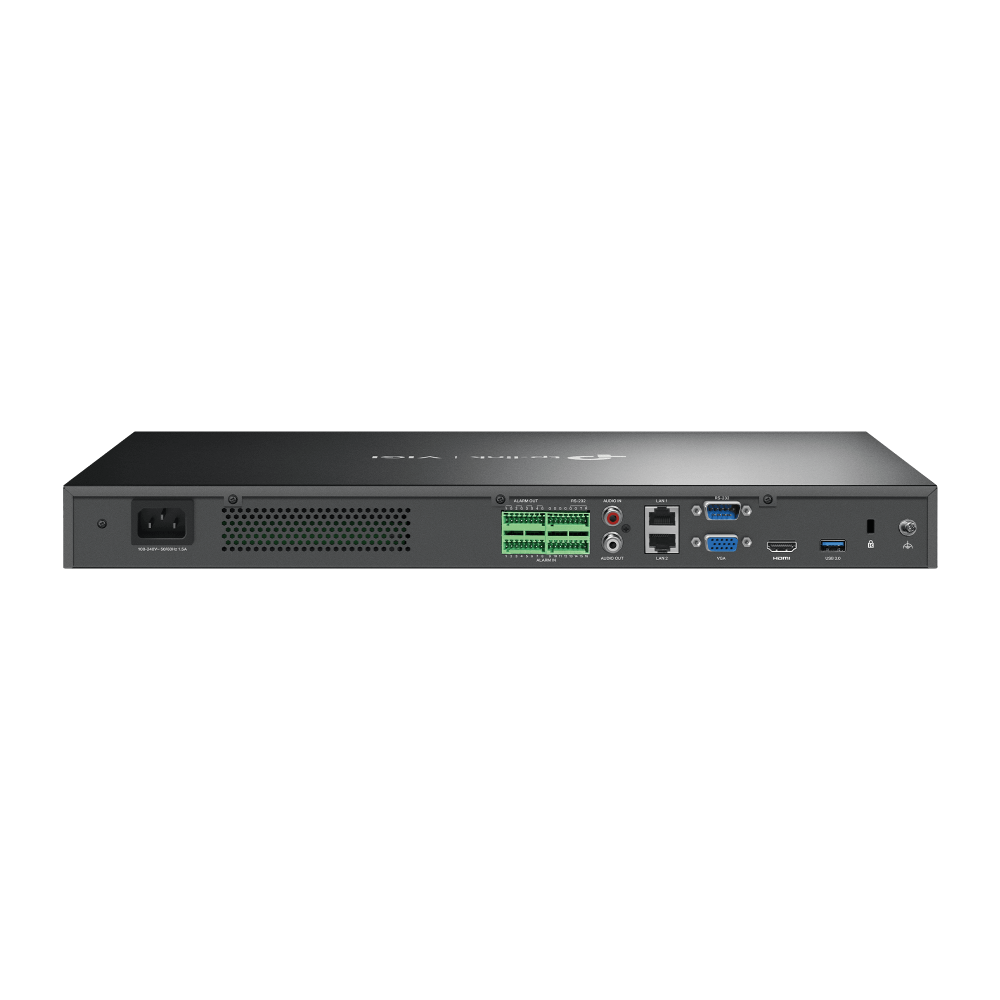

External Interface
| Network Interface | 2, RJ-45 10/100/1000 Mbps Self-Adaptive Ethernet Interface |
| USB Interface | 2 Front USB 2.0 Ports, 1 Rear USB 3.0 Port |
| Audio Interface | 1-ch RCA Input; 1-ch RCA Output |
| Alarm In/Out | 16/4 |
| Serial Interface | 1, RS232 |
| Power | 1x AC Jack |
| Reset Button | 1 |
| Speaker | N/A |
| eSATA | N/A |
| HDMI | 1 |
| VGA | 1 |
Hard Disk
| SATA | 4 SATA Interfaces |
| Capacity | Up to 16 TB Capacity for Each HDD (HDD is not included.) |
Alarm
| General Alarm | Motion Detection Video Tampering Line-Crossing Detection Intrusion Detection Region Entering Detection Region Exiting Detection Object Abandoned/Removal Detection Vehicle Detection Human Detection Note: The alarm function requires the use of a camera. |
| Anomaly Alarm | Video Loss, Offline and IP Conflict, Disk Exception, Login Exception, Fan Exception |
| Alarm Linkage | Recording White Light Alarm Buzzer Log Audible Alarm Note: The alarm function requires the use of a camera. |
General
| Working Temperature | NVR: -10 °C to 55 °C (14 °F to 131 °F) |
| Working Humidity | 10%~90% RH Non-Condensing |
| Storage Temperature | -40 °C to 70 °C (-40 °F to 158 °F) |
| Storage Humidity | 10%~90% RH Non-Condensing |
| Dimensions (W x D x H) | 17.3 x 13 x 1.7 in (440 x 330 x 44 mm) |
| Power Supply | 100-240 VAC, 50 to 60HZ, 1.5A |
| Max. Power Consumption | 5 W (Without Disk) 48 W (With Disk) |
| Net Weight | 4.0 Kg |
| Gross Weight | 5.2 Kg |
| Certifications | CE, EAC, UKCA, RCM, Triman, VCCI, FCC, IC, HDMI |
TP-Link recommends using a tray when mounting this model in a rack with angle iron because of its weight; the tray is not included. The specification lists no built-in PoE ports, and TP-Link publishes no rack-unit height for the NVR4032H.
Compatibility & Software Support
| Cameras | IP cameras (turret, bullet and dome); ONVIF Profile S/T, CGI |
| Management | Local GUI via HDMI/VGA with mouse, web browser, VIGI app and PC software |
| Mobile Phone Access | Android, iOS |
| Web Browser | Chrome (57+), Firefox (52+), Edge (91+) |
| Storage | 4 x SATA, up to 16 TB per HDD (HDD not included) |
| Backup | USB 2.0 (x2 front) and USB 3.0 (x1 rear) |
Package Contents & Ordering Information
Package Contents
| 1 | VIGI Network Video Recorder |
| 2 | Mouse |
| 3 | Installation Guide |
| 4 | Power Cord |
| 5 | HDD Power Cables |
| 6 | HDD Data Cables |
| 7 | Terminal Blocks |
| 8 | Mounting Brackets |
| 9 | Screws |
| 10 | Rubber Feet |
| 11 | HDD Screws |
Hard disks are not included.
Ordering Information
| Model | VIGI NVR4032H |
| SKU | VIGI NVR4032H |
| Warranty | 5 Years Local Warranty (Singapore) |
Datasheet & Downloads
Frequently Asked Questions — VIGI NVR4032H
Does the NVR4032H include hard disks?
No. It has four SATA interfaces, each supporting a disk of up to 16 TB, but HDDs are not included. HDD power and data cables and HDD screws are in the box.
Does it have PoE ports for cameras?
No. The NVR4032H has two Gigabit Ethernet ports and no built-in PoE, so cameras connect through a network switch and are powered by a PoE switch or their own power supplies.
Can it play back all 32 channels at once?
TP-Link specifies synchronous playback of 16 channels. Fewer than 16, or none, may play simultaneously if the total resolution exceeds 32MP.
Can I view cameras remotely?
Yes. TP-Link lists mobile phone access from Android and iOS and web access from Chrome 57+, Firefox 52+ and Edge 91+.
What warranty does SourceIT provide?
The VIGI NVR4032H is supplied with a 5 Years Local Warranty (Singapore). Keep your SourceIT invoice as proof of purchase.
Can SourceIT quote this for an office or a project?
Yes. SourceIT supplies the VIGI NVR4032H for single sites and multi-camera projects in Singapore. Send the number of cameras, the recording capacity you need and any matching VIGI cameras, hard disks or PoE switches, and SourceIT will return a quotation with a GST invoice.
