TP-Link VIGI C250 5MP Full-Color Dome Network Camera, 2.8mm Lens
Email sales@sourceit.com.sg or use Request for Quotation below and our team will confirm the latest price, availability and lead time.
PRODUCT DESCRIPTION
TP-Link VIGI 5MP Full-Color Dome Network Camera (VIGI C250 2.8mm) - 3 Years Local Warranty

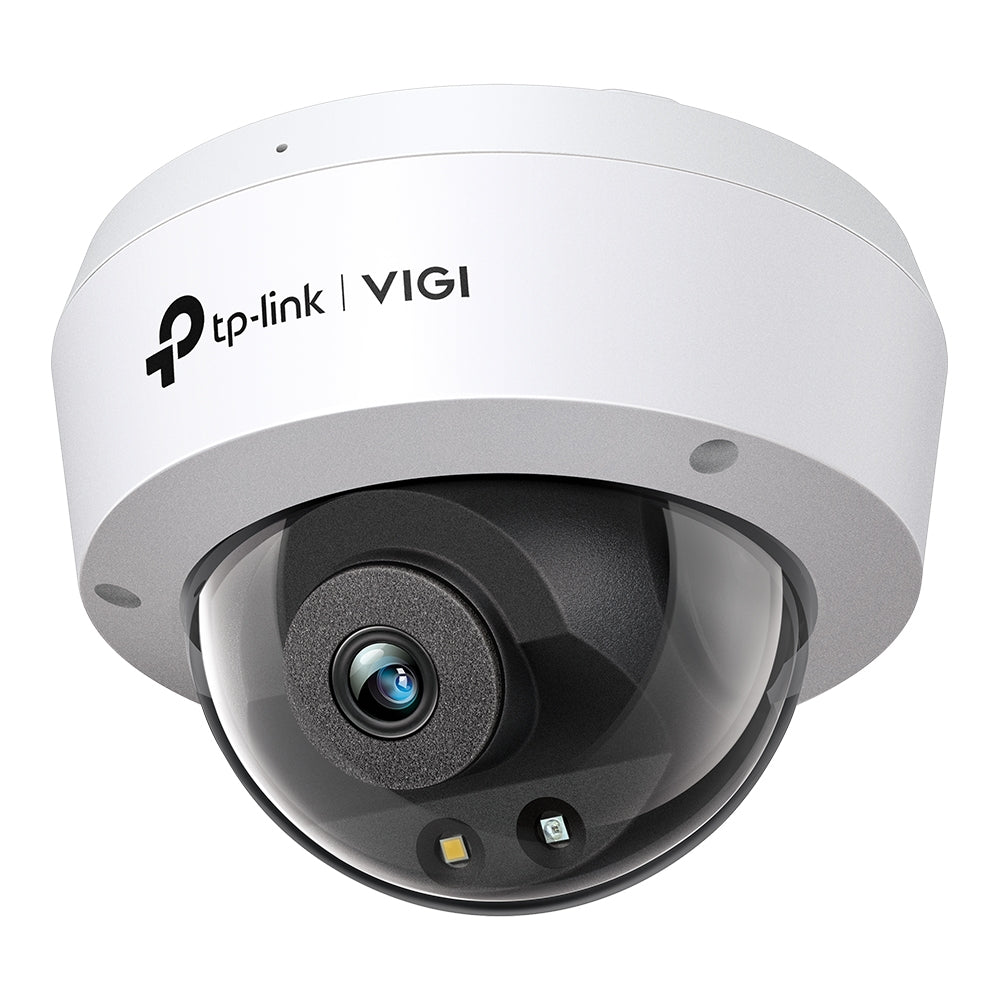

The TP-Link VIGI C250 is a 5MP (2880 x 1620) dome camera with a fixed 2.8mm F1.6 lens, 24-hour full-colour imaging and an IK10 vandal-proof, IP67 waterproof housing. It adds a built-in microphone, a microSD slot of up to 256 GB and people & vehicle analytics for faster post-event search.
5MP Resolution and 24h Full-Color
A 1/2.7" progressive scan CMOS sensor with a large-aperture F1.6 lens and supplemental white light keeps footage in colour at night, down to 0.005 Lux.
People & Vehicle Analytics
Deep-learning search filters recorded people and vehicles by their attributes, alongside human & vehicle classification, area intrusion, line-crossing and loitering detection.

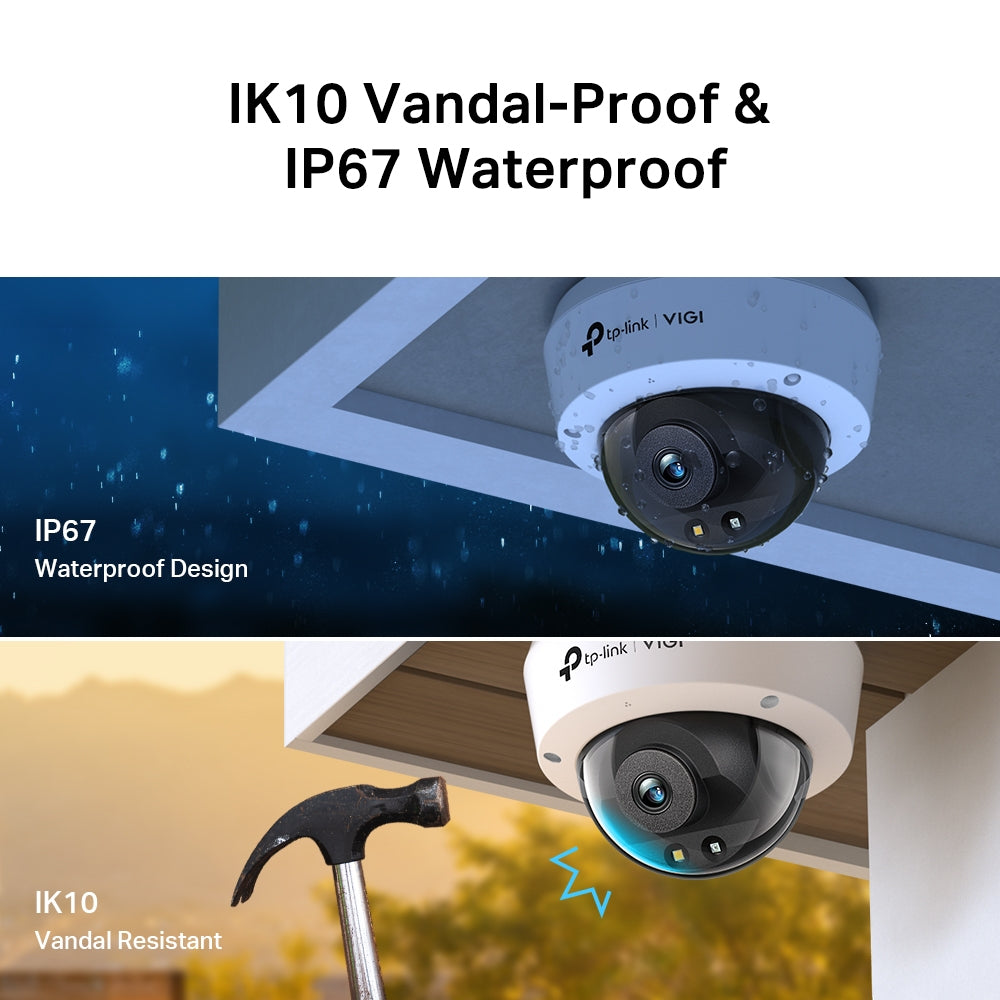

Vandal-Proof Dome with Built-In Microphone
The IK10-rated, IP67-rated dome resists impact and weather, and the built-in microphone records sound around the camera.
Flexible Power and Storage
Power it from 802.3at PoE or 12V DC, and record locally to a microSD card of up to 256 GB, or to a VIGI NVR.
Ideal For
Reception areas, corridors, retail floors, lift lobbies and covered outdoor areas where a tamper-resistant dome and colour night footage are needed. Supplied by SourceIT with local Singapore warranty and GST invoice.
VIGI C250 Datasheet — Technical Specifications
General
| Model | VIGI C250(2.8mm) |
| Official Product Name | VIGI 5MP Full-Color Dome Network Camera |
| Brand | TP-Link |
| Warranty | 3 Years Local Warranty (Singapore) |
Camera
| Image Sensor | 1/2.7" Progressive Scan CMOS |
| Shutter Speed | 1/3 to 1/10000 s |
| Slow Shutter | Yes |
| Minimum Illumination | 0.005 Lux; 0 Lux with IR/white light |
| Day/Night Mechanism | IR Cut Filter |
| Day/Night Switch | Unified/ Scheduled/ Auto |
Lens
| Type | Fixed Focal Lens |
| Focal Length | 2.8 mm |
| Aperture | F1.6 |
| FOV | Horizontal FOV: 109° Vertical FOV: 57° Diagonal FOV: 128° |
| Lens Mount | M12*P 0.5 |
| DORI Distance | Detect: 64 m (209 ft) Observe: 27 m (87 ft) Recognize: 13 m (42 ft) Identify: 6 m (21 ft) |
Angle Adjustment (Manual)
| Range | Pan: 0° to 360°, Tilt: 0° to 85° |
Illuminator
| IR LED | Quantity: 1 Range: 30m Wavelength: 850nm |
| White LED | Quantity: 1 Range: 30m |
| Illuminator On/Off Control | Auto/Scheduled/Always on/Always off |
Video
| Max. Resolution | 2880 x 1620 |
| Main Stream | Frame Rate 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps Frame Rate 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps Resolution: 2880x1620, 2688x1520, 2304x1296, 2048x1280, 1920x1080, 1280x720 Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. |
| Sub-Stream | Frame Rate 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps Frame Rate 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps Resolution: 704x576, 640x480, 352x288, 320x240 |
| Bit Rate Control | CBR, VBR |

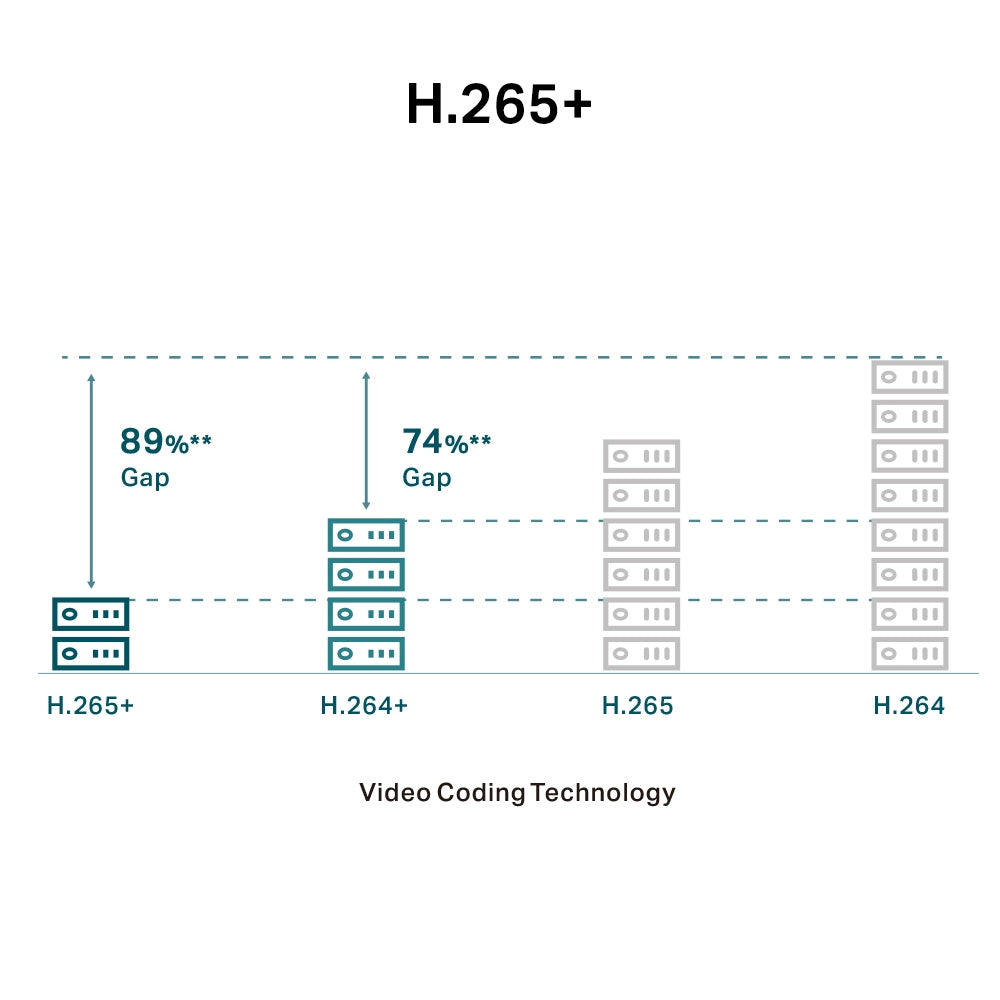

| Video Compression | Main Stream: H.265+/H.265/H.264+/H.264 Sub-Stream: H.265/H.264 |
| H.264 Type | Main Profile/High Profile |
| H.264+ | Main Stream Supported |
| H.265 Type | Main Profile △ |
| H.265+ | Main Stream Supported △ |
| Video Bit Rate | Main Stream: 256 Kbps to 6 Mbps Sub-Stream: 64 Kbps to 512 Kbps |
| Image Settings | Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, Prevent Overexposure to Infrared Light, HLC Adjustable by Client Software |
| Image Enhancement | BLC/3D DNR/HLC/SmartIR |
| Wide Dynamic Range | 120 dB |
| SNR | ≥ 52 dB |
| Image Parameters Switch | Yes |
| Privacy Mask | Up to 4 Masks |
| ROI | 1 Region |
| OSD Setting | Yes |
Audio
| Audio Communication | N/A |
| Audio Input | Yes |
| Audio Output | N/A |
| Audio Compression | Yes |
| Audio Sampling Rate | 8KHz |
| Environment Noise Filtering | Yes |
| Audio Bit Rate | 64 Kbps (G.711 alaw) |
Network
| Protocol | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS |
| ONVIF | Yes |
| API | Open Network Video Interface (Profile S) |
| Simultaneous Live View | 3 Main Streams & 3 Sub-Streams |
| Security | Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication |
Alarm and Event Management

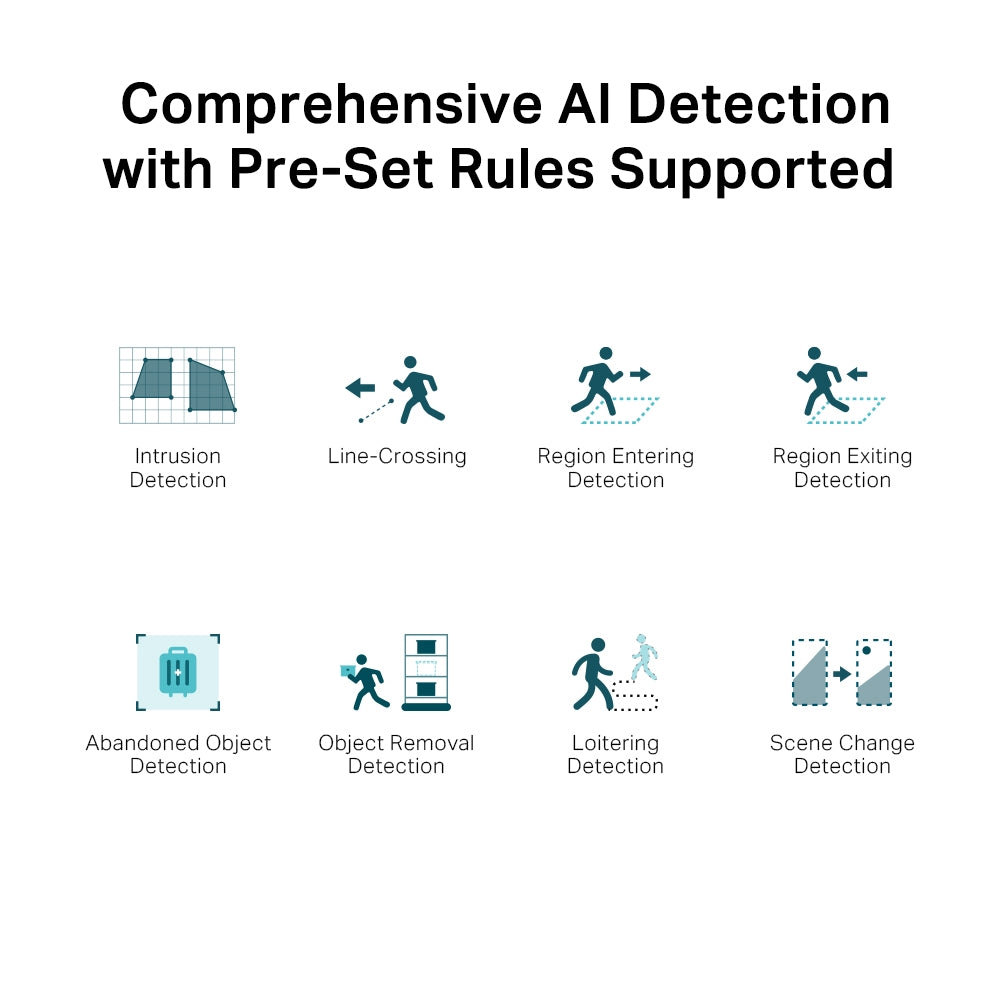

| Smart Event | Human & Vehicle Classification, Area Intrusion Detection, Line-Crossing Detection, People Detection, Vehicle Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection, Loitering Detection, Scene Change Detection |
| Basic Event | Motion Detection, Video Tampering Detection, Exception (Illegal Login), Scene Change Detection |
| Alarm Linkage | Memory Card Video Recording, Message Push, White Light Flashing |
| Output Notification | Message Push |
Deep Learning Function
| People & Vehicle Analytics | Search and filter to people or vehicle of interest based on many different attributes, making post-event search faster and easier. |
| Multi-Target-Type Detection | Supports Simultaneous Detection and Capture of Human Body and Vehicle |
| Face Capture | N/A |
| Face Comparison | N/A |
Interfaces
| Network Interface | 1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE |
| Alarm | N/A |
| Reset Button | Yes |
| Power | DC Power Port |
| On-board Storage | Built-In Memory Card Slot, Support MicroSD Card, up to 256 GB* |
| Built-in Microphone | Yes; Records Anything Going on within a 16.4-ft (5 m) Radius of the Camera |
| Built-in Speaker | N/A |
Power
| Power Supply | 12V DC ± 5%, Max. 7 W, 5.5mm Coaxial Power Plug PoE: 802.3at, class 0, Max. 8 W |
Physical & Environment
| Operating Temperature | -30–60 °C |
| Storage Temperature | -40–60 °C |
| Operating Humidity | 95% or Less (Non-Condensing) |
| Storage Humidity | 95% or Less (Non-Condensing) |
| Protection | IP67, IK10 |
| Material | Plastic |
| Product Dimensions | Φ115x85.7 mm |
| Net Weight | 0.28 Kg |
| Gross Weight | 0.47 Kg |
| Certifications | CE, NTRA, VCCI, KC, BSMI, FCC, IC |
*SD card is not included in the package.
△ Tile encoding is automatically enabled in H.265 mode when the horizontal resolution exceeds 2688. If a third-party NVR doesn't support tile encoding, it cannot enable H.265 mode. TP-Link recommends using a VIGI NVR with VIGI cameras.
TP-Link's page states the microphone range two ways: the feature text says a 15-ft radius, while the specification table says 16.4 ft (5 m). Both figures are shown as published.
Compatibility & Software Support
| Management Clients | VIGI App, VIGI Security Manager, Web UI |
| Web Browser | Google Chrome® 57 and above Firefox® 52 and above Safari® 11 and above Microsoft® Edge 91 and above |
| Cloud | Yes |
| Third-Party Integration | ONVIF Profile S |
| On-Camera Storage | microSD, up to 256 GB (card not included) |
| NVR Note | H.265 at resolutions above 2688 horizontal uses tile encoding; TP-Link recommends a VIGI NVR |
Package Contents & Ordering Information
Package Contents
| VIGI Network Camera | Included |
| Quick Start Guide | Included |
| Waterproof Cable Attachments | Included |
| Mounting Accessories | Included |
microSD card not included.
Ordering Information
| Model | VIGI C250(2.8mm) |
| Other Focal Lengths | VIGI C250 (4mm) (also available) |
| SKU | VIGI C330S (2.8mm) |
| Warranty | 3 Years Local Warranty (Singapore) |
Datasheet & Downloads
Frequently Asked Questions — VIGI C250
Does the VIGI C250 record in colour at night?
Yes. It is a 24-hour full-colour camera with an F1.6 lens, a 1/2.7" sensor and a white LED with a 30 m range; it also has an 850 nm IR LED with a 30 m range.
Can it record without an NVR?
Yes. It has a microSD slot supporting cards up to 256 GB. The card is not included.
Does it have audio?
It has a built-in microphone for audio recording. There is no built-in speaker, so two-way talk is not supported.
What warranty does SourceIT provide?
The VIGI C250 is supplied with a 3-year local warranty in Singapore, handled under TP-Link's replacement warranty policy. Keep the GST invoice as proof of purchase.
Can SourceIT quote this for an office or a project?
Yes. SourceIT quotes VIGI cameras together with VIGI NVRs, PoE switches and storage for offices, shops, warehouses and multi-site projects, with a GST invoice for every order.
