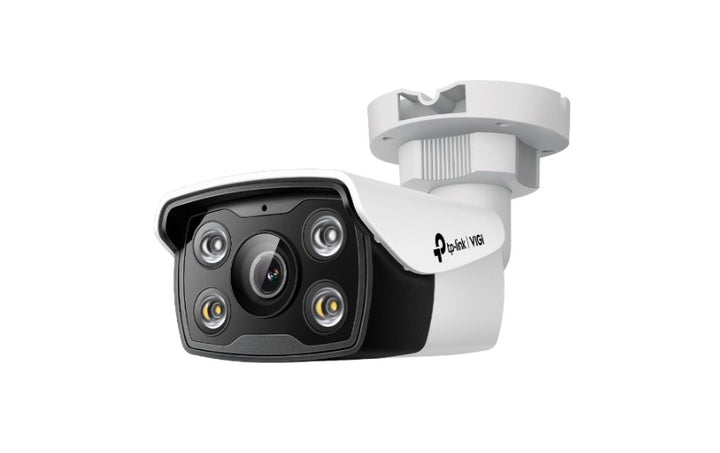

TP-Link VIGI C350 5MP Full-Color Bullet Network Camera, 2.8mm Lens
Email sales@sourceit.com.sg or use Request for Quotation below and our team will confirm the latest price, availability and lead time.
PRODUCT DESCRIPTION
TP-Link VIGI 5MP Full-Color Bullet Network Camera (VIGI C350 2.8mm) - 3 Years Local Warranty

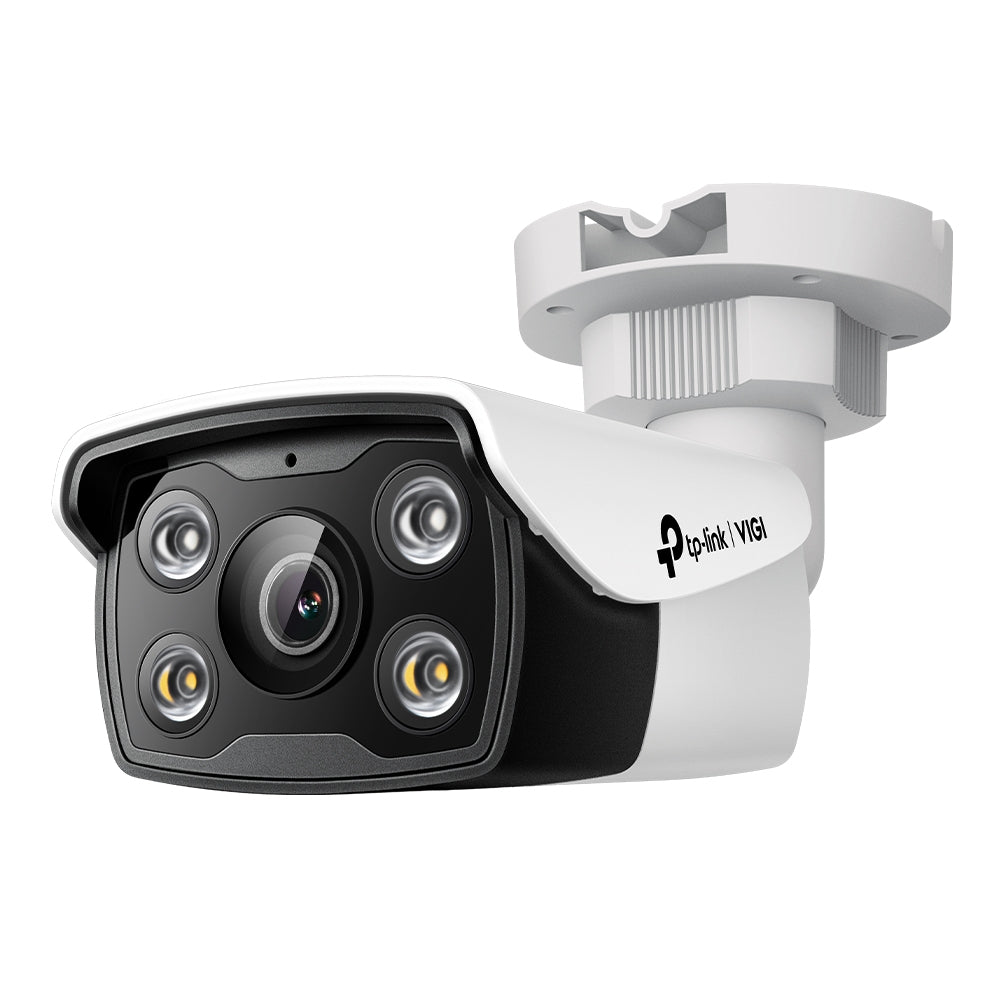

The TP-Link VIGI C350 is a 5MP full-colour bullet network camera, here with the 2.8 mm fixed lens. A 1/2.7" progressive scan CMOS sensor, F1.6 aperture and two white LEDs alongside two 850 nm IR LEDs (30 m range each) keep night footage in colour, while built-in AI separates people and vehicles from other motion. It is powered by PoE (802.3af/at) or 12V DC, rated IP67, and records to an optional microSD card of up to 256 GB.

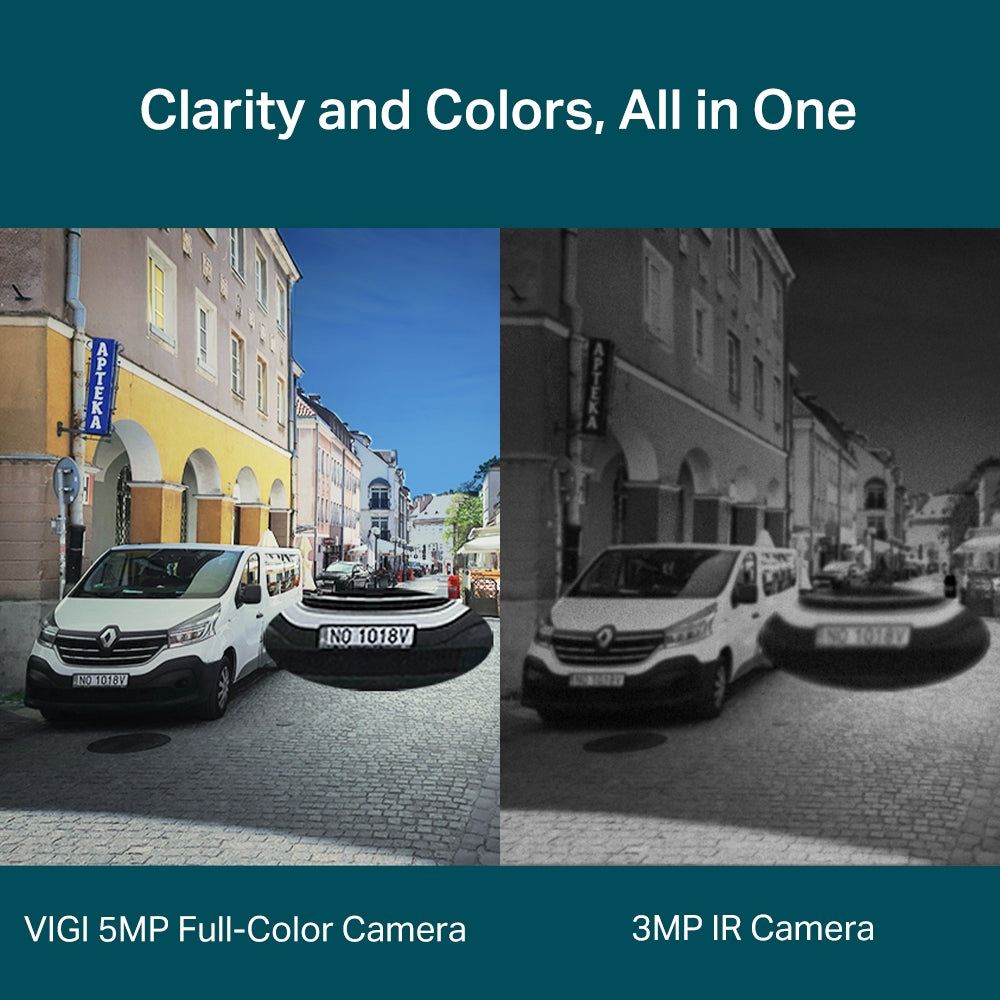

5MP Resolution, Colour Around the Clock
Maximum resolution is 2880 x 1620. TP-Link quotes a minimum illumination of 0.005 Lux, and 0 Lux with IR or white light, with the illuminator set to auto, scheduled, always on or always off.
Human & Vehicle Classification and Smart Events

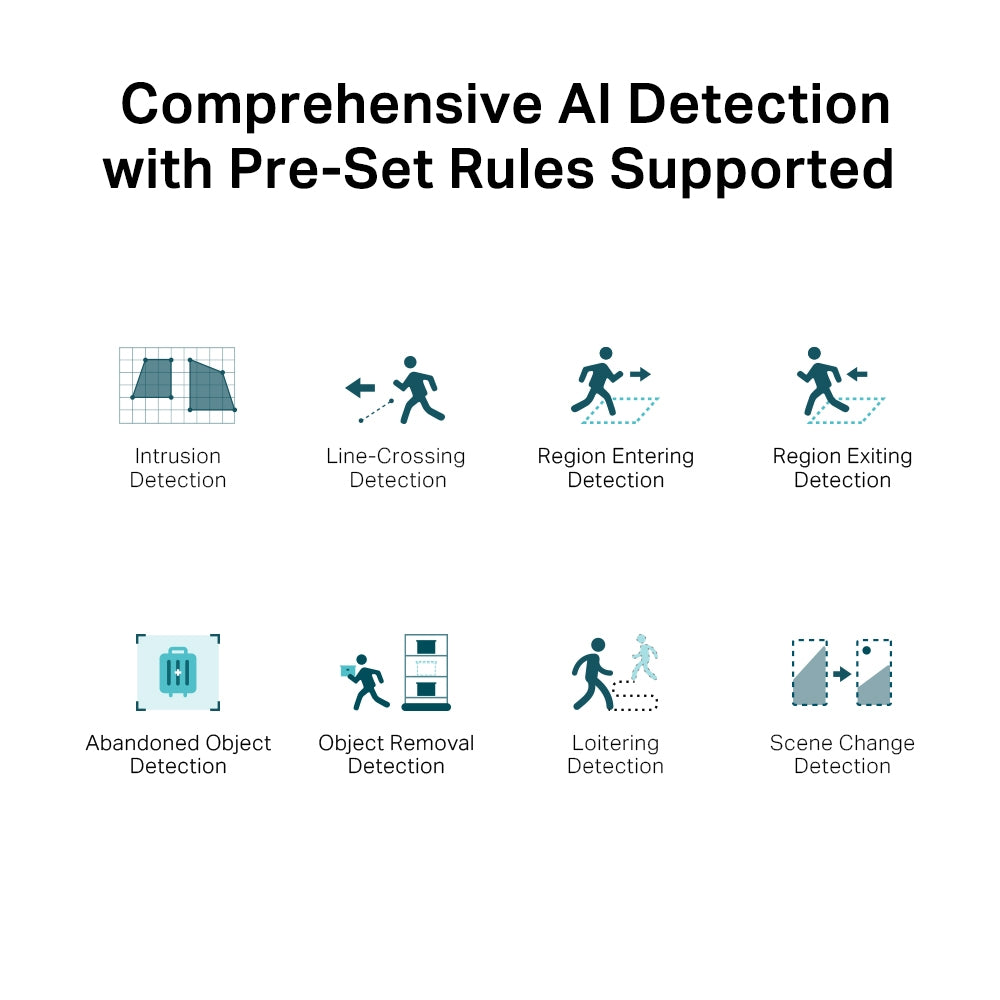

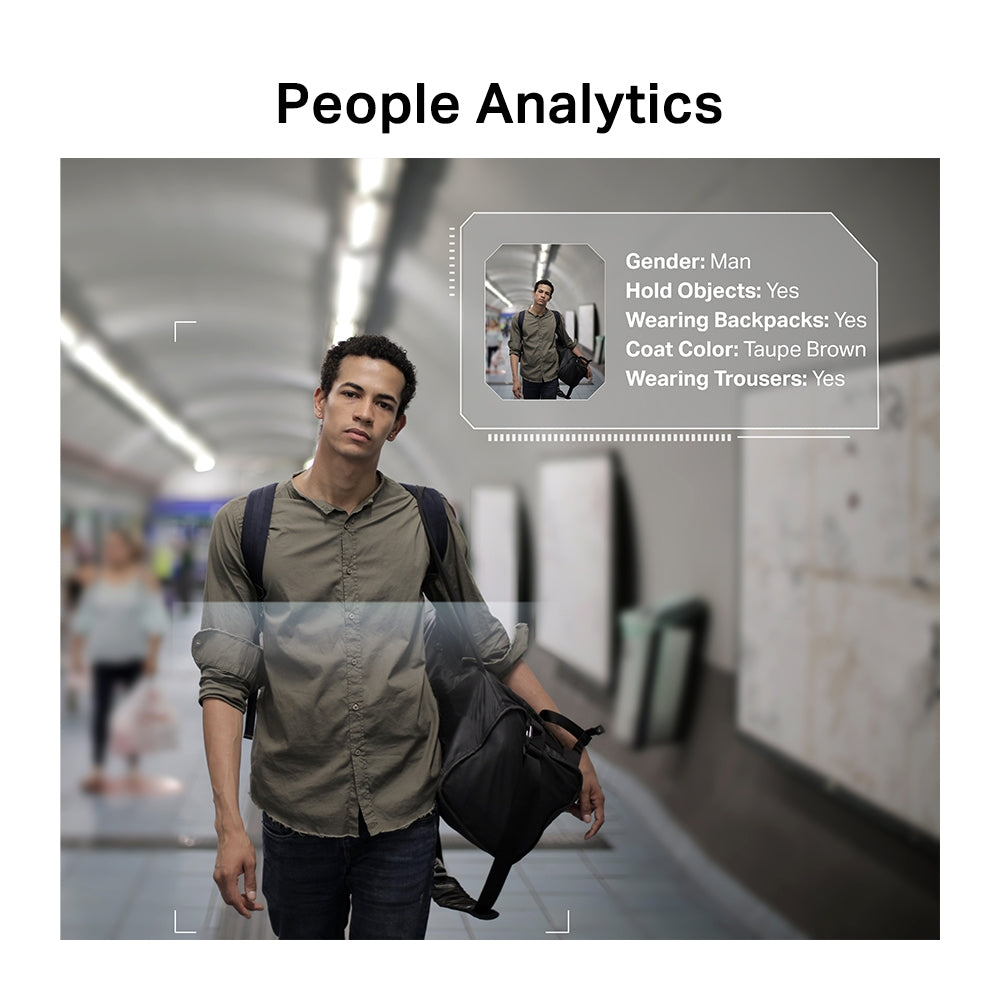

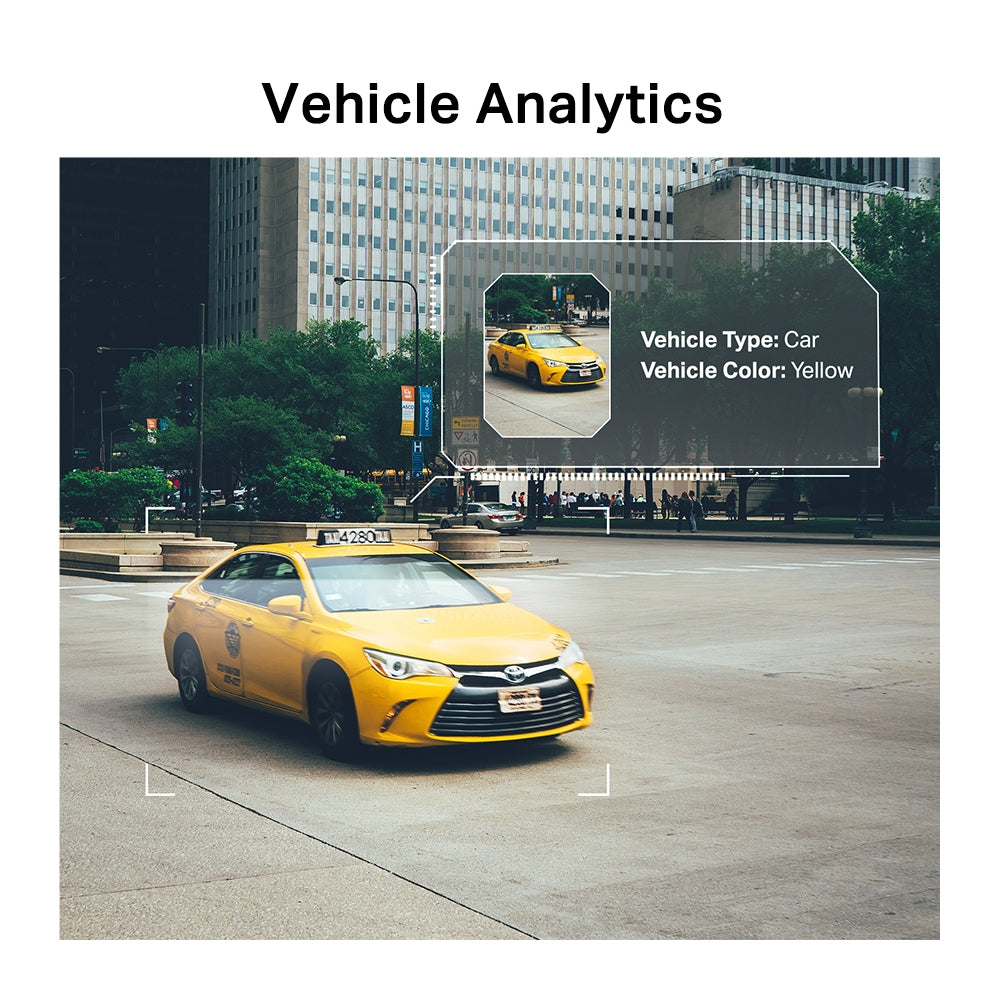

Smart events include area intrusion, line-crossing, region entering and exiting, object abandoned and object removal, loitering and scene change detection. People & Vehicle Analytics lets you search recorded events by attributes to find a person or vehicle of interest faster.
Active Defence and Two-Way Audio
A built-in microphone (5 m / 16.4 ft pickup radius) and built-in speaker support two-way audio, and alarm linkage can trigger an audible warning and white-light flashing to deter intruders.

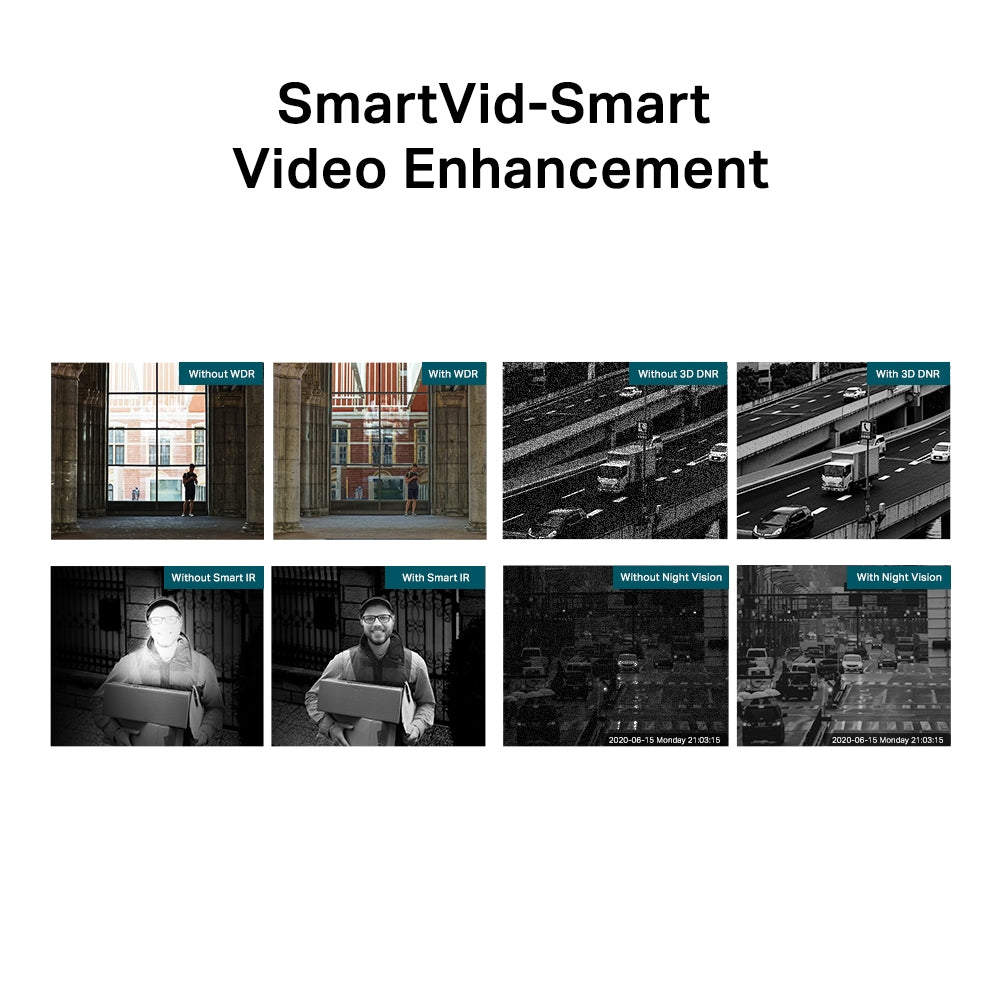

SmartVid Image Processing and H.265+
WDR of 120 dB, BLC, 3D DNR, HLC and Smart IR are supported, and the main stream can use H.265+ to reduce bandwidth and storage.
Ideal For
Car parks, building perimeters, loading bays, warehouses and shopfronts that need colour evidence at night and an audible deterrent. Supplied by SourceIT with local Singapore warranty and GST invoice.
VIGI C350 Datasheet — Technical Specifications
General
| Model | VIGI C350(2.8mm) |
| Official Product Name | VIGI 5MP Full-Color Bullet Network Camera |
| Brand | TP-Link |
| Warranty | 3 Years Local Warranty (Singapore) |
Camera
| Image Sensor | 1/2.7" Progressive Scan CMOS |
| Shutter Speed | 1/3 to 1/10000 s |
| Slow Shutter | Yes |
| Minimum Illumination | 0.005 Lux; 0 Lux with IR/white light |
| Day/Night Mechanism | IR Cut Filter |
| Day/Night Switch | Unified/ Scheduled/ Auto |
Lens
| Type | Fixed Focal Lens |
| Focal Length | 2.8 mm |
| Aperture | F1.6 |
| FOV | Horizontal FOV: 109°, Vertical FOV: 57°, Diagonal FOV: 128° |
| Lens Mount | M12*P 0.5 |
| DORI Distance | Detect: 63 m (206 ft); Observe: 26 m (85 ft); Recognize: 12 m (39 ft); Identify: 6 m (19 ft) |
| Angle Adjustment (Manual) | Pan: 0° to 360°, Tilt: 0° to 90°, Rotation: 0° to 360° |
Illuminator
| IR LED | Quantity: 2; Range: 30m; Wavelength: 850nm |
| White LED | Quantity: 2; Range: 30m |
| Illuminator On/Off Control | Auto/Scheduled/Always on/Always off |
Video
| Max. Resolution | 2880 x 1620 |
| Main Stream | Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps; 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps. Resolution: 2880x1620, 2688x1520, 2304x1296, 2048x1280, 1920x1080, 1280x720. Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. |
| Sub-Stream | Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps; 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps. Resolution: 704x576, 640x480, 352x288, 320x240. Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. |
| Bit Rate Control | CBR, VBR |
| Video Compression | Main Stream: H.265+/H.265/H.264+/H.264; Sub-Stream: H.265/H.264 |
| H.264 Type | Main Profile/High Profile |
| H.264+ | Main Stream Supported |
| H.265 Type | Main Profile△ |
| H.265+ | Main Stream Supported△ |
| Video Bit Rate | Main Stream: 256 Kbps to 6 Mbps; Sub-Stream: 64 Kbps to 512 Kbps |
| Image Settings | Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, Prevent Overexposure to Infrared Light, HLC Adjustable by Client Software |
| Image Enhancement | BLC/3D DNR/HLC/SmartIR |
| Wide Dynamic Range | 120 dB. Note: When People & Vehicle Analytics is enabled, only DWDR is supported. |
| SNR | ≥ 52 dB |
| Image Parameters Switch | Yes |
| Privacy Mask | Up to 4 Masks |
| ROI | 1 Region |
| OSD Setting | Yes |
Audio
| Audio Communication | Two-Way Audio |
| Audio Input | Yes |
| Audio Output | Yes |
| Audio Compression | Yes |
| Audio Sampling Rate | 8KHz |
| Environment Noise Filtering | Yes |
| Audio Bit Rate | 64 Kbps (G.711 alaw) |
Network
| Protocol | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS |
| ONVIF | Yes |
| API | Open Network Video Interface (Profile S) |
| Simultaneous Live View | 3 Main Streams & 3 Sub-Streams |
| Security | Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication |
Alarm and Event Management
| Smart Event | Human & Vehicle Classification, Area Intrusion Detection, Line-Crossing Detection, People Detection, Vehicle Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection, Loitering Detection, Scene Change Detection |
| Basic Event | Motion Detection, Video Tampering Detection, Exception (Illegal Login), Scene Change Detection |
| Alarm Linkage | Memory Card Video Recording, Message Push, Audible Warning, White Light Flashing |
| Output Notification | Message Push |
| People & Vehicle Analytics | Search and filter to people or vehicle of interest based on many different attributes, making post-event search faster and easier. |
| Face Capture / Face Comparison | N/A |
Interfaces
| Network Interface | 1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE |
| Alarm | N/A |
| Reset Button | Yes |
| Power | DC Power Port |
| On-board Storage | Built-In Memory Card Slot, Support MicroSD Card, up to 256 GB* |
| Built-in Microphone | Yes; Records Anything Going on within a 16.4-ft (5 m) Radius of the Camera |
| Built-in Speaker | Yes |
Physical & Environment
| Operating Temperature | -30–60 °C |
| Storage Temperature | -40–60 °C |
| Operating Humidity | 95% or Less (Non-Condensing) |
| Storage Humidity | 95% or Less (Non-Condensing) |
| Material | Plastic |
| Power Supply | 12V DC ± 5%, Max. 9 W, 5.5 mm Coaxial Power Plug; PoE: 802.3af/at, class 0, Max. 10.5 W |
| Protection | IP67 |
| Product Dimensions (L x W x H) | 78.42 x 186.88 x 71.55 mm |
| Certifications | CE, NTRA, VCCI, KC, BSMI, FCC, IC |
*SD card is not included in the package. △Tile encoding auto-enables in H.265 when horizontal resolution exceeds 2688; third-party NVRs lacking tile encoding support cannot enable H.265, and TP-Link recommends using a VIGI NVR with VIGI cameras.
TP-Link publishes no net or gross weight for the VIGI C350.
Compatibility & Software Support
| Client | VIGI App, VIGI Security Manager |
| Cloud | Yes |
| ONVIF | Yes — Open Network Video Interface (Profile S) |
| Web Browser | Google Chrome® 57 and above, Firefox® 52 and above, Safari® 11 and above, Microsoft® Edge 91 and above |
| Recorder | TP-Link recommends a VIGI NVR; third-party NVRs without tile encoding support cannot enable H.265 at resolutions above 2688 horizontal |
| Local Storage | microSD card up to 256 GB (card not included) |
Package Contents & Ordering Information
Package Contents
| In the Box | VIGI Network Camera, Quick Start Guide, Waterproof Cable Attachments, Mounting Accessories |
Ordering Information
| Model | VIGI C350(2.8mm) |
| Other Focal Lengths | VIGI C350(4mm), VIGI C350(6mm) |
| SKU | VIGI C350 |
| Warranty | 3 Years Local Warranty (Singapore) |
Datasheet & Downloads
Frequently Asked Questions — VIGI C350
Does the VIGI C350 record in colour at night?
Yes. It has two white LEDs (30 m range) for full-colour night footage and two 850 nm IR LEDs (30 m range); the illuminators can be set to auto, scheduled, always on or always off.
How is the VIGI C350 powered?
By PoE (802.3af/at, class 0, max. 10.5 W) or a 12V DC adapter via the 5.5 mm coaxial power port.
What does the 2.8 mm lens cover?
Horizontal FOV: 109°, Vertical FOV: 57°, Diagonal FOV: 128°. TP-Link rates DORI distances at Detect: 63 m (206 ft); Observe: 26 m (85 ft); Recognize: 12 m (39 ft); Identify: 6 m (19 ft).
What warranty does SourceIT provide?
The VIGI C350 2.8mm is supplied with a 3-year local warranty in Singapore, handled through SourceIT together with TP-Link.
Can SourceIT quote this for an office or a project?
Yes. SourceIT can quote the VIGI C350 in volume together with VIGI NVRs, PoE switches, cabling and storage for offices, retail premises and multi-site projects, with a GST invoice.
