TP-Link VIGI C340I 4MP Outdoor IR Bullet Network Camera, 2.8mm Lens
Email sales@sourceit.com.sg or use Request for Quotation below and our team will confirm the latest price, availability and lead time.
PRODUCT DESCRIPTION
TP-Link VIGI 4MP Outdoor IR Bullet Network Camera (VIGI C340I 2.8mm) - 3 Years Local Warranty
The TP-Link VIGI C340I is a 4MP outdoor bullet network camera with a 2.8 mm fixed lens, 50 m IR night vision, human and vehicle classification and an IP67 weatherproof housing. It runs on PoE or 12V DC and can be managed through the web UI, a VIGI NVR, the VIGI app or VIGI Security Manager.
4MP Resolution with Smart IR Night Vision
A 1/3" progressive scan CMOS sensor records at up to 2560 x 1440. Two 850 nm IR LEDs give a stated IR range of 50 m, and Smart IR, DWDR and 3D DNR help keep night and backlit scenes usable.
2.8 mm Fixed Lens
The 2.8 mm lens gives the widest view of the three C340I versions (88.8° horizontal), suited to entrances, car-park aisles and enclosed yards.
Human & Vehicle Classification and Smart Detection
On-camera analytics separate people and vehicles from other movement for more accurate alerts, with intrusion, line-crossing, region entering/exiting, object abandoned/removal and abnormal sound detection.
Weatherproof, with PoE or 12V DC Power
The bullet housing is rated IP67 and TP-Link states an operating range of -30 to 60 °C. Power it from an 802.3af/at PoE switch over a single cable, or from a 12V DC supply. Ceiling, wall and pole mounting are supported.
Ideal For
Outdoor perimeters, car parks, warehouse yards, shopfronts and building entrances in small and medium businesses, recording to a VIGI NVR or managed through the VIGI app and VIGI Security Manager. Supplied by SourceIT with local Singapore warranty and GST invoice.
VIGI C340I 2.8mm Datasheet — Technical Specifications
General
| Model | VIGI C340I(2.8mm) |
| Official Product Name | VIGI 4MP Outdoor IR Bullet Network Camera |
| Brand | TP-Link |
| Warranty | 3 Years Local Warranty (Singapore) |
Camera
| Image Sensor | 1/3" Progressive Scan CMOS |
| Shutter Speed | 1/3 to 1/10000 s |
| Slow Shutter | Yes |
| Minimum Illumination | Color: 0.01 Lux; 0 Lux with IR |
| Day/Night Mechanism | IR Cut Filter |
| Day/Night Switch | Unified/ Scheduled/ Auto |
Lens
| Type | Fixed Focal Lens |
| Focal Length | 2.8 mm |
| Aperture | F2.2 |
| FOV | Horizontal FOV: 88.8°, Vertical FOV: 48.9°, Diagonal FOV: 106.5° |
| Lens Mount | M12 |
| DORI Distance | Detect: 60 m (197 ft) Observe: 25 m (82 ft) Recognize: 12 m (39 ft) Identify: 6 m (20 ft) |
Angle Adjustment (Manual)
| Range | Pan: 0° to 360° Tilt: 0° to 90° Rotation: 0° to 360° |
Illuminator
| IR LED | Quantity: 2 Range: 50m Wavelength: 850nm |
| White LED | N/A |
| Illuminator On/Off Control | Auto/Scheduled/Always on/Always off |
Video
| Max. Resolution | 2560 x 1440 |
| Main Stream | Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps Resolution: 2560x1440, 2304x1296, 2048x1280, 1920x1080, 1280x720 Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. |
| Sub-Stream | Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps Resolution: 640x480, 352x288, 320x240 Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. |
| Bit Rate Control | CBR, VBR |
| Video Compression | Main Stream: H.265+/H.265/H.264+/H.264 Sub-Stream: H.265/H.264 |
| H.264 Type | High Profile |
| H.264+ | Main Stream Supported |
| H.265 Type | Main Profile |
| H.265+ | Main Stream Supported |
| Video Bit Rate | Main Stream: 256 Kbps to 4 Mbps Sub-Stream: 64 Kbps to 512 Kbps |
| Image Settings | Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, Prevent Overexposure to Infrared Light, HLC Adjustable by Client Software, Rotation (90°/270°) |
| Image Enhancement | BLC/3D DNR/HLC/SmartIR |
| Wide Dynamic Range | DWDR |
| SNR | ≥ 52 dB |
| Image Parameters Switch | Yes |
| Privacy Mask | Up to 4 Masks |
| ROI | 1 Region |
| OSD Setting | Yes |
Audio
| Audio Communication | N/A |
| Audio Input | Yes |
| Audio Output | N/A |
| Audio Compression | Yes |
| Audio Sampling Rate | 8KHz |
| Environment Noise Filtering | Yes |
| Audio Bit Rate | 64 Kbps (G.711 alaw) |
Network
| Protocol | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP |
| ONVIF | Yes |
| API | Open Network Video Interface (Profile S) |
| Simultaneous Live View | 3 Main Streams & 3 Sub-Streams |
| Client | VIGI App, VIGI Security Manager, Web UI |
| Web Browser | Google Chrome® 57 and above Firefox® 52 and above Safari® 11 and above Microsoft® Edge 91 and above |
| Cloud | Yes |
| Security | Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication |
Alarm and Event Management
| Smart Event | Intrusion Detection Line-Crossing Detection Region Entering Detection Region Exiting Detection Object Abandoned/Removal Detection Abnormal Sound Detection People Detection Vehicle Detection |
| Basic Event | Motion Detection (Enhanced with Human & Vehicle Classification for more accurate alerts) Video Tampering Detection Exception (Illegal Login) |
| Alarm Linkage | Message Push |
Interfaces
| Network Interface | 1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE |
| Alarm | N/A |
| Reset Button | N/A |
| Power | DC Power Port |
| On-board Storage | N/A |
| Built-in Microphone | Yes; Records Anything Going on within a 16.4-ft (5 m) Radius of the Camera |
| Built-in Speaker | N/A |
| Audio | N/A |
General
| Operating Temperature | -30–60 °C |
| Storage Temperature | -40–60 °C |
| Operating Humidity | 95% or Less (Non-Condensing) |
| Storage Humidity | 95% or Less (Non-Condensing) |
| Material | Plastic |
| Net Weight | 0.28 Kg |
| Gross Weight | 0.43 Kg |
| Power Supply | 12V DC ± 5%, Max. 5 W, 5.5mm Coaxial Power Plug PoE: 802.3af/at, class 0, Max. 5.5 W |
| Protection | IP67 Waterproof |
| Product Dimensions (L x W x H) | 78.50 x 188.03 x 71.55 mm (3.09 x 7.40 x 2.82 in) |
| Certifications | CE, NTRA, VCCI, BSMI |
TP-Link lists the aperture, field of view and DORI distances separately for the 2.8 mm, 4 mm and 6 mm versions; only the figures for this lens are shown above. TP-Link publishes no mean-time-between-failures figure or IK impact rating for the C340I.
Compatibility & Software Support
| Management | Web UI, VIGI NVR UI, VIGI app and VIGI Security Manager |
| Client (spec table) | VIGI App, VIGI Security Manager, Web UI |
| ONVIF | Yes — Open Network Video Interface (Profile S) |
| Cloud | Yes |
| Web Browser | Google Chrome® 57 and above, Firefox® 52 and above, Safari® 11 and above, Microsoft® Edge 91 and above |
| On-board Storage | N/A — recording is to a network video recorder |
| Power | 802.3af/at PoE (class 0, max. 5.5 W) or 12V DC ± 5% (max. 5 W) |
Package Contents & Ordering Information

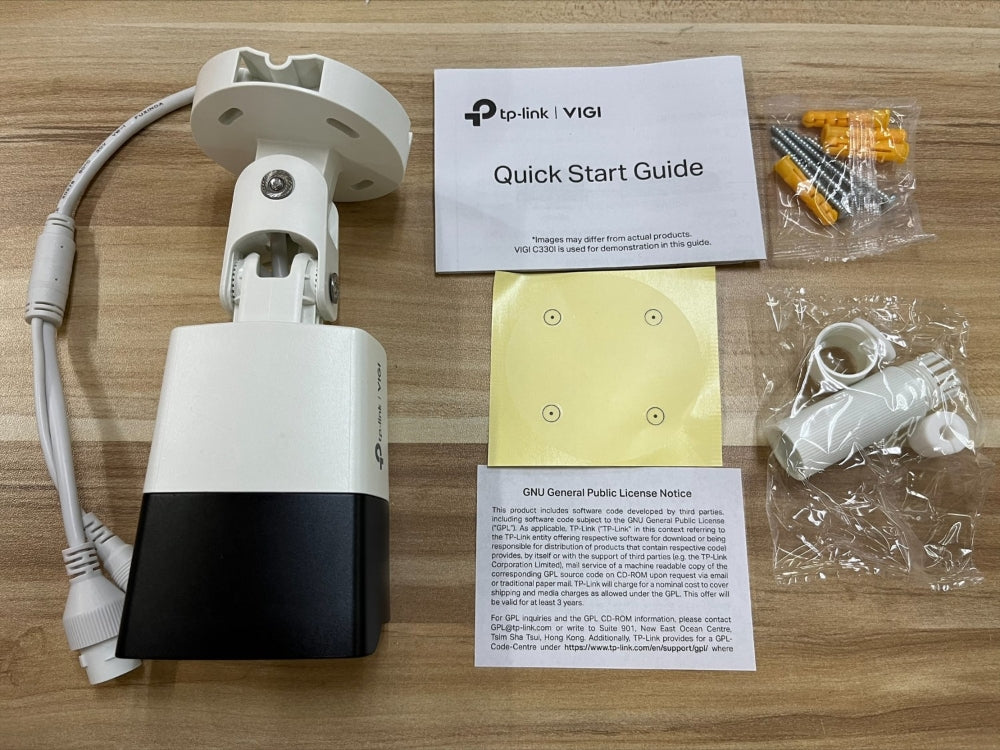

Package Contents
| 1 | VIGI Network Camera |
| 2 | Quick Start Guide |
| 3 | Waterproof Cable Attachments |
| 4 | Mounting Accessories |
Ordering Information
| Model | VIGI C340I(2.8mm) |
| SKU | VIGI C340I |
| Warranty | 3 Years Local Warranty (Singapore) |
| Other focal lengths in this range | VIGI C340I(4mm), VIGI C340I(6mm) |
Datasheet & Downloads
Frequently Asked Questions — VIGI C340I
Is the VIGI C340I suitable for outdoor use?
Yes. TP-Link rates the housing IP67 and states an operating temperature of -30 to 60 °C, with waterproof cable attachments in the box.
How far can the C340I see at night?
TP-Link states an IR range of 50 m from two 850 nm IR LEDs. For the 2.8 mm lens, the published detect distance is 60 m (197 ft) and the identify distance is 6 m (20 ft).
Does it need a PoE switch?
No. It can be powered by an 802.3af/at PoE switch or injector, or by a 12V DC adapter through the 5.5 mm coaxial power port. A power adapter is not listed in the package contents.
Does it have a memory card slot?
No. TP-Link lists on-board storage as N/A, so footage is recorded to an NVR such as a VIGI network video recorder.
What warranty does SourceIT provide?
The VIGI C340I is supplied with a 3 Years Local Warranty (Singapore). Keep your SourceIT invoice as proof of purchase.
Can SourceIT quote this for an office or a project?
Yes. SourceIT supplies the VIGI C340I for single sites and multi-camera projects in Singapore. Send the quantity, focal lengths and any matching VIGI recorder or PoE switch you need, and SourceIT will return a quotation with a GST invoice.
