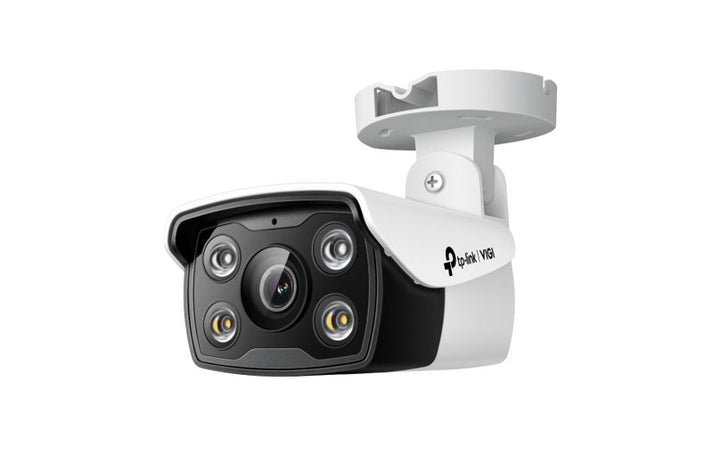

TP-Link VIGI C340 4MP Outdoor Full-Color Bullet Network Camera, 2.8mm Lens
Email sales@sourceit.com.sg or use Request for Quotation below and our team will confirm the latest price, availability and lead time.
PRODUCT DESCRIPTION
TP-Link VIGI 4MP Outdoor Full-Color Bullet Network Camera (VIGI C340 2.8mm) - 3 Years Local Warranty
The TP-Link VIGI C340 is a 4MP (2560 x 1440) outdoor bullet camera with a 2.8 mm F1.6 fixed lens, two IR LEDs and two white LEDs for full-colour images at night, two-way audio, a microSD slot and power from either PoE (802.3af/at) or 12V DC. It records to a VIGI NVR or its own memory card and is managed through the VIGI App, VIGI Security Manager or the web interface.
24-Hour Full-Colour Imaging
A 1/3" progressive scan CMOS sensor with a minimum illumination of 0.005 Lux works with two white LEDs (30 m range) to keep night footage in colour; two 850 nm IR LEDs (30 m range) are also fitted, with illuminator control set to auto, scheduled, always on or always off.
Smart Detection & Active Deterrence
Intrusion, line-crossing, region entering/exiting, object abandoned/removal, abnormal sound, people and vehicle detection are supported, and motion detection is enhanced with human and vehicle classification. Alarm linkage can trigger memory card recording, push messages, an audible warning and white light flashing.
H.265+ Compression
The main stream supports H.265+, H.265, H.264+ and H.264, with a main-stream bit rate of 256 Kbps to 4 Mbps. TP-Link states H.265+ saves 57.5% and 15% more storage space compared to H.264 and H.265 respectively.
Outdoor Build & Flexible Power
The plastic housing carries an IP67 rating in the specification table and operates from -30 °C to 60 °C. Power is taken from PoE (802.3af/at, max. 8 W) or a 12V DC supply (max. 7 W).
Ideal For
Shopfronts, car parks, gates, perimeters and building exteriors where colour footage at night and two-way audio are useful, as part of a VIGI NVR or standalone memory-card recording setup. Supplied by SourceIT with local Singapore warranty and GST invoice.
VIGI C340 2.8mm Datasheet — Technical Specifications
General
| Model | VIGI C340 2.8mm |
| Official Product Name | VIGI 4MP Outdoor Full-Color Bullet Network Camera |
| Brand | TP-Link |
| Warranty | 3 Years Local Warranty (Singapore) |
Camera
| Image Sensor | 1/3" Progressive Scan CMOS |
| Shutter Speed | 1/3 to 1/10000 s |
| Slow Shutter | Yes |
| Minimum Illumination | 0.005 Lux; 0 Lux with IR/white light |
| Day/Night Mechanism | IR Cut Filter |
| Day/Night Switch | Unified/ Scheduled/ Auto |
Lens
| Type | Fixed Focal Lens |
| Focal Length | 2.8 mm |
| Aperture | F1.6 |
| FOV | H 102.5°, V 55.2°, D 122.1° |
| Lens Mount | M12 |
| DORI Distance | Detect 64m, Observe 27m, Recognize 13m, Identify 6m |
| Angle Adjustment (Manual) | Pan: 0° to 360°, Tilt: 0° to 90°, Rotation: 0° to 360° |
Illuminator
| IR LED | Quantity: 2, Range: 30m, Wavelength: 850nm |
| White LED | Quantity: 2, Range: 30m |
| Illuminator On/Off Control | Auto/Scheduled/Always on/Always off |
Video
| Max. Resolution | 2560 x 1440 |
| Main Stream | Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps; 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps. Resolution: 2560x1440, 2304x1296, 2048x1280, 1920x1080, 1280x720. Note: If image rotation is 90° or 270°, frame rate only supports up to 20fps. |
| Sub-Stream | Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps; 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps. Resolution: 640x480, 352x288, 320x240. Note: If image rotation is 90° or 270°, frame rate only supports up to 20fps. |
| Bit Rate Control | CBR, VBR |
| Video Compression | Main Stream: H.265+/H.265/H.264+/H.264; Sub-Stream: H.265/H.264 |
| H.264 Type | High Profile |
| H.264+ | Main Stream Supported |
| H.265 Type | Main Profile |
| H.265+ | Main Stream Supported |
| Video Bit Rate | Main Stream: 256 Kbps to 4 Mbps; Sub-Stream: 64 Kbps to 512 Kbps |
| Image Settings | Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, Prevent Overexposure to Infrared Light, HLC Adjustable by Client Software, Rotation (90°/270°) |
| Image Enhancement | BLC/3D DNR/HLC/SmartIR |
| Wide Dynamic Range | DWDR |
| SNR | ≥ 52 dB |
| Image Parameters Switch | Yes |
| Privacy Mask | Up to 4 Masks |
| ROI | 1 Region |
| OSD Setting | Yes |
Audio
| Audio Communication | Two-Way Audio |
| Audio Input | Yes |
| Audio Output | Yes |
| Audio Compression | Yes |
| Audio Sampling Rate | 8KHz |
| Environment Noise Filtering | Yes |
| Audio Bit Rate | 64 Kbps (G.711 alaw) |
Network
| Protocol | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP |
| ONVIF | Yes |
| API | Open Network Video Interface (Profile S) |
| Simultaneous Live View | 3 Main Streams & 3 Sub-Streams |
| Client | VIGI App, VIGI Security Manager, Web UI |
| Web Browser | Google Chrome 57+, Firefox 52+, Safari 11+, Microsoft Edge 91+ |
| Cloud | Yes |
| Security | Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication |
Alarm and Event Management
| Smart Event | Intrusion Detection, Line-Crossing Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection, Abnormal Sound Detection, People Detection, Vehicle Detection |
| Basic Event | Motion Detection (Enhanced with Human & Vehicle Classification), Video Tampering Detection, Exception (Illegal Login) |
| Alarm Linkage | Memory Card Video Recording, Message Push, Audible Warning, White Light Flashing |
Interfaces
| Network Interface | 1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE |
| Alarm | N/A |
| Reset Button | Yes |
| Power | DC Power Port |
| On-board Storage | Built-In Memory Card Slot, Support MicroSD Card, up to 512 GB* |
| Built-in Microphone | Yes; Records within 5 m radius |
| Built-in Speaker | Yes |
| Audio | N/A |
Physical & Environment
| Operating Temperature | -30-60 °C |
| Storage Temperature | -40-60 °C |
| Operating Humidity | 95% or Less (Non-Condensing) |
| Storage Humidity | 95% or Less (Non-Condensing) |
| Material | Plastic |
| Net Weight | 0.34 Kg |
| Gross Weight | 0.50 Kg |
| Power Supply | 12V DC ± 5%, Max. 7 W, 5.5mm Coaxial Power Plug; PoE: 802.3af/at, class 0, Max. 8 W |
| Protection | IP67 Waterproof |

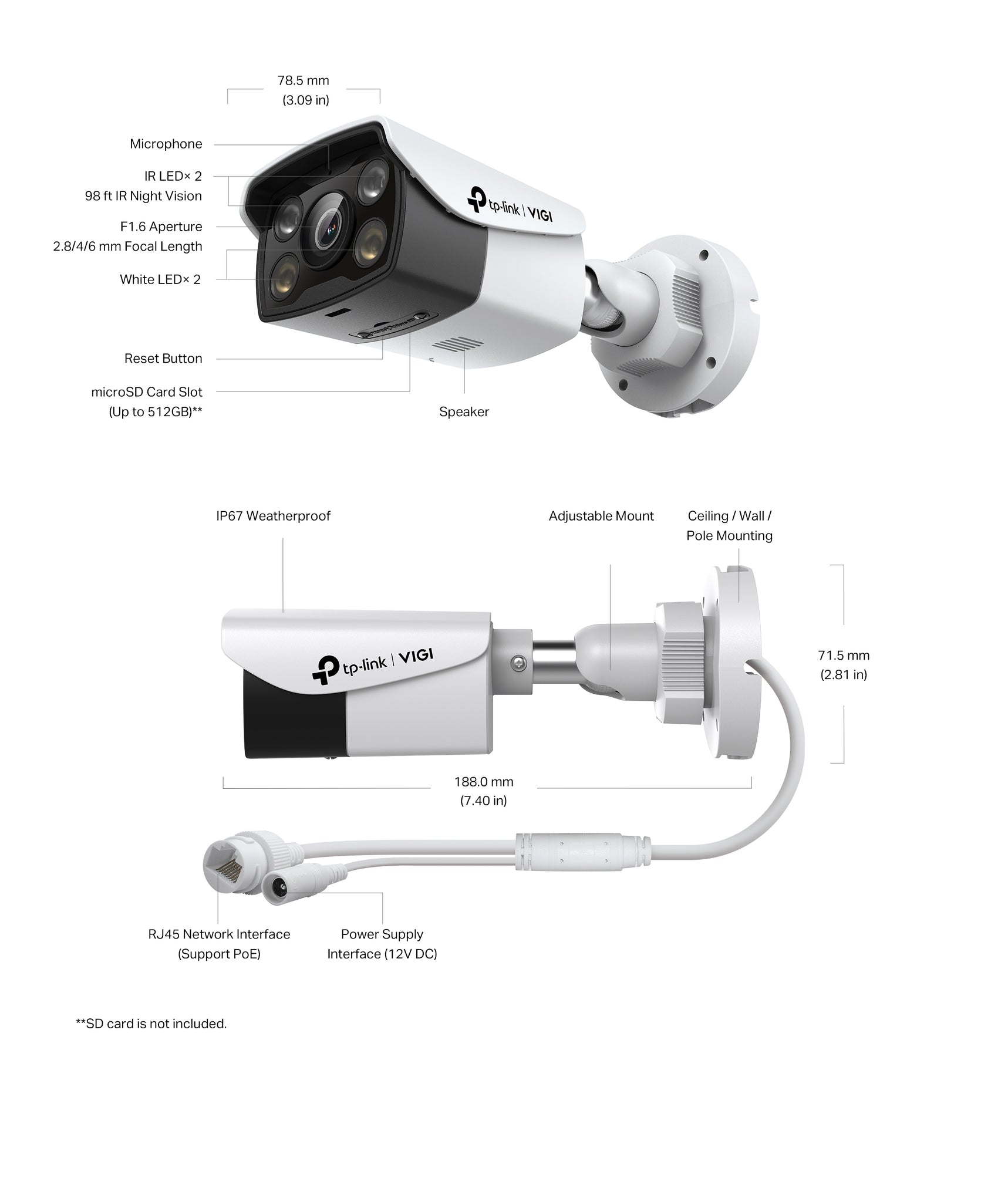

| Product Dimensions (L x W x H) | 78.5 x 188.0 x 71.5 mm |
| Certifications | CE, NTRA, VCCI, BSMI, FCC |
* Micro SD card is not included in the package.
TP-Link's product page lists "Waterproof: Reliable IP66 for stable outdoor performance" in its feature section but "IP67 Waterproof" in its specification table and highlights; both figures are shown here as published.
Compatibility & Software Support
| Management | VIGI App, VIGI Security Manager, Web UI |
| Cloud | Yes |
| NVR / VMS integration | ONVIF (Profile S) |
| Web Browser | Google Chrome 57+, Firefox 52+, Safari 11+, Microsoft Edge 91+ |
| Local Storage | MicroSD card up to 512 GB (card not included) |
Package Contents & Ordering Information
Package Contents
| Item 1 | VIGI Network Camera |
| Item 2 | Quick Start Guide |
| Item 3 | Waterproof Cable Attachments |
| Item 4 | Mounting Accessories |
Ordering Information
| Model | VIGI C340 2.8mm |
| Other focal lengths | VIGI C340 4mm, VIGI C340 6mm |
| SKU | VIGI C340 |
| Warranty | 3 Years Local Warranty (Singapore) |
Datasheet & Downloads
Frequently Asked Questions — VIGI C340 2.8mm
Which focal length should I choose?
This version uses the 2.8 mm lens, with a horizontal field of view of 102.5° and an identify distance of 6m according to TP-Link's DORI figures. The 2.8 mm version covers the widest area; the 6 mm version reaches furthest.
Does the VIGI C340 work without an NVR?
Yes. It has a built-in microSD slot supporting cards up to 512 GB (card not included) and can be viewed through the VIGI App, VIGI Security Manager or the web interface.
How is the camera powered?
Either by PoE (802.3af/at, class 0, max. 8 W) or by a 12V DC supply through a 5.5 mm coaxial plug (max. 7 W).
What warranty does SourceIT provide?
SourceIT supplies the VIGI C340 2.8mm with 3 years local warranty in Singapore, together with a GST invoice.
Can SourceIT quote this for an office or a project?
Yes. SourceIT prepares quotations for offices, retail sites and multi-camera projects, including VIGI cameras, NVRs, PoE switches and hard drives. Send the quantities and site details to sales@sourceit.com.sg for a formal quote with GST invoice.
