TP-Link VIGI C440I 4MP IR Turret Network Camera, 2.8mm Lens
Email sales@sourceit.com.sg or use Request for Quotation below and our team will confirm the latest price, availability and lead time.
PRODUCT DESCRIPTION
TP-Link VIGI 4MP IR Turret Network Camera (VIGI C440I 2.8mm) - 3 Years Local Warranty

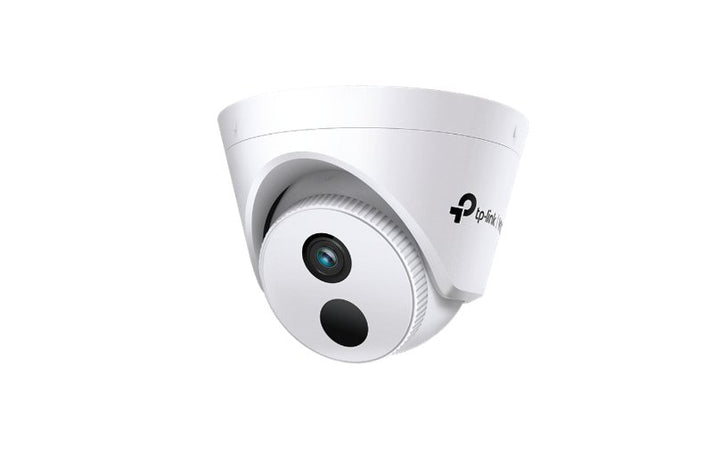

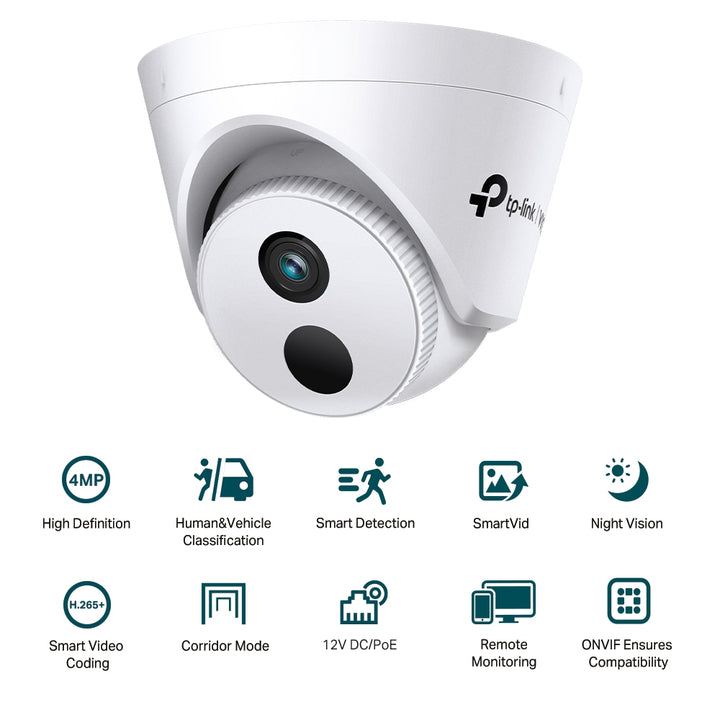

The TP-Link VIGI C440I is a 4MP IR turret network camera with a 2.8mm fixed lens, an 850 nm IR LED rated to 30 m, human and vehicle classification and a built-in microphone. It is powered by PoE (802.3af/at) or 12V DC and managed from the web UI, a VIGI NVR, the VIGI app or VIGI Security Manager.
4MP Resolution with IR Night Vision
A 1/3" progressive scan CMOS sensor records up to 2560 x 1440, with 0.01 lux colour sensitivity and 0 lux with the IR light on. The IR LED reaches 30 m.
Human & Vehicle Classification
Motion detection is enhanced with human and vehicle classification, so notifications focus on people and vehicles rather than other movement.
Smart Detection
Intrusion, line-crossing, region entering and exiting, object abandoned/removal, abnormal sound, people and vehicle detection are supported, with message push alerts.

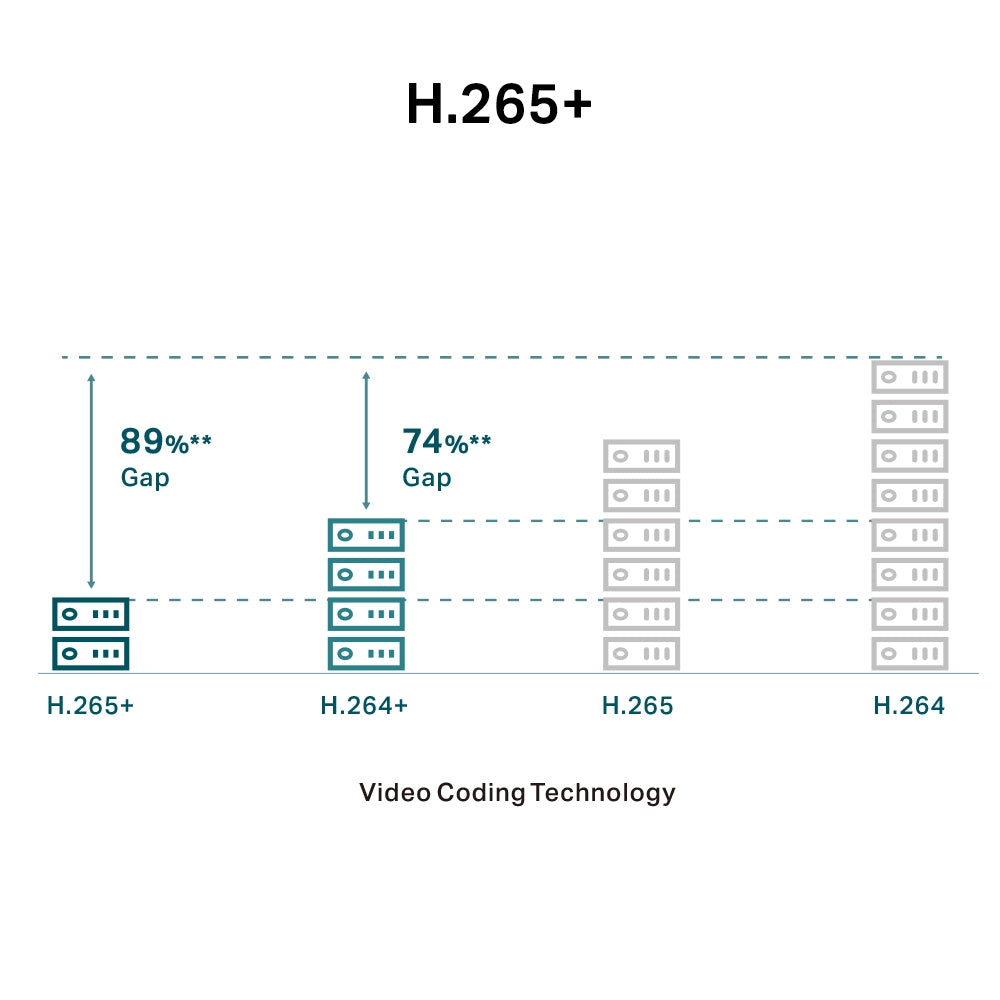

Corridor Mode and H.265+
Image rotation of 90°/270° suits narrow corridors, and H.265+ on the main stream reduces bandwidth and storage use.
Ideal For
Indoor and sheltered areas such as offices, corridors, retail floors and entrances where an IR camera recording to a VIGI NVR is required. Supplied by SourceIT with local Singapore warranty and GST invoice.
VIGI C440I Datasheet — Technical Specifications
General
| Model | VIGI C440I 2.8mm |
| Official Product Name | VIGI 4MP IR Turret Network Camera |
| Brand | TP-Link |
| Lens Option | 2.8mm fixed focal lens |
| Warranty | 3 Years Local Warranty (Singapore) |
Camera
| Image Sensor | 1/3" Progressive Scan CMOS |
| Shutter Speed | 1/3 to 1/10000 s |
| Slow Shutter | Yes |
| Minimum Illumination | Color: 0.01 Lux; 0 Lux with IR Light |
| Day/Night Mechanism | IR Cut Filter |
| Day/Night Switch | Unified/ Scheduled/ Auto |
Lens
| Type | Fixed Focal Lens |
| Focal Length | 2.8 mm |
| Aperture | F2.2 |
| Lens Mount | M12 |
| FOV | Horizontal FOV: 88.8°, Vertical FOV: 48.9°, Diagonal FOV: 106.5° |
| DORI Distance | Detect: 60 m (197 ft); Observe: 25 m (82 ft); Recognize: 12 m (39 ft); Identify: 6 m (20 ft) |
Angle Adjustment (Manual)
| Range | Pan: 0° to 360°; Tilt: 0° to 85°; Rotate: 0° to 360° |
Illuminator
| IR LED | Quantity: 1; Range: 30m; Wavelength: 850nm |
| White LED | N/A |
| Illuminator On/Off Control | Auto/Scheduled/Always on/Always off |
Video
| Max. Resolution | 2560 x 1440 |
| Main Stream | Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps; 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps. Resolution: 2560x1440, 2304x1296, 2048x1280, 1920x1080, 1280x720 (if the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps) |
| Sub-Stream | Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps; 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps. Resolution: 640x480, 352x288, 320x240 (if the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps) |
| Bit Rate Control | CBR, VBR |
| Video Compression | Main Stream: H.265+/H.265/H.264+/H.264; Sub-Stream: H.265/H.264 |
| H.264 Type | High Profile |
| H.264+ | Main Stream Supported |
| H.265 Type | Main Profile |
| H.265+ | Main Stream Supported |
| Video Bit Rate | Main Stream: 256 Kbps to 4 Mbps; Sub-Stream: 64 Kbps to 512 Kbps |
| Image Settings | Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, Prevent Overexposure to Infrared Light, HLC Adjustable by Client Software, Rotation (90°/270°) |
| Image Enhancement | BLC/3D DNR/HLC/SmartIR |
| Wide Dynamic Range | WDR |
| SNR | ≥ 52 dB |
| Image Parameters Switch | Yes |
| Privacy Mask | Up to 4 Masks |
| ROI | 1 Region |
| OSD Setting | Yes |
Audio
| Audio Communication | N/A |
| Audio Input | Yes |
| Audio Output | N/A |
| Audio Compression | Yes |
| Audio Sampling Rate | 8KHz |
| Environment Noise Filtering | Yes |
| Audio Bit Rate | 64 Kbps (G.711 alaw) |
Network
| Protocol | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP |
| API | Open Network Video Interface (Profile S) |
| Simultaneous Live View | 3 Main Streams & 3 Sub-Streams |
| Client | VIGI App, VIGI Security Manager, Web UI |
| Web Browser | Google Chrome® 57 and above; Firefox® 52 and above; Safari® 11 and above; Microsoft® Edge 91 and above |
| Cloud | Yes |
| Security | Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication |
Alarm and Event Management
| Smart Event | Intrusion Detection, Line-Crossing Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned/Removal Detection, Abnormal Sound Detection, People Detection, Vehicle Detection |
| Basic Event | Motion Detection (Enhanced with Human & Vehicle Classification for more accurate alerts), Video Tampering Detection, Exception (Illegal Login) |
| Alarm Linkage | Message Push |
Interfaces
| Network Interface | 1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE |
| Alarm | N/A |
| Reset Button | N/A |
| Power | DC Power Port |
| On-board Storage | N/A |
| Built-in Microphone | Yes; Records Anything Going on within a 16.4-ft (5 m) Radius of the Camera |
| Built-in Speaker | N/A |
Power
| Power Supply | 12V DC ± 5%, Max. 5 W, 5.5mm Coaxial Power Plug; PoE: 802.3af/at, class 0, Max. 5.5 W |
Physical & Environment
| Operating Temperature | -30 °C to 60 °C |
| Storage Temperature | -40 °C to 60 °C |
| Operating Humidity | 95% or Less (Non-Condensing) |
| Storage Humidity | 95% or Less (Non-Condensing) |
| Product Dimensions (L x W x H) | 123 x 123 x 83 mm (4.84 x 4.84 x 3.27 in) |
| Material | Plastic |
| Net Weight | 0.19 Kg |
| Gross Weight | 0.34 Kg |
| Protection | N/A |
| Certifications | CE, NTRA, VCCI, BSMI |
TP-Link lists no on-board storage, speaker or IP/IK protection rating for this camera; recording is handled by a VIGI NVR or other ONVIF recorder.
Compatibility & Software Support
| Clients | VIGI App, VIGI Security Manager, Web UI; also manageable from a VIGI NVR UI |
| Web Browser | Google Chrome® 57 and above; Firefox® 52 and above; Safari® 11 and above; Microsoft® Edge 91 and above |
| Third-Party Integration | Open Network Video Interface (Profile S) |
| Storage | No on-board storage; records to an NVR |
| Power | PoE 802.3af/at switch or NVR, or 12V DC adapter |
Package Contents & Ordering Information
Package Contents
| VIGI Network Camera | Included |
| Quick Start Guide | Included |
| Mounting Accessories | Included |
Ordering Information
| Model | VIGI C440I 2.8mm |
| Lens | 2.8mm |
| SKU | VIGI C440I |
| Warranty | 3 Years Local Warranty (Singapore) |
| Other Lens Options | VIGI C440I 4mm (listed separately) |
Datasheet & Downloads
Frequently Asked Questions — VIGI C440I
Is the VIGI C440I a full-colour camera?
No. It uses one 850 nm IR LED with a 30 m range for black-and-white night vision and has no white LED. Colour images need at least 0.01 lux of light.
Does it have a memory card slot?
No. TP-Link lists on-board storage as N/A, so the camera is intended to record to a VIGI NVR or other ONVIF-compatible recorder.
Does it support audio?
It has a built-in microphone that records within a 5 m (16.4 ft) radius. There is no built-in speaker, so two-way audio is not supported.
What warranty does SourceIT provide?
The VIGI C440I 2.8mm is supplied with a 3-year local warranty in Singapore. Warranty claims are handled locally in line with TP-Link's replacement warranty policy, linked in the downloads section above.
Can SourceIT quote this for an office or a project?
Yes. SourceIT quotes VIGI cameras together with VIGI NVRs, PoE switches and cabling for offices, shops, warehouses and multi-site projects in Singapore, with a GST invoice. Contact the SourceIT sales team with the number of cameras and the areas to be covered.
