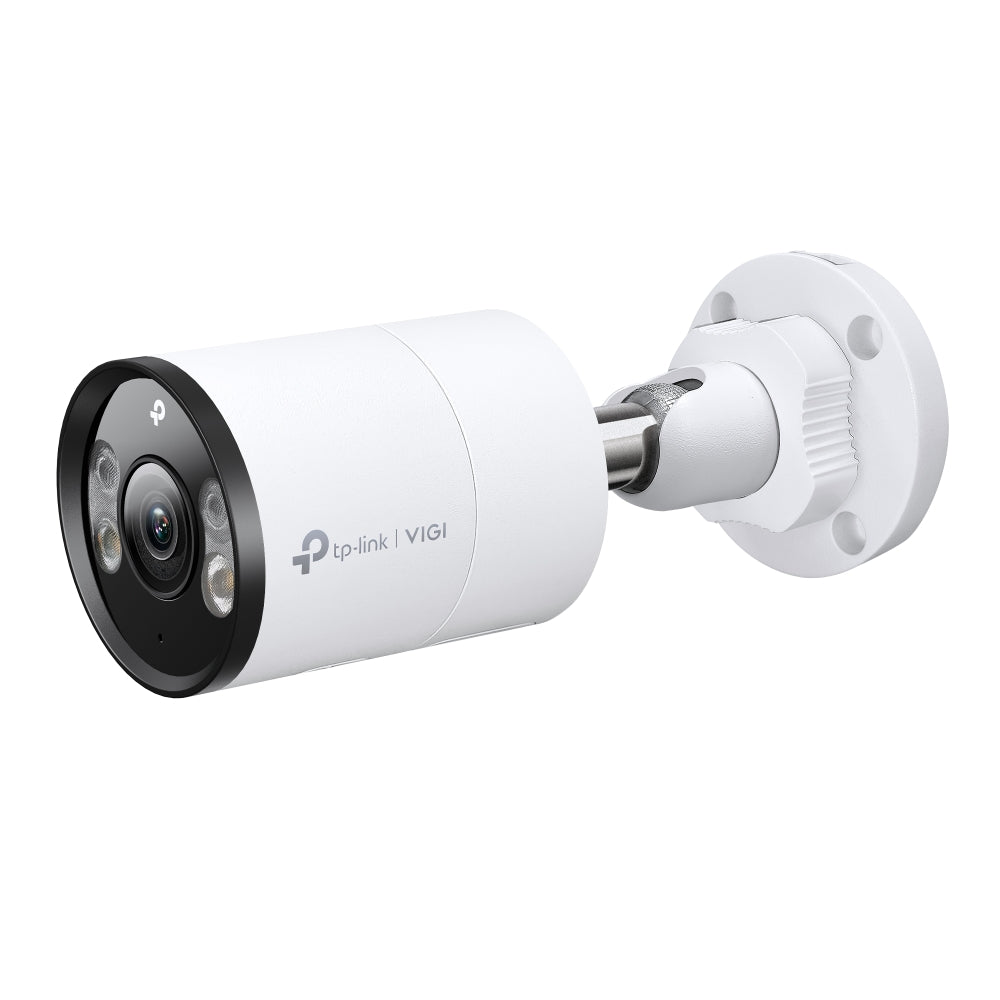

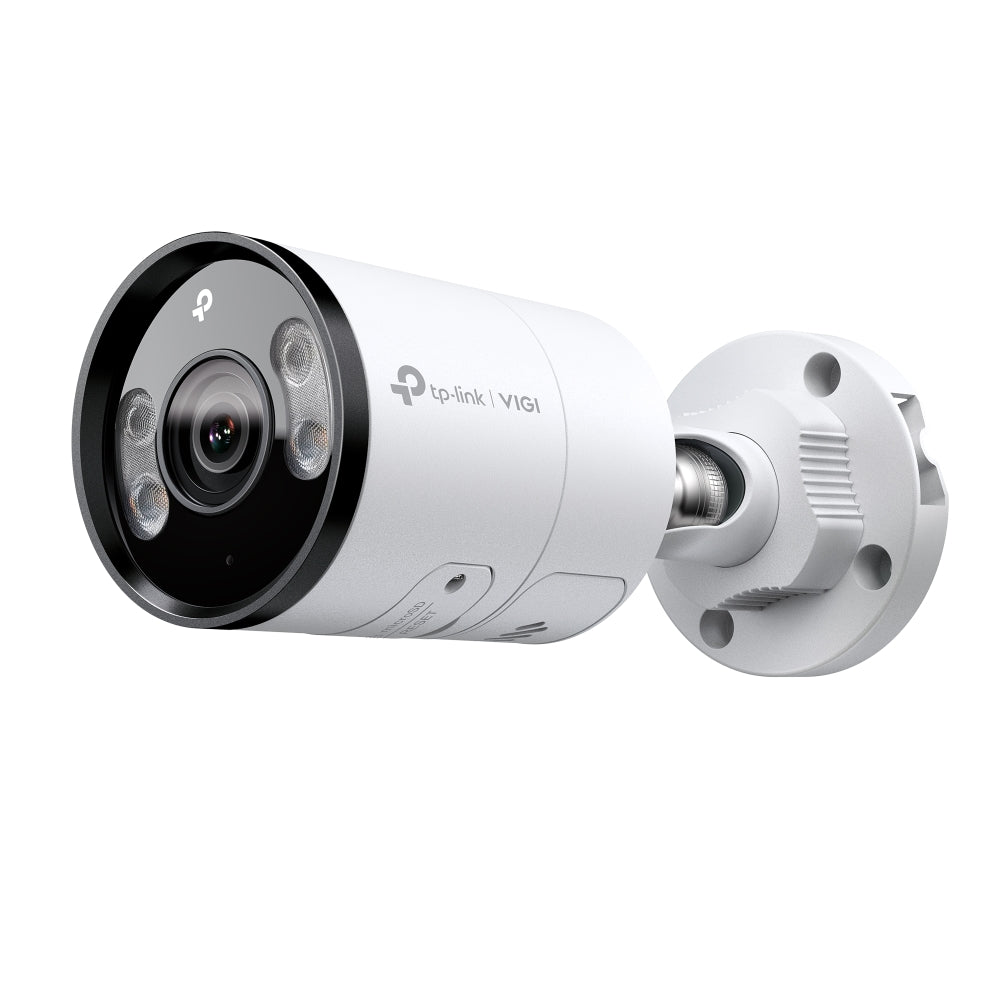

TP-Link VIGI C345 4MP Outdoor Full-Color Bullet Network Camera, 2.8mm Lens

TP-Link VIGI 4MP Outdoor Full-Color Bullet Network Camera, 2.8 mm Lens (VIGI C345) - 2 Years Local Warranty

The VIGI C345 records 2688x1520 at up to 30 fps and keeps colour after dark using two white LEDs alongside two IR LEDs, both reaching 30 m. The metal body is IP67 rated for Singapore weather, 120 dB WDR handles a bright doorway against a dark interior, and people-and-vehicle analytics run on the camera itself. This listing is the 2.8 mm wide-angle version.

Full-Colour Night Vision, Not Just Infrared

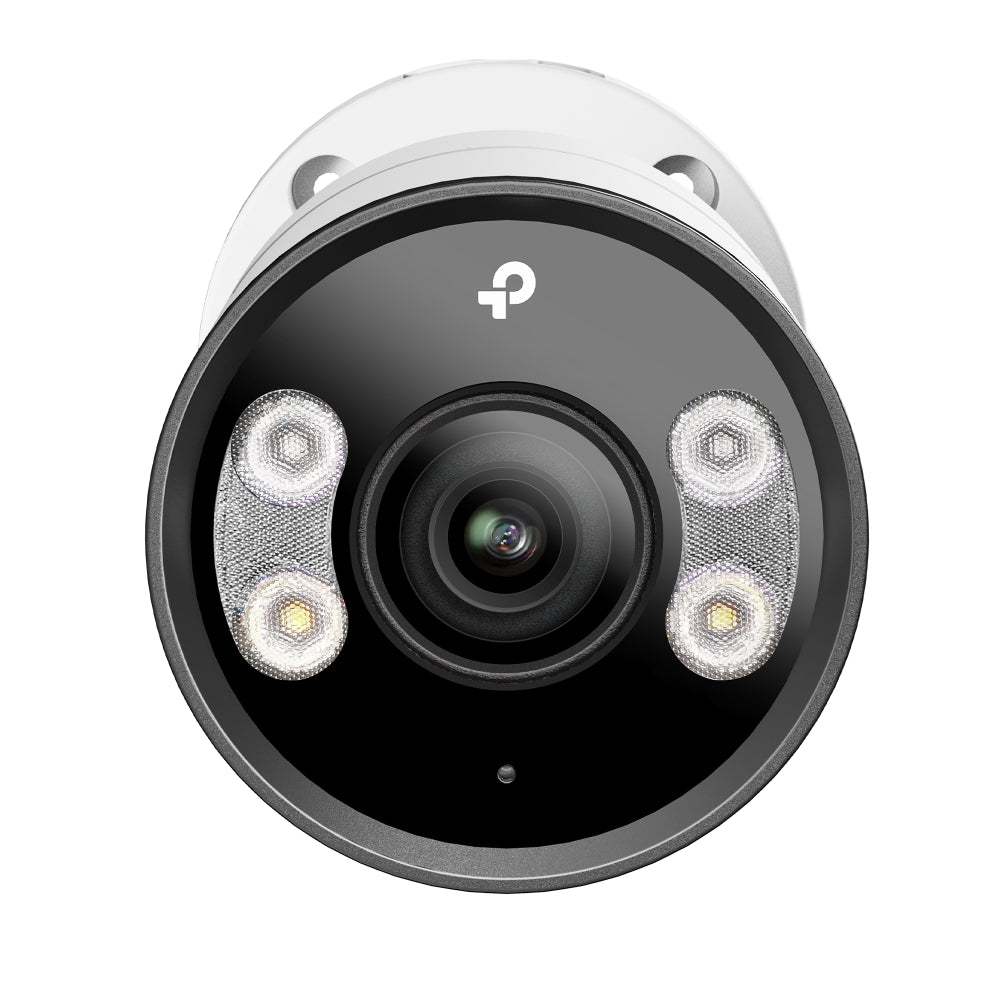

Two 850 nm IR LEDs give monochrome vision to 30 m, and two white LEDs give full-colour vision to the same distance. Illuminator behaviour is set to auto, scheduled, always on or always off, so the white light can be reserved for alarm events instead of running all night. Minimum illumination is 0.005 Lux, falling to 0 Lux with either illuminator active, and the white light can also flash as an alarm linkage.

2.8 mm Wide-Angle Coverage

The fixed 2.8 mm F1.6 lens gives a 100 degree horizontal, 54 degree vertical and 118 degree diagonal field of view — the widest of the three C345 lens options. DORI distances at 2.8 mm are detect 64 m, observe 27 m, recognise 13 m and identify 6 m. Choose this lens for forecourts, loading bays, car parks and shop floors where breadth of view matters more than reach; the 4 mm and 6 mm versions trade width for identification distance.

4MP Recording With 120 dB WDR

Maximum resolution is 2688x1520, with 2560x1440, 2304x1296, 2048x1280, 1920x1080 and 1280x720 also available on the main stream at up to 25 fps on 50 Hz or 30 fps on 60 Hz. Main-stream encoding is H.265+, H.265, H.264+ or H.264 at 256 Kbps to 6 Mbps. Wide dynamic range is 120 dB, though TP-Link notes that when People and Vehicle Analytics is enabled only DWDR is supported.

Smart Detection and Post-Event Attribute Search

Smart events cover human and vehicle classification, intrusion, line crossing, region entering and exiting, object abandoned and removal, loitering, people detection, vehicle detection, abnormal sound detection and scene change detection. Basic events cover motion detection, video tampering and illegal login. Linkages are microSD recording, push message, audible warning and white-light flashing. People and Vehicle Analytics also lets footage be searched and filtered by attribute after the event, which TP-Link notes requires VIGI software.

IP67 Metal Housing, PoE Powered

The 74 x 184 x 74 mm metal housing is IP67 rated and rated for -30 to 60 C, and the box includes waterproof cable attachments. One RJ-45 10/100 Mbps port carries 802.3af/at class 0 PoE at up to 10.7 W, or the camera runs from 12 V DC at up to 9.7 W. A microSD card of up to 512 GB records on board; the card is not included. Manual adjustment is a full 360 degrees of pan and rotation with 0 to 90 degrees of tilt.

Ideal For

Singapore shophouses, warehouses, car parks, condominium perimeters and building entrances that need colour identification at night rather than grey infrared, and installers standardising on PoE with VIGI recorders or a third-party ONVIF system. Supplied by SourceIT with local Singapore warranty, GST invoice and project pricing on request.
