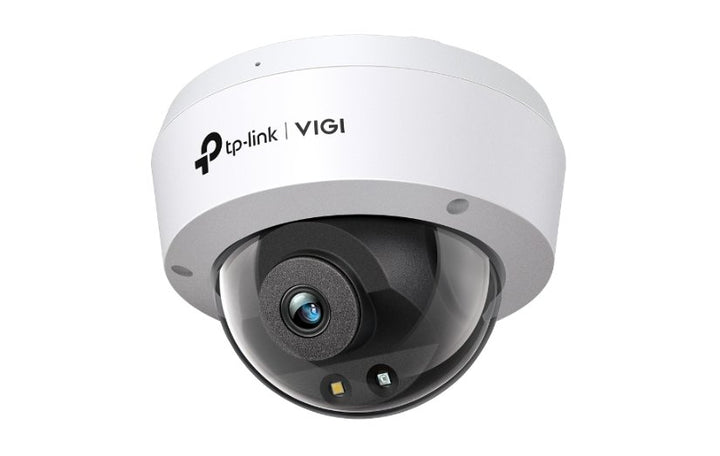

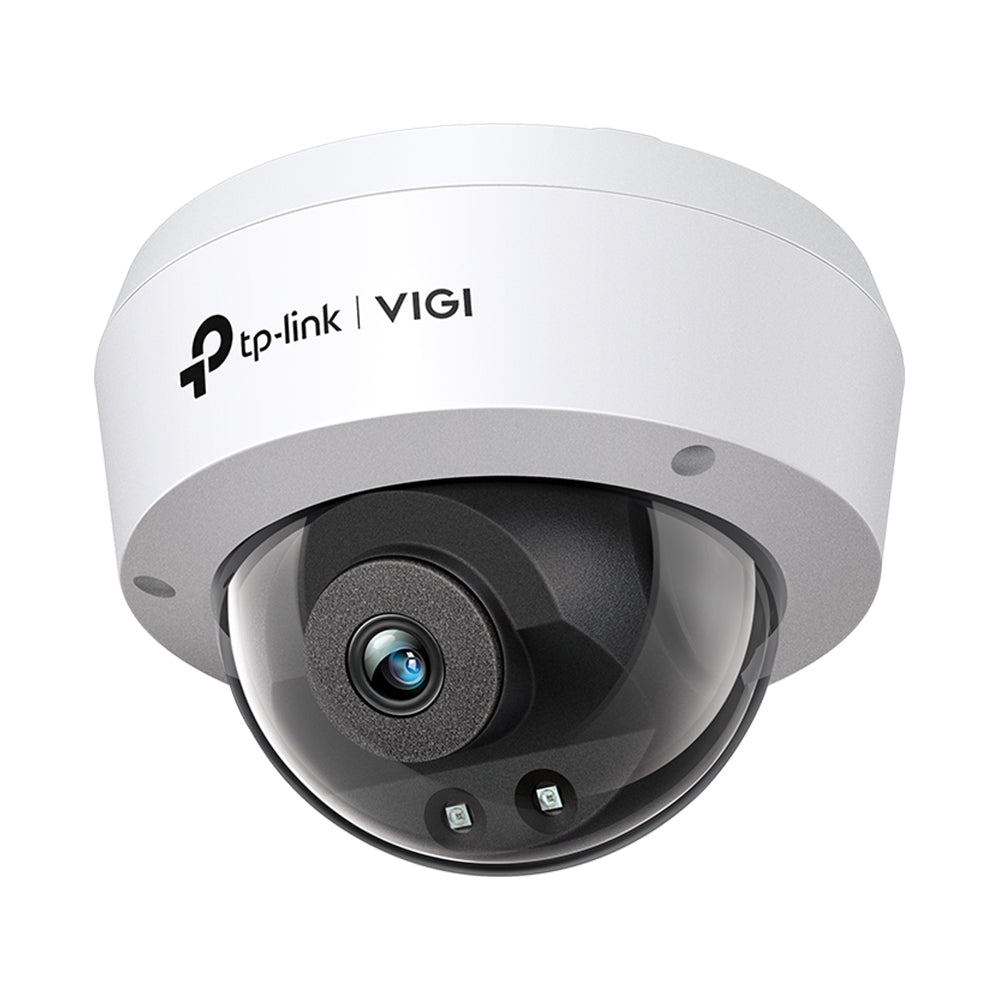

TP-Link VIGI C240I 4MP IR Dome Network Camera, 2.8mm Lens
Email sales@sourceit.com.sg or use Request for Quotation below and our team will confirm the latest price, availability and lead time.
PRODUCT DESCRIPTION
TP-Link VIGI 4MP IR Dome Network Camera (VIGI C240I 2.8mm) - 3 Years Local Warranty

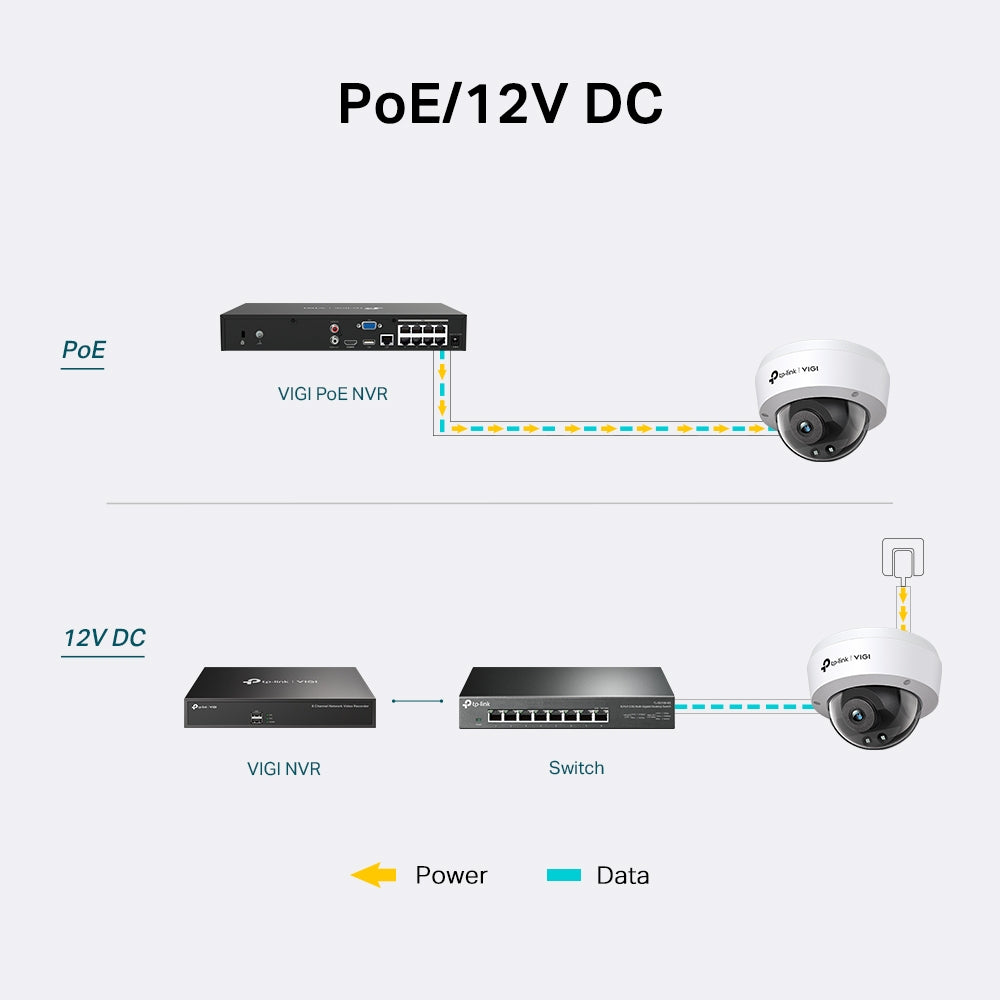

The TP-Link VIGI C240I is a 4MP (2560 x 1440) IR dome camera with a 2.8 mm fixed lens, 30 m infrared night vision and an IP67 waterproof, IK10 vandal-resistant housing. On-camera AI classifies people and vehicles to reduce false alerts, and the camera runs from PoE (802.3af/at) or 12V DC.

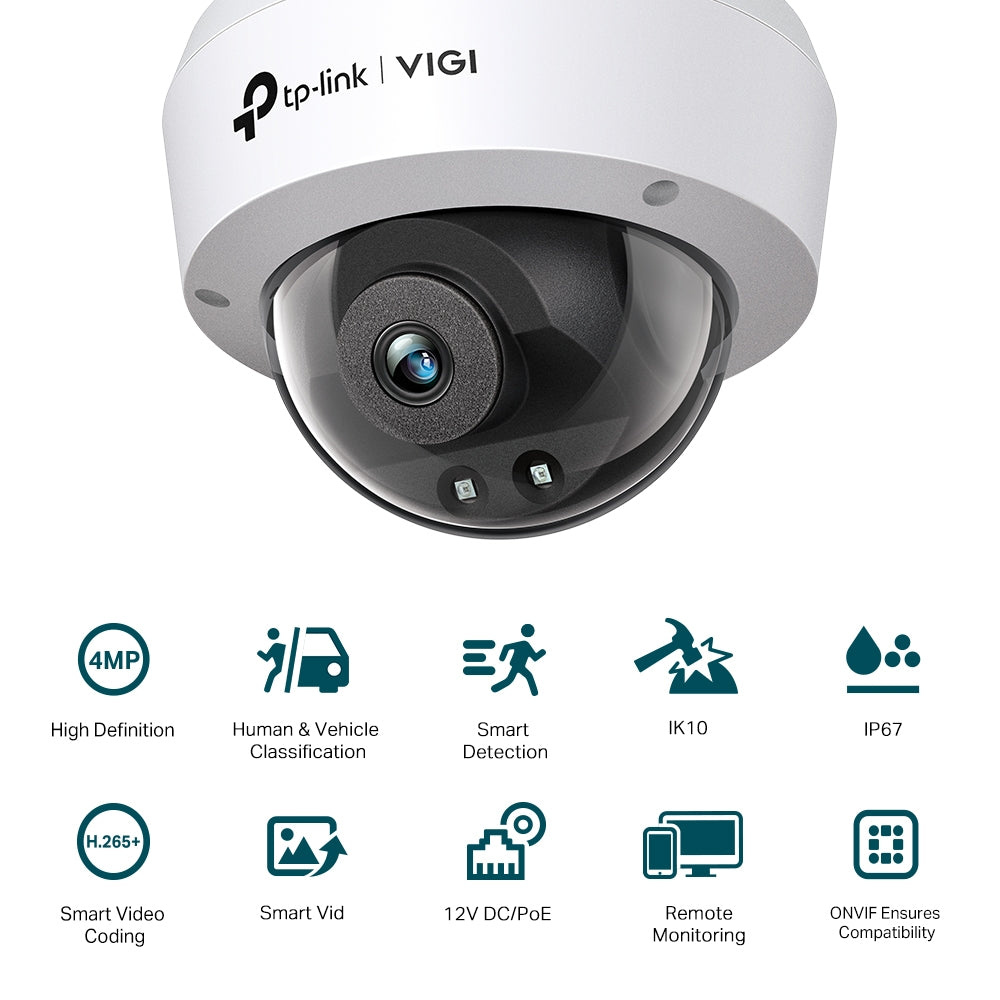

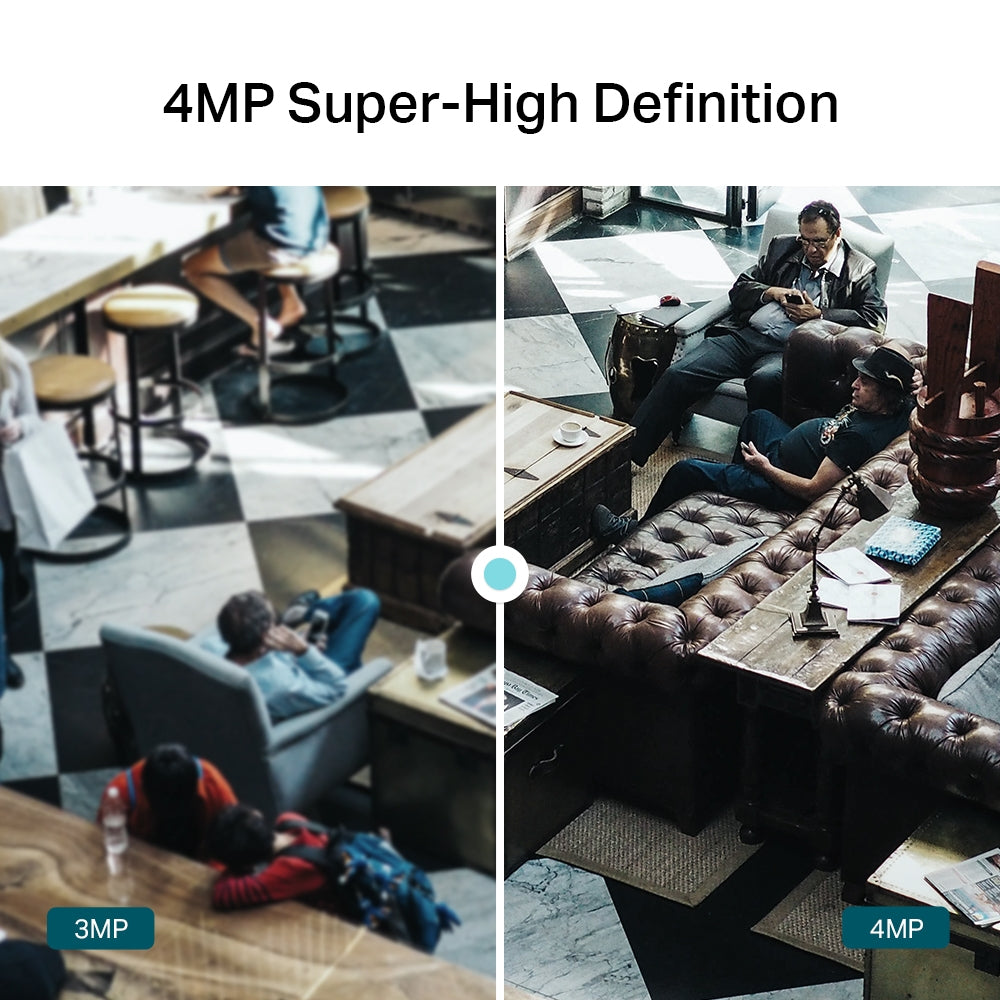

4MP Detail in a Compact Dome
A 1/3" progressive-scan CMOS sensor records up to 2560 x 1440 on the main stream, with a secondary low-resolution sub-stream for remote viewing over slower connections.

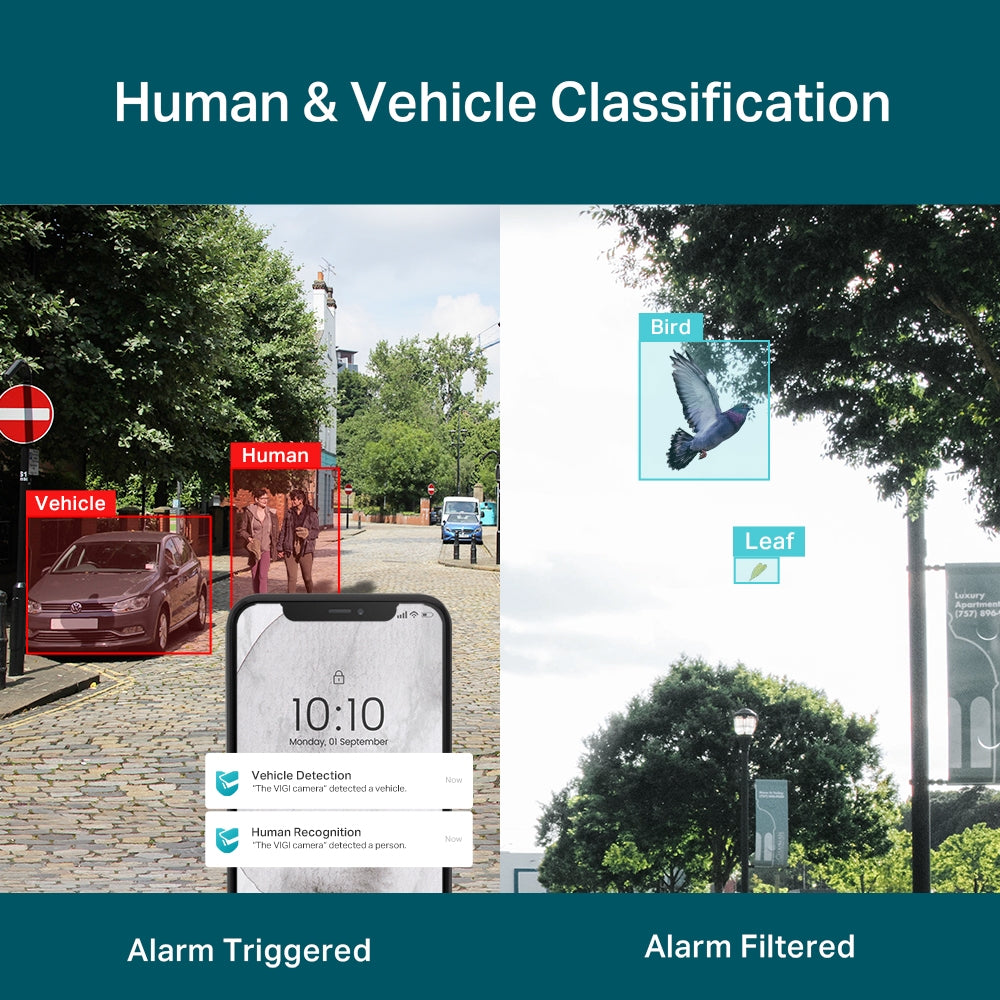

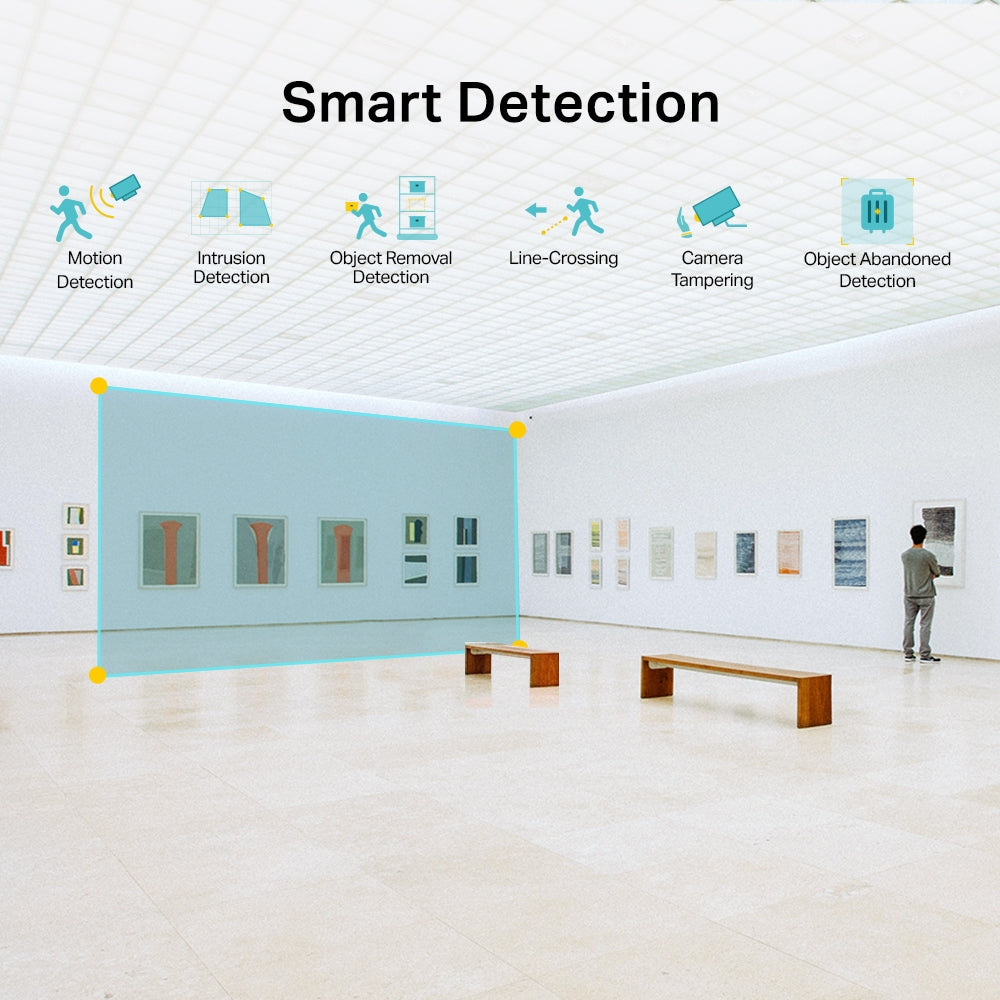

Human & Vehicle Classification and Smart Detection
Built-in AI distinguishes people and vehicles from other objects. Intrusion, line-crossing, region entering and exiting, object abandoned/removal, abnormal sound and video tampering detection are all available, with push notifications to the VIGI app.

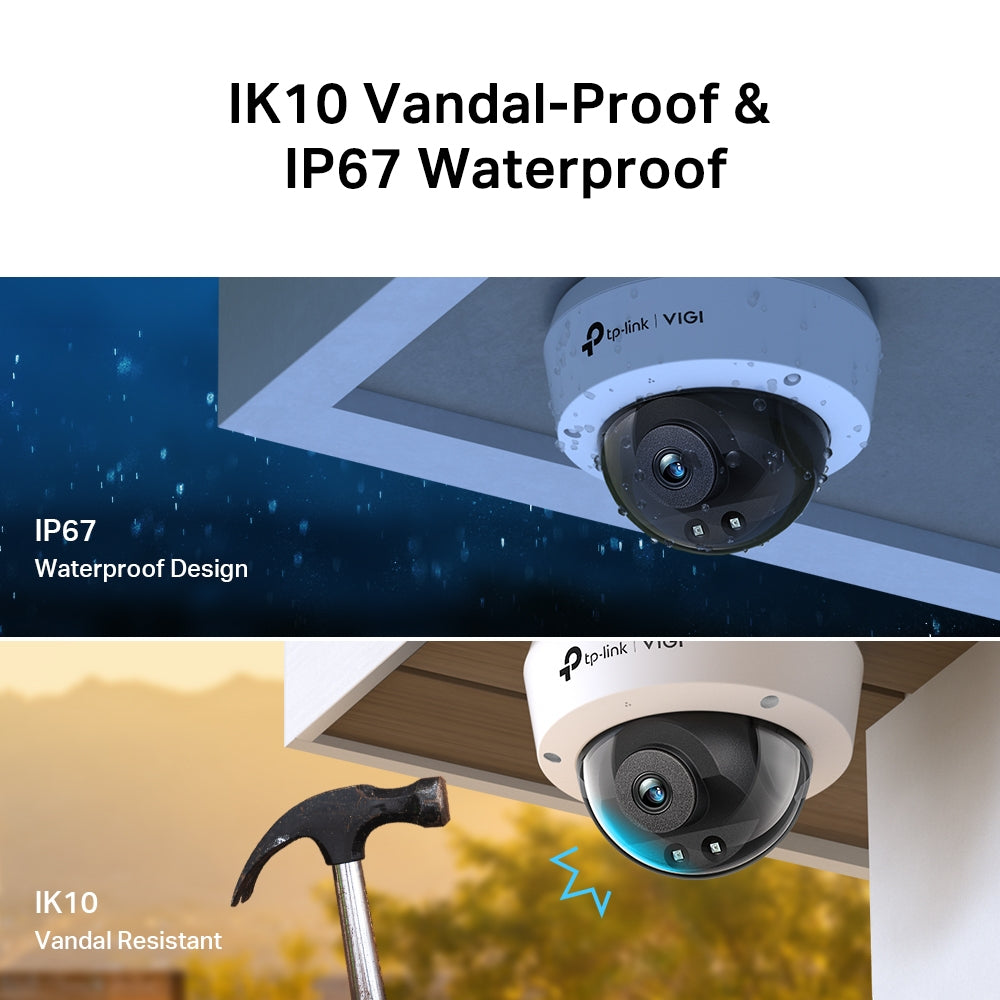

IK10 Vandal-Proof and IP67 Waterproof
The rugged dome housing is rated IK10 against impact and IP67 against dust and water, suiting both indoor ceilings and exposed outdoor eaves.

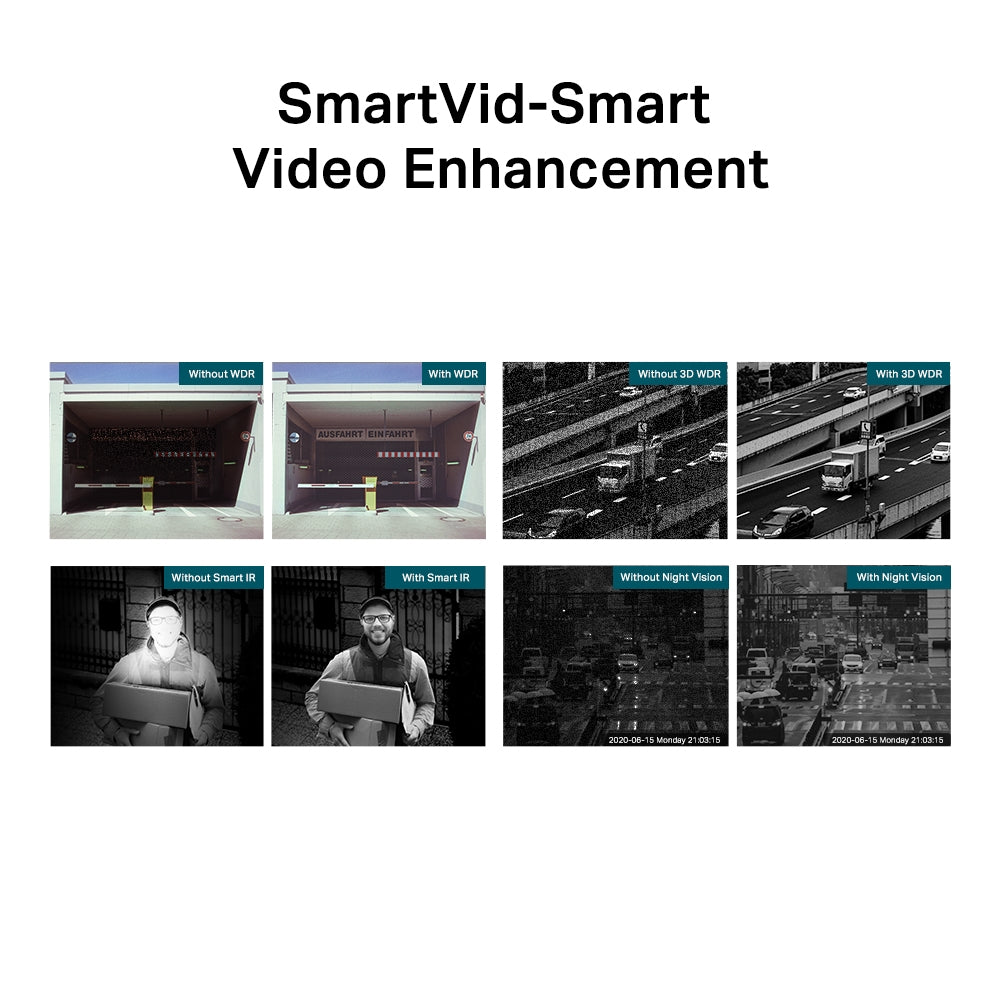

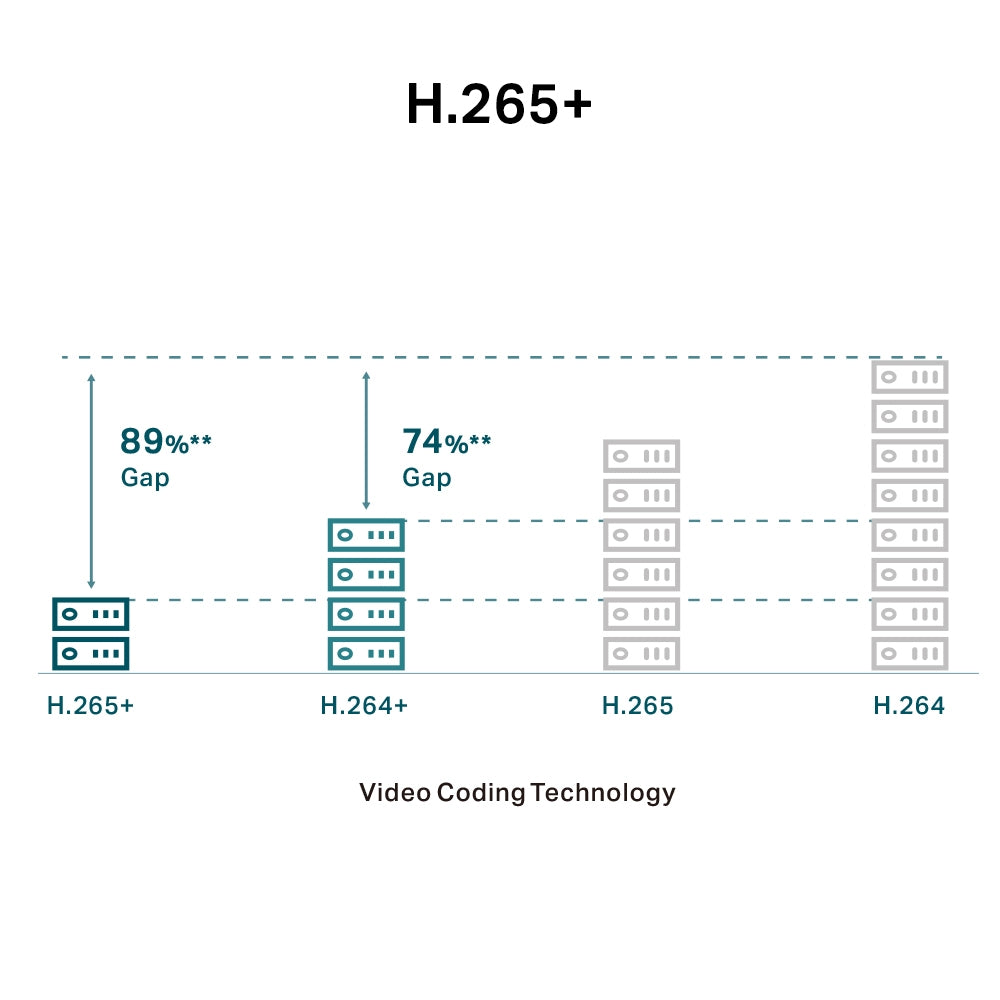

SmartVid Video Enhancement and H.265+
Smart IR, digital WDR and 3D DNR improve clarity in mixed and low light, and H.265+ compression on the main stream reduces storage and network load. A built-in microphone captures sound within about 5 m.
Ideal For
Lobbies, corridors, retail floors, classrooms, clinics and building entrances where a discreet, tamper-resistant dome is preferred. Supplied by SourceIT with local Singapore warranty and GST invoice.
VIGI C240I 2.8mm Datasheet — Technical Specifications
General
| Model | VIGI C240I 2.8mm |
| Official Product Name | VIGI 4MP IR Dome Network Camera |
| Brand | TP-Link |
| Warranty | 3 Years Local Warranty (Singapore) |
Camera
| Image Sensor | 1/3" Progressive Scan CMOS |
| Shutter Speed | 1/3 to 1/10000 s |
| Slow Shutter | Yes |
| Minimum Illumination | Color: 0.01 Lux; 0 Lux with IR light |
| Day/Night Mechanism | IR Cut Filter |
| Day/Night Switch | Unified/ Scheduled/ Auto |
Lens
| Type | Fixed Focal Lens |
| Focal Length | 2.8 mm |
| Aperture | F2.2 |
| FOV | Horizontal FOV: 88.8°, Vertical FOV: 48.9°, Diagonal FOV: 106.5° |
| Lens Mount | M12 |
| DORI Distance | Detect: 60 m (197 ft) Observe: 25 m (82 ft) Recognize: 12 m (39 ft) Identify: 6 m (20 ft) |
| Angle Adjustment (Manual) | Pan: 0° to 355° Tilt: 0° to 75° |
Illuminator
| IR LED | Quantity: 2 Range: 30m Wavelength: 850nm |
| White LED | N/A |
| Illuminator On/Off Control | Auto/Scheduled/Always on/Always off |
Video
| Max. Resolution | 2560 x 1440 |
| Main Stream | Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps Resolution: 2560x1440, 2304x1296, 2048x1280, 1920x1080, 1280x720 Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. |
| Sub-Stream | Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps Resolution: 640x480, 352x288, 320x240 Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. |
| Bit Rate Control | CBR, VBR |
| Video Compression | Main Stream: H.265+/H.265/H.264+/H.264 Sub-Stream: H.265/H.264 |
| H.264 Type | High Profile |
| H.264+ | Main Stream Supported |
| H.265 Type | Main Profile |
| H.265+ | Main Stream Supported |
| Video Bit Rate | Main Stream: 256 Kbps to 4 Mbps Sub-Stream: 64 Kbps to 512 Kbps |
| Image Settings | Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, Prevent Overexposure to Infrared Light, HLC Adjustable by Client Software, Rotation (90°/270°) |
| Image Enhancement | BLC/3D DNR/HLC/SmartIR |
| Wide Dynamic Range | DWDR |
| SNR | ≥ 52 dB |
| Image Parameters Switch | Yes |
| Privacy Mask | Up to 4 Masks |
| ROI | 1 Region |
| OSD Setting | Yes |
Audio
| Audio Communication | N/A |
| Audio Input | Yes |
| Audio Output | N/A |
| Audio Compression | Yes |
| Audio Sampling Rate | 8KHz |
| Environment Noise Filtering | Yes |
| Audio Bit Rate | 64 Kbps (G.711 alaw) |
Network
| Protocol | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP |
| ONVIF | Yes |
| API | Open Network Video Interface (Profile S) |
| Simultaneous Live View | 3 Main Streams & 3 Sub-Streams |
| Client | VIGI App, VIGI Security Manager, Web UI |
| Web Browser | Google Chrome® 57 and above Firefox® 52 and above Safari® 11 and above Microsoft® Edge 91 and above |
| Cloud | Yes |
| Security | Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication |
Alarm & Event Management
| Smart Event | Intrusion Detection Line-Crossing Detection Region Entering Detection Region Exiting Detection Object Abandoned/Removal Detection Abnormal Sound Detection People Detection Vehicle Detection |
| Basic Event | Motion Detection (Enhanced with Human & Vehicle Classification for more accurate alerts) Video Tampering Detection Exception (Illegal Login) |
| Alarm Linkage | Message Push |
Interfaces
| Network Interface | 1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE |
| Alarm | N/A |
| Reset Button | N/A |
| Power | DC Power Port |
| On-board Storage | N/A |
| Built-in Microphone | Yes; Records Anything Going on within a 16.4-ft (5 m) Radius of the Camera |
| Built-in Speaker | N/A |
| Audio | N/A |
General
| Operating Temperature | -30–60 °C |
| Storage Temperature | -40–60 °C |
| Operating Humidity | 95% or Less (Non-Condensing) |
| Storage Humidity | 95% or Less (Non-Condensing) |
| Material | Plastic |
| Net Weight | 0.27 Kg |
| Gross Weight | 0.45 Kg |
| Power Supply | 12V DC ± 5%, Max. 5 W, 5.5mm Coaxial Power Plug PoE: 802.3af/at, class 0, Max. 5.5 W |
| Protection | IP67 Waterproof, IK10 Vandal Proof |
| Product Dimensions (L x W x H) | 115 x 115 x 86 mm (4.53 x 4.53 x 3.39 in) |
| Certifications | CE, NTRA, VCCI, BSMI |
The VIGI C240I has no memory card slot, no speaker and no white-light illuminator (TP-Link lists these as N/A); recording is to a VIGI NVR or VIGI Security Manager.
Compatibility & Software Support
| Management | VIGI App, VIGI Security Manager, Web UI |
| Cloud | Yes |
| Third-Party Integration | ONVIF (Profile S) |
| On-Camera Storage | None (N/A) — record to a VIGI NVR |
| Power | PoE 802.3af/at or 12V DC |
| Web Browser | Google Chrome® 57 and above Firefox® 52 and above Safari® 11 and above Microsoft® Edge 91 and above |
Package Contents & Ordering Information
Package Contents
| In the Box | VIGI Network Camera Quick Start Guide Waterproof Cable Attachments Mounting Accessories |
Ordering Information
| Model | VIGI C240I 2.8mm |
| SKU | VIGI C240I (2.8mm) |
| Other Focal Lengths | 4 mm |
| Warranty | 3 Years Local Warranty (Singapore) |
Datasheet & Downloads
Frequently Asked Questions — VIGI C240I
What warranty does SourceIT provide?
The VIGI C240I 2.8mm is supplied by SourceIT with 3 years local warranty (Singapore), backed by TP-Link Singapore. Keep your GST invoice as proof of purchase for any warranty claim.
Which lens should I choose?
The VIGI C240I comes in 2.8 mm and 4 mm versions. TP-Link rates the 2.8 mm at 88.8° horizontal field of view with identification at 6 m, and the 4 mm at 75.2° with identification at 8 m. Choose 2.8 mm for wider rooms and 4 mm for more detail further away.
Does the C240I store recordings itself?
No. TP-Link lists on-board storage as N/A, so it should be paired with a VIGI NVR or managed through VIGI Security Manager for recording.
Can it be used outdoors?
Yes. TP-Link rates the housing IP67 waterproof and IK10 vandal proof, with an operating range of -30 to 60 °C.
Can SourceIT quote this for an office or a project?
Yes. SourceIT can quote the VIGI C240I 2.8mm in quantity together with VIGI network video recorders, PoE switches, hard drives and cabling for offices, shops, warehouses and multi-site projects. Contact our sales team with your camera count and site details for a consolidated quotation with GST invoice.
