TP-Link VIGI C330 3MP Outdoor Full-Color Bullet Network Camera, 2.8mm Lens
Email sales@sourceit.com.sg or use Request for Quotation below and our team will confirm the latest price, availability and lead time.
PRODUCT DESCRIPTION
TP-Link VIGI 3MP Outdoor Full-Color Bullet Network Camera (VIGI C330 2.8mm) - 3 Years Local Warranty

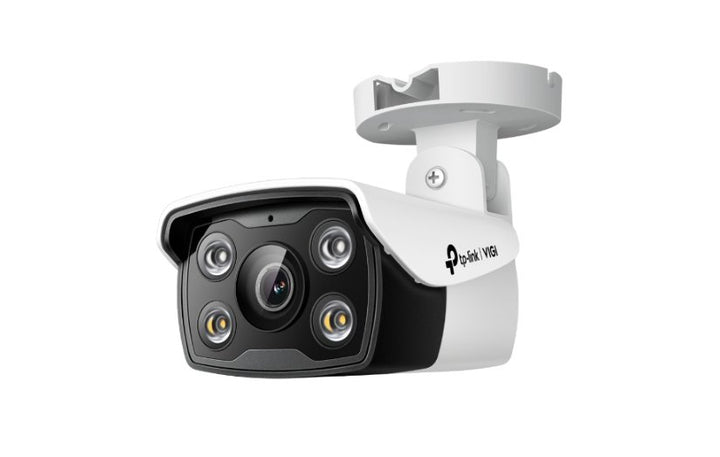

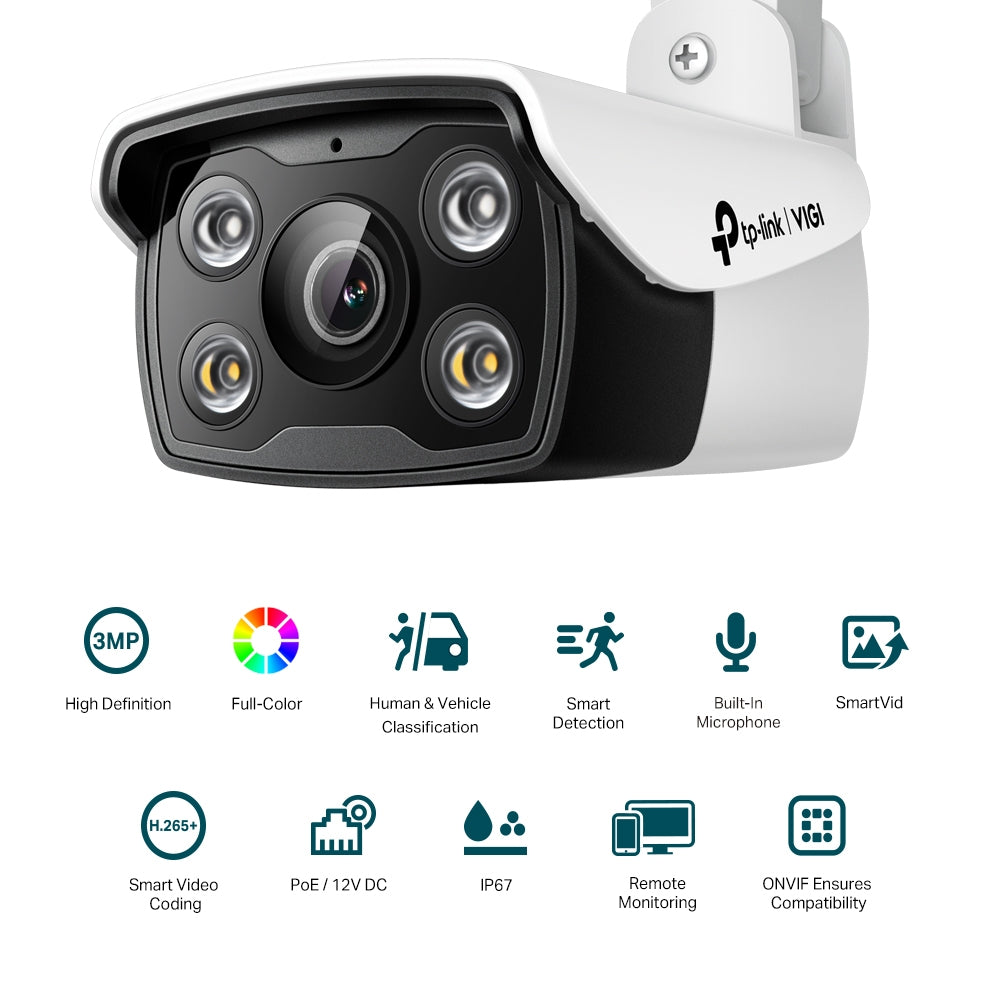

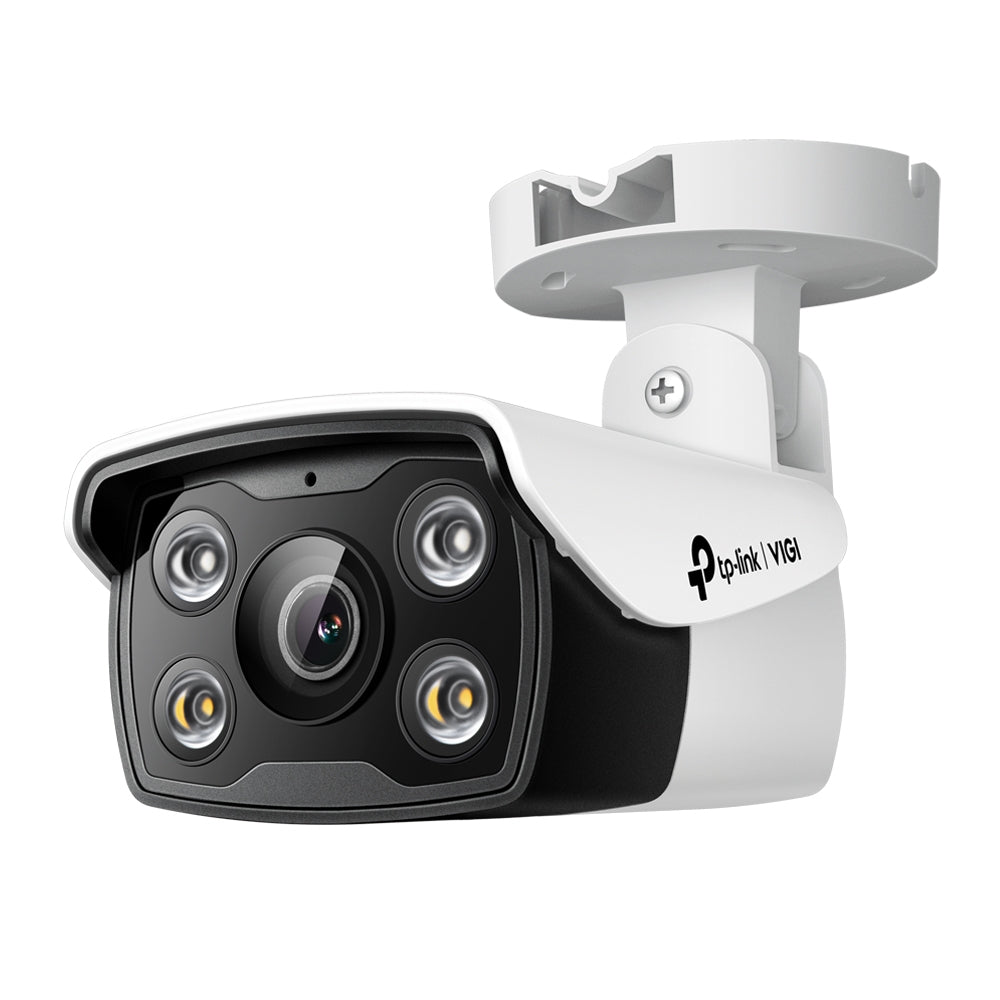

The TP-Link VIGI C330 is a 3MP outdoor full-colour bullet network camera with a 2.8mm F1.6 fixed lens, two IR and two white LEDs rated to 30 m, human and vehicle classification and an IP67 housing. It is powered by PoE (802.3af/at) or 12V DC and records to a VIGI NVR.
3MP Resolution with 24-Hour Full Colour
A 1/2.8" progressive scan CMOS sensor records up to 2304 x 1296, with 0.005 lux sensitivity and two white LEDs to keep night images in colour.
Human & Vehicle Classification
Classification separates people and vehicles from other movement for more accurate alerts.
Smart Detection
Area intrusion, line-crossing, region entering and exiting, and object abandoned and removal detection are supported, with white-light flashing and message push linkage.

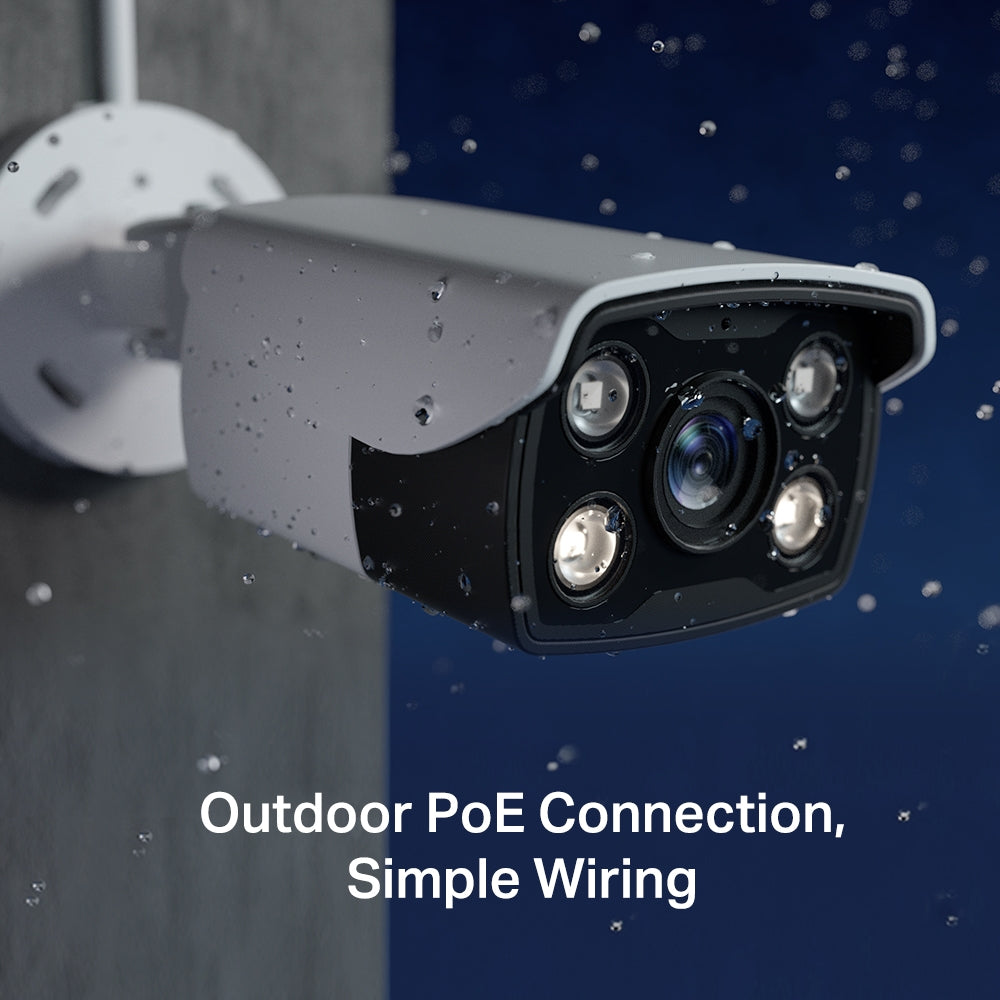

IP67 Outdoor Bullet
The IP67-rated bullet body is built for outdoor mounting on walls and eaves, with -90° to 90° pan and tilt adjustment.
Ideal For
Building perimeters, gates, car parks, loading bays and outdoor walkways where colour footage at night is needed. Supplied by SourceIT with local Singapore warranty and GST invoice.
VIGI C330 Datasheet — Technical Specifications
General
| Model | VIGI C330 2.8mm |
| Official Product Name | VIGI 3MP Outdoor Full-Color Bullet Network Camera |
| Brand | TP-Link |
| Lens Option | 2.8mm fixed focal lens |
| Warranty | 3 Years Local Warranty (Singapore) |
Camera
| Image Sensor | 1/2.8" Progressive Scan CMOS |
| Shutter Speed | 1/3 to 1/10000 s |
| Slow Shutter | Yes |
| Minimum Illumination | 0.005 Lux; 0 Lux with IR/White Light |
| Day/Night Mechanism | IR Cut Filter |
| Day/Night Switch | Unified/ Scheduled/ Auto |
Lens
| Type | Fixed Focal Lens |
| Focal Length | 2.8 mm |
| Aperture | F1.6 |
| Lens Mount | M12 |
| FOV | Horizontal FOV: 107.5°, Vertical FOV: 57.2°, Diagonal FOV: 128.7° |
| DORI Distance | Detect: 52 m (170 ft); Observe: 22 m (71 ft); Recognize: 10 m (34 ft); Identify: 5 m (17 ft) |
Angle Adjustment (Manual)
| Range | Pan: -90° to 90°; Tilt: -90° to 90° |
Illuminator
| IR LED | Quantity: 2; Range: 30m; Wavelength: 850nm |
| White LED | Quantity: 2; Range: 30m |
| Illuminator On/Off Control | Auto/Scheduled/Always on/Always off |
Video
| Max. Resolution | 2304 x 1296 |
| Main Stream | Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps. Resolution: 2304x1296, 2048x1280, 1920x1080, 1280x720 (if the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps) |
| Sub-Stream | Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps. Resolution: 2304x1296, 2048x1280, 1920x1080, 1280x720 (if the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps) |
| Bit Rate Control | CBR, VBR |

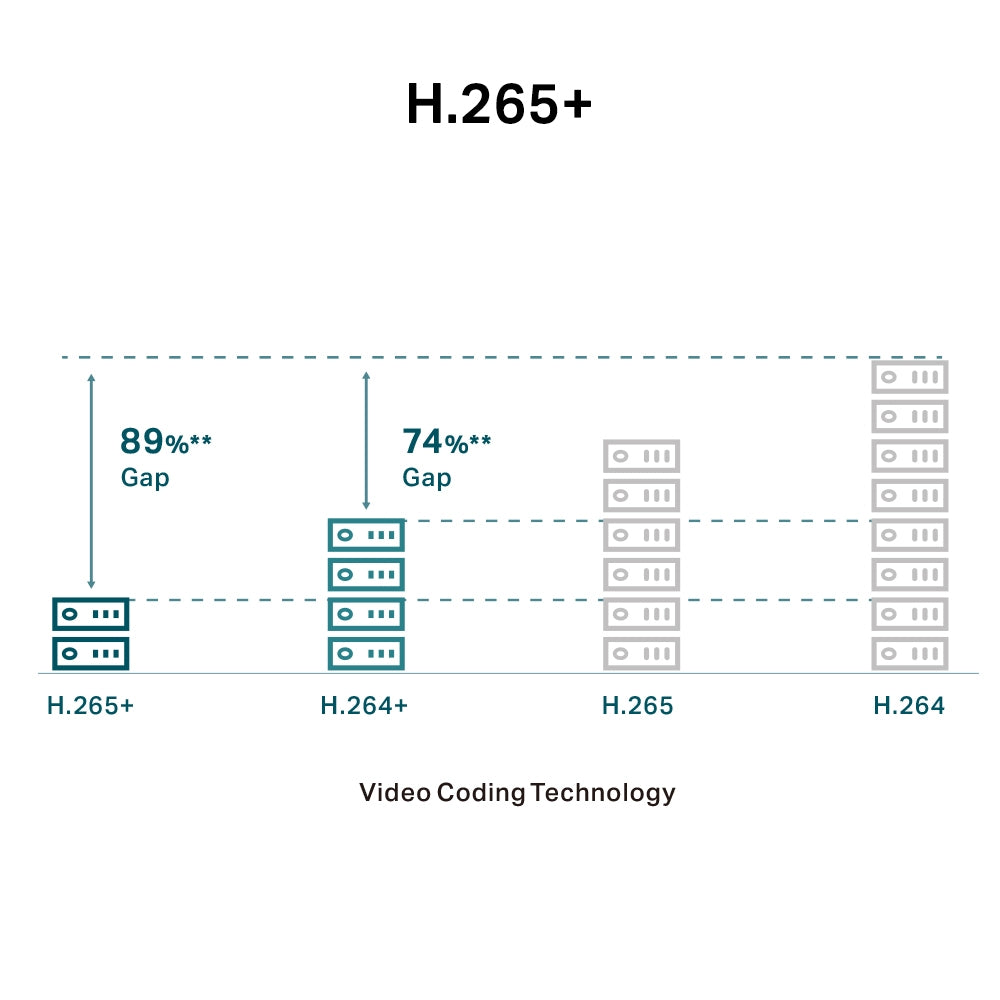

| Video Compression | Main Stream: H.265+/H.265/H.264+/H.264; Sub-Stream: H.265/H.264 |
| H.264 Type | Main Profile/High Profile |
| H.264+ | Main Stream Supported |
| H.265 Type | Main Profile |
| H.265+ | Main Stream Supported |
| Video Bit Rate | Main Stream: 256 Kbps to 4 Mbps; Sub-Stream: 64 Kbps to 512 Kbps |
| Image Settings | Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, Prevent Overexposure to Infrared Light, HLC Adjustable by Client Software, Rotation (90°/270°) |
| Image Enhancement | BLC/3D DNR/HLC/SmartIR |
| Wide Dynamic Range | DWDR |
| SNR | ≥ 52 dB |
| Image Parameters Switch | Yes |
| Privacy Mask | Up to 4 Masks |
| ROI | 1 Region |
| OSD Setting | Yes |
Audio
| Audio Communication | N/A |
| Audio Input | Yes |
| Audio Output | N/A |
| Audio Compression | Yes |
| Audio Sampling Rate | 8KHz |
| Environment Noise Filtering | Yes |
| Audio Bit Rate | 64 Kbps (G.711 alaw) |
Network
| Protocol | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS |
| ONVIF | Yes |
| API | Open Network Video Interface (Profile S) |
| Simultaneous Live View | 3 Main Streams & 3 Sub-Streams |
| Client | VIGI App, VIGI Security Manager, Web UI |
| Web Browser | Google Chrome® 57 and above; Firefox® 52 and above; Safari® 11 and above; Microsoft® Edge 91 and above |
| Cloud | Yes |
| Security | Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication |
Alarm and Event Management
| Smart Event | Human & Vehicle Classification, Area Intrusion Detection, Line-Crossing Detection, People Detection, Vehicle Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection |
| Basic Event | Motion Detection, Video Tampering Detection, Exception (Illegal Login) |
| Alarm Linkage | White Light Flashing, Message Push |
| Linkage Method | N/A |
| Output Notification | Message Push |
Interfaces
| Network Interface | 1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE |
| Alarm | N/A |
| Reset Button | N/A |
| Power | DC Power Port |
| On-board Storage | N/A |
| Built-in Microphone | Yes; Records Anything Going on within a 16.4-ft (5 m) Radius of the Camera |
| Built-in Speaker | N/A |
Power
| Power Supply | 12V DC ± 5%, Max. 5.5 W, 5.5mm Coaxial Power Plug; PoE: 802.3af/at, class 0, Max. 6 W |
Physical & Environment
| Operating Temperature | -30 °C to 60 °C |
| Storage Temperature | -40 °C to 60 °C |
| Operating Humidity | 95% or Less (Non-Condensing) |
| Storage Humidity | 95% or Less (Non-Condensing) |
| Product Dimensions (L x W x H) | 174 x 78 x 71 mm |
| Material | Plastic |
| Net Weight | 0.26 Kg |
| Gross Weight | 0.4 Kg |
| Protection | IP67 |
| General Features | Two Streams, Mirror, Privacy Masks, Password Reset via E-mail, HTTP Listening |
| Certifications | CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC |
TP-Link publishes the same resolution list for the main stream and the sub-stream of this camera; it is reproduced as published. TP-Link lists no on-board storage, built-in speaker or IK rating for this camera.
Compatibility & Software Support
| Clients | VIGI App, VIGI Security Manager, Web UI; also manageable from a VIGI NVR UI |
| Web Browser | Google Chrome® 57 and above; Firefox® 52 and above; Safari® 11 and above; Microsoft® Edge 91 and above |
| Third-Party Integration | Open Network Video Interface (Profile S) |
| Storage | No on-board storage; records to an NVR |
| Power | PoE 802.3af/at switch or NVR, or 12V DC adapter |
Package Contents & Ordering Information
Package Contents
| VIGI Network Camera | Included |
| Quick Start Guide | Included |
| Waterproof Cable Attachments | Included |
| Mounting Accessories | Included |
Ordering Information
| Model | VIGI C330 2.8mm |
| Lens | 2.8mm |
| SKU | VIGI C330S (2.8mm) |
| Warranty | 3 Years Local Warranty (Singapore) |
| Other Lens Options | VIGI C330 4mm, VIGI C330 6mm (listed separately) |
Datasheet & Downloads
Frequently Asked Questions — VIGI C330
Is the VIGI C330 suitable for outdoor use?
Yes. TP-Link rates it IP67 with an operating temperature of -30 °C to 60 °C and supplies waterproof cable attachments in the box.
How far can the 2.8 mm version see?
TP-Link quotes DORI distances of 52 m detect, 22 m observe, 10 m recognise and 5 m identify for the 2.8 mm lens, with a 107.5° horizontal field of view.
Does it need an NVR?
TP-Link lists no on-board storage, so continuous recording needs a VIGI NVR or another ONVIF-compatible recorder.
What warranty does SourceIT provide?
The VIGI C330 2.8mm is supplied with a 3-year local warranty in Singapore. Warranty claims are handled locally in line with TP-Link's replacement warranty policy, linked in the downloads section above.
Can SourceIT quote this for an office or a project?
Yes. SourceIT quotes VIGI cameras together with VIGI NVRs, PoE switches and cabling for offices, shops, warehouses and multi-site projects in Singapore, with a GST invoice. Contact the SourceIT sales team with the number of cameras and the areas to be covered.
