TP-Link VIGI C420I 2MP IR Turret Network Camera, 2.8mm Lens
Email sales@sourceit.com.sg or use Request for Quotation below and our team will confirm the latest price, availability and lead time.
PRODUCT DESCRIPTION
TP-Link VIGI 2MP IR Turret Network Camera (VIGI C420I 2.8mm) - 3 Years Local Warranty

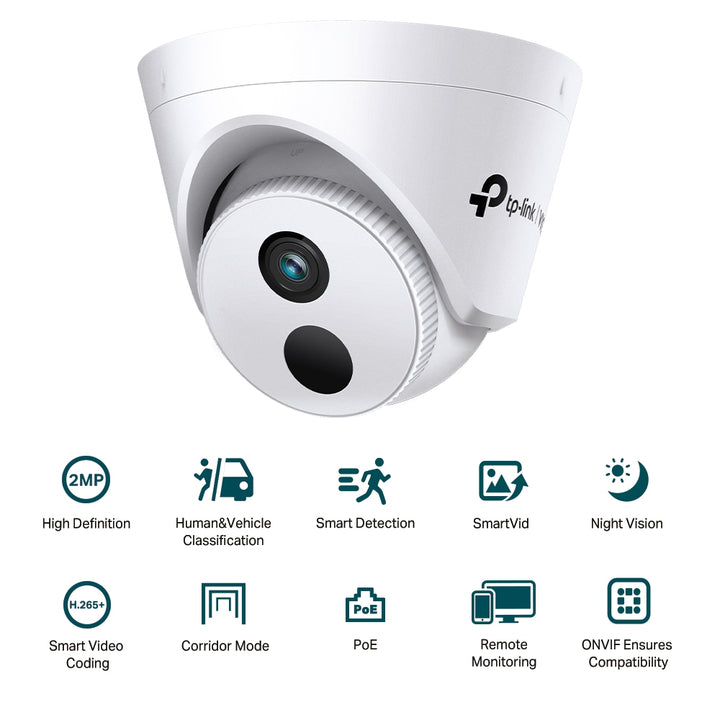

The TP-Link VIGI C420I is a 2MP turret network camera with a 2.8 mm fixed lens, 30 m IR night vision, human and vehicle classification and a built-in microphone. It is powered over PoE and records to a VIGI NVR, with management through the VIGI app and VIGI Security Manager.
2MP Full HD with Smart IR
A 1/3" progressive scan CMOS sensor records at up to 1920 x 1080. One 850 nm IR LED gives a stated IR range of 30 m, supported by Smart IR, DWDR and 3D DNR.
2.8 mm Fixed Lens
The 2.8 mm lens is the wider of the two C420I versions (88.2° horizontal), suited to offices, shops, lobbies and meeting rooms.

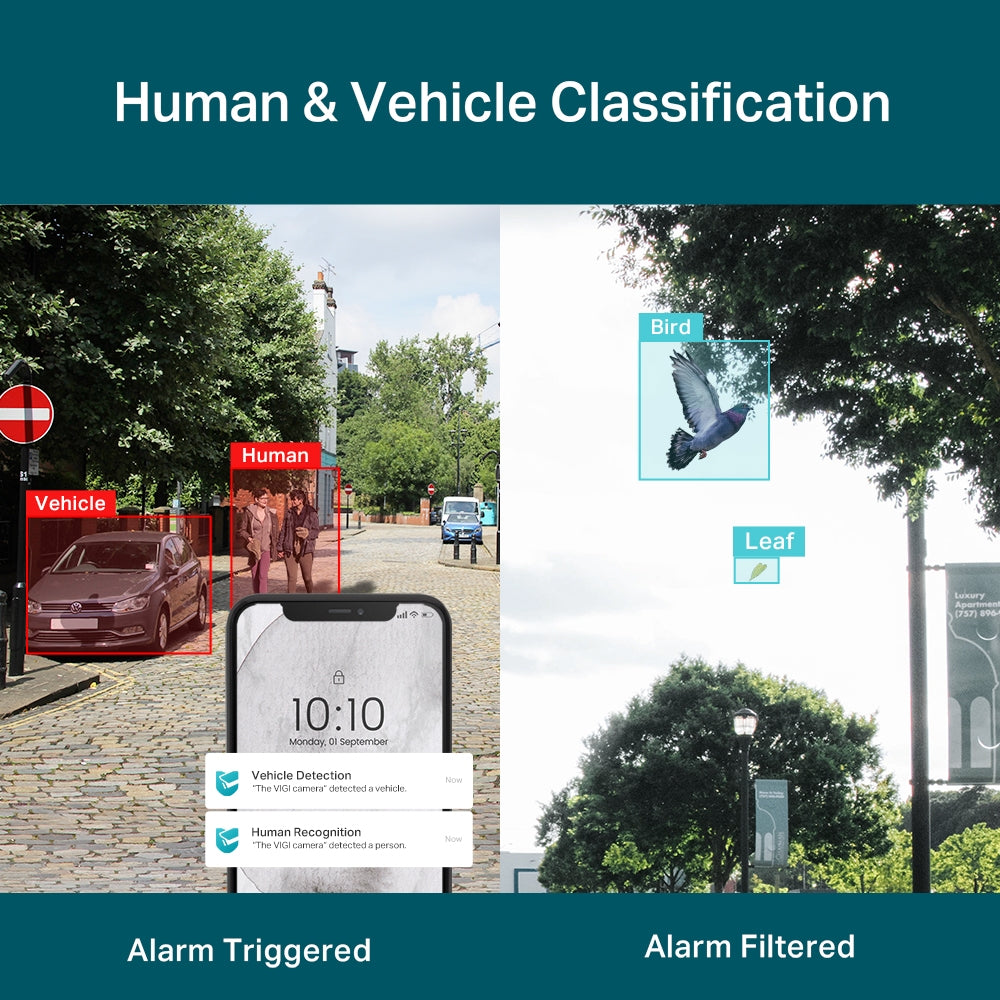

Human & Vehicle Classification and Corridor Mode

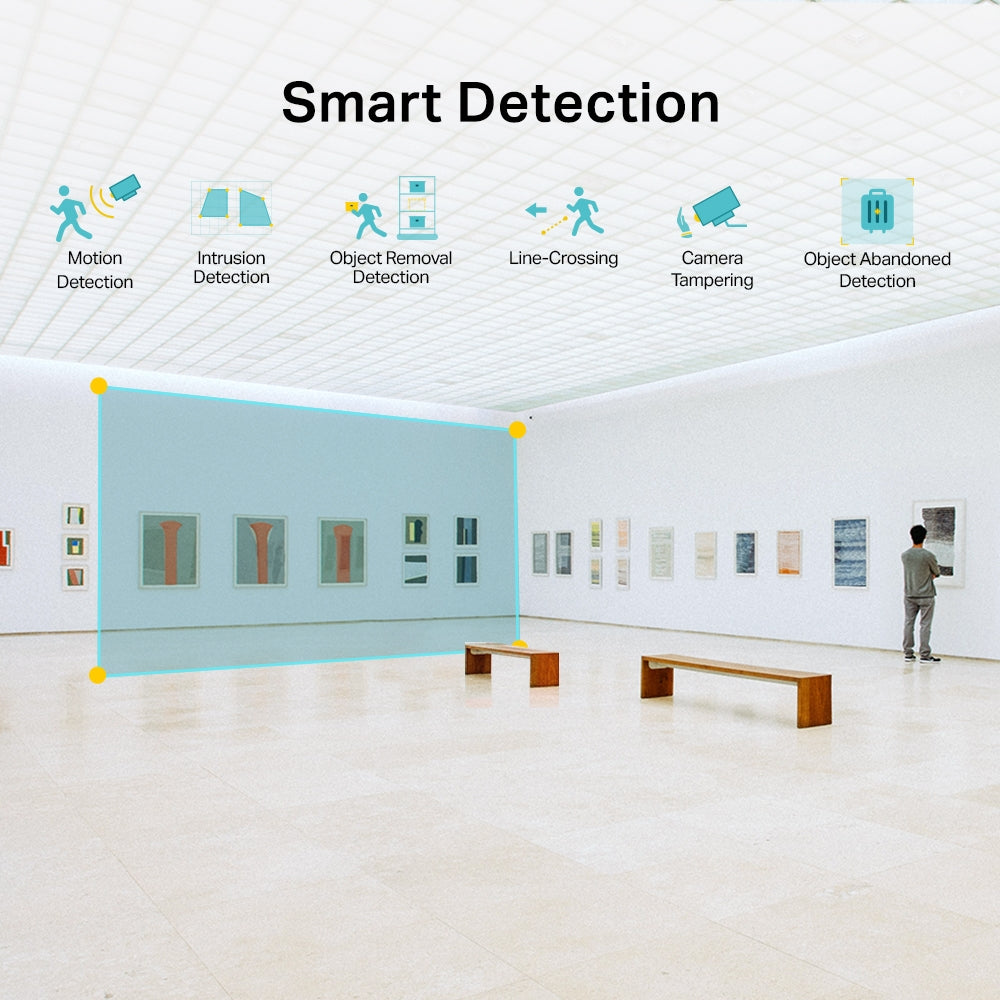

On-camera analytics separate people and vehicles from other movement, with intrusion, line-crossing, region entering/exiting, object abandoned/removal and abnormal sound detection. Corridor mode rotates the image from 16:9 to 9:16 for long, narrow areas.
Single-Cable PoE Installation
The C420I is powered only by 802.3af/at PoE (max. 5.5 W); TP-Link lists no DC power port. One RJ45 cable carries both data and power.
Ideal For
Indoor coverage in offices, retail shops, clinics, reception areas and corridors, recording to a VIGI NVR and managed through the VIGI app or VIGI Security Manager. Supplied by SourceIT with local Singapore warranty and GST invoice.
VIGI C420I 2.8mm Datasheet — Technical Specifications
General
| Model | VIGI C420I(2.8mm) |
| Official Product Name | VIGI 2MP IR Turret Network Camera |
| Brand | TP-Link |
| Warranty | 3 Years Local Warranty (Singapore) |
Camera
| Image Sensor | 1/3" Progressive Scan CMOS |
| Shutter Speed | 1/3 to 1/10000 s |
| Slow Shutter | Yes |
| Minimum Illumination | Color: 0.01 Lux; 0 Lux with IR Light |
| Day/Night Mechanism | IR Cut Filter |
| Day/Night Switch | Unified/ Scheduled/ Auto |
Lens
| Type | Fixed Focal Lens |
| Focal Length | 2.8 mm |
| Aperture | F2.2 |
| FOV | Horizontal FOV: 88.2°, Vertical FOV: 48.7°, Diagonal FOV: 106.5° |
| Lens Mount | M12 |
| DORI Distance | Detect: 45 m (149 ft) Observe: 19 m (62 ft) Recognize: 9 m (30 ft) Identify: 5 m (15 ft) |
Angle Adjustment (Manual)
| Range | Pan: 0° to 360° Tilt: 0° to 85° Rotate: 0° to 360° |
Illuminator
| IR LED | Quantity: 1 Range: 30m Wavelength: 850nm |
| White LED | N/A |
| Illuminator On/Off Control | Auto/Scheduled/Always on/Always off |
Video
| Max. Resolution | 1920 x 1080 |
| Main Stream | Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps Resolution: 1920x1080, 1280x960, 1280x720 Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. |
| Sub-Stream | Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps Resolution: 704x576, 640x480, 352x288, 320x240 Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. |
| Bit Rate Control | CBR, VBR |

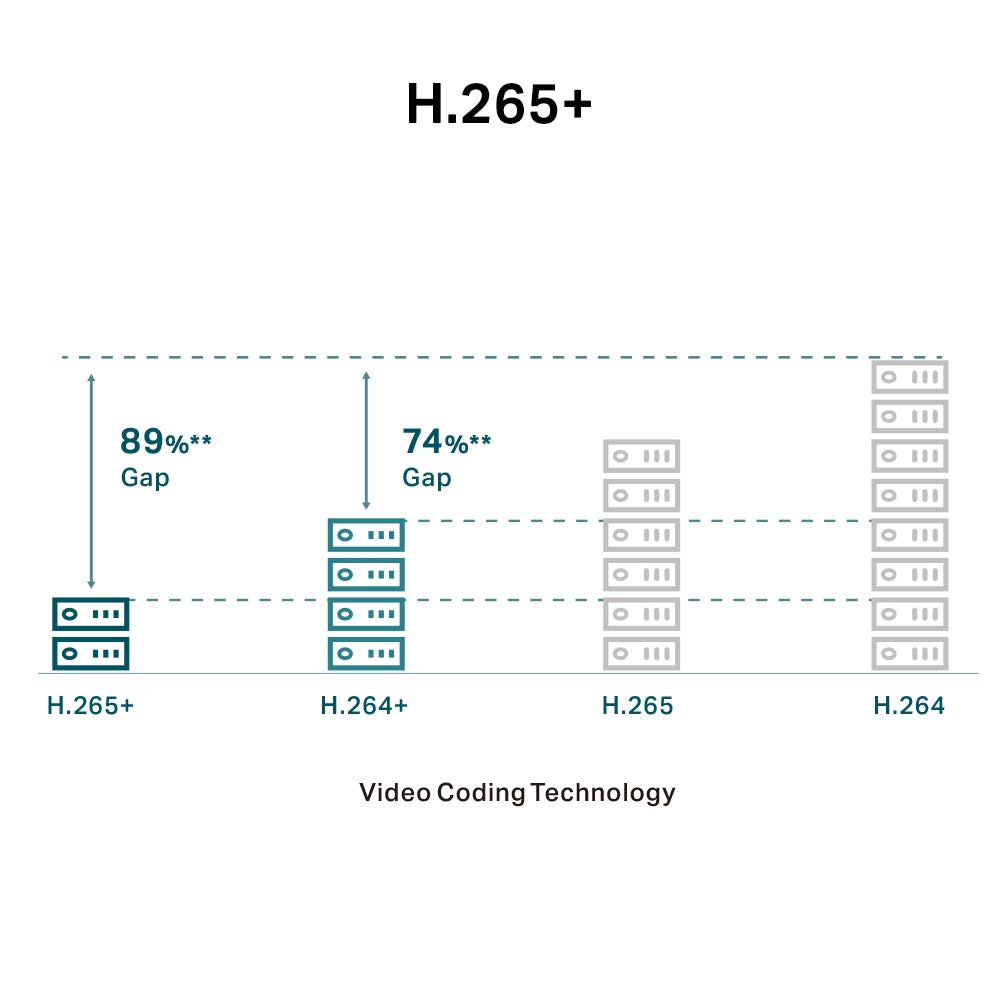

| Video Compression | Main Stream: H.265+/H.265/H.264+/H.264 Sub-Stream: H.265/H.264 |
| H.264 Type | High Profile |
| H.264+ | Main Stream Supported |
| H.265 Type | Main Profile |
| H.265+ | Main Stream Supported |
| Video Bit Rate | Main Stream: 256 Kbps to 4 Mbps Sub-Stream: 64 Kbps to 512 Kbps |
| Image Settings | Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, DWDR, White Balance, Prevent Overexposure to Infrared Light, HLC Adjustable by Client Software, Rotation (90°/270°) |
| Image Enhancement | BLC/3D DNR/HLC/SmartIR |
| Wide Dynamic Range | DWDR |
| SNR | ≥ 52 dB |
| Image Parameters Switch | Yes |
| Privacy Mask | Up to 4 Masks |
| ROI | 1 Region |
| OSD Setting | Yes |
Audio
| Audio Communication | N/A |
| Audio Input | Yes |
| Audio Output | N/A |
| Audio Compression | Yes |
| Audio Sampling Rate | 8KHz |
| Environment Noise Filtering | Yes |
| Audio Bit Rate | 64 Kbps (G.711 alaw) |
Network
| Protocol | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, ARP |
| ONVIF | Yes |
| API | Open Network Video Interface (Profile S) |
| Simultaneous Live View | 3 Main Streams & 3 Sub-Streams |
| Client | VIGI App, VIGI Security Manager, Web UI |
| Web Browser | Google Chrome® 57 and above Firefox® 52 and above Safari® 11 and above Microsoft® Edge 91 and above |
| Cloud | Yes |
| Security | Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication |
Alarm and Event Management
| Smart Event | Intrusion Detection Line-Crossing Detection Region Entering Detection Region Exiting Detection Object Abandoned/Removal Detection Abnormal Sound Detection People Detection Vehicle Detection |
| Basic Event | Motion Detection (Enhanced with Human & Vehicle Classification for more accurate alerts) Video Tampering Detection Exception (Illegal Login) |
| Alarm Linkage | Message Push |
| Linkage Method | N/A |
| Output Notification | Message Push |
Interfaces
| Network Interface | 1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE |
| Alarm | N/A |
| Reset Button | N/A |
| Power | N/A |
| On-board Storage | N/A |
| Built-in Microphone | Yes; Records Anything Going on within a 16.4-ft (5 m) Radius of the Camera |
| Built-in Speaker | N/A |
| Audio | N/A |
General
| Operating Temperature | -30–60 °C |
| Storage Temperature | -40–60 °C |
| Operating Humidity | 95% or Less (Non-Condensing) |
| Storage Humidity | 95% or Less (Non-Condensing) |
| Material | Plastic |
| Net Weight | 0.19 Kg |
| Gross Weight | 0.34 Kg |
| Power Supply | PoE: 802.3af/at, class 0, Max. 5.5 W |
| Protection | N/A |
| Product Dimensions (L x W x H) | 123 x 123 x 83 mm (4.84 x 4.84 x 3.27 in) |
| Certifications | CE, NTRA, VCCI, BSMI |
TP-Link lists the aperture, field of view and DORI distances separately for the 2.8 mm and 4 mm versions; only the figures for this lens are shown above. TP-Link lists the Protection rating as N/A, so no IP weatherproof rating is published for the C420I.
Compatibility & Software Support
| Management (product page) | NVR UI, VIGI app and VIGI Security Manager |
| Client (spec table) | VIGI App, VIGI Security Manager, Web UI |
| ONVIF | Yes — Open Network Video Interface (Profile S) |
| Cloud | Yes |
| Web Browser | Google Chrome® 57 and above, Firefox® 52 and above, Safari® 11 and above, Microsoft® Edge 91 and above |
| On-board Storage | N/A — recording is to a network video recorder |
| Power | PoE only: 802.3af/at, class 0, max. 5.5 W |
TP-Link's product page describes three management methods (NVR UI, VIGI app, VIGI Security Manager), while its specification table also lists Web UI as a client. Both are shown as published.
Package Contents & Ordering Information
Package Contents
| 1 | VIGI Network Camera |
| 2 | Quick Start Guide |
| 3 | Mounting Accessories |
Ordering Information
| Model | VIGI C420I(2.8mm) |
| SKU | VIGI C420I |
| Warranty | 3 Years Local Warranty (Singapore) |
| Other focal lengths in this range | VIGI C420I(4mm) |
Datasheet & Downloads
Frequently Asked Questions — VIGI C420I
Can the VIGI C420I be installed outdoors?
TP-Link lists the Protection rating as N/A and publishes no IP weatherproof rating for the C420I, so it is best treated as an indoor camera. For outdoor positions, consider an IP67-rated VIGI model.
How is the C420I powered?
Over PoE only (802.3af/at, class 0, max. 5.5 W). TP-Link lists no DC power port, so a PoE switch or PoE injector is required.
How far can it see at night?
TP-Link states an IR range of 30 m. For the 2.8 mm lens, the published detect distance is 45 m (149 ft) and the identify distance is 5 m (15 ft).
Does it record audio?
Yes. TP-Link lists a built-in microphone that records within a 5 m (16.4 ft) radius. There is no built-in speaker, so two-way audio is not supported.
What warranty does SourceIT provide?
The VIGI C420I is supplied with a 3 Years Local Warranty (Singapore). Keep your SourceIT invoice as proof of purchase.
Can SourceIT quote this for an office or a project?
Yes. SourceIT supplies the VIGI C420I for single sites and multi-camera projects in Singapore. Send the quantity, focal lengths and any matching VIGI recorder or PoE switch you need, and SourceIT will return a quotation with a GST invoice.
