TP-Link VIGI NVR2016H-16P 16 Channel PoE+ Network Video Recorder
Email sales@sourceit.com.sg or use Request for Quotation below and our team will confirm the latest price, availability and lead time.
PRODUCT DESCRIPTION
TP-Link VIGI 16 Channel PoE+ Network Video Recorder (VIGI NVR2016H-16P) - 5 Years Local Warranty
The TP-Link VIGI NVR2016H-16P is a 16-channel network video recorder with 16 built-in PoE+ ports (90 W total budget, 30 W max per port), two SATA bays for up to 16 TB each, 4K HDMI and VGA outputs, and recording at up to 8MP. It powers and records a complete VIGI camera system from a single unit, with local, web and mobile access.
16 PoE+ Camera Ports
Sixteen 10/100 Mbps RJ-45 ports are 802.3at/af compliant, sharing a 90 W PoE budget with up to 30 W per port, plus a separate gigabit uplink port for the network.
4K HDMI & VGA Output
HDMI output reaches 3840x2160 at 30 Hz and VGA 1920x1080 at 60 Hz, with independent or simultaneous output and 1/4/6/8/9/16 multi-view layouts.
Storage & Playback
Two SATA interfaces accept up to 16 TB per drive (drives not included), with an eSATA port for expansion. Recording can be manual, scheduled or motion-triggered, and up to 16 channels play back synchronously within the stated resolution limits.
Smart Alarms & Integration
With compatible cameras the NVR handles line-crossing, intrusion, region entering/exiting, loitering, object abandoned/removal, vehicle and human detection. It also provides six alarm inputs, four alarm outputs, RCA audio in and out, and ONVIF Profile S and CGI interoperability.
Ideal For
Small and medium offices, retail outlets, clinics, schools and warehouses building a VIGI camera system of up to 16 cameras powered directly from the recorder. Supplied by SourceIT with local Singapore warranty and GST invoice.
VIGI NVR2016H-16P Datasheet — Technical Specifications
General
| Model | VIGI NVR2016H-16P |
| Official Product Name | VIGI 16 Channel PoE+ Network Video Recorder |
| Brand | TP-Link |
| Warranty | 5 Years Local Warranty (Singapore) |
Video and Audio
| IP Video Input | 16-Channel |
| Incoming Bandwidth | 160 Mbps |
| Outgoing Bandwidth | 160 Mbps |
| HDMI Output Resolution | 1 Channel, Resolution: 3840x2160/30Hz, 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz |
| VGA Output Resolution | 1 Channel, Resolution: 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz |
| Video Output Mode | HDMI and VGA Independent / Simultaneous Output |
| Multi-View Display | 1/4/6/8/9/16 |
Decoding
| Audio Compression | G.711A/G.711U/G.726 |
| Video Compression | H.265+/H.265/H.264+/H.264 |
| Record Resolution | 8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Synchronous Playback | 16-Channel† |
| Capability | 25fps: 10-ch @ 1080P; 30fps: 2-ch @ 8MP, 4-ch @ 5MP, 5-ch @ 4MP, 6-ch @ 3MP |
Record Management
| Record Mode | Manual Recording, Scheduling Recording, Motion Detection Recording |
| Playback Mode | Instant Playback, Regular Playback, Tag Playback, Event Playback |
| Backup Mode | Regular Backup, Video Clip Backup |
| Playback Function | Play, Pause, Stop, Fast Forward, Fast Backward, Play By Frame, Full Screen, Video Clip, Export Clip, Digital Zoom, Lock Recording, Audio On/Off |
Network
| Protocol | UPnP (Plug and Play), NTP (Network Timing), SMTP, DNS, TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, RTSP, SSL/TLS, RTP, IPv4, ARP, IPv6, SNMP |
| Mobile Phone Access | Android, iOS |
| Web Browser | Chrome (57+), Firefox (52+), Edge (91+), Safari (11+) |
| Interoperability | ONVIF Profile S, CGI‡ |

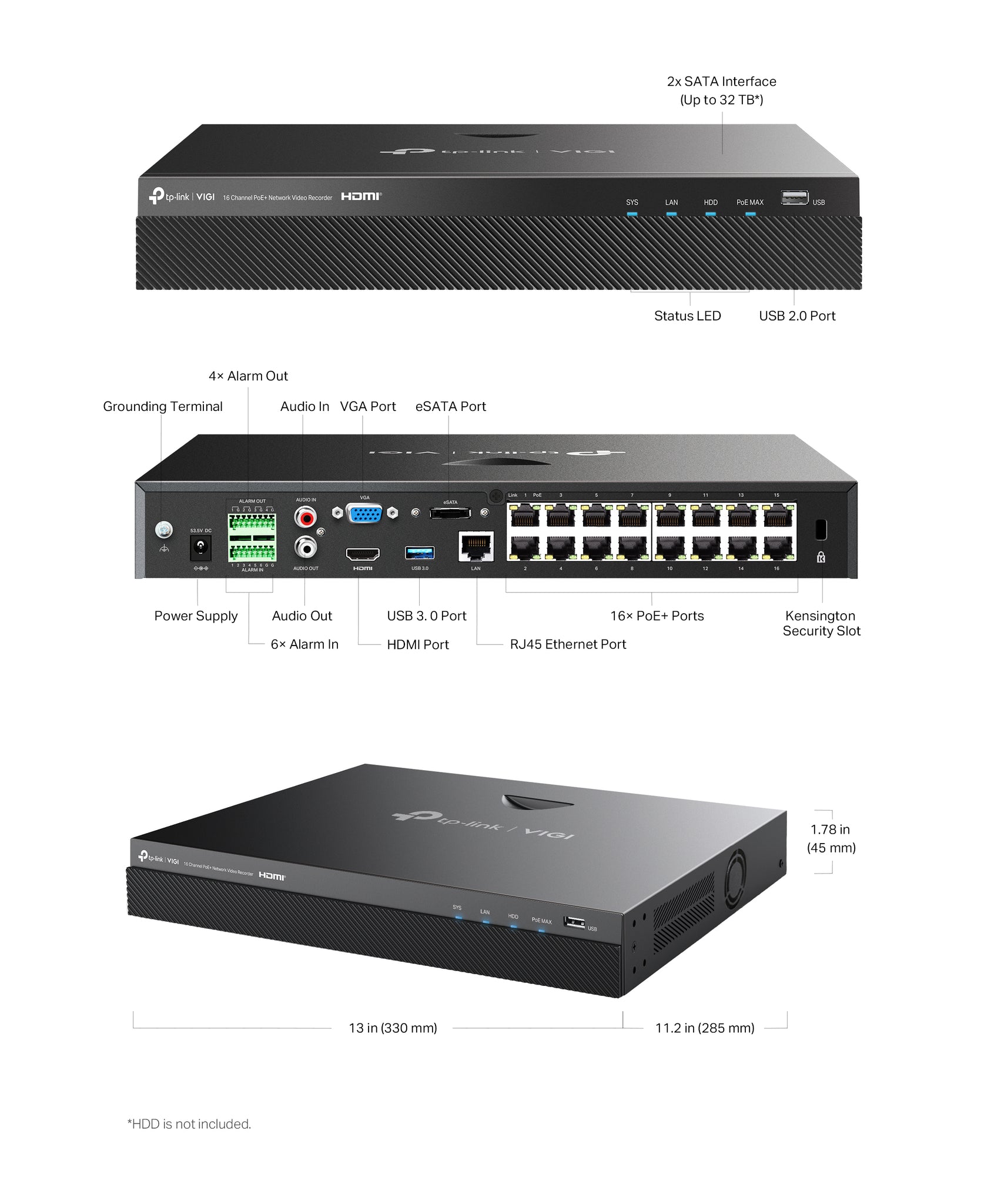

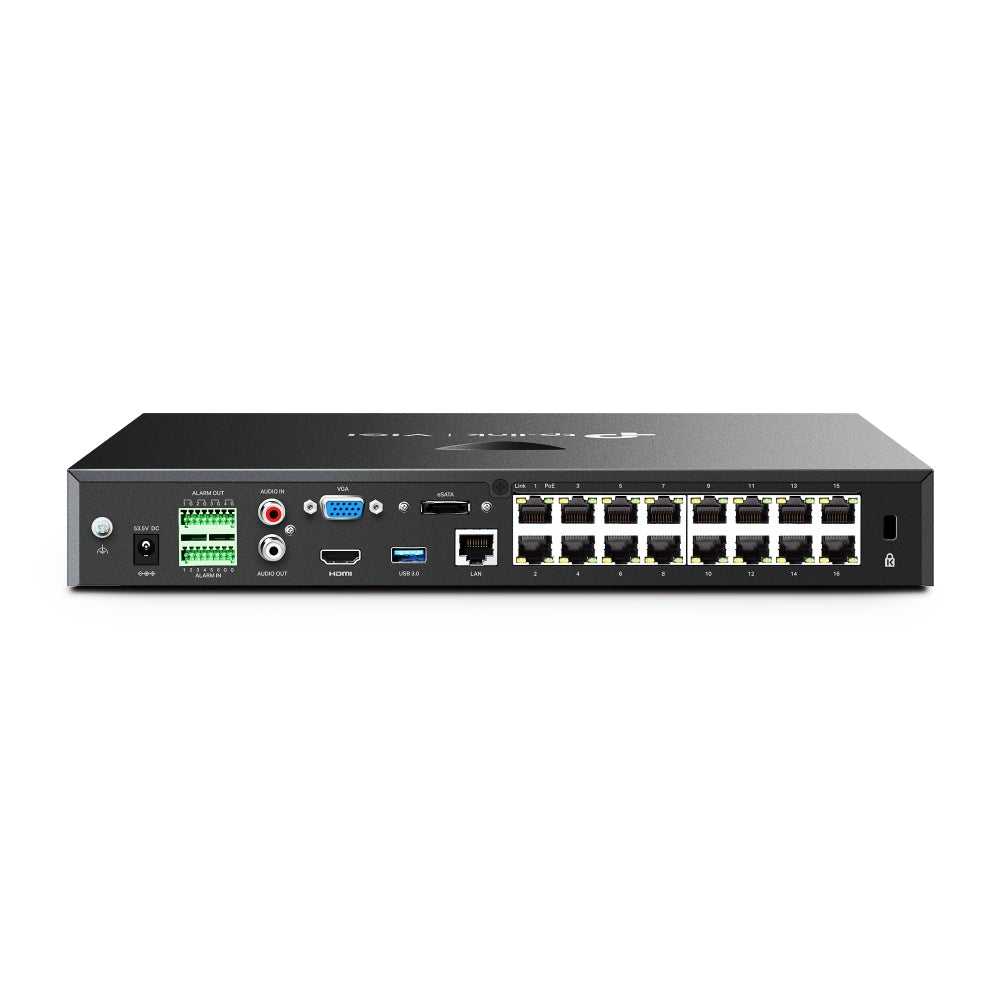

External Interface
| Network Interface | 1, RJ-45 10/100/1000 Mbps Self-Adaptive Ethernet Interface |
| USB Interface | 1 Front USB 2.0 Port, 1 Rear USB 3.0 Port |
| Audio Interface | 1-ch RCA Input; 1-ch RCA Output |
| Alarm In/Out | 6/4 |
| Serial Interface | N/A |
| Power | 1 x DC Jack |
| Reset Button | 1 |
| Speaker | N/A |
| eSATA | 1 |
| HDMI | 1 |
| VGA | 1 |
Hard Disk
| SATA | 2 SATA Interfaces |
| Capacity | Up to 16 TB Capacity for Each HDD* |
PoE
| Standard | 802.3at/af Compliant |
| Interface | 1-16, RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface |
| PoE Budget | 90△ W Available for All PoE+ Ports, 30 W Max per Port |
Alarm
| General Alarm | Motion Detection, Video Tampering, Scene Change Detection, Line-Crossing Detection, Intrusion Detection, Region Entering Detection, Region Exiting Detection, Loitering Detection, Object Abandoned/Removal Detection, Vehicle Detection, Human Detection, Abnormal Sound Detection, Smart Frame. Note: The alarm function requires the use of a camera. |
| Anomaly Alarm | Video Loss, Offline and IP Conflict, Disk Exception, Login Exception, Fan Exception |
| Alarm Linkage | Recording, White Light Alarm, Buzzer, Log, Audible Alarm. Note: The alarm function requires the use of a camera. |
Physical & Environment
| Working Temperature | NVR: -10 °C to 55 °C (14 °F to 131 °F); Power Adapter: 0 °C to 40 °C (32 °F to 104 °F) |
| Working Humidity | 10%~90% RH Non-Condensing |
| Storage Temperature | -40 °C to 70 °C (-40 °F to 158 °F) |
| Storage Humidity | 10%~90% RH Non-Condensing |
| Dimensions (W x D x H) | 330 x 285 x 45 mm (13.0 x 11.2 x 1.8 in) |
| Net Weight | 2.2 Kg§ |
| Gross Weight | 4.2 Kg§ |
| Power Supply | 53.5V DC/2.43A |
| Max. Power Consumption | 6.2 W (Without Disk); 40 W (With Disk) |
| Certifications | CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC, HDMI |
△ Calculations based on laboratory testing using VIGI cameras. Actual performance may vary according to the amount of activity recorded, resolution, and other variables.
† The number of simultaneously playable channels may be fewer than 16, or none, if the total resolution exceeds 16MP.
* HDD is not included.
‡ This model currently supports ONVIF Profile S.
§ Due to the weight of this model, it is recommended to use a tray when mounting the rack with angle iron. Please note that the tray is not included.
Specifications are for hardware version V2 as published on TP-Link's Singapore product page.
Compatibility & Software Support
| Management | Local interface via HDMI/VGA with the supplied mouse, web browser, mobile phone access (Android, iOS) |
| Web Browser | Chrome (57+), Firefox (52+), Edge (91+), Safari (11+) |
| Camera Interoperability | ONVIF Profile S, CGI |
| Hard Drives | 2 x SATA, up to 16 TB each (not included); 1 x eSATA |
| Recording Resolution | Up to 8MP |
Package Contents & Ordering Information
Package Contents
| Item 1 | VIGI Network Video Recorder |
| Item 2 | Power Adapter |
| Item 3 | HDD Power Cables |
| Item 4 | HDD Data Cables |
| Item 5 | Terminal Blocks |
| Item 6 | Mounting Brackets |
| Item 7 | Screws |
| Item 8 | Rubber Feet |
| Item 9 | Mouse |
| Item 10 | HDD Screws |
| Item 11 | Quick Installation Guide |
Hard drives are not included.
Ordering Information
| Model | VIGI NVR2016H-16P |
| SKU | VIGI NVR2016H-16P |
| Warranty | 5 Years Local Warranty (Singapore) |
Datasheet & Downloads
Frequently Asked Questions — VIGI NVR2016H-16P
How many cameras can it power?
It has 16 PoE+ ports (802.3at/af) with a total PoE budget of 90 W and up to 30 W per port.
Are hard drives included?
No. The NVR has two SATA bays that each accept a drive of up to 16 TB; drives are purchased separately.
Can it display 4K?
Yes. The HDMI output supports 3840x2160 at 30 Hz; the VGA output supports up to 1920x1080 at 60 Hz.
What warranty does SourceIT provide?
SourceIT supplies the VIGI NVR2016H-16P with 5 years local warranty in Singapore, together with a GST invoice.
Can SourceIT quote this for an office or a project?
Yes. SourceIT prepares quotations for offices, retail sites and multi-camera projects, including VIGI NVRs, cameras, PoE switches and hard drives. Send the quantities and site details to sales@sourceit.com.sg for a formal quote with GST invoice.
