TP-Link UH9120C USB Type-C 9-in-1 Hub
PRODUCT DESCRIPTION
TP-Link USB Type-C 9 in 1 Hub (UH9120C) - 3 Years Local Warranty

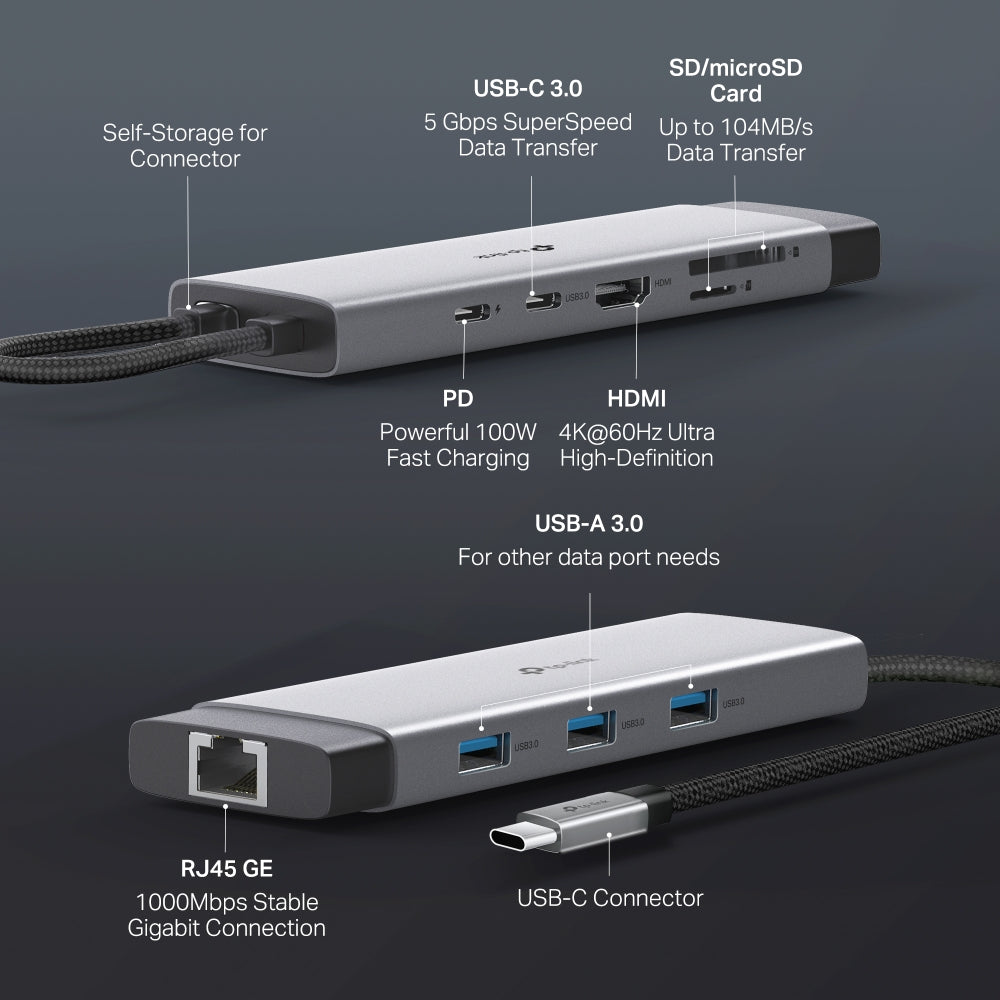

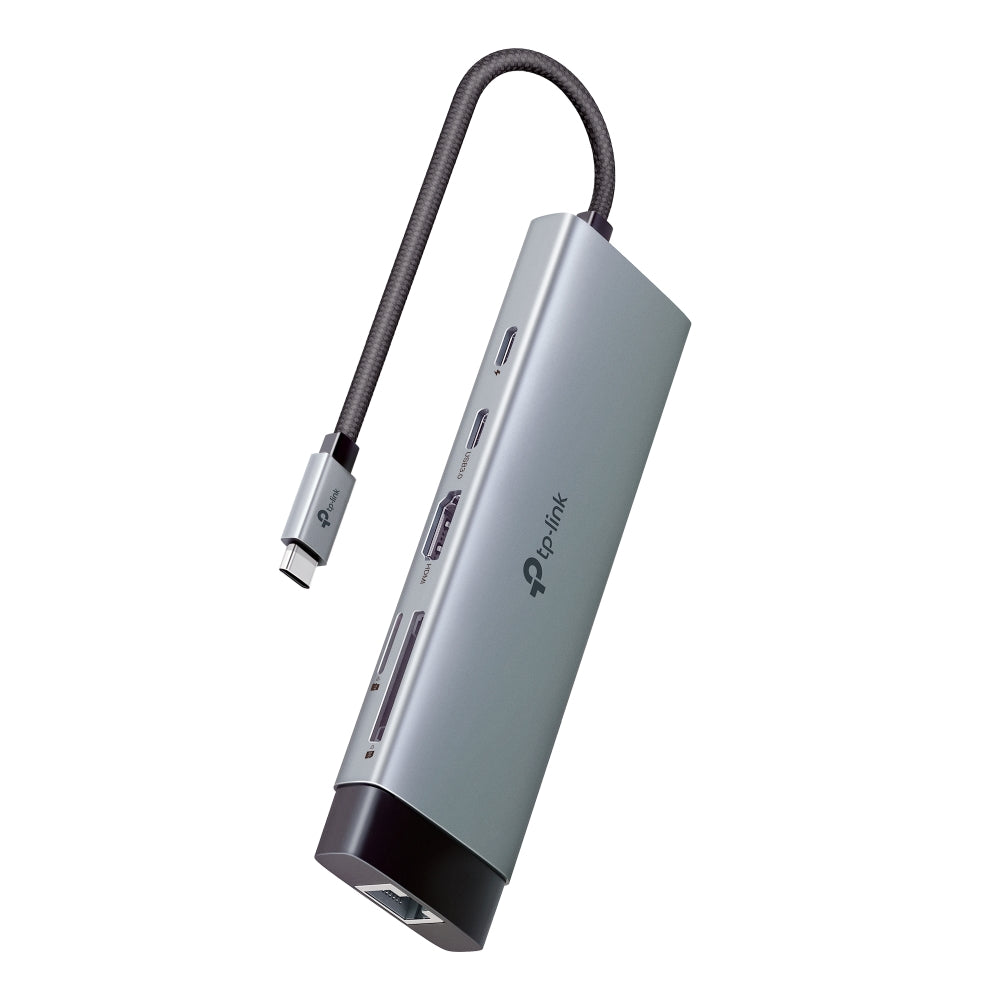

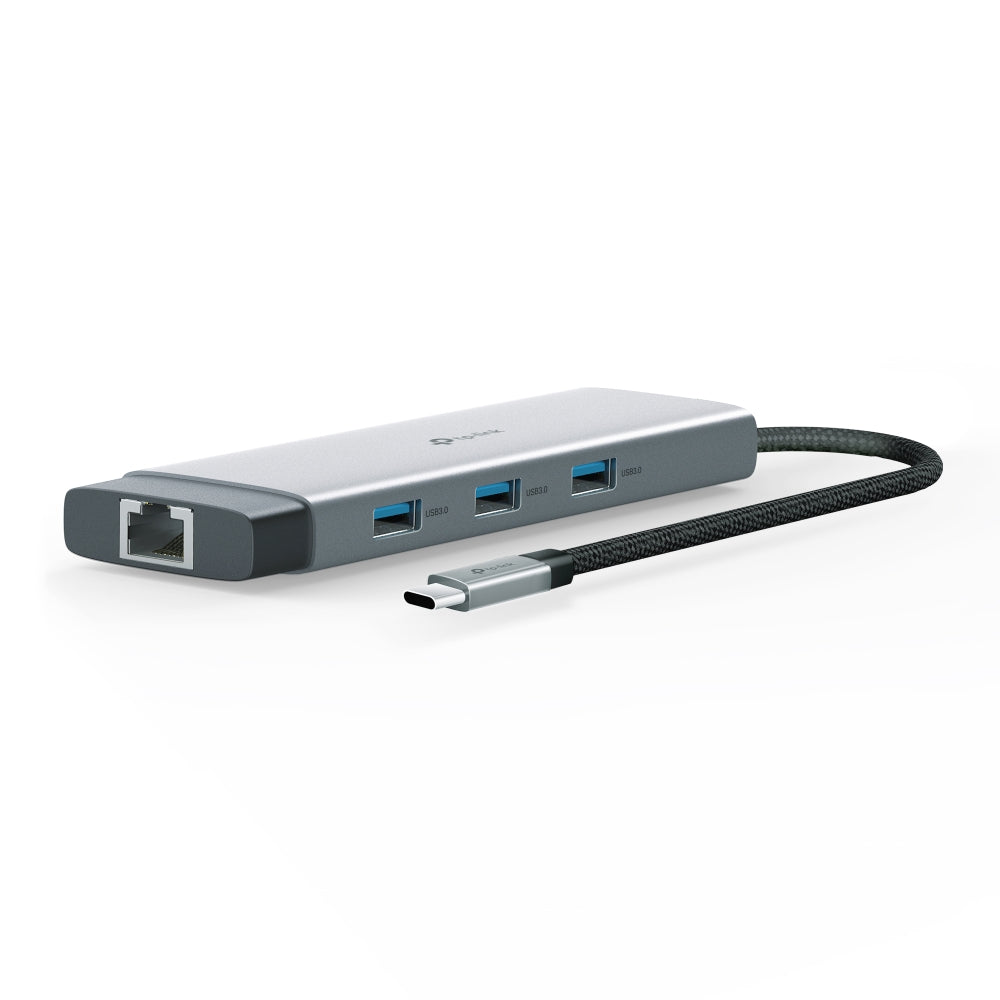

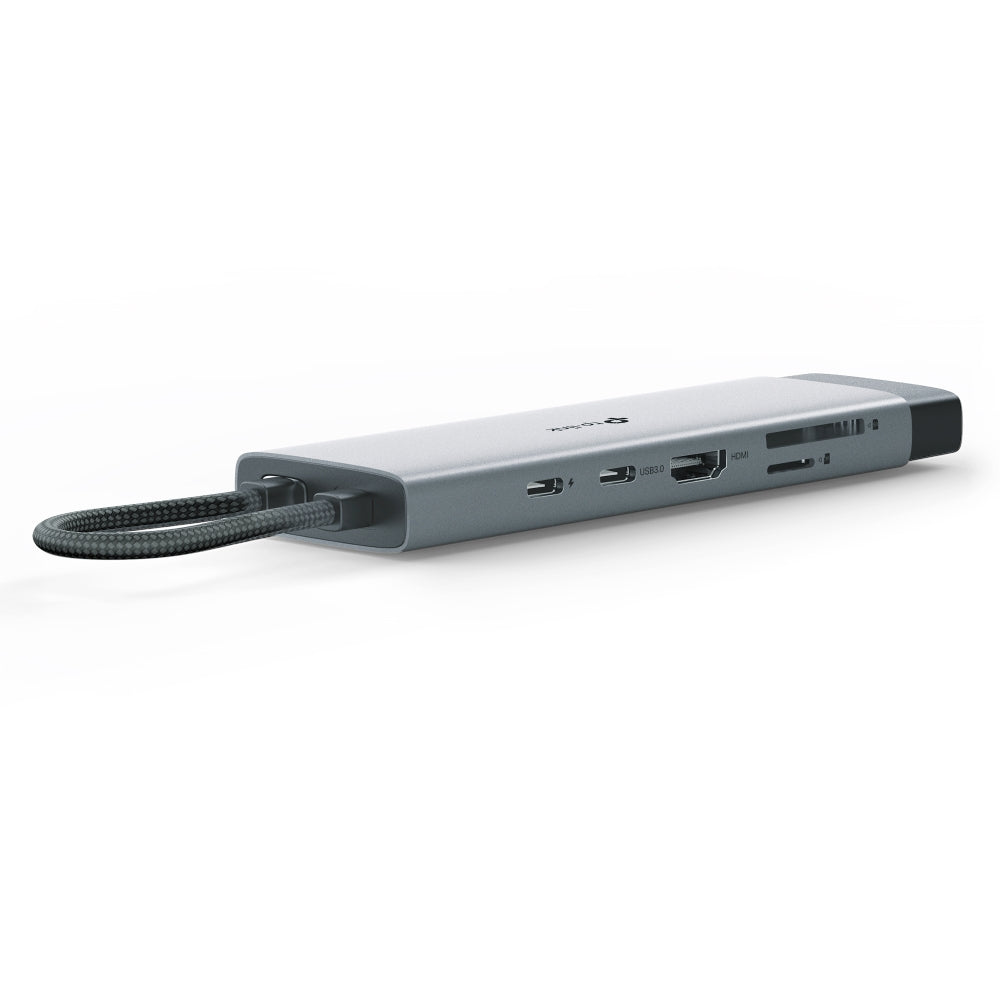

The UH9120C turns a single USB-C port into nine: a 4K@60Hz HDMI output, 1 Gbps Ethernet, SD and microSD UHS-I slots, 100W Power Delivery pass-through, one USB-C and three USB-A data ports at 5 Gbps, in an aluminium alloy case with a 180mm braided cable. TP-Link's tagline: "Bridge Devices, Expand Connections".

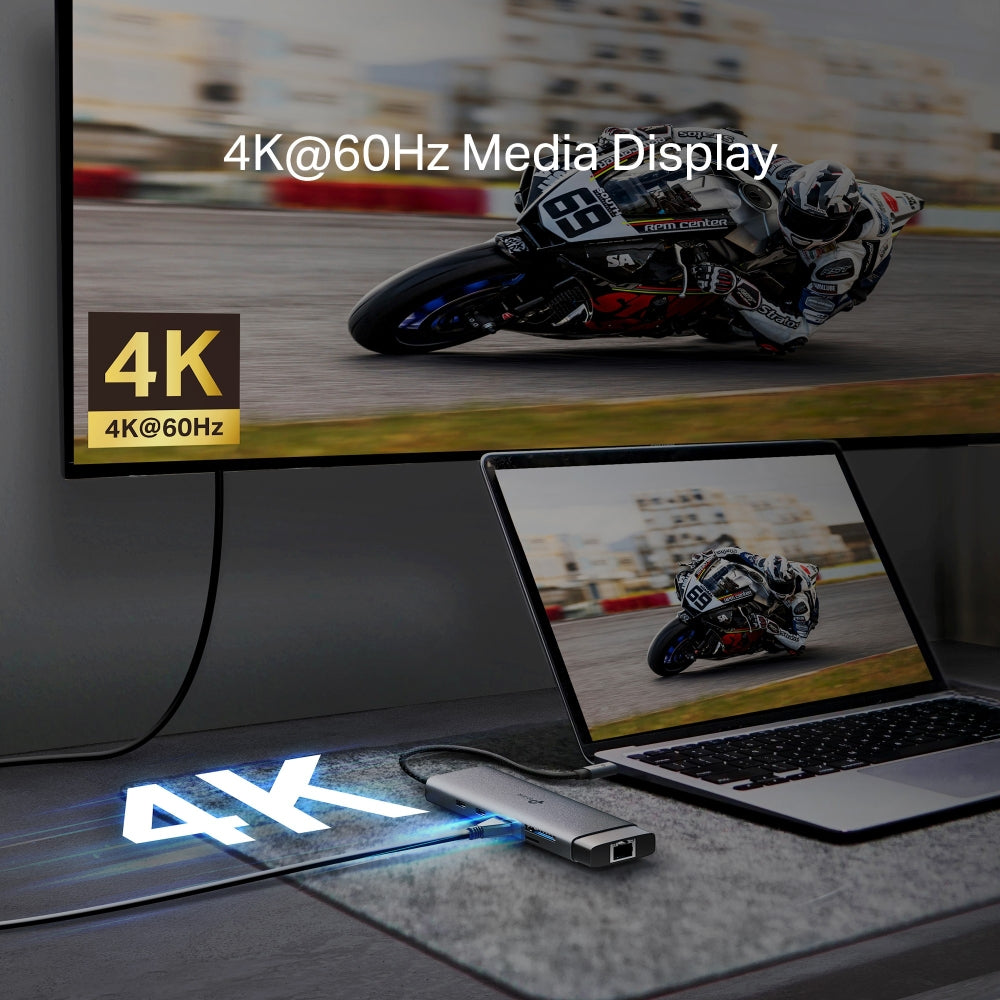

4K@60Hz Ultra High-Definition Display
Connect an external monitor through the 4K@60Hz HDMI port for a stunning ultra high-definition experience from a USB-C laptop or tablet.

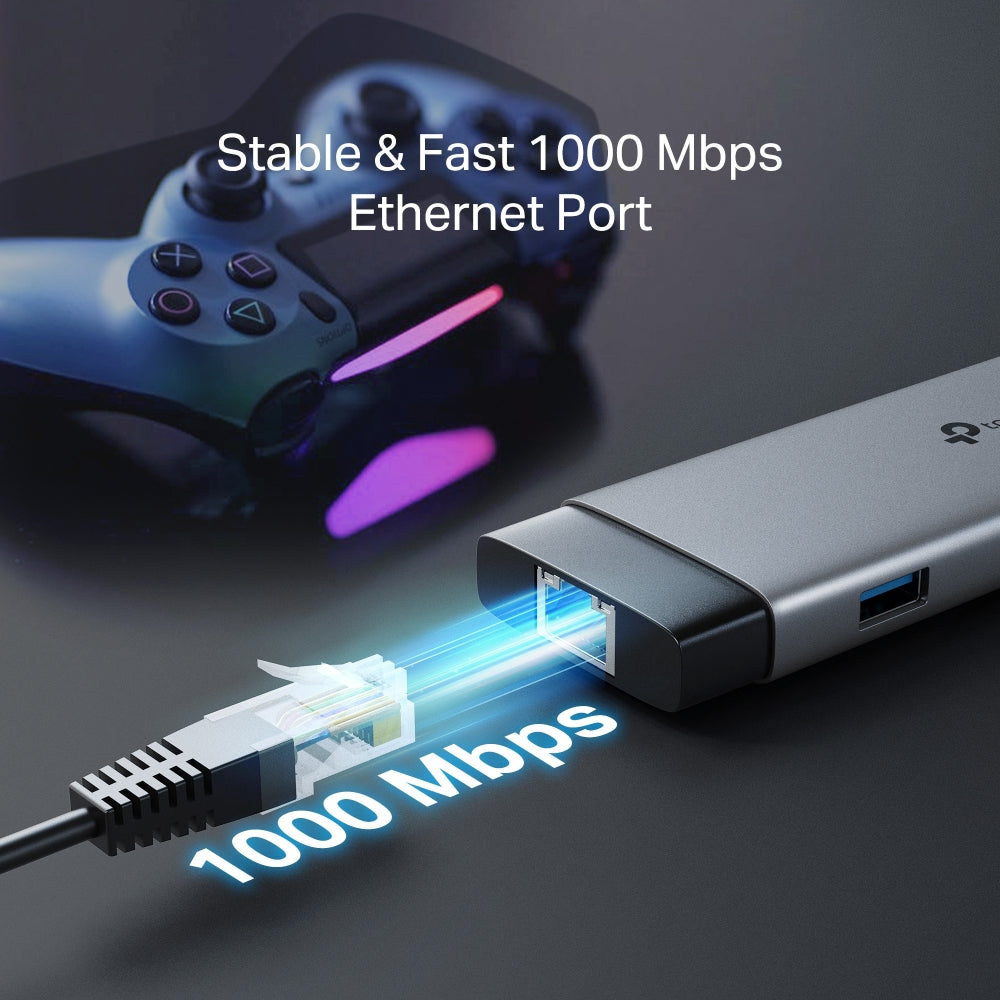

Stable Gigabit Ethernet
The RJ45 port provides stable Gigabit Ethernet connectivity for an ultrabook, Chromebook, laptop or desktop.

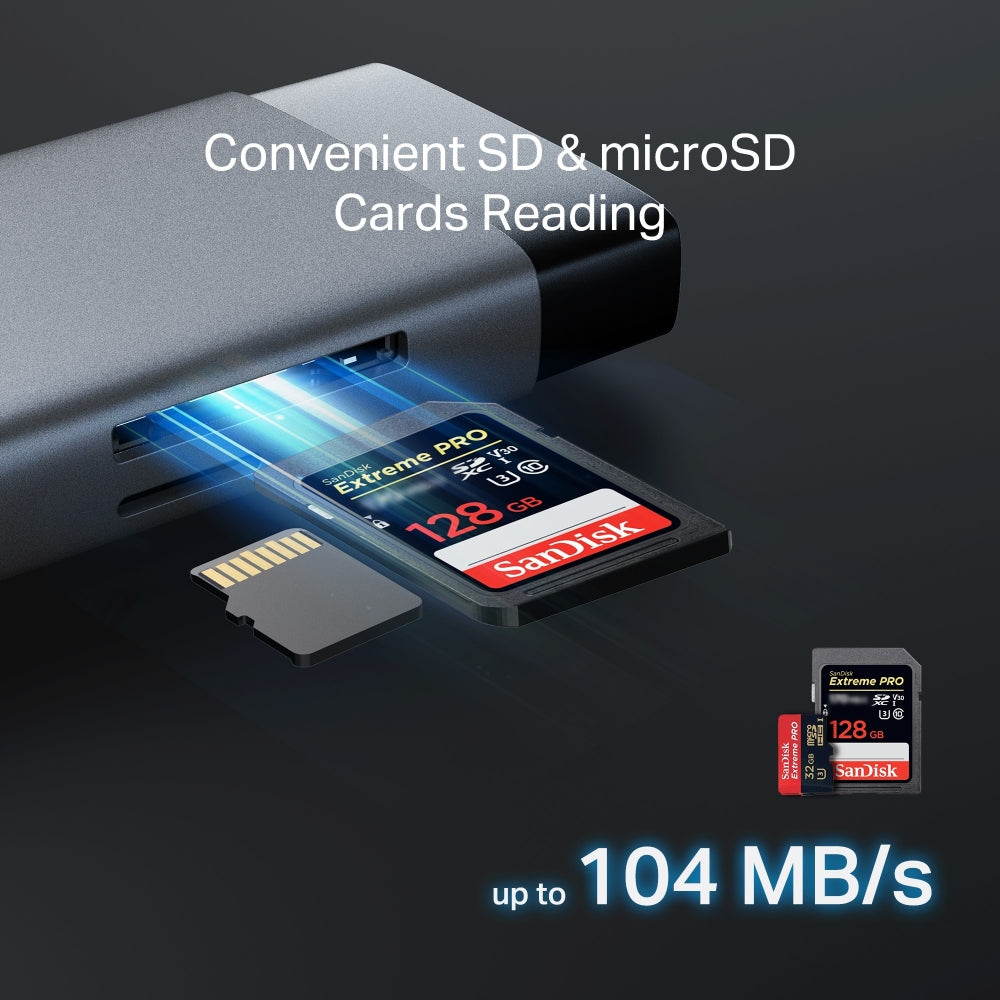

SD and microSD UHS-I, Read/Write Together
Transfer data from SD and microSD cards at up to 104 MB/s, with simultaneous read/write on both the microSD and SD slots.

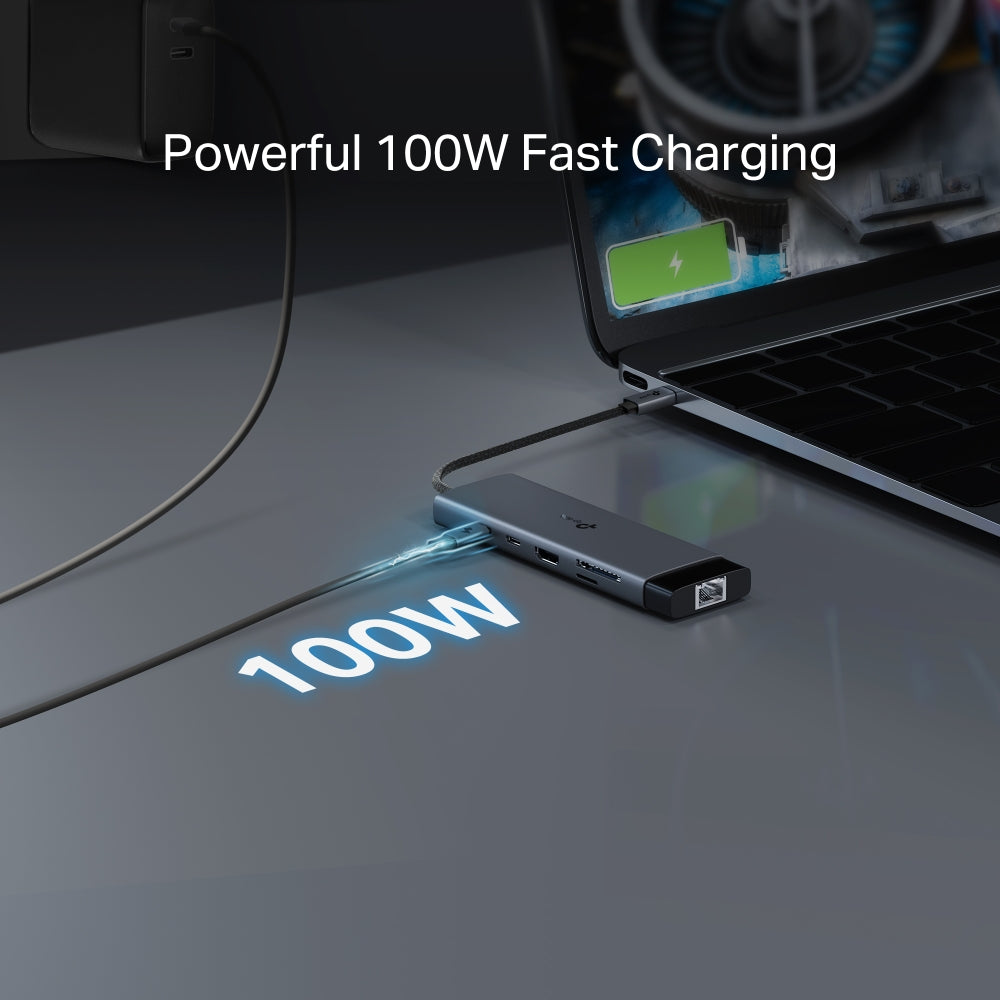

100W Fast Charging and 5 Gbps Data
Plug the charging cable into the UH9120C to continuously deliver up to 100W to your PC while transferring files or streaming media. Four 5 Gbps USB 3.0 data ports let you use multiple USB devices at once, and installation is driver-free plug and play.
Ideal For
Desk setups and hot-desking users with USB-C laptops who want one cable for a monitor, wired network, card reader, charging and several USB accessories. Supplied by SourceIT with local Singapore warranty and GST invoice.
UH9120C Datasheet — Technical Specifications
General
| Model | UH9120C |
| Official Product Name | USB Type-C 9 in 1 Hub |
| Brand | TP-Link |
| Warranty | 3 Years Local Warranty (Singapore) |
Hardware
| Connector | 1x USB Type-C |
| Number of Ports | 9 |
| Video Interface | 1x HDMI 4K@60Hz |
| Ethernet Interface | 1x RJ45 1Gbps |
| SD Interface | UHS-I, up to 104MB/s |
| microSD Interface | UHS-I, up to 104MB/s |
| Power Delivery Interface | 1x PD 100W |
| USB Interface | 1x USB Type-C 5Gbps; 3x USB Type-A 5Gbps |
Physical
| Case | Aluminum Alloy Case |
| Cable | 180mm Braided Cable |
| Dimensions (W x D x H) | 5.52 x 1.69 x 0.56 in (140.2 x 43 x 14.3 mm) |
Other
| Supported Systems | Mac OS X 10.9 and later, Windows (7 and later), Linux OS, iPad OS, iOS, Android, Chrome OS, and Nintendo OS (specification table) |
| Certifications | CE, FCC, HDMI, BSMI |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Operating Humidity | 10% to 90% non-condensing |
| Storage Humidity | 5% to 90% non-condensing |
TP-Link's Singapore page publishes no weight for the UH9120C; it is not stated here. The hub is bus-powered from the host's USB-C port, with the PD port used for pass-through charging.
Compatibility & Software Support
| Host Connection | USB Type-C |
| Drivers | Driver-free plug and play |
| Supported Systems (specification table) | Mac OS X 10.9 and later, Windows (7 and later), Linux OS, iPad OS, iOS, Android, Chrome OS, and Nintendo OS |
| Driver-Free Systems (feature text) | Mac OS X El Capitan Version 10.11.6 and later, Windows 11/10/8.1, Linux OS, iPad OS, iOS, Android, Chrome OS, and Nintendo OS |
TP-Link's Singapore page gives two different operating-system lists: the specification table says Mac OS X 10.9 and later and Windows 7 and later, while the plug-and-play feature text says Mac OS X El Capitan 10.11.6 and later and Windows 11/10/8.1. Both are reproduced as published. TP-Link also notes that you may need to update the hub's drivers after an OS update, and that port transmission specifications are TP-Link laboratory results; actual transfer rate is not guaranteed and will vary with device conditions and environmental factors.
Package Contents & Ordering Information
Package Contents
| In the Box | UH9120C; Quick Installation Guide |
Ordering Information
| Model | UH9120C |
| SKU | UH9120C |
| Warranty | 3 Years Local Warranty (Singapore) |
Datasheet & Downloads
Frequently Asked Questions — UH9120C
Can I use the SD and microSD slots at the same time?
Yes. TP-Link states simultaneous read/write on both the microSD and SD cards, at up to 104 MB/s (UHS-I).
Does it need its own power adapter?
No. It runs from the host's USB-C port; connecting your laptop charger to the PD port passes up to 100W through to the PC.
How many USB data ports does it have?
Four: one USB-C and three USB-A, each at 5 Gbps. The separate PD port is for charging.
What warranty does SourceIT provide?
Three years local Singapore warranty, under TP-Link's published replacement warranty terms, with a GST invoice.
Can SourceIT quote this for an office or a project?
Yes. Send us the quantity and we will quote with local warranty, delivery and support.
