TP-Link UH7020C USB Type-C 7-in-1 Hub
PRODUCT DESCRIPTION
TP-Link USB Type-C 7-in-1 Hub (UH7020C) - 3 Years Local Warranty

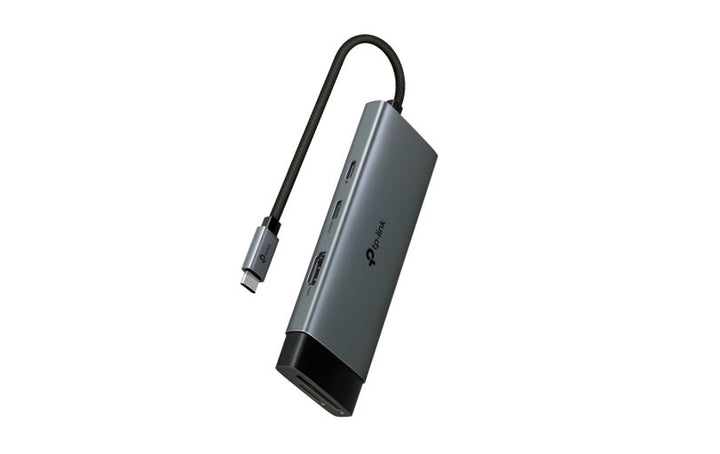

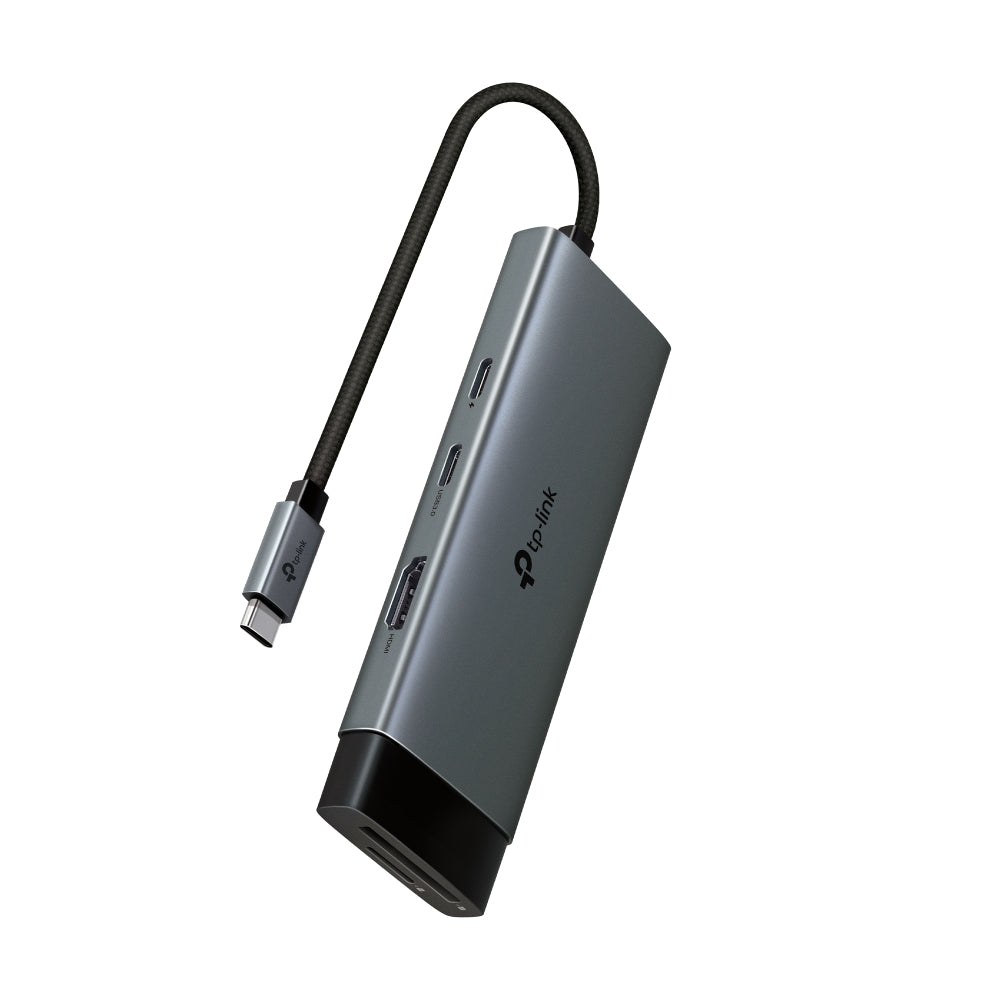

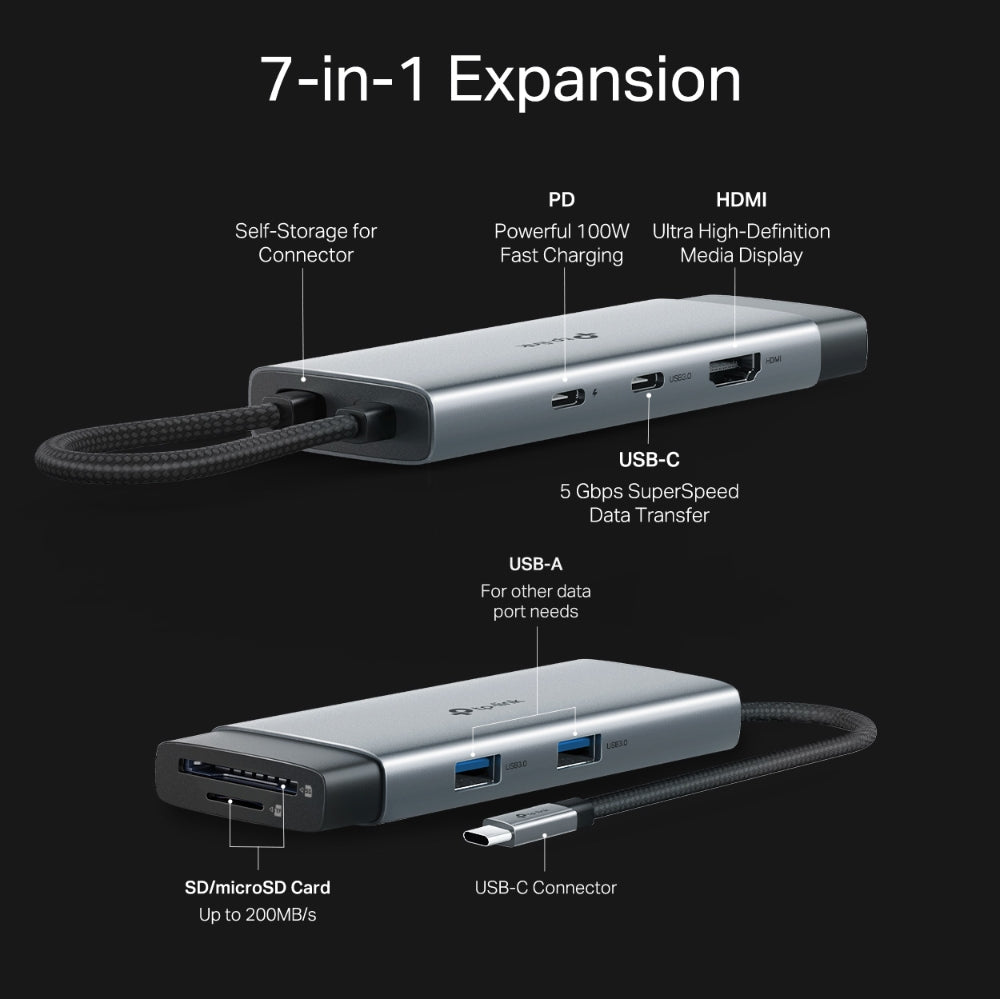

The UH7020C turns one USB-C port into seven: a 4K@60Hz HDMI output, SD and microSD card slots rated up to 200MB/s, 100W Power Delivery pass-through, one USB-C and two USB-A data ports at 5 Gbps, in an aluminium alloy case with a self-storing braided cable. TP-Link's tagline: "Bridge Devices, Expand Connections".
4K Ultra High-Definition Media Display
Connect an external monitor through the 4K HDMI port for ultra high-definition media display from a USB-C laptop or tablet.
Fast SD and microSD Card Reading
Transfer data from SD and microSD cards with UHS-I support rated up to 200MB/s, making it quick to move large photo and video files off camera cards.
100W Fast Charging and 5 Gbps Data
Plug the charging cable into the UH7020C to continuously deliver up to 100W to your PC while transferring files or streaming media. The USB 3.0 ports run at 5 Gbps, which TP-Link describes as up to 10x the speed of USB 2.0, and stay backward compatible with USB 2.0/1.1 devices.

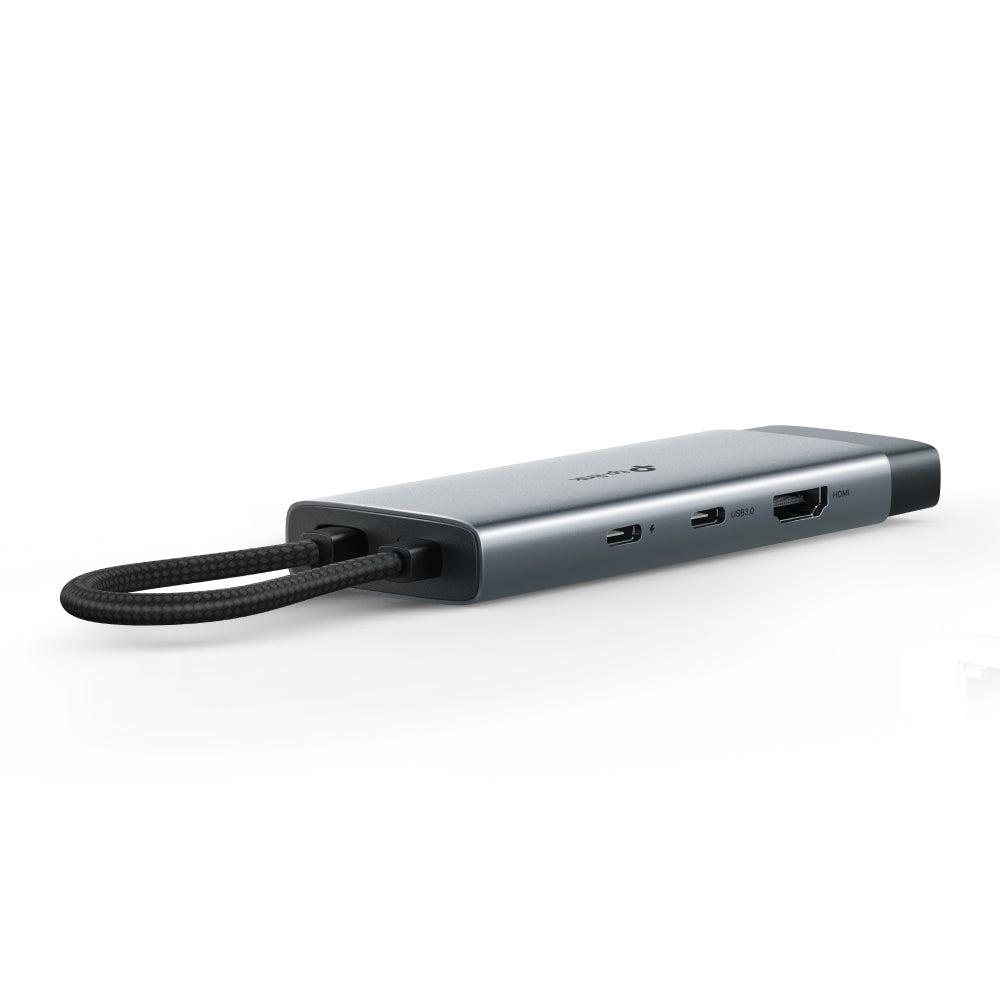

Compact Self-Storing Design, Plug & Play

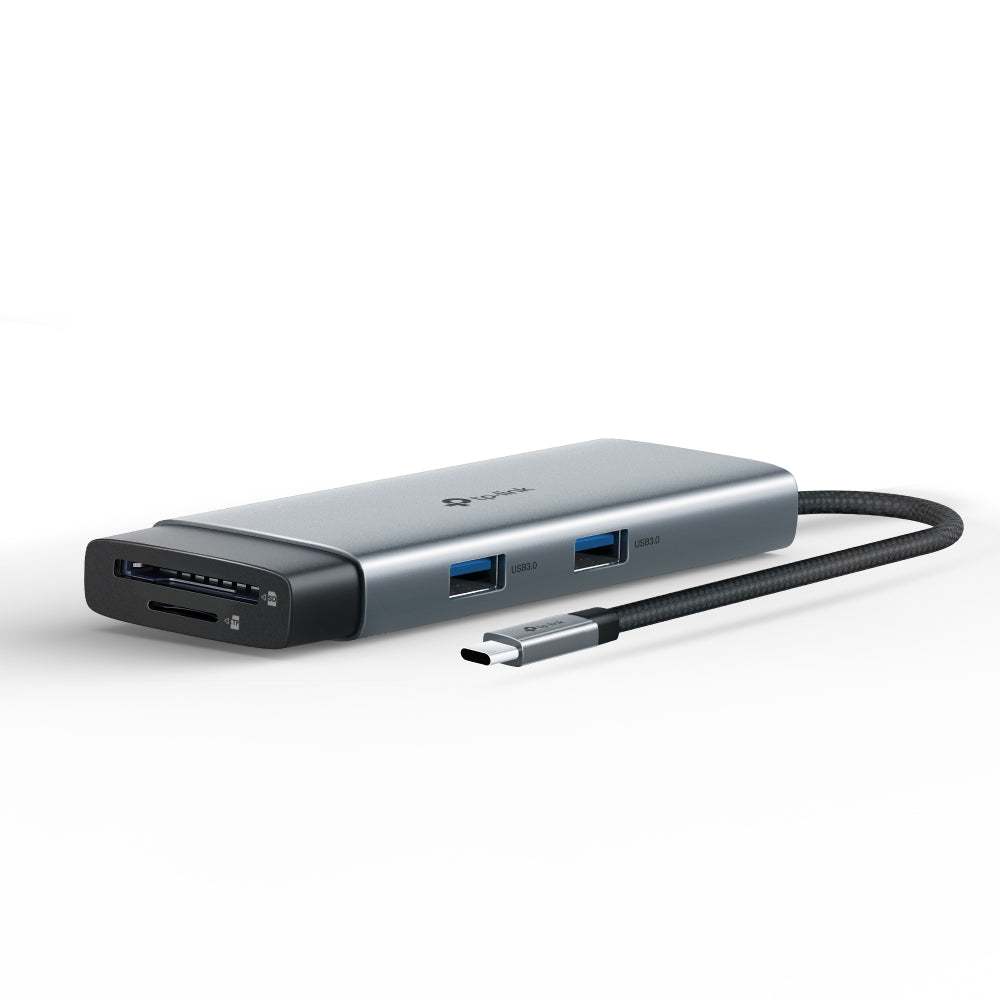

The self-storing cable design protects the connector and improves portability, while the aluminium alloy case and braided cable add durability. Installation is driver-free: plug in and start using it in seconds.
Ideal For
Photographers, creators and mobile workers with USB-C laptops or tablets who need a monitor, card reader, charging and USB accessories from one port in a bag-friendly hub. Supplied by SourceIT with local Singapore warranty and GST invoice.
UH7020C Datasheet — Technical Specifications
General
| Model | UH7020C |
| Official Product Name | USB Type-C 7-in-1 Hub |
| Brand | TP-Link |
| Warranty | 3 Years Local Warranty (Singapore) |
Hardware
| Connector | 1x USB Type-C |
| Number of Ports | 7 |
| Video Interface | 1x HDMI 4K@60Hz |
| SD Interface | UHS-I, up to 200MB/s |
| microSD Interface | UHS-I, up to 200MB/s |
| Power Delivery Interface | 1x PD 100W |
| USB Interface | 1x USB Type-C 5Gbps, 2x USB Type-A 5Gbps |
Physical
| Case | Aluminum Alloy Case |
| Cable | 180mm Braided Cable |
| Dimensions (W x D x H) | 5 x 1.57 x 0.48 in (127 x 40 x 12.2 mm) |
Other
| Supported Systems | Mac OS, Windows 11/10/8.1/8/7, Linux OS, iPadOS, iOS, Android, and Chrome OS |
| Certifications | CE, FCC, HDMI, BSMI |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Operating Humidity | 10% to 90% non-condensing |
| Storage Humidity | 5% to 90% non-condensing |
TP-Link's footnote on the card slots: "Achieve up to 200 MB/s read speeds with cutting-edge technology surpassing UHS-I 104 MB/s. This requires compatible devices capable of such speeds. Actual transfer rates are not guaranteed and may vary due to device conditions and environmental factors." The UH7020C has no Ethernet port in TP-Link's specification, and TP-Link's Singapore page publishes no weight; neither is stated here. The hub is bus-powered from the host's USB-C port, with the PD port used for pass-through charging.
Compatibility & Software Support
| Host Connection | USB Type-C |
| Drivers | Driver-free plug and play |
| Supported Systems | Mac OS, Windows 11/10/8.1/8/7, Linux OS, iPadOS, iOS, Android, and Chrome OS |
| USB Backward Compatibility | USB 2.0/1.1 devices |
TP-Link notes that you may need to update the hub's drivers after an OS update, and that port transmission specifications are TP-Link laboratory results; actual transfer rate is not guaranteed and will vary with device conditions and environmental factors.
Package Contents & Ordering Information
Package Contents
| In the Box | UH7020C; Quick Installation Guide |
Ordering Information
| Model | UH7020C |
| SKU | UH7020C |
| Warranty | 3 Years Local Warranty (Singapore) |
Datasheet & Downloads
Frequently Asked Questions — UH7020C
Does the UH7020C have an Ethernet port?
No. Its seven functions are HDMI, SD, microSD, 100W PD, one USB-C and two USB-A data ports. If you need wired networking, the UH6120C and UH9120C include a Gigabit RJ45 port.
How fast are the card slots?
TP-Link rates the SD and microSD slots at up to 200MB/s (UHS-I), with compatible cards and devices; actual speeds vary.
Does it need its own power adapter?
No. It runs from the host's USB-C port; connecting your laptop charger to the PD port passes up to 100W through to the PC.
What warranty does SourceIT provide?
Three years local Singapore warranty, under TP-Link's published replacement warranty terms, with a GST invoice.
Can SourceIT quote this for an office or a project?
Yes. Send us the quantity and we will quote with local warranty, delivery and support.
