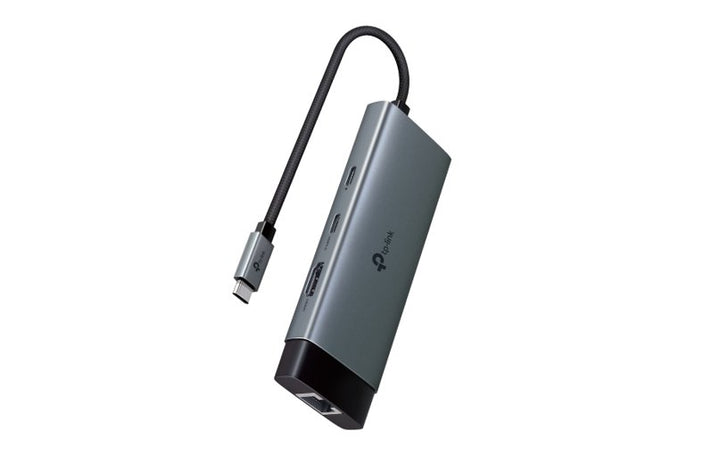

TP-Link UH6120C USB Type-C 6-Port Hub
PRODUCT DESCRIPTION
TP-Link USB Type-C 6-Port Hub (UH6120C) - 3 Years Local Warranty

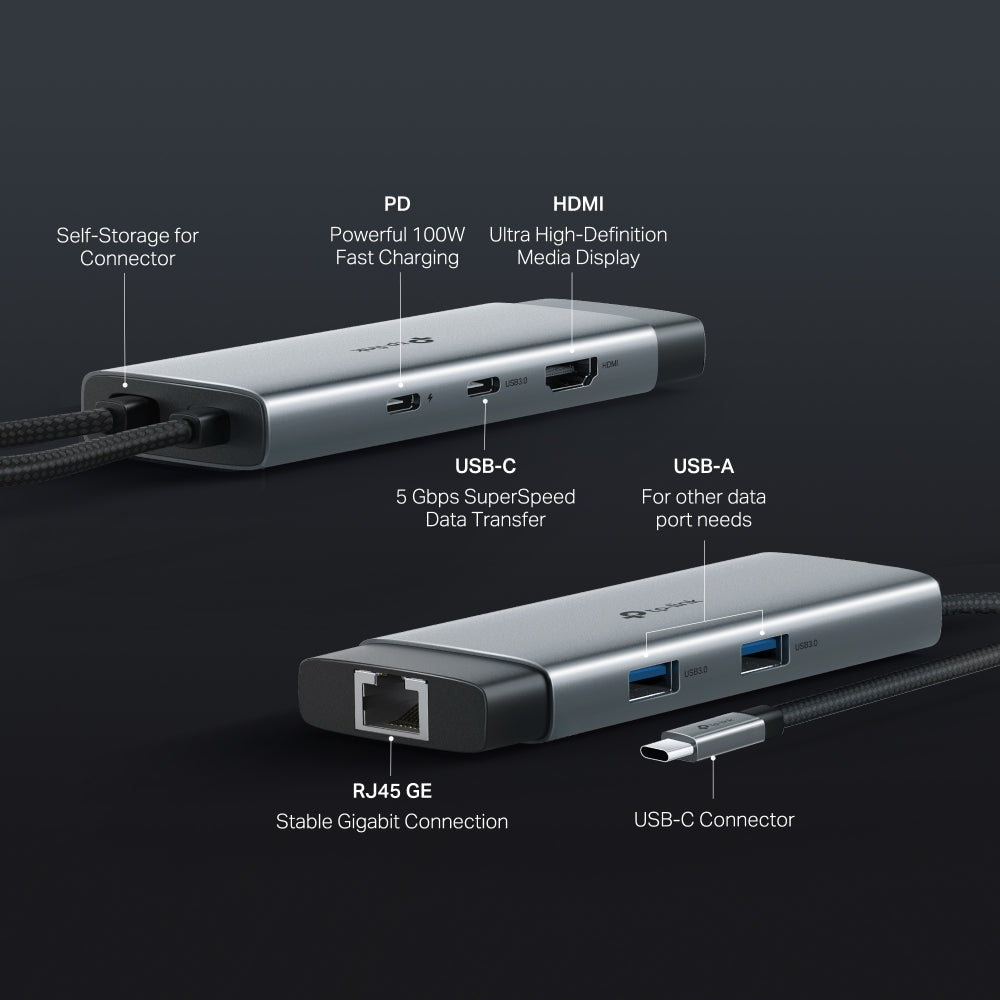

The UH6120C turns a single USB-C port into six: a 4K@60Hz HDMI output, 1 Gbps Ethernet, 100W Power Delivery pass-through, one USB-C data port and two USB-A data ports, in an aluminium alloy case with a 180mm braided cable. TP-Link's tagline: "Bridge Devices, Expand Connections".
4K@60Hz Ultra High-Definition Display

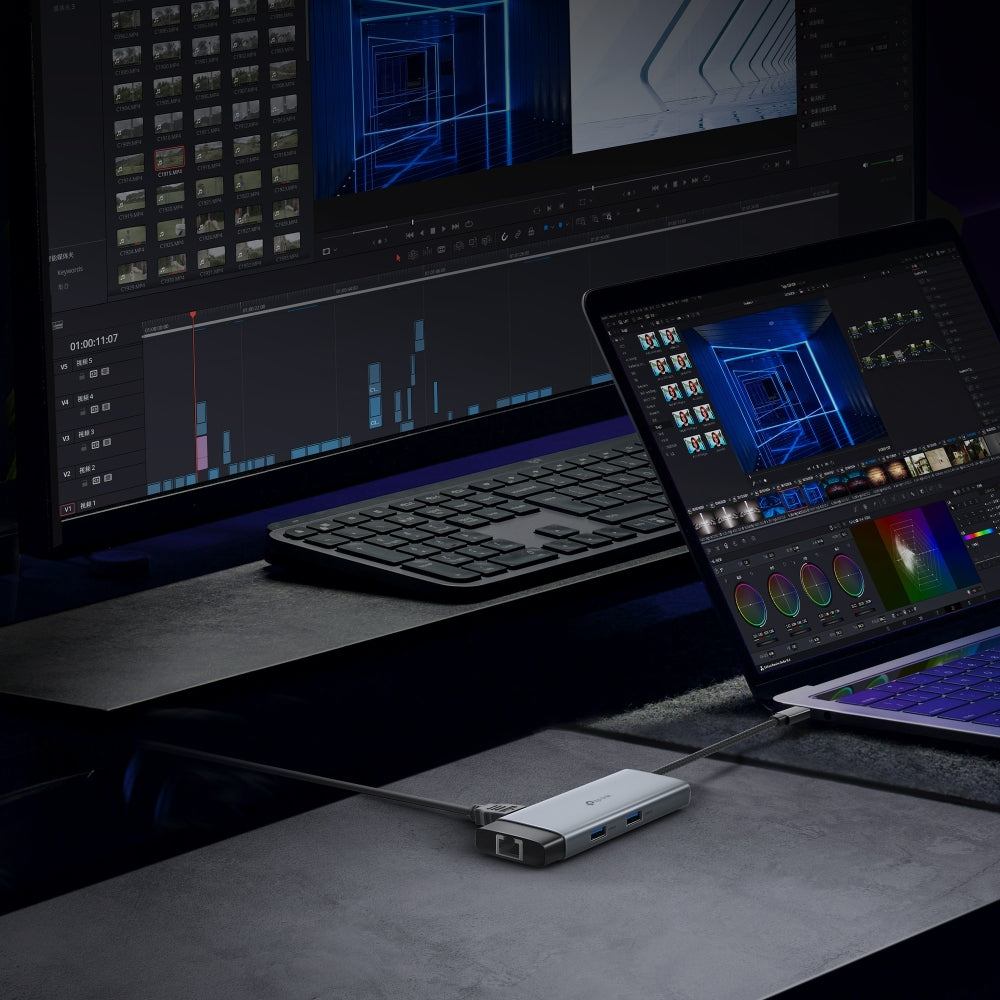

Connect an external monitor through the 4K@60Hz HDMI port for an ultra high-definition picture from a laptop or tablet with a single USB-C port.
Stable Gigabit Ethernet
The RJ45 port gives stable Gigabit Ethernet connectivity for an ultrabook, Chromebook, laptop or desktop, which is useful on slim notebooks without a built-in network port.
100W Fast Charging Pass-Through
Plug the charging cable into the UH6120C and it continuously delivers up to 100W of power to your PC while you transfer files or stream media.
5 Gbps SuperSpeed Data and Plug & Play
The UH6120C adds three USB 3.0 ports (one USB-C and two USB-A, each 5 Gbps) for simultaneous use of multiple USB devices. It is driver-free: plug in and start using it in seconds.
Ideal For
Office and home users with USB-C laptops or tablets who need a monitor, wired network, charging and USB accessories from one port, for hot-desking or travel. Supplied by SourceIT with local Singapore warranty and GST invoice.
UH6120C Datasheet — Technical Specifications
General
| Model | UH6120C |
| Official Product Name | USB Type-C 6-Port Hub |
| Brand | TP-Link |
| Warranty | 3 Years Local Warranty (Singapore) |
Hardware
| Connector | 1x USB Type-C |
| Number of Ports | 6 |
| Video Interface | 1x HDMI 4K@60Hz |
| Ethernet Interface | 1x RJ45 1Gbps |
| Power Delivery Interface | 1x PD 100W |
| USB Interface | 1x USB Type-C 5Gbps; 2x USB Type-A 5Gbps |
Physical
| Case | Aluminum Alloy Case |
| Cable | 180mm Braided Cable |
| Dimensions (W x D x H) | 4.65 x 1.69 x 0.56 in (118.2 x 43 x 14.3 mm) |
Other
| Supported Systems | Mac OS X 10.9 and later, Windows (7 and later), Linux OS, iPad OS, iOS, Android, Chrome OS, and Nintendo OS (specification table) |
| Certifications | CE, FCC, HDMI, BSMI |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Operating Humidity | 10% to 90% non-condensing |
| Storage Humidity | 5% to 90% non-condensing |
TP-Link's Singapore page publishes no weight for the UH6120C; it is not stated here. The hub is bus-powered from the host's USB-C port, with the PD port used for pass-through charging.
Compatibility & Software Support
| Host Connection | USB Type-C |
| Drivers | Driver-free plug and play |
| Supported Systems (specification table) | Mac OS X 10.9 and later, Windows (7 and later), Linux OS, iPad OS, iOS, Android, Chrome OS, and Nintendo OS |
| Driver-Free Systems (feature text) | Mac OS X El Capitan Version 10.11.6 and later, Windows 11/10/8.1, Linux OS, iPad OS, iOS, Android, Chrome OS, and Nintendo OS |
TP-Link's Singapore page gives two different operating-system lists: the specification table says Mac OS X 10.9 and later and Windows 7 and later, while the plug-and-play feature text says Mac OS X El Capitan 10.11.6 and later and Windows 11/10/8.1. Both are reproduced as published. TP-Link also notes that you may need to update the hub's drivers after an OS update, and that port transmission specifications are TP-Link laboratory results; actual transfer rate is not guaranteed and will vary with device conditions and environmental factors.
Package Contents & Ordering Information
Package Contents
| In the Box | UH6120C; Quick Installation Guide |
Ordering Information
| Model | UH6120C |
| SKU | UH6120C |
| Warranty | 3 Years Local Warranty (Singapore) |
Datasheet & Downloads
Frequently Asked Questions — UH6120C
Can it drive a 4K monitor at 60Hz?
TP-Link lists one HDMI port at 4K@60Hz.
Does it need its own power adapter?
No. It runs from the host's USB-C port. If you connect your laptop charger to the PD port, the hub passes up to 100W through to the PC.
Does it have a card reader?
No. The UH6120C's ports are HDMI, Gigabit Ethernet, 100W PD, one USB-C and two USB-A data ports; TP-Link lists no SD or microSD slot.
What warranty does SourceIT provide?
Three years local Singapore warranty, under TP-Link's published replacement warranty terms, with a GST invoice.
Can SourceIT quote this for an office or a project?
Yes. Send us the quantity and we will quote with local warranty, delivery and support.
