TP-Link Omada 24-Port 2.5GBASE-T and 4-Port 10GE SFP+ L2+ Managed Switch with 16-Port PoE+ and 8-Port PoE++

TP-Link Omada 24-Port 2.5GBASE-T and 4-Port 10GE SFP+ L2+ Managed Switch with 16-Port PoE+ & 8-Port PoE++ (SG3428XPP-M2) - 5 Years Local Warranty

The SG3428XPP-M2 is the switch for a floor where every port has to deliver both multi-gigabit data and serious power: twenty-four 2.5 Gbps ports, eight of them 60 W PoE++ and sixteen 30 W PoE+, on a 500 W budget, plus four 10G SFP+ uplinks and a 200 Gbps fabric. Three fans and a 330 mm chassis carry the load.

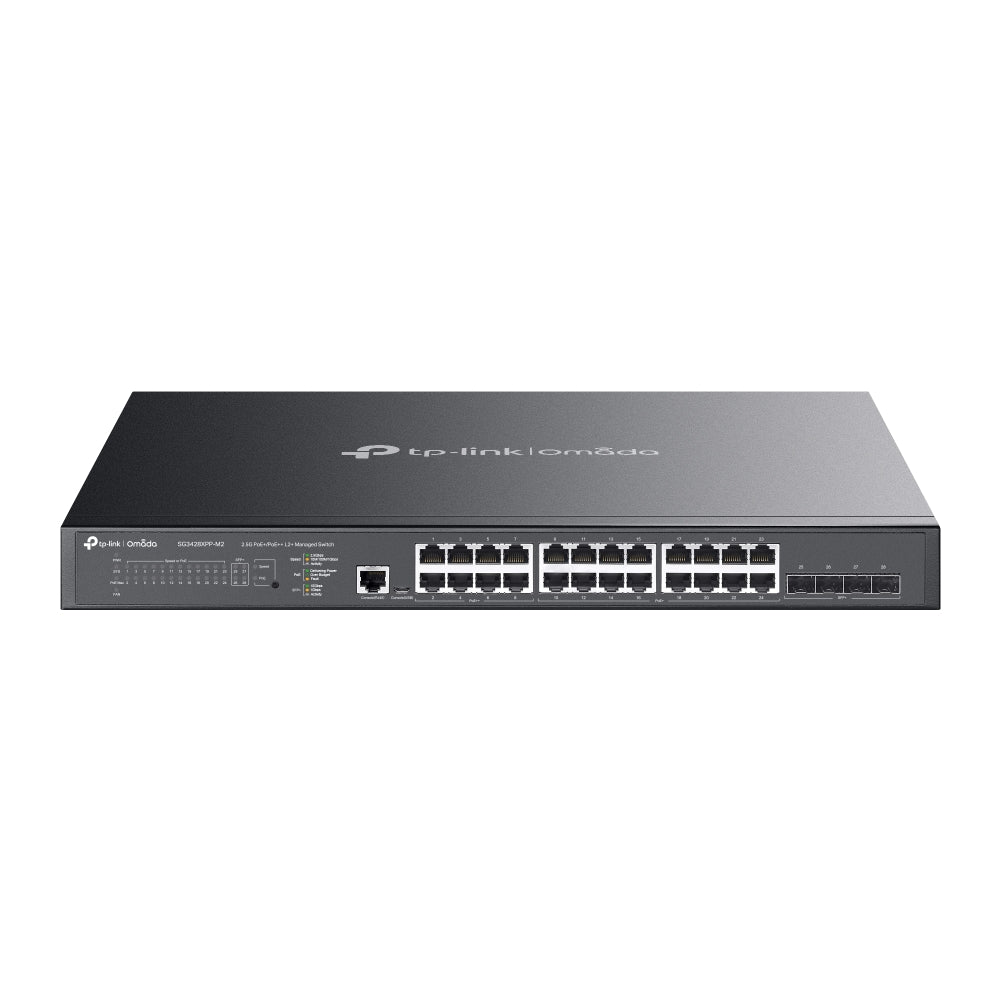

Every Copper Port Is 2.5 Gbps and Powered

All twenty-four RJ45 ports run at 2.5 Gbps and all twenty-four supply PoE - eight as 802.3bt PoE++ at up to 60 W, sixteen as 802.3at PoE+ at up to 30 W. That removes the usual compromise where only half the ports are powered or only the slow ports are. A Wi-Fi 7 access point, a pan-tilt-zoom camera, a PoE display or a powered small-cell can go on any port and get both the bandwidth and the wattage it needs.

A 500 W Budget With 60 W PoE++ Ports

The total PoE budget is 500 W. The eight 802.3bt PoE++ ports at 60 W each are what make this switch different from a PoE+ only model: 60 W covers devices a 30 W port cannot run at all - multi-radio Wi-Fi 7 APs under full load, heated outdoor camera housings, PoE lighting and video-conferencing bars. Maximum power consumption is 629.1 W at 110 V with 2153.45 BTU/h of heat, so size the circuit, UPS and rack cooling from those figures.

Four 10G SFP+ Uplinks on a 200 Gbps Fabric

Four 10G SFP+ slots provide 40 Gbps of uplink, enough for a LAG, redundant paths to two aggregation switches, or both. The 200 Gbps switching capacity at 148.80 Mpps covers all twenty-eight ports at line rate simultaneously, and a 32 K MAC address table with 16 Mbit of packet buffer and 9 KB jumbo frames handles a dense, multi-VLAN access layer with heavy wireless and video traffic behind it.

4K VLANs, 802.1X and Hardware-Level Security

VLAN support runs to 4,096 groups with 802.1Q tagging, 256 MAC VLAN entries, protocol VLAN, private VLAN and voice VLAN. Security covers IP-MAC-Port binding, DHCP snooping, ARP inspection, 802.1X authentication, AAA, port isolation, DoS defense and encrypted HTTPS and SSH management. In a building where every port is live and powered, that combination is what keeps an unauthorised device from simply plugging in and being trusted.

Three Fans, a Deeper Chassis and Omada Management

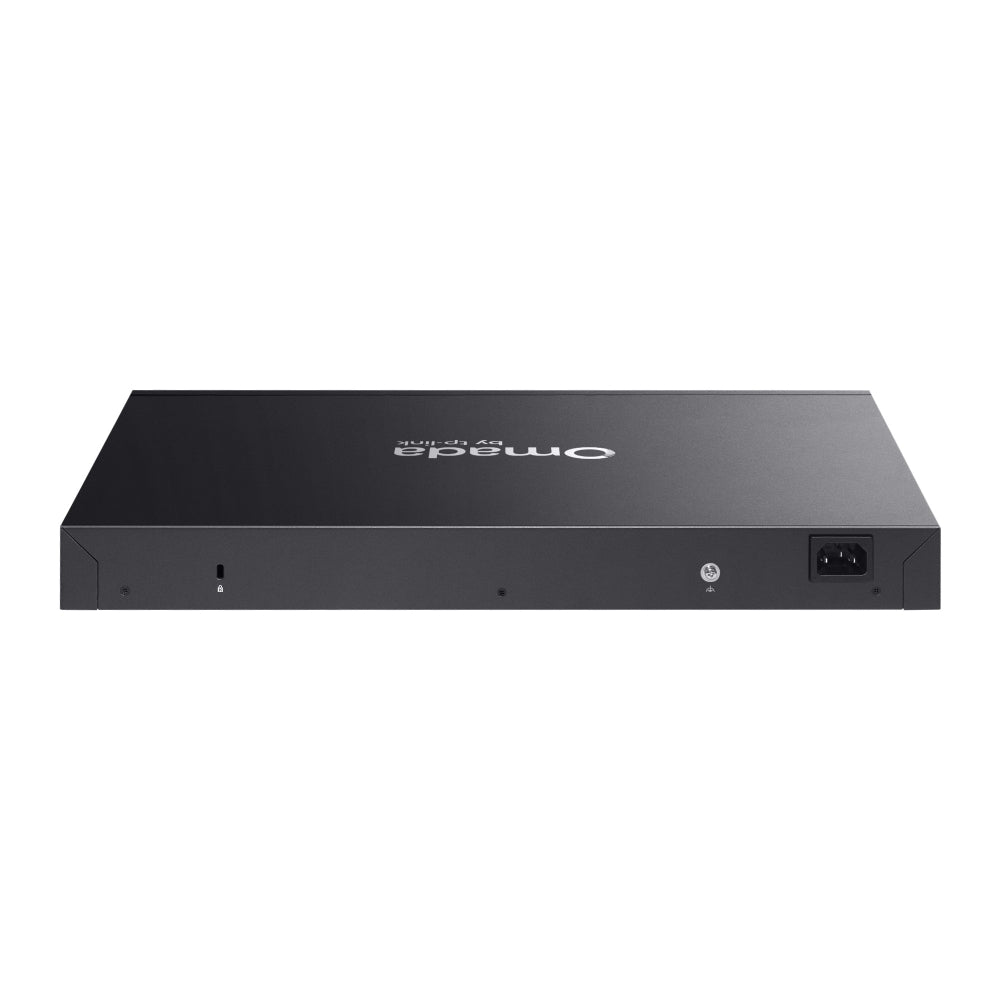

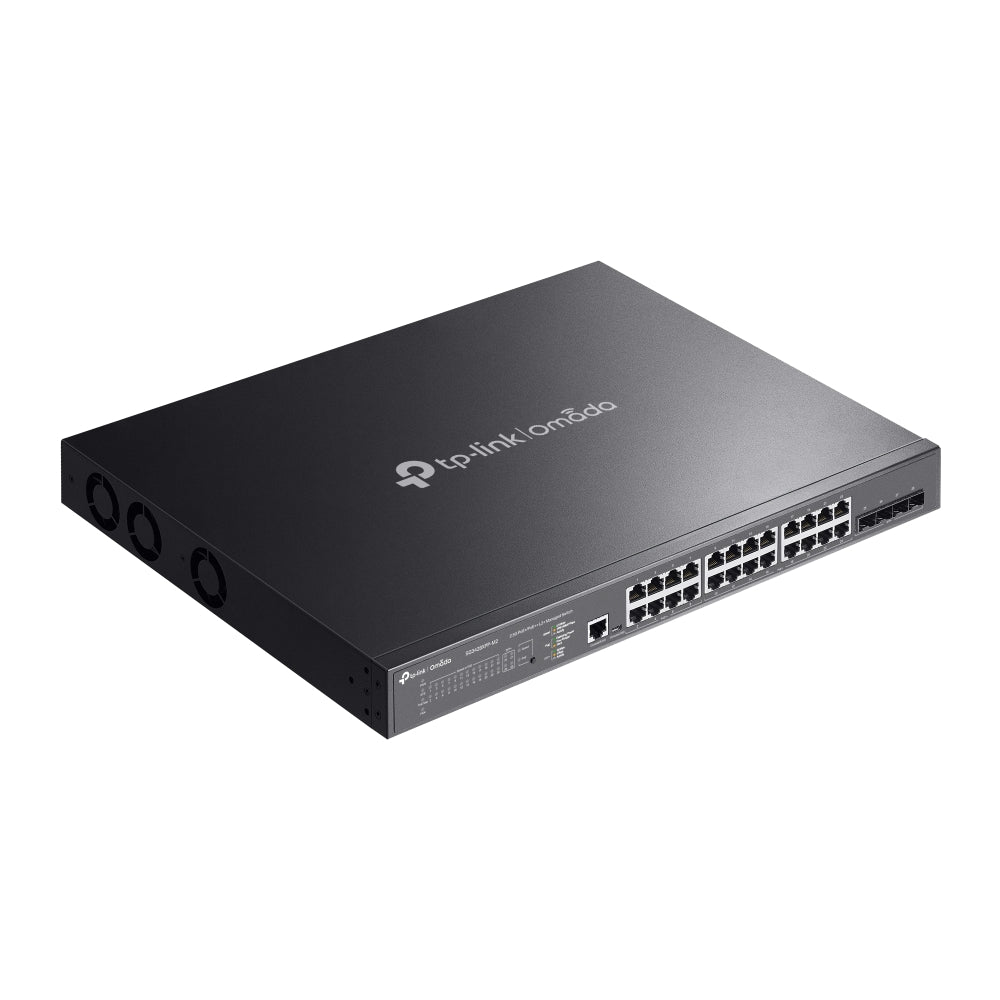

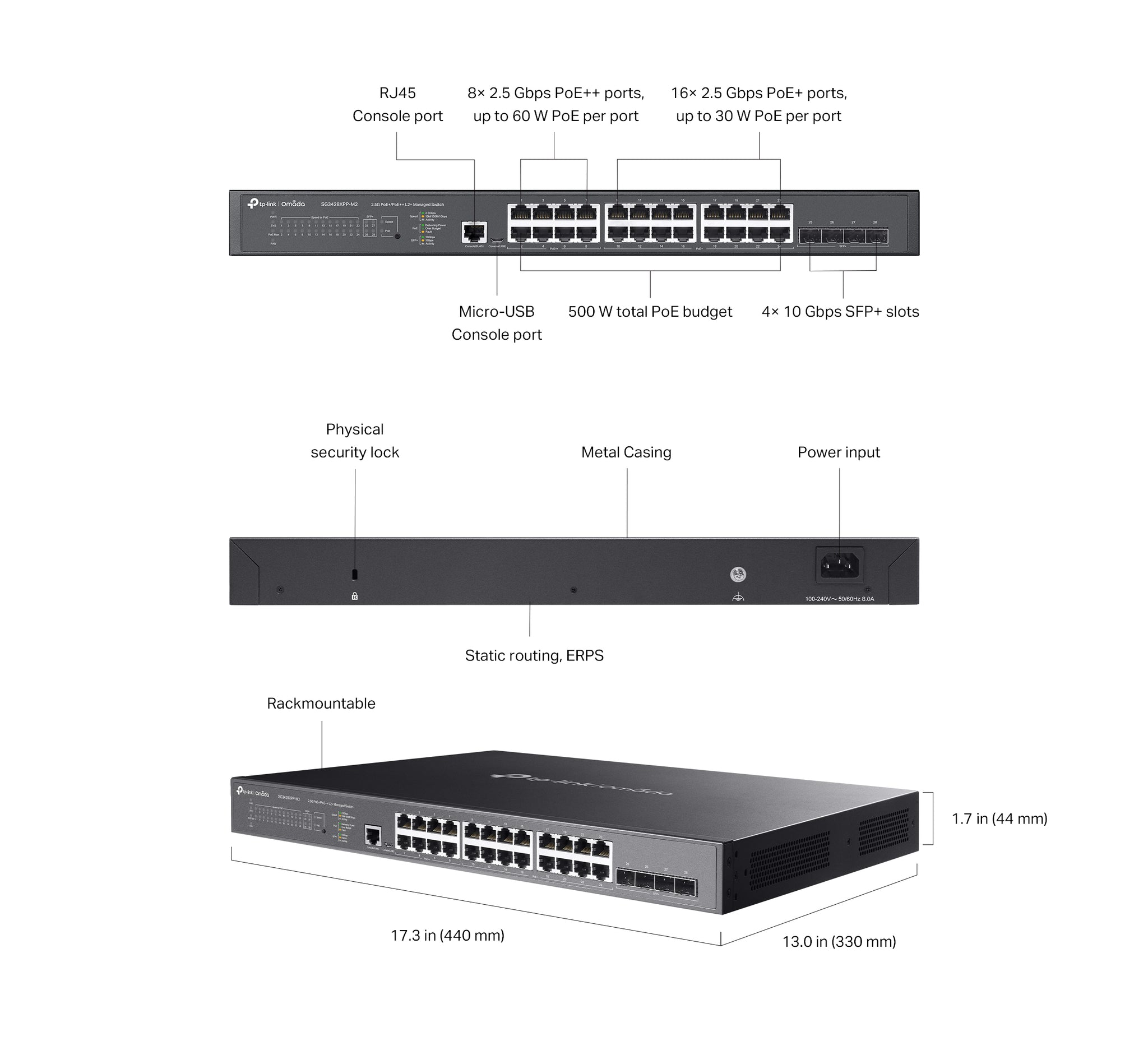

Delivering 500 W of PoE needs real thermal capacity, so the chassis is 440 x 330 x 44 mm - deeper than a standard access switch - with three fans and a physical security lock point. Operating temperature is 0 to 40 degrees Celsius at 10 to 90 percent non-condensing humidity. The switch adopts into the Omada Cloud-Based, Software or Hardware Controller for central configuration, monitoring, batch firmware updates and per-port PoE control from one interface.

Ideal For

Singapore offices, campuses, hotels and warehouses standardising on Wi-Fi 7 access points and PoE++ cameras, displays or lighting, where every port needs both multi-gigabit throughput and high-wattage power. Supplied by SourceIT with local Singapore warranty, GST invoice and project pricing on request.
