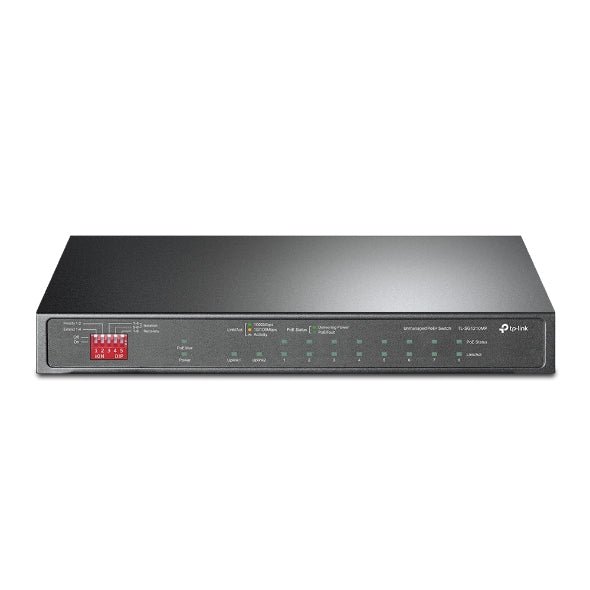

TP-Link Omada 10-Port Gigabit Desktop Switch with 8-Port PoE+ 123W
Email sales@sourceit.com.sg or use Request for Quotation below and our team will confirm the latest price, availability and lead time.
PRODUCT DESCRIPTION
TP-Link 10-Port Gigabit Desktop Switch with 8-Port PoE+ (TL-SG1210MP) - 5 Years Local Warranty
The TL-SG1210MP is the workhorse of TP-Link's desktop PoE range: eight 802.3at PoE+ ports sharing a 123 W budget, a ninth Gigabit port and a combo SFP/RJ45 uplink, all in a silent fanless chassis with a security lock. Extend Mode, Isolation Mode and PoE Auto Recovery are set by hardware switches, so the unit is configured by flipping a toggle rather than opening a browser.
Eight PoE+ Ports on a 123 W Budget
Ports 1 to 8 are 802.3af and 802.3at compliant, drawing from a shared 123 W supply fed by an external 53.5 V DC adapter. Eight typical 802.3af cameras or access points at 12 to 15 W each fit comfortably inside that budget; a mix including full 30 W 802.3at devices will reach the ceiling sooner. Full-load consumption is 141.40 W, and just 7.93 W with nothing powered.
Extend Mode Reaches 250 m, PoE Auto Recovery Saves the Call-Out
Extend Mode pushes power and data to 250 m rather than the standard 100 m, at reduced speed — enough to reach a gate camera, a car park reader or an outbuilding AP without an intermediate cabinet. PoE Auto Recovery monitors powered devices and power-cycles a port when one stops responding, which resolves the most common cause of a "dead camera" site visit. Isolation Mode separates client ports from each other for guest or public segments, and Priority Mode guarantees bandwidth on the first ports.
Combo SFP Uplink and a 20 Gbps Fabric
Nine Gigabit RJ45 ports plus one Gigabit combo SFP/RJ45 port sit on a 20 Gbps switching fabric with a 14.88 Mpps forwarding rate. The combo slot takes a fibre module when the run to the core exceeds copper distance or crosses a building, or a copper patch when it does not — you choose per installation rather than paying for an unused port. A 4K MAC address table and 16 KB jumbo frame support handle a busy access layer and continuous NVR traffic.
Fanless, Lockable, Desk or Wall
At 209 x 126 x 26 mm with no fan, the TL-SG1210MP is silent and unobtrusive enough for a reception area, a meeting room or a shop back office — places where a fan-cooled rack switch would be intrusive. A physical security lock slot deters casual removal in publicly accessible spaces, which matters when the switch is out in the open rather than in a locked cabinet.
Ideal For
Singapore offices, retail units, clinics and schools powering up to eight cameras, access points or VoIP phones where quiet operation and no configuration are the priorities. Supplied by SourceIT with local Singapore warranty, GST invoice and project pricing on request.
TL-SG1210MP Datasheet — Technical Specifications
General
| Model | TL-SG1210MP |
| Official Product Name | 10-Port Gigabit Desktop Switch with 8-Port PoE+ |
| Brand | TP-Link Omada |
| Warranty | 5 Years Local Warranty (Singapore) |
Specifications
| Interface | 9× 10/100/1000 Mbps RJ45 Ports, 1× 1000 Mbps Combo SFP/RJ45 Port; Auto Negotiation; Auto MDI/MDIX |
| Network Media | 10BASE-T/100BASE-TX UTP category 3–5 cable (max 100 m); EIA/TIA-568 100Ω STP (max 100 m) |
| PoE Ports (RJ45) | 802.3af/at compliant; PoE Ports 1–8; Power Supply 123 W |
| Switching Capacity | 20 Gbps |
| Packet Forwarding Rate | 14.88 Mpps |
| MAC Address Table | 4K |
| Jumbo Frame | 16 KB |
| Advanced Features | IEEE 802.3af/at compliance; Extend Mode; Priority Mode; Isolation Mode; PoE Auto Recovery; MAC address learning and aging; IEEE 802.3x Flow Control |
| Transmission Method | Store-And-Forward |
| Fan Quantity | Fanless |
| Physical Security Lock | Yes |
| External Power Supply | External Power Adapter (Output: 53.5 VDC / 2.43 A) |
| Dimensions (W x D x H) | 8.2 × 4.9 × 1.0 in (209 × 126 × 26 mm) |
| Max Power Consumption | 7.93 W (no PD connected); 141.40 W (with 123 W PD connected) |
| Max Heat Dissipation | 27.04 BTU/h (no PD connected); 482.17 BTU/h (with 123 W PD connected) |
| Operating Temperature | 0 °C to 40 °C |
| Storage Temperature | -40 °C to 70 °C |
| Operating Humidity | 10% to 90% RH |
| Storage Humidity | 5% to 90% RH |
| Certification | FCC, CE, RoHS |
TP-Link publishes no packet buffer memory, mounting, EAN or carton pack size row for this model, so those are omitted rather than carried across from a sibling.
Compatibility & Software Support
The TL-SG1210MP is an unmanaged switch. Its features are selected by hardware toggles on the chassis; there is no web interface, command line or controller adoption.
| Omada SDN Controller | Not supported — this model cannot be adopted into an Omada Software, Hardware or Cloud-Based Controller |
| Omada App / Cloud Access | Not supported |
| Web Management | None — unmanaged, plug and play |
| Powering Omada Devices | Supported — the 8 PoE+ ports will power Omada access points, cameras and other 802.3af/at devices |
| Hardware Feature Switches | Extend Mode, Isolation Mode, Priority Mode |
| If You Need Central Management | Choose an Omada JetStream smart or L2+ managed switch instead — ask SourceIT for the equivalent model |
Package Contents & Ordering Information
In the Box
| Package Contents | TL-SG1210MP, Power Adapter, Installation Guide |
Ordering Information
| Model | TL-SG1210MP |
| Recommended Retail Price (incl. GST) | S$189.00 |
Datasheet & Downloads
Frequently Asked Questions — TL-SG1210MP
How does this compare with the TL-SG1210PP?
Both are ten-port desktop switches with a 123 W budget. The TL-SG1210MP gives eight 802.3af/at PoE+ ports; the TL-SG1210PP gives six PoE+ ports plus two 802.3bt PoE++ ports for devices that need more than 30 W. Choose the MP when everything on site is a standard PoE+ device.
Can it be adopted into an Omada Controller?
No. It is unmanaged and will not appear in a controller, though it powers and connects Omada access points normally. Ask us about the JetStream smart and managed ranges if the switch itself needs to be managed.
What does the combo SFP port do?
It shares its position with a copper port, so you use either a fibre SFP module or a standard RJ45 patch on that one link. It is normally used for the uplink back to a router or core switch when the run is long or crosses a building.
What warranty does SourceIT provide?
Five years local Singapore warranty, in line with TP-Link's replacement warranty policy for unmanaged PoE switches. Every unit sold by SourceIT comes with a GST invoice.
Can SourceIT quote this for a project or tender?
Yes. Send the bill of materials and we will quote the whole build — switching, access points, cameras and optics — with local warranty and support.
