TP-Link TC74 Pan/Tilt AI Home Security Wi-Fi Camera 3K 5MP
PRODUCT DESCRIPTION
TP-Link Pan/Tilt AI Home Security Wi-Fi Camera (TC74) - 3 Years Local Warranty

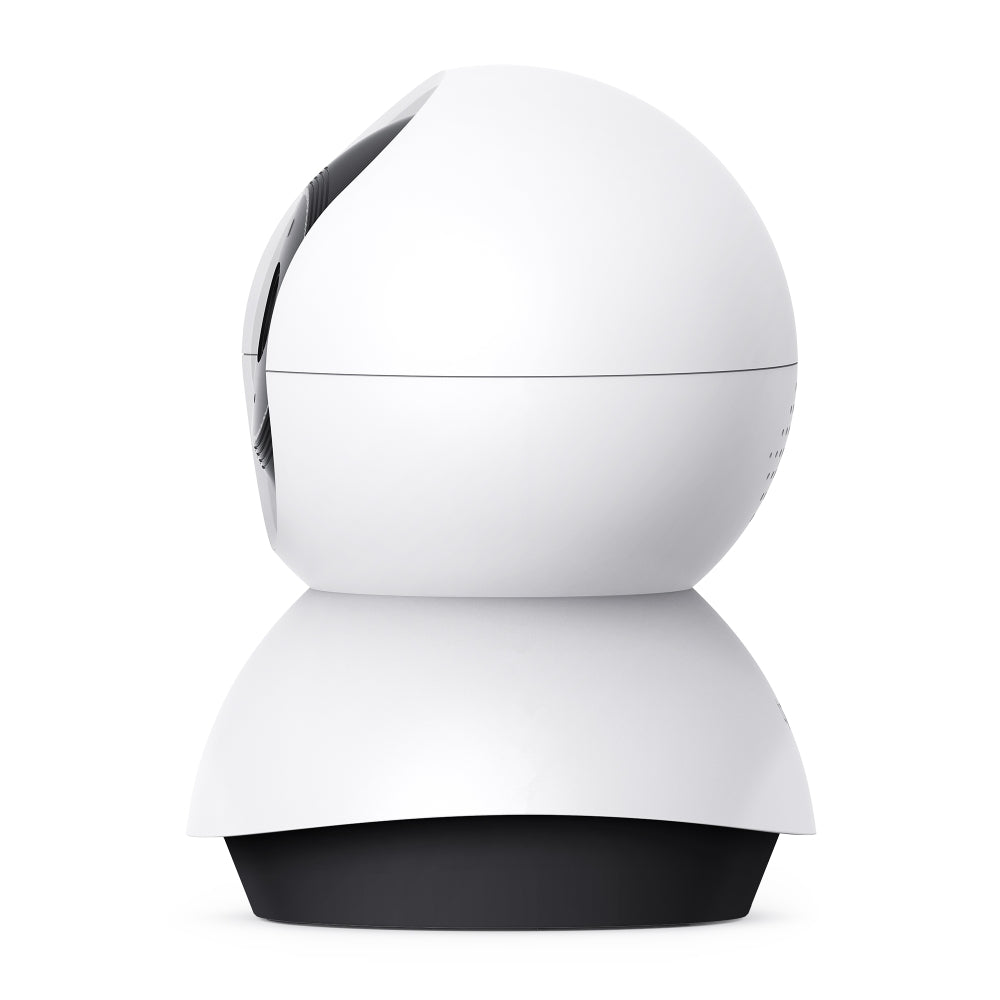

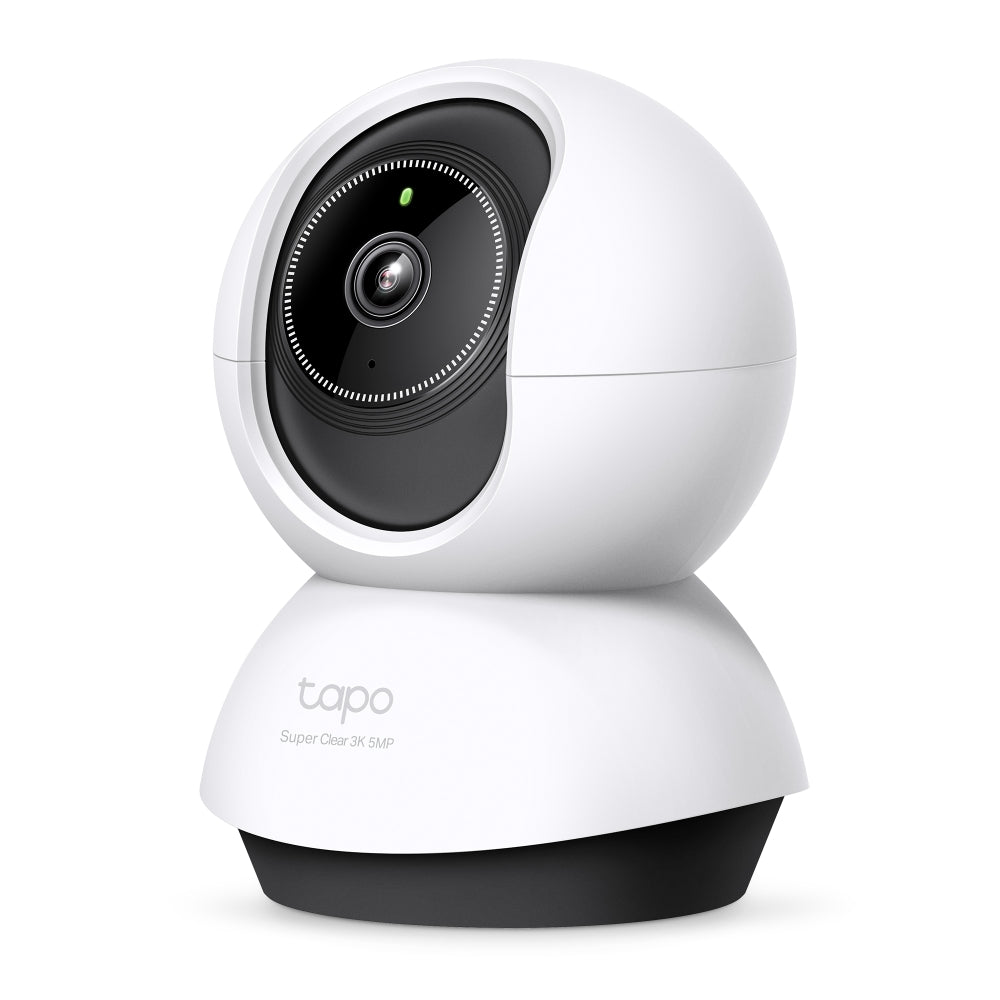

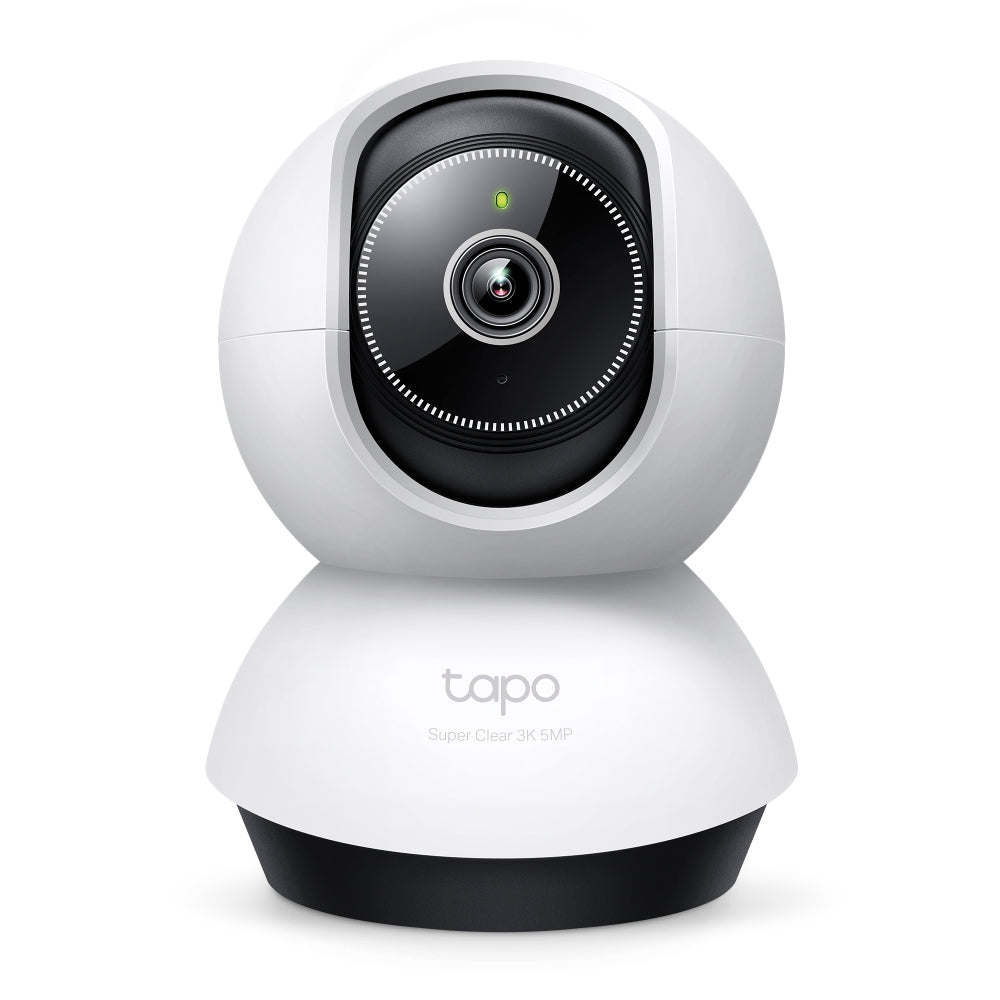

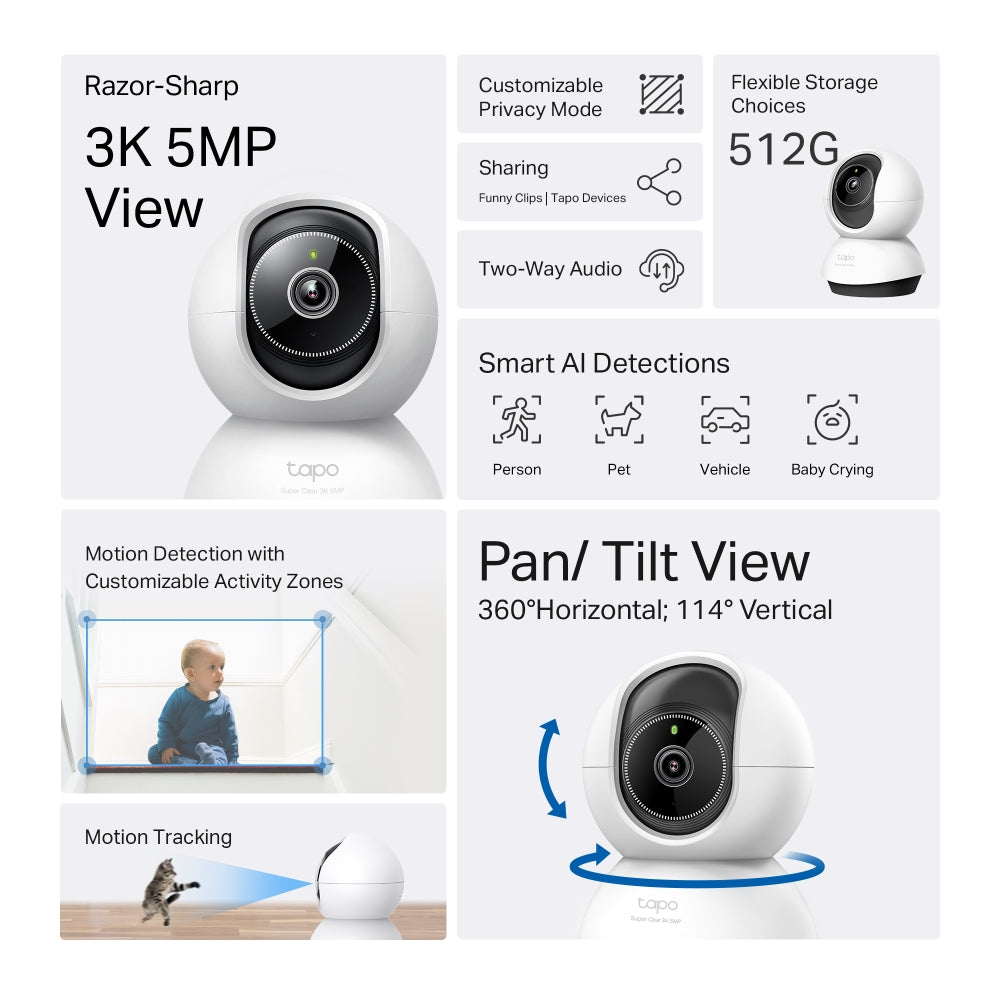

The TC74 is an indoor pan/tilt camera that records in 3K 5MP on a 1/3 inch Starlight sensor. It pans through 360 degrees of coverage and tilts through a 69 degree mechanical range, so one camera on a shelf or ceiling can follow what happens across a whole room.
Razor-Sharp 3K 5MP View
Video is captured at up to 2880 x 1620 through a 4 mm F2.0 lens with an 88 degree diagonal field of view. Frame rate is selectable at 15, 20, 25 or 30 fps, and 3D DNR and BLC clean up noise and backlit scenes. 850 nm infrared night vision reaches up to 40 ft (12 m).
Smart AI Detection and Notifications

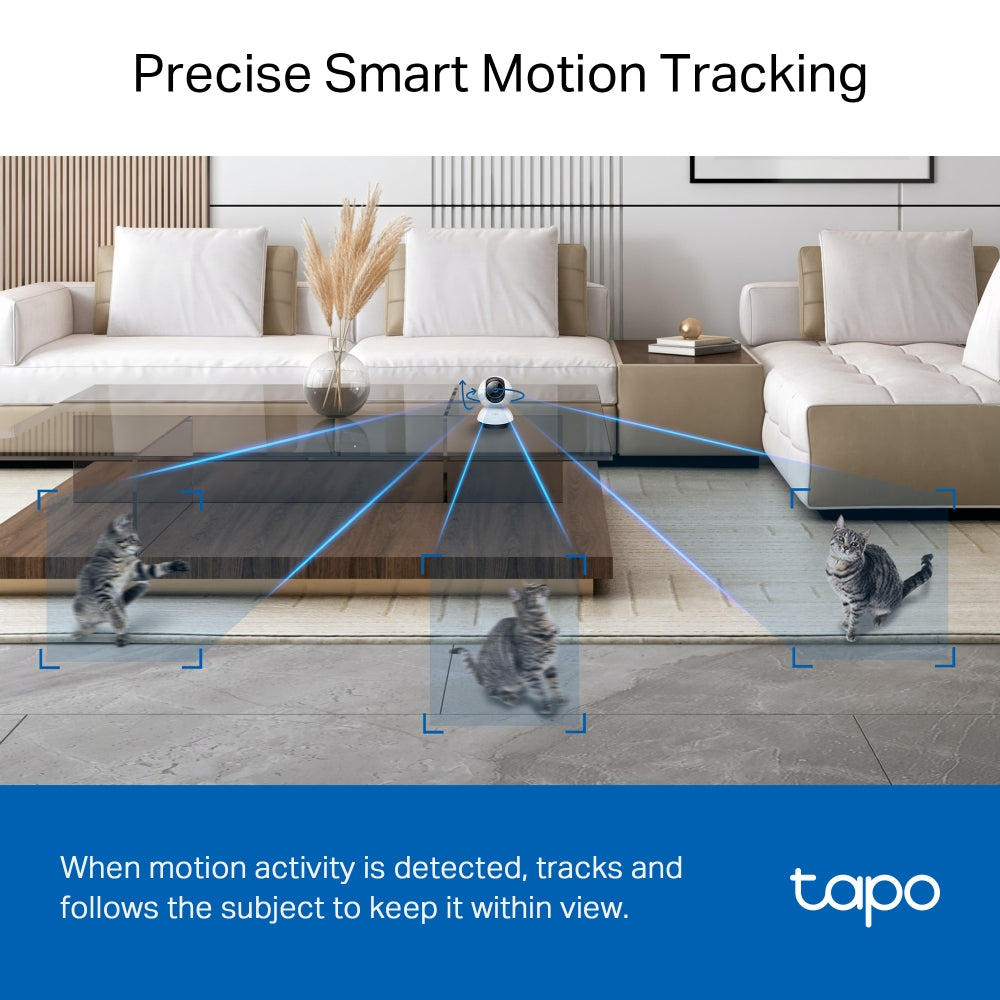

On-device detection covers motion, people, line crossing, tampering, vehicles, pets, baby crying, cat meowing, dog barking and glass breaking, with customisable activity zones so alerts come from the areas you care about. Smart motion tracking lets the camera follow movement across the room.
99 dB Siren and Two-Way Audio
A 99 dB siren, measured at 10 cm, can be triggered to deter an intruder, and the built-in microphone and speaker give two-way audio with noise cancellation for talking to family, pets or visitors.
Flexible Storage and Third-Party Recording
Footage records to a microSD card of up to 512 GB with no compulsory subscription; Tapo Care cloud storage is optional. RTSP and ONVIF are both supported, and the camera works with Google Assistant and Amazon Alexa.
Ideal For
Singapore homes, nurseries, pet corners, small shops and offices that want 3K pan/tilt coverage indoors on a single Wi-Fi camera. Supplied by SourceIT with local Singapore warranty, GST invoice and volume pricing on request.
TC74 Datasheet — Technical Specifications
General
| Model | TC74 |
| Official Product Name | Pan/Tilt AI Home Security Wi-Fi Camera |
| Brand | TP-Link |
| Warranty | 3 Years Local Warranty (Singapore) |
Camera
| Image Sensor | 1/3" progressive scan CMOS Starlight sensor |
| Lens | Focal length 4 mm; aperture F2.0; field of view 88° (diagonal), 75° (horizontal), 41° (vertical) |
| Night Vision | 850 nm IR LED (40 ft / 12 m) |
| Pan / Tilt Range | Pan mechanical range 340° (360° pan coverage); tilt mechanical range 69° |
| Interface & Button | 1x RESET button, 1x microSD card slot (up to 512 GB) |
Video & Audio
| Maximum Resolution | 3K 5MP (2880 x 1620 px) |
| Frame Rate | 15/20/25/30 fps (default 15 fps) |
| Video Compression | H.264 |
| Live View | Yes |
| Image Enhancement | 3D DNR, BLC |
| Audio Input & Output | Built-in microphone and speaker |
| Audio Communication | Two-way audio with noise cancellation |
| Siren Volume | 99 dB (measured at 4 in / 10 cm) |
Detection & Notifications
| AI Detection | Motion, person, line-crossing, tamper, baby cry, vehicle, pet, meow, bark and glass-breaking detection |
| Activity Zones | Yes |
| Notifications | System notification; system notification with snapshot (Tapo Care services) |
Storage & Network
| Local Storage | MicroSD card slot (up to 512 GB), card purchased separately |
| Cloud Storage | Tapo Care cloud storage services (subscription required) |
| Network Connectivity | Connect via Wi-Fi |
| Wireless Connectivity | IEEE 802.11b/g/n/ax, 2.4 GHz Wi-Fi |
| RTSP / ONVIF | Yes / Yes |
| Security | On-device machine learning; 128-bit AES encryption with SSL/TLS; WPA/WPA2-PSK |
Power, Hardware & Environment
| Power Source | 9 V DC power adapter |
| Adapter Input | 100-240 V, 50/60 Hz |
| Adapter Output | 9 V, 0.6 A (DC power) |
| Networked Standby Power | 2.0 W (all wireless network ports activated: 2.0 W); default time to standby 20 minutes |
| Smart Integration | Google Assistant, Amazon Alexa |
| Mounting Options | Tabletop, ceiling-mounted |
| Dimensions | 3.36 x 3.42 x 4.63 in (85.4 x 86.8 x 117.7 mm) |
| Operating Temperature | 0 °C to 40 °C |
| Storage Temperature | -20 °C to 70 °C |
| Operating Humidity | 10%-90% RH, non-condensing |
| Storage Humidity | 5%-90% RH, non-condensing |
| Certifications | CE, FCC, RCM, WEEE, EAC |

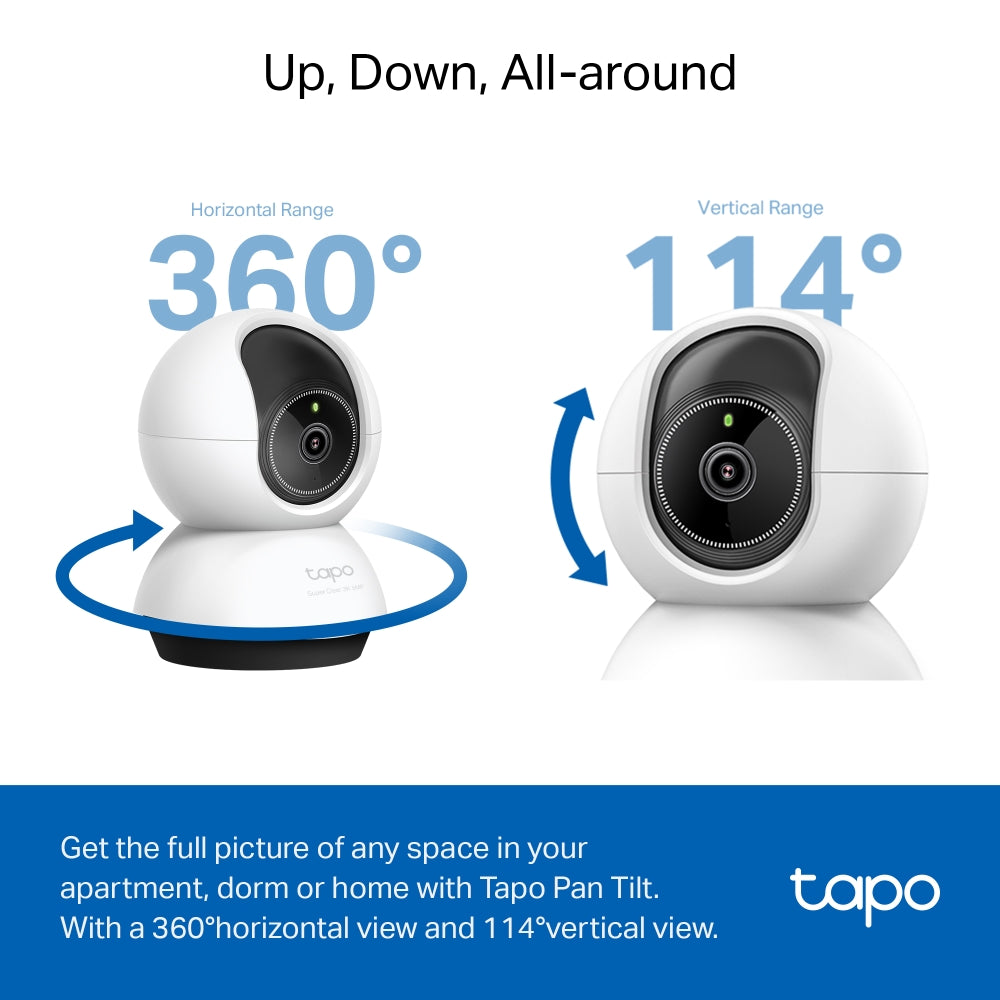

Figures are reproduced as TP-Link publishes them. The wireless row is printed as 802.11b/g/n/ax on 2.4 GHz, and the tilt row gives the 69 degree mechanical range only, while TP-Link's overview describes 114 degrees vertical. No net weight or weather rating is published for this model, so none is claimed here.
Compatibility & Software Support

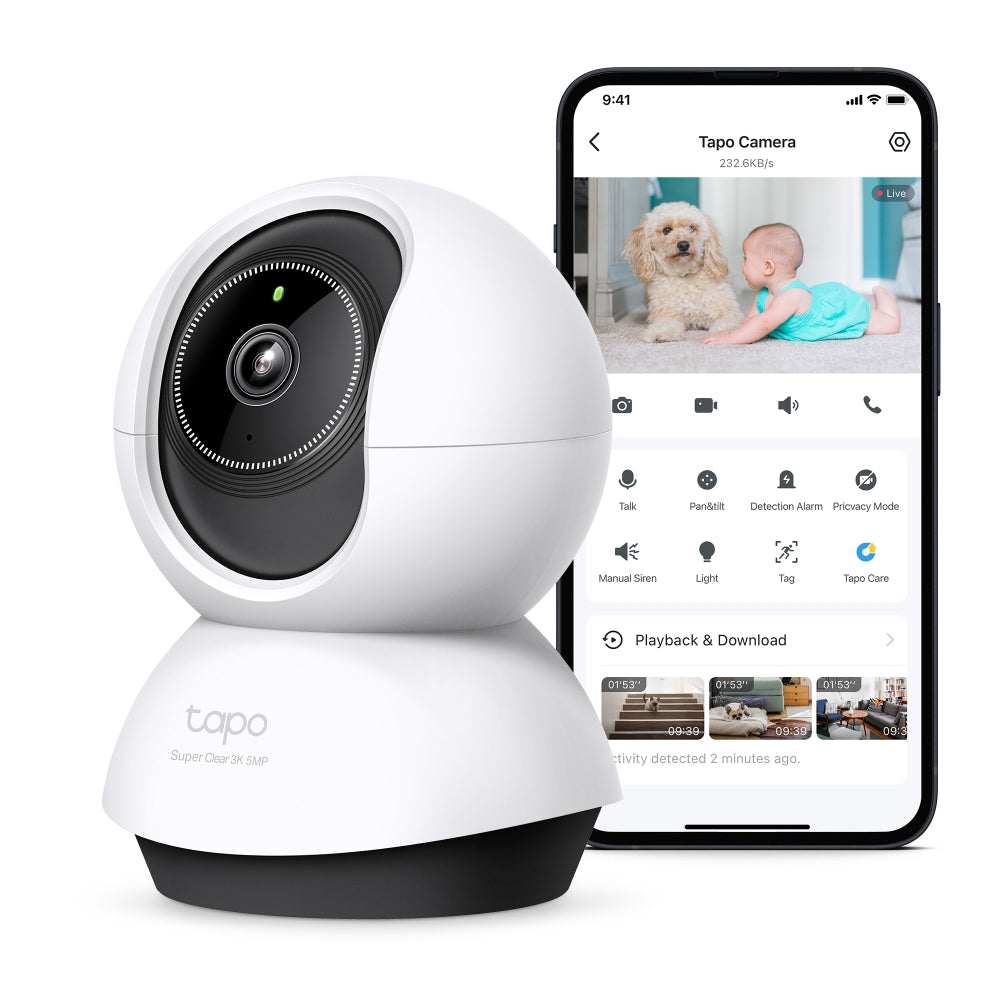

The TC74 is set up and operated through the Tapo app, which manages every Tapo camera, plug, bulb and sensor in one place. It is a consumer Wi-Fi camera and is not part of the Omada or VIGI business ranges: it cannot be adopted into an Omada Controller and it is not managed as an Omada or VIGI device.
| Tapo App | Supported — setup and remote viewing from iOS and Android |
| Smart Integration | Google Assistant, Amazon Alexa |
| Wi-Fi Requirement | 2.4 GHz network required; the camera does not join 5 GHz networks |
| Third-Party Recording | RTSP and ONVIF supported |
| Tapo Care | Optional paid cloud storage; the camera records locally to microSD without it |
| Omada / VIGI Management | Not supported — the Tapo range is separate from TP-Link's Omada and VIGI business lines |
Where you need cameras that integrate with a business NVR or with central network management, ask SourceIT about the VIGI range instead.
Package Contents & Ordering Information
Package Contents
| In the Box | TC74 Camera, Power Adapter, Quick Start Guide, Mounting Screws, Mounting Anchors, Mounting Template, Camera Base |
| Not Included | MicroSD card |
Ordering Information
| Model | TC74 |
| Warranty | 3 Years Local Warranty (Singapore) |
Datasheet & Downloads
Frequently Asked Questions — TC74
How is the TC74 different from the Tapo C230?
They share the same published camera, video, detection and power figures. The TC74 lists 802.11b/g/n/ax on 2.4 GHz and a -20 to 70 °C storage range; the C230 lists 802.11b/g/n and -20 to 60 °C.
Does it need a cloud subscription?
No. It records locally to a microSD card of up to 512 GB (purchased separately). Tapo Care cloud storage is an optional paid service.
Can I pull the stream into my own recording software?
Yes. TP-Link publishes RTSP and ONVIF support for this model, so it is not locked to the Tapo app.
What warranty does SourceIT provide?
Three years local Singapore warranty. Every TC74 sold by SourceIT comes with a GST invoice.
Can SourceIT quote this in quantity?
Yes. Send the quantity and site details and we will quote, including microSD cards and any Tapo accessories you want supplied with them.
