TP-Link Tapo TD25 2K 5MP Video Doorbell Camera with Chime
PRODUCT DESCRIPTION
TP-Link Tapo Video Doorbell Camera (TD25) - 1 Year Local Warranty

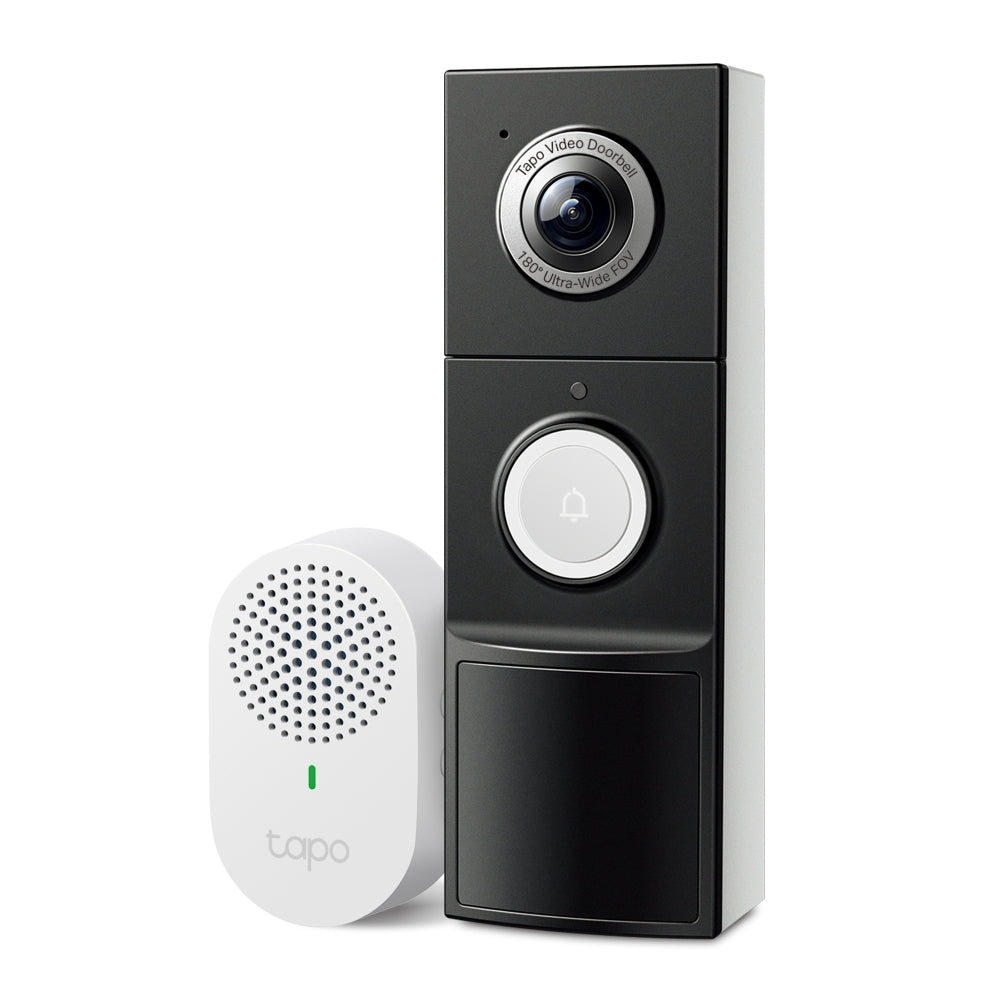

The Tapo TD25 is a 2K 5MP (2560 x 1920) video doorbell with a 10000 mAh built-in rechargeable battery, the option to hardwire it for continuous power, and a plug-in Tapo Chime in the box. It gives a tall head-to-toe view of the doorstep, detects people, pets, vehicles and packages, and records to a microSD card of up to 512 GB without a subscription.
2K 5MP, Head-to-Toe View
TP-Link rates the TD25 at 2K 5MP, above Full HD, with a 180° diagonal field of view; the specification table gives 170.6° horizontal and 140.1° vertical through a 1.18mm F1.8 lens on a 1/2.7-inch sensor. The tall 4:3 frame shows a visitor from head to toe and a parcel at their feet, with 3DNR and WDR image enhancement.
10000 mAh Battery or Hardwire

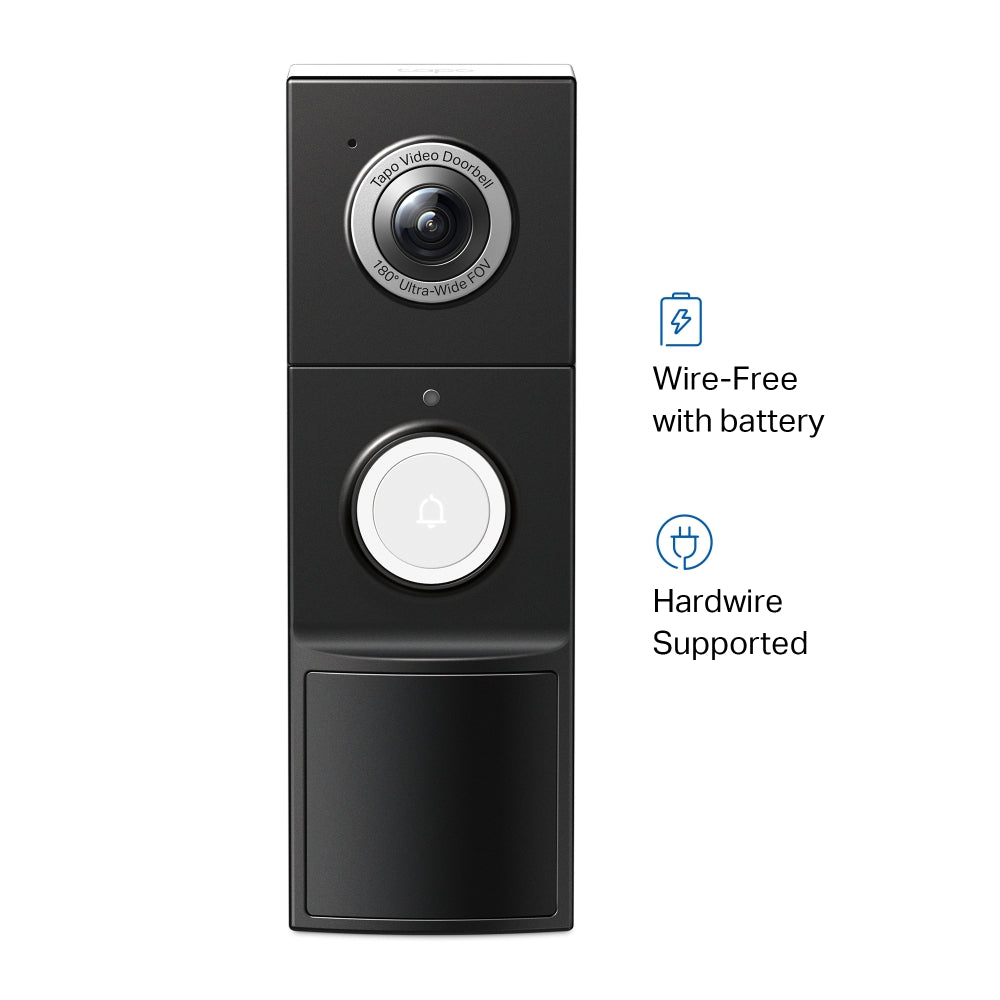

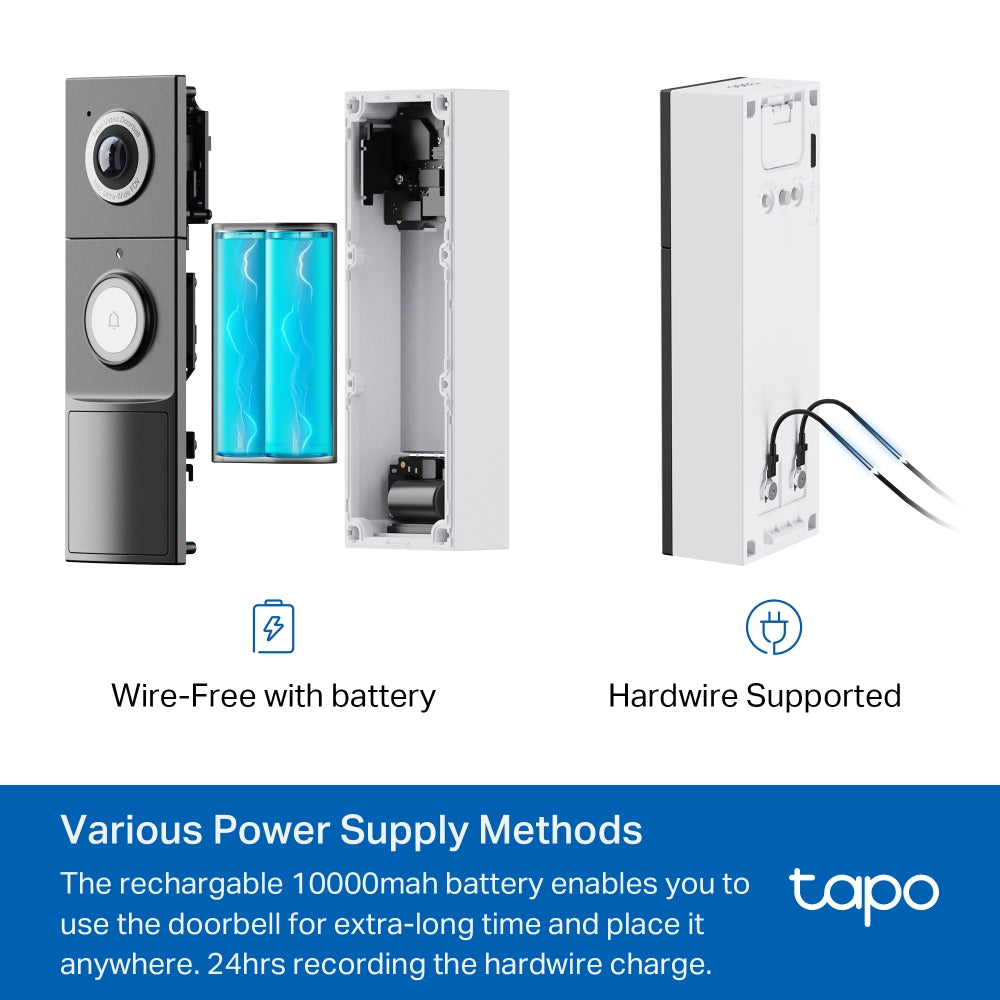

The 10000 mAh lithium-ion battery lets the doorbell go wire-free; hardwired, it supports continuous 24/7 recording. TP-Link notes battery life includes recording and live viewing and varies with settings, usage, router and environment. Horizontal and vertical wedges are supplied to adjust the view.
Chime Included, AI Alerts Without a Subscription

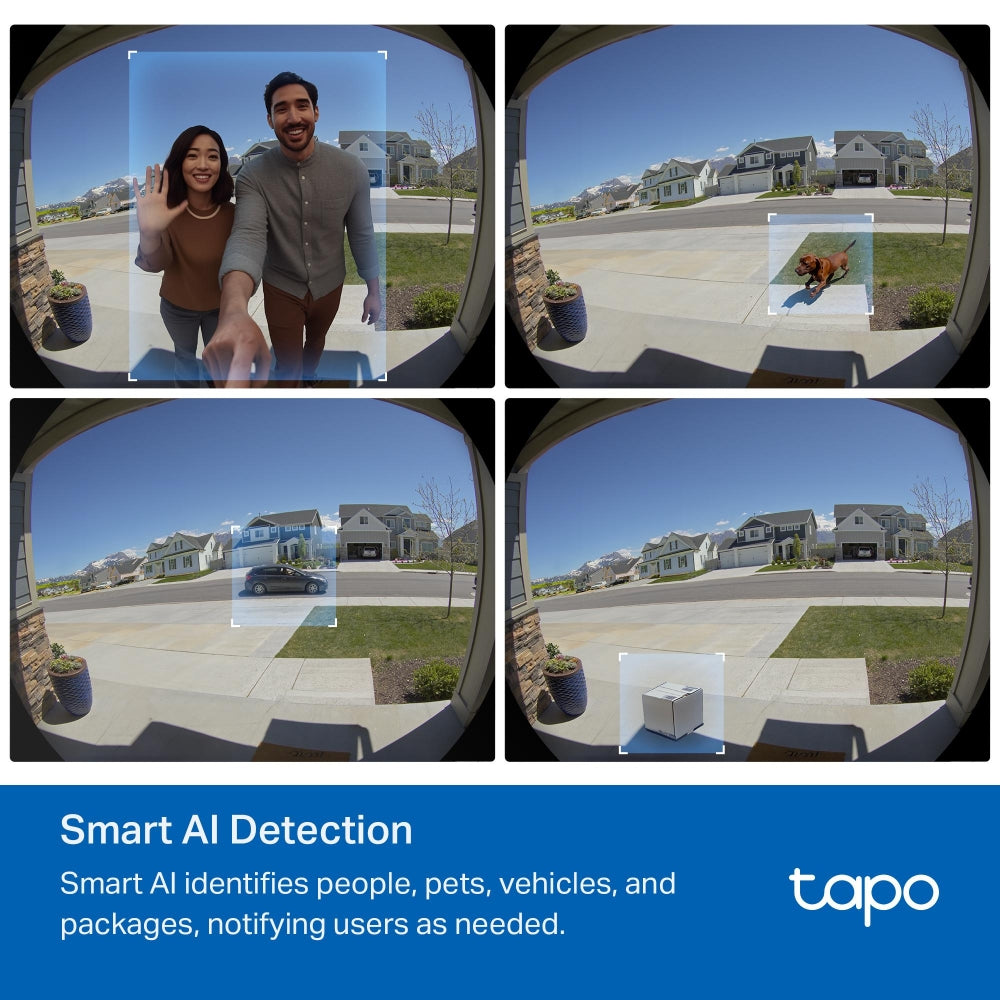

The indoor Tapo Chime offers a choice of ringtones. Smart AI identifies people, pets, vehicles and packages, and Activity Zones notify you only when something happens in the areas you choose. Video saves to a microSD card up to 512 GB (purchased separately) or to Tapo Care cloud storage by subscription.
Night Vision, Two-Way Audio and Anti-Theft

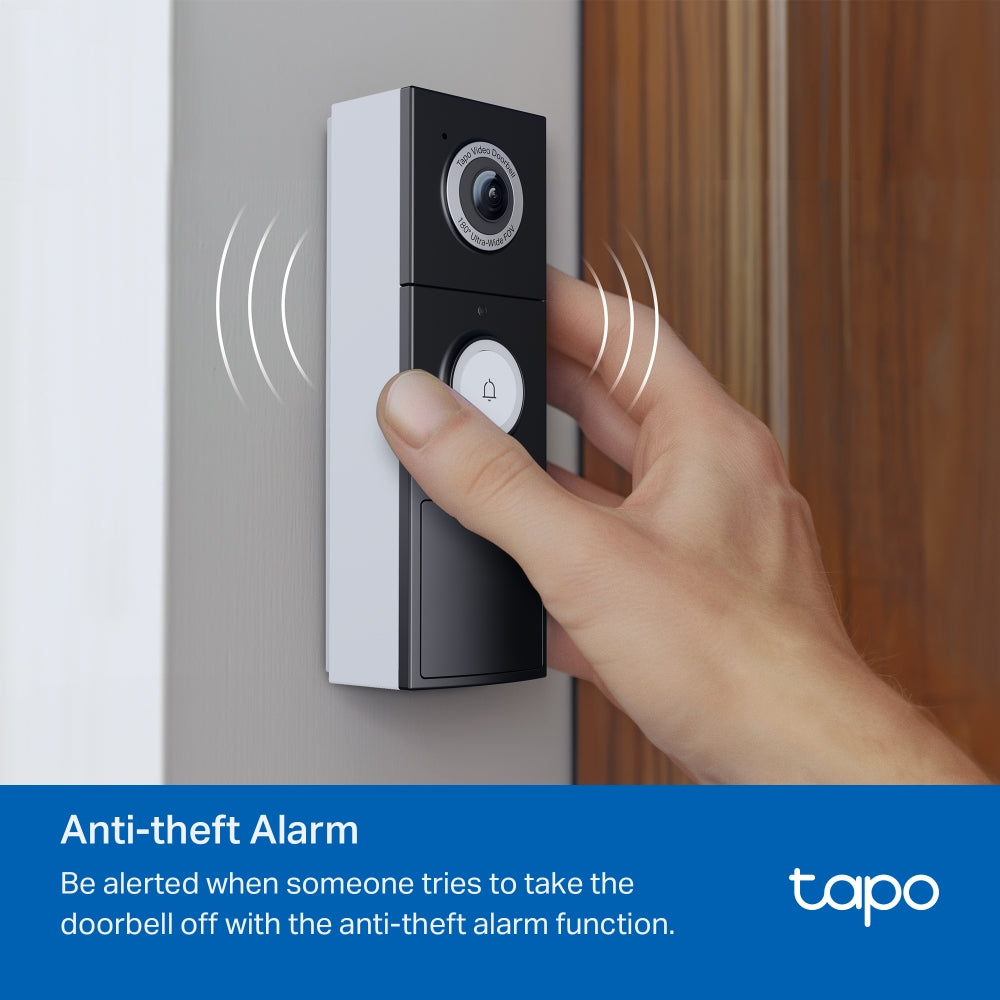

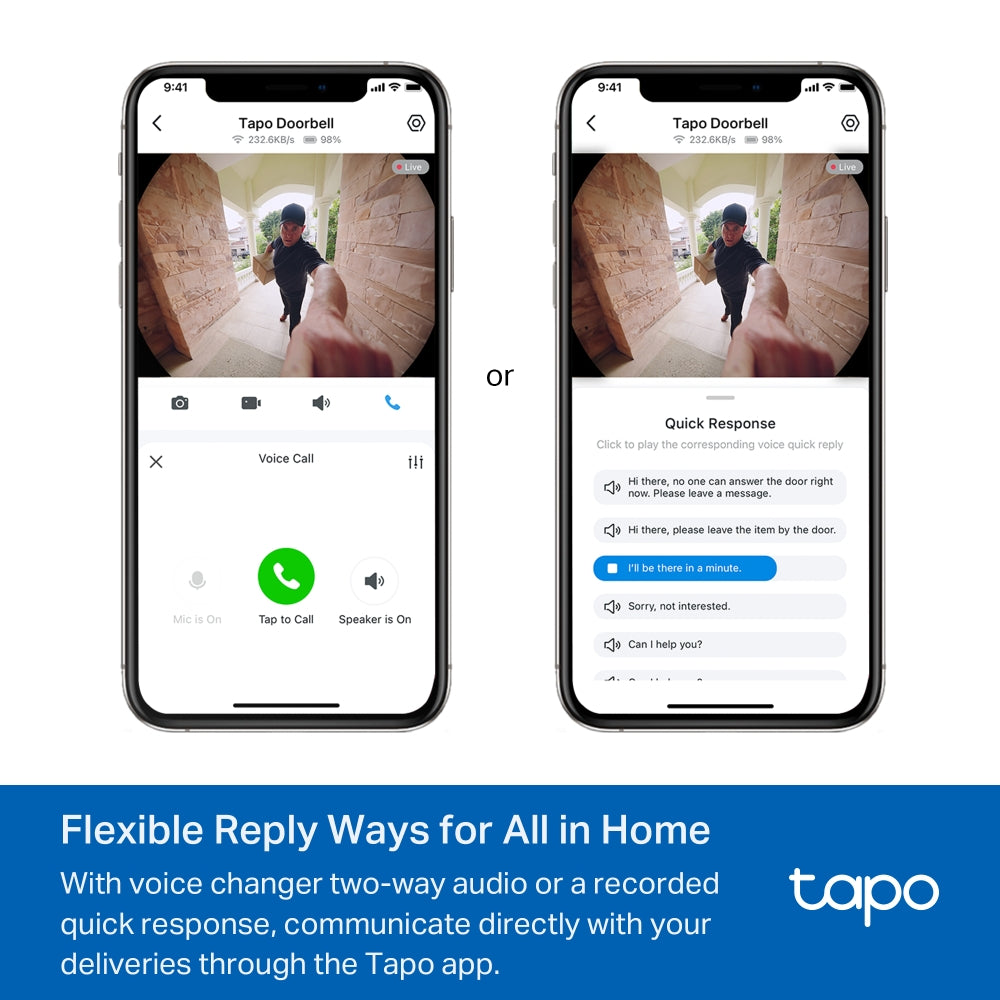

Night vision reaches 10 m with 850 nm IR, and built-in spotlights allow full-colour night vision. Reply to visitors with voice-changer two-way audio or a recorded quick response from the Tapo app. The anti-theft alarm alerts you if someone tries to take the doorbell off, and the housing is IP66 rated. It works with Alexa and Google Assistant on supported displays.
Ideal For
Singapore homes wanting a battery or wired 2K doorbell with an included chime and local recording. Supplied by SourceIT with local Singapore warranty and GST invoice.
TD25 Datasheet — Technical Specifications
General
| Model | TD25 |
| Official Product Name | Tapo Video Doorbell Camera |
| Brand | TP-Link |
| Warranty | 1 Year Local Warranty (Singapore) |
Camera
| Image Sensor | 1/2.7" Progressive Scan CMOS Sensor |
| Lens | Focal Length: 1.18mm; Aperture: F1.8; Field of View: 170.6° (Horizontal), 140.1° (Vertical) |
| Night Vision | 850 nm IR LED (33 ft / 10 m); Full-Color Night Vision |
| Lighting | Built-in Spotlights |
| Interface & Button | 1x RESET/SYNC Button, 1x Doorbell Button, 1x Anti-Theft Button, 1x Power ON/OFF Button |
Video & Audio
| Maximum Resolution | 2K 5MP (2560 x 1920px) |
| Frame Rate | 15/20 fps |
| Video Compression | H.264 |
| Live View | Yes |
| Image Enhancement | 3DNR, WDR |
| Audio Input & Output | Built-in Microphone and Speaker |
| Audio Communication | Two-Way Audio with Noise Cancellation |
| Siren Volume | 98dB (level measured at 4-inch/10-cm distance) |
Storage
| Local Storage | MicroSD Card Slot (up to 512 GB) |
| Cloud Storage | Tapo Care Cloud Storage Services (subscription required) |
Detection and Notifications
| Sensor | Single PIR Motion Sensor (FOV: 130° horizontal); One Ambient Light Sensor |
| AI Detection | Motion Detection, Person Detection, Pet Detection, Vehicle Detection, Package Detection |
| Activity Zones | Yes |
| Output Notification | System Notification; System Notification with Snapshot (Tapo Care Services) |
Network and Security
| Network Connectivity | IEEE 802.11b/g/n, 2.4 GHz Wi-Fi |
| Security | On-Device Machine Learning; 128-bit AES Encryption with SSL/TLS; WPA/WPA2-PSK |
Power
| Power Source | 10000 mAh Built-in Rechargeable Lithium-ion Battery; Hardwire charge; Hardwire supply |
| Input Voltage | Doorbell Battery Pack Adapter Input: 100-240 V, 50/60 Hz |
| Output Voltage | Doorbell Battery Pack Adapter Output: 5.0 V, 2.0 A |
General
| Smart Integration | Google Assistant, Amazon Alexa |
| Weather Resistance | IP66 |
| System Requirements | Tapo App: iOS 13.0 or higher, Android 7.0 or higher |
| Mounting Options | Stick to a Wall; Mount to a Wall |
| Operating Temperature | -20°C to 45°C |
| Storage Temperature | -40°C to 60°C |
| Operating Humidity | 10% to 90% RH, non-condensing |
| Storage Humidity | 0 to 90% RH, non-condensing |
| Charging Temperature | 0°C to 45°C |
| Doorbell Dimensions (W x D x H) | 150 x 50 x 38.4 mm (5.91 x 1.97 x 1.52 in) |
| Chime Dimensions (UK version) | 73 x 62.3 x 43.5 mm (2.87 x 2.45 x 1.71 in) |
| Certifications | CE, RCM, R-NZ, FCC, EAC, Triman, UKCA |
TP-Link does not publish a Singapore product page for the TD25; the specification above is from TP-Link's UK page for this model. TP-Link publishes no doorbell weight, no chime model number and no battery-life figure in the TD25 specification table. Nothing has been filled in from another model.
Compatibility & Software Support
| Management App | Tapo app — iOS 13.0 or higher, Android 7.0 or higher |
| Voice Assistants | Works with Alexa and Google Assistant |
| Local Storage | microSD card up to 512 GB (purchased separately) |
| Cloud Storage | Tapo Care (subscription) |
| Wi-Fi | 2.4 GHz only, IEEE 802.11b/g/n |
| Existing Chime | Jumper for existing chime supplied for hardwired installs |
TP-Link notes that one of the TD25's power modes does not support use of an existing chime; check TP-Link's installation guide before hardwiring.
Package Contents & Ordering Information
Package Contents
| In the Box | Tapo Video Doorbell x1, Tapo Chime x1, Mounting Template x1, Mounting Bracket x1, Vertical Mounting Wedge x1, Horizontal Mounting Wedge x1, USB Adapter Cable x1, Jumper for Existing Chime x1, Extension Wires x2, Mounting Screws and Anchors x3, Hardwire Installation Screws x2, Doorbell Detaching Pin x1, Mounting Wedge Screws x5, 3M Adhesive x1, Foam Pad x1, Wire Nuts x2, Quick Start Guide |
Ordering Information
| Model | TD25 |
| SKU | TD25 |
| Warranty | 1 Year Local Warranty (Singapore) |
Datasheet & Downloads
Frequently Asked Questions — TD25
Is the TD25 battery powered or wired?
Either. It has a 10000 mAh built-in rechargeable battery and can also be hardwired for charging or continuous supply, which enables 24/7 recording.
Is a chime included?
Yes, a Tapo Chime is in the box with a selection of ringtones, plus a jumper for an existing chime.
Do I need a subscription?
No. Person, pet, vehicle and package detection work without one, and video can be saved to a microSD card of up to 512 GB. Tapo Care cloud storage is optional.
What warranty does SourceIT provide?
One year local Singapore warranty, under TP-Link's published replacement warranty terms, with a GST invoice.
Can SourceIT quote this for an office or a project?
Yes. Send us the quantity and delivery address and we will quote with local warranty, delivery and support.
