TP-Link Tapo RV20 Max Plus 5300Pa Robot Vacuum & Mop with Auto-Empty Dock
PRODUCT DESCRIPTION
TP-Link 5300Pa Suction MagSlim LiDAR Navigation Robot Vacuum and Mop with Auto-Empty Dock (Tapo RV20 Max Plus) - 18 Months Local Warranty

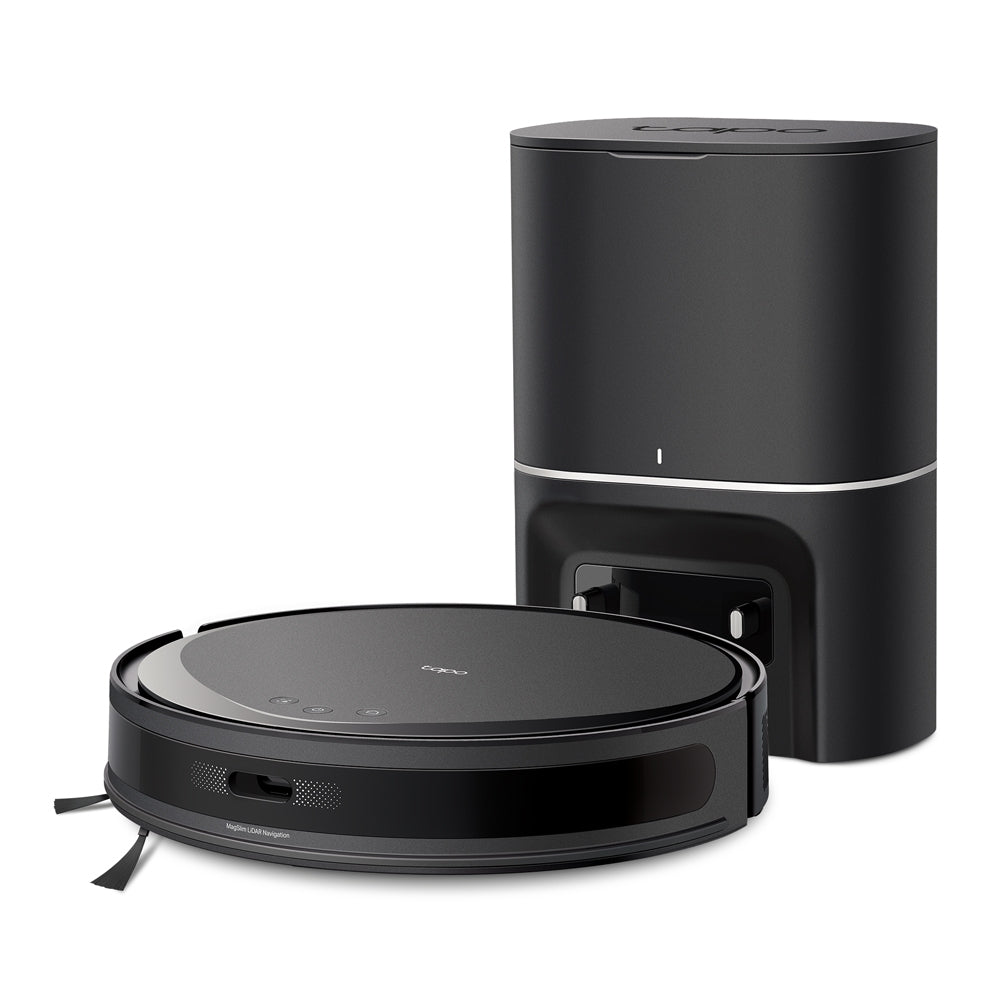

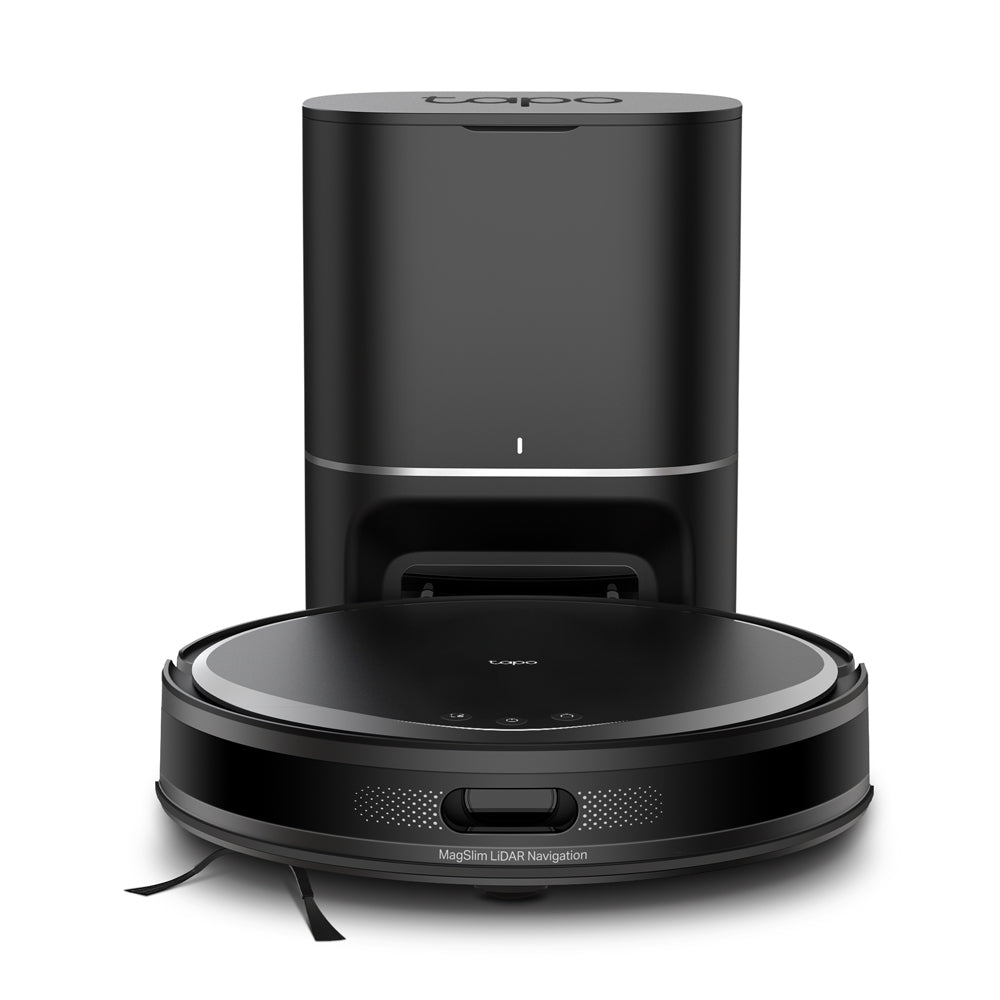

The Tapo RV20 Max Plus pairs the 83 mm-tall RV20 Max robot — 5300Pa suction, MagSlim LiDAR navigation, vacuum and mop in one pass — with an auto-empty dock. The dock pulls debris out of the robot at 17000Pa into a sealed 3L dust bag, which TP-Link rates for about two months of hands-free cleaning.
Auto-Empty Dock with 3L Dust Bag
After each run the dock empties the robot's 300 ml dustbin into a 3L disposable bag at 17000Pa of suction, keeping dust sealed away. TP-Link rates this at up to 2 months hands-free, based on Tapo Lab testing — actual intervals depend on usage and environment. The dock measures 228 x 164 x 330 mm.

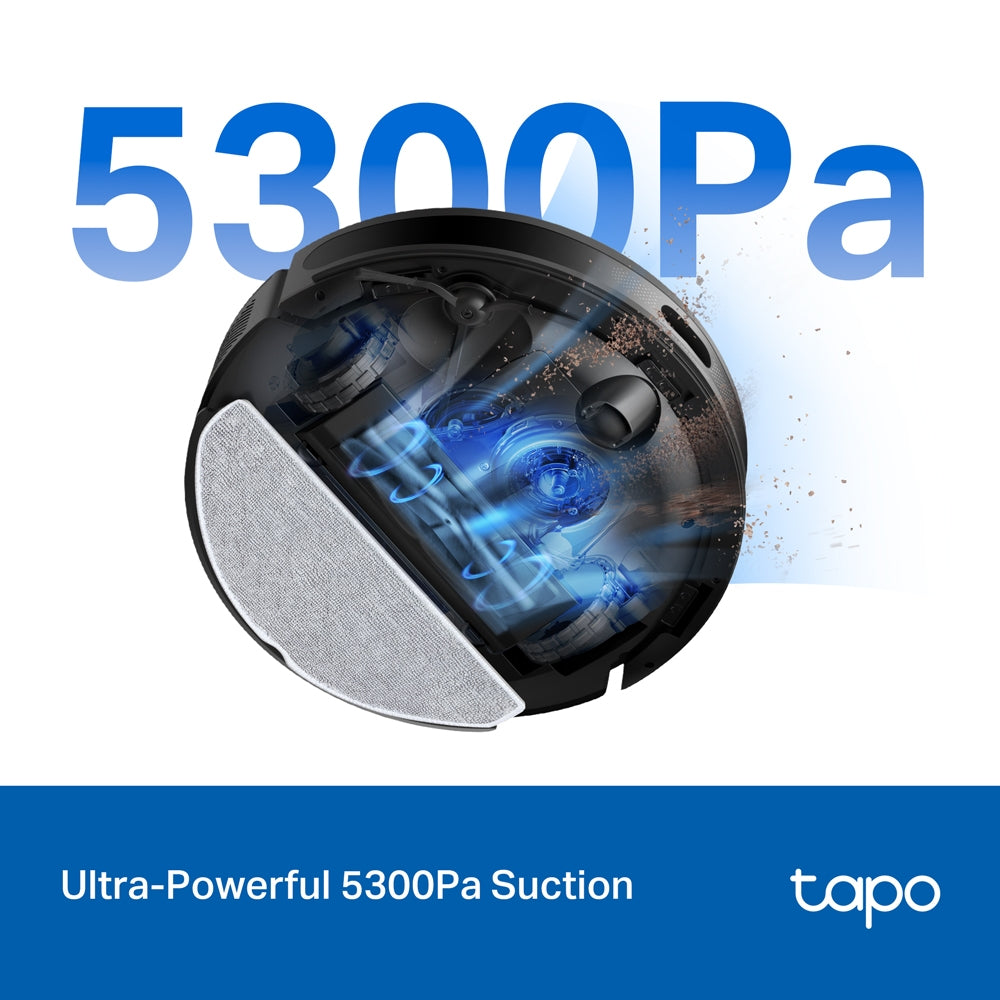

5300Pa Suction with DeepVac
Maximum suction is 5300Pa across five levels, with Carpet Boost raising suction automatically on carpet. TP-Link's DeepVac design — a redesigned air inlet angle, optimised main brush and air ducts — is rated at over 97% dust pickup in Tapo Lab testing, and the H11 HEPA filter traps fine dust. Noise is rated at 52 dB in Quiet Mode.

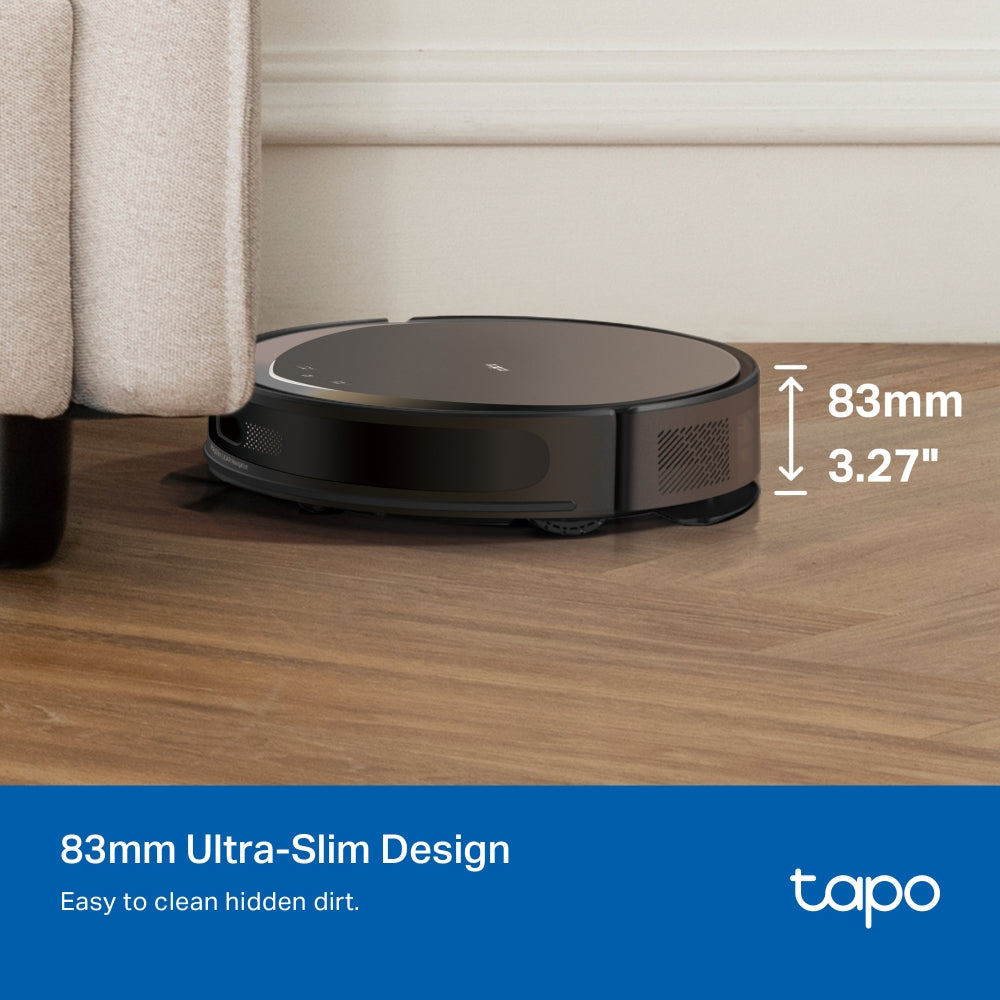

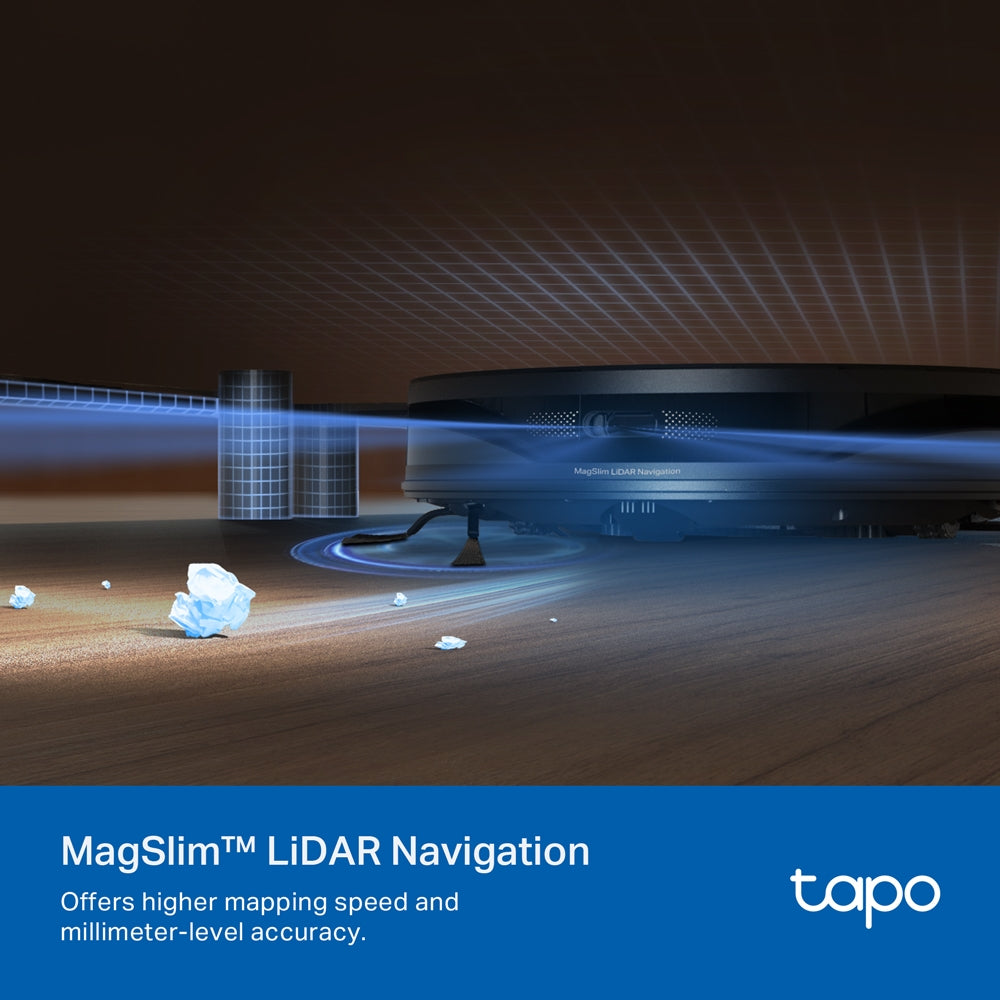

MagSlim LiDAR in an 83 mm Body
MagSlim navigation integrates the LiDAR into the body, keeping the robot at 83 mm so it glides under sofas and beds. TP-Link quotes faster mapping with millimetre-level precision and a Mesh Grid pattern to prevent missed spots.
Vacuum and Mop in One Pass

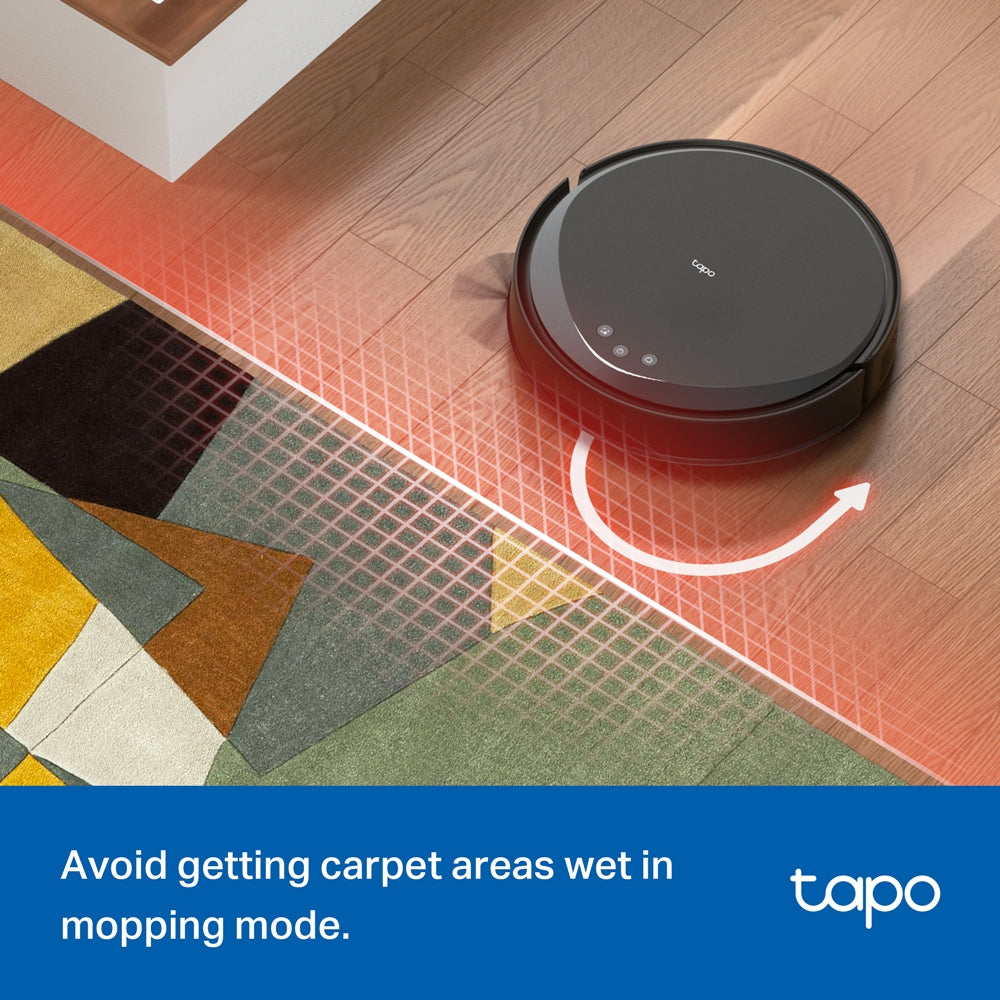

A 300 ml water tank with electric water-flow control and three water levels lets the robot mop hard floors while it vacuums. In mopping mode it avoids carpeted areas so rugs stay dry, and carpet cleaning parameters can be customised in the app. It climbs thresholds of up to 22 mm and anti-drop sensors keep it off stairs.
Maps, Zones and Voice Control
The Tapo app stores 3+1 multi-floor maps locally, with map locking, selected-room and zone cleaning, schedules, virtual walls and no-go zones. Recharge and resume sends it back to the dock mid-clean and picks up where it left off. It works with Amazon Alexa and Google Assistant, and has a child and pet lock.
Ideal For
Singapore homes with pets or long hair that want a slim robot vacuum and mop without emptying the bin after every run. Supplied by SourceIT with local Singapore warranty and GST invoice.
Tapo RV20 Max Plus Datasheet — Technical Specifications
General
| Model | Tapo RV20 Max Plus |
| Official Product Name | 5300Pa Suction MagSlim LiDAR Navigation Robot Vacuum and Mop with Auto-Empty Dock |
| Brand | TP-Link |
| Warranty | 18 Months Local Warranty (Singapore); internal battery 6 months |
Battery
| Battery Capacity | 2600 mAh |
| Charging Time | 4h |
| Recharge & Resume | Yes |
Mapping & Navigation
| Mapping/Path Planning | MagSlim LiDAR Navigation |
| High-Precision Map | Yes |
| Obstacle Avoidance | LiDAR |
| Barrier-Cross Height | 22 mm / 0.87 in |
| Anti-Drop Protection | Yes |
Dock
| Auto Dust Collection | Yes |
| Suction Power of Auto-Empty Dock | 17000Pa |
| Dust Bag Capacity | 3L |
Vacuuming
| Max Suction Power | 5300Pa |
| Suction Level Adjustment | 5 levels |
| Dustbin Capacity | 300 ml |
| Dustbin Detection | Yes |
| HEPA Filter | H11 |
| Noise | 52 dB (Quiet Mode); 55 dB (Default/Standard) |
| Carpet Boost | Yes |
Mopping
| Wet Mopping | Yes |
| Mopping Type | Electric Water Flow Control |
| Water Level Adjustment | 3 levels |
| Water Tank Capacity | 300 ml |
App Features
| Real-Time Tracking | Yes |
| Multi-Floor Mapping | Yes |
| Scheduled Cleaning | Yes |
| Virtual Walls | Yes |
| No-Go Zones | Yes |
| Zone Cleaning | Yes |
Physical
| Product Dimensions | Robot Vacuum: Φ330 x 83 mm (Φ13 x 3.3 in); Auto-Empty Dock: 228 x 164 x 330 mm (9 x 6.5 x 13 in) |
Power and Connectivity
| Wireless Connection | IEEE 802.11 b/g/n, 2.4 GHz band only; Bluetooth 4.2 (only for onboarding) |
| Rated Input Voltage | 100-120 VAC, 50/60 Hz (JP/US version), or 220-240 VAC, 50/60 Hz |
| Max Charging Power Consumption | 10 W (DC20 V 500 mA) |
| Max Working Power Consumption | Robot Vacuum: 45W; Auto-Empty Dock: 650W |
| Child & Pet Lock | Yes |
| Works with Google Home | Yes |
| Works with Amazon Alexa | Yes |
TP-Link publishes no weight or run-time figure in the RV20 Max Plus specification table. Nothing has been filled in from another model.
Compatibility & Software Support
| Management App | Tapo app |
| Wi-Fi | 2.4 GHz only, IEEE 802.11 b/g/n; Bluetooth used only for onboarding |
| Voice Assistants | Works with Google Home and Amazon Alexa |
| 3D House Mapping | Requires the latest Tapo app on a tablet |
| Multi-Floor Maps | 3+1 maps stored locally |
TP-Link's hands-free duration and dust-pickup figures are based on Tapo Lab testing; actual results vary with usage and the home environment.
Package Contents & Ordering Information
Package Contents
| In the Box | Robot Vacuum Cleaner x1 (includes HEPA Filter x1 and Side Brush x1), Auto-Empty Dock x1 (includes 3L Disposable Dust Bag x1 and Cleaning Brush x1), Mopping Attachment x1, Power Cable x1, User Manual |
Ordering Information
| Model | Tapo RV20 Max Plus |
| SKU | Tapo RV20 Max Plus |
| Warranty | 18 Months Local Warranty (Singapore); internal battery 6 months |
Datasheet & Downloads
Frequently Asked Questions — Tapo RV20 Max Plus
How often do I need to change the dust bag?
TP-Link rates the 3L bag at up to two months hands-free in Tapo Lab testing; homes with pets or heavy use will need to change it sooner.
What is the difference from the RV20 Max?
The robot specification is the same; the Plus adds the auto-empty dock with a 3L dust bag.
What does the 18-month warranty cover for the battery?
The robot is covered for 18 months locally in Singapore; the internal battery is covered for 6 months.
What warranty does SourceIT provide?
18 Months Local Warranty (Singapore); internal battery 6 months. Cover is under TP-Link's published replacement warranty terms, and every order comes with a GST invoice.
Can SourceIT quote this for an office or a project?
Yes. Send us the quantity and delivery address and we will quote with local warranty, delivery and support.
