TP-Link Tapo RV20 Max 5300Pa MagSlim LiDAR Robot Vacuum & Mop
PRODUCT DESCRIPTION
TP-Link 5300Pa Suction MagSlim LiDAR Navigation Robot Vacuum and Mop (Tapo RV20 Max) - 18 Months Local Warranty

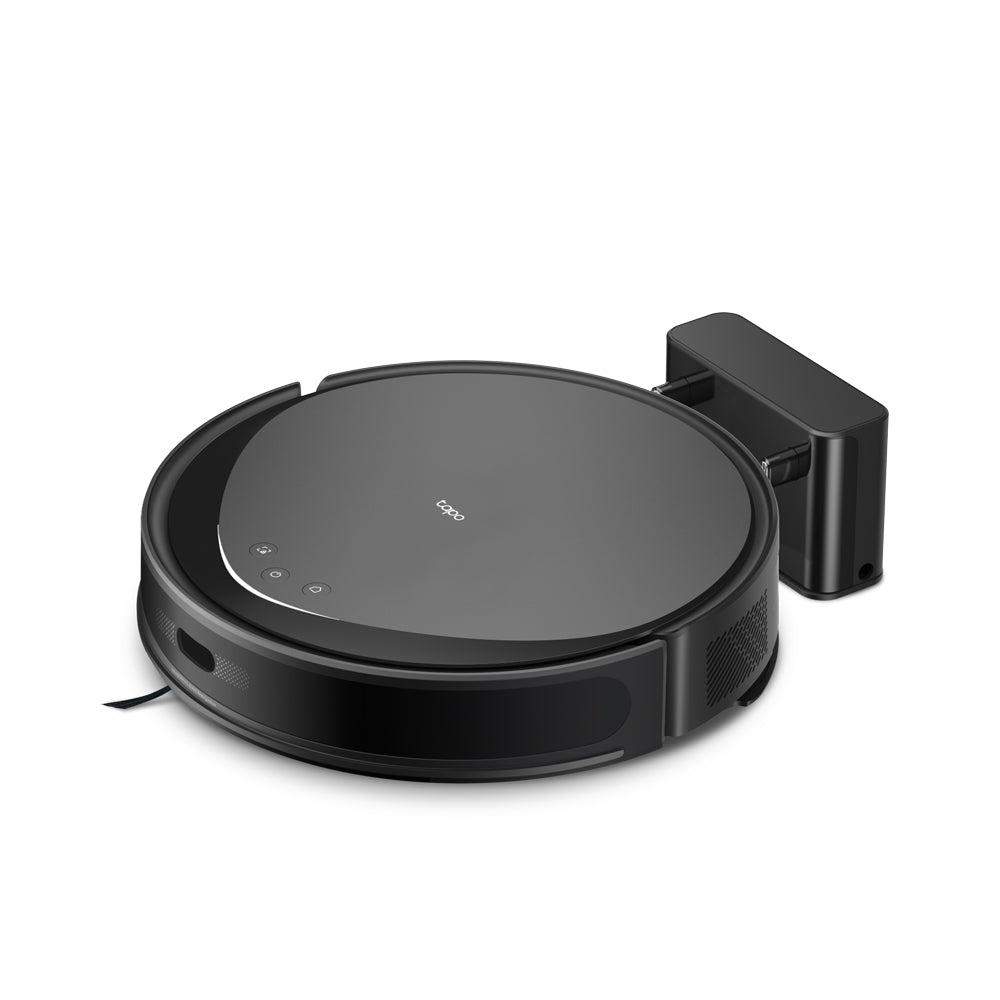

The Tapo RV20 Max is a robot vacuum and mop just 83 mm tall, with 5300Pa suction and TP-Link's MagSlim LiDAR navigation built into the body rather than a raised turret — so it can map a home accurately and still get under sofas and beds. It vacuums and mops in one pass from a 300 ml dustbin and 300 ml water tank, and returns to its charging dock by itself.

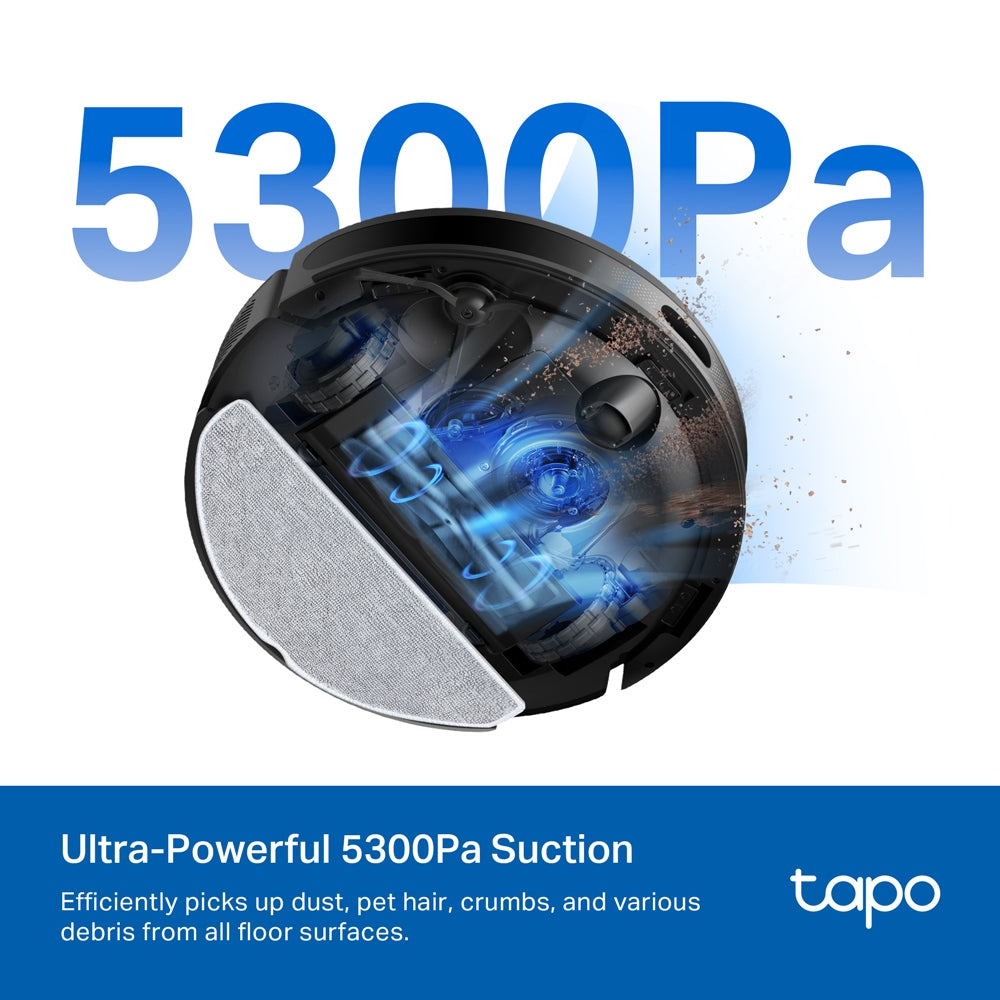

5300Pa Suction with DeepVac
Maximum suction is 5300Pa across five levels, with Carpet Boost raising suction automatically on carpet. TP-Link's DeepVac design — a redesigned air inlet angle, optimised main brush and air ducts — is rated at over 97% dust pickup in Tapo Lab testing, and the H11 HEPA filter traps fine dust. Noise is rated at 52 dB in Quiet Mode.

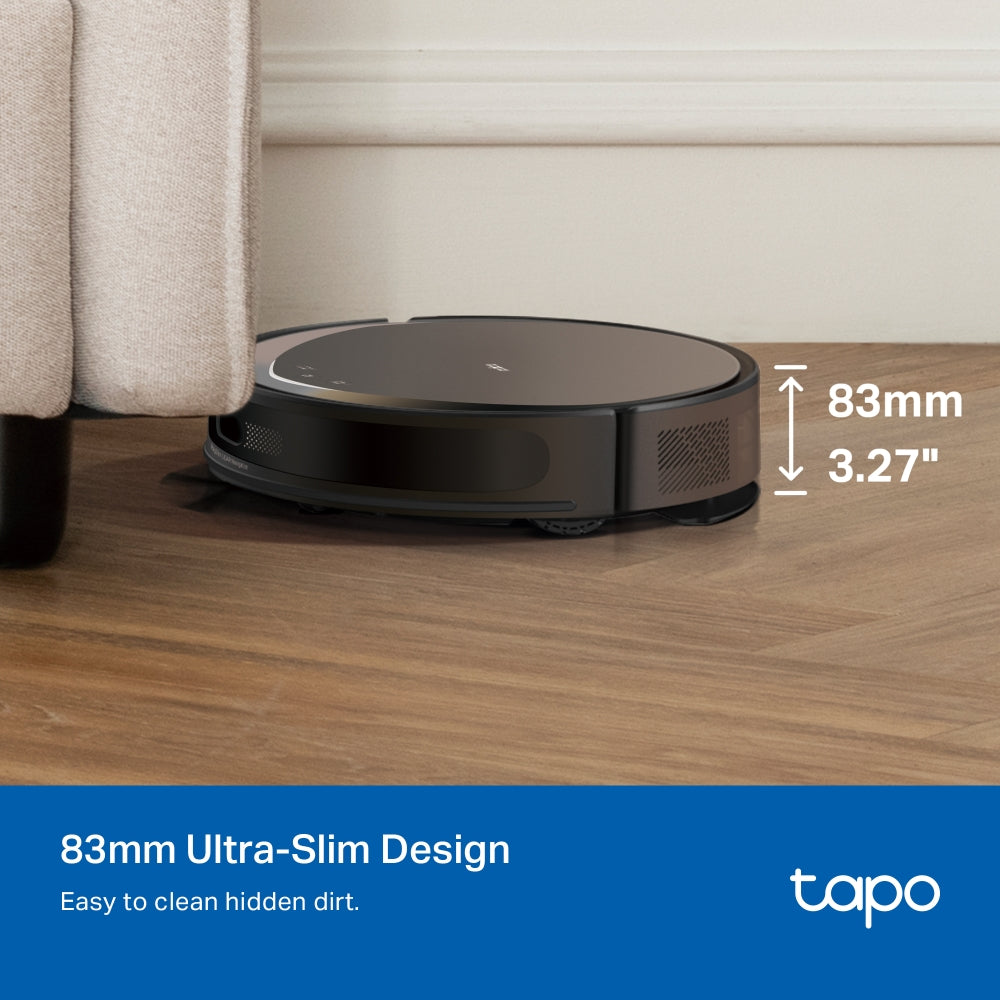

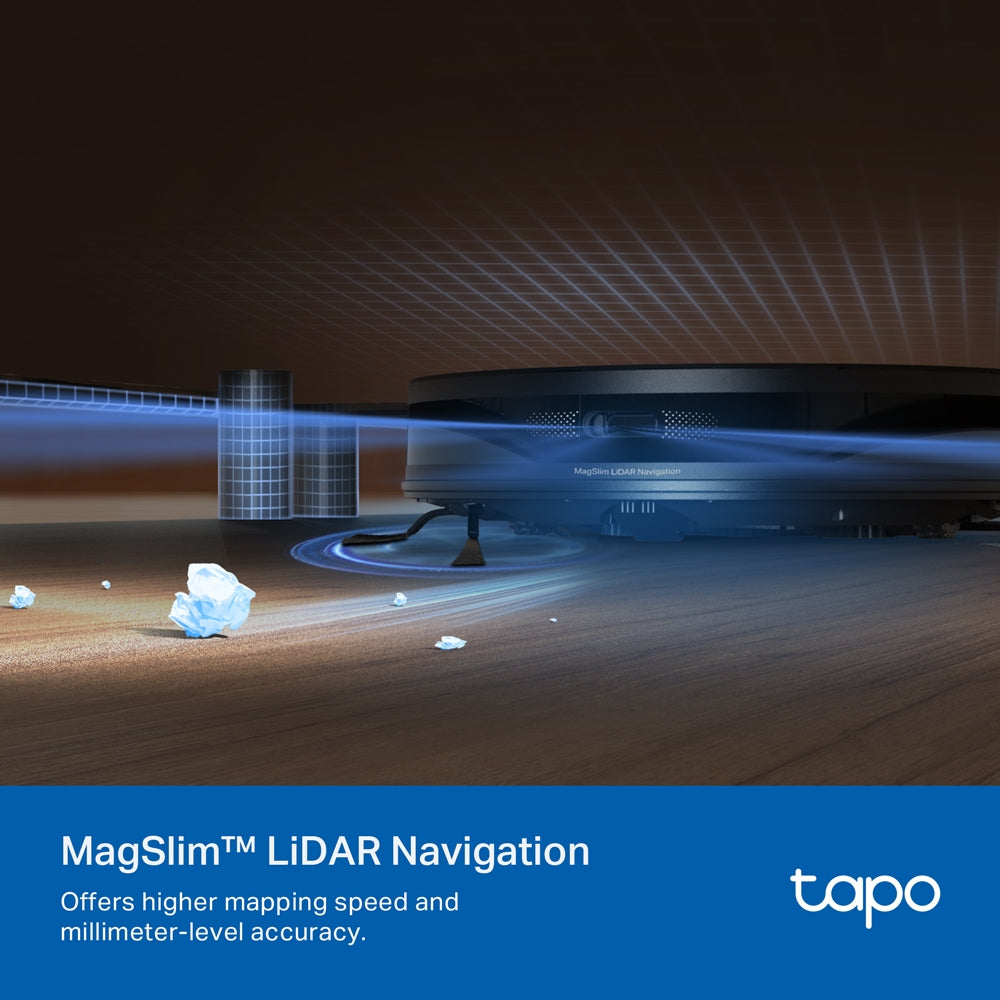

MagSlim LiDAR in an 83 mm Body
MagSlim navigation integrates the LiDAR sensor into the body, which keeps the robot at 83 mm and lets it navigate low spaces without getting lost or stuck. TP-Link quotes fast mapping with millimetre-level precision, a Mesh Grid cleaning pattern to avoid missed spots, and smart mapping in about 15 minutes so cleaning can start on day one.
Vacuum and Mop in One Pass
A 300 ml water tank with electric water-flow control and three water levels lets the robot mop hard floors while it vacuums. In mopping mode it avoids carpeted areas so rugs stay dry, and carpet cleaning parameters can be customised in the app. It climbs thresholds of up to 22 mm and anti-drop sensors keep it off stairs.
Maps, Zones and Voice Control
The Tapo app stores 3+1 multi-floor maps locally, with map locking, selected-room and zone cleaning, schedules, virtual walls and no-go zones. Recharge and resume sends it back to the dock mid-clean and picks up where it left off. It works with Amazon Alexa and Google Assistant, and has a child and pet lock.
Ideal For
Singapore flats and condominiums with low sofas and beds, where a slim robot that vacuums and mops daily from a simple charging dock is enough. Supplied by SourceIT with local Singapore warranty and GST invoice.
Tapo RV20 Max Datasheet — Technical Specifications
General
| Model | Tapo RV20 Max |
| Official Product Name | 5300Pa Suction MagSlim LiDAR Navigation Robot Vacuum and Mop |
| Brand | TP-Link |
| Warranty | 18 Months Local Warranty (Singapore); internal battery 6 months |
Battery
| Battery Capacity | 2600 mAh |
| Charging Time | 4h |
| Recharge & Resume | Yes |
Mapping & Navigation
| Mapping/Path Planning | MagSlim LiDAR Navigation |
| High-Precision Map | Yes |
| Obstacle Avoidance | MagSlim LiDAR |
| Barrier-Cross Height | 22 mm / 0.87 in |
| Anti-Drop Protection | Yes |
Vacuuming
| Max Suction Power | 5300Pa |
| Suction Level Adjustment | 5 levels |
| Dustbin Capacity | 300 ml |
| Dustbin Detection | Yes |
| HEPA Filter | H11 |
| Noise | 52 dB (Quiet Mode); 55 dB (Default/Standard) |
| Carpet Boost | Yes |
Mopping
| Wet Mopping | Yes |
| Mopping Type | Electric Water Flow Control |
| Water Level Adjustment | 3 levels |
| Water Tank Capacity | 300 ml |
App Features
| Real-Time Tracking | Yes |
| Multi-Floor Mapping | Yes |
| Scheduled Cleaning | Yes |
| Virtual Walls | Yes |
| No-Go Zones | Yes |
| Zone Cleaning | Yes |
Physical
| Product Dimensions | Robot Vacuum: Φ330 x 83 mm (Φ13 x 3.3 in) |
Power and Connectivity
| Wireless Connection | IEEE 802.11 b/g/n, 2.4 GHz band only; Bluetooth 4.2 (only for onboarding) |
| Rated Input Voltage | 100-240 VAC, 50/60 Hz |
| Max Charging Power Consumption | 10 W (DC20 V 500 mA) |
| Max Working Power Consumption | Robot Vacuum: 45W |
| Child & Pet Lock | Yes |
| Works with Google Home | Yes |
| Works with Amazon Alexa | Yes |
TP-Link's Singapore page for the RV20 Max also lists auto dust collection and a 17000Pa auto-empty dock, which do not match its own package contents (a charging dock only); those rows are left out here. TP-Link publishes no weight or run-time figure in the specification table. Nothing has been filled in from another model.
Compatibility & Software Support
| Management App | Tapo app |
| Wi-Fi | 2.4 GHz only, IEEE 802.11 b/g/n; Bluetooth used only for onboarding |
| Voice Assistants | Works with Google Home and Amazon Alexa |
| 3D House Mapping | Requires the latest Tapo app on a tablet |
| Multi-Floor Maps | 3+1 maps stored locally |
TP-Link's dust-pickup and obstacle figures are based on Tapo Lab testing; actual results vary with the home environment.
Package Contents & Ordering Information
Package Contents
| In the Box | Robot Vacuum Cleaner x1 (includes HEPA Filter x1 and Side Brush x1), Charging Dock x1, Mopping Attachment x1, Power Cord x1, Cleaning Brush x1, User Manual |
Ordering Information
| Model | Tapo RV20 Max |
| SKU | Tapo RV20 Max |
| Warranty | 18 Months Local Warranty (Singapore); internal battery 6 months |
Datasheet & Downloads
Frequently Asked Questions — Tapo RV20 Max
Does the RV20 Max empty itself?
No. It comes with a charging dock and a 300 ml dustbin that you empty by hand. The RV20 Max Plus is the version with an auto-empty dock.
Will it fit under my sofa?
It is 83 mm tall, so it will pass under furniture with more than that clearance.
What does the 18-month warranty cover for the battery?
The robot is covered for 18 months locally in Singapore; the internal battery is covered for 6 months.
What warranty does SourceIT provide?
18 Months Local Warranty (Singapore); internal battery 6 months. Cover is under TP-Link's published replacement warranty terms, and every order comes with a GST invoice.
Can SourceIT quote this for an office or a project?
Yes. Send us the quantity and delivery address and we will quote with local warranty, delivery and support.
