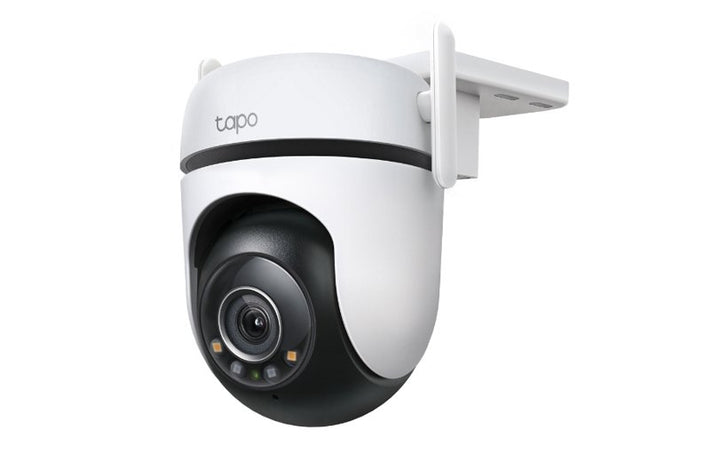

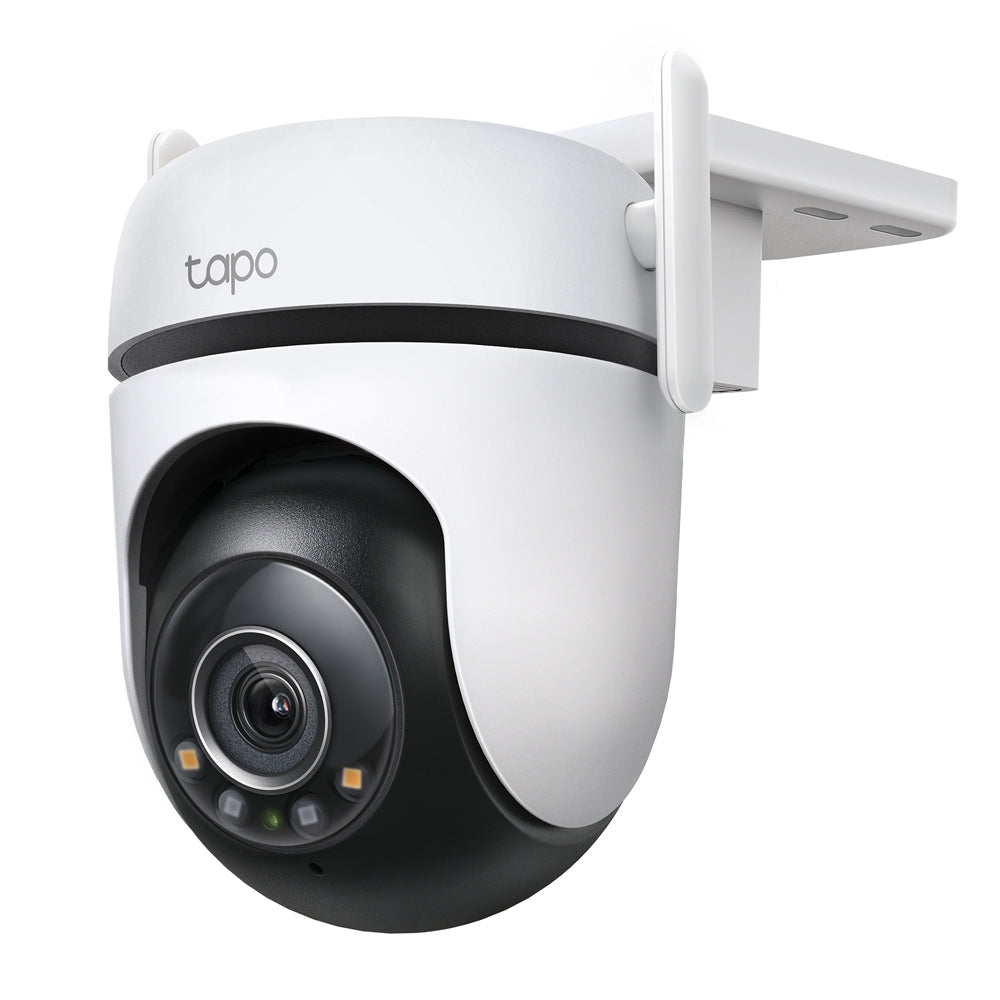

TP-Link Tapo C520WS Outdoor Pan/Tilt Security Wi-Fi Camera 2K QHD 4MP IP66
PRODUCT DESCRIPTION
TP-Link Tapo Outdoor Pan/Tilt Security Wi-Fi Camera (Tapo C520WS) - 2 Years Local Warranty
The Tapo C520WS is the top of the Tapo outdoor pan/tilt line: 2K QHD 4MP on a steerable head covering 360 degrees, an IP66 housing, a 93 dB siren, 12x digital zoom and a wired Ethernet port for sites where Wi-Fi is not dependable. It is the model to specify when one camera has to do the work of several.
2K QHD 4MP With 12x Digital Zoom
Video is captured at 2560 x 1440 through a fast 3.18 mm f/1.61 lens on a 1/3 inch CMOS sensor, at a default 15 fps and up to 30 fps. Twelve-times digital zoom lets you push into a recorded frame after the event, and 3D DNR with WDR keeps backlit gates and bright afternoon glare from washing out the detail you actually need.
360 Degree Coverage From One Mounting Point
The motorised head pans through a 340 degree mechanical range for full 360 degree coverage and tilts through 90 degrees, giving a 360 degree horizontal and 130 degree vertical view. One unit on a corner replaces the two or three fixed cameras and the cabling a compound would otherwise need, and you re-aim it from the Tapo app.
On-Device AI Detection and a 93 dB Siren
On-device machine learning handles motion, person, pet, vehicle, line-crossing and tamper detection, with activity zones so a busy road outside your gate does not generate alerts all day. On detection the camera can trigger a 93 dB siren measured at 10 cm together with its two spotlights, and two-way audio with noise cancellation lets you speak to whoever is there.
Ethernet or Wi-Fi, 512 GB Local Recording, RTSP and ONVIF
A 10/100 Mbps RJ45 port on the camera means you can run it on cable where a 2.4 GHz signal will not reach reliably, which on a boundary wall or a metal-clad building is often the difference between a camera that works and one that drops out. Recording goes to microSD up to 512 GB with no compulsory cloud plan, and RTSP and ONVIF are published for third-party recording software.
Ideal For
Singapore compounds, worksites, carparks, warehouse yards and commercial frontages that need steerable 4MP coverage, an audible deterrent, and the option of a wired run rather than depending on Wi-Fi. Supplied by SourceIT with local Singapore warranty, GST invoice and volume pricing on request.
Tapo C520WS Datasheet — Technical Specifications
General
| Model | Tapo C520WS |
| Official Product Name | Outdoor Pan/Tilt Security Wi-Fi Camera |
| Brand | TP-Link Tapo |
| Warranty | 2 Years Local Warranty (Singapore) |
Camera
| Image Sensor | 1/3" CMOS |
| Lens | F/NO 1.61±10%; Focal Length 3.18 mm±5% |
| Resolution | 2K QHD 4MP (2560 × 1440 px) |
| Night Vision | 850 nm IR LED (up to 98 ft), Starlight Colour Night Vision |
| Lighting | 2× built-in spotlights |
| Pan / Tilt Range | Pan 340° (360° pan coverage); Tilt 90° (145.2° tilt coverage) |
| View Range | 360° horizontal and 130° vertical |
| Interface & Button | 1× Ethernet port, 1× RESET button, 1× microSD card slot (up to 512 GB) |
Video & Audio
| Maximum Resolution | 2K QHD 4MP (2560 × 1440 px) |
| Frame Rate | 15/20/25/30 fps (default 15 fps) |
| Digital Zoom | 12x |
| Video Compression | H.264 |
| Image Enhancement | 3D DNR, WDR |
| Audio Input & Output | Built-in microphone and speaker |
| Audio Communication | Two-way audio with noise cancellation |
| Siren Volume | 93 dB (measured at 4 in / 10 cm) |
Detection & Notifications
| AI Detection | Motion, person, pet, vehicle, line-crossing and tamper detection |
| Activity Zones | Yes |
| Output Notification | System notification; system notification with snapshot (Tapo Care services) |
Storage & Network
| Local Storage | MicroSD card slot on camera (up to 512 GB), card purchased separately |
| Cloud Storage | Tapo Care cloud storage services (subscription required) |
| Network Connectivity | Connect via Wi-Fi or Ethernet |
| Ethernet Port | 1× 10/100 Mbps RJ45 port on camera |
| Wireless Connectivity | IEEE 802.11b/g/n, 2.4 GHz Wi-Fi |
| Protocol | TCP/IP, ICMP, DNS, HTTPS, TCP, UDP |
| RTSP / ONVIF | Yes / Yes |
| Security | On-device machine learning; 128-bit AES encryption with SSL/TLS; WPA/WPA2-PSK |
Power, Hardware & Environment
| Power Source | 9 V DC power adapter |
| Adapter Input | 100–240 V, 50/60 Hz |
| Adapter Output | 9 V / 0.85 A (DC power) |
| Button | RESET button |
| Indicator LED | System LED |
| Dimensions (W × D × H) | 4.9 × 4.8 × 3.5 in (123.8 × 123 × 90 mm) |

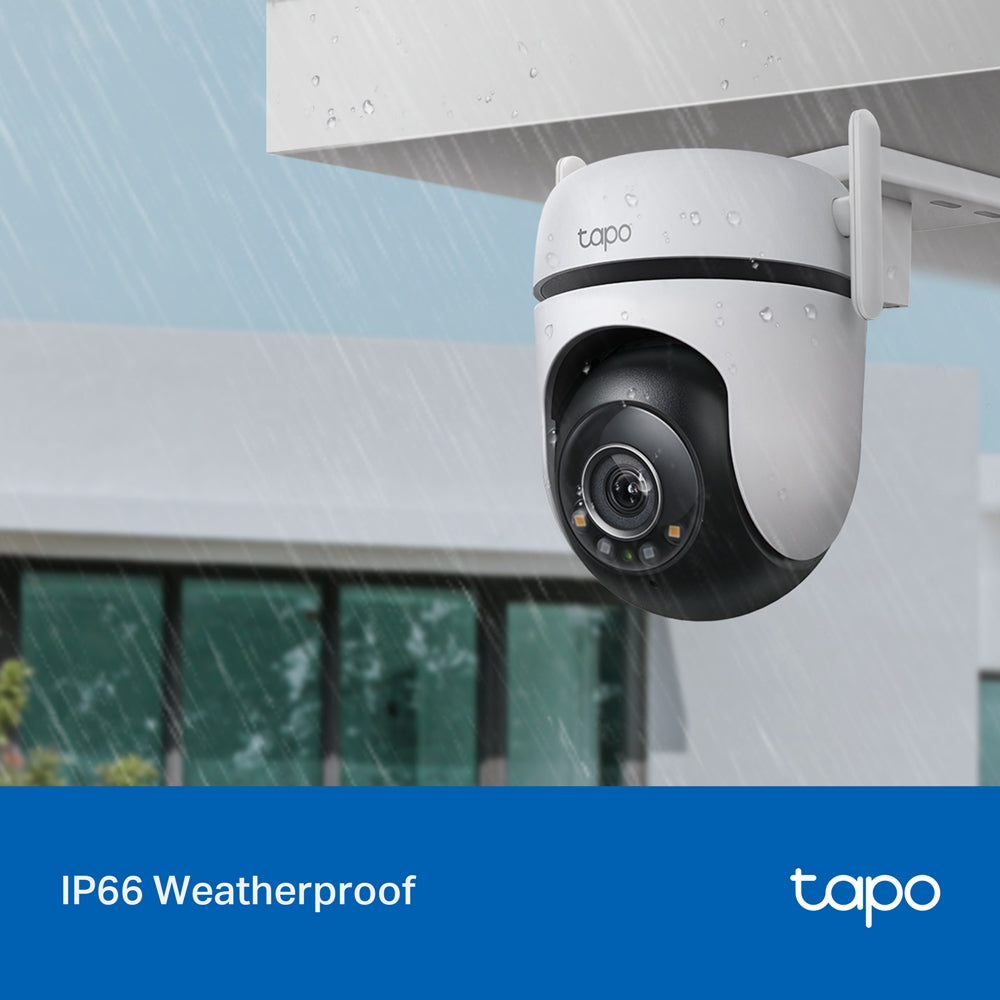

| Weather Resistance | IP66 |
| Mounting Options | Ceiling-mounted, wall-mounted, pole-mounted (pole-mounting loops required but not included) |
| Operating Temperature | -30 °C to 60 °C (-22 °F to 140 °F) |
| Storage Temperature | -40 °C to 60 °C (-40 °F to 140 °F) |
| Operating Humidity | 10%–90% RH, non-condensing |
| Storage Humidity | 0%–90% RH, non-condensing |
| Certifications | CE, FCC, RoHS, RCM |
Reproduced as TP-Link publishes it: the tilt row gives 145.2 degrees of tilt coverage while the view-range row gives 130 degrees vertical. No net weight is published for this model, so none is claimed here.
Compatibility & Software Support

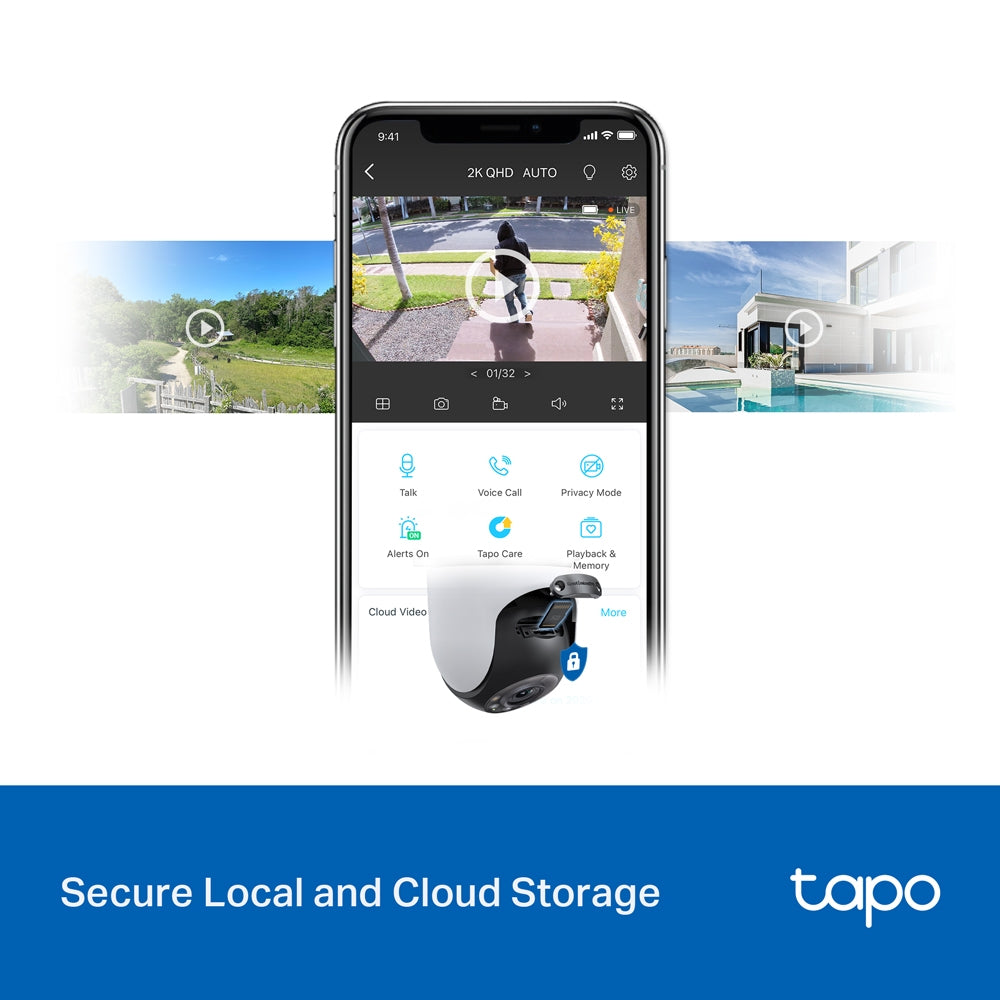

The Tapo C520WS is set up and operated through the Tapo app, which manages every Tapo camera, plug, bulb and sensor in one place. It is a consumer Wi-Fi camera and is not part of the Omada or VIGI business ranges: it cannot be adopted into an Omada Controller and it is not managed by VIGI NVR software.
| Tapo App | Supported — setup and remote viewing from iOS and Android |
| System Requirements | iOS 9.0 or higher, Android 4.4 or higher |
| Smart Integration | Google Assistant, Amazon Alexa |
| Network Options | 2.4 GHz Wi-Fi or wired Ethernet; the camera does not join 5 GHz networks |
| Third-Party Recording | RTSP and ONVIF supported |
| Tapo Care | Optional paid cloud storage; the camera records locally to microSD without it |
| Omada / VIGI Management | Not supported — the Tapo range is separate from TP-Link's Omada and VIGI business lines |
Where you need cameras that integrate with a business NVR or with central network management, ask SourceIT about the VIGI range instead.
Package Contents & Ordering Information
Package Contents
| In the Box | Tapo C520WS Camera, Power Adapter, Mounting Anchors, Mounting Screws, Bracket Screws, Mounting Template, Mounting Bracket, Waterproof Seal, Waterproof Cable Attachments, Quick Start Guide |
| Not Included | MicroSD card; pole-mounting loops |
Ordering Information
| Model | Tapo C520WS |
| Warranty | 2 Years Local Warranty (Singapore) |
Datasheet & Downloads
Frequently Asked Questions — Tapo C520WS
Can I run it on a network cable instead of Wi-Fi?
Yes. The C520WS has a 10/100 Mbps RJ45 port on the camera body, so it can be run wired where a 2.4 GHz signal is weak or congested. It still needs its own power adapter; this is not a PoE camera.
How is it different from the Tapo C510W?
The C520WS steps up to 2K QHD 4MP (2560 × 1440) from the C510W's 2K 3MP, is rated IP66 rather than IP65, adds an Ethernet port, 12x digital zoom, line-crossing, pet and vehicle detection, and a 93 dB siren against 90 dB.
Will the siren and spotlights trigger automatically?
Yes. Detection events can trigger the 93 dB siren and the two spotlights, and activity zones let you limit which parts of the frame count as an event.
What warranty does SourceIT provide?
Two years local Singapore warranty. TP-Link Singapore's replacement warranty policy places the outdoor camera series on a two-year term rather than the three-year default. Every Tapo C520WS sold by SourceIT comes with a GST invoice.
Can SourceIT quote this in quantity?
Yes. Send the quantity and site details and we will quote, including microSD cards, mounting and any Tapo accessories you want supplied with them.
