TP-Link Tapo D235 2K 5MP Video Doorbell Camera with Chime
PRODUCT DESCRIPTION
TP-Link Tapo Video Doorbell Camera (Tapo D235) - 1 Year Local Warranty

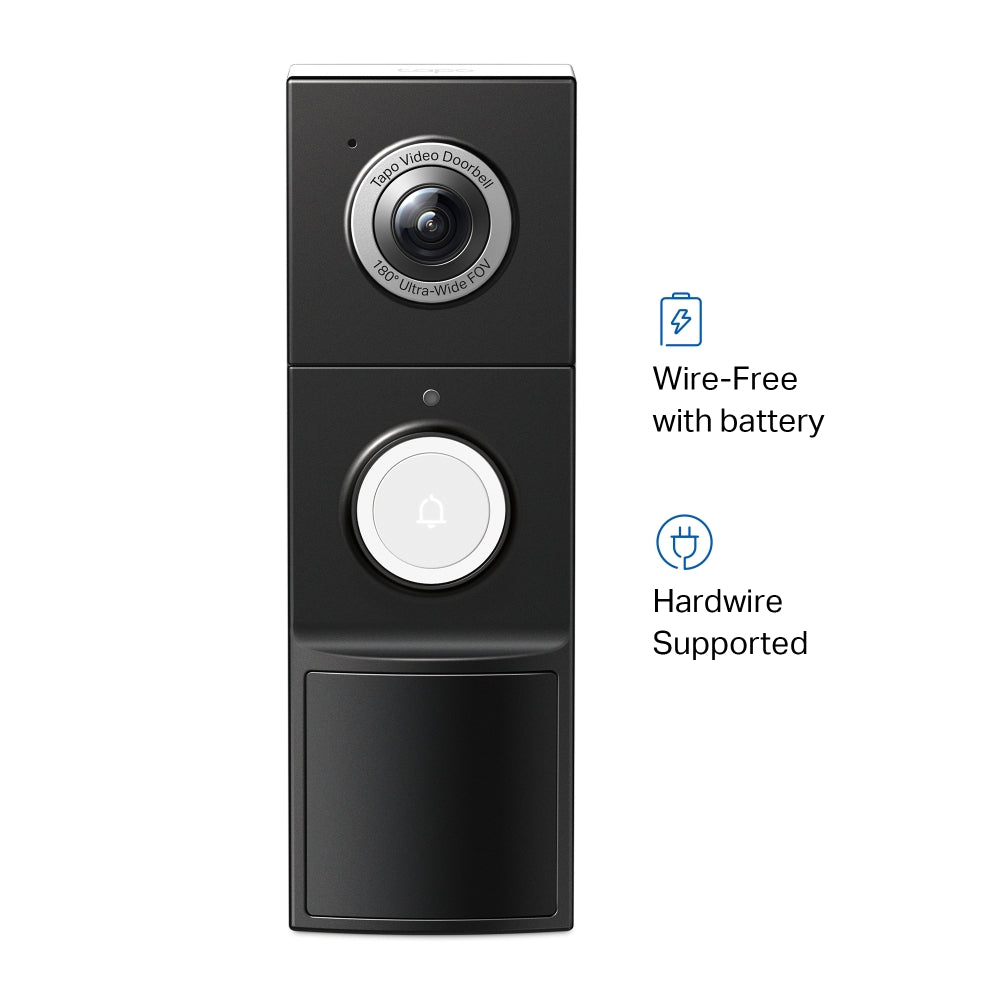

The Tapo D235 is a 2K 5MP (2560 x 1920) video doorbell with a tall 4:3 head-to-toe view, a built-in rechargeable battery rated by TP-Link for up to 210 days, and the option to hardwire it for continuous power. It ships with a plug-in Tapo Chime, detects people, pets, vehicles and packages, and records to a microSD card of up to 512 GB without a subscription.
2K 5MP, Head-to-Toe View
The 1/2.7-inch sensor records at 2560 x 1920 through a 1.18mm F1.8 lens with a 170.6° horizontal and 140.1° vertical field of view — TP-Link markets it as a 180° ultra-wide, head-to-toe view. The taller 4:3 frame shows a visitor's face and a parcel left on the mat in the same shot, with 3DNR and WDR image enhancement.
Battery or Hardwire

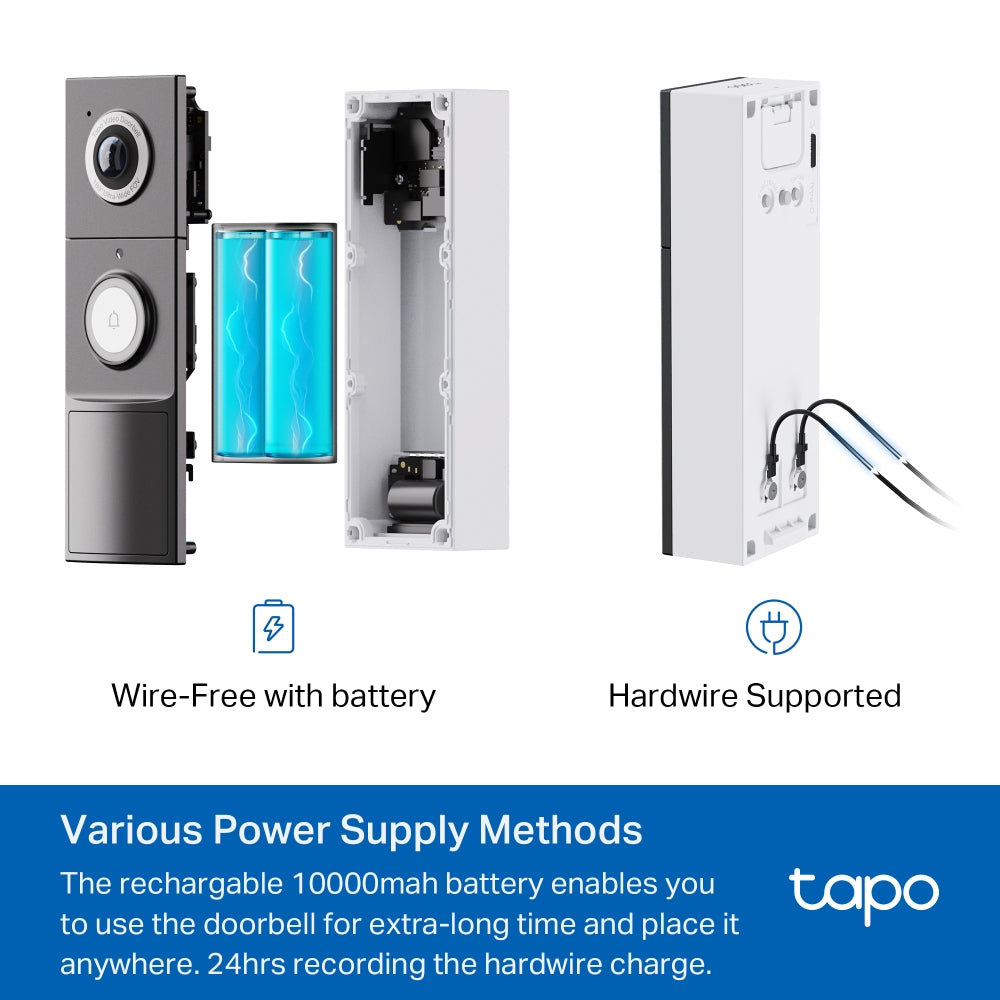

The built-in lithium-ion battery is rated for up to 210 days; TP-Link notes the figure includes recording and live viewing and varies with settings, usage, router and environment. Hardwired, the D235 supports 24/7 continuous recording. Different mounting wedges are supplied to angle the view for awkward door positions.
Chime Included, AI Alerts Without a Subscription
A Tapo Chime is in the box with a choice of ringtones. On-device detection identifies motion, people, pets, vehicles and packages, and Activity Zones (motion detection only) limit alerts to the part of the frame that matters. Footage goes to a microSD card up to 512 GB (not included) or to Tapo Care cloud storage by subscription.
Night Vision, Two-Way Audio and Anti-Theft

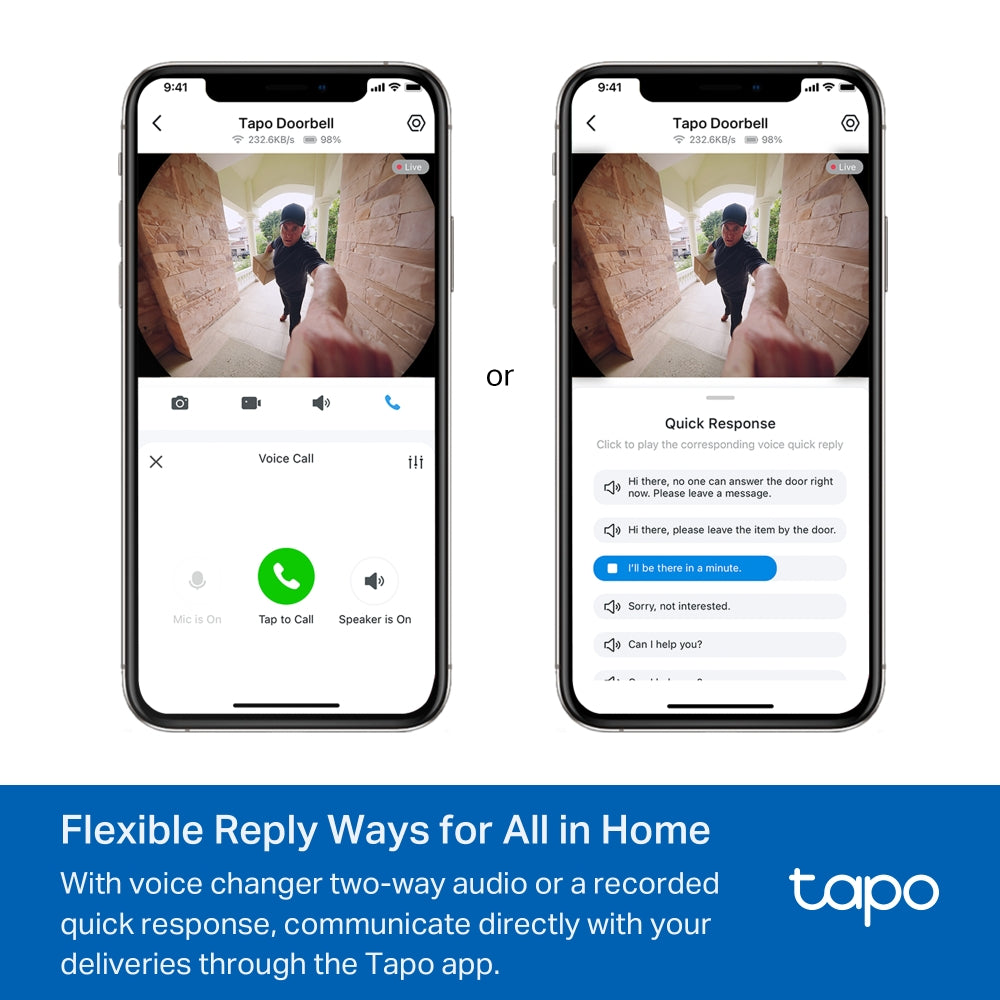

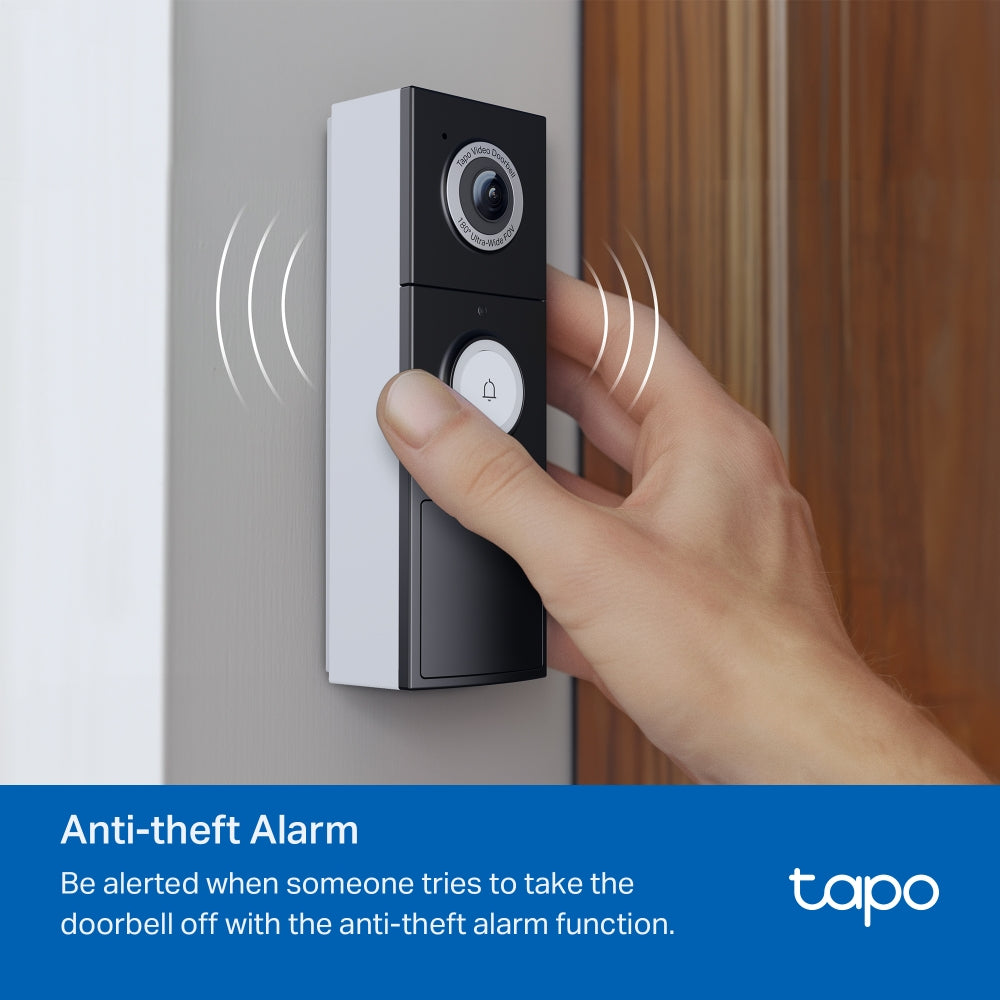

Night vision reaches 10 m with 850 nm IR, and built-in spotlights provide full-colour night vision. Two-way audio has noise cancellation and a voice changer, or you can send a pre-recorded quick response. An anti-theft alarm alerts you if someone tries to remove the doorbell, and a 98dB siren is built in. The housing is IP66 rated.
Ideal For
Singapore homes, condominium units and landed properties wanting a clear view of visitors and deliveries, with the flexibility of battery or wired power and local recording. Supplied by SourceIT with local Singapore warranty and GST invoice.
Tapo D235 Datasheet — Technical Specifications
General
| Model | Tapo D235 |
| Official Product Name | Tapo Video Doorbell Camera |
| Brand | TP-Link |
| Warranty | 1 Year Local Warranty (Singapore) |
Camera
| Image Sensor | 1/2.7" Progressive Scan CMOS Sensor |
| Lens | Focal Length: 1.18mm; Aperture: F1.8; Field of View: 170.6° (Horizontal), 140.1° (Vertical) |
| Night Vision | 850 nm IR LED (33 ft / 10 m); Full-Color Night Vision |
| Lighting | Built-in Spotlights |
| Interface & Button | 1x RESET/SYNC Button, 1x Doorbell Button, 1x Anti-Theft Button, 1x Power ON/OFF Button |
Video & Audio
| Maximum Resolution | 2K 5MP (2560 x 1920px) |
| Frame Rate | 15/20 fps |
| Digital Zoom | 16x |
| Video Compression | H.264 |
| Live View | Yes |
| Image Enhancement | 3DNR, WDR |
| Audio Input & Output | Built-in Microphone and Speaker |
| Audio Communication | Two-Way Audio with Noise Cancellation |
| Siren Volume | 98dB (level measured at 4-inch/10-cm distance) |
Storage
| Local Storage | MicroSD Card Slot (up to 512 GB) |
| Cloud Storage | Tapo Care Cloud Storage Services (subscription required) |
Detection and Notifications
| Sensor | Single PIR Motion Sensor (FOV: 130° horizontal); One Ambient Light Sensor |
| AI Detection | Motion Detection, Person Detection, Pet Detection, Vehicle Detection, Package Detection |
| Activity Zones | Yes (only works with Motion Detection) |
| Output Notification | System Notification; System Notification with Snapshot (Tapo Care Services) |
Network and Security
| Network Connectivity | IEEE 802.11b/g/n, 2.4 GHz Wi-Fi |
| Security | On-Device Machine Learning; 128-bit AES Encryption with SSL/TLS; WPA/WPA2-PSK |
Power
| Power Source | Built-in Rechargeable Lithium-ion Battery with up to 210 days battery life; Hardwire charge; Hardwire supply |
| Input Voltage | Doorbell Battery Pack Adapter Input: 100-240 V, 50/60 Hz |
| Output Voltage | Doorbell Battery Pack Adapter Output: 5.0 V, 2.0 A |
General
| Smart Integration | Google Assistant, Amazon Alexa |
| Weather Resistance | IP66 |
| System Requirements | Tapo App: iOS 9.0 or higher, Android 4.4 or higher |
| Mounting Options | Stick to a Wall; Mount to a Wall |
| Operating Temperature | -20°C to 45°C |
| Storage Temperature | -20°C to 45°C |
| Operating Humidity | 10% to 90% RH, non-condensing |
| Storage Humidity | 0 to 90% RH, non-condensing |
| Charging Temperature | 0°C to 45°C |
| Doorbell Dimensions (W x D x H) | 150 x 50 x 38.4 mm (5.91 x 1.97 x 1.52 in) |
| Chime Dimensions (UK version) | 73 x 62.3 x 43.5 mm (2.87 x 2.45 x 1.71 in) |
| Certifications | CE, RoHS, RCM, R-NZ, FCC, EAC, Triman, UKCA |
TP-Link's Singapore page for the Tapo D235 does not state the battery capacity in mAh, the doorbell weight or the chime's model number, and lists chime dimensions by region without naming a Singapore version (the UK version is shown above). Nothing has been filled in from another model.
Compatibility & Software Support
| Management App | Tapo app — iOS 9.0 or higher, Android 4.4 or higher |
| Voice Assistants | Google Assistant, Amazon Alexa |
| Local Storage | microSD card up to 512 GB (not included) |
| Cloud Storage | Tapo Care (subscription) |
| Wi-Fi | 2.4 GHz only, IEEE 802.11b/g/n |
| Existing Chime | Jumper for existing chime supplied for hardwired installs |
TP-Link notes that the battery-life figure includes recording and live viewing, and that Activity Zones only work with motion detection. Check TP-Link's doorbell compatibility guidance before hardwiring to an existing doorbell circuit.
Package Contents & Ordering Information
Package Contents
| In the Box | Tapo Video Doorbell x1, Tapo Chime x1, Mounting Template x1, Mounting Bracket x1, Vertical Mounting Wedge x1, Horizontal Mounting Wedge x1, USB Adapter Cable x1, Jumper for Existing Chime x1, Extension Wires x2, Mounting Screws and Anchors x3, Hardwire Installation Screws x2, Doorbell Detaching Pin x1, Mounting Wedge Screws x5, 3M Adhesive x1, Foam Pad x1, Wire Nuts x2, Quick Start Guide |
Ordering Information
| Model | Tapo D235 |
| SKU | Tapo D235 |
| Warranty | 1 Year Local Warranty (Singapore) |
Datasheet & Downloads
Frequently Asked Questions — Tapo D235
Does it need to be wired?
No. It runs on its built-in rechargeable battery, rated by TP-Link for up to 210 days, or it can be hardwired for charging or continuous supply, which enables 24/7 recording.
Is a chime included?
Yes, a Tapo Chime is in the box, along with a jumper for use with an existing chime.
Do I need a subscription?
No. People, pet, vehicle and package detection work without one, and video can be saved to a microSD card of up to 512 GB. Tapo Care cloud storage is optional.
What warranty does SourceIT provide?
One year local Singapore warranty, under TP-Link's published replacement warranty terms, with a GST invoice.
Can SourceIT quote this for an office or a project?
Yes. Send us the quantity and delivery address and we will quote with local warranty, delivery and support.
