TP-Link Tapo D205 Smart Video Doorbell Mini 2K 3MP Battery 160° IP54
PRODUCT DESCRIPTION
TP-Link Tapo Smart Video Doorbell Mini (Tapo D205) - 1 Year Local Warranty
The Tapo D205 is a slim, battery-powered video doorbell that needs no doorbell wiring. It records 2K 3MP video through an ultra-wide 160 degree lens, rings your phone like a call when a visitor presses the button, and runs for up to 180 days on its built-in rechargeable battery, or indefinitely with an optional Tapo solar panel.
Sharp 2K With an Ultra-Wide 160 Degree View
Video is captured at 2304 x 1296 on a 1/2.8 inch CMOS sensor, and the 160 degree diagonal field of view (145 degrees horizontal) shows visitors from head to toe in a single frame. 3DNR and WDR keep faces readable against a bright corridor or doorway, and two 850 nm IR LEDs give black-and-white night vision up to 25 ft (7.6 m).
Answer the Door Like a Phone Call
When a visitor presses the doorbell you get a phone-style call and can talk to them instantly through two-way audio with noise cancellation. When you are busy, send a prerecorded Quick Response instead, and pair the doorbell with a Tapo hub or a smart speaker such as Echo Dot for an indoor chime.
Accurate Alerts With No Fees
A PIR motion sensor with a 25 ft detection range works with on-device person detection, so you are notified when someone is actually at your door, with no subscription required. Custom activity zones keep alerts to the area you care about.
Wire-Free Battery Power, IP54 Weatherproof

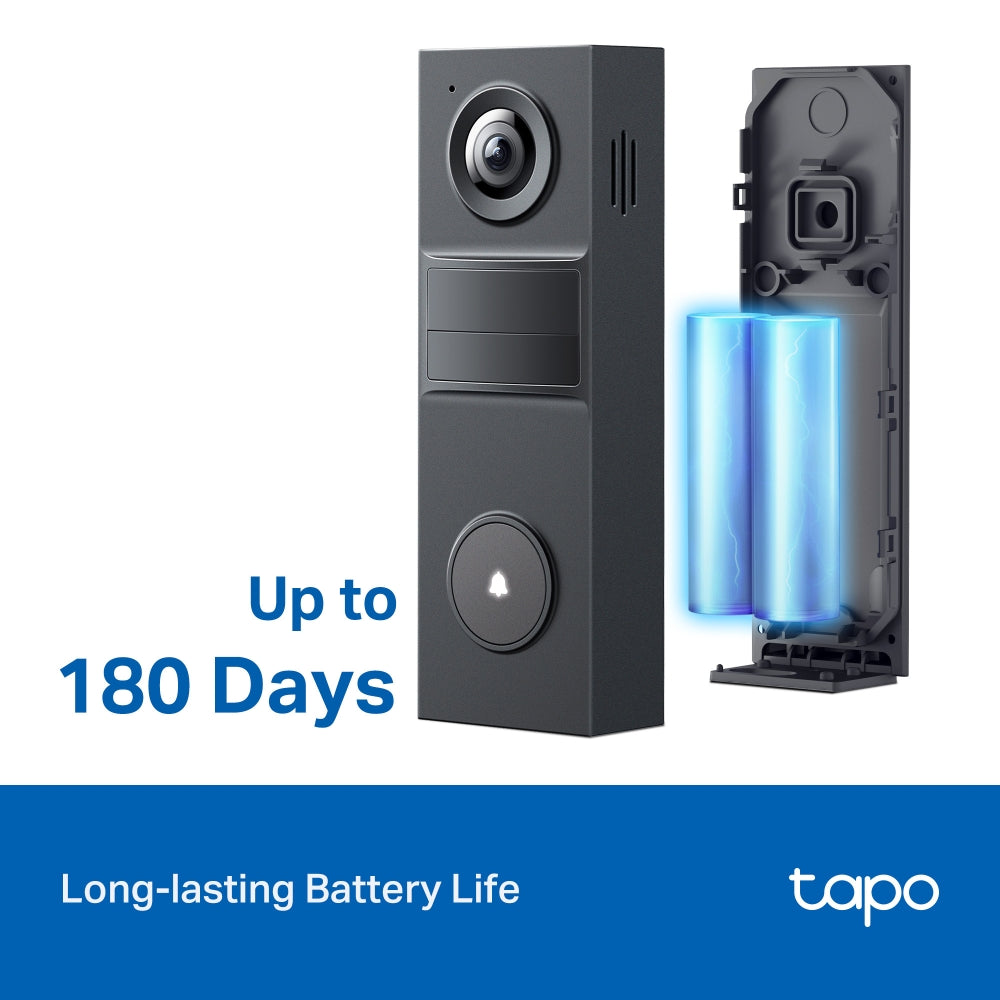

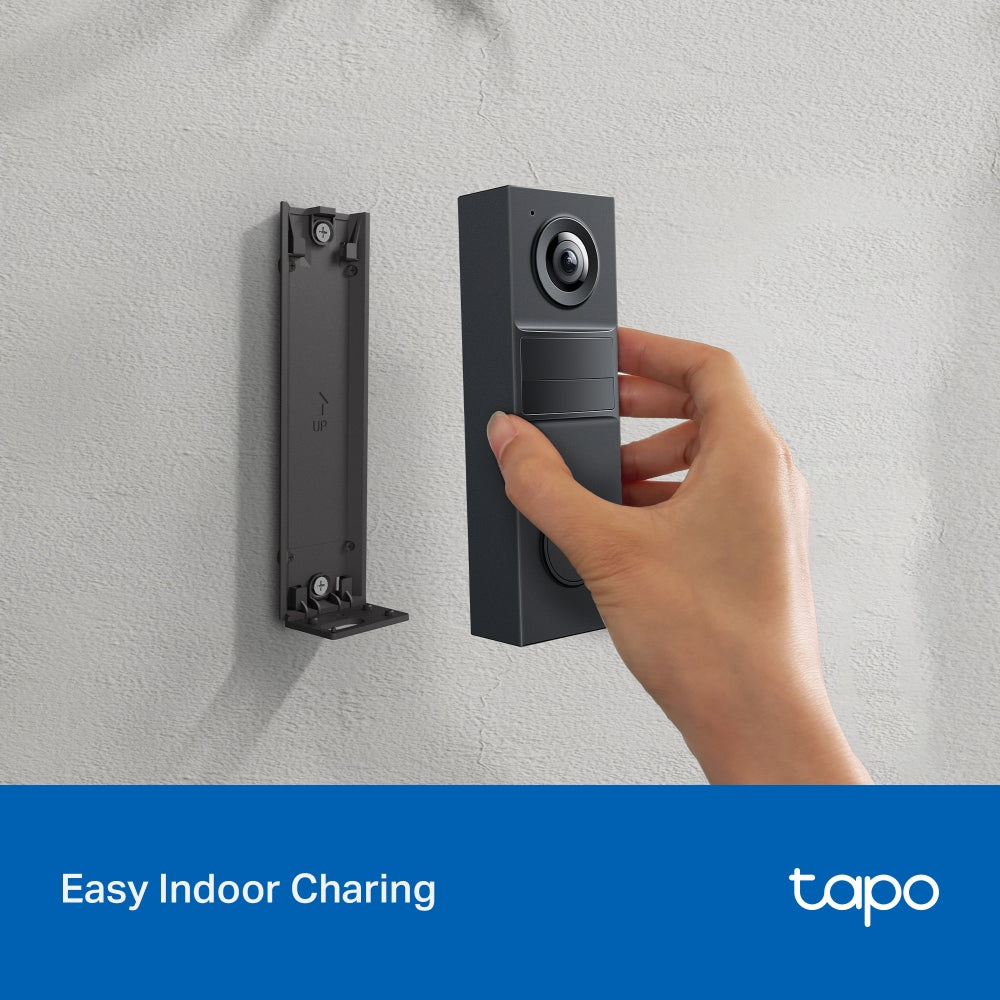

A built-in rechargeable lithium-ion battery lasts up to 180 days, and Tapo A200, A201 and A202 solar panels (sold separately) keep it topped up. It sticks to the wall with the supplied 3M adhesive or screws in place, and the IP54 housing handles rain and dust. Footage records to a microSD card of up to 512 GB or to optional Tapo Care cloud storage.
Ideal For
Singapore HDB flats, condominium units, landed homes and small offices that want a doorbell camera without running wires, and renters who need a stick-on install that leaves the door frame untouched. Supplied by SourceIT with local Singapore warranty, GST invoice and volume pricing on request.
Tapo D205 Datasheet — Technical Specifications
General
| Model | Tapo D205 |
| Official Product Name | Smart Video Doorbell Mini |
| Brand | TP-Link Tapo |
| Warranty | 1 Year Local Warranty (Singapore) |
Camera
| Image Sensor | 1/2.8" Progressive Scan CMOS Sensor |
| Lens | Focal Length 2.4 mm; Aperture F2.2 |
| Field of View | 160 (Diagonal), 145° (Horizontal), 83° (Vertical) |
| Night Vision | 2x 850 nm IR LEDs (25 ft / 7.6 m), black-and-white image |
| Interface & Button | 1x RESET button, 1x doorbell button, 1x microSD card slot, 1x USB Type-C port |
Video & Audio
| Maximum Resolution | 2K 3MP (2304 x 1296 px) |
| Frame Rate | 15 fps |
| Digital Zoom | 10x |
| Video Compression | H.264 |
| Live View | Yes |
| Image Enhancement | 3DNR, WDR |
| Audio Input & Output | Built-in microphone and speaker |
| Audio Communication | Two-way audio with noise cancellation |
Detection & Notifications
| Sensor | Single PIR motion sensor; motion detection range 25 ft |
| AI Detection | Person and Motion Detection |
| Activity Zones | Yes |
| Output Notification | System notification; system notification with snapshot (Tapo Care services) |
Storage & Network
| Local Storage | microSD card slot (up to 512 GB), card purchased separately |
| Cloud Storage | Tapo Care cloud storage services (subscription required) |
| Network Connectivity | Wi-Fi |
| Wireless Connectivity | IEEE 802.11b/g/n, 2.4 GHz |
| Security | On-device machine learning; 128-bit AES encryption with SSL/TLS; WPA/WPA2-PSK |
Power, Hardware & Environment
| Power Source | Built-in rechargeable lithium-ion battery, up to 180 days battery life* |
| Optional Solar Panel | Tapo A200, A201, A202 (sold separately) |
| Battery Pack Adapter Input | 100–240 V, 50/60 Hz |
| Battery Pack Adapter Output | 5.0 V / 1.0 A |
| Dimensions (W x D x H) | 5.51 x 1.81 x 1.19 in (140 x 46 x 30.2 mm) |
| Weather Resistance | IP54 |
| Mounting Options | Stick to a wall; mount to a wall |
| Operating Temperature | -20 °C to 45 °C |
| Storage Temperature | -40 °C to 60 °C |
| Operating Humidity | 10%–90% RH, non-condensing |
| Storage Humidity | 0%–90% RH, non-condensing |
| Certifications | CE, RCM, R-NZ, FCC, EAC, Triman, UKCA |
*TP-Link bases the 180-day battery life on laboratory testing with 300 seconds of use per day, including recording and live viewing; actual battery life varies with settings, usage, router and environment. The diagonal field of view is printed as "160" without a degree sign and is reproduced as published. No battery capacity, net weight, RTSP/ONVIF support or chime model list is published for this model, so none is claimed here.
Compatibility & Software Support
The Tapo D205 is set up and operated through the Tapo app, which manages every Tapo camera, doorbell, plug, bulb and sensor in one place. It is a consumer Wi-Fi device and is not part of the Omada or VIGI business ranges: it cannot be adopted into an Omada Controller and it is not managed by VIGI NVR software.
| Tapo App | Supported — setup and remote viewing from iOS and Android |
| System Requirements | Tapo app: iOS 9.0 or higher, Android 4.4 or higher |
| Smart Integration | Google Assistant, Amazon Alexa |
| Chime | Instant chime alerts through an existing Tapo hub or a smart assistant such as Echo Dot |
| Solar Power | Tapo A200, A201, A202 solar panels (sold separately) |
| Wi-Fi Requirement | 2.4 GHz network required |
| Tapo Care | Optional paid cloud storage; the doorbell records locally to microSD without it |
| Omada / VIGI Management | Not supported — the Tapo range is separate from TP-Link's Omada and VIGI business lines |
No separate chime is included in the box; indoor chime alerts come through a Tapo hub or a compatible smart speaker.
Package Contents & Ordering Information
Package Contents
| In the Box | Tapo Video Doorbell x 1, Mounting Bracket x 1, Horizontal Mounting Wedge x 1, 3M Adhesive x 1, Foam Pad x 1, Screws and Anchors, USB Cable x 1, Mounting Template Sticker x 1, Quick Start Guide |
| Not Included | MicroSD card; chime; solar panel |
Ordering Information
| Model | Tapo D205 |
| Warranty | 1 Year Local Warranty (Singapore) |
Datasheet & Downloads
Frequently Asked Questions — Tapo D205
Does the D205 need doorbell wiring?
No. It runs on a built-in rechargeable battery rated for up to 180 days and recharges over USB Type-C. It can be stuck to the wall with the supplied 3M adhesive or screwed in place, which suits HDB and rented homes.
How will I hear it ring inside?
A visitor's press comes through to your phone as a call. For an indoor chime, pair it with a Tapo hub or a smart speaker such as Echo Dot; no chime is included in the box.
Does it need a subscription for alerts?
No. Person detection and notifications work without a fee. Tapo Care is optional and adds cloud storage and snapshot notifications; local recording uses a microSD card of up to 512 GB.
What warranty does SourceIT provide?
One year local Singapore warranty, serviced under TP-Link Singapore's replacement warranty policy. Every Tapo D205 sold by SourceIT comes with a GST invoice.
Can SourceIT quote this in quantity?
Yes. Send the quantity and site details and we will quote, including microSD cards, Tapo solar panels and Tapo hubs.
