TP-Link Tapo C660 Kit 4K Solar-Powered Pan/Tilt Security Camera Kit
PRODUCT DESCRIPTION
TP-Link Solar-Powered Pan/Tilt Security Camera Kit (Tapo C660 KIT) - 2 Years Local Warranty
The Tapo C660 KIT combines the Tapo C660 4K 8MP pan/tilt Wi-Fi camera with a Tapo A201 solar panel. A 10000 mAh built-in battery, a starlight sensor with spotlights for colour night vision, dual-band 2.4/5 GHz Wi-Fi and free person, pet and vehicle detection make it a cable-free 4K option for outdoor areas. Camera and panel are both rated IP65.
4K Resolution and 18x Digital Zoom
The camera records at 4K 8MP (3840 x 2160) through an F1.6, 4.0 mm lens on a 1/2.7" starlight CMOS sensor, with 3DNR and WDR. TP-Link lists 18x digital zoom, which helps when reading detail from a live view of a driveway or gate.
Starlight Colour Night Vision
Low-light performance comes from the F1.6 aperture, the starlight sensor and two built-in spotlights for full-colour night images, with an 850 nm IR LED rated to 12 m (40 ft) for infrared mode.
360° AI Tracking with Free Detection

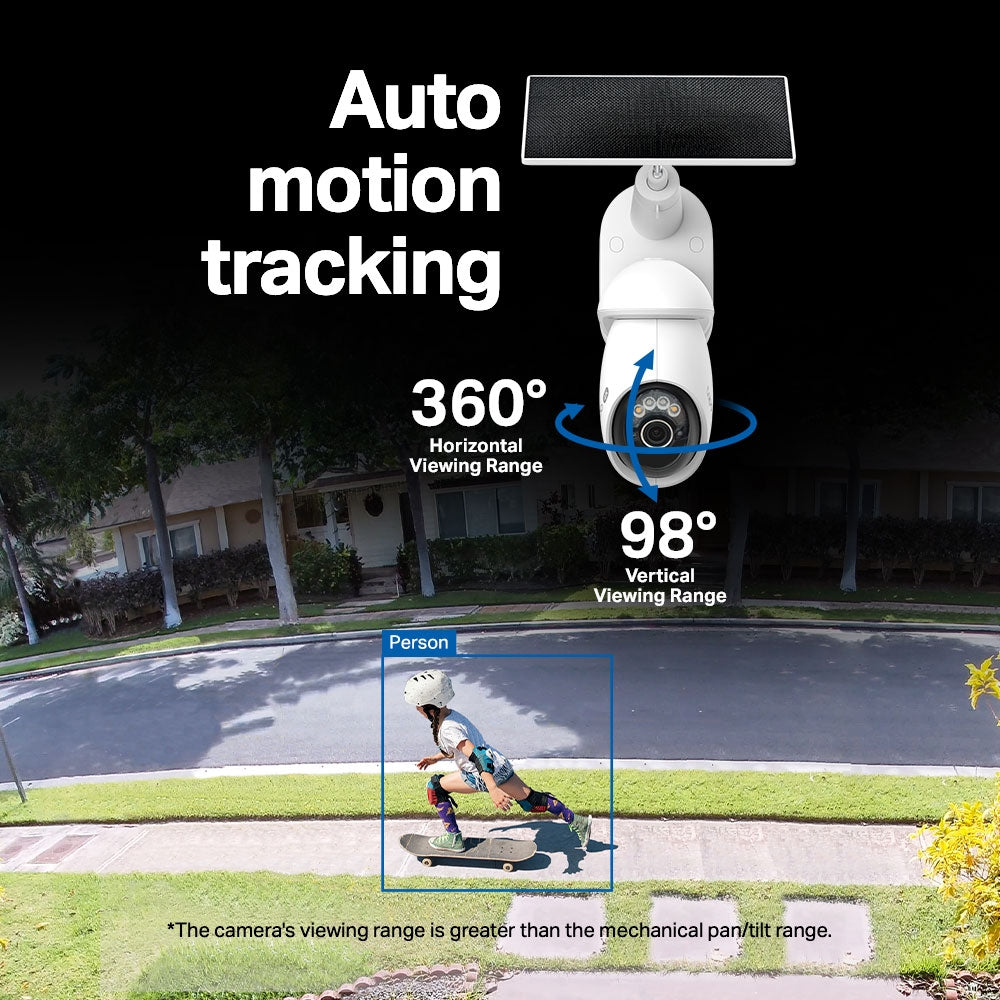

Person, pet and vehicle detection are included without a subscription, and the pan/tilt head (326° mechanical pan for 360° coverage, 45° mechanical tilt for 90° coverage) tracks detected subjects. TP-Link notes scanning and cruising times are limited each day.
Solar Powered, Dual-Band Wi-Fi

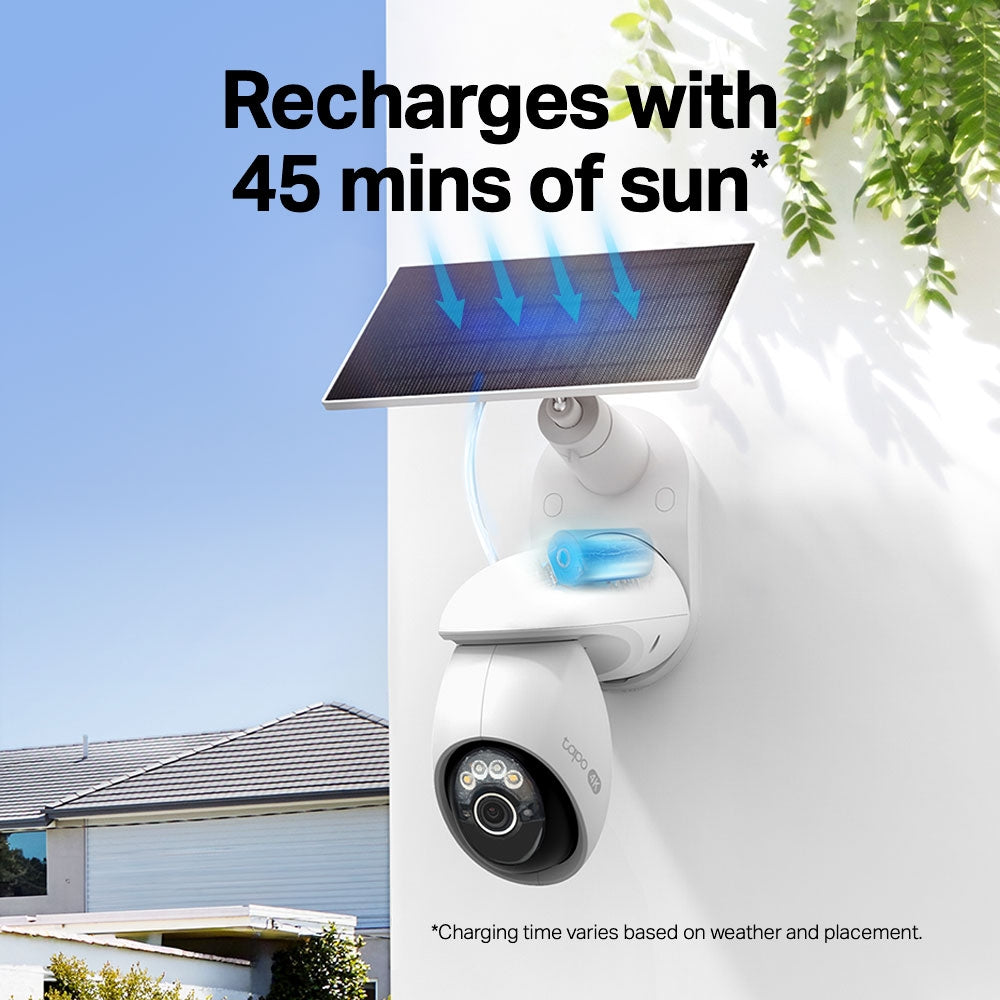

TP-Link states 45 minutes of direct sunlight powers the camera for a full day, measured under standard conditions (1000 W/m2, 25°C, AM1.5) with up to 100 events a day. The A201 panel charges at up to 5.2 V and 2.5 W. The camera can join 5 GHz for more bandwidth or 2.4 GHz for longer range; TP-Link notes 5 GHz has reduced range, so the router must be within reach. Recording goes to microSD up to 512 GB (not included), Tapo Care cloud, or, per TP-Link, a Tapo H500 hub (sold separately) with HDD/SSD storage up to 16 TB.
Ideal For
Homes and small premises that want 4K outdoor coverage of a driveway, gate, garden or car porch without running power or network cables. Supplied by SourceIT with local Singapore warranty and GST invoice.
Tapo C660 KIT Datasheet — Technical Specifications
General
| Model | Tapo C660 KIT |
| Official Product Name | Solar-Powered Pan/Tilt Security Camera Kit |
| Brand | TP-Link |
| Warranty | 2 Years Local Warranty (Singapore) |
Camera
| Image Sensor | 1/2.7" Progressive Scan CMOS Starlight Sensor |
| Lens | Focal Length: 4.0 mm; Aperture: F1.6; Field of View: 105° (Diagonal), 88° (Horizontal), 45° (Vertical) |
| Night Vision | 850 nm IR LED (40 ft / 12 m), Full-Color Night Vision |
| Lighting | 2x Built-in Spotlights |
| Interface & Button | 1x power button, 1x reset button, 1x MicroSD Card Slot |
| Pan/Tilt Range | Pan Mechanical Range: 326° (360° Pan Coverage); Tilt Mechanical Range: 45° (90° Tilt Coverage) |
Solar Panel
| Model | Tapo A201 |
| Connection Capacity | A solar panel can only connect to one camera. |
| Output Port | Type-C |
| Max Charging Voltage / Power | 5.2 V / 2.5 W |
Video & Audio
| Maximum Resolution | 4K 8MP (3840 x 2160 px) |
| Frame Rate | 15/20 fps |
| Digital Zoom | 18 |
| Live View | Yes |
| Image Enhancement | 3DNR, WDR |
| Audio Input & Output | Built-in Microphone and Speaker |
| Audio Communication | Two-Way Audio with Noise Cancellation |
| Siren Volume | 93.3 dB (Level measured at 4 inch/10 cm distance) |
Storage
| Local Storage | MicroSD Card Slot on Camera (Up to 512 GB, microSD card not included) |
| Cloud Storage | Tapo Care Cloud Storage Services (Subscription required) |
Detection & Notifications
| Sensor | Single Motion Sensor, Single Ambient Light Sensor |
| AI Detection | Motion Detection, Person Detection, Pet Detection, Vehicle Detection |
| Activity Zones | Yes |
| Output Notification | System Notification, System Notification with Snapshot (Tapo Care Services) |
Network
| Network Connectivity | Connect via Wi-Fi |
| Wireless Connectivity | IEEE 802.11a/b/g/n, 2.4 GHz/5 GHz Wi-Fi |
Security
| Security | AES Encryption with SSL/TLS, WPA/WPA2-PSK |
Power
| Power Source | 10000 mAh Built-in Rechargeable Lithium-ion Battery; Solar Panel: Tapo A201 |
| Input Voltage | Adapter Input: 100-240 V, 50/60 Hz (Not included) |
| Output Voltage | Adapter Output: 5.0 V, 2.0 A (Not included); Solar Panel Max Charging Voltage: 5.2 V; Solar Panel Max Charging Power: 2.5 W |
Physical & Environment
| Weather Resistance | IP65 for both camera and solar panel |
| Mounting Options | Ceiling-Mounted, Wall-Mounted |
| Operating Temperature | -20°C to 45°C (-4°F to 113°F) |
| Storage Temperature | -20°C to 60°C (-4°F to 140°F) |
| Charging Temperature | 0°C to 45°C (32°F to 113°F) |
| Operating Humidity | 10%~90% RH, Non-condensing |
| Storage Humidity | 0%~90% RH, Non-condensing |
| Dimensions (W x D x H) | Camera: 185 x 147 x 75 mm (7.28 x 5.79 x 2.95 in); Solar Panel: 173.4 x 120.4 x 15.7 mm (6.83 x 4.74 x 0.618 in) |
| Certifications | CB, CE, FCC, DOE, CEC, RCM, KC, JFR, VCCI, NCC, BSMI, NTRA, IP65 |
TP-Link publishes no battery-life figure in days and no weight for the Tapo C660 KIT; those are omitted rather than filled from another model. The mains adapter listed under Power is not included.
Compatibility & Software Support
| App | Tapo app: iOS 12.0 or higher, Android 7.0 or higher |
| Smart Integration | Google Assistant, Amazon Alexa |
| Wi-Fi | 2.4 GHz and 5 GHz |
| Cloud | Tapo Care (subscription required) |
| Local Storage | microSD card up to 512 GB (not included) |
| Hub Storage | Tapo H500 (not included) with HDD/SSD up to 16 TB, drive purchased separately |
TP-Link publishes no RTSP or ONVIF support for this model.
Package Contents & Ordering Information
Package Contents
| In the Box | Tapo C660 Camera x 1 Mounting Bracket x 1 Camera Mount Adapter x 1 USB Adapter Cable x 1 Tapo A201 Solar Panel x 1 Tapo A201 Solar Panel Bracket x 1 Base Cover x 1 Extension Wire x 1 Cable Zip Tie x 1 Mounting Screws x 7 Mounting Anchors x 7 Mounting Template Stickers x 2 Quick Start Guide |
Ordering Information
| Model | Tapo C660 KIT |
| SKU | Tapo C660 Kit |
| Warranty | 2 Years Local Warranty (Singapore) |
Datasheet & Downloads
Frequently Asked Questions — Tapo C660 KIT
Does it need a power point?
No. It runs on a 10000 mAh built-in battery charged by the included Tapo A201 solar panel. A 5 V 2 A adapter can also be used but is not included.
Does it support 5 GHz Wi-Fi?
Yes, 2.4 GHz and 5 GHz. TP-Link notes 5 GHz has shorter range, so check signal at the mounting point.
Is there a subscription for person detection?
No. Person, pet and vehicle detection are free. Tapo Care is only needed for cloud storage and snapshot notifications.
What warranty does SourceIT provide?
Two years local Singapore warranty, under TP-Link's published replacement warranty terms, with a GST invoice.
Can SourceIT quote this for an office or a project?
Yes. Send us the quantity and we will quote with local warranty, delivery and support.
