TP-Link Tapo C645D Kit 2K Solar-Powered Dual-Lens Pan/Tilt Security Camera Kit
PRODUCT DESCRIPTION
TP-Link Solar-Powered Dual-Lens Pan/Tilt Security Camera Kit (Tapo C645D KIT) - 2 Years Local Warranty
The Tapo C645D KIT pairs the dual-lens Tapo C645D camera with a Tapo A201 solar panel. A fixed 2K ultra-wide lens (165.1° diagonal) keeps one area permanently in view while a 2K pan/tilt telephoto lens covers 360° horizontally and zooms in on detail. A 10000 mAh battery, dual-band Wi-Fi, six spotlights and free person, pet and vehicle detection complete the kit.

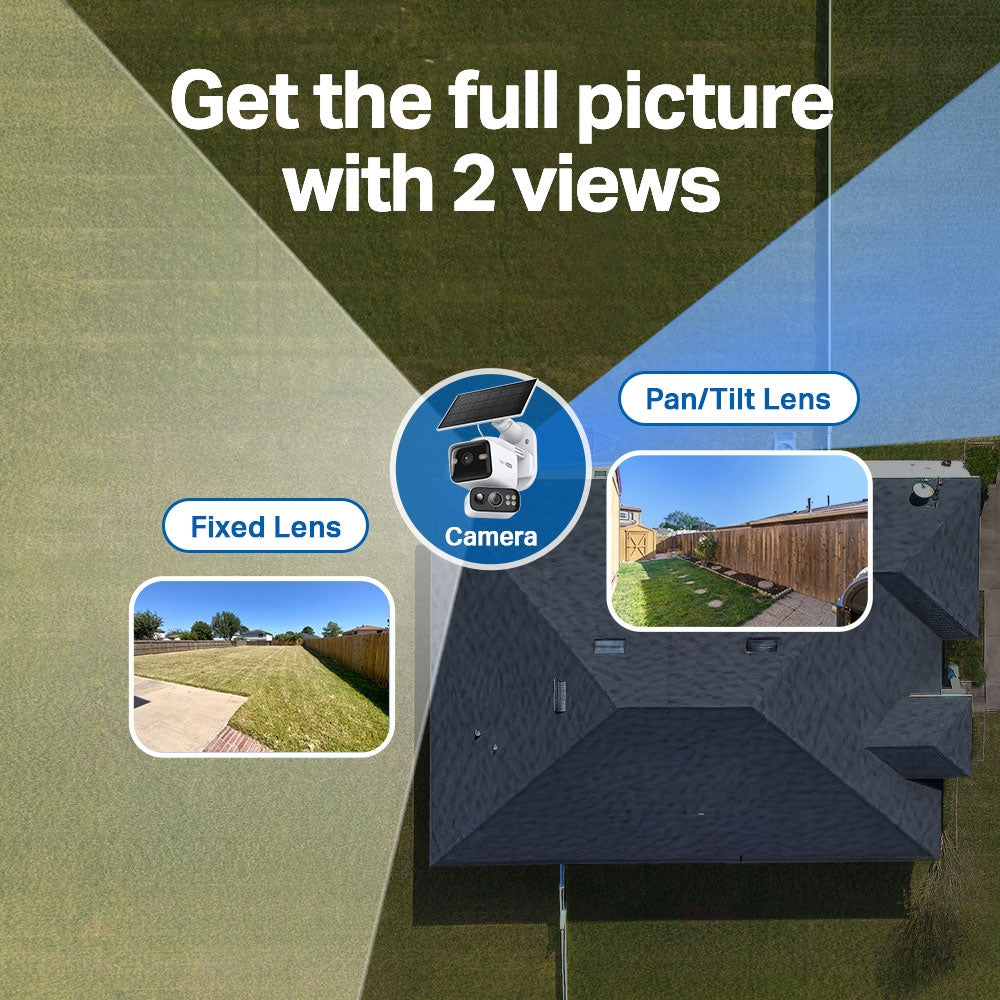

Two 2K Lenses, Two Areas at Once
The fixed wide-angle lens (2.53 mm, F1.6, 165.1° diagonal / 137.6° horizontal) watches one area continuously, while the pan/tilt telephoto lens (6 mm, F1.6, 65.5° diagonal) turns through 360° of pan coverage (334° mechanical) and 120° of tilt coverage (90° mechanical). Each lens records 2K 3MP (2304 x 1296) and the lenses are controlled independently. TP-Link quotes a 4.9x magnification for the telephoto lens relative to a crop of the wide image, based on internal lab testing.

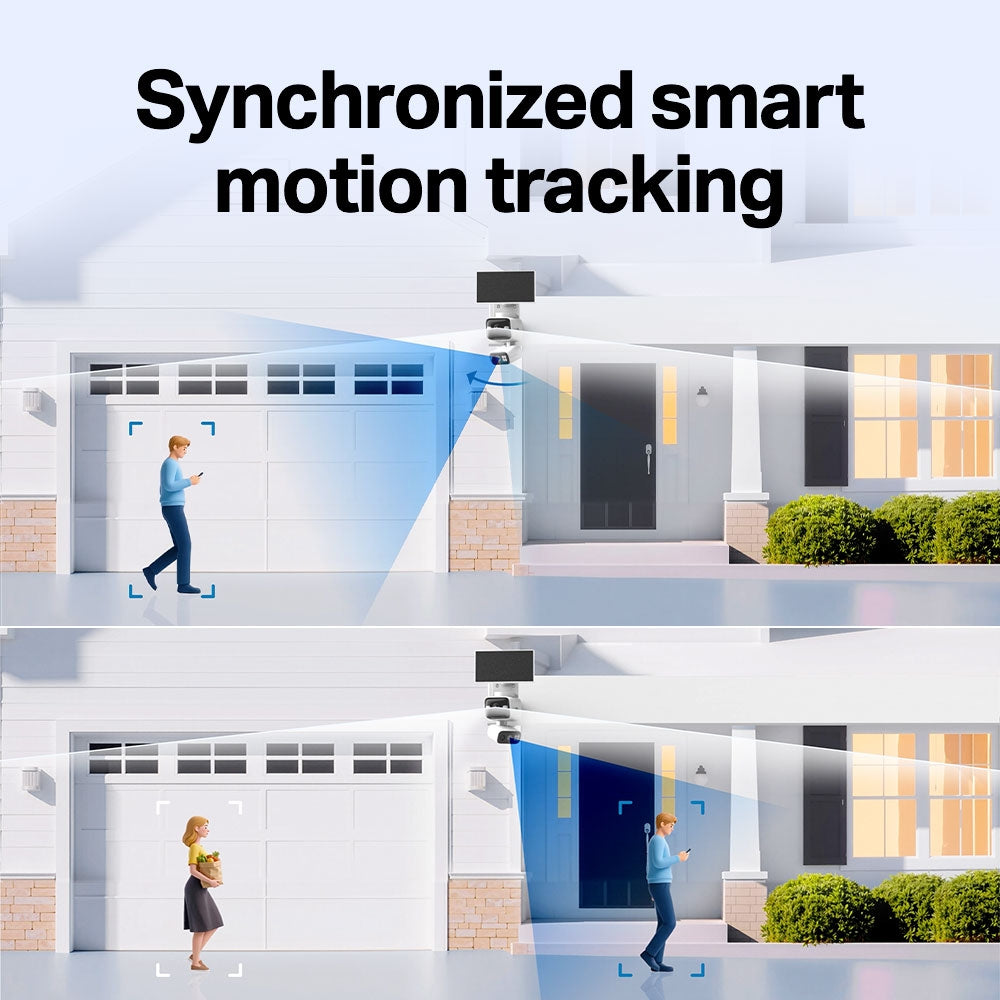

Synchronised Tracking and One-Tap Smart Focus

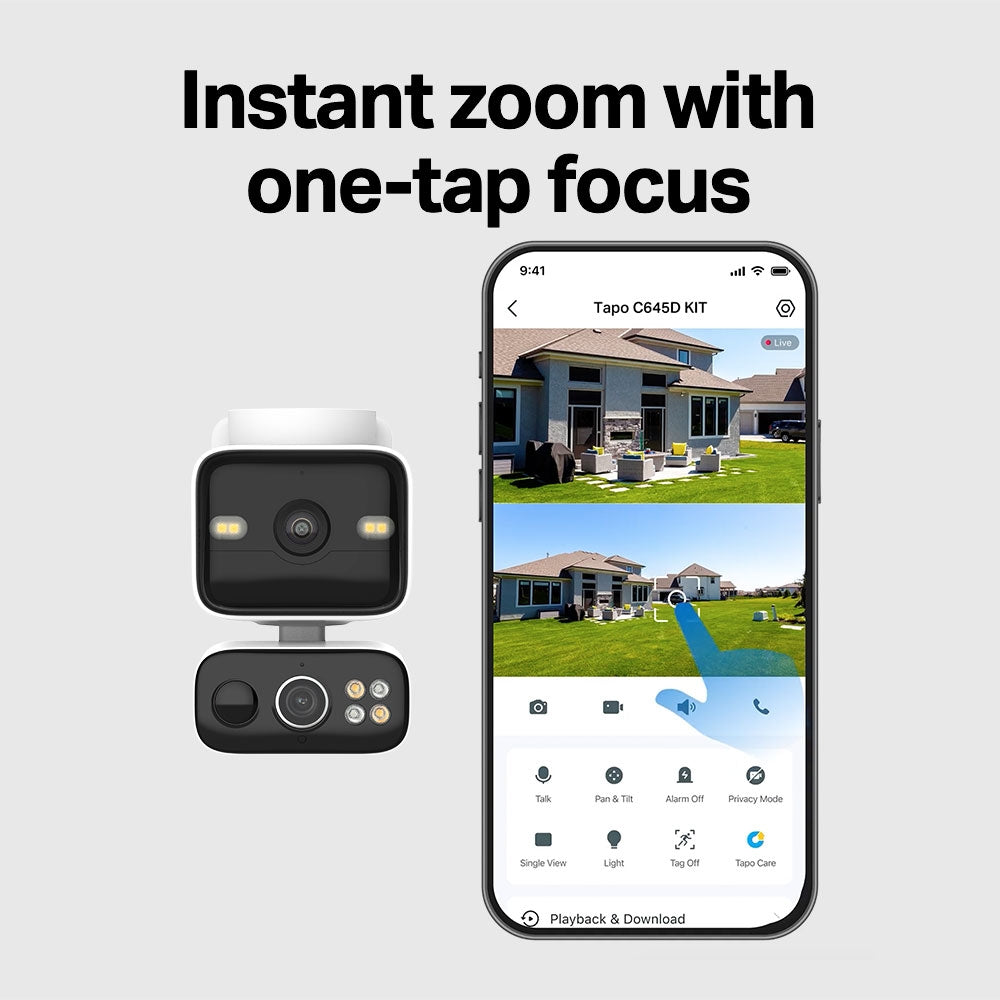

When the fixed lens detects motion, the pan/tilt lens automatically turns to track it. In the app, tapping anywhere on the wide-angle live view makes the pan/tilt camera zoom and centre on that spot.

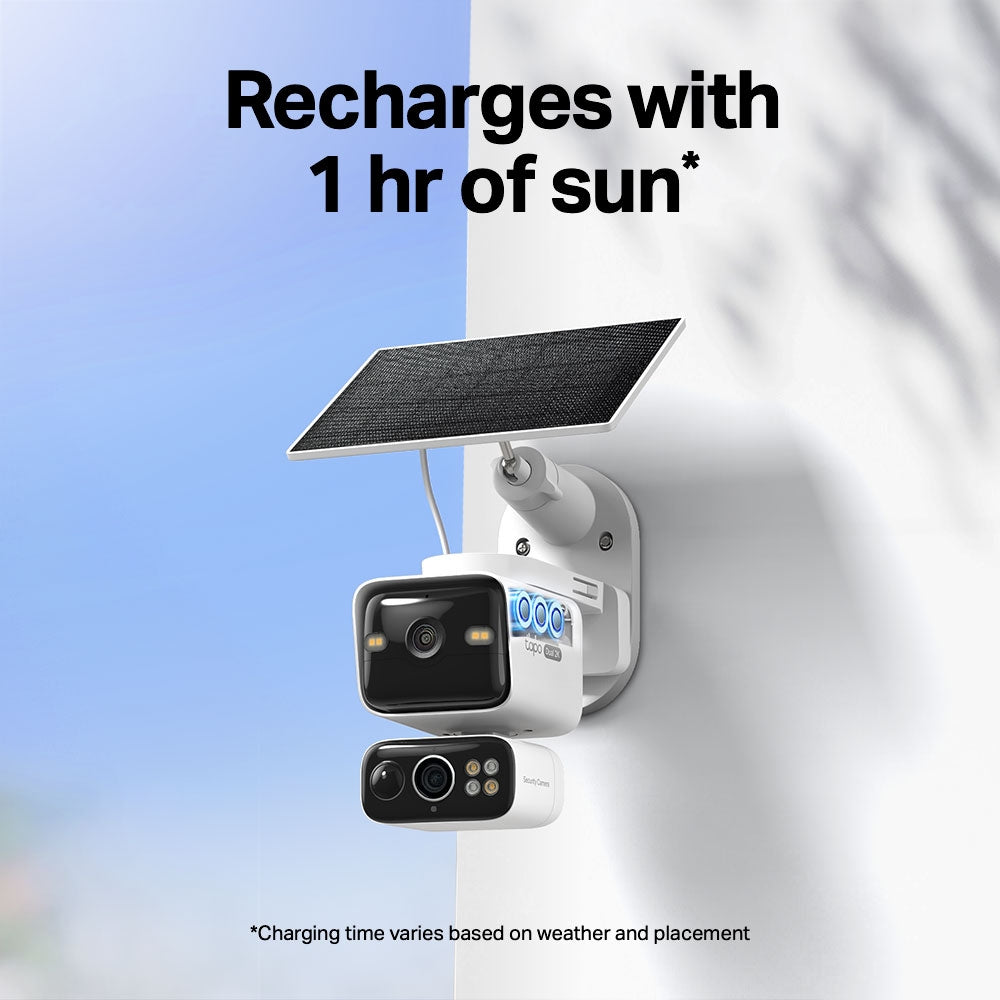

Solar Power with a 10000 mAh Battery
TP-Link states 1 hour of sunlight powers the camera for a full day under standard conditions (1000 W/m2, 25°C, AM1.5, up to 100 events a day). The 10000 mAh battery is rated at 120 days based on Tapo lab tests with 300 seconds of use per day, including recording and live view.
Night Vision, Detection and Dual-Band Wi-Fi
Six motion-activated, app-controlled spotlights give full-colour night images; an 850 nm IR LED covers infrared mode to 10 m (33 ft). Three motion sensors plus AI detection of people, pets and vehicles run without a subscription. The camera connects on 2.4 GHz or 5 GHz Wi-Fi, and stores to microSD up to 512 GB or Tapo Care cloud.
Ideal For
Homes and small premises that need two zones covered from one mounting point — for example a front gate on the wide lens and a driveway on the pan/tilt lens — without running power cables. Supplied by SourceIT with local Singapore warranty and GST invoice.
Tapo C645D KIT Datasheet — Technical Specifications
General
| Model | Tapo C645D KIT |
| Official Product Name | Solar-Powered Dual-Lens Pan/Tilt Security Camera Kit |
| Brand | TP-Link |
| Warranty | 2 Years Local Warranty (Singapore) |
Camera
| Image Sensor | 1/2.8" Progressive Scan CMOS Sensor |
| Wide-Angle Lens | Focal Length: 2.53 mm; Aperture: F1.6; Field of View: 165.1° (Diagonal), 137.6° (Horizontal), 73° (Vertical) |
| Telephoto Lens | Focal Length: 6 mm; Aperture: F1.6; Field of View: 65.5° (Diagonal), 56.5° (Horizontal), 30.6° (Vertical) |
| Night Vision | 850 nm IR LED (33 ft / 10 m), Color Night Vision |
| Lighting | 6x Built-in Spotlights (Motion Activated, App-Controlled), 2x Alarm Lights, 1x Indicator LED |
| Interface & Button | 1x POWER Button, 1x RESET Button, 1x MicroSD Card Slot (Up to 512 GB) |
| Pan/Tilt Range | Pan Mechanical Range: 334° (360° Pan Coverage); Tilt Mechanical Range: 90° (120° Tilt Coverage) |
Solar Panel
| Model | Tapo A201 |
| Output | Solar Panel Max Charging Voltage: 5.2 V; Solar Panel Max Charging Power: 2.5 W |
| Output Port | Type-C |
Video & Audio
| Maximum Resolution | Fixed Lens: 2K 3MP (2304 x 1296 px); Pan/Tilt Lens: 2K 3MP (2304 x 1296 px) |
| Frame Rate | 15 fps |
| Digital Zoom | 10.8x |
| Live View | Yes |
| Image Enhancement | 3D DNR, BLC, WDR |
| Audio Input & Output | Built-in Microphone and Speaker |
| Audio Communication | Two-Way Audio with Noise Cancellation |
| Siren Volume | 91.5 dB (10 cm distance); 64.4 dB (300 cm distance) |
Storage
| Local Storage | MicroSD Card Slot on Camera (Up to 512 GB) |
| Cloud Storage | Tapo Care Cloud Storage Services (Subscription required) |
Detection & Notifications
| Sensor | Three Motion Sensors, Ambient Light Sensor |
| AI Detection | Motion Detection, Person Detection, Pet Detection, Vehicle Detection |
| Activity Zones | Yes |
| Output Notification | App Notifications of Camera Event; App Notification of AI Detection Event with Snapshot (Subscription Required) |
Network
| Network Connectivity | Connect via Wi-Fi |
| Wireless Connectivity | IEEE 802.11b/g/n 2.4 GHz Wi-Fi; IEEE 802.11a/n 5 GHz Wi-Fi |
| Ethernet Port | No |
| RTSP | No |
| ONVIF | No |
Security
| Security | 128-bit AES Encryption with SSL/TLS, WPA/WPA2-PSK/WPA3-PSK |
Power
| Power Source | 10000 mAh Built-in Rechargeable Lithium-ion Battery; Solar Panel Tapo A201 |
| Input Voltage | Camera Input Voltage 5V (DC) |
Physical & Environment
| Weather Resistance | IP65 |
| Mounting Options | Ceiling-Mounted, Wall-Mounted, Pole-Mounted (requires pole loops, not included) |
| Operating Temperature | -20°C to 45°C (-4°F to 113°F) |
| Storage Temperature | -40°C to 60°C (-40°F to 140°F) |
| Charging Temperature | 0°C to 45°C (32°F to 113°F) |
| Operating Humidity | 10%-90% RH, Non-condensing |
| Storage Humidity | 0%-90% RH, Non-condensing |
| Dimensions (W x D x H) | Camera: 132 x 82 x 160 mm (5.19 x 3.22 x 6.31 in); Solar Panel: 173 x 120 x 15.5 mm (6.82 x 4.74 x 0.61 in) |
| Certifications | FCC, WWA, NCC, BSMI, DOE, CEC, IP65, RoHS |
TP-Link publishes no weight and no mains adapter rating for the Tapo C645D KIT, and its Weather Resistance row states IP65 without separating camera and panel; those gaps are left as published.
Compatibility & Software Support
| App | Tapo app: iOS 12.0 or higher, Android 7.0 or higher |
| Smart Integration | Google Assistant, Amazon Alexa |
| Wi-Fi | 2.4 GHz and 5 GHz |
| Third-Party Viewing | RTSP: No; ONVIF: No |
| Cloud | Tapo Care (subscription required) for AI-event snapshot notifications |
| Local Storage | microSD card up to 512 GB (purchased separately) |
Package Contents & Ordering Information
Package Contents
| In the Box | Tapo C645D Camera x 1 Tapo A201 Solar Panel x 1 Solar Panel Bracket x 1 Base Cover x 1 USB Adapter Cable x 1 Extension Wire x 1 Cable Zip Tie x 1 Mounting Screws and Anchors Mounting Template Stickers Quick Start Guide |
Ordering Information
| Model | Tapo C645D KIT |
| SKU | Tapo C645D Kit |
| Warranty | 2 Years Local Warranty (Singapore) |
Datasheet & Downloads
Frequently Asked Questions — Tapo C645D KIT
How do the two lenses work together?
The fixed wide-angle lens watches one area continuously. When it detects motion, the pan/tilt telephoto lens turns to track it, and tapping the wide view in the app sends the telephoto lens to that point.
Does it support RTSP or ONVIF for an NVR?
No. TP-Link lists RTSP and ONVIF as not supported; it is managed through the Tapo app.
How long does the battery last?
TP-Link rates the 10000 mAh battery at 120 days with 300 seconds of use per day, and states 1 hour of sunlight on the Tapo A201 panel powers a full day.
What warranty does SourceIT provide?
Two years local Singapore warranty, under TP-Link's published replacement warranty terms, with a GST invoice.
Can SourceIT quote this for an office or a project?
Yes. Send us the quantity and we will quote with local warranty, delivery and support.
