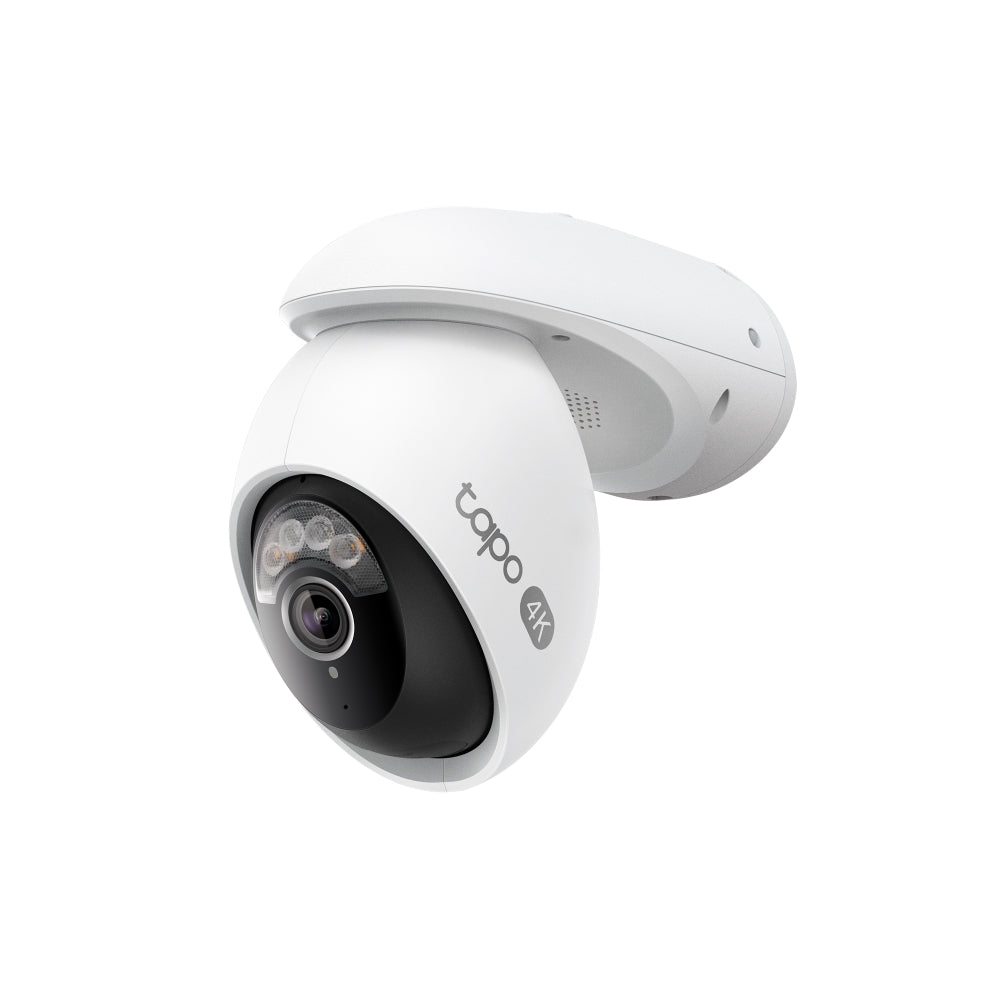

TP-Link Tapo C560WS 4K Outdoor Pan/Tilt Security Wi-Fi Camera
PRODUCT DESCRIPTION
TP-Link Outdoor Pan/Tilt Security Wi-Fi Camera (Tapo C560WS) - 2 Years Local Warranty
The Tapo C560WS is a mains-powered 4K 8MP outdoor pan/tilt camera with Wi-Fi 6, an Ethernet port, RTSP/ONVIF support and local facial recognition. It covers 360° horizontally and 98° vertically, records at 25 fps, and is rated IP66 for wall, ceiling or pole mounting.
4K at 25 fps with Full Pan/Tilt Coverage
The C560WS records 4K 8MP (3840 x 2160) at 25 fps through a 4 mm F1.6 lens with an 88° horizontal view, 18x digital zoom, 3DNR and WDR. The motorised head gives a 326° mechanical pan (360° coverage) and 53° mechanical tilt (98° coverage), so one camera can sweep a driveway, yard or loading bay. TP-Link notes scanning and cruising times are limited each day.
Local Facial Recognition
TP-Link describes free on-device AI that recognises and tags strangers, family and friends, alongside motion, person, pet and vehicle detection with activity zones. Detection runs without a subscription; snapshot notifications use Tapo Care.

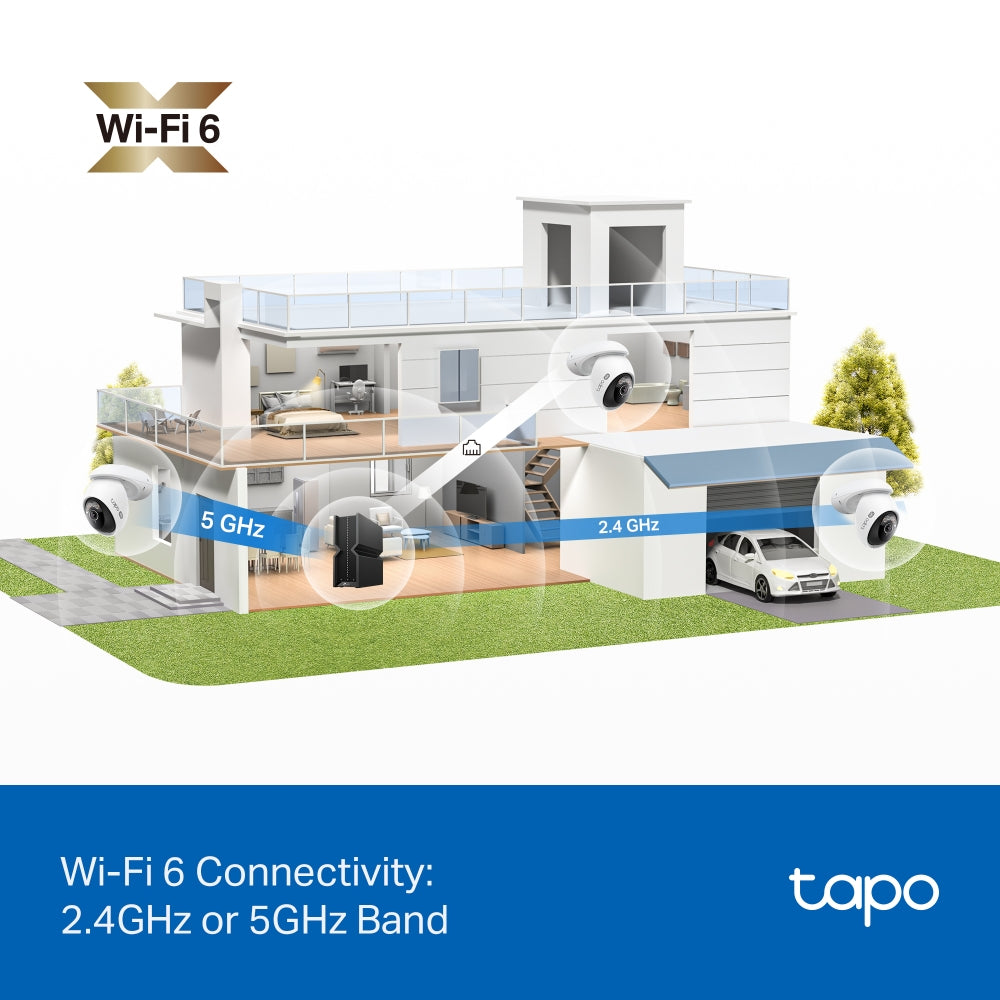

Wi-Fi 6 or Ethernet, with RTSP and ONVIF
The camera connects over dual-band 802.11ax Wi-Fi 6 or a wired Ethernet port, which suits sites where Wi-Fi is weak. RTSP and ONVIF are both listed as supported, so the stream can be pulled into a compatible NVR as well as the Tapo app.
Starlight Colour Night Vision and a 99 dB Siren
An 850 nm IR LED provides infrared night vision, and two built-in spotlights with the starlight sensor give colour images in low light. A 99 dB siren and two-way audio with noise cancellation let the camera warn or speak to visitors.
Ideal For
Singapore landed homes, warehouses, workshops and small business frontages that need one mains-powered 4K camera to cover a wide outdoor area, with the option of NVR recording over RTSP/ONVIF. Supplied by SourceIT with local Singapore warranty and GST invoice.
Tapo C560WS Datasheet — Technical Specifications
General
| Model | Tapo C560WS |
| Official Product Name | Outdoor Pan/Tilt Security Wi-Fi Camera |
| Brand | TP-Link |
| Warranty | 2 Years Local Warranty (Singapore) |
Camera
| Image Sensor | 1/27" Progressive Scan CMOS Starlight Sensor (as published) |
| Lens | Focal Length: 4 mm±5%; Aperture: F1.6±5%; Field of View: 105° (Diagonal), 88° (Horizontal), 45° (Vertical) |
| Night Vision | 850 nm IR LED; Starlight Color Night Vision |
| Lighting | 2x Built-in Spotlights |
| Interface & Button | 1x Ethernet Port, 1x RESET Button, 1x MicroSD Card Slot (Up to 512 GB) |
| Pan/Tilt Range | Pan Mechanical Range: 326° (360° Pan Coverage); Tilt Mechanical Range: 53° (98° Tilt Coverage) |
Video & Audio
| Maximum Resolution | 4K 8MP (3840 x 2160 px) |
| Frame Rate | 25 fps |
| Digital Zoom | 18x |
| Video Compression | H.264 |
| Live View | Yes |
| Image Enhancement | 3DNR, WDR |
| Audio Input & Output | Built-in Microphone and Speaker |
| Audio Communication | Two-Way Audio with Noise Cancellation |
| Siren Volume | 99 dB (level measured at 4-inch/10-cm distance) |
Storage
| Local Storage | MicroSD Card Slot on Camera (Up to 512 GB) |
| Cloud Storage | Tapo Care Cloud Storage Services (Subscription required) |
Detection and Notifications
| AI Detection | Motion Detection, Person Detection, Pet Detection, Vehicle Detection |
| Activity Zones | Yes |
| Output Notification | System Notification; System Notification with Snapshot (Tapo Care Services) |
Network
| Network Connectivity | Connect via Wi-Fi or Ethernet |
| Wireless Connectivity | IEEE 802.11a/b/g/n/ac/ax, 2.4 GHz / 5 GHz |
| Ethernet Port | Yes |
| RTSP | Yes |
| ONVIF | Yes |
Security
| Security | SSL/TLS, AES |
Power
| Power Source | 12 V DC Power Adapter |
| Input Voltage | 100-240 V, 50/60 Hz |
| Output Voltage | 12 V, 1 A (DC Power) |
Physical and Environment
| Weather Resistance | IP66 |
| Mounting Options | Ceiling-Mounted, Wall-Mounted, Pole-Mounted (pole-mounting loops required but not included) |
| Operating Temperature | -30°C to 60°C (-22°F to 140°F) |
| Storage Temperature | -40°C to 60°C (-40°F to 140°F) |
| Operating Humidity | 10%~90% RH, Non-condensing |
| Storage Humidity | 0~90% RH, Non-condensing |
| Dimensions (W x D x H) | 147.4 x 74.7 x 165.4 mm (mounting bracket included); 147.4 x 74.7 x 157.4 mm (mounting bracket excluded) |
| Certifications | FCC, RoHS, RCM |
TP-Link's Singapore page prints the image sensor size as 1/27", which appears to be a typographical error; it is reproduced as published rather than corrected. The page publishes no weight, no power consumption figures and no IR range for this model.
Compatibility & Software Support
| App | Tapo App — iOS 12.0+ and Android 5.0+ |
| Voice Assistants | Google Assistant, Amazon Alexa |
| Cloud | Tapo Care (subscription) for cloud storage and snapshot notifications |
| NVR / Third-Party | RTSP: Yes; ONVIF: Yes |
| Hub Storage | Tapo H500 referenced by TP-Link for hub storage (hub not included) |
| Local Storage | microSD card up to 512 GB (purchased separately) |
| Wi-Fi | Wi-Fi 6, 2.4 GHz / 5 GHz; router must be in range for 5 GHz |
Tapo Care subscriptions are sold by TP-Link at https://www.tapo.com/tapocare/. TP-Link's H500 footnote gives a 16 TB maximum drive size, with the drive purchased separately.
Package Contents & Ordering Information
Package Contents
| In the Box | Tapo C560WS Camera x1, DC Power Adapter x1, Mounting Template Sticker x1, Mounting Bracket x1, Mounting Anchors and Screws, Bracket Screws x2, Waterproof Seal x1, Waterproof Cable Attachments x1, Quick Start Guide |
Ordering Information
| Model | Tapo C560WS |
| SKU | Tapo C560WS |
| Warranty | 2 Years Local Warranty (Singapore) |
Datasheet & Downloads
Frequently Asked Questions — Tapo C560WS
Does the C560WS need a power point?
Yes. It runs from the included 12 V, 1 A DC adapter; there is no battery.
Can I record it on an NVR?
TP-Link lists RTSP and ONVIF as supported, and the camera has an Ethernet port, so it can be added to a compatible NVR.
Is facial recognition a paid feature?
TP-Link describes local facial recognition as free and processed on the camera.
What warranty does SourceIT provide?
Two years local Singapore warranty, under TP-Link's published replacement warranty terms, with a GST invoice.
Can SourceIT quote this for an office or a project?
Yes. Send us the quantity and the site details and we will quote with local warranty, delivery and support.
