TP-Link Tapo C545D Dual 2K Outdoor Dual Lens Pan/Tilt Security Camera
PRODUCT DESCRIPTION
TP-Link Outdoor Dual Lens Pan/Tilt Security Camera (Tapo C545D) - 2 Years Local Warranty

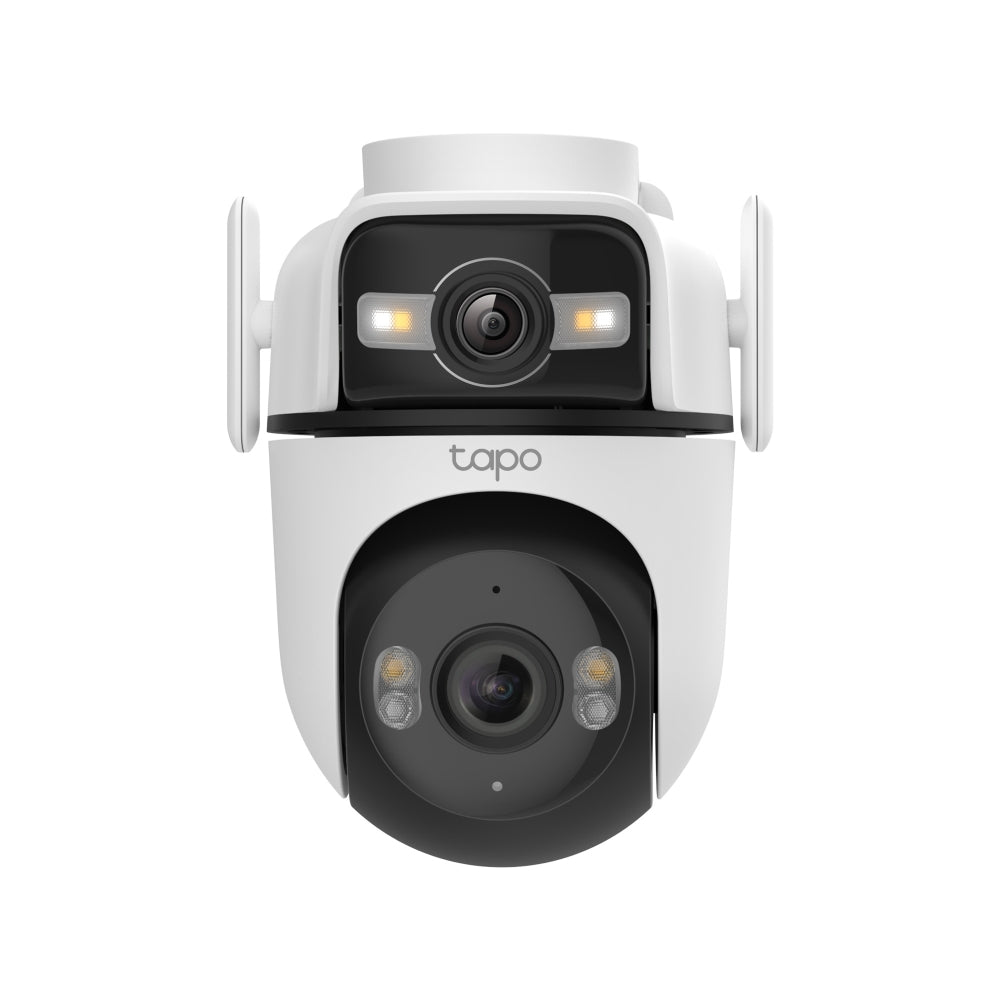

The Tapo C545D puts two 2K 3MP cameras in one outdoor housing: a fixed 165° wide-angle lens that watches the whole scene and a 6 mm pan/tilt lens that swings in to follow what the wide lens detects. It connects over 2.4 GHz Wi-Fi or Ethernet, supports RTSP and ONVIF, and is rated IP66.
Wide-Angle and Telephoto in One Camera

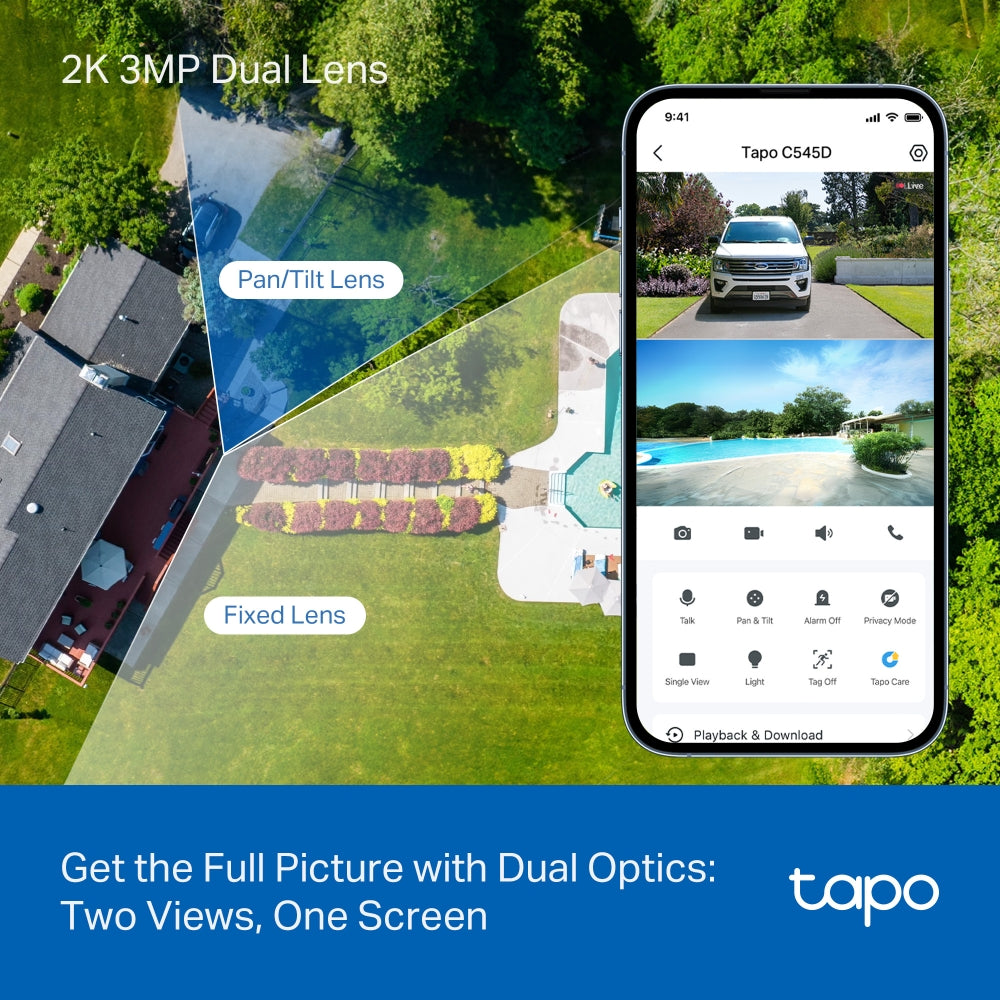

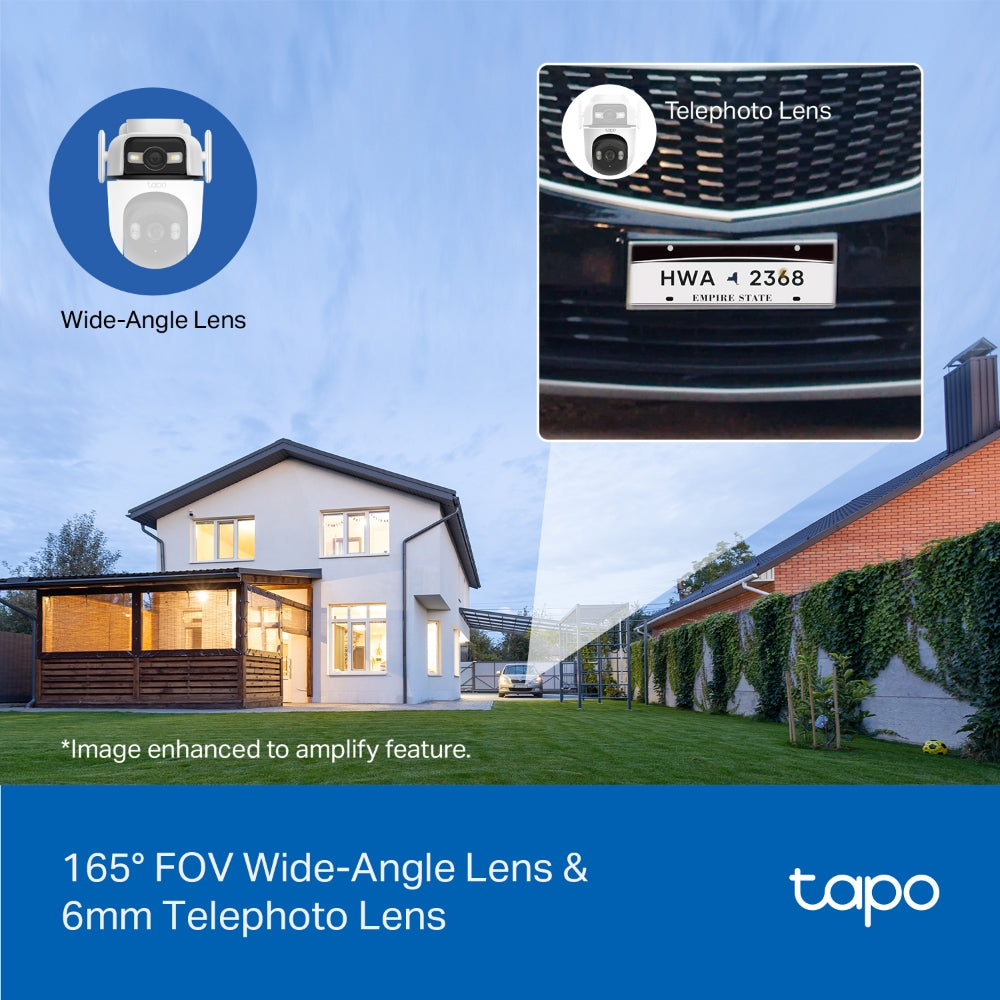

The fixed 2.53 mm lens covers 137.6° horizontally (165.1° diagonal) for overall awareness, while the 6 mm pan/tilt lens covers 57.3° horizontally for detail at distance. Both record 2K 3MP (2304 x 1296) at 15 fps with 3DNR and WDR, so two areas are monitored at the same time from one mounting point.

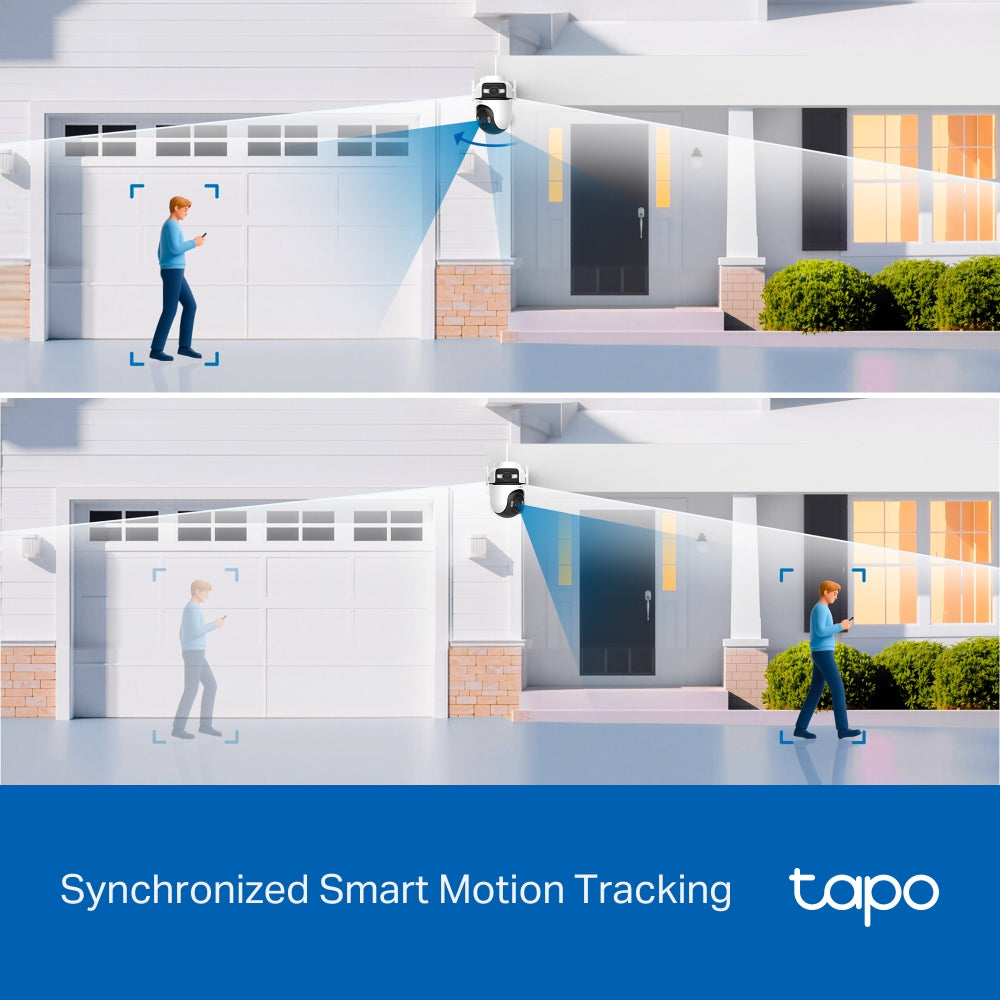

Synchronised Smart Tracking

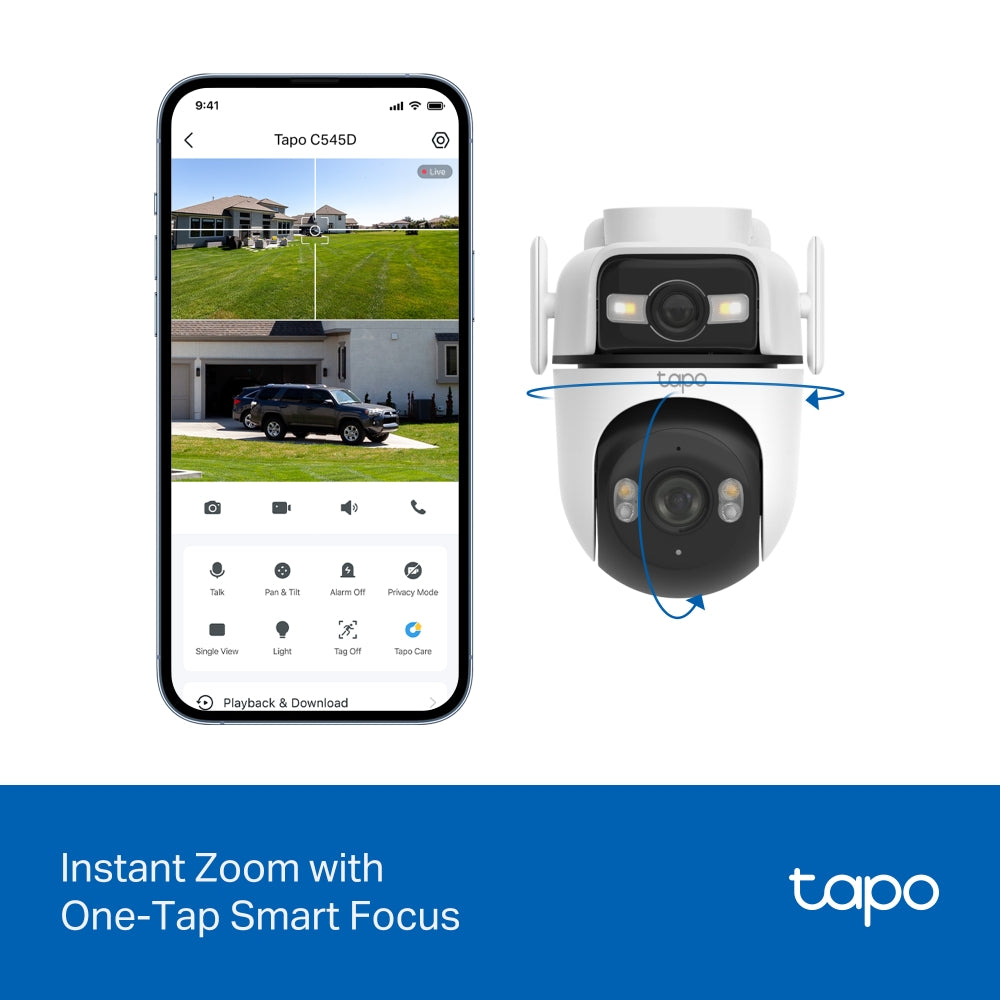

When the fixed lens detects an event, the pan/tilt lens automatically pivots to focus on and follow the moving subject. One-Tap Smart Focus lets you pick an area in the wide view and have the pan/tilt lens turn to it. TP-Link notes that a manual zoom-in is needed to enlarge the pan/tilt image during live view.
Broad AI Detection Without Fees
Motion, person, pet and vehicle detection are joined by line-crossing detection and camera-tampering alerts, with activity zones for the first four. Push notifications are free; snapshot notifications need Tapo Care.
Ethernet, RTSP and ONVIF
A 10/100 RJ45 port gives a wired option where Wi-Fi is weak, and RTSP and ONVIF are both supported for NVR recording. Wi-Fi is 2.4 GHz 802.11 b/g/n/ax. Smart Night Vision offers full colour with spotlights, black-and-white infrared to 29.9 m, or an automatic mode; a 99 dB siren and two-way audio complete it.
Ideal For
Singapore homes, shopfronts and small business premises that want one camera to watch a wide entrance while zooming in to follow people or vehicles. Supplied by SourceIT with local Singapore warranty and GST invoice.
Tapo C545D Datasheet — Technical Specifications
General
| Model | Tapo C545D |
| Official Product Name | Outdoor Dual Lens Pan/Tilt Security Camera |
| Brand | TP-Link |
| Warranty | 2 Years Local Warranty (Singapore) |
Camera
| Image Sensor | 1/2.8" Progressive Scan CMOS Sensor |
| Lens | Focal Length: 6 mm±5%, 2.53 mm±5%; Aperture: F1.6±10%, F1.6±10%; Field of View: 66.5° (Diagonal), 57.3° (Horizontal), 31.7° (Vertical); 165.1° (Diagonal), 137.6° (Horizontal), 73.0° (Vertical) |
| Night Vision | 850 nm IR LED (99 ft / 29.9 m), Color Night Vision |
| Day/Night Switch | IR-Cut Filter with Auto-Switching |
| Interface & Button | 1x RJ45 (10M/100M) Ethernet Port, 1x RESET Button, 1x microSD Card Slot (Up to 512 GB) |
Video & Audio
| Maximum Resolution | 2K 3MP (2304 x 1296 px) + 2K 3MP (2304 x 1296 px) |
| Frame Rate | 15 fps |
| Video Compression | H.264 |
| Live View | Yes |
| Image Enhancement | 3DNR, WDR |
| Audio Input & Output | Built-in Microphone and Speaker |
| Audio Communication | Two-Way Audio with Noise Cancellation |
| Siren Volume | 99 dB (level measured at 4-inch/10-cm distance) |
Storage

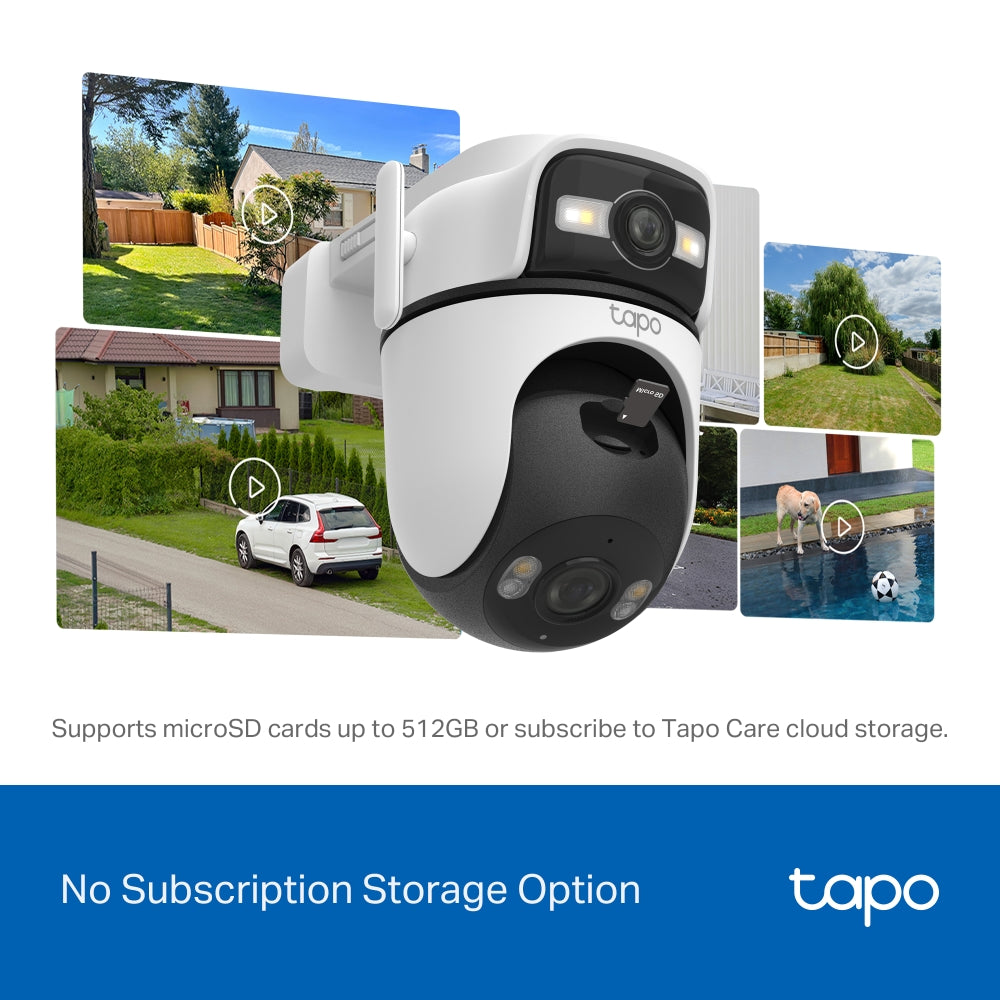

| Local Storage | microSD Card Slot on Camera (Up to 512 GB) |
| Cloud Storage | Tapo Care Cloud Storage Services (Subscription required) |
Detection and Notifications
| AI Detection | Motion Detection, Person Detection, Pet Detection, Vehicle Detection, Line-Crossing Detection, Camera Tampering |
| Activity Zones | Yes — only works with Motion/Person/Pet/Vehicle Detection |
| Output Notification | System Notification; System Notification with Snapshot (Tapo Care Services) |
Network
| Network Connectivity | Connect via Wi-Fi or Ethernet |
| Wireless Connectivity | IEEE 802.11 b/g/n/ax, 2.4 GHz |
| Transmission Rate | 11b: 11 Mbps; 11g: 54 Mbps; 11n: 72.2 Mbps; 11ax: 143.4 Mbps |
| Protocol | TCP/IP, DHCP, ICMP, DNS, NTP, HTTPS, TCP, UDP |
| Ethernet Port | Yes |
| RTSP | Yes |
| ONVIF | Yes |
Security
| Security | On-Device Machine Learning; 128-bit AES Encryption with SSL/TLS; WPA/WPA2-PSK/WPA3 |
Power
| Power Source | 12 V DC Power Adapter |
| Input Voltage | 100-240 V, 50/60 Hz |
| Output Voltage | 12 V, 1 A (DC Power) |
| DC Power Connector Size | Inside Ø: 2.1 mm; Outside Ø: 5.5 mm |
| Power Cord Length | 3 m |
| Typical Power Consumption | 5.3 W |
| Maximum Power Consumption | 11.2 W |
Physical and Environment

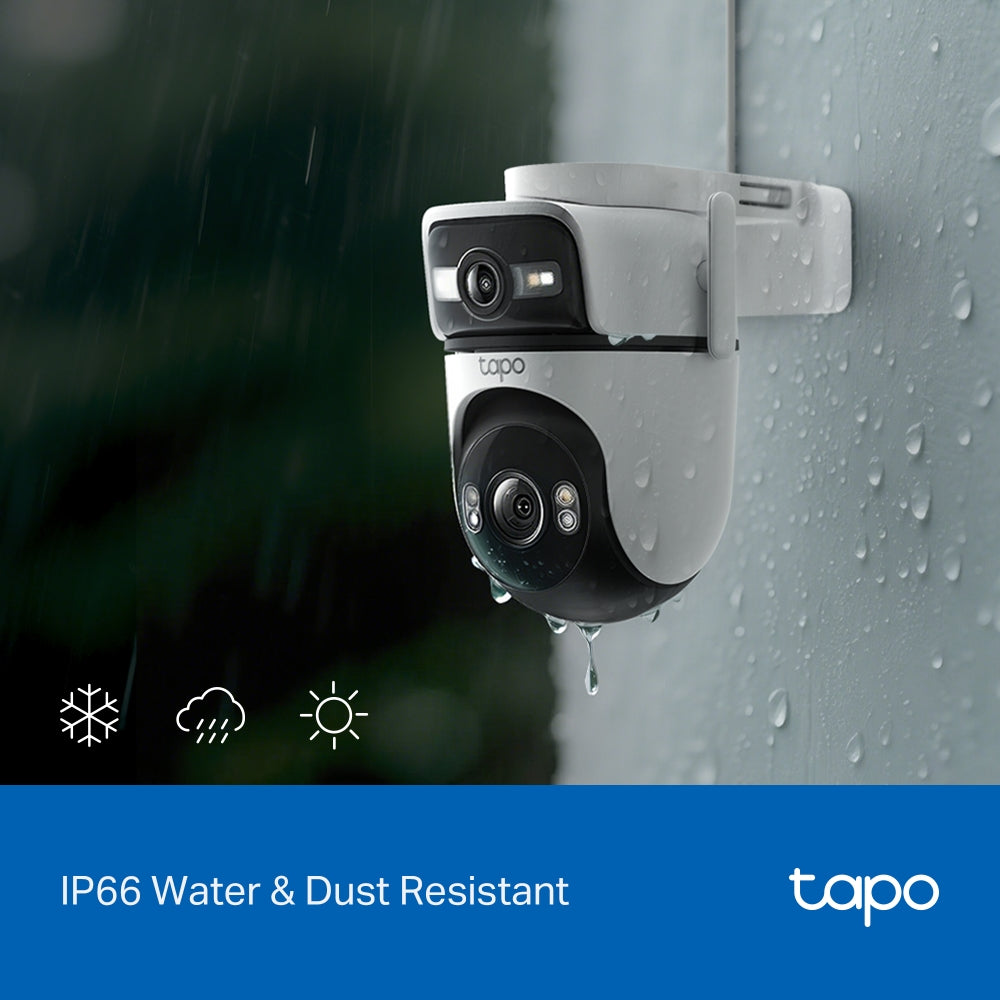

| Weather Resistance | IP66 |

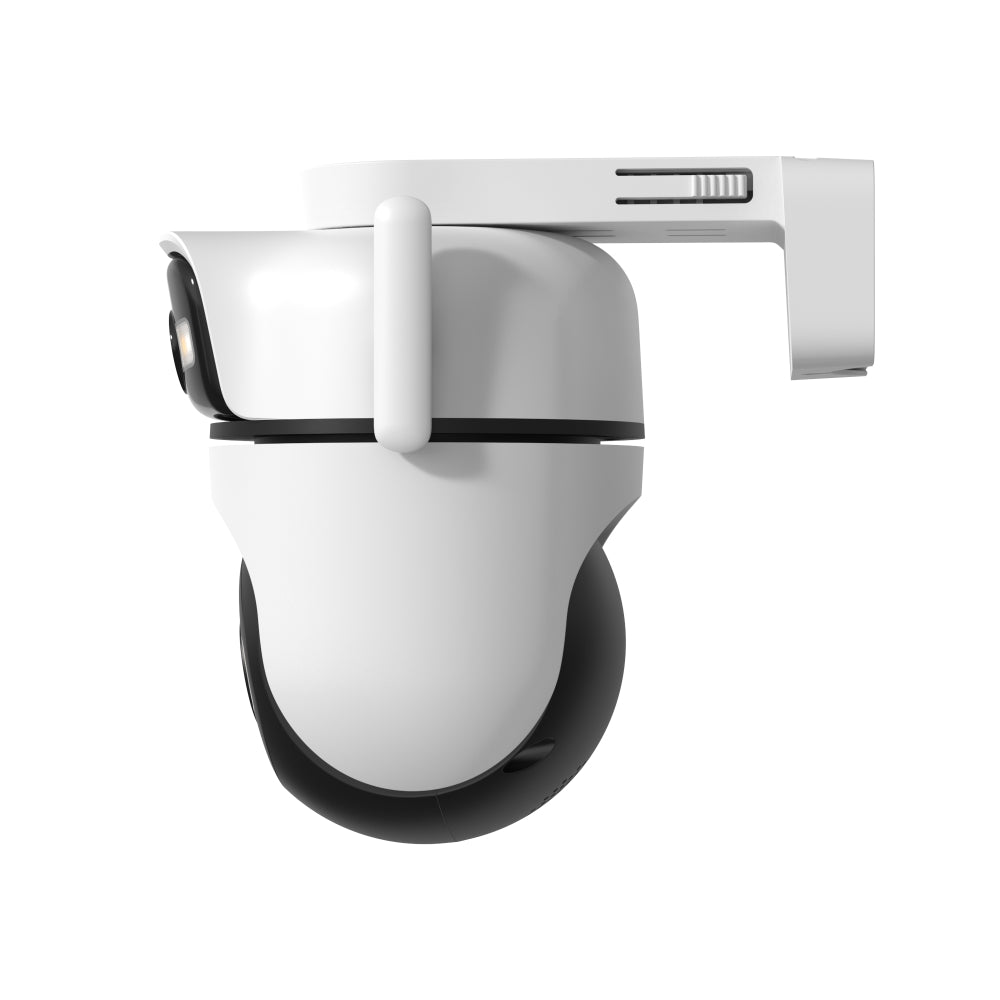

| Mounting Options | Wall-Mounted, Eave-Mounted, Pole-Mounted (pole-mounting loop not included) |
| Operating Temperature | -30°C to 60°C (-22°F to 140°F) |
| Storage Temperature | -40°C to 60°C (-40°F to 140°F) |
| Operating Humidity | 10% ~ 90% RH, Non-condensing |
| Storage Humidity | 0 ~ 90% RH, Non-condensing |
| Dimensions (W x D x H) | 114.57 x 159.55 x 152.1 mm (4.51 x 6.28 x 5.99 in) |
| Weight | 491 g (17.32 oz) |
TP-Link's Singapore page for the Tapo C545D publishes no certifications row, no system requirements for the Tapo app and no digital zoom figure; these are omitted rather than taken from another model.
Compatibility & Software Support
| App | Tapo App (TP-Link publishes no minimum iOS/Android version for this model) |
| Voice / Smart Home | Google Assistant, Amazon Alexa, Samsung SmartThings |
| Cloud | Tapo Care (subscription) for cloud storage and snapshot notifications |
| NVR / Third-Party | RTSP: Yes; ONVIF: Yes |
| Hub | Tapo H500 and H200 (purchased separately; TP-Link notes actual support may vary — check its supported-device lists) |
| Local Storage | microSD card up to 512 GB (purchased separately) |
| Wi-Fi | 2.4 GHz only |
Tapo Care subscriptions are sold by TP-Link at https://www.tapo.com/tapocare/.
Package Contents & Ordering Information
Package Contents
| In the Box | Tapo C545D Camera x1, Mounting Bracket x1, Mounting Template Sticker x1, Mounting Screws x4, Mounting Anchors x4, Waterproof Seal x1, Waterproof Cable Attachments x1, Power Adapter x1, Quick Start Guide |
Ordering Information
| Model | Tapo C545D |
| SKU | Tapo C545D |
| Warranty | 2 Years Local Warranty (Singapore) |
Datasheet & Downloads
Frequently Asked Questions — Tapo C545D
How do the two lenses work together?
The fixed wide-angle lens watches the whole scene; when it detects an event, the pan/tilt lens turns to track the subject in detail. Both views are 2K 3MP.
Does it support 5 GHz Wi-Fi?
No. TP-Link lists 2.4 GHz 802.11 b/g/n/ax only. Use the Ethernet port where 2.4 GHz coverage is weak.
Can it be pole-mounted?
Yes, but TP-Link notes the pole-mounting loop is not included and must be purchased separately.
What warranty does SourceIT provide?
Two years local Singapore warranty, under TP-Link's published replacement warranty terms, with a GST invoice.
Can SourceIT quote this for an office or a project?
Yes. Send us the quantity and the site details and we will quote with local warranty, delivery and support.
