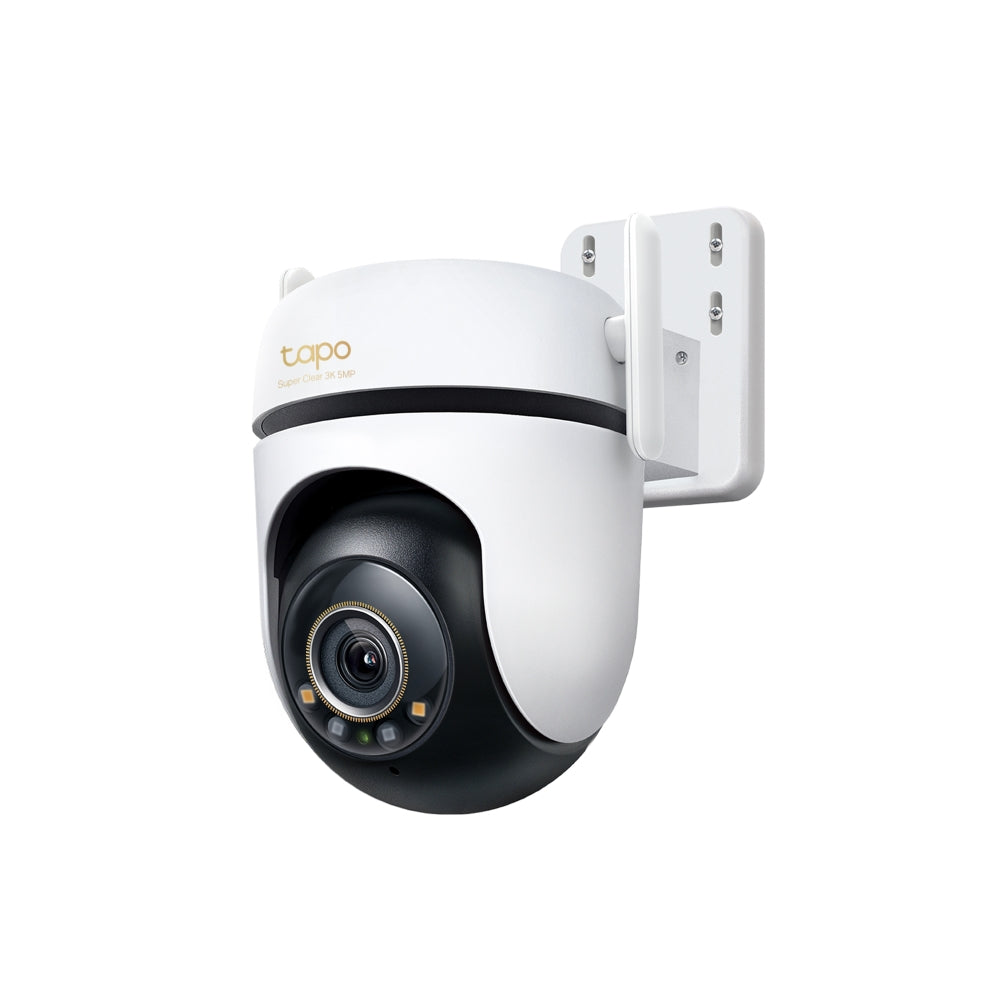

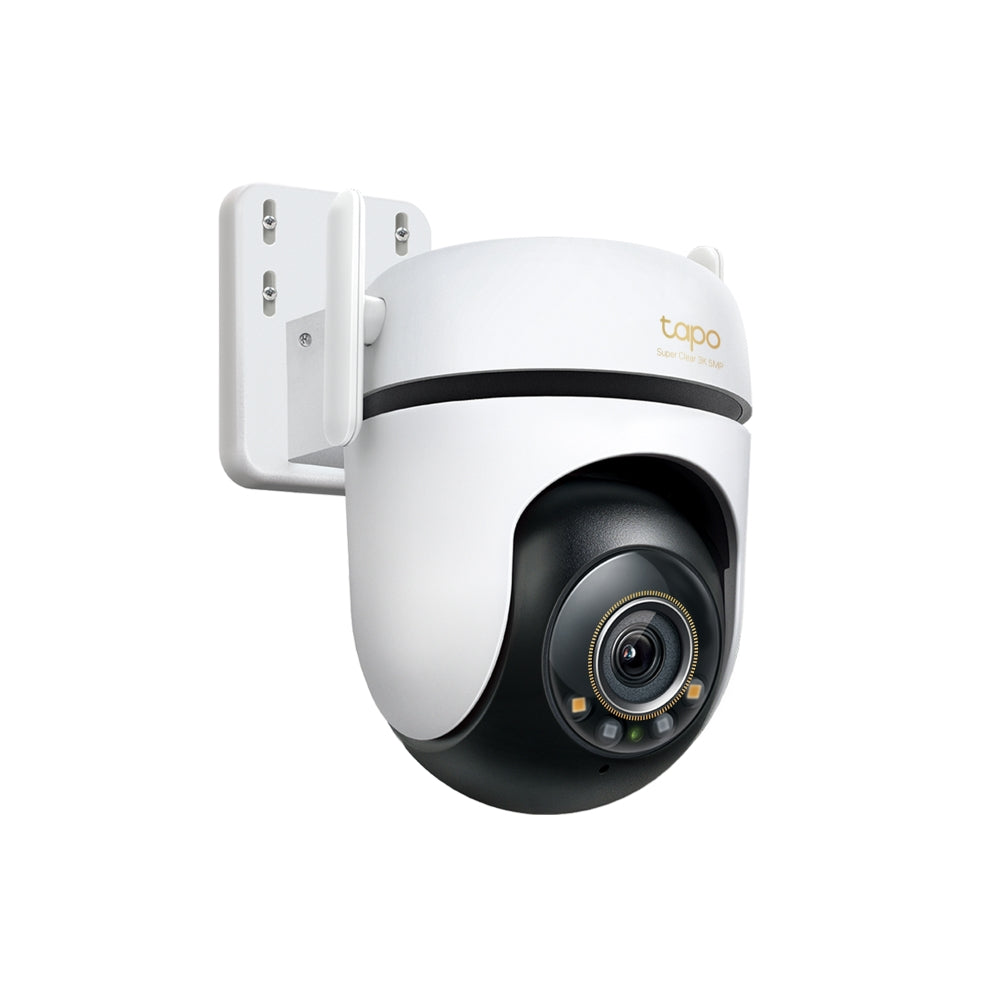

TP-Link Tapo C530WS Outdoor Pan/Tilt Security Wi-Fi Camera 3K 5MP IP66
PRODUCT DESCRIPTION
TP-Link Tapo Outdoor Pan/Tilt Security Wi-Fi Camera (Tapo C530WS) - 2 Years Local Warranty
The Tapo C530WS is an outdoor pan/tilt camera that records in 3K 5MP and turns to follow movement. It covers 360° horizontally and 130° vertically from one mounting point, sees in colour after dark with a starlight sensor and twin spotlights, and connects by Wi-Fi or a wired Ethernet port, all inside an IP66 housing.
3K 5MP Detail With Starlight Colour Night Vision
Video is captured at 2880 x 1620 on a 1/2.7 inch starlight CMOS sensor behind a 4.0 mm F1.6 lens, with 12x digital zoom for reading detail after the event. The starlight sensor and two built-in spotlights keep night footage in full colour, and the 850 nm infrared LED reaches up to 98 ft (29.9 m) when you would rather the camera stayed unlit.
360° Coverage With Motion Tracking and Patrol
The head pans through a 340° mechanical range for 360° coverage and tilts through 90°. Motion tracking follows a subject across the scene, and patrol mode cruises between multiple custom points you set in the Tapo app, so one camera on a corner can watch a gate, a driveway and a yard in turn.
AI Detection That Cuts False Alerts
On-device detection identifies people, pets and vehicles, and adds line-crossing and tamper detection, so notifications focus on what matters rather than every passing shadow. When it does fire, a 93 dB siren and the bright spotlights act as a sound and light deterrent, and two-way audio with noise cancellation lets you speak to whoever is there.
Wi-Fi or Ethernet, Local or Cloud
Connect over 2.4 GHz Wi-Fi 6 (802.11ax) through the dual external antennas, or run a cable to the 10/100 Mbps Ethernet port for a fixed link. Footage records to a microSD card of up to 512 GB, with Tapo Care cloud storage as an optional subscription, and RTSP and ONVIF support lets you pull the stream into third-party recording software.
Ideal For
Singapore landed homes, compounds, carparks, warehouses, worksites and shop frontages that need 3K detail, colour night footage and steerable coverage from one weatherproof unit, especially where an Ethernet run is available for a fixed connection. Supplied by SourceIT with local Singapore warranty, GST invoice and volume pricing on request.
Tapo C530WS Datasheet — Technical Specifications
General
| Model | Tapo C530WS |
| Official Product Name | Outdoor Pan/Tilt Security Wi-Fi Camera |
| Brand | TP-Link Tapo |
| Warranty | 2 Years Local Warranty (Singapore) |
Camera
| Image Sensor | 1/2.7" Progressive Scan CMOS Starlight Sensor |
| Lens | Focal Length 4.0 mm; Aperture F1.6; Field of View 105.3° (Diagonal), 88.0° (Horizontal), 46° (Vertical) |
| Night Vision | 850 nm IR LED (98 ft / 29.9 m), Starlight Colour Night Vision |
| Lighting | 2x built-in spotlights |
| Pan / Tilt Range | Pan 340° (360° coverage); Tilt 90° (135.5° coverage) |
| Interface & Button | 1x Ethernet port, 1x RESET button, 1x microSD card slot (up to 512 GB) |
Video & Audio
| Maximum Resolution | 3K 5MP (2880 x 1620 px) |
| Frame Rate | 15/20/25/30 fps (default 15 fps) |
| Digital Zoom | 12x |
| Video Compression | H.264 |
| Live View | Yes |
| Image Enhancement | 3DNR, WDR |
| Audio Input & Output | Built-in microphone and speaker |
| Audio Communication | Two-way audio with noise cancellation |
| Siren Volume | 93 dB (measured at 4 in / 10 cm) |
Detection & Storage
| AI Detection | Motion, Person, Pet, Vehicle, Line-Crossing and Tamper detection |
| Activity Zones | Yes |
| Output Notification | System notification; system notification with snapshot (Tapo Care services) |
| Local Storage | MicroSD card slot on camera (up to 512 GB), card purchased separately |
| Cloud Storage | Tapo Care cloud storage services (subscription required) |
Network & Security
| Network Connectivity | Connect via Wi-Fi or Ethernet |
| Wireless Connectivity | IEEE 802.11b/g/n/ax, 2.4 GHz Wi-Fi |
| Ethernet Port | 1x 10/100 Mbps RJ45 port on camera |
| RTSP / ONVIF | Yes / Yes |
| Security | On-device machine learning; 128-bit AES encryption with SSL/TLS; WPA/WPA2-PSK/WPA3 |
Power, Hardware & Environment
| Power Source | 9 V DC power adapter |
| Adapter Input | 100–240 V, 50/60 Hz |
| Adapter Output | 9 V, 0.85 A (DC power) |
| Dimensions (W x D x H) | 4.9 x 4.8 x 3.5 in (123.8 x 123 x 90 mm) |
| Weather Resistance | IP66 |
| Mounting Options | Ceiling-mounted, wall-mounted, pole-mounted (pole-mounting loops required but not included) |
| Operating Temperature | -30 °C to 60 °C (-22 °F to 140 °F) |
| Storage Temperature | -40 °C to 60 °C (-40 °F to 140 °F) |
| Operating Humidity | 10%–90% RH, non-condensing |
| Storage Humidity | 0%–90% RH, non-condensing |
| Certifications | CE, FCC, RCM |
One figure is reproduced exactly as TP-Link publishes it: the tilt row gives 135.5 degrees of coverage while the product overview describes 130 degrees vertical. The 492 ft wireless range quoted for this model is TP-Link's open-area test result and varies with environment and router. No net weight is published for this model, so none is claimed here.
Compatibility & Software Support

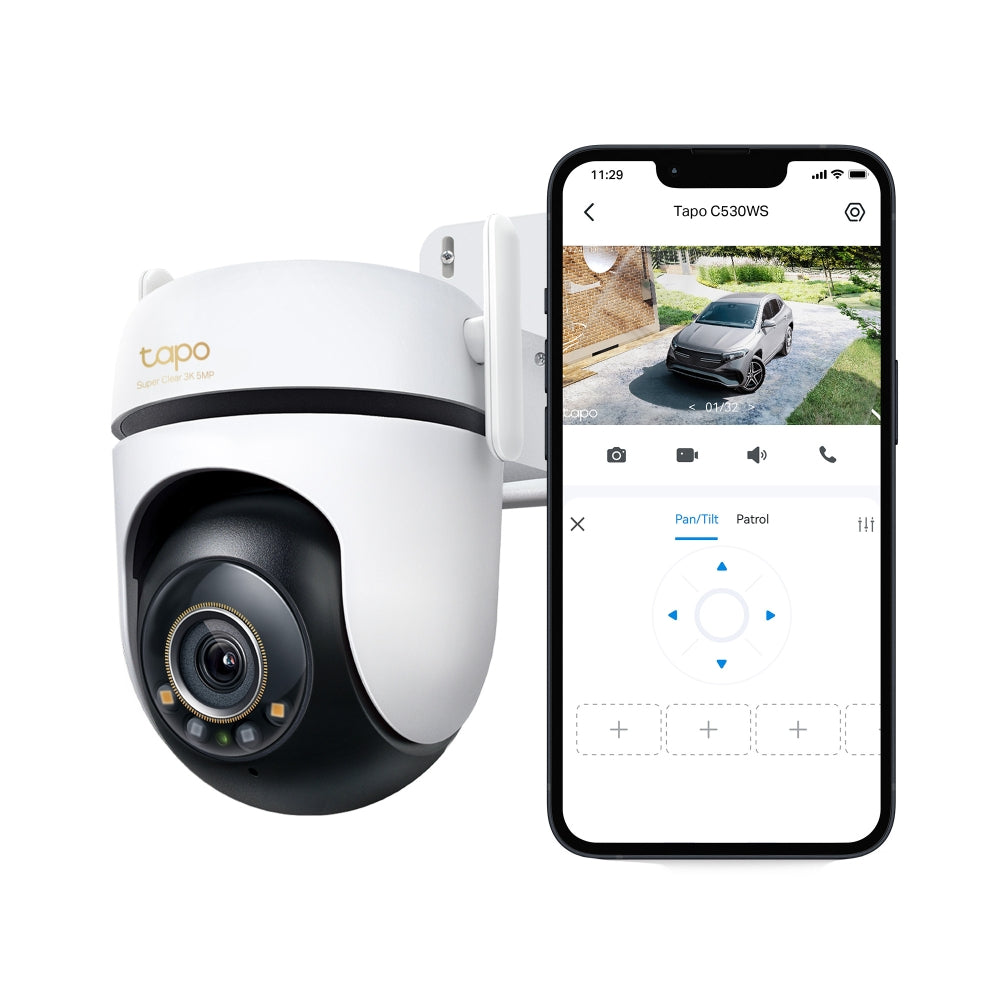

The Tapo C530WS is set up and operated through the Tapo app, which manages every Tapo camera, plug, bulb and sensor in one place. It is a consumer Wi-Fi camera and is not part of the Omada or VIGI business ranges: it cannot be adopted into an Omada Controller and it is not managed by VIGI NVR software.
| Tapo App | Supported — setup and remote viewing from iOS and Android |
| System Requirements | iOS 12.0+ and Android 5.0+ |
| Smart Integration | Google Assistant, Amazon Alexa |
| Wi-Fi Requirement | 2.4 GHz network required; wired Ethernet also supported |
| Third-Party Recording | RTSP and ONVIF supported |
| Tapo Care | Optional paid cloud storage; the camera records locally to microSD without it |
| Omada / VIGI Management | Not supported — the Tapo range is separate from TP-Link's Omada and VIGI business lines |
Where you need cameras that integrate with a business NVR or with central network management, ask SourceIT about the VIGI range instead.
Package Contents & Ordering Information
Package Contents
| In the Box | Tapo C530WS Camera, Power Adapter, Mounting Anchors, Mounting Screws, Bracket Screws, Mounting Template, Mounting Bracket, Waterproof Seal, Waterproof Cable Attachments, Quick Start Guide |
| Not Included | MicroSD card; pole-mounting loops |
Ordering Information
| Model | Tapo C530WS |
| Warranty | 2 Years Local Warranty (Singapore) |
Datasheet & Downloads
Frequently Asked Questions — Tapo C530WS
How is the C530WS different from the Tapo C500?
Both are outdoor pan/tilt cameras in the same 123.8 x 123 x 90 mm housing. The C530WS steps up to 3K 5MP (2880 x 1620) on a 1/2.7 inch starlight sensor, adds an Ethernet port, pet, vehicle and line-crossing detection, built-in spotlights, a 93 dB siren and an IP66 rating. The C500 records 1080p (1920 x 1080), is Wi-Fi only, has a 90 dB siren and is rated IP65.
Can I use a network cable instead of Wi-Fi?
Yes. The camera has a 10/100 Mbps RJ45 port, so you can run Ethernet for a fixed connection. Power still comes from the supplied 9 V adapter.
Can I pull the stream into my own recording software?
Yes. TP-Link publishes RTSP and ONVIF support for this model, so it is not locked to the Tapo app.
What warranty does SourceIT provide?
Two years local Singapore warranty. TP-Link Singapore's replacement warranty policy places the outdoor camera series on a two-year term rather than the three-year default. Every Tapo C530WS sold by SourceIT comes with a GST invoice.
Can SourceIT quote this in quantity?
Yes. Send the quantity and site details and we will quote, including microSD cards, mounting and any Tapo accessories you want supplied with them.
