TP-Link Tapo C500 Outdoor Pan/Tilt Security WiFi Camera 1080p IP65
PRODUCT DESCRIPTION
TP-Link Tapo Outdoor Pan/Tilt Security WiFi Camera (Tapo C500) - 2 Years Local Warranty
The Tapo C500 is an affordable outdoor pan/tilt camera that turns to watch the whole area around it. It covers 360° horizontally from a single mounting point, records 1080p Full HD at 30 fps, sees in colour or infrared after dark, and lives outdoors in an IP65 weatherproof housing.
360° All-Round Protection
The head pans through a 340° mechanical range for 360° coverage and tilts through 90° for 132° of tilt coverage. You steer the view live from the Tapo app, so one camera covers a driveway, gate and yard that would otherwise need several fixed units.
1080p Full HD Day and Night
Video is recorded at 1920 x 1080 and 30 fps through a 3.89 mm F2.0 lens on a 1/3 inch CMOS sensor, with 3DNR and WDR for cleaner, balanced images. The 850 nm infrared LED reaches up to 98 ft (29.9 m) and colour night vision is available for clearer identification after dark.
Person Detection, Sound and Light Alarm
On-device detection picks out people as well as general motion and flags tampering, with custom activity zones to cut needless alerts. A customisable sound and light alarm with a 90 dB siren warns off intruders, and two-way audio with noise cancellation lets you speak through the camera. Physical privacy mode turns the lens into the housing when you want it off.
512 GB Local Recording, RTSP and ONVIF
Footage records to a microSD card of up to 512 GB with no compulsory cloud plan; Tapo Care is an optional subscription. RTSP and ONVIF support lets you bring the stream into third-party recording software, and Google Assistant and Amazon Alexa voice control are supported.
Ideal For
Singapore landed homes, back yards, car porches, small shops and warehouses that want steerable 360° outdoor coverage on a budget, with local recording and no mandatory subscription. Supplied by SourceIT with local Singapore warranty, GST invoice and volume pricing on request.
Tapo C500 Datasheet — Technical Specifications
General
| Model | Tapo C500 |
| Official Product Name | Outdoor Pan/Tilt Security WiFi Camera |
| Brand | TP-Link Tapo |
| Warranty | 2 Years Local Warranty (Singapore) |
Camera
| Image Sensor | 1/3" Progressive Scan CMOS Sensor |
| Lens | Focal Length 3.89 mm; Aperture F2.0; Field of View 85.5° (Diagonal), 73.5° (Horizontal), 41° (Vertical) |
| Night Vision | 850 nm IR LED (98 ft / 29.9 m), Colour Night Vision |
| Pan / Tilt Range | Pan 340° (360° coverage); Tilt 90° (132° coverage) |
| Interface & Button | 1x RESET button, 1x microSD card slot |
Video & Audio
| Maximum Resolution | 1920 x 1080 px |
| Frame Rate | 30 fps |
| Video Compression | H.264 |
| Live View | Yes |
| Image Enhancement | 3DNR, WDR |
| Audio Input & Output | Built-in microphone and speaker |
| Audio Communication | Two-way audio with noise cancellation |
| Siren Volume | 90 dB (measured at 4 in / 10 cm) |
Detection & Storage
| AI Detection | Motion detection, Person detection, Tamper detection |
| Activity Zones | Yes |
| Output Notification | System notification; system notification with snapshot (Tapo Care services) |
| Local Storage | MicroSD card slot on camera (up to 512 GB), card purchased separately |
| Cloud Storage | Tapo Care cloud storage services (subscription required) |
Network & Security
| Network Connectivity | Connect via Wi-Fi |
| Wireless Connectivity | IEEE 802.11b/g/n, 2.4 GHz Wi-Fi |
| RTSP / ONVIF | Yes / Yes |
| Security | On-device machine learning; 128-bit AES encryption with SSL/TLS; WPA/WPA2-PSK |
Power, Hardware & Environment
| Power Source | 9 V DC power adapter |
| Adapter Input | 100–240 V, 50/60 Hz |
| Adapter Output | 9.0 V, 0.85 A (DC power) |
| Dimensions (W x D x H) | 4.9 x 4.8 x 3.5 in (123.8 x 123 x 90 mm) |
| Weather Resistance | IP65 |
| Mounting Options | Ceiling-mounted, wall-mounted, pole-mounted (pole-mounting loops required but not included) |
| Operating Temperature | -30 °C to 60 °C |
| Storage Temperature | -40 °C to 60 °C |
| Operating Humidity | 10%–90% RH, non-condensing |
| Storage Humidity | 0%–90% RH, non-condensing |
| Certifications | CE, FCC, RoHS, RCM |
No net weight is published for this model, so none is claimed here.
Compatibility & Software Support
The Tapo C500 is set up and operated through the Tapo app, which manages every Tapo camera, plug, bulb and sensor in one place. It is a consumer Wi-Fi camera and is not part of the Omada or VIGI business ranges: it cannot be adopted into an Omada Controller and it is not managed by VIGI NVR software.
| Tapo App | Supported — setup and remote viewing from iOS and Android |
| System Requirements | iOS 9.0 or higher, Android 4.4 or higher |
| Smart Integration | Google Assistant, Amazon Alexa |
| Wi-Fi Requirement | 2.4 GHz network required; the camera does not join 5 GHz networks |
| Third-Party Recording | RTSP and ONVIF supported |
| Tapo Care | Optional paid cloud storage; the camera records locally to microSD without it |
| Omada / VIGI Management | Not supported — the Tapo range is separate from TP-Link's Omada and VIGI business lines |
Where you need cameras that integrate with a business NVR or with central network management, ask SourceIT about the VIGI range instead.
Package Contents & Ordering Information
Package Contents

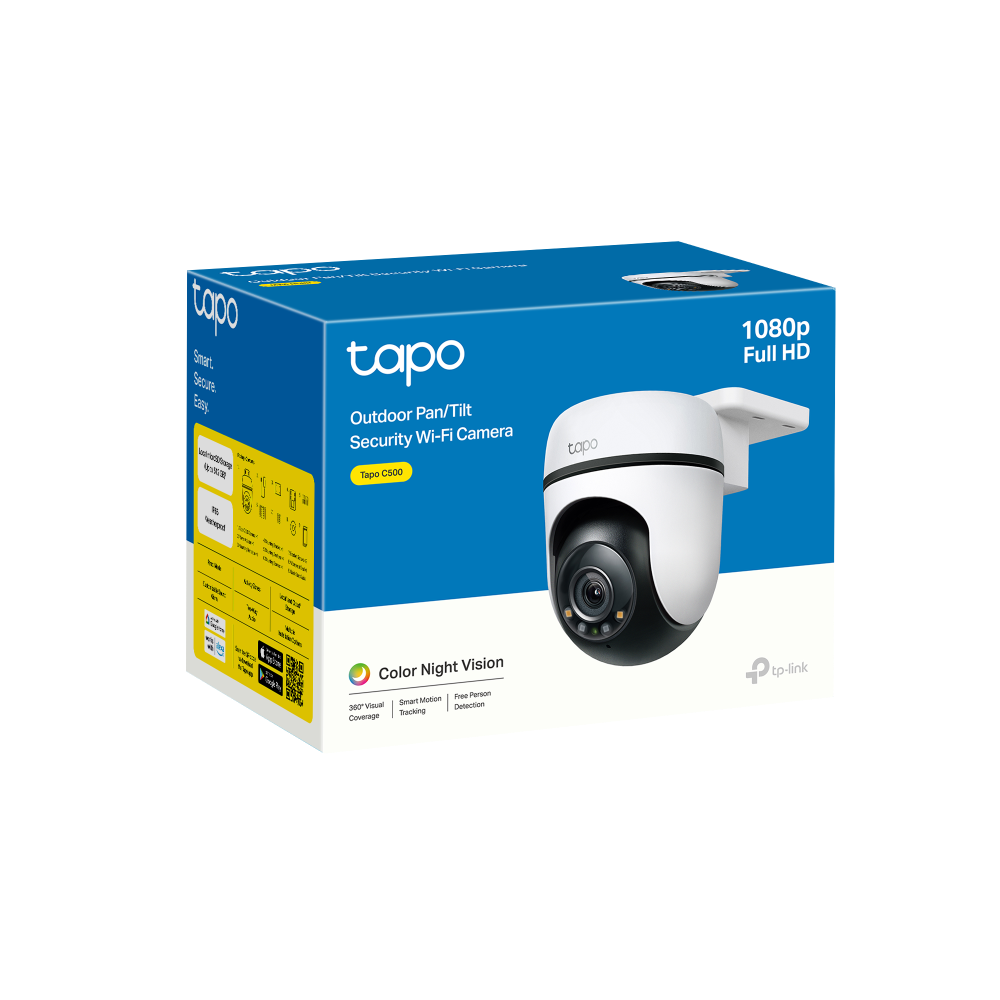

| In the Box | Tapo C500 Camera, Power Adapter, Mounting Anchors, Mounting Screws, Bracket Screws, Mounting Template, Mounting Bracket, Waterproof Seal, Quick Start Guide |
| Not Included | MicroSD card; pole-mounting loops |
Ordering Information
| Model | Tapo C500 |
| Warranty | 2 Years Local Warranty (Singapore) |
Datasheet & Downloads
Frequently Asked Questions — Tapo C500
How is the C500 different from the Tapo C530WS?
They share the same 123.8 x 123 x 90 mm pan/tilt housing. The C500 records 1080p (1920 x 1080) at up to 30 fps, connects by Wi-Fi only, has a 90 dB siren and is rated IP65. The C530WS steps up to 3K 5MP (2880 x 1620), adds an Ethernet port, built-in spotlights, pet, vehicle and line-crossing detection, a 93 dB siren and an IP66 rating.
Does it need a subscription?
No. It records to a microSD card of up to 512 GB (sold separately) and person detection runs on the camera. Tapo Care is an optional paid extra for cloud storage and snapshot notifications.
Can I pull the stream into my own recording software?
Yes. TP-Link publishes RTSP and ONVIF support for this model, so it is not locked to the Tapo app.
What warranty does SourceIT provide?
Two years local Singapore warranty. TP-Link Singapore's replacement warranty policy places the outdoor camera series on a two-year term rather than the three-year default. Every Tapo C500 sold by SourceIT comes with a GST invoice.
Can SourceIT quote this in quantity?
Yes. Send the quantity and site details and we will quote, including microSD cards, mounting and any Tapo accessories you want supplied with them.
