TP-Link Tapo C325WB 2K QHD Outdoor Security Wi-Fi Camera
PRODUCT DESCRIPTION
TP-Link Outdoor Security Wi-Fi Camera (Tapo C325WB) - 2 Years Local Warranty

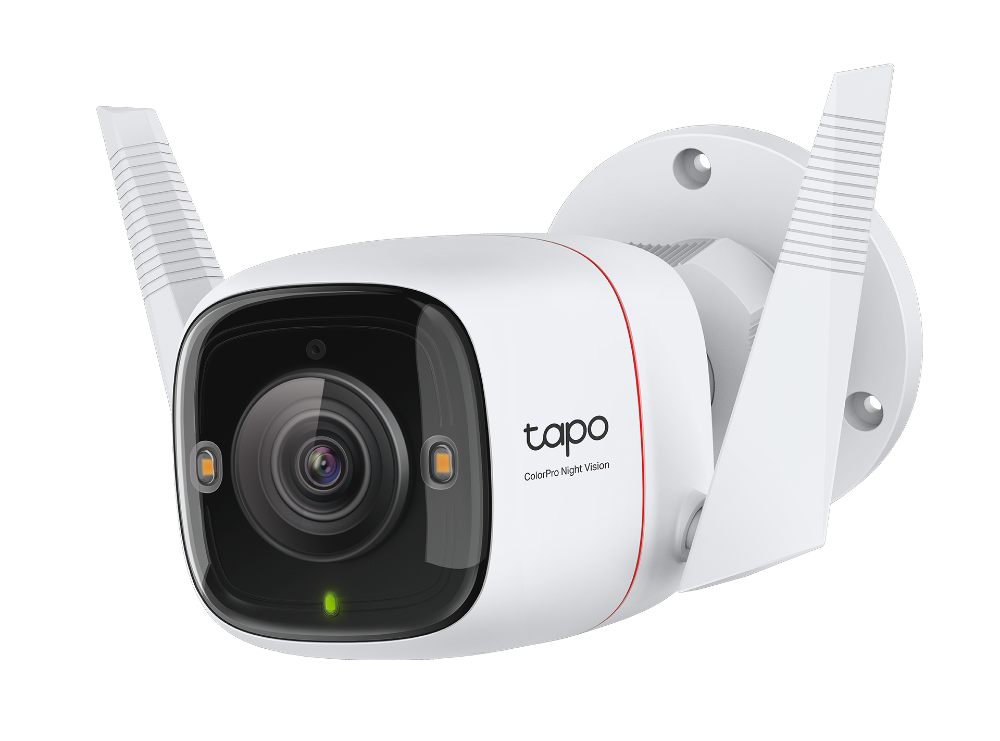

The Tapo C325WB is a 2K QHD 4MP fixed outdoor camera built around ColorPro night vision: a large 1/1.79" sensor behind an F1.0 lens that produces colour images in very low light without relying on spotlights. It connects over 2.4 GHz Wi-Fi or Ethernet, supports RTSP and ONVIF, and is rated IP66.
ColorPro Night Vision

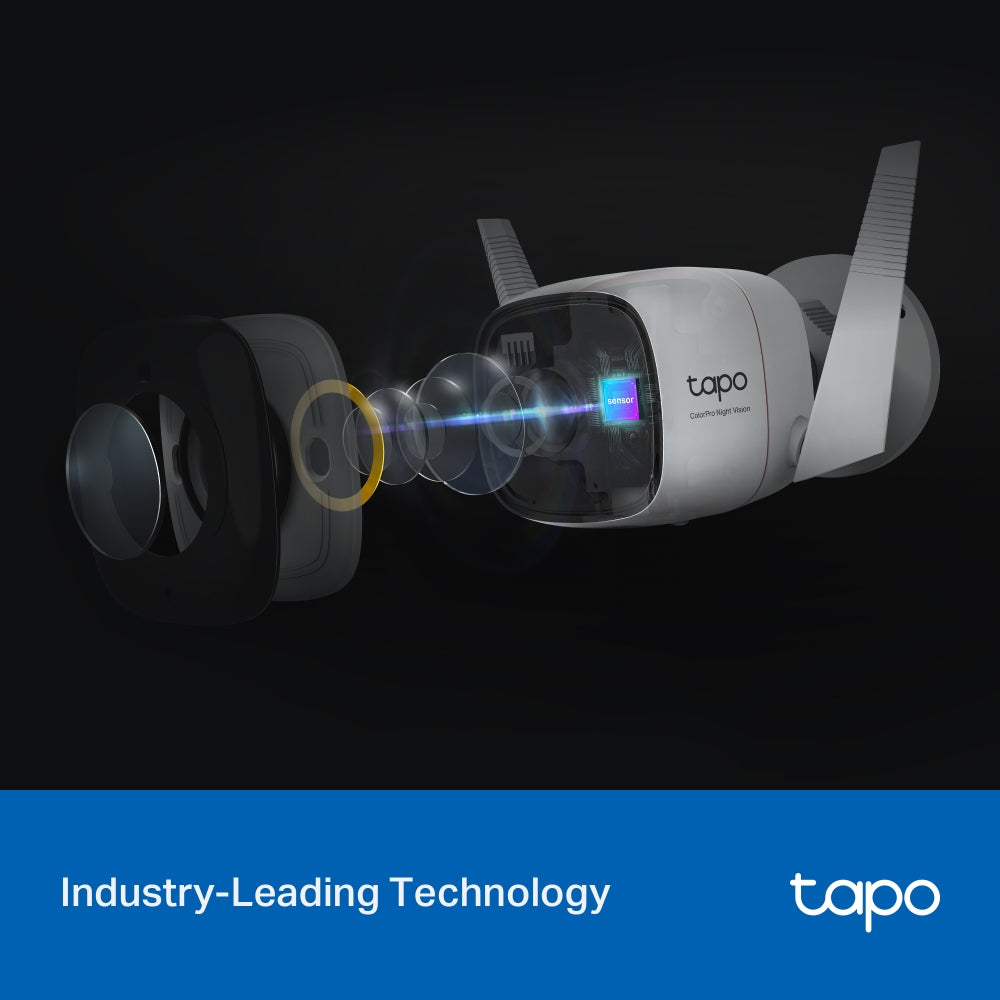

The 1/1.79" progressive-scan CMOS sensor and 4.58 mm F1.0 lens are designed to gather enough light for colour at night. TP-Link lists minimum illumination for colour at 0.0005 Lux, and 0 Lux with the two built-in spotlights switched on. HDR is available alongside 3DNR and WDR; TP-Link recommends turning HDR off for better night vision in low light.
2K QHD with a 127° View
Video is 2688 x 1520 at 20 fps in H.264, with a 127° diagonal viewing angle and 12.67x digital zoom. TP-Link recommends outdoor installation at a height of 2 m to 3 m and does not recommend the C325WB for indoor use.
AI Detection Including Line-Crossing and Tampering
Motion, person, pet and vehicle detection are joined by line-crossing and tamper detection, with activity zones. TP-Link notes animal detection currently covers cats and dogs. Push notifications are free; snapshot notifications need Tapo Care. A 97 dB siren and two-way audio with noise cancellation are built in.
Wi-Fi or Ethernet, with RTSP and ONVIF
Two external antennas serve 2.4 GHz 802.11b/g/n Wi-Fi, and a 10/100 Mbps RJ45 port gives a wired option. RTSP and ONVIF are both supported, so the camera can record to a compatible NVR as well as microSD (up to 512 GB) or Tapo Care cloud storage.
Ideal For
Singapore homes, shop frontages, back lanes and carparks where night-time colour detail matters more than pan/tilt coverage. Supplied by SourceIT with local Singapore warranty and GST invoice.
Tapo C325WB Datasheet — Technical Specifications
General
| Model | Tapo C325WB |
| Official Product Name | Outdoor Security Wi-Fi Camera |
| Brand | TP-Link |
| Warranty | 2 Years Local Warranty (Singapore) |
Camera
| Image Sensor | 1/1.79" Progressive Scan CMOS |
| Lens | F/NO: 1.0±5%; Focal Length: 4.58 mm±5% |
| Viewing Angle | 127° Diagonal |
| Night Vision | ColorPro Night Vision |
| Minimum Illumination | Color: 0.0005 Lux, 0 Lux with Spotlights |
| Lighting | 2x Built-in Spotlights |
| Interface & Button | 1x Ethernet Port, 1x RESET Button, 1x MicroSD Card Slot (Up to 512 GB) |
Video & Audio
| Resolution | 2K QHD 4MP |
| Maximum Resolution | 2688 x 1520 px |
| Frame Rate | 20 fps |
| Digital Zoom | 12.67x |
| Video Compression | H.264 |
| Live View | Yes |
| Image Enhancement | 3DNR, WDR, HDR |
| Audio Input & Output | Built-in Microphone and Speaker |
| Audio Communication | Two-Way Audio with Noise Cancellation |
| Siren Volume | 97 dB (level measured at 4-inch/10-cm distance) |
Storage
| Local Storage | MicroSD Card Slot on Camera (Up to 512 GB) |
| Cloud Storage | Tapo Care Cloud Storage Services (Subscription required) |
Detection and Notifications
| AI Detection | Motion Detection, Person Detection, Pet Detection, Vehicle Detection, Line-Crossing Detection, Tamper Detection |
| Activity Zones | Yes |
| Output Notification | System Notification; System Notification with Snapshot (Tapo Care Services) |
Network
| Network Connectivity | Connect via Wi-Fi or Ethernet |
| Wireless Connectivity | IEEE 802.11b/g/n, 2.4 GHz Wi-Fi |
| Ethernet Port | 1x 10/100 Mbps RJ45 Port on Camera |
| RTSP | Yes |
| ONVIF | Yes |
Security
| Security | On-Device Machine Learning; 128-bit AES Encryption with SSL/TLS; WPA/WPA2-PSK |
Power
| Power Source | 9 V DC Power Adapter |
| Adapter Input | 100-240 V, 50/60 Hz, 0.3 A |
| Adapter Output | 9.0 V / 0.6 A (DC Power) |
Physical and Environment
| Weather Resistance | IP66 |
| Mounting Options | Wall-Mounted |
| Operating Temperature | -20°C to 45°C (-4°F to 113°F) |
| Storage Temperature | Published as both -20°C to 70°C and -40°C to 60°C (-40°F to 140°F) |
| Operating Humidity | 10%~90% RH, Non-condensing |
| Storage Humidity | Published as both 0~90% RH and 5%~90% RH, Non-condensing |
| Dimensions (W x D x H) | Published as both 148.7 x 104 x 70.6 mm (5.85 x 4.09 x 2.78 in) and 148.7 x 137.9 x 90.4 mm (5.85 x 5.43 x 3.56 in) |
| Certifications | CE, FCC, RCM |
TP-Link's Singapore page for the Tapo C325WB lists two different dimension rows, two storage-temperature ranges and two storage-humidity ranges; all are shown as published because the page does not say which applies (the larger dimensions may include the antennas). A feature panel on the same page quotes colour capture "as low as 0.05 Lux", while the specification table gives 0.0005 Lux. No weight or power consumption is published.
Compatibility & Software Support
| App | Tapo App — iOS 9.0 or higher, Android 4.4 or higher |
| Voice Assistants | Google Assistant, Amazon Alexa |
| Cloud | Tapo Care (subscription) for cloud storage and snapshot notifications |
| NVR / Third-Party | RTSP: Yes; ONVIF: Yes |
| Local Storage | microSD card up to 512 GB (purchased separately) |
| Wi-Fi | 2.4 GHz only |
| Installation | Outdoor use at 2 m to 3 m height recommended by TP-Link; not recommended indoors |
Tapo Care subscriptions are sold by TP-Link at https://www.tapo.com/tapocare/. Animal detection currently supports cats and dogs, according to TP-Link.
Package Contents & Ordering Information
Package Contents
| In the Box | Tapo C325WB Camera, DC Power Adapter, Mounting Anchors, Mounting Screws, Mounting Template, Waterproof Seal, Waterproof Cable Attachments, Quick Start Guide |
Ordering Information
| Model | Tapo C325WB |
| SKU | Tapo C325WB |
| Warranty | 2 Years Local Warranty (Singapore) |
Datasheet & Downloads
Frequently Asked Questions — Tapo C325WB
Does it need spotlights to see colour at night?
No. TP-Link rates colour down to 0.0005 Lux without spotlights; the two built-in spotlights extend that to 0 Lux.
Can it be used indoors?
TP-Link does not recommend it for indoor use and advises mounting outdoors at 2 m to 3 m.
Does it work with an NVR?
Yes. RTSP and ONVIF are supported, and it has a 10/100 Mbps Ethernet port.
What warranty does SourceIT provide?
Two years local Singapore warranty, under TP-Link's published replacement warranty terms, with a GST invoice.
Can SourceIT quote this for an office or a project?
Yes. Send us the quantity and the site details and we will quote with local warranty, delivery and support.
