TP-Link Tapo C246D Indoor/Outdoor Dual Lens Pan/Tilt Security Camera Dual 2K 3MP IP65
PRODUCT DESCRIPTION
TP-Link Tapo Indoor/Outdoor Dual Lens Pan/Tilt Security Camera (Tapo C246D) - 2 Years Local Warranty
The Tapo C246D puts two 2K 3MP cameras in one IP65 body: a fixed wide-angle lens that keeps the whole scene in view, and a 6 mm telephoto lens on a pan/tilt head that tracks and zooms in on whatever moves. Three built-in spotlights give colour night footage, a 99 dB siren answers back, and free on-device AI sorts people, pets and vehicles from everything else.
Two 2K Lenses, Two Areas at Once

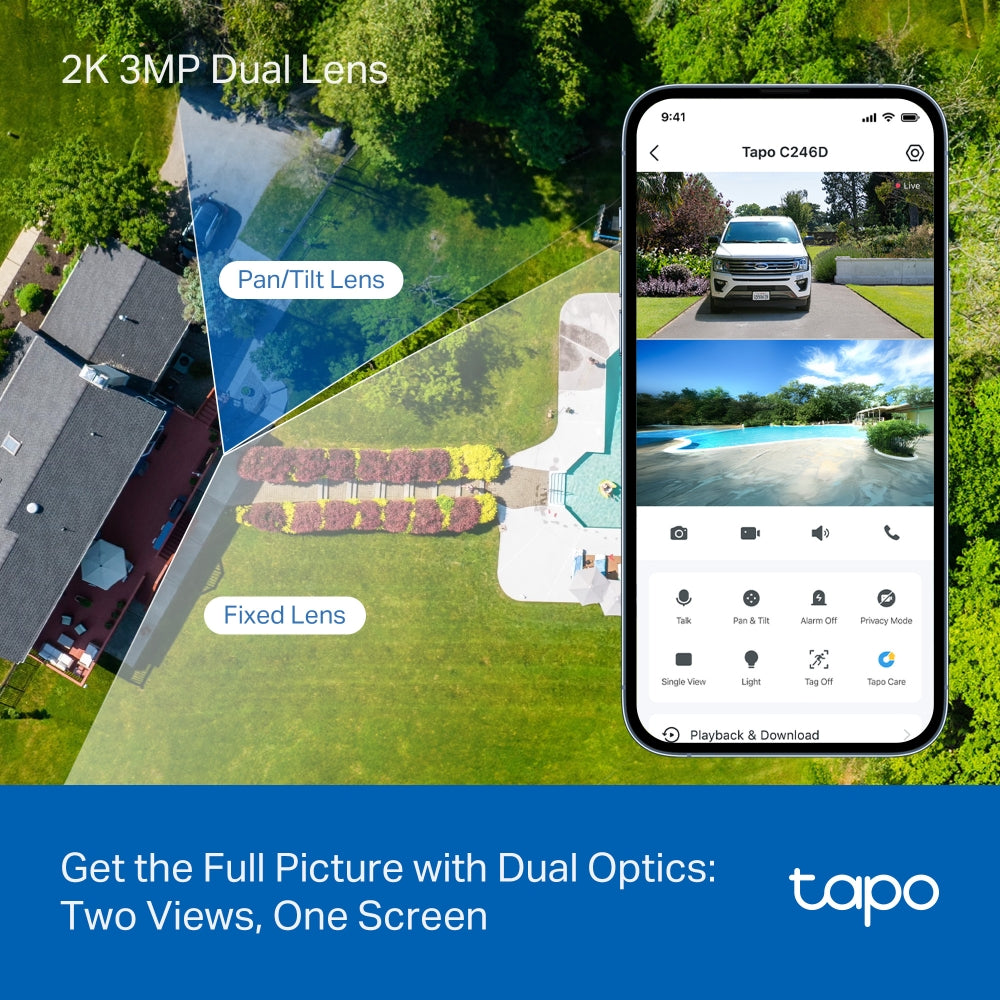

The Tapo C246D pairs a fixed 2.8 mm wide-angle lens with a 6 mm telephoto lens on a pan/tilt head, each recording 2K 3MP (2304 x 1296). The top lens holds a 125.5 degree diagonal overview of the whole scene while the lower lens moves to a second area or zooms in on detail, so a yard and a gate, or a driveway and a door, are watched together from one device.
Synchronized Smart Tracking and One-Tap Focus

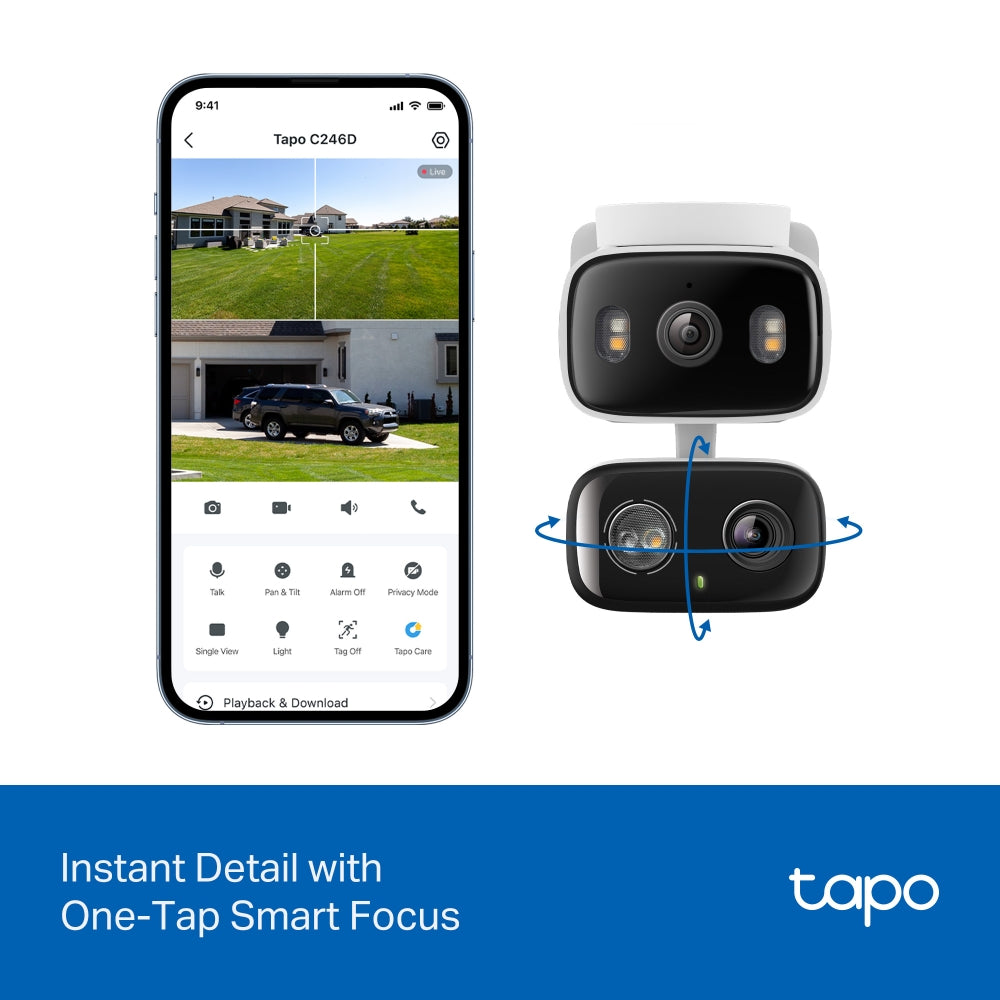

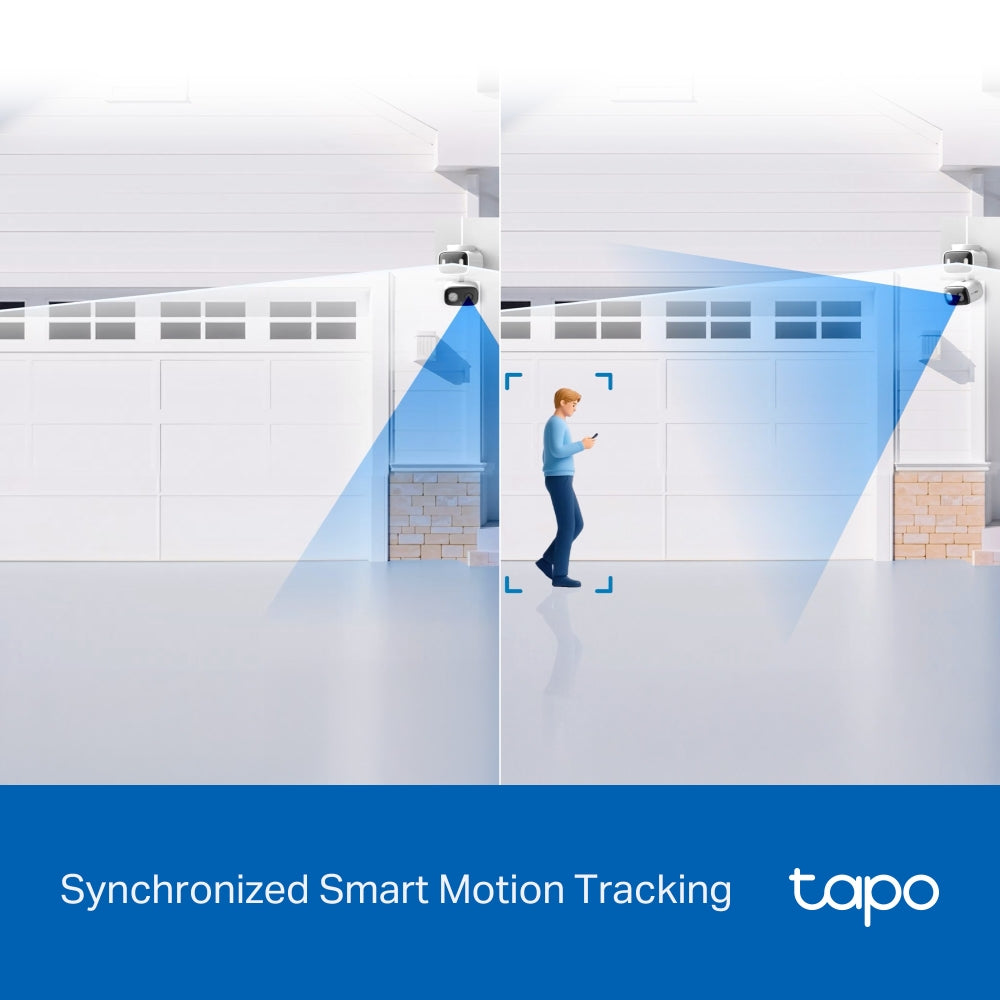

When the fixed lens detects motion, people or pets, the pan/tilt lens automatically pivots to focus on and follow the moving subject. Tap any area of the wide view in the Tapo app and the telephoto lens turns to it instantly, and Patrol Mode cycles through up to 8 preset points on your own schedule.
Colour Night Vision and a 99 dB Siren
Choose full-colour night footage with the built-in spotlights, discreet black-and-white infrared reaching 40 ft (12 m), or an automatic Smart Mode based on AI light detection. A 99 dB siren and two-way audio with noise cancellation let you respond as well as record.
Free AI Detection, Local Storage, RTSP and ONVIF

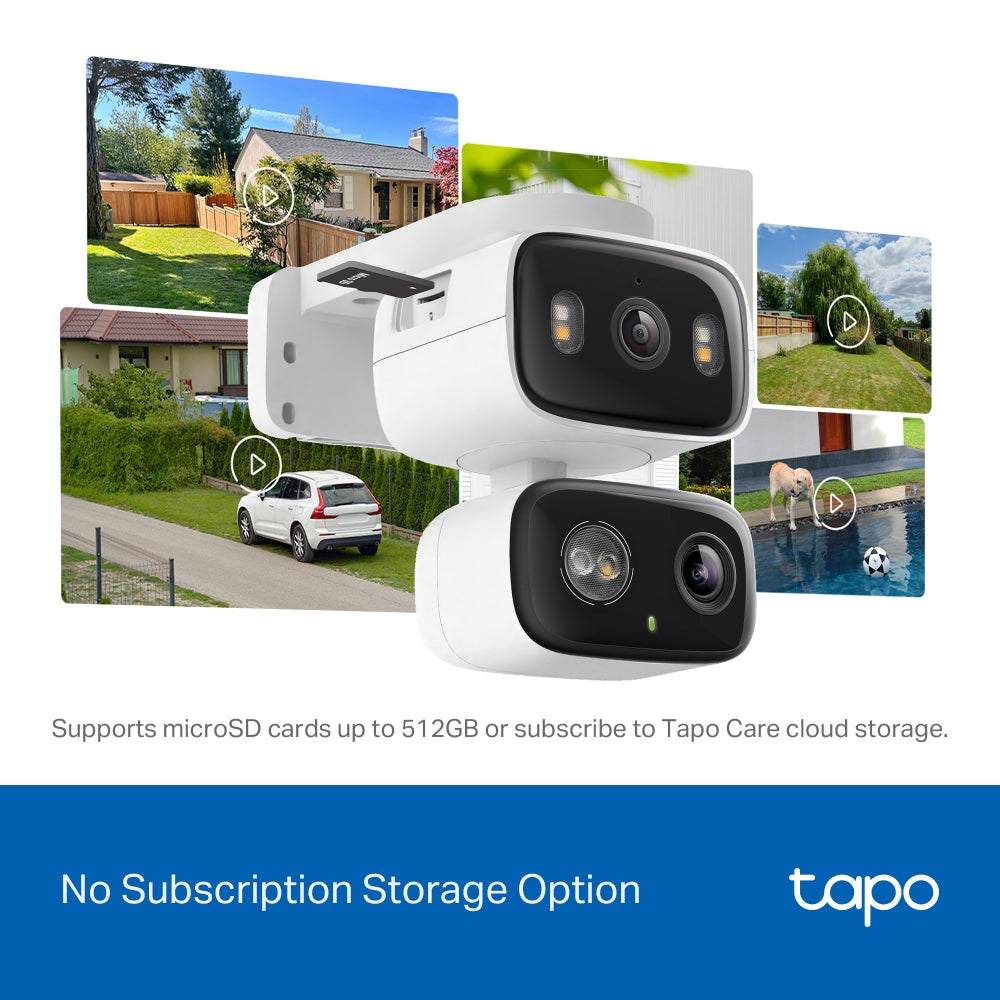

Person, pet and vehicle detection, line-crossing, baby cry, glass break, dog bark and cat meow alerts run on the device with no subscription. Footage records to a microSD card of up to 512 GB, Tapo Care cloud storage is optional, and RTSP and ONVIF let third-party software pull the stream. The IP65 housing handles rain, dust and heat.
Ideal For
Singapore landed homes, yards, ponds, farms, carparks, warehouses and shop frontages where one weatherproof camera needs to watch a wide area and zoom in on detail at the same time. Supplied by SourceIT with local Singapore warranty, GST invoice and volume pricing on request.
Tapo C246D Datasheet — Technical Specifications
General
| Model | Tapo C246D |
| Official Product Name | Indoor/Outdoor Dual Lens Pan/Tilt Security Camera |
| Brand | TP-Link Tapo |
| Warranty | 2 Years Local Warranty (Singapore) |
Camera
| Image Sensor | 1/2.8" Progressive Scan CMOS Starlight Sensor |
| Fixed (Wide-Angle) Lens | Focal Length 2.8 mm; Aperture F1.6; FOV 125.5° (Diagonal), 107.8° (Horizontal), 57.8° (Vertical) |
| Pan/Tilt (Telephoto) Lens | Focal Length 6.0 mm; Aperture F1.6; FOV 67.1° (Diagonal), 57.8° (Horizontal), 30.1° (Vertical) |
| Wide-Angle Lens Adjustment | Manual, -10° to 10° vertical and 360° horizontal at installation |
| Night Vision | 850 nm IR LED (40 ft / 12 m), Colour Night Vision |
| Day/Night Switch | IR-Cut Filter with Auto-Switching |
| Lighting | 3x built-in spotlights |
| Hub Compatibility | Tapo H500: Compatible; Tapo H200: May 2026 (as printed); hub sold separately |
| Interface & Button | 1x RESET button, 1x microSD card slot (up to 512 GB) |
Video & Audio
| Maximum Resolution | 2304 x 1296 px (2K 3MP) |
| Frame Rate | 15 fps |
| Digital Zoom | 10.8x |
| Video Compression | H.264 |
| Live View | Yes |
| Image Enhancement | 3DNR, WDR |
| Audio Input & Output | Built-in microphone and speaker |
| Audio Communication | Two-way audio with noise cancellation |
| Siren Volume | 99 dB (measured at 4 in / 10 cm) |
Detection & Notifications
| AI Detection | Motion, Person, Pet, Vehicle, Line-Crossing, Baby Cry, Glass Break, Dog Barks and Cat Meows Detection; Camera Tampering |
| Activity Zones | Yes (works with Motion, Person, Pet and Vehicle Detection) |
| Output Notification | System notification; system notification with snapshot (Tapo Care services) |
| Patrol | Patrol Mode with up to 8 preset viewing points and custom schedules |
Storage & Network
| Local Storage | microSD card slot on camera (up to 512 GB), card purchased separately |
| Cloud Storage | Tapo Care cloud storage services (subscription required) |
| Network Connectivity | Wi-Fi (no Ethernet port) |
| Wireless Connectivity | IEEE 802.11b/g/n, 2.4 GHz |
| Transmission Rate | 11b: 11 Mbps; 11g: 54 Mbps; 11n: 72.2 Mbps |
| Protocol | TCP/IP, DHCP, ICMP, DNS, NTP, HTTPS, TCP, UDP |
| RTSP / ONVIF | Yes / Yes |
| Security | On-device machine learning; 128-bit AES encryption with SSL/TLS; WPA/WPA2-PSK |
Power, Hardware & Environment
| Power Source | 5 V DC power adapter |
| Adapter Input | 100–240 V, 50/60 Hz, 0.3 A |
| Adapter Output | 5.0 V / 2.0 A (USB Type-C power) |
| Power Cord Length | 3 m |
| Power Consumption | 3.0 W typical, 9.0 W maximum |
| Dimensions (W x D x H) | 3.07 x 3.02 x 4.20 in (78 x 76.83 x 106.83 mm) |
| Weight | 277 g (9.77 oz) |

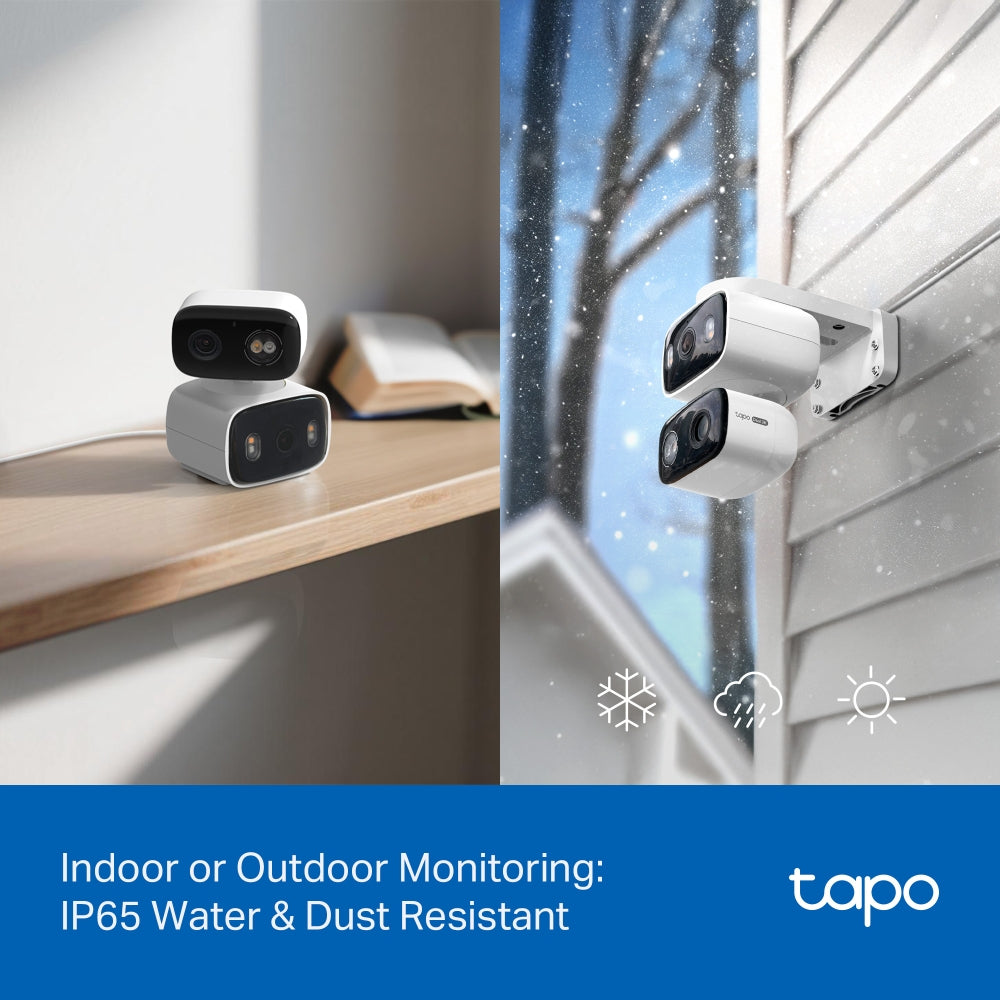

| Weather Resistance | IP65 |
| Mounting Options | Tabletop, wall-mounted, ceiling-mounted, pole-mounted |
| Operating Temperature | -20 °C to 50 °C (-4 °F to 122 °F) |
| Storage Temperature | -40 °C to 60 °C (-40 °F to 140 °F) |
| Operating Humidity | 10%–90% RH, non-condensing |
| Storage Humidity | 0%–90% RH, non-condensing |
Figures are reproduced as TP-Link publishes them. The H200 hub row is printed as "May 2026" rather than a compatibility status, and the security row is printed "PWPA/WPA2-PSK", shown here as WPA/WPA2-PSK. No pan/tilt mechanical range is published for this model, so none is claimed here. Certifications are listed by TP-Link as CE, FCC, IP65, RoHS.
Compatibility & Software Support
The Tapo C246D is set up and operated through the Tapo app, which manages every Tapo camera, doorbell, plug, bulb and sensor in one place. It is a consumer Wi-Fi device and is not part of the Omada or VIGI business ranges: it cannot be adopted into an Omada Controller and it is not managed by VIGI NVR software.
| Tapo App | Supported — setup and remote viewing from iOS and Android |
| Smart Integration | Google Assistant, Amazon Alexa, Samsung SmartThings |
| Tapo Hub | Tapo H500 compatible (sold separately) |
| Wi-Fi Requirement | 2.4 GHz network required; the camera does not join 5 GHz networks |
| Third-Party Recording | RTSP and ONVIF supported |
| Tapo Care | Optional paid cloud storage; the camera records locally to microSD without it |
| Omada / VIGI Management | Not supported — the Tapo range is separate from TP-Link's Omada and VIGI business lines |
No minimum iOS or Android version is published for this model, so none is stated here. Where you need cameras that integrate with a business NVR or with central network management, ask SourceIT about the VIGI range instead.
Package Contents & Ordering Information
Package Contents
| In the Box | Tapo C246D Camera x 1, Mounting Bracket x 1, Mounting Template Sticker x 1, Mounting Anchors x 4, Mounting Screws x 4, Power Adapter x 1, 3 m USB Adapter Cable x 1, Quick Start Guide |
| Not Included | MicroSD card; Tapo hub |
Ordering Information
| Model | Tapo C246D |
| Warranty | 2 Years Local Warranty (Singapore) |
Datasheet & Downloads
Frequently Asked Questions — Tapo C246D
How do the two lenses work together?
The top 2.8 mm wide-angle lens is fixed and shows the whole scene; the bottom 6 mm telephoto lens pans and tilts. When the wide lens detects motion, people or pets, the telephoto lens turns to track the subject, and both views appear on one screen in the Tapo app. Manual zoom-in is needed to enlarge the telephoto image during live view.
Does it record in colour at night?
Yes. Three built-in spotlights give full-colour night footage, with black-and-white infrared up to 40 ft (12 m) and an automatic Smart Mode as alternatives.
Can I pull the stream into my own recording software?
Yes. TP-Link lists RTSP and ONVIF support for the Tapo C246D.
What warranty does SourceIT provide?
Two years local Singapore warranty, serviced under TP-Link Singapore's replacement warranty policy. Every Tapo C246D sold by SourceIT comes with a GST invoice.
Can SourceIT quote this in quantity?
Yes. Send the quantity and site details and we will quote, including microSD cards and any Tapo accessories you want supplied with them.
