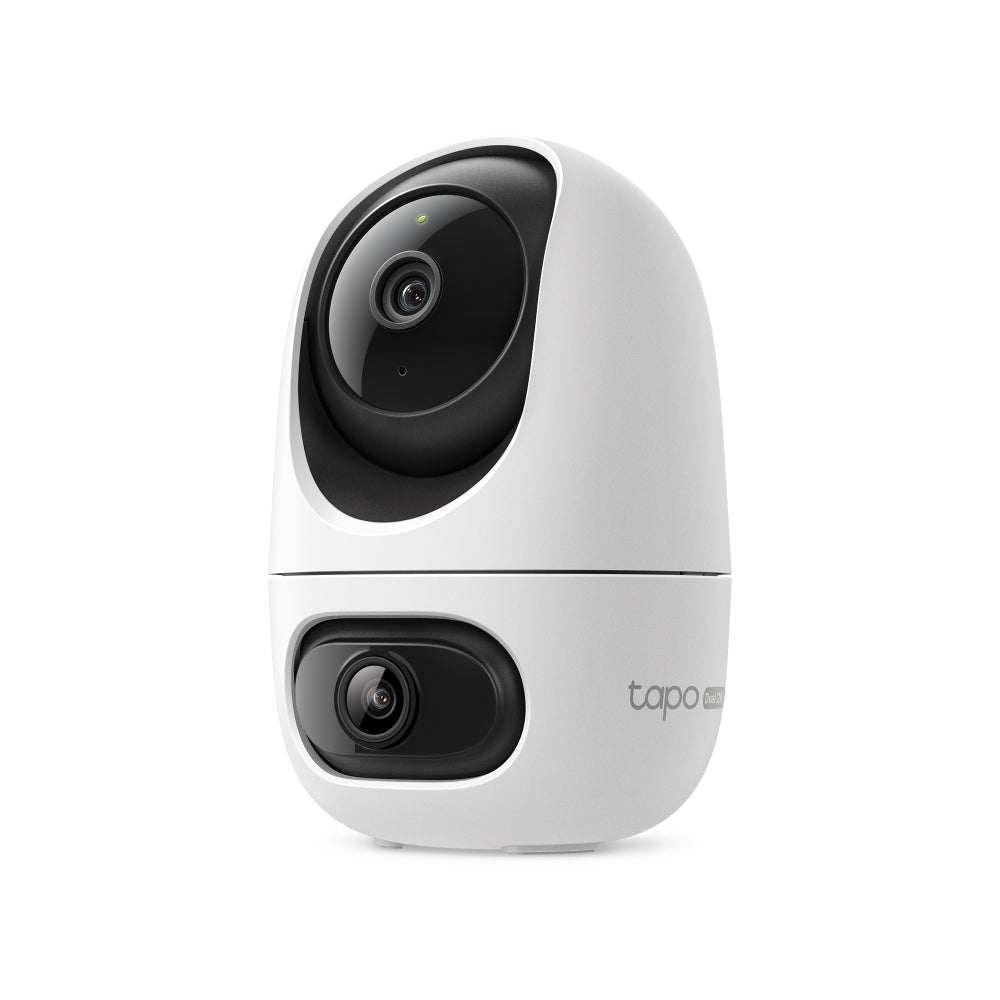

TP-Link Tapo C245D Dual Lens Pan/Tilt Security Camera Dual 2K 3MP Indoor
PRODUCT DESCRIPTION
TP-Link Tapo Dual Lens Pan/Tilt Security Camera (Tapo C245D) - 3 Years Local Warranty
The Tapo C245D gives an indoor space two 2K 3MP cameras in one unit: a 3.1 mm wide-angle lens that holds the whole room in view and a 6 mm telephoto lens on a 360 degree pan/tilt head that tracks and magnifies whatever moves. Free on-device AI recognises people, pets, vehicles and sounds such as a crying baby or breaking glass, and footage stays on a microSD card of up to 512 GB.
Wide-Angle Overview Plus a Pan/Tilt Telephoto
The fixed wide-angle lens covers 121.8 degrees diagonally while the 6 mm telephoto lens pans through 340 degrees (360 degree coverage) and tilts through 70 degrees (100 degree coverage), each recording 2304 x 1296 with up to 10.8x digital zoom. Two separate areas, such as a living room and a doorway, are monitored at the same time from a single device.
Synchronized Smart Tracking and One-Tap Focus
When the fixed lens detects an event, the pan/tilt lens automatically pivots to focus on and track the moving object. Select an area in the wide-angle view and the telephoto lens turns to it instantly, and Patrol Mode cycles through up to 8 preset viewing points on your own schedule.
Free AI Detection for People, Pets, Vehicles and Sounds
Motion, person, pet, vehicle and line-crossing detection run alongside tamper, glass-break, bark, baby-cry and meow detection, with no fee for the alerts. Activity zones narrow motion, person, pet and vehicle alerts to the parts of the room that matter.
40 ft Infrared Night Vision, Two-Way Audio and Open Standards
Six 850 nm IR LEDs give black-and-white footage up to 40 ft (12 m) in complete darkness. Two-way audio with noise cancellation lets you talk through the camera, traffic is protected with 128-bit AES encryption and WPA3-PSK support, and RTSP and ONVIF Profile S let third-party software pull the stream.
Ideal For
Singapore homes, nurseries, pet owners, shops, clinics and offices that need one indoor camera to keep a whole room in view while zooming in on a doorway, counter or cot. Supplied by SourceIT with local Singapore warranty, GST invoice and volume pricing on request.
Tapo C245D Datasheet — Technical Specifications
General
| Model | Tapo C245D |
| Official Product Name | Dual Lens Pan/Tilt Security Camera |
| Brand | TP-Link Tapo |
| Warranty | 3 Years Local Warranty (Singapore) |
Camera
| Image Sensor | 1/2.8" Progressive Scan CMOS Starlight Sensor |
| Wide-Angle Lens | Focal Length 3.1 mm; Aperture F1.6; FOV 121.8° (Diagonal), 104.3° (Horizontal), 57.9° (Vertical) |
| Telephoto Lens | Focal Length 6.0 mm; Aperture F1.6; FOV 65° (Diagonal), 56.5° (Horizontal), 30.6° (Vertical) |
| Pan / Tilt Range | Pan 340° (360° coverage); Tilt 70° (100° coverage) |
| Night Vision | Infrared night vision (40 ft / 12 m) |
| Lighting | 6x 850 nm IR LED |
| Interface & Button | 1x RESET button, 1x microSD card slot |
Video & Audio
| Maximum Resolution | Wide-angle lens: 2K 3MP (2304 x 1296 px); Telephoto lens: 2K 3MP (2304 x 1296 px) |
| Frame Rate | Up to 15 fps |
| Digital Zoom | Wide-angle lens: 10.8x; Telephoto lens: 10.8x |
| Image Enhancement | WDR |
| Audio Input & Output | Built-in microphone and speaker |
| Audio Communication | Two-way audio with noise cancellation |
| Siren Volume | 69 dB (measured at 40 in / 100 cm) |
Detection & Notifications
| AI Detection | Motion, Person, Pet, Vehicle and Line-Crossing Detection; Tamper, Glass, Bark, Baby Crying and Meow Detection |
| Activity Zones | Yes (works with Motion, Person, Pet and Vehicle Detection only) |
| Output Notification | App notifications of camera events; app notification of AI detection events with snapshot (subscription required) |
| Patrol | Patrol Mode with up to 8 preset viewing points and custom schedules |
Storage & Network
| Local Storage | microSD card slot on camera (up to 512 GB), card purchased separately |
| Cloud Storage | Tapo Care cloud storage services (subscription required) |
| Network Connectivity | Wi-Fi (no Ethernet port) |
| Wireless Connectivity | IEEE 802.11b/g/n, 2.4 GHz |
| RTSP / ONVIF | Yes / Yes (Profile S) |
| Security | 128-bit AES encryption with SSL/TLS; WPA/WPA2-PSK/WPA3-PSK |
Power, Hardware & Environment
| Power Source | 9 V DC power adapter |
| Power Input | 9.0 V, 0.85 A, DC jack |
| Cable Length | 3 m |
| Dimensions (W x D x H) | 82.2 x 82.2 x 126.2 mm |

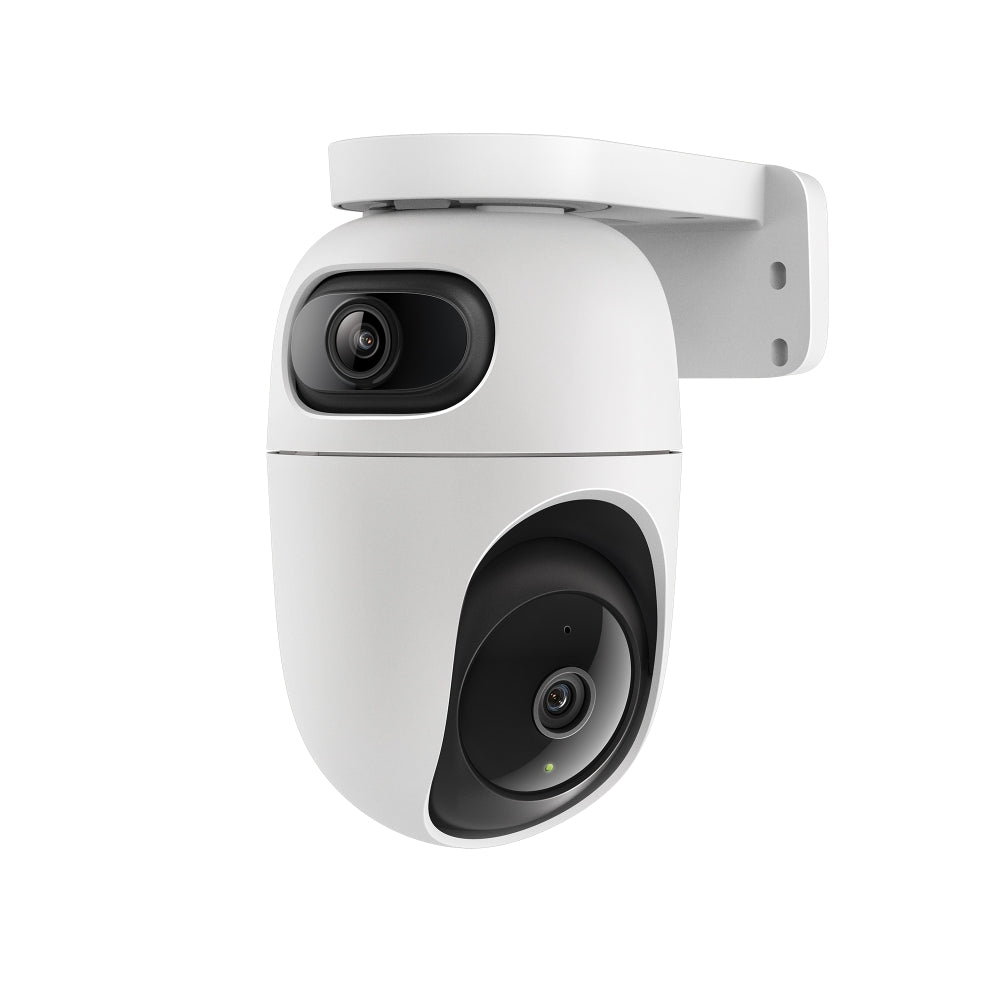

| Mounting Options | Ceiling-mounted, wall-mounted |
| Operating Temperature | 0 °C to 40 °C (32 °F to 104 °F) |
| Storage Temperature | -20 °C to 60 °C (-4 °F to 140 °F) |
| Operating Humidity | 10%–90% RH, non-condensing |
| Storage Humidity | 0%–90% RH, non-condensing |
| Certifications | CE, JRF, RCM, NCC, IC, BSMI, KC, VCCI, NTRA, ONVIF |
TP-Link publishes no weather-resistance rating for this model (the row reads "/") and describes it for indoor settings, although one smart-assistant line on the same page calls it an indoor/outdoor camera; treat it as an indoor camera. The mounting row lists ceiling and wall only while the installation text also mentions placing it on a desk. Night vision is infrared black and white only; no spotlights are published. No net weight or power consumption is published, so none is claimed here.
Compatibility & Software Support
The Tapo C245D is set up and operated through the Tapo app, which manages every Tapo camera, doorbell, plug, bulb and sensor in one place. It is a consumer Wi-Fi device and is not part of the Omada or VIGI business ranges: it cannot be adopted into an Omada Controller and it is not managed by VIGI NVR software.
| Tapo App | Supported — setup and remote viewing from iOS and Android |
| System Requirements | Tapo app: iOS 12.0 or higher, Android 7.0 or higher |
| Smart Integration | Google Assistant, Amazon Alexa, Samsung SmartThings |
| Wi-Fi Requirement | 2.4 GHz network required; the camera does not join 5 GHz networks |
| Third-Party Recording | RTSP and ONVIF (Profile S) supported |
| Tapo Care | Optional paid cloud storage; the camera records locally to microSD without it |
| Omada / VIGI Management | Not supported — the Tapo range is separate from TP-Link's Omada and VIGI business lines |
Where you need cameras that integrate with a business NVR or with central network management, ask SourceIT about the VIGI range instead.
Package Contents & Ordering Information
Package Contents
| In the Box | Camera x 1, DC Power Adapter x 1, Mounting Template x 1, Mounting Bracket x 1, Screws and Anchors x 4, Quick Start Guide |
| Not Included | MicroSD card |
Ordering Information
| Model | Tapo C245D |
| Warranty | 3 Years Local Warranty (Singapore) |
Datasheet & Downloads
Frequently Asked Questions — Tapo C245D
Is the C245D an outdoor camera?
No. TP-Link publishes no weather-resistance rating for it and an operating range of 0 °C to 40 °C, and describes it for indoor settings. For outdoor dual-lens coverage, ask SourceIT about the IP65-rated Tapo C246D.
Does it record in colour at night?
No. Night vision uses six 850 nm infrared LEDs and gives clear black-and-white footage up to 40 ft (12 m).
Can I pull the stream into my own recording software?
Yes. TP-Link lists RTSP and ONVIF Profile S support for the Tapo C245D.
What warranty does SourceIT provide?
Three years local Singapore warranty, serviced under TP-Link Singapore's replacement warranty policy. Every Tapo C245D sold by SourceIT comes with a GST invoice.
Can SourceIT quote this in quantity?
Yes. Send the quantity and site details and we will quote, including microSD cards and any Tapo accessories you want supplied with them.
