TP-Link Tapo C232 Pan/Tilt AI Home Security Wi-Fi Camera 3K 5MP Ethernet
PRODUCT DESCRIPTION
TP-Link Tapo Pan/Tilt AI Home Security Wi-Fi Camera (Tapo C232) - 3 Years Local Warranty

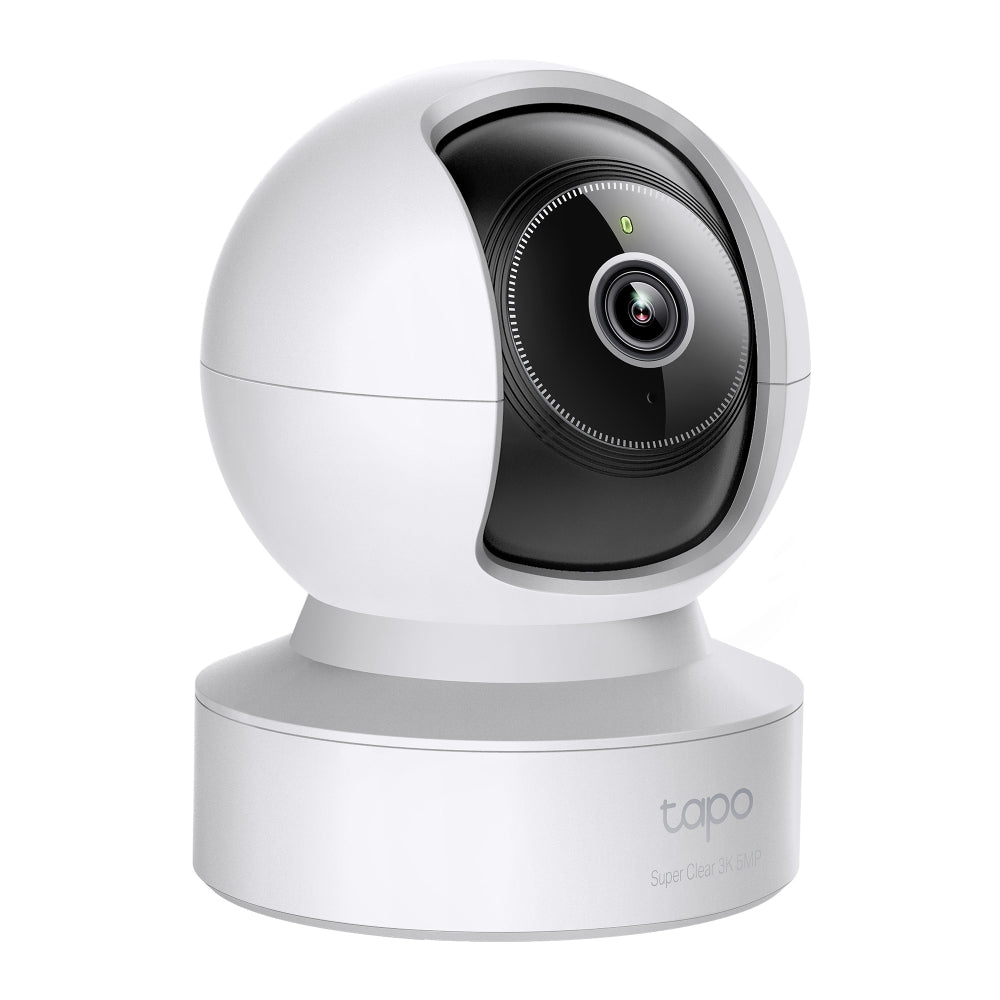

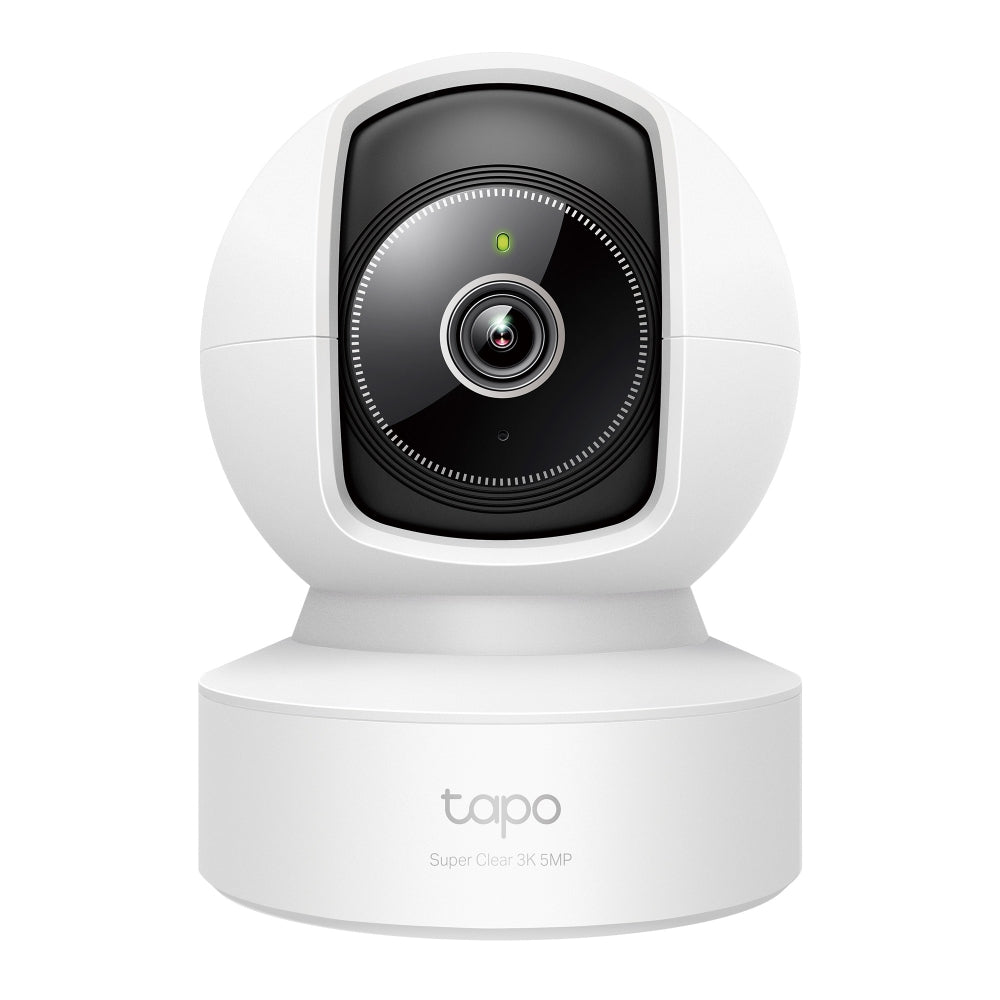

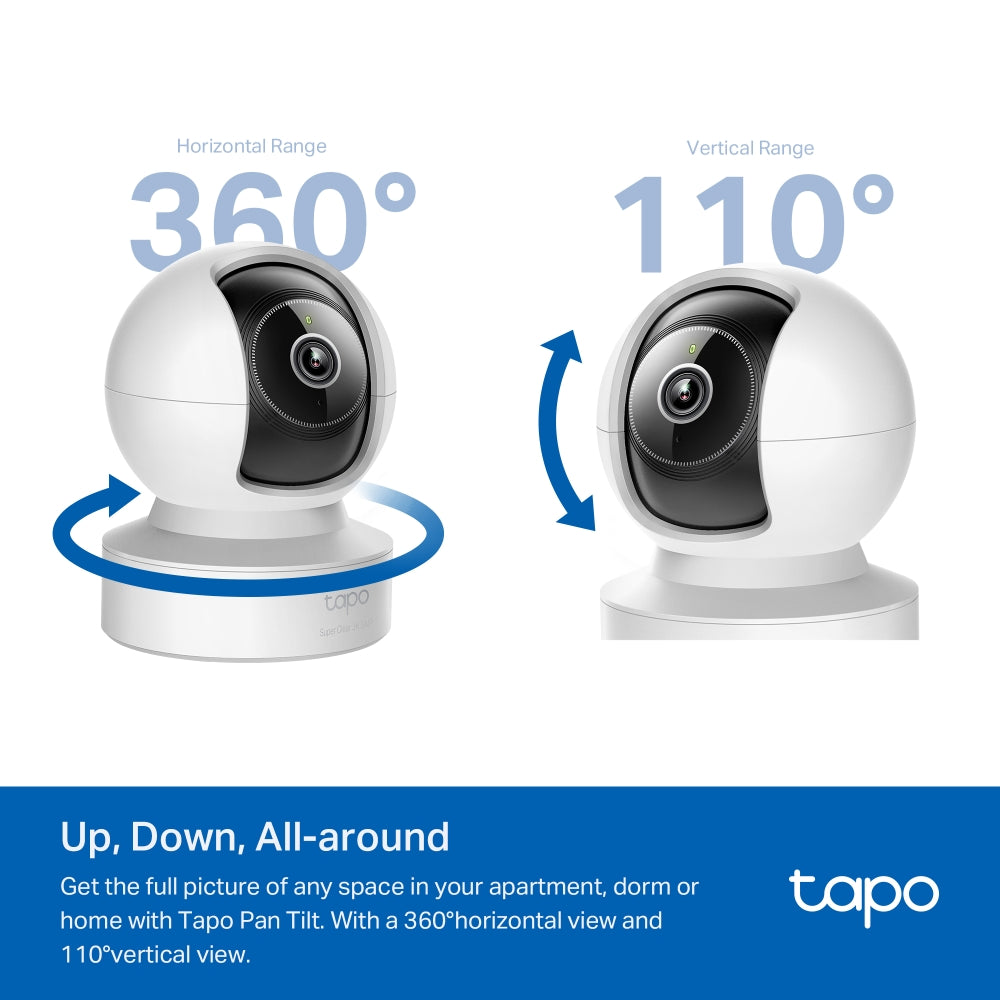

The Tapo C232 is an indoor pan/tilt camera that records in 3K 5MP and gives you the choice of Wi-Fi or a wired Ethernet connection. The head turns through 360 degrees of pan coverage and 110 degrees of tilt coverage, so a single unit on a shelf or ceiling can watch a whole living room, shop floor or office instead of one fixed angle.
3K 5MP Detail on a 1/2.7 Inch Sensor
Video is captured at up to 2880 x 1620 on a 1/2.7 inch progressive scan CMOS sensor behind a 4 mm F2.2 lens with a 90 degree diagonal field of view. Frame rate is selectable at 15, 20, 25 or 30 fps, and 3D DNR and BLC help with noise and backlit scenes. 850 nm infrared night vision reaches up to 40 ft (12 m).
Wi-Fi or Ethernet, Your Choice
Unlike many home cameras, the C232 has a 10/100 Mbps RJ45 port on the camera as well as 2.4 GHz Wi-Fi. Run a cable where the signal is weak or where you simply want a steadier link, and use Wi-Fi everywhere else. RTSP and ONVIF are both supported for pulling the stream into third-party recording software.
Smart AI Detection With a 99 dB Siren
On-device detection covers motion, people, line crossing, tampering, vehicles, pets, baby crying, cat meowing, dog barking and glass breaking, with customisable activity zones. When something needs a response, a 99 dB siren and two-way audio with noise cancellation let you deter or speak to whoever is there.
Local microSD Recording, Optional Cloud
Footage records to a microSD card of up to 512 GB with no compulsory subscription; Tapo Care cloud storage is available as an optional paid extra. The camera also works with Google Assistant and Amazon Alexa.
Ideal For
Singapore homes, small shops, clinics, offices and reception areas that want sharp 3K pan/tilt coverage indoors, with the option of a wired connection where Wi-Fi is unreliable. Supplied by SourceIT with local Singapore warranty, GST invoice and volume pricing on request.
Tapo C232 Datasheet — Technical Specifications
General
| Model | Tapo C232 |
| Official Product Name | Pan/Tilt AI Home Security Wi-Fi Camera |
| Brand | TP-Link Tapo |
| Warranty | 3 Years Local Warranty (Singapore) |
Camera
| Image Sensor | 1/2.7" progressive scan CMOS sensor |
| Lens | Focal length 4 mm; aperture F2.2; field of view 90° (diagonal), 76.2° (horizontal), 41.8° (vertical) |
| Night Vision | 850 nm IR LED (40 ft / 12 m) |
| Pan / Tilt Range | Pan mechanical range 340° (360° pan coverage); tilt mechanical range 69° (110° tilt coverage) |
| Interface & Button | 1x Ethernet port, 1x RESET button, 1x microSD card slot (up to 512 GB) |
Video & Audio
| Maximum Resolution | 3K 5MP (2880 x 1620 px) |
| Frame Rate | 15/20/25/30 fps (default 15 fps) |
| Video Compression | H.264 |
| Image Enhancement | 3D DNR, BLC |
| Audio Input & Output | Built-in microphone and speaker |
| Audio Communication | Two-way audio with noise cancellation |
| Siren Volume | 99 dB (measured at 4 in / 10 cm) |
Detection & Notifications
| AI Detection | Motion, person, line-crossing, tamper, baby cry, vehicle, pet, meow, bark and glass-breaking detection |
| Activity Zones | Yes |
| Notifications | System notification; system notification with snapshot (Tapo Care services) |
Storage & Network
| Local Storage | MicroSD card slot (up to 512 GB), card purchased separately |
| Cloud Storage | Tapo Care cloud storage services (subscription required) |
| Network Connectivity | Connect via Wi-Fi or Ethernet cable |
| Ethernet Port | 1x 10/100 Mbps RJ45 port on camera |
| Wireless Connectivity | IEEE 802.11b/g/n, 2.4 GHz Wi-Fi |
| RTSP / ONVIF | Yes / Yes |
| Security | On-device machine learning; 128-bit AES encryption with SSL/TLS; WPA/WPA2-PSK |
Power, Hardware & Environment
| Power Source | 9 V DC power adapter |
| Adapter Input | 100-240 V, 50/60 Hz |
| Adapter Output | 9 V, 0.6 A (DC power) |
| Smart Integration | Google Assistant, Amazon Alexa |
| Mounting Options | Tabletop, ceiling-mounted |
| Dimensions | 3.23 x 3.23 x 4.43 in (82.05 x 82 x 112.6 mm) |
| Operating Temperature | 0 °C to 40 °C |
| Storage Temperature | -40 °C to 70 °C |
| Operating Humidity | 10%-90% RH, non-condensing |
| Storage Humidity | 5%-90% RH |
| Certifications | CE, NCC, BSMI |
Figures are reproduced as TP-Link publishes them. The certification row is printed as CE, NCC and BSMI. No net weight, power consumption or weather rating is published for this model, so none is claimed here.
Compatibility & Software Support
The Tapo C232 is set up and operated through the Tapo app, which manages every Tapo camera, plug, bulb and sensor in one place. It is a consumer Wi-Fi camera and is not part of the Omada or VIGI business ranges: it cannot be adopted into an Omada Controller and it is not managed as an Omada or VIGI device.
| Tapo App | Supported — setup and remote viewing from iOS and Android |
| Smart Integration | Google Assistant, Amazon Alexa |
| Wi-Fi Requirement | 2.4 GHz network required; the camera does not join 5 GHz networks. A 10/100 Mbps Ethernet port is also provided for a wired connection |
| Third-Party Recording | RTSP and ONVIF supported |
| Tapo Care | Optional paid cloud storage; the camera records locally to microSD without it |
| Omada / VIGI Management | Not supported — the Tapo range is separate from TP-Link's Omada and VIGI business lines |
Where you need cameras that integrate with a business NVR or with central network management, ask SourceIT about the VIGI range instead.
Package Contents & Ordering Information
Package Contents
| In the Box | Tapo C232 Camera, Power Adapter, Quick Start Guide, Mounting Screws, Mounting Anchors, Mounting Template, Camera Base |
| Not Included | MicroSD card |
TP-Link prints a second, shorter package list for this model that names a Mounting Plate in place of the anchors and template; the list above is the one in the specification table.
Ordering Information
| Model | Tapo C232 |
| Warranty | 3 Years Local Warranty (Singapore) |
Datasheet & Downloads
Frequently Asked Questions — Tapo C232
How is the C232 different from the C230?
Both record 3K 5MP (2880 x 1620) and pan and tilt. The C232 adds a 10/100 Mbps Ethernet port for a wired connection and uses a 1/2.7 inch sensor with an F2.2 lens and a 90 degree diagonal view; the C230 is Wi-Fi only with a 1/3 inch Starlight sensor, an F2.0 lens and an 88 degree diagonal view.
Can I connect it with a network cable?
Yes. The camera has a 10/100 Mbps RJ45 port, so it can run on Ethernet instead of 2.4 GHz Wi-Fi.
Can I pull the stream into my own recording software?
Yes. TP-Link publishes RTSP and ONVIF support for this model, so it is not locked to the Tapo app.
What warranty does SourceIT provide?
Three years local Singapore warranty. Every Tapo C232 sold by SourceIT comes with a GST invoice.
Can SourceIT quote this in quantity?
Yes. Send the quantity and site details and we will quote, including microSD cards and any Tapo accessories you want supplied with them.
