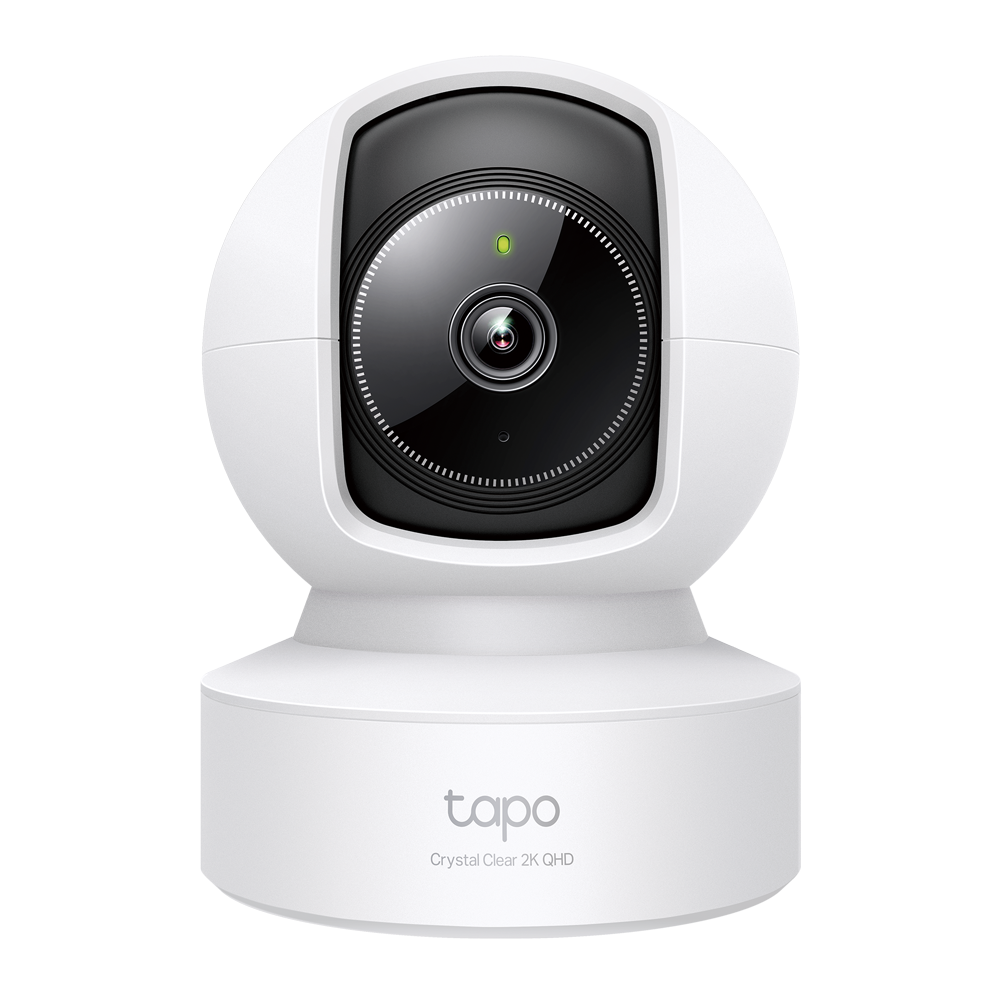

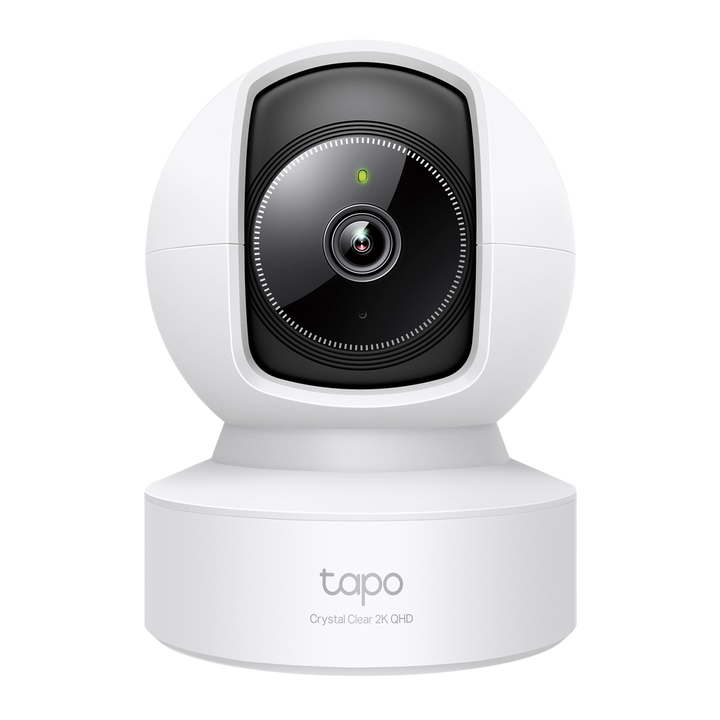

TP-Link Tapo C222 Pan/Tilt AI Home Security Wi-Fi Camera 2K QHD 4MP Wi-Fi/Ethernet
PRODUCT DESCRIPTION
TP-Link Tapo Pan/Tilt AI Home Security Wi-Fi Camera (Tapo C222) - 3 Years Local Warranty
The Tapo C222 is an indoor pan/tilt camera that records sharp 2K QHD 4MP video and turns to keep whatever moves in view. It covers 360 degrees horizontally and 110 degrees vertically, adds smart AI detection for people, pets and a crying baby, and connects over 2.4 GHz Wi-Fi or a wired 10/100 Mbps Ethernet port for a steadier link.

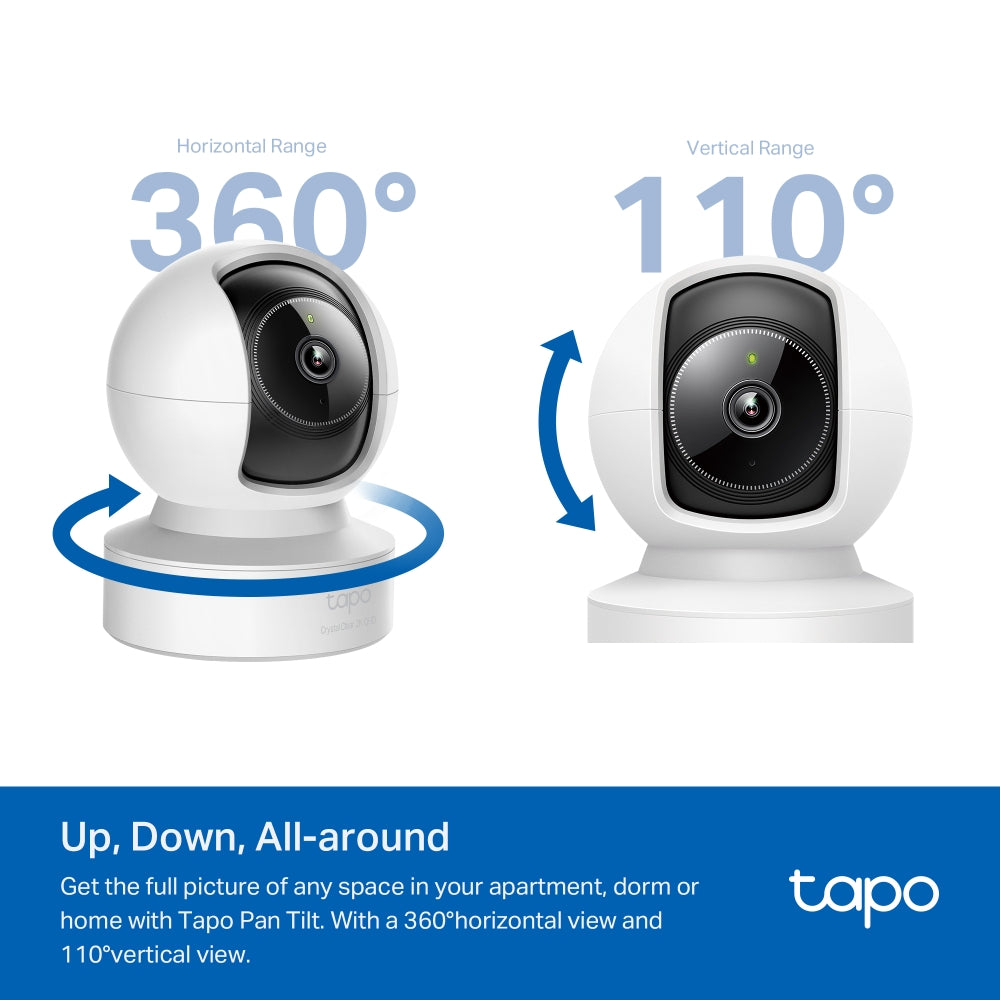

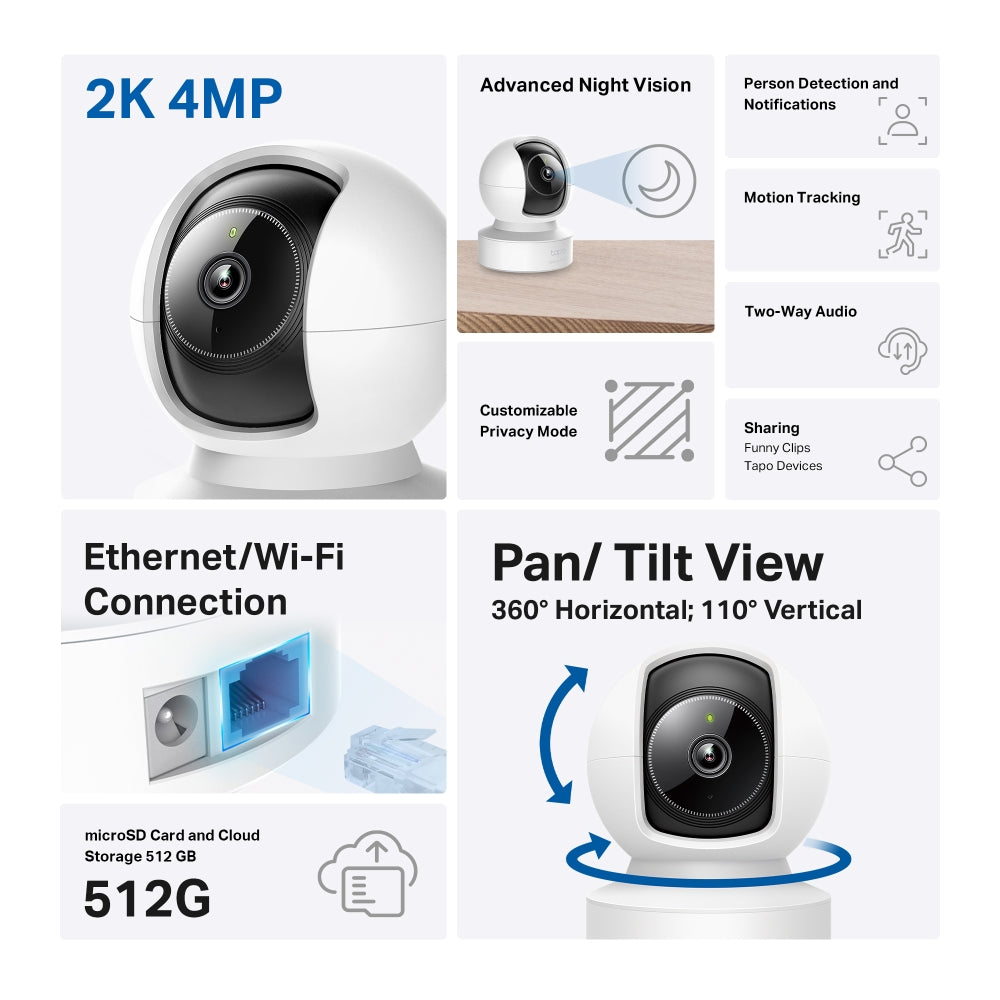

2K QHD 4MP With 360° Pan and 110° Tilt Coverage
Video is captured at 2560 x 1440 on a 1/3 inch progressive scan CMOS sensor, with selectable frame rates of 15, 20, 25 or 30 fps. The motorised head gives 360 degrees of horizontal and 110 degrees of vertical coverage, and Precise Motion Tracking automatically follows a moving subject so it stays in frame.
Smart AI Detection and Instant Alerts
On-device detection recognises motion, people, pets and a crying baby, and also flags line crossing and camera tampering. Vehicle, glass-breaking, dog-bark and cat-meow detection are offered as beta functions. Activity zones limit alerts to the areas you care about, and a 99 dB siren can be sounded to deter unwanted visitors.
Night Vision, Two-Way Audio and Privacy Zones
850 nm infrared night vision sees up to 40 ft (12 m) in the dark. A built-in microphone and speaker give two-way audio with noise cancellation, and customisable privacy zones block off areas of the frame you do not want recorded.
Wi-Fi or Ethernet, Local or Cloud Storage
Connect over 2.4 GHz Wi-Fi or plug into the 10/100 Mbps Ethernet port. Footage records to a microSD card of up to 512 GB, with Tapo Care cloud storage as an optional subscription, and RTSP and ONVIF support lets you bring the stream into third-party recording software. Voice control works with Google Assistant and Amazon Alexa.
Ideal For
Singapore homes, HDB flats, nurseries, pet corners, small shops and offices that want one indoor camera to watch a whole room, with the option of a wired Ethernet connection where Wi-Fi is patchy. Supplied by SourceIT with local Singapore warranty, GST invoice and volume pricing on request.
Tapo C222 Datasheet — Technical Specifications
General
| Model | Tapo C222 |
| Official Product Name | Pan/Tilt AI Home Security Wi-Fi Camera |
| Brand | TP-Link Tapo |
| Warranty | 3 Years Local Warranty (Singapore) |
Camera
| Image Sensor | 1/3" Progressive Scan CMOS (not Starlight) |
| Lens | Focal Length 4 mm; Aperture F2.2 |
| Field of View | 90° (Diagonal), 76.2° (Horizontal), 41.8° (Vertical) |
| Night Vision | 850 nm IR LED (40 ft / 12 m) |
| Pan / Tilt Range | Pan mechanical range 340° (360° pan coverage); tilt mechanical range 69° (110° tilt coverage) |
| Interface & Button | 1x Ethernet port, 1x RESET button, 1x microSD card slot (up to 512 GB) |
Video & Audio
| Maximum Resolution | 2K QHD 4MP (2560 x 1440 px) |
| Frame Rate | 15/20/25/30 fps (default 15 fps) |
| Video Compression | H.264 |
| Live View | Yes |
| Image Enhancement | 3D DNR, BLC |
| Audio Input & Output | Built-in microphone and speaker |
| Audio Communication | Two-way audio with noise cancellation |
| Siren Volume | 99 dB (measured at 10 cm / 4 in) |
Detection & Notifications
| AI Detection | Motion Detection, Person Detection, Line-Crossing Detection, Tamper Detection, Baby Crying Detection, Pet Detection |
| Beta Detection Functions | Vehicle Detection, Glass-Breaking Detection, Dog Bark Detection, Cat Meow Detection |
| Activity Zones | Yes |
| Privacy Zones | Yes — customisable block zones |
| Motion Tracking | Yes — automatically follows a moving subject |
| Output Notification | System notification; system notification with snapshot (Tapo Care services) |
Storage & Network
| Local Storage | microSD card slot on camera (up to 512 GB), card purchased separately |
| Cloud Storage | Tapo Care cloud storage services (subscription required) |
| Network Connectivity | Wi-Fi or Ethernet cable |
| Wireless Connectivity | IEEE 802.11b/g/n, 2.4 GHz |
| Ethernet Port | 1x 10/100 Mbps RJ45 port on camera |
| RTSP / ONVIF | Yes / Yes |
| Security | On-device machine learning; 128-bit AES encryption with SSL/TLS; WPA/WPA2-PSK |
Power, Hardware & Environment
| Power Source | 9 V DC power adapter |
| Adapter Input | 100–240 V, 50/60 Hz |
| Adapter Output | 9 V / 0.6 A (DC power) |
| Dimensions (W x D x H) | 3.23 x 3.23 x 4.43 in (82.05 x 82 x 112.6 mm) |
| Mounting Options | Tabletop, ceiling-mounted |
| Operating Temperature | 0 °C to 40 °C |
| Storage Temperature | -40 °C to 70 °C |
| Operating Humidity | 10%–90% RH, non-condensing |
| Storage Humidity | 5%–90% RH |
| Certifications | CE, NCC, BSMI |
TP-Link does not publish a weight, power consumption, power cord length, Wi-Fi transmission rates or a weather-resistance rating for this model, so none are listed. The specification table gives the mechanical pan/tilt range as 340° / 69°, while the feature description quotes 360° / 110° coverage; both are shown as published. The listed certifications (CE, NCC, BSMI) are as printed by TP-Link.
Compatibility & Software Support
The Tapo C222 is set up and operated through the Tapo app, which manages every Tapo camera, doorbell, plug, bulb and sensor in one place. It is a consumer Wi-Fi device and is not part of the Omada or VIGI business ranges: it cannot be adopted into an Omada Controller and it is not managed by VIGI NVR software.
| Tapo App | Supported — setup and remote viewing from iOS and Android |
| Smart Integration | Google Assistant, Amazon Alexa |
| Wi-Fi Requirement | 2.4 GHz network required; the camera does not join 5 GHz networks |
| Wired Option | 10/100 Mbps Ethernet port for a cabled connection |
| Third-Party Recording | RTSP and ONVIF supported |
| Tapo Care | Optional paid cloud storage; the camera records locally to microSD without it |
| Omada / VIGI Management | Not supported — the Tapo range is separate from TP-Link's Omada and VIGI business lines |
No minimum iOS or Android version is published for this model, so none is stated here. Availability of Google Assistant and Amazon Alexa may vary by language and country. Where you need cameras that integrate with a business NVR or with central network management, ask SourceIT about the VIGI range instead.
Package Contents & Ordering Information
Package Contents
| In the Box | Tapo C222 Camera x 1, Camera Base x 1, Power Adapter x 1, Mounting Screws, Mounting Anchors, Mounting Template, Quick Start Guide |
| Not Included | MicroSD card |
TP-Link prints two package lists for this model; the second names a mounting plate instead of mounting anchors and a mounting template. The list above follows the main specification table.
Ordering Information
| Model | Tapo C222 |
| Warranty | 3 Years Local Warranty (Singapore) |
Datasheet & Downloads
Frequently Asked Questions — Tapo C222
Can the C222 be used outdoors?
No. TP-Link does not give it a weather-resistance rating and lists tabletop and ceiling mounting for indoor use. For outdoor coverage, ask SourceIT about the Tapo outdoor pan/tilt cameras.
Can I connect it with a cable instead of Wi-Fi?
Yes. It has a 10/100 Mbps Ethernet port, so you can run it on a wired connection, or use 2.4 GHz Wi-Fi where cabling is not practical.
Can I pull the stream into my own recording software?
Yes. TP-Link lists RTSP and ONVIF support for the Tapo C222, so it is not locked to the Tapo app.
What warranty does SourceIT provide?
Three years local Singapore warranty, serviced under TP-Link Singapore's replacement warranty policy. Every Tapo C222 sold by SourceIT comes with a GST invoice.
Can SourceIT quote this in quantity?
Yes. Send the quantity and site details and we will quote, including microSD cards and any Tapo accessories you want supplied with them.
