TP-Link TL-PA7017 KIT AV1000 Gigabit Powerline Starter Kit

TP-Link AV1000 Gigabit Powerline Starter Kit (TL-PA7017 KIT) - 3 Years Local Warranty

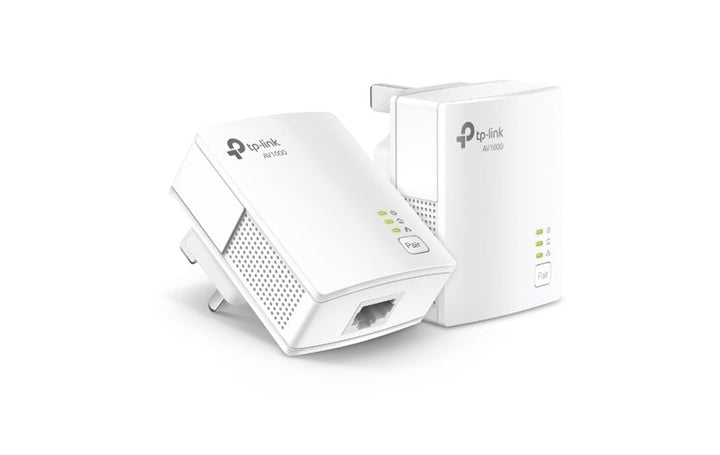

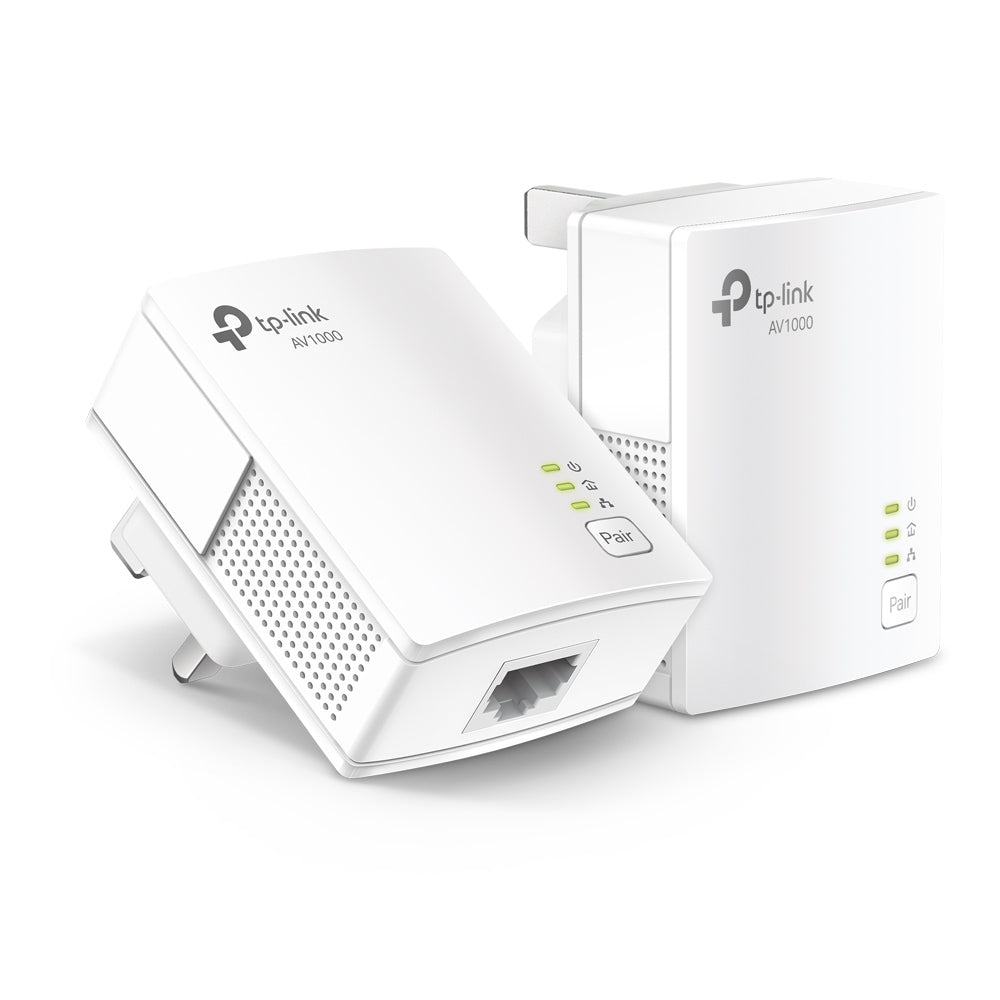

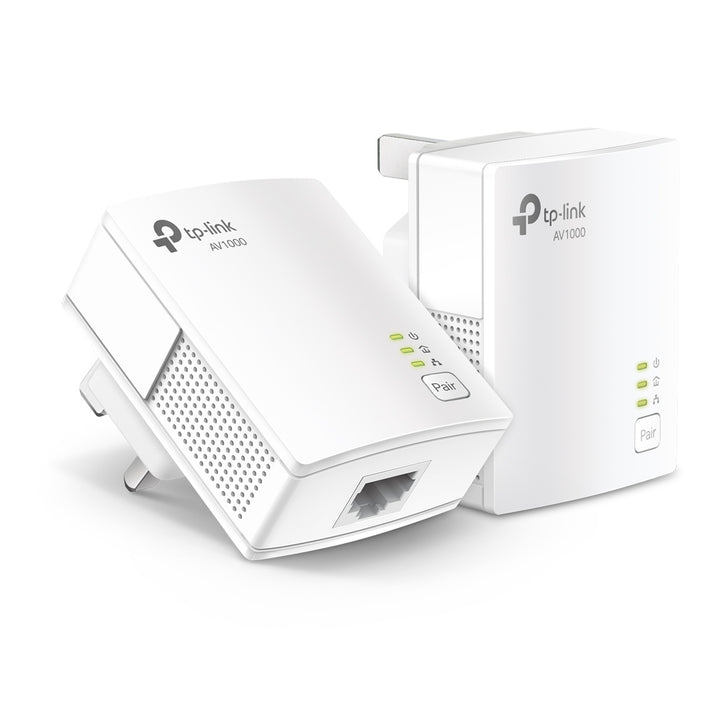

The TL-PA7017 KIT is TP-Link's compact non-passthrough AV1000 powerline pair: a Gigabit Ethernet port on a small wall-plug body, HomePlug AV2 underneath, and a Pair button instead of a setup screen. It is the straightforward way to get a wired link into a room the router's Wi-Fi does not serve properly, without running new cable.

AV1000 Class Powerline on HomePlug AV2

TP-Link's feature copy for this model gives data transfer rates of up to 1000 Mbps; the specification table itself carries no transmission-speed row, so that figure is quoted here as marketing copy rather than a published specification. What the table does publish is the standards set: HomePlug AV2, HomePlug AV, IEEE 1901, IEEE 802.3, IEEE 802.3u and IEEE 802.3ab. TP-Link's footnote is explicit that maximum powerline rates are physical rates from the HomePlug specification and that real throughput varies with electrical interference, traffic, network overhead, AFCI breakers and circuit separation.

Small Body, One Gigabit Port

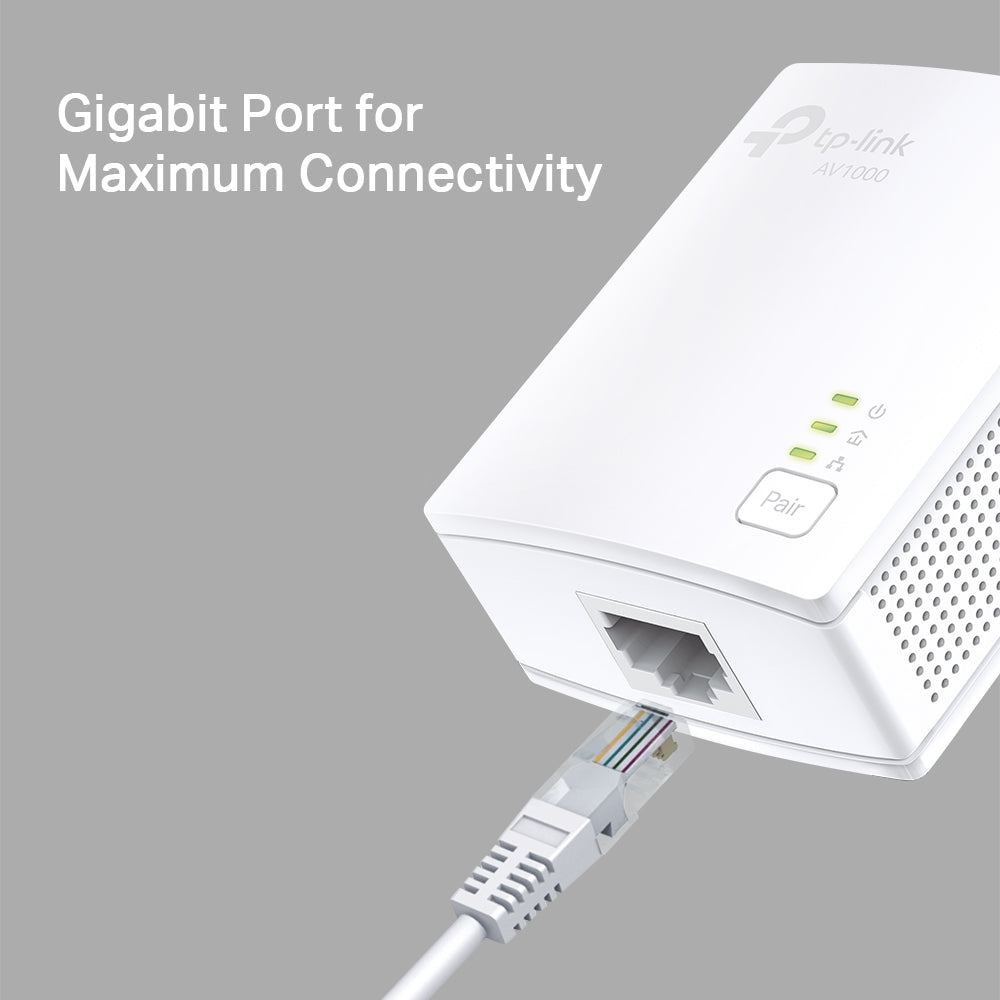

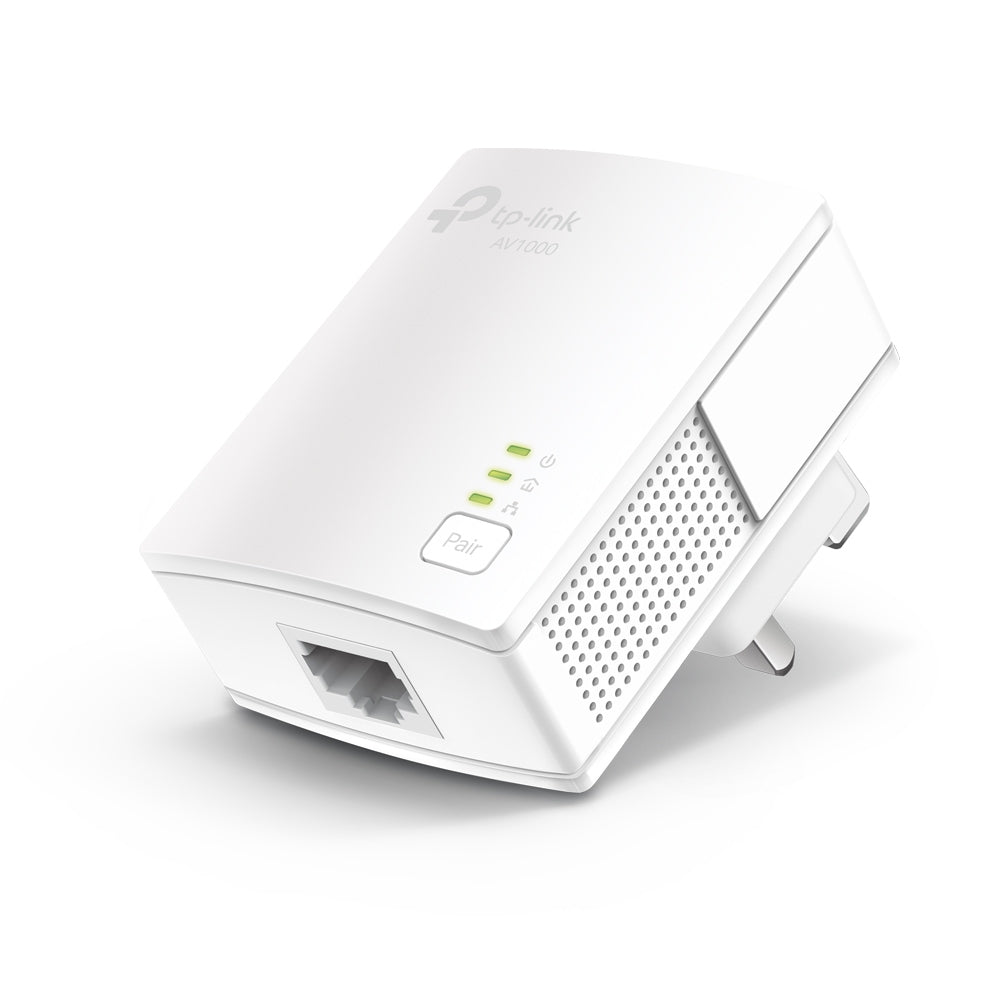

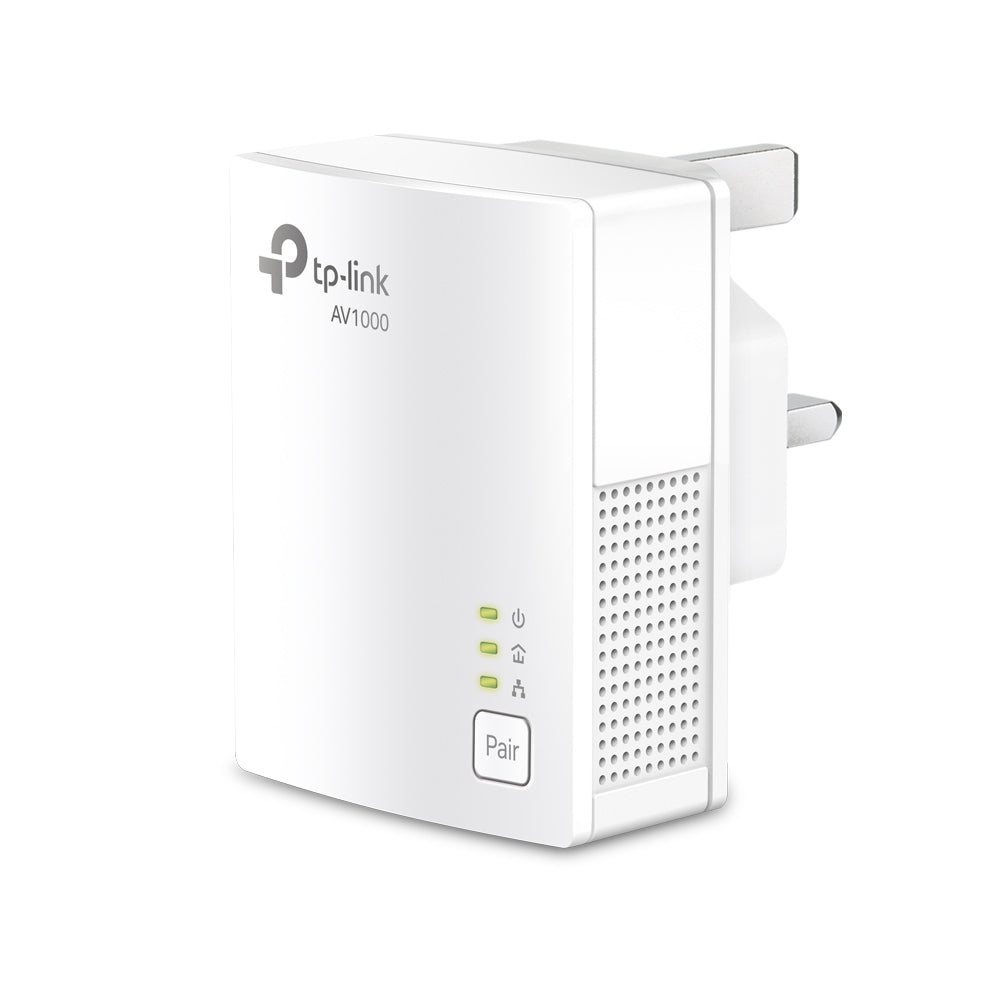

At 65 x 52 x 28.5 mm the TL-PA7017 is one of the smallest Gigabit powerline adapters TP-Link makes, so it sits flush against a wall point and does not foul the socket beside it. Each adapter carries a single Gigabit Ethernet port. There is no passthrough socket on this model — if you need to keep the wall outlet usable, the TL-PA7017P KIT is the passthrough version of the same class.

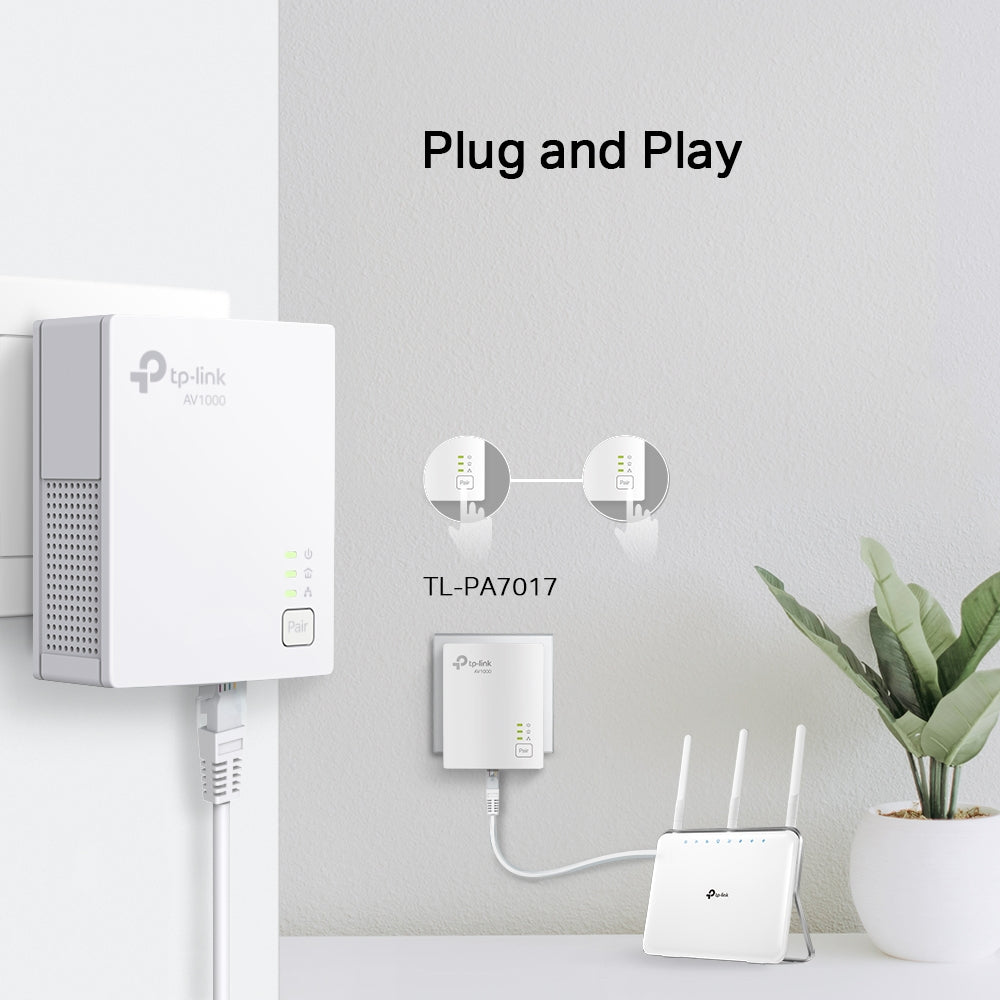

128-bit AES and a Pair/Reset Button

Powerline traffic is encrypted with 128-bit AES. Setup is done from the Pair/Reset button: plug both adapters in, press Pair on each within the pairing window, and the two form an encrypted network. Power draw is modest — a maximum of 2.7 W, typical 2.3 W and 0.5 W standby, all measured by TP-Link at 220 V/50 Hz.

Rated to 300 Metres of Wiring

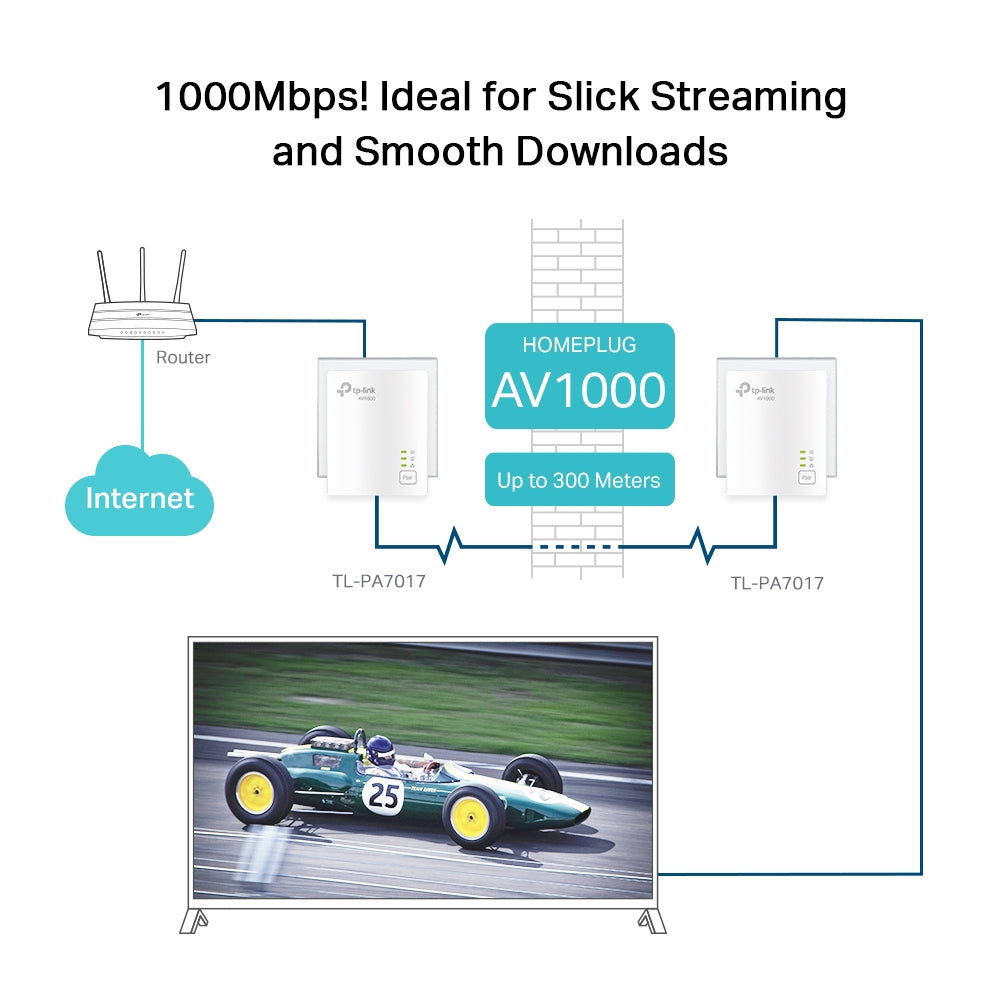

TP-Link rates the range at 300 metres over the electrical circuit, which in practice covers any Singapore flat, terrace or small office served by one consumer unit. The operating window is 0°C~40°C with storage from -40°C to 70°C, and humidity 10%~90% non-condensing in operation.

Ideal For

Singapore homes and small offices needing one reliable wired drop where Wi-Fi is weak, renters who cannot drill for structured cabling, and anyone adding a wired link to a smart TV, console or desktop in a back room. Supplied by SourceIT with local Singapore warranty, GST invoice and volume pricing on request.

Note: TP-Link's package-content row for this kit is written in the singular ("Powerline Ethernet Adapter", one Ethernet cable) even though the product is sold as a two-adapter starter kit, and the page publishes no compatibility row, no net weight and no FCC certification. We reproduce the row as published rather than correcting it, and state no quantity TP-Link does not state. Please confirm cable quantity with us before ordering if it matters to your installation.
