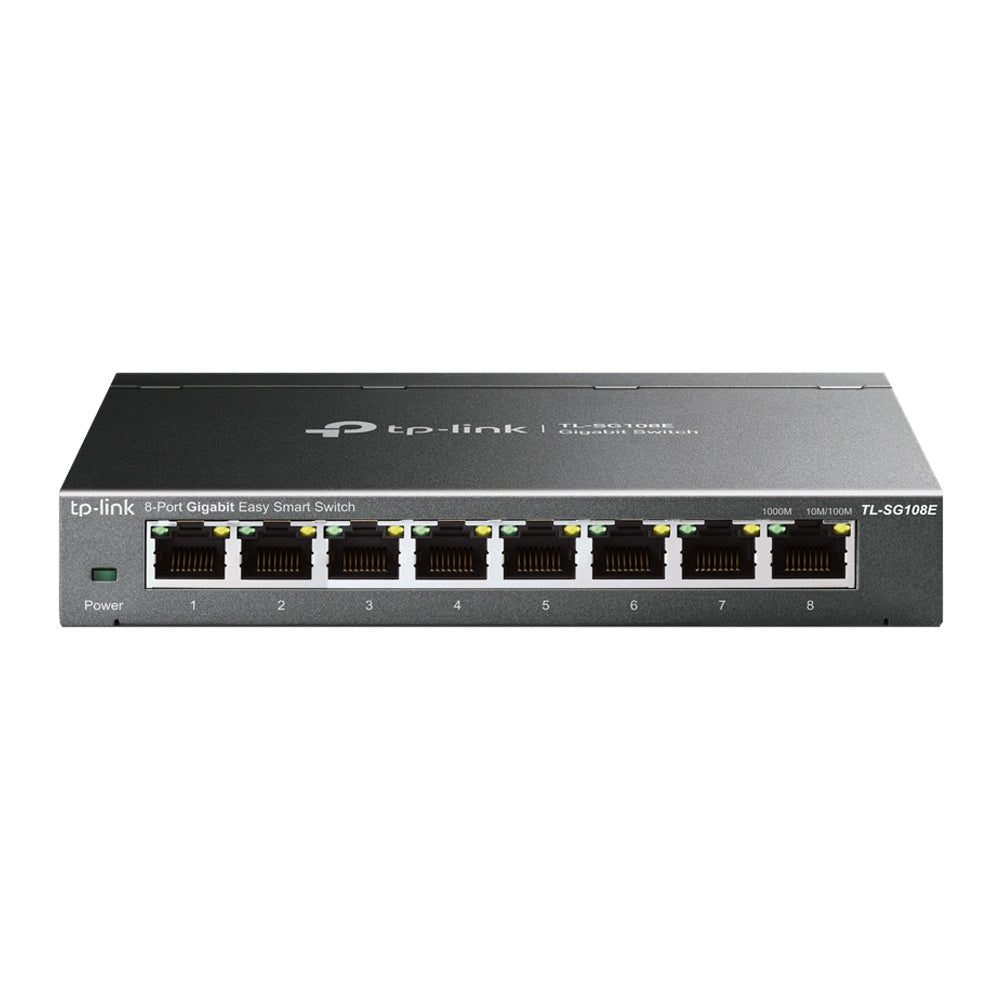

TP-Link Omada 8-Port Gigabit Easy Smart Switch

TP-Link 8-Port Gigabit Easy Smart Switch (TL-SG108E) - Local Warranty

The TL-SG108E is the eight-port Easy Smart switch that gives a small office or a single floor real VLAN and QoS control in a 158 mm metal case drawing under 3 W. It is the standard answer when an unmanaged desktop switch is no longer enough but a rack-mounted managed switch would be overkill.

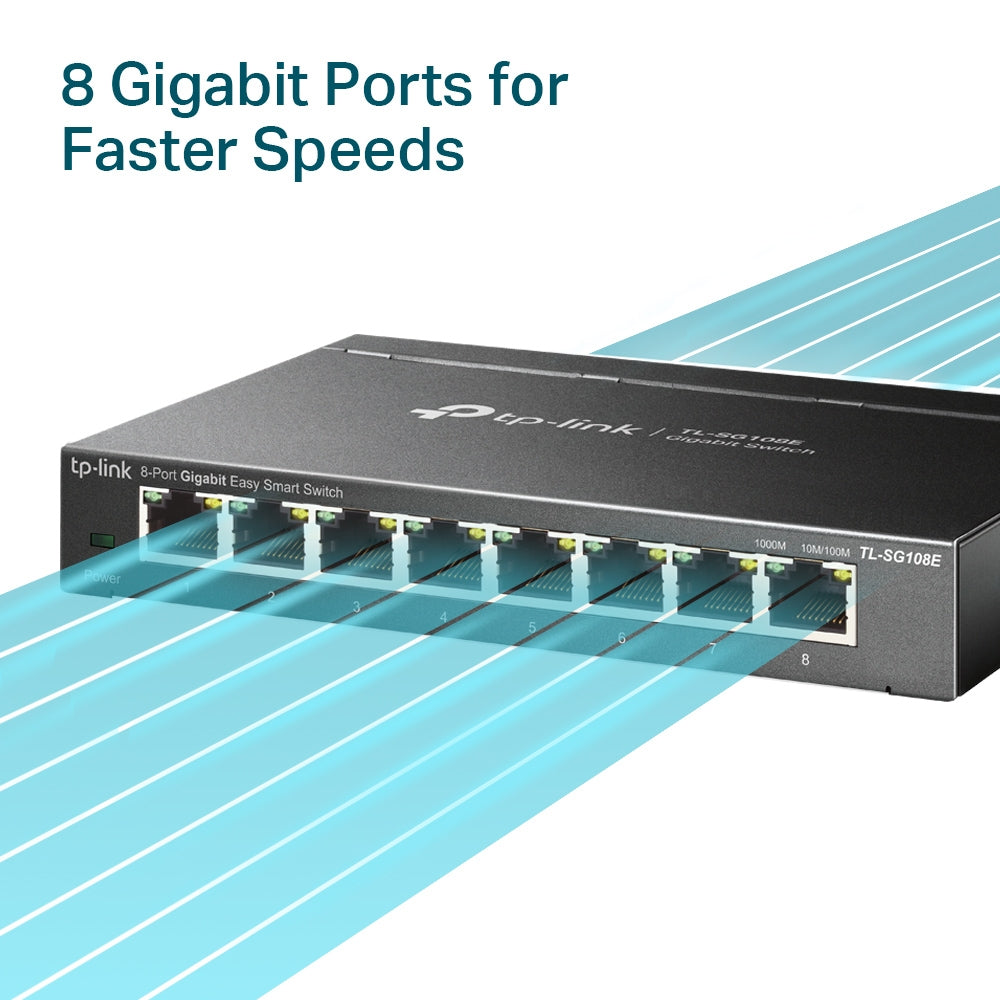

Eight Gigabit Ports, Fanless, Under Three Watts

Eight 10/100/1000 Mbps RJ45 ports with auto-negotiation and auto MDI/MDIX give 16 Gbps of switching capacity and 11.9 Mpps of forwarding. Maximum power consumption is 2.7 W with a maximum heat dissipation of 9.3 BTU/h, and the switch is fanless in a 158 x 101 x 25 mm steel body powered by a 5 V DC/0.6 A adapter. It is small enough to sit behind a monitor or inside a wall cabinet and silent enough for a meeting room.

VLANs and Traffic Priority on a Small Network

Up to 32 VLANs can run simultaneously, drawn from the full 4K VLAN ID range, in MTU, port-based or 802.1Q tag-based mode. On a small site that is what lets a guest Wi-Fi access point, a couple of IP cameras and the office workstations share one switch without seeing each other's traffic. Quality of Service covers port-based, 802.1p and DSCP priority across four queues, with rate limiting and storm control to keep one noisy device from taking the segment down.

Multicast Control, Link Aggregation and Cable Diagnostics

IGMP Snooping v1/v2/v3 confines multicast to the ports that requested it, which is what keeps a camera or IPTV stream from flooding all eight ports. Static link aggregation lets you bond ports into a wider, more resilient uplink to the core switch. Port mirroring gives you a capture point for troubleshooting, cable diagnostics identify a failing patch lead from the web interface, and loop prevention guards against the accidental patch loop that would otherwise bring the network down.

Generous Buffers and Jumbo Frame Support for the Size

Despite the small footprint the TL-SG108E carries a 4K MAC address table, 1.5 Mb of packet buffer memory and jumbo frame support up to 16 KB — useful where NAS or backup traffic crosses the switch. It is rated 0-40 C operating with 10-90% non-condensing humidity, certified to FCC, CE and RoHS, and ships with the power adapter, installation guide and rubber feet.

Ideal For

Singapore small offices, home offices, clinics, shops and meeting rooms that need eight Gigabit ports with VLAN separation, and integrators adding a managed-lite edge switch behind a router or at a remote desk cluster. Supplied by SourceIT with local Singapore warranty, GST invoice and project pricing on request.
