TP-Link NX510v 5G AX3000 Wi-Fi6 Telephony Router

TP-Link 5G AX3000 Wi-Fi6 Telephony Router (NX510v) - 3 Years Local Warranty

The NX510v is a 5G router with a telephone port. It takes a 5G or 4G SIM as its internet connection, serves the premises over Wi-Fi 6 and three Gigabit Ethernet ports, and terminates VoLTE/CSFB voice on an RJ11 socket so an ordinary handset keeps working. That combination suits a site with mobile coverage but no usable fixed line.

5G SA and NSA, with LTE Fallback

TP-Link publishes 5G standalone at up to 2.4 Gbps down and 900 Mbps up, 5G non-standalone at up to 3.4 Gbps down and 550 Mbps up, and LTE at up to 1.6 Gbps down and 200 Mbps up. Band coverage is 5G N1/N3/N5/N7/N8/N20/N28/N38/N40/N41/N77/N78, 4G FDD-LTE B1/B3/B5/B7/B8/B20/B28 and TDD-LTE B38/B40/B41/B42/B43, with 3G beneath. N78 and N41 are the bands to check against your Singapore carrier.

A Voice Port for an Ordinary Handset

The "v" in the model name is the telephony function: one RJ11 voice port takes an existing telephone set and carries calls over the mobile network using VoLTE with CSFB fallback. For a branch, a kiosk, a guardhouse or a temporary office, that means the phone on the desk works from day one on the same SIM as the internet, with no PBX, no SIP provider and no second line to order.

Wi-Fi 6 on Two Bands, Three Gigabit Ports

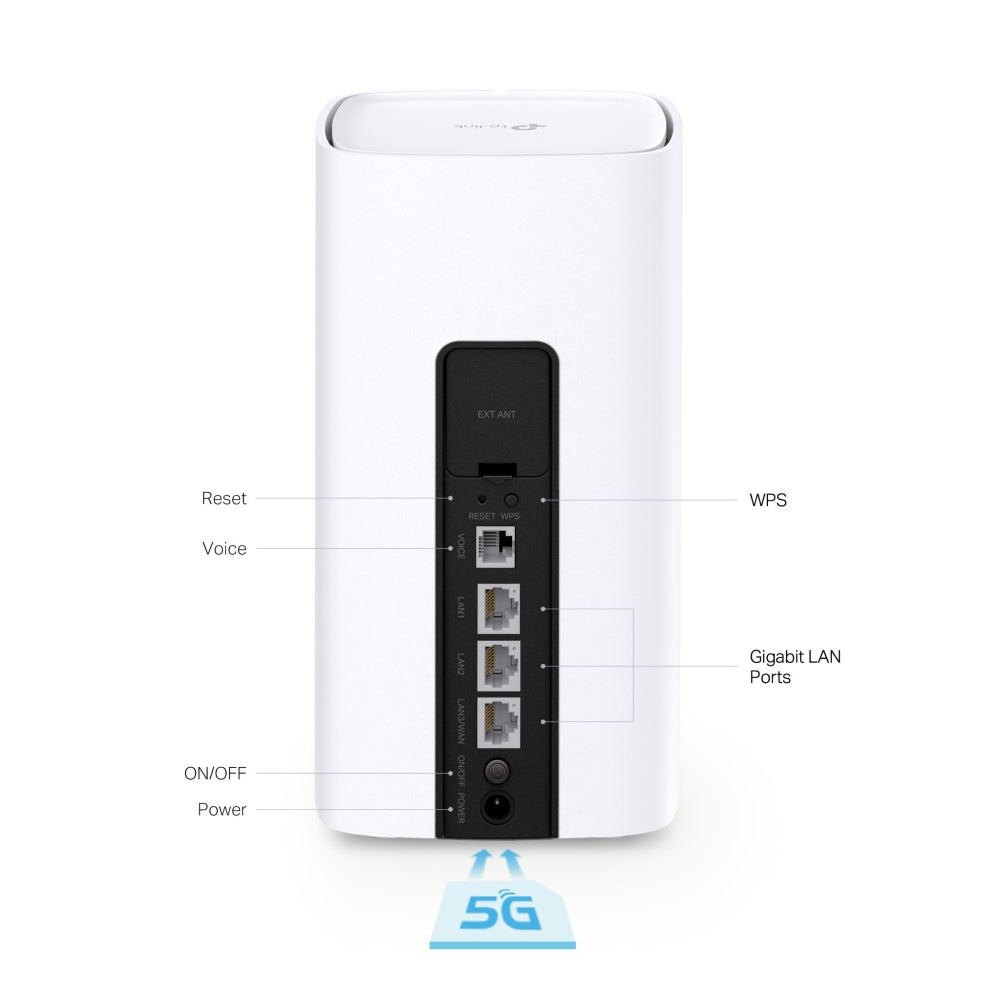

Wireless is 802.11a/n/ac/ax on 5 GHz and 802.11b/g/n/ax on 2.4 GHz, with WPA/WPA2-PSK and WPA3 encryption and up to three additional 2.4 GHz/5 GHz networks for guests or segregation. Wired, there are three 10/100/1000 Mbps RJ45 LAN ports, one of which auto-senses as WAN so a fixed line can be used instead of, or alongside, the SIM. EasyMesh and 802.11k/v/r are supported for roaming across additional nodes.

Managed Locally or by an Operator

Feature-wise the NX510v is built for deployment at scale: parental controls, QoS, port forwarding, DDNS, SIM management, SMS, cloud upgrade, IPTV, IPv6, firewall, network diagnostics, traffic statistics, IPSec VPN, web remote control and CWMP/SNMP for remote provisioning. Setup is through the Aginet app or the built-in web interface, and TR-069, TR-369 and TP-Link's Aginet Unified Cloud (TAUC) are supported for operator-managed fleets. WAN types cover dynamic IP, static IP, PPPoE, L2TP and PPTP. A 1 GHz dual-core CPU runs it, and the tower chassis stands 192 mm tall on a 99 mm square footprint.

Ideal For

Singapore sites where a fixed line is slow, expensive or simply unavailable: satellite offices and branches, construction and project site offices, retail kiosks and guardhouses, and business-continuity links that must carry both data and a desk phone. Supplied by SourceIT with local Singapore warranty and a GST invoice.
