TP-Link Omada 5-Port Gigabit Easy Smart Switch

TP-Link 5-Port Gigabit Easy Smart Switch (TL-SG105E) - Local Warranty

The TL-SG105E is the smallest switch in TP-Link's Easy Smart line: five Gigabit ports, a 100 mm square steel case, 2.82 W of draw — and the same VLAN, QoS and IGMP snooping engine as its larger siblings. It is what you specify when a desk pod or a remote corner of the building needs managed behaviour rather than a dumb five-port switch.

Five Gigabit Ports in a 100 mm Footprint

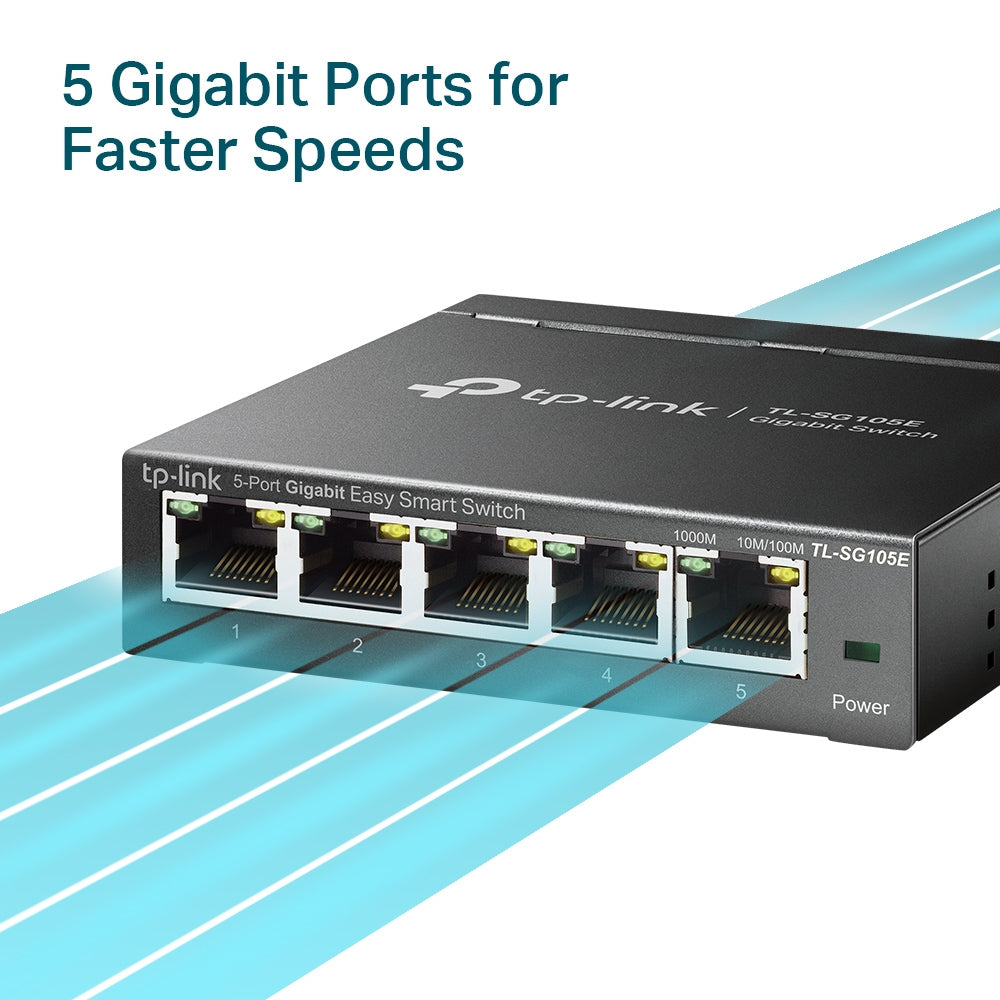

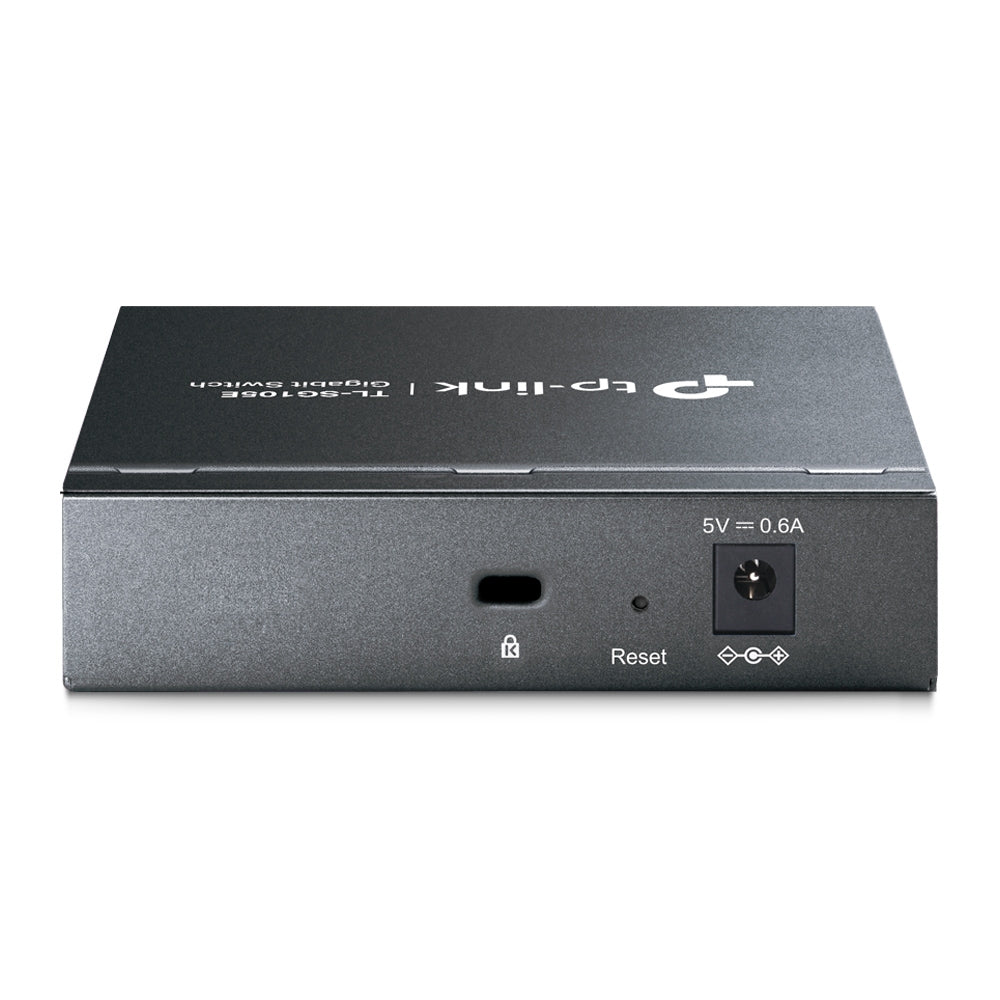

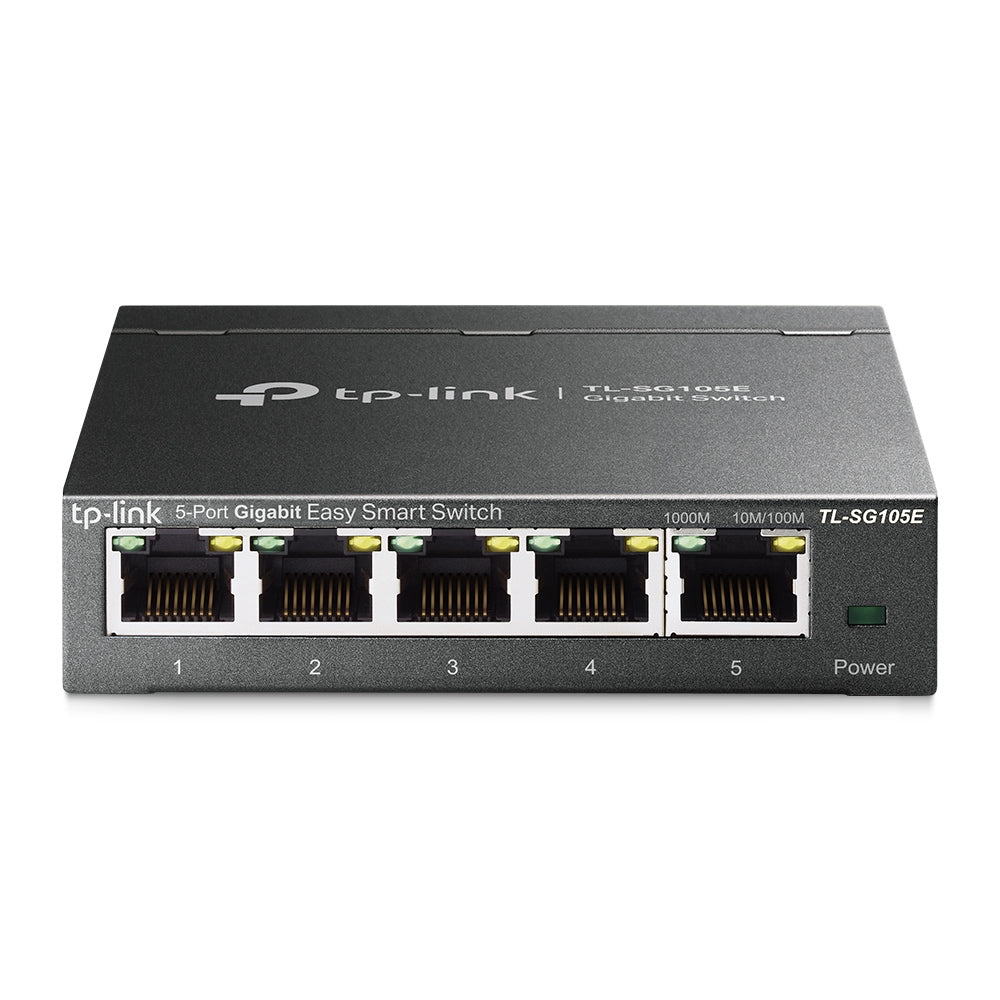

Five 10/100/1000 Mbps RJ45 ports with auto-negotiation and auto MDI/MDIX deliver 7.4 Mpps of forwarding in a 100 x 98 x 25 mm fanless metal body. Power comes from a 5 V DC/0.6 A adapter, maximum consumption is 2.82 W at 220 V/50 Hz and maximum heat dissipation is 9.62 BTU/h. It is small enough to velcro under a desk or tuck into a wall box, and it makes no noise at all.

Full VLAN Control at the Edge of the Network

Up to 32 VLANs can be active at once from the full 4K VLAN ID range, in MTU, port-based or 802.1Q tag-based mode. That is the feature that makes a five-port switch worth managing: a desk cluster can carry a tagged voice VLAN to the handset and an untagged data VLAN to the PC behind it, or a camera and a signage player can sit on separate segments at the far end of a single uplink. Configuration is through a web browser or TP-Link's Easy Smart Configuration Utility.

QoS, Multicast and Loop Protection Where It Matters

Quality of Service covers port-based, 802.1p and DSCP priority across four queues, with rate limiting and storm control per port. IGMP Snooping v1/v2/v3 keeps multicast traffic off ports that did not ask for it. Loop prevention matters more on small edge switches than anywhere else, because they are the ones that end up in meeting rooms where someone patches both ends of a cable into the same unit — the TL-SG105E detects and blocks that condition.

Jumbo Frames and Diagnostics Despite the Size

The switch carries a 2K MAC address table, 1 Mb of packet buffer memory and jumbo frame support up to 16 KB. Static link aggregation, port mirroring and cable diagnostics are all present, so the same troubleshooting workflow used on the larger Easy Smart switches applies here. It is rated 0-40 C operating, 10-90% non-condensing humidity, and certified to FCC, CE and RoHS.

Ideal For

Singapore offices extending a segmented network to a desk pod, meeting room, reception counter or remote equipment position, and integrators who want VLAN-aware behaviour at the last hop rather than an unmanaged five-port box. Supplied by SourceIT with local Singapore warranty, GST invoice and project pricing on request.
