TP-Link Omada 5-Port 10/100/1000Mbps Desktop Switch
Email sales@sourceit.com.sg or use Request for Quotation below and our team will confirm the latest price, availability and lead time.
PRODUCT DESCRIPTION

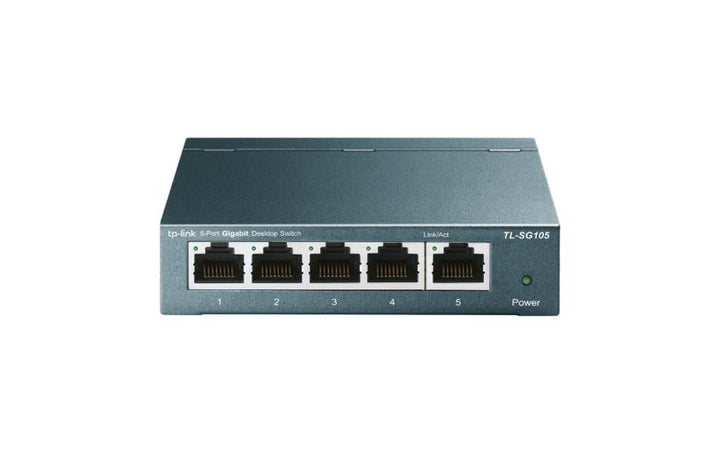

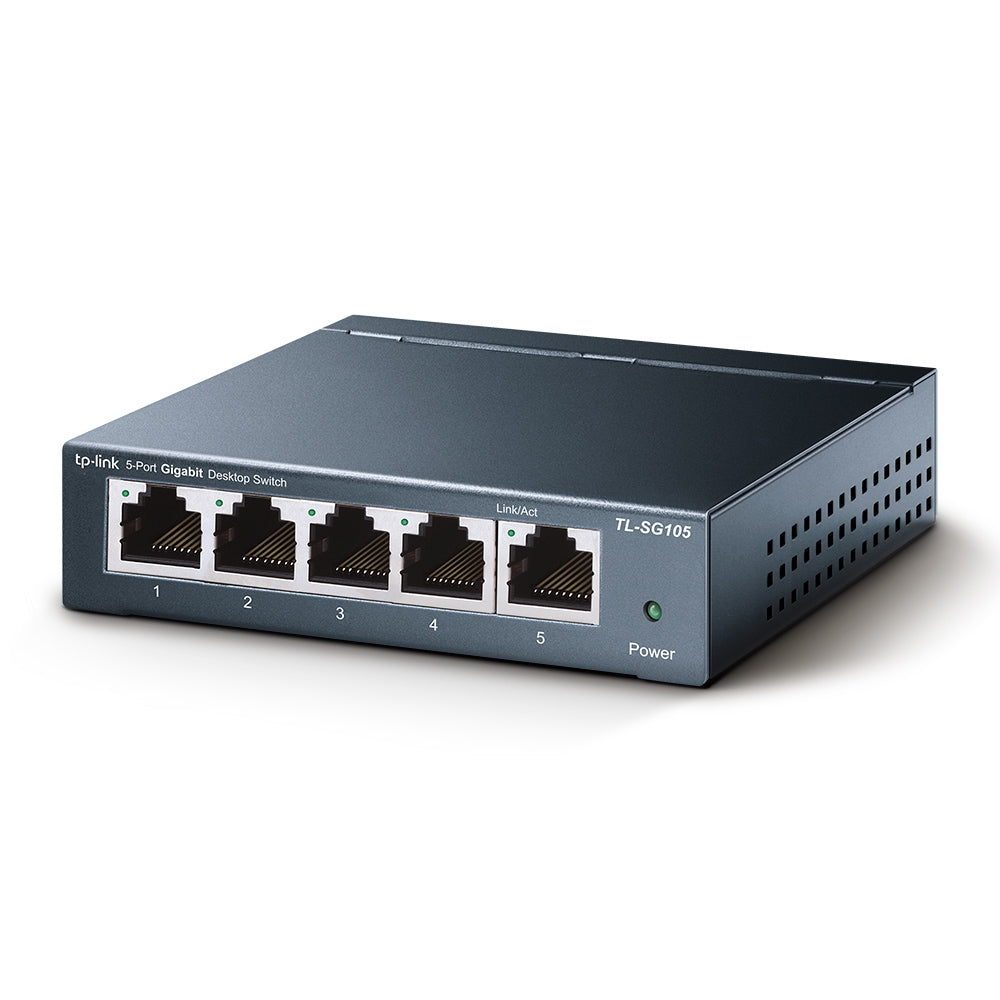

TP-Link 5-Port 10/100/1000Mbps Desktop Switch (TL-SG105) - 5 Years Local Warranty
The TL-SG105 is a five-port Gigabit desktop switch in a compact 100 mm metal case, drawing just 2.3 W from a 5 V adapter. Unlike the most basic switches in this class it publishes IGMP Snooping and 802.1p/DSCP QoS, so multicast video and marked voice traffic are handled properly on a segment with no management at all.

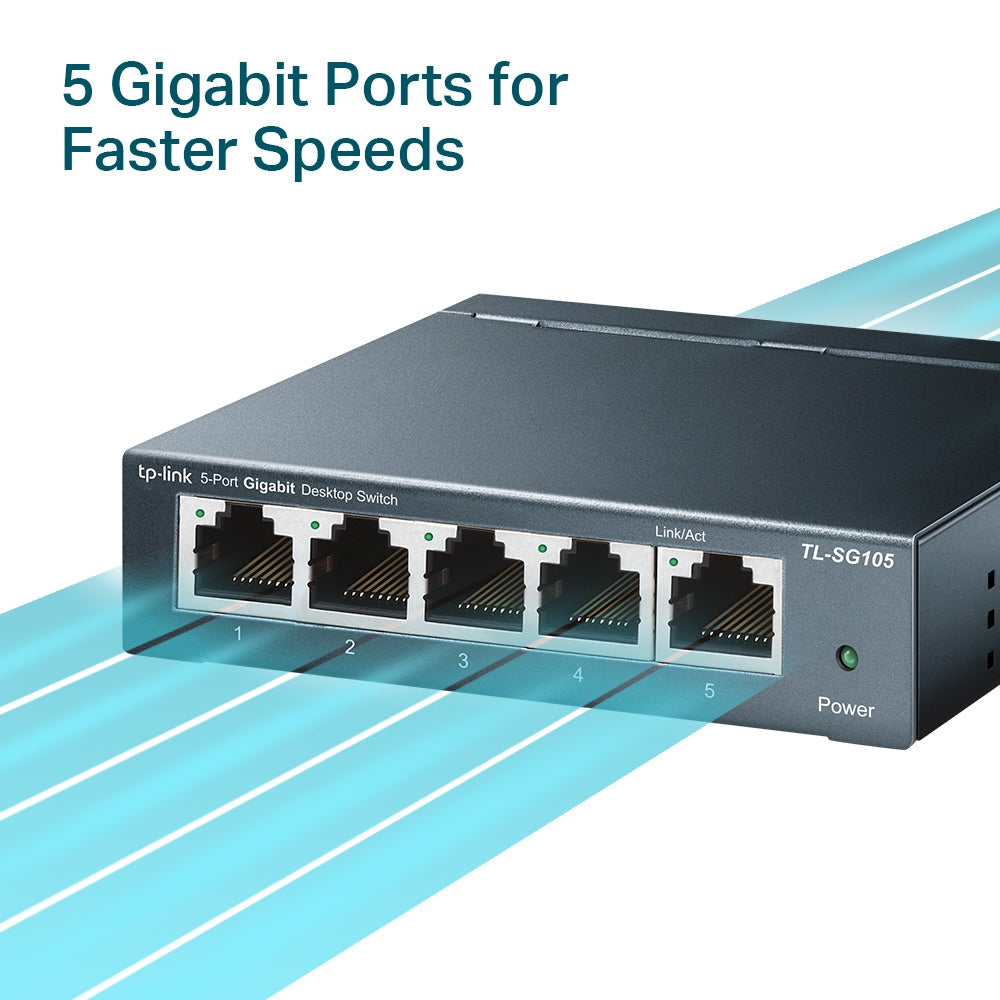

Five Gigabit Ports in a 100 mm Footprint

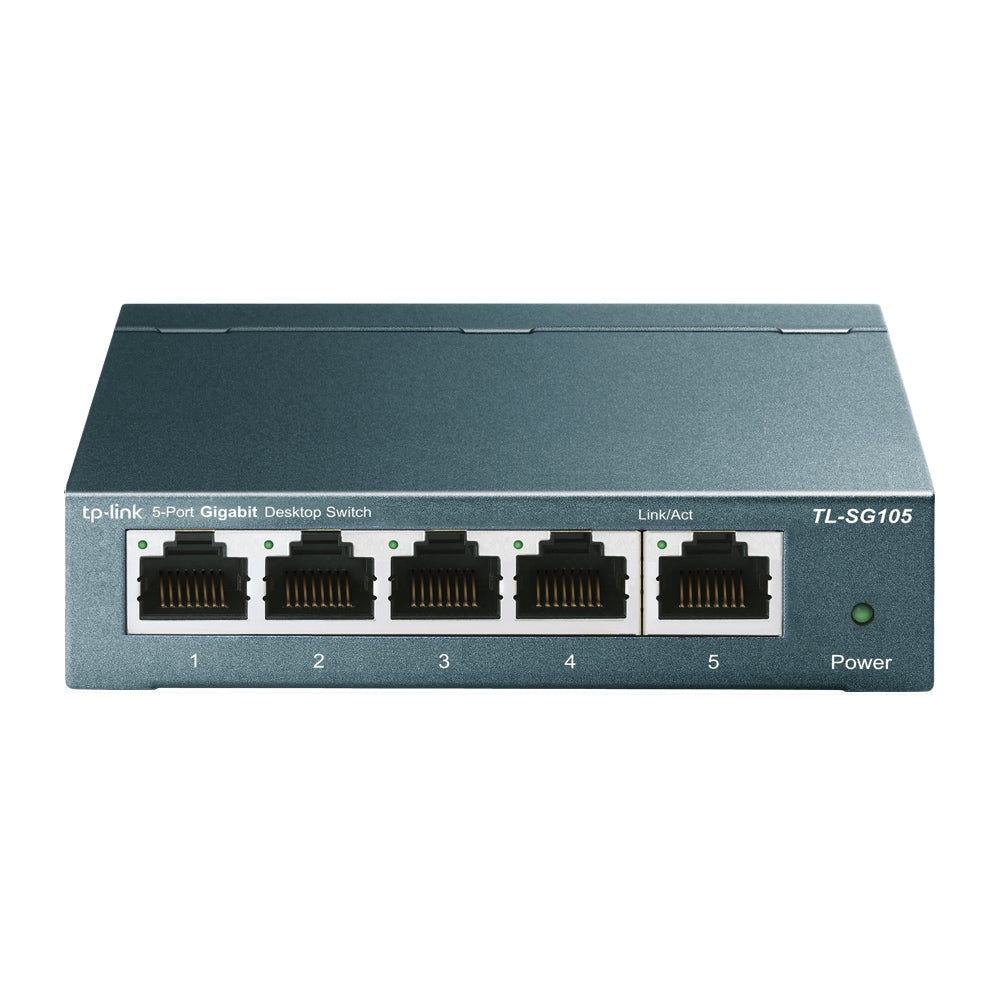

Five 10/100/1000 Mbps ports with Auto-Negotiation and Auto-MDI/MDIX in a case measuring 100 x 98 x 25 mm — small enough to sit behind a monitor, inside AV furniture or in a wall box. Every port has its own Link/Act indicator built into the RJ45 housing, so a dead link is visible without a separate LED bank. Cabling is never a problem: straight and crossover leads both work.

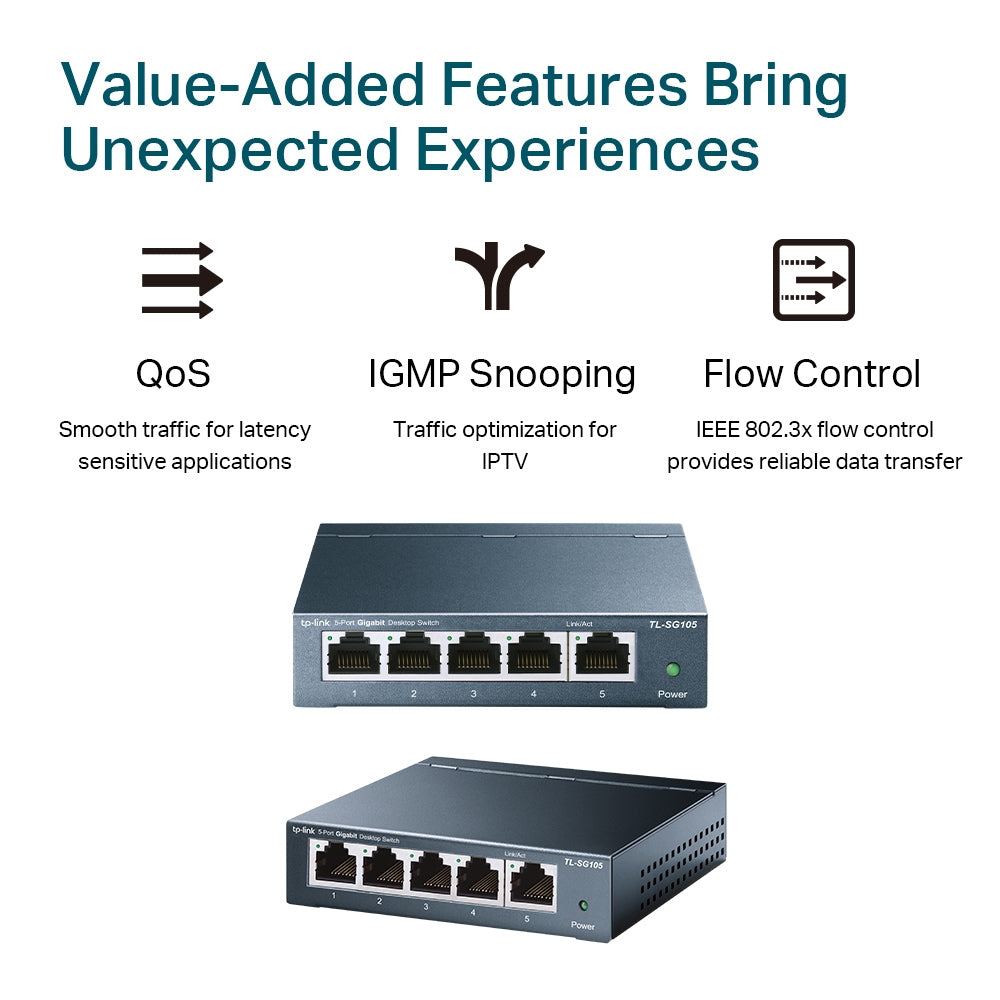

IGMP Snooping and QoS on an Unmanaged Switch
IGMP Snooping keeps multicast streams on the ports that requested them rather than flooding all five, which matters wherever IPTV, signage players or AV-over-IP endpoints share a switch. 802.1p/DSCP QoS prioritises marked voice and video, and 802.3x flow control with a 1 Mb packet buffer absorbs short bursts. All of it is hardware behaviour — there is nothing to configure and nothing to break.

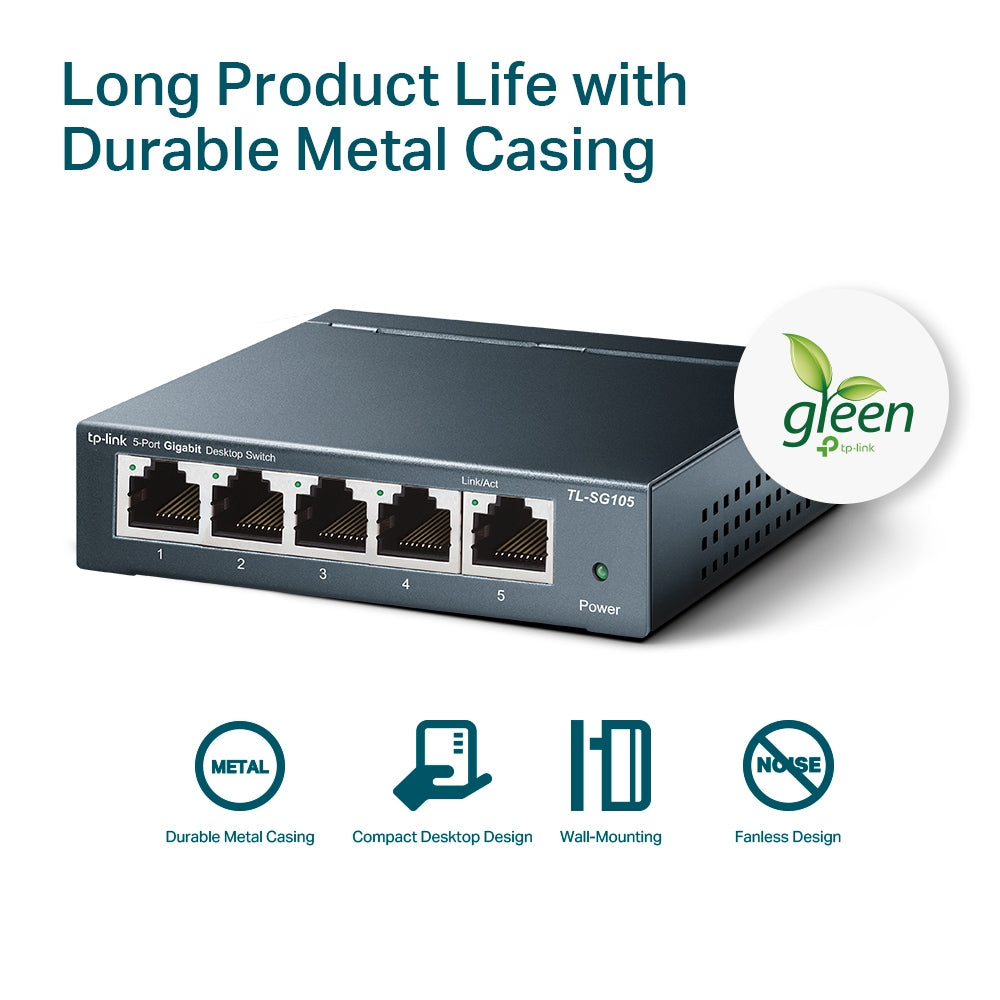

2.3 W Draw, Fanless, Steel Housing
TP-Link publishes a 2.3 W maximum consumption at 220 V/50 Hz and 7.83 BTU/h of heat, from an external 5 V DC / 0.6 A adapter. There is no fan, so the switch is completely silent and can live on a desk or in a meeting room without anyone noticing it. The metal housing helps in the semi-exposed positions a small switch usually ends up in.
7.4 Mpps Forwarding With 16 KB Jumbo Frames
The 7.4 Mpps packet forwarding rate is line rate across five Gigabit ports at minimum frame size, and jumbo frame support runs to 16 KB, which helps NAS and backup transfers. A 2K MAC address table is sized for the small segments this switch serves. Store-and-forward switching validates each frame before it is forwarded, so corrupted frames are discarded at the switch.
Ideal For
Singapore offices, meeting rooms, AV racks and home offices that need five reliable Gigabit ports in the smallest possible footprint, with multicast and QoS handling built in. Supplied by SourceIT with local Singapore warranty, GST invoice and project pricing on request — ask us to confirm current stock for this model.
TL-SG105 Datasheet — Technical Specifications
General
| Model | TL-SG105 |
| Official Product Name | 5-Port 10/100/1000Mbps Desktop Switch |
| Brand | TP-Link Omada |
| Warranty | 5 Years Local Warranty (Singapore) |
Specifications
| Standards and Protocols | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1p |
| Interface | 5 × 10/100/1000 Mbps Auto-Negotiation, Auto-MDI/MDIX Ports |
| LED | System Power; Link/Act indicators per port built into each RJ45 port |
| Packet Forwarding Rate | 7.4 Mpps |
| MAC Address Table | 2K |
| Packet Buffer Memory | 1 Mb |
| Jumbo Frame | 16 KB |
| Advanced Features | Green Technology; 802.3x Flow Control; 802.1p/DSCP QoS; IGMP Snooping |
| Transmission Method | Store and Forward |
| Fan Quantity | Fanless |
| External Power Supply | External Power Adapter (Output: 5 V DC / 0.6 A) |
| Dimensions (W x D x H) | 3.9 × 3.9 × 1.0 in (100 × 98 × 25 mm) |
| Max Power Consumption | 2.3 W (220 V/50 Hz) |
| Max Heat Dissipation | 7.83 BTU/h |
| Operating Temperature | 0 °C to 40 °C (32 °F to 104 °F) |
| Storage Temperature | -40 °C to 70 °C (-40 °F to 158 °F) |
| Operating Humidity | 10% to 90% RH, non-condensing |
| Storage Humidity | 5% to 90% RH, non-condensing |
| Certification | CE, FCC, RoHS |
Reproduced exactly as TP-Link publishes it for the V6 hardware. No switching capacity, physical security lock, EAN or carton pack size figure is published for this model, so those rows are omitted rather than calculated or carried across from a sibling. TP-Link's product page marks this model End of Life — see the FAQ below.
Compatibility & Software Support
The TL-SG105 is an unmanaged switch with no PoE. There is no web interface, command line or controller adoption.
| Omada SDN Controller | Not supported — this model cannot be adopted into an Omada Software, Hardware or Cloud-Based Controller |
| Omada App / Cloud Access | Not supported |

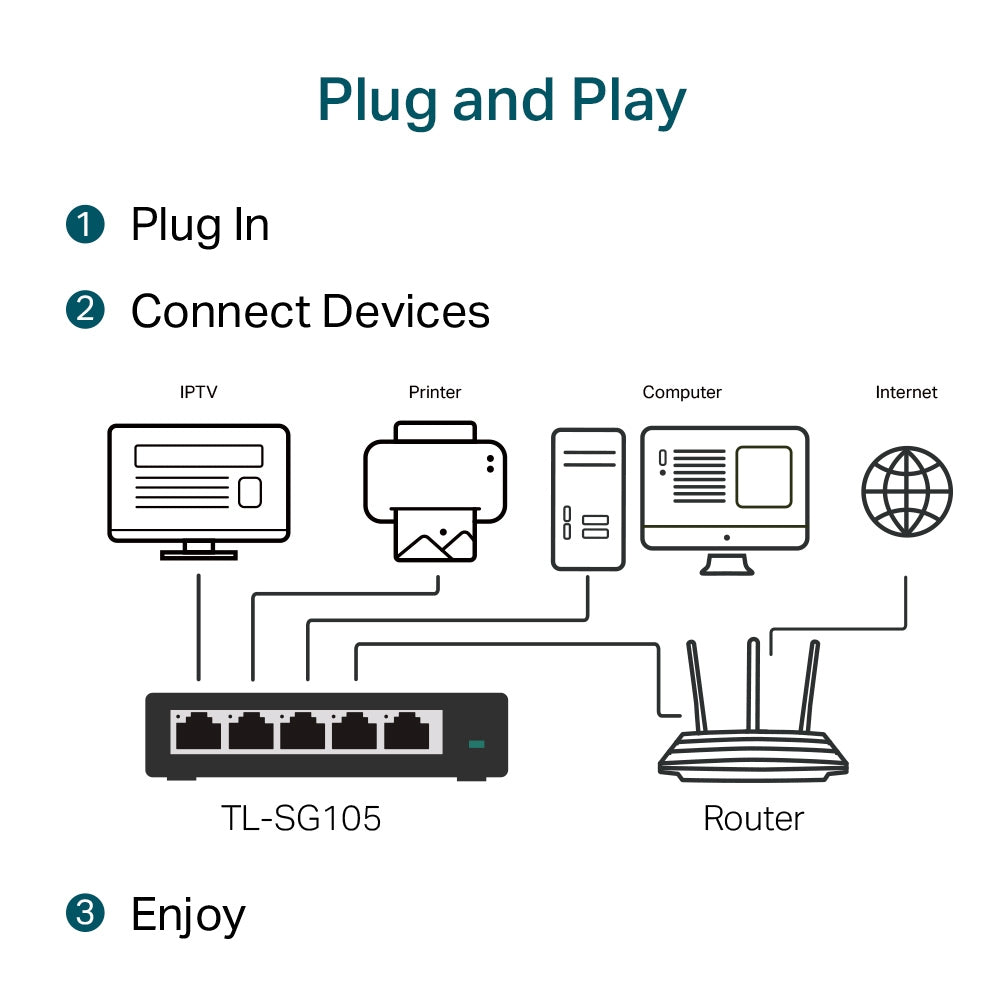

| Web Management | None — unmanaged, plug and play |
| Power over Ethernet | Not supported — this model does not supply PoE on any port, and it is not PoE powered |
| Multicast Handling | IGMP Snooping supported in hardware, with no configuration |
| Product Lifecycle | TP-Link publishes this model as End of Life — ask SourceIT for current stock and the recommended replacement |
Package Contents & Ordering Information
In the Box
| Package Contents | 5-Port 10/100/1000 Mbps Desktop Switch, Power Adapter, Installation Guide |
Ordering Information
| Model | TL-SG105 |
| Recommended Retail Price (incl. GST) | S$29.00 |
| Availability | Limited — TP-Link lists this model as End of Life; please confirm stock with SourceIT before ordering |
Datasheet & Downloads
Frequently Asked Questions — TL-SG105
Is this model still current?
TP-Link's product page marks the TL-SG105 as End of Life, so availability is limited to remaining stock. Ask SourceIT and we will confirm what we hold and quote the closest current model.
How does it differ from the TL-SG1005D?
Both are five-port Gigabit desktop switches. The TL-SG105 is the metal-cased model with a 100 mm square footprint, a 5 V adapter, and published IGMP Snooping and packet buffer figures. The TL-SG1005D is a wider 140 mm unit on a 9 V adapter with a different published spec set.
Does it supply PoE?
No. The TL-SG105 does not supply PoE on any port and is not itself PoE powered. For PoE, look at the TL-SG1005P or TL-SG105PE.
Can it be adopted into an Omada Controller?
No. It is unmanaged and has no management interface of any kind.
What warranty does SourceIT provide?
Five years local Singapore warranty, in line with TP-Link's replacement warranty policy for unmanaged Gigabit switches. Every unit sold by SourceIT comes with a GST invoice.
