TP-Link Omada Gigabit WDM Media Converter 2 km, 1310 nm TX / 1550 nm RX
Email sales@sourceit.com.sg or use Request for Quotation below and our team will confirm the latest price, availability and lead time.
PRODUCT DESCRIPTION
TP-Link Gigabit WDM Media Converter (TL-FC311B-2) - 5 Years Local Warranty
The TL-FC311B-2 is the "B" half of TP-Link's 2 km Gigabit WDM pair, transmitting at 1310 nm and receiving at 1550 nm over a single single-mode strand. It is the unit that completes a TL-FC311A-2 link, and the sensible choice for in-building and short campus runs where 20 km of optical budget is not needed.
One Strand, One Gigabit Link
A Gigabit SC fibre port on one side, a 10/100/1000 Mbps Auto MDI/MDIX RJ45 port on the other, and Wavelength Division Multiplexing in between: the TL-FC311B-2 sends at 1310 nm and receives at 1550 nm so that both directions share one strand of 9/125 µm single-mode fibre. Where a conventional pair would consume two strands, this consumes one — the practical difference between fitting another link into an existing riser and scheduling a cabling project.
Two Kilometres Is the Right Size for Most In-Building Links
TP-Link rates this model to a maximum of 2 km. That covers a riser between floors, two blocks of the same development, or a run from the main distribution frame to a remote plant room or gatehouse — the majority of fibre links in a Singapore commercial or industrial building. Reach beyond that is available in the 20 km version of the same pair; specifying it for a 200 m riser simply costs more without changing how the link performs.
Check the Wavelength Before You Order
WDM converters are directional and sold individually. This is the B unit: 1310 nm transmit, 1550 nm receive. The far end must be an A unit doing the reverse, and TP-Link names the TL-FC311A-2 as a product that cooperates with this model. Both ends must also share the same distance rating. If you are adding to an installation someone else built, send us the model number already on site and we will confirm the correct partner before you order.
No Configuration, No Firmware, Wide Temperature Range

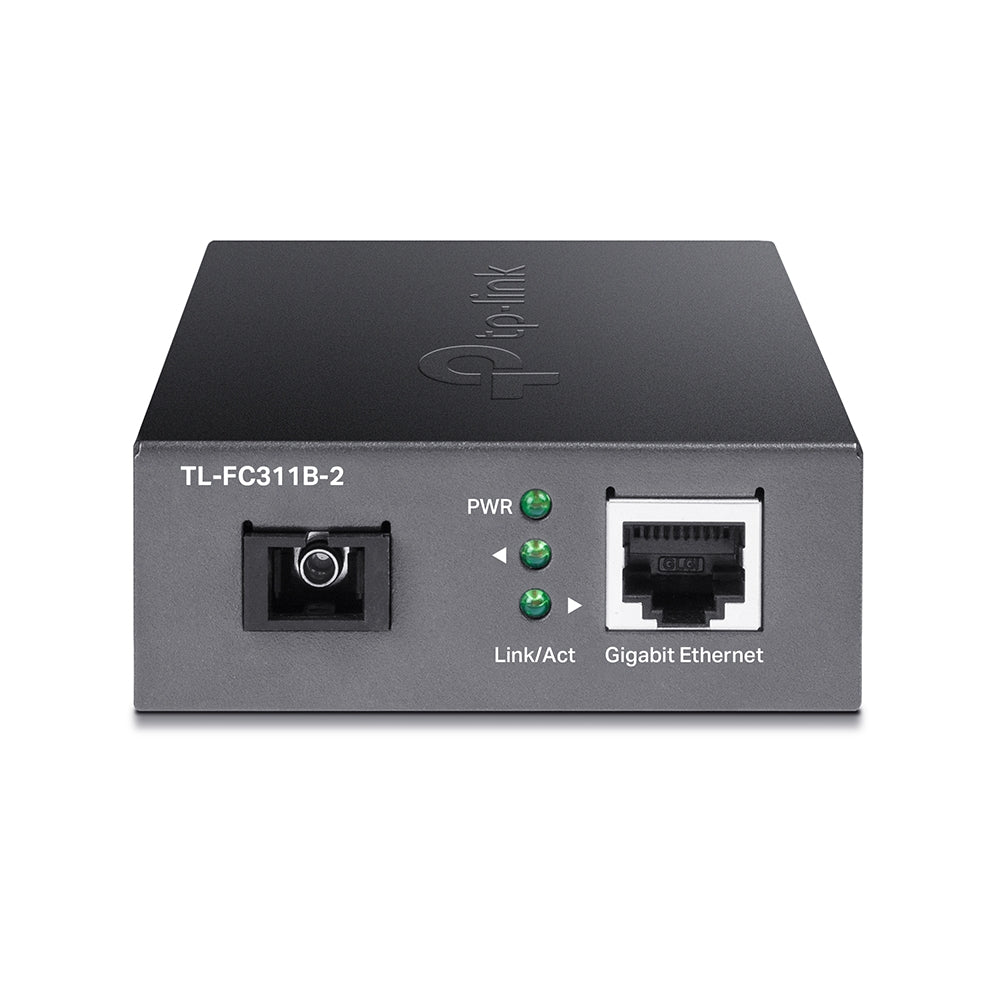

The converter is a transparent Layer 1 bridge — no IP address, no web interface, no firmware to maintain — with PWR and Link/Act LEDs on the front panel. It measures 94.5 x 73.0 x 27.0 mm and runs from a 5 V/0.6 A external adapter. Its published 0-50 °C operating range is wider than the 0-40 °C typical of TP-Link's desktop switches, which matters where the converter ends up in an unventilated riser or cabinet.
Ideal For
Singapore offices, campuses and industrial sites running Gigabit links between floors or nearby blocks over single-mode fibre, integrators completing an existing TL-FC311A-2 installation, and IT teams conserving strands in a full riser. Supplied by SourceIT with local Singapore warranty, GST invoice and project pricing on request.
TL-FC311B-2 Datasheet — Technical Specifications
General
| Model | TL-FC311B-2 |
| Official Product Name | Gigabit WDM Media Converter |
| Brand | TP-Link Omada |
| Warranty | 5 Years Local Warranty (Singapore) |
Specifications
| Standards and Protocols | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z |
| Interface | 1x Gigabit SC fibre port; 1x 10/100/1000 Mbps RJ45 port (Auto MDI/MDIX) |
| Network Media | Single-mode fibre; UTP category 5, 5e cable (maximum 100 m) |
| Fibre Type | 9/125 micron single-mode fibre (2 km max.) |
| Wave Length | 1310 nm TX, 1550 nm RX |
| Maximum Fibre Distance | Up to 2 km |

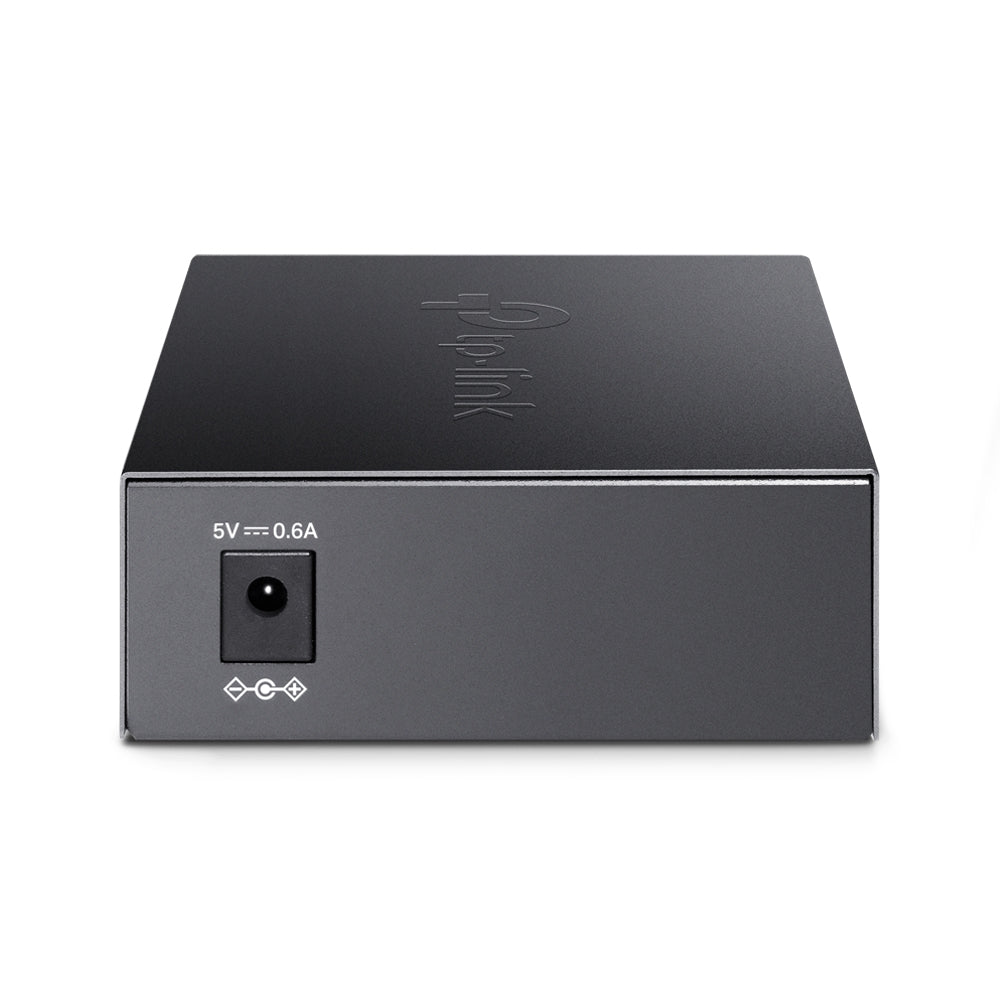

| Power Supply | External power adapter: 5 V/0.6 A |
| LED | PWR, Link/Act |
| Dimensions (W x D x H) | 3.7 x 2.9 x 1.1 in (94.5 x 73.0 x 27.0 mm) |
| Operating Temperature | 0 C to 50 C (32 F to 122 F) |
| Storage Temperature | -40 C to 70 C (-40 F to 158 F) |
| Operating Humidity | 10% to 90% RH non-condensing |
| Storage Humidity | 5% to 90% RH non-condensing |
| Package Contents | Media Converter TL-FC311B-2, Power Adapter, Installation Guide |
Specifications are reproduced from TP-Link's published TL-FC311B-2 page. TP-Link lists a shorter standards set for this model than for the 20 km TL-FC311B-20, which also names IEEE 802.3 and IEEE 802.3x; both are written as published rather than harmonised. No maximum power consumption, certification (Safety & Emission) row, Basic Function row, EAN or carton pack size is published for this model, so none is stated here.
Compatibility & Software Support
The TL-FC311B-2 is an unmanaged media converter. It is a transparent copper-to-fibre bridge with no controller, no web interface and no configuration.
| Omada SDN Controller | Not supported — this model cannot be adopted into an Omada Software, Hardware or Cloud-Based Controller and does not appear in the controller as a managed device |
| Omada App | Not supported |
| Management | None — unmanaged, plug and play. Status is read from the front-panel LEDs |
| Required Partner Unit | A WDM converter transmitting at 1550 nm and receiving at 1310 nm, at the same 2 km rating. TP-Link names the TL-FC311A-2 as a product that cooperates with this model |
| Fibre Plant | One strand of 9/125 micron single-mode fibre, SC connector, up to 2 km |
| Switch Compatibility | Any 10/100/1000 Mbps Ethernet switch or router port, including Omada and JetStream switches |
Package Contents & Ordering Information
What's in the Box
| Package Contents | Media Converter TL-FC311B-2, Power Adapter, Installation Guide |
Ordering Information
| Model | TL-FC311B-2 |
| Brand | TP-Link Omada |
| Warranty | 5 Years Local Warranty (Singapore) |
| Ordering Note | Sold as a single unit. A complete link needs this B unit at one end and a 1550 nm TX / 1310 nm RX A unit of the same 2 km rating at the other |
| Availability | Availability on this model is limited. Confirm current stock and lead time with SourceIT before committing to a project date |
TP-Link does not publish an EAN or carton pack size for this model.
Datasheet & Downloads
Frequently Asked Questions — TL-FC311B-2
Which unit goes at the other end?
One that transmits at 1550 nm and receives at 1310 nm. TP-Link names the TL-FC311A-2 as a product that cooperates with the TL-FC311B-2. Two B units will not link to each other.
What is the difference between this and the TL-FC311B-20?
Reach. This model is published at up to 2 km; the TL-FC311B-20 is published at up to 20 km. Both are B units transmitting at 1310 nm and receiving at 1550 nm. Keep both ends of a link on the same distance rating.
Does it need an Omada Controller?
No, and it cannot be adopted into one. The converter is unmanaged and transparent, and does not appear in Omada SDN.
What warranty does SourceIT provide?
Five years local Singapore warranty, under TP-Link's replacement warranty policy for media converters. Every TL-FC311B-2 sold by SourceIT comes with a GST invoice.
Is stock held locally?
Availability on this model is limited. Ask us to confirm current stock and lead time before you commit to a project date, and we can quote an equivalent current model if the timing does not work.
