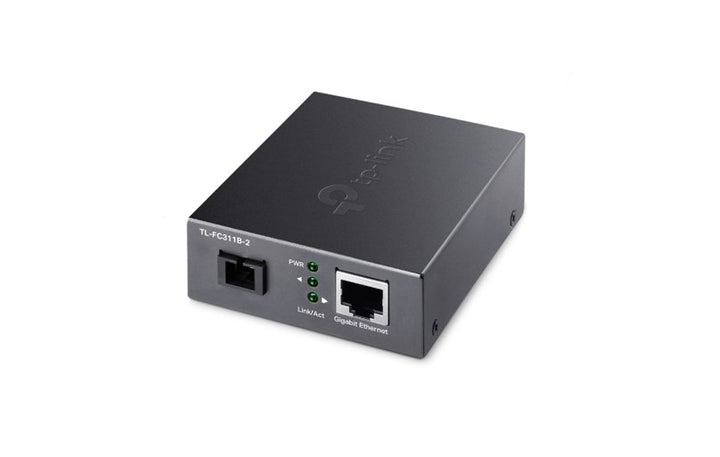

TP-Link Single-mode SC Gigabit WDM Media Bi-Directional Fiber Converter (TL-FC311B-2)

TP-Link Single-mode SC Gigabit WDM Media Bi-Directional Fiber Converter (TL-FC311B-2) - Advanced Fiber Connectivity Solution

The TP-Link Single-mode SC Gigabit WDM Media Bi-Directional Fiber Converter (TL-FC311B-2) is an advanced and highly efficient solution for expanding your network over long distances using fiber-optic technology. Supporting Gigabit speeds and utilizing Wavelength Division Multiplexing (WDM), this media converter enables bi-directional transmission over a single fiber strand, allowing for greater flexibility and cost savings when building or extending your fiber network. With its single-mode SC fiber interface, the TL-FC311B-2 ensures fast, reliable, and secure data transmission over extended distances, making it perfect for connecting remote buildings or establishing long-range network links.

Gigabit WDM Technology for High-Speed Bi-Directional Communication

The TL-FC311B-2 is equipped with WDM (Wavelength Division Multiplexing) technology, which allows data to be transmitted simultaneously in both directions over a single fiber strand using separate wavelengths for upstream and downstream signals. This bi-directional communication reduces the need for multiple fiber cables, lowering installation costs while maximizing the efficiency of the fiber infrastructure. With support for Gigabit speeds, the converter ensures fast, uninterrupted data transfer, even over long distances.

Single-Mode SC Fiber for Extended Range and Performance

With a single-mode SC fiber interface, the TL-FC311B-2 supports long-distance data transmission, capable of reaching up to 20 kilometers (12.4 miles). Single-mode fiber provides lower attenuation and minimal signal loss over extended distances, ensuring reliable performance even in challenging environments. This makes the TL-FC311B-2 ideal for applications requiring high-performance connectivity over large areas, such as between buildings, industrial sites, or campuses.

Gigabit Ethernet Compatibility for High-Speed Networking

Supporting Gigabit Ethernet speeds, the TP-Link TL-FC311B-2 delivers high-speed data transfer, ensuring minimal latency and optimal performance. It is perfect for applications that demand high-bandwidth capabilities, including video streaming, large file transfers, and voice over IP (VoIP). The media converter is compatible with various devices like routers, switches, and servers, enabling seamless integration into existing networks and offering reliable communication between fiber and Ethernet-based systems.

Compact and Durable Design for Easy Installation

Designed with ease of use in mind, the TL-FC311B-2 features a compact form factor and a rugged metal casing, ensuring both durability and ease of installation. It is a plug-and-play device, which means it can be set up without complex configuration. Whether used in indoor or outdoor environments, the converter is built to withstand harsh conditions, ensuring long-lasting and stable performance in various deployment scenarios.

Technical Specifications

• Ethernet Standard: Gigabit (10/100/1000Mbps)
• Fiber Interface: Single-mode SC
• WDM Technology: Bi-directional transmission over a single fiber strand
• Max Distance: Up to 20 kilometers (12.4 miles)
• Power Supply: 5V DC, 1A
• Dimensions: 97 x 69 x 27 mm
• Operating Temperature: 0°C to 50°C
• Compliance: CE, FCC
• GTIN: 6935364094371

Detailed Specification:

10/100/1000 Mbps RJ45 to 1000 Mbps Single-mode SC WDM Bi-Directional Fiber Converter
PORT: 1× Gigabit SC Port, 1× Gigabit RJ45 Port (Auto MDI/MDIX)
SPEC: Full-duplex, Tx:1310 nm, Rx:1550 nm, Up to 20 km, Chassis TL-FC1420 rack-mountable.
