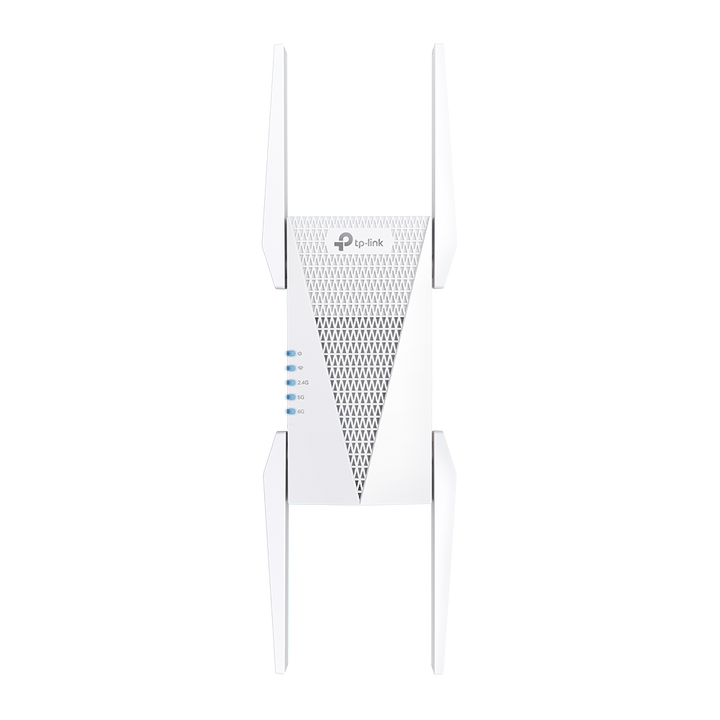

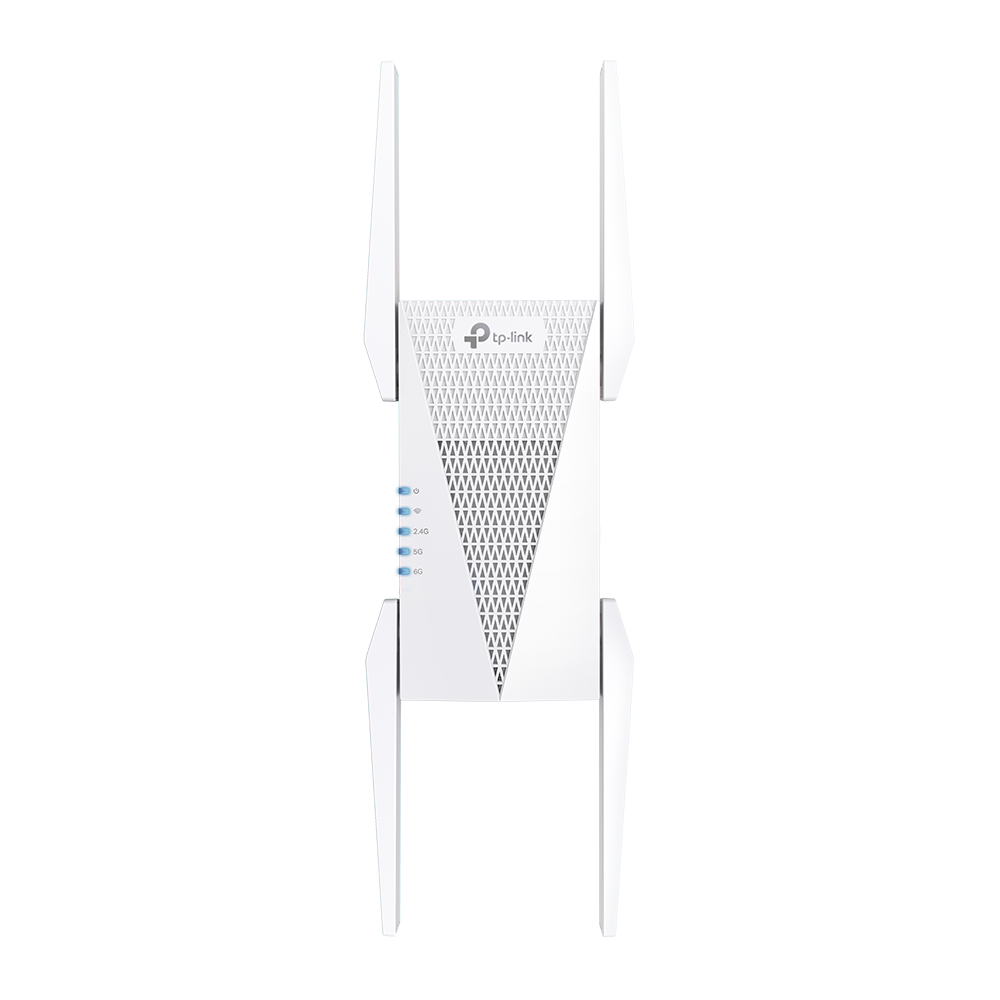

TP-Link RE815XE AXE5400 Tri-Band Wi-Fi 6E Range Extender
PRODUCT DESCRIPTION
TP-Link AXE5400 Mesh Wi-Fi 6E Range Extender (RE815XE) - 3 Years Local Warranty
The RE815XE is a tri-band Wi-Fi 6E wall-plug extender rated 574 Mbps on 2.4 GHz, 2402 Mbps on 5 GHz and 2402 Mbps on 6 GHz, for a combined AXE5400 class. It has four external antennas, 160 MHz channel support, a Gigabit Ethernet port, and works as a range extender or access point within TP-Link OneMesh.
6 GHz Band for Wi-Fi 6E Clients

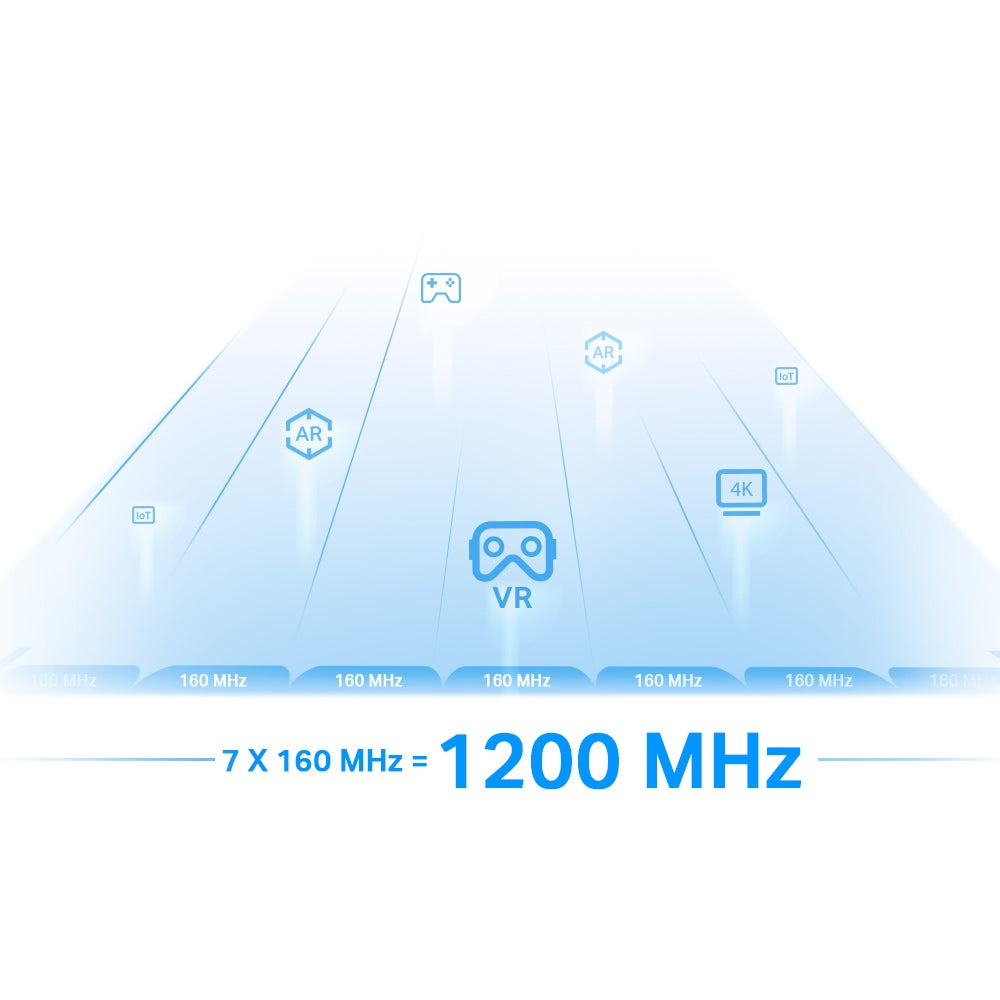

The 6 GHz band provides a clearer channel to avoid interference and congestion from neighbouring networks and older devices. It needs Wi-Fi 6E clients; TP-Link notes not all seven 160 MHz channels on 6 GHz may be available in some regions.
160 MHz Channel Bandwidth
160 MHz channels double the bandwidth of traditional 80 MHz channels, which is how the 5 GHz and 6 GHz bands each reach 2402 Mbps. Wi-Fi 6, 6E and HE160 features require client support.
OneMesh and Smart Roaming
The RE815XE is listed with TP-Link OneMesh mesh technology, forming a single network with compatible TP-Link routers; Smart Roaming keeps 802.11k/v clients on the best connection as you move between rooms.
Gigabit Port and Simple Setup
A Gigabit Ethernet port connects a wired device or provides a wired uplink in Access Point mode. Setup is by WPS button or the Tether app.
Ideal For
Homes and small offices with Wi-Fi 6E laptops and phones that need tri-band coverage extended to distant rooms. Supplied by SourceIT with local Singapore warranty and GST invoice.
RE815XE Datasheet — Technical Specifications
General
| Model | RE815XE |
| Official Product Name | AXE5400 Mesh Wi-Fi 6E Range Extender |
| Brand | TP-Link |
| Warranty | 3 Years Local Warranty (Singapore) |
Wireless
| Wireless Standards | IEEE 802.11ax 6 GHz; IEEE 802.11a/n/ac/ax 5 GHz; IEEE 802.11b/g/n/ax 2.4 GHz |
| Frequency | 2.4 GHz, 5 GHz, 6 GHz |
| Signal Rate | 574 Mbps at 2.4 GHz; 2402 Mbps at 5 GHz; 2402 Mbps at 6 GHz |
| Working Modes | Range Extender / Access Point |
| Wireless Security | 64/128-bit WEP, WPA/WPA2-PSK encryptions, WPA3 |
| Transmission Power | FCC: 2.4 GHz <30 dBm; 5 GHz <30 dBm; 6 GHz <30 dBm |
| Reception Sensitivity | 6 GHz: 11ax HE20 MCS0: -92 dBm, MCS11: -61 dBm; HE40 MCS0: -89 dBm, MCS11: -58 dBm; HE80 MCS0: -86 dBm, MCS11: -55 dBm; HE160 MCS0: -83 dBm, MCS11: -52 dBm. 5 GHz: 11ax HE20 MCS0: -93 dBm, MCS11: -62 dBm; HE40 MCS0: -90 dBm, MCS11: -59 dBm; HE80 MCS0: -87 dBm, MCS11: -56 dBm; HE160 MCS0: -84 dBm, MCS11: -53 dBm. 2.4 GHz: 11ax HE20 MCS0: -95 dBm, MCS11: -64 dBm; HE40 MCS0: -92 dBm, MCS11: -62 dBm |
| Mesh Technology | TP-Link OneMesh |
| Wireless Functions | LED Control, Access Control, Power Schedule, Wi-Fi Coverage |
Hardware
| Interface | 1x Gigabit Ethernet Port |
| Buttons | WPS Button, Reset Button |

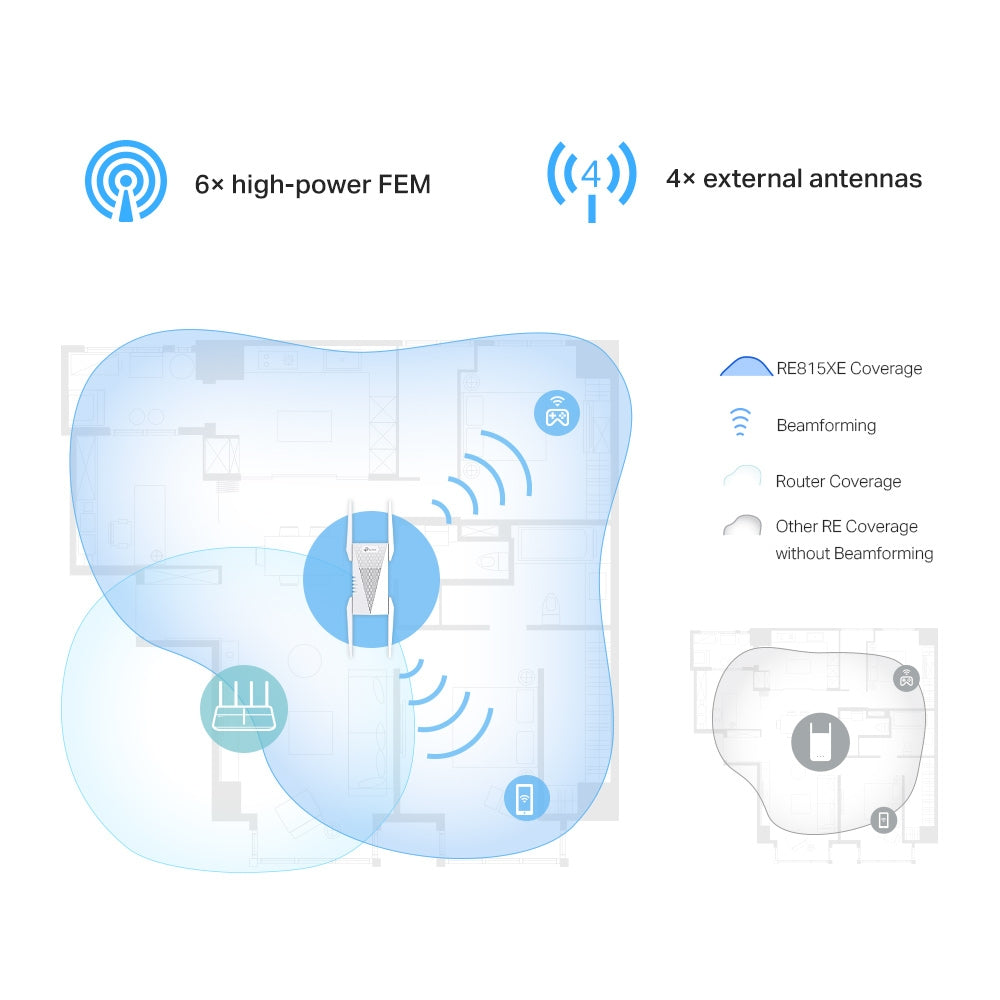

| Antenna | 4 External Antennas |
| Input Power | 100-240V~50/60Hz |
| Max. Power Consumption | 23W |
| Dimensions (W x D x H) | 106.6 x 39.7 x 348.2 mm (4.2 x 1.6 x 13.7 in) |
Software
| Network Services Enabled by Default | Web Server (HTTP/HTTPS, ports 80/443 TCP), DHCP Server (port 67 UDP), App management (port 20001 TCP, port 20002 UDP) |
Environment and Certification
| Certification | FCC, RoHS |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature | -40°C to 70°C (-40°F to 158°F) |
| Operating Humidity | 10% to 90% non-condensing |
| Storage Humidity | 5% to 90% non-condensing |
TP-Link Singapore currently publishes no RE815XE product page; the specifications above are reproduced from TP-Link's UK product page for the same model. No weight is published, and transmission power only against FCC limits. The Singapore plug type is not stated. Those gaps are stated rather than filled in from another model.
Compatibility & Software Support
| Management App | TP-Link Tether (iOS and Android) |
| Web Management | Supported via browser |
| Setup | WPS button or Tether app |
| Mesh Ecosystem | TP-Link OneMesh |
| Smart Roaming | Designed for client devices that support the 802.11k/v standard |
| Wi-Fi 6E Client Requirement | The 6 GHz band, OFDMA, 1024-QAM and HE160 require client devices that also support them |
| System Requirements | Windows 98SE/NT/2000/XP/Vista/7/8/8.1/10, Mac OS, NetWare, UNIX or Linux; Internet Explorer 11, Firefox 12.0+, Chrome 20.0+, Safari 4.0+ |
TP-Link notes the extender may not be compatible with routers or gateways running altered, open-source-based, non-standard or outdated firmware, and that actual speed may be limited by Ethernet port rate, cabling and ISP factors.
Package Contents & Ordering Information
Package Contents
| In the Box | Wi-Fi Range Extender RE815XE, Quick Installation Guide |
Ordering Information
| Model | RE815XE |
| SKU | RE815XE |
| Warranty | 3 Years Local Warranty (Singapore) |
Datasheet & Downloads
Frequently Asked Questions — RE815XE
Do my devices need Wi-Fi 6E?
Only to use the 6 GHz band. Older Wi-Fi devices connect on 2.4 GHz or 5 GHz at their own standard.
Is it Wi-Fi 7?
No. The RE815XE is Wi-Fi 6E (802.11ax) across three bands. TP-Link's Wi-Fi 7 tri-band extender is the RE655BE.
Can it be wired back to the router?
Yes. Access Point is a listed working mode, using the Gigabit Ethernet port as the uplink.
What warranty does SourceIT provide?
Three years local Singapore warranty, under TP-Link's published replacement warranty terms, with a GST invoice.
Can SourceIT quote this for an office or a project?
Yes. Send us the quantity and we will quote with local warranty, delivery and support.
