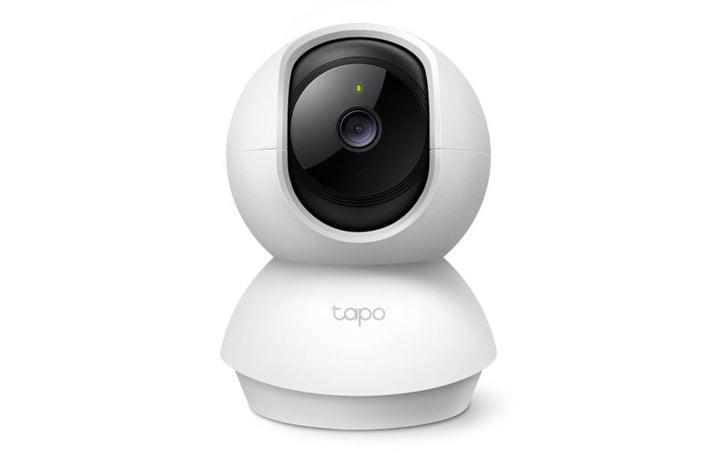

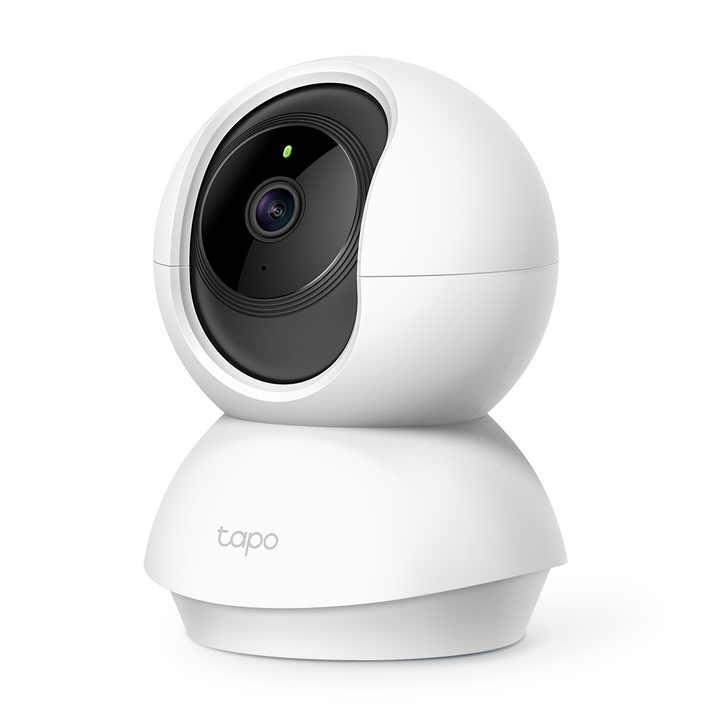

TP-Link TC70 Pan/Tilt Home Security Wi-Fi Camera
PRODUCT DESCRIPTION
TP-Link Pan/Tilt Home Security Wi-Fi Camera (TC70) - 3 Years Local Warranty
The TC70 is TP-Link's motorised indoor Wi-Fi camera. A pan-and-tilt head gives it a 360 degree horizontal and 114 degree vertical view range from one mounting point, and it streams 1080p Full HD with two-way audio and infrared night vision to 30 ft. Set up through the Tapo app on 2.4 GHz Wi-Fi, it is the sensible choice where one fixed camera would leave blind spots.
360 Degree Horizontal and 114 Degree Vertical View Range
The motorised head is what separates the TC70 from a fixed camera like the TC60. TP-Link publishes a 360 degree horizontal and 114 degree vertical view range, which means one unit in the corner of a living room, shop floor or storeroom can be driven to look wherever you need it from the app rather than being committed to a single angle at installation. That usually replaces two fixed cameras and two power points.
1080p Full HD With a 4 mm Lens
A 1/2.9 inch image sensor sits behind an F/2.4, 4 mm lens and streams 1080p Full HD at 15 fps using H.264 compression. Fifteen frames per second is the right trade for a monitoring camera on a domestic line - it keeps motion legible while holding bandwidth and recording size down, which matters when the camera is watched remotely over mobile data.
Infrared Night Vision to 30 Feet
An 850 nm infrared LED covers up to 30 ft in complete darkness, giving usable monochrome coverage of a hallway, shop or nursery after lights out. The illumination is invisible at normal viewing angles, so the camera does not advertise itself in a dark room.
Two-Way Audio and Motion-Triggered Push Alerts
A built-in microphone and speaker give full two-way audio through the app, so you can listen and speak back - to a pet, a child, a delivery or a staff member on a shop floor. Motion detection is the camera's trigger and a push notification is its output, raised on your phone when movement is seen in frame.
Encrypted Streams, Three-Metre Power Cable
Video is protected in transit with 128-bit AES encryption over SSL/TLS and the camera joins the network with WPA or WPA2-PSK on 2.4 GHz at 802.11b/g/n. TP-Link supplies a 3 metre power cable and a 9 V / 0.6 A adapter, which gives real freedom over where the camera is placed relative to the nearest socket - a practical point in Singapore flats where power points are often not where the camera needs to be.
Ideal For
Singapore HDB flats, condominiums, retail floors, clinics and small offices where one camera has to cover a whole room - living areas, shopfronts, storerooms, nurseries and reception desks. Supplied by SourceIT with local Singapore warranty, GST invoice and volume pricing on request.
TC70 Datasheet — Technical Specifications
General
| Model | TC70 |
| Official Product Name | Pan/Tilt Home Security Wi-Fi Camera |
| Brand | TP-Link |
| Warranty | 3 Years Local Warranty (Singapore) |
Camera
| Image Sensor | 1/2.9" |
| Lens | F/NO: 2.4; Focal Length: 4 mm |
| Night Vision | 850 nm IR LED up to 30 ft |
| View Range | 360° horizontal, 114° vertical |
| Resolution | 1080p Full HD |
Video & Audio
| Frame Rate | 15 fps |
| Video Streaming | 1080p |
| Video Compression | H.264 |
| Audio Communication | 2-way audio |
| Audio Input & Output | Built-in microphone and speaker |
Network & Security
| Frequency | 2.4 GHz |
| Wireless Rate | 11Mbps (802.11b), 54Mbps (802.11g), 150Mbps (802.11n) |
| Wireless Security | WPA/WPA2-PSK |
| Security | 128 bit AES encryption with SSL/TLS |
Activity Notifications
| Input Trigger | Motion detection |
| Output Notification | Push notification |
Hardware & Power
| Button | Reset button |
| Indicator LED | System LED |
| Camera Input | 3 Meter Power Cable |
| Adapter Input | 100-240VAC, 50/60Hz, 0.3A |
| Adapter Output | 9.0V/0.6A |
| Dimensions (W x D x H) | 3.4 x 3.3 x 4.6 in. (86.6 x 85 x 117.7 mm) |
Environment & Compliance
| Regulatory Certification | CE |
| Operating Temperature | 0 °C to 40 °C (32 °F to 104 °F) |
| Storage Temperature | -40 °C to 70 °C (-40 °F to 158 °F) |
| Operating Humidity | 10% to 90% RH non-condensing |
| Storage Humidity | 5% to 90% RH non-condensing |
TP-Link's TC70 specification tables publish no microSD capacity, no cloud-storage row, no separate pan and tilt travel figures, no weight and no smart-assistant integration, and give the field of view only as the 360° x 114° view range quoted above. None of the missing rows is stated here.
Compatibility & Software Support
| Mobile App | Tapo app (iOS and Android) |
| Network Requirement | 2.4 GHz Wi-Fi, 802.11b/g/n |
| 5 GHz Wi-Fi | Not supported — the camera joins the 2.4 GHz band only |
| Wired Ethernet | Not supported — Wi-Fi only |
| VIGI / Omada | Not supported — the TC70 is a consumer camera and is not managed by VIGI VMS or an Omada controller |
TP-Link publishes no ONVIF or RTSP row for the TC70, so it should not be specified for a third-party NVR without confirming first. SourceIT can check, or quote a VIGI camera where open-protocol recording is required.
Package Contents & Ordering Information
Package Contents
| In the Box | Tapo Pan/Tilt Home Security Wi-Fi Camera, Power Adapter, Quick Start Guide, Mounting Screws, Mounting Plate, Camera Base |
The package-contents row is quoted exactly as TP-Link publishes it; TP-Link's own page names the camera in that row as a Tapo model while the product is sold as the TC70. The item supplied is the TC70.
Ordering Information
| Model | TC70 |
| Warranty | 3 Years Local Warranty (Singapore) |
| Recommended Retail Price (incl. GST) | S$38.90 |
Datasheet & Downloads
Frequently Asked Questions — TC70
How much can the TC70 actually see?
TP-Link publishes a 360 degree horizontal and 114 degree vertical view range, achieved by driving the motorised head from the app. The camera does not see all of that at once - it pans and tilts to cover it.
What is the difference between the TC70 and the TC60?
Both are 1080p indoor Wi-Fi cameras. The TC70 adds the motorised pan-and-tilt head and its 360° x 114° view range; the TC60 is fixed and smaller. Ask SourceIT if you want the pair compared for a specific room.
Can it be used outdoors?
No. TP-Link publishes no IP weather rating for the TC70 and its operating range is 0 °C to 40 °C, so it is an indoor camera. For outdoor coverage ask SourceIT for an IP-rated model.
Does it work on 5 GHz Wi-Fi?
No. The TC70 joins 2.4 GHz networks only, at 802.11b/g/n.
What warranty does SourceIT provide?
Three years local Singapore warranty. Every TC70 sold by SourceIT comes with a GST invoice and local warranty support.
