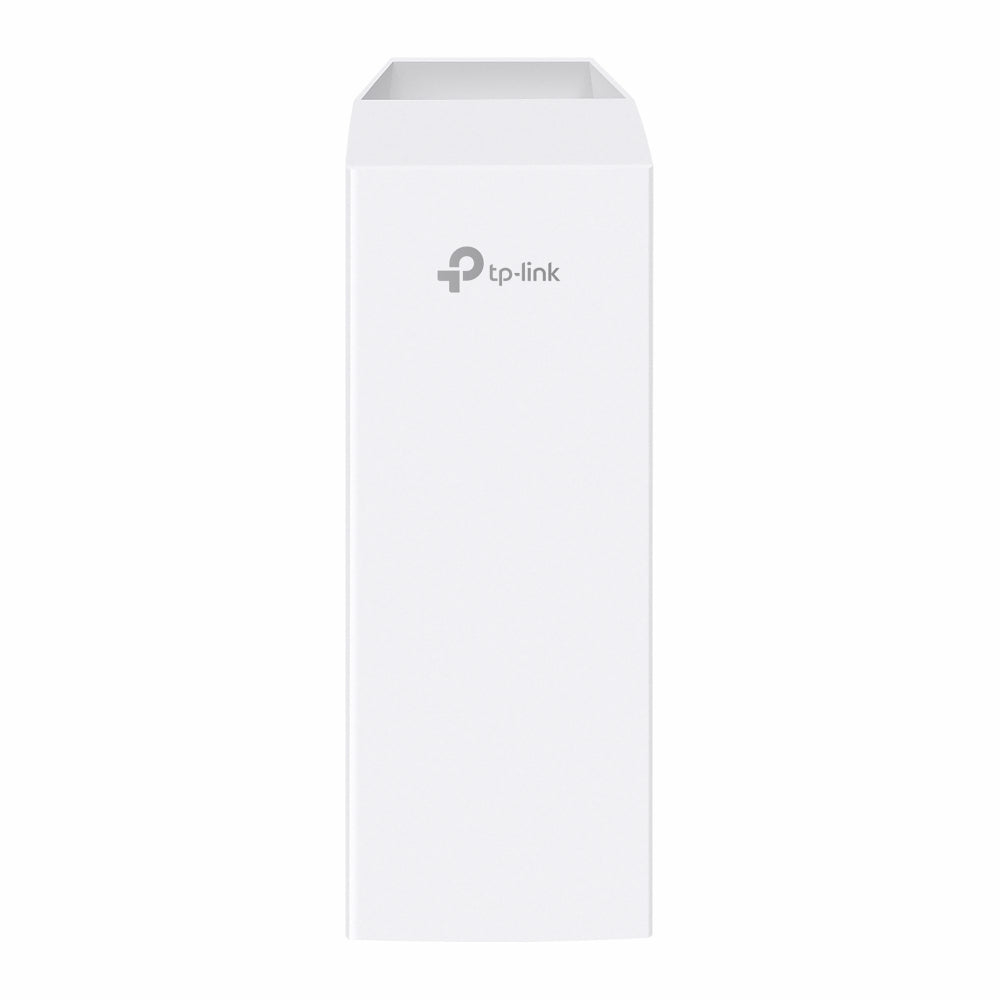

TP-Link Omada Wireless Bridge 5 GHz N300 Long-Range Indoor/Outdoor Access Point

TP-Link Omada Wireless Bridge 5 GHz 300 Mbps Long-Range Indoor/Outdoor Access Point (EAP115-Bridge KIT) - 5 Years Local Warranty

The EAP115-Bridge KIT is the economical member of Omada's point-to-point bridge range: two pre-paired 5 GHz units with 11 dBi directional antennas, an IP65 enclosure and a published maximum transmission distance of 5 km. It runs 802.11n at up to 300 Mbps over three 10/100 Mbps ports, drawing just 6.5 W. It is the low-throughput sibling of the AC867 EAP215-Bridge KIT.

A 5 km Point-to-Point Link Without Trenching

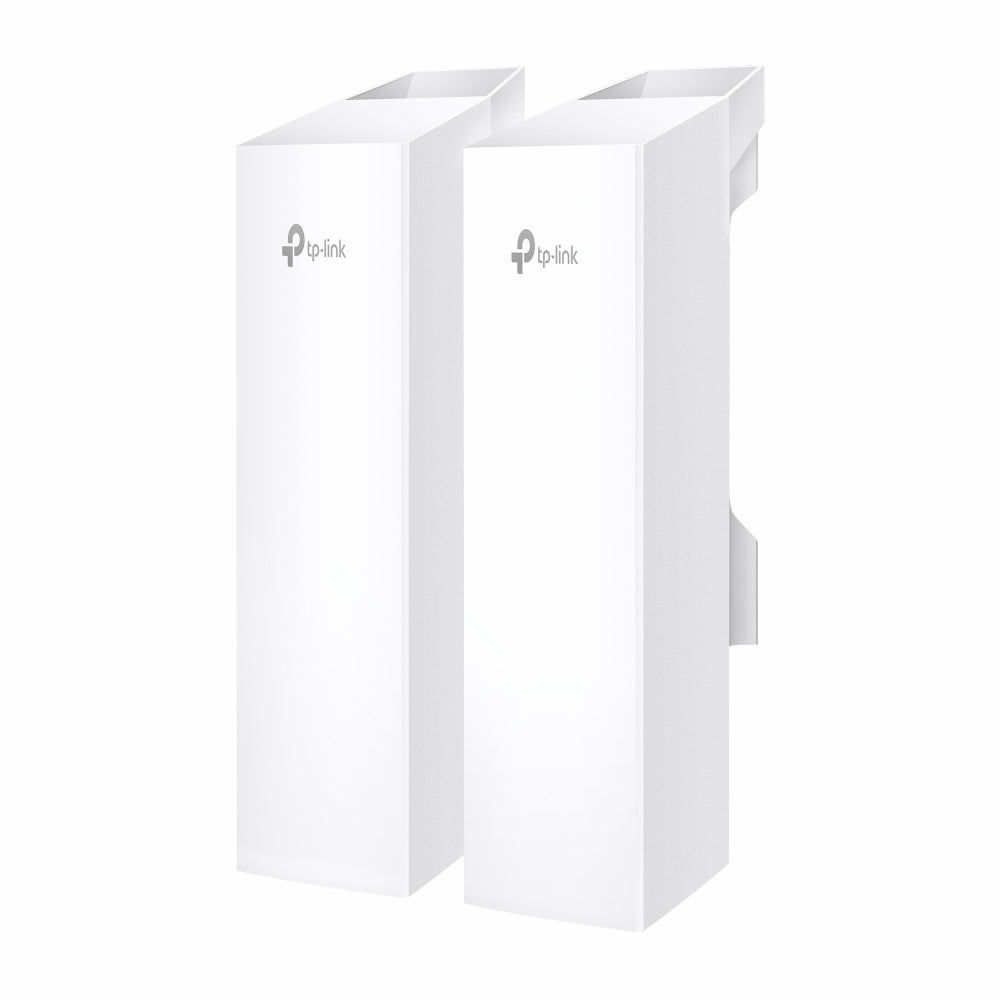

Omada publishes a maximum transmission distance of 3.1 mi (5 km) for the kit, which covers the realistic inter-building cases on a Singapore site: a second block, a warehouse across the yard, a guardhouse, a jetty office or a temporary site cabin. Supplied as a matched pair, the kit removes the risk of mismatching the two ends. Because nothing has to be dug, a link can be commissioned in an afternoon rather than waiting on civil works and permits.

11 dBi Directional Antennas With a 35 x 35 Degree Beam

Both units use 11.0 dBi directional antennas with a 35-degree beamwidth vertically and horizontally. The narrow beam is what turns a modest radio into a kilometre-scale link: transmit energy is focused along the path instead of being radiated across the whole site, so the far end sees a stronger signal and picks up less interference from unrelated 5 GHz equipment nearby. In return, both ends need clear line of sight and a rigid mount that will not drift out of alignment.

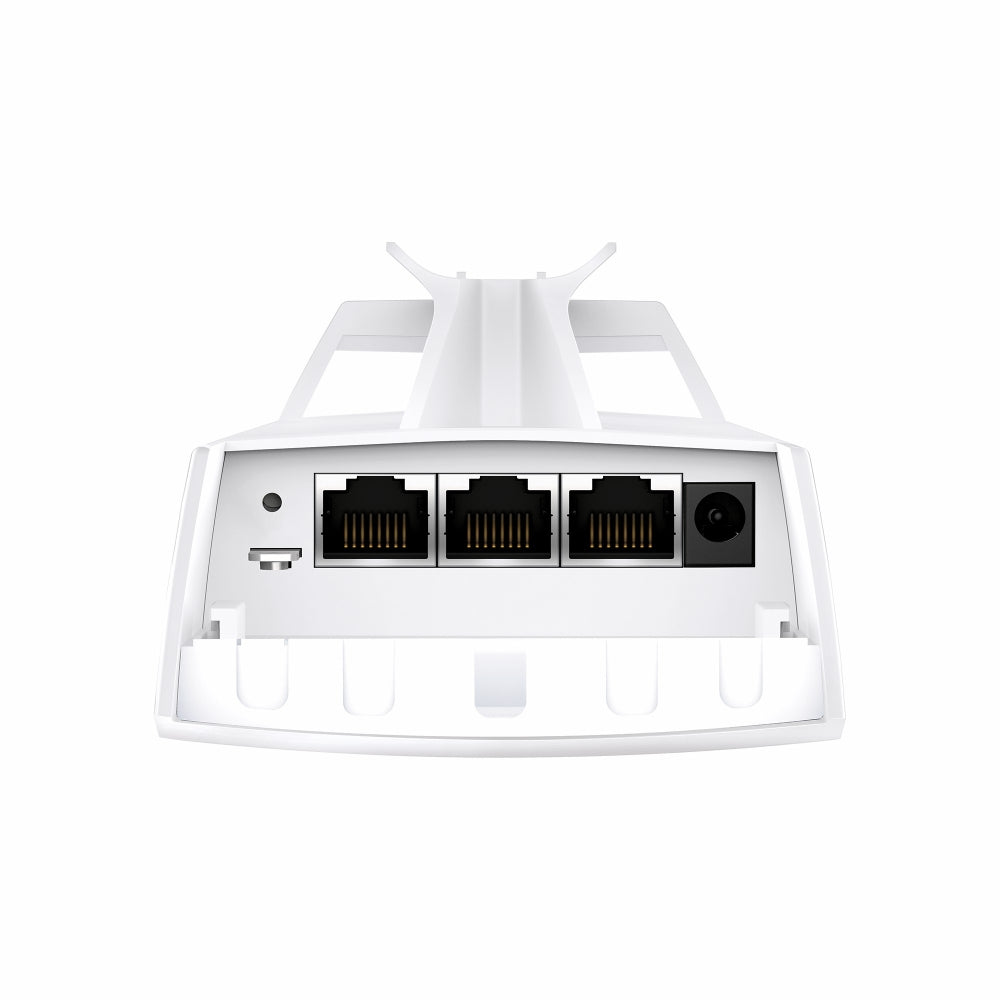

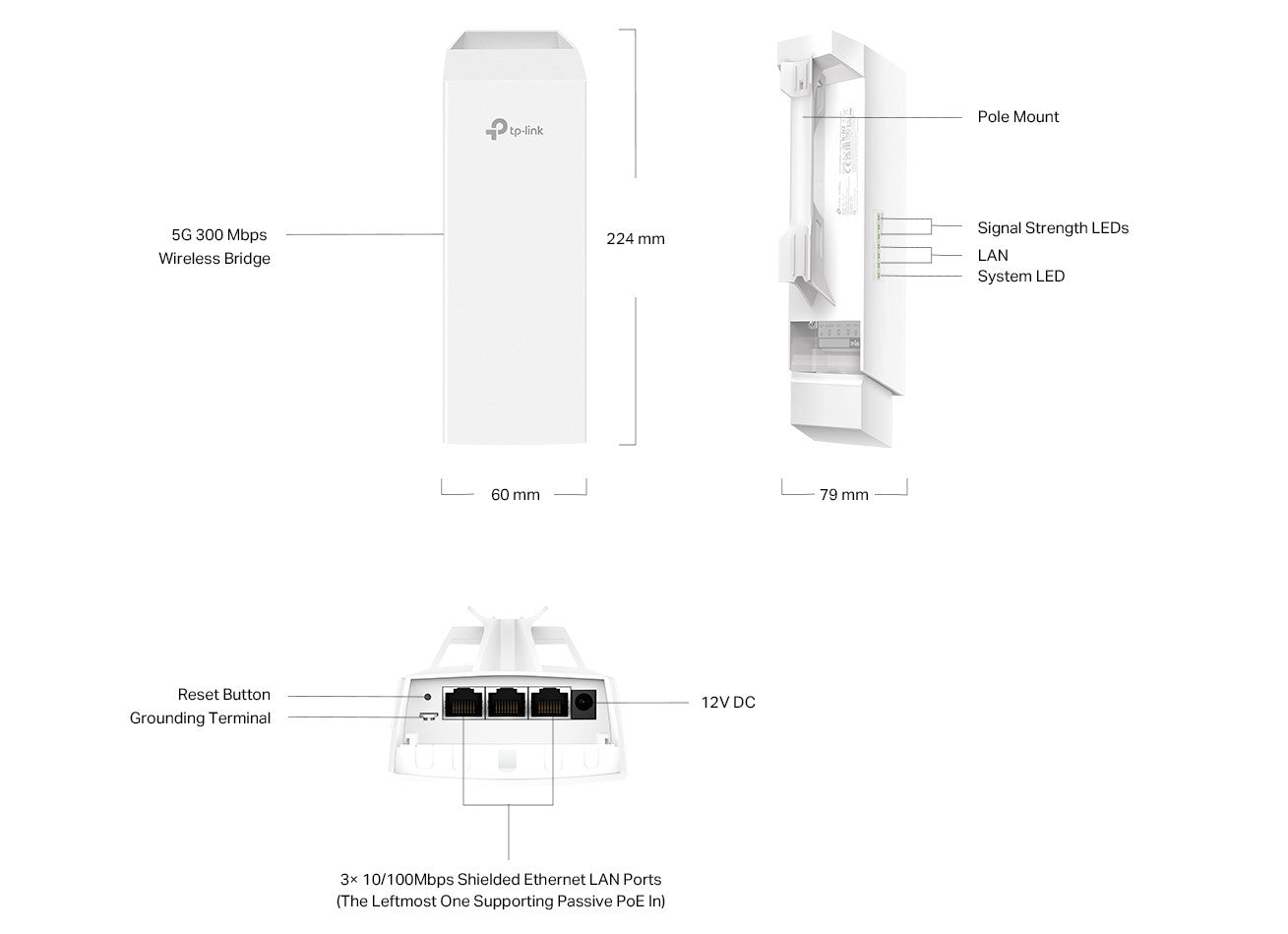

300 Mbps Over Three 10/100 Mbps Ports

The radio is 802.11n at 5 GHz with a maximum wireless speed of N300, and the unit provides three 10/100 Mbps Ethernet ports. This is the honest trade the kit makes: it is sized for CCTV backhaul, door controllers, a handful of office users, point-of-sale terminals or telemetry, not for moving large files between two sites. Where the remote building needs Gigabit-class throughput, the AC867 EAP215-Bridge KIT with three Gigabit ports is the correct choice.

IP65, 6 kV Lightning Protection and Wind Resistance

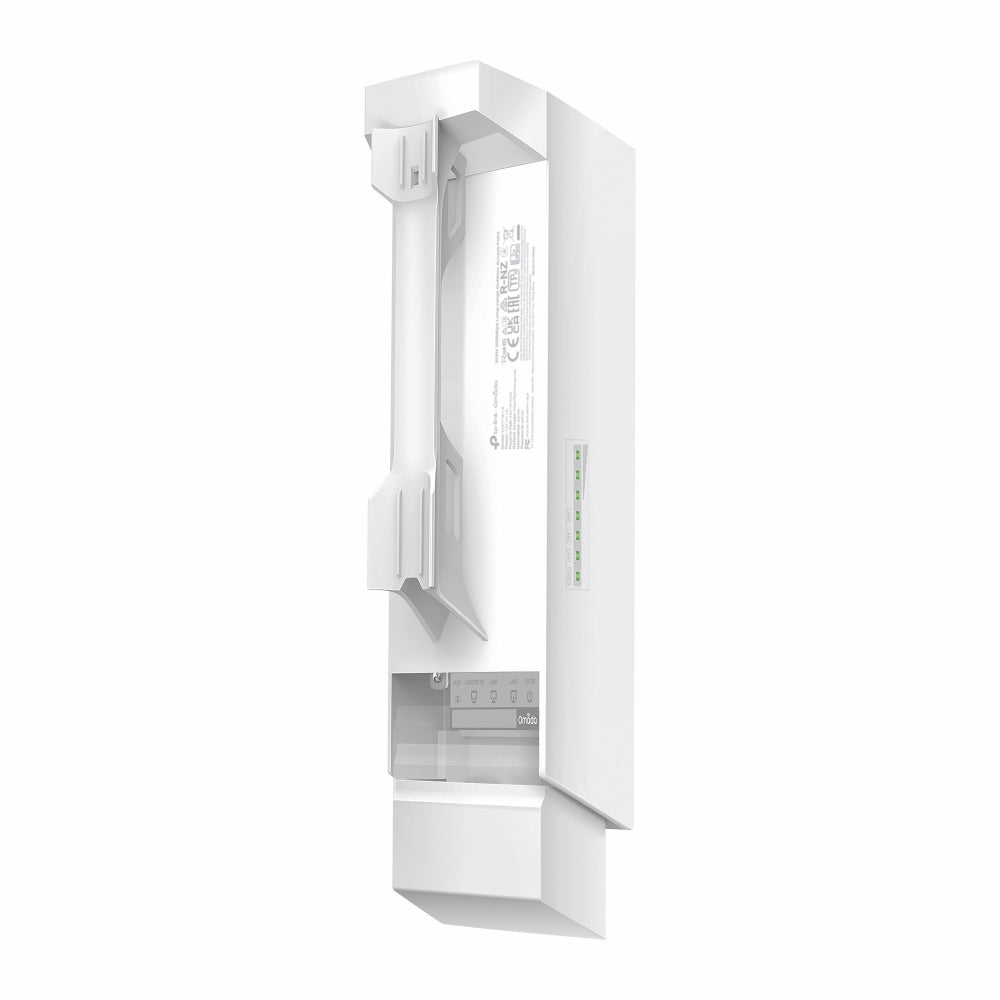

The enclosure is IP65 rated and operates from -40 to 70 degrees Celsius, with wind resistance and 6 kV lightning protection published for the kit. Those last two matter in Singapore, where a rooftop or pole-mounted radio faces both squalls and frequent lightning activity. Pole-mounting accessories are supplied in the box and wall mounting is available as an option, so the unit can go on a mast, a parapet or an exterior wall depending on what the path needs.

One Cable to the Mast at 6.5 W

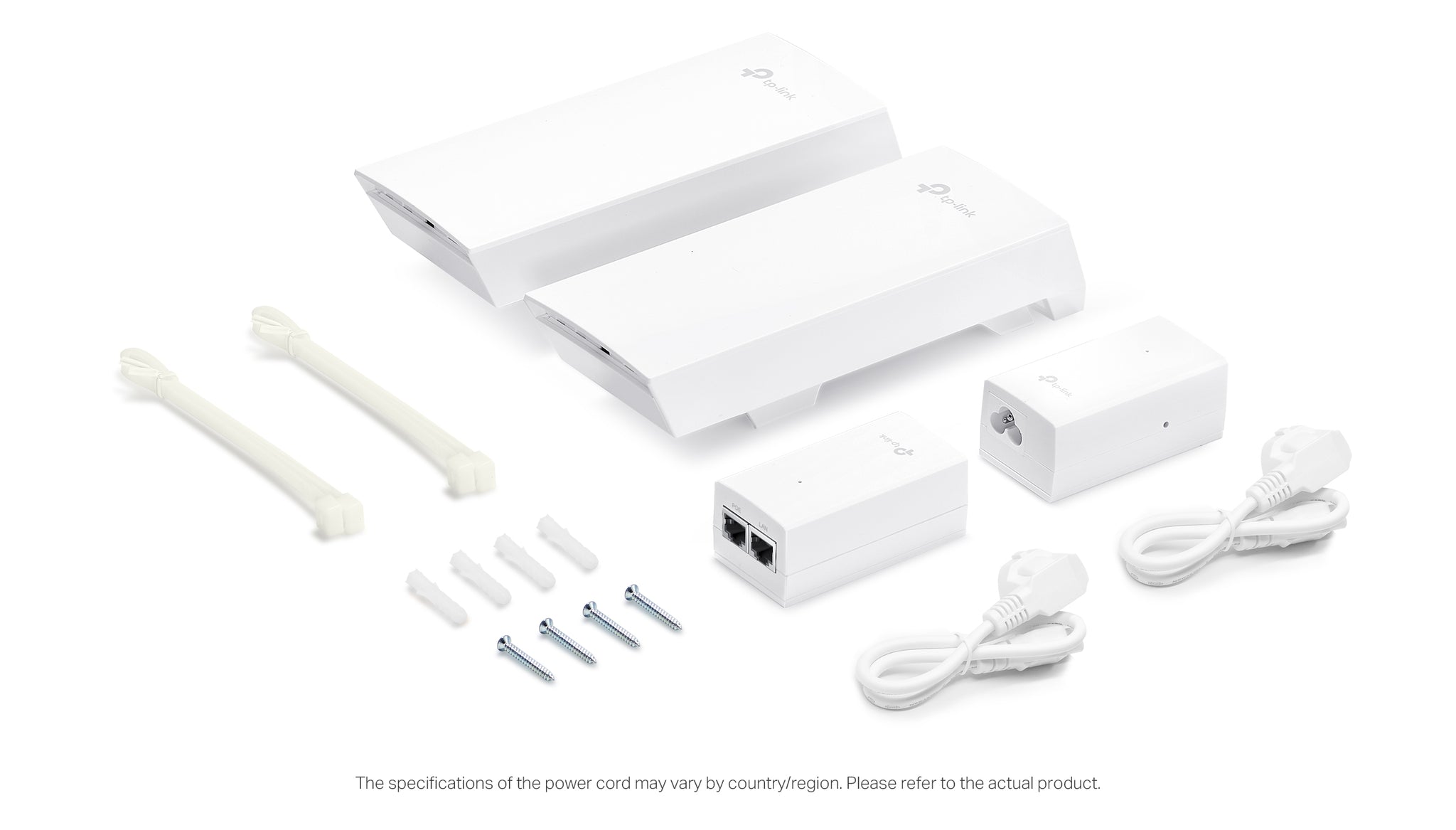

Power is 12 V DC or 24 V passive PoE, and the passive PoE adapter is included, so a single Ethernet run carries both data and power to the radio and only one penetration has to be weatherproofed. Maximum power consumption is 6.5 W per unit, low enough that a modest UPS at the head end keeps an inter-building link alive through a power interruption, which is exactly when a remote camera or access-control feed matters most.

Ideal For

Singapore sites that need a low-cost, weatherproof link to a second building, guardhouse, yard or site office for CCTV, access control or light office traffic, where full Gigabit throughput is not required. Supplied by SourceIT with local Singapore warranty, GST invoice and project pricing on request.
