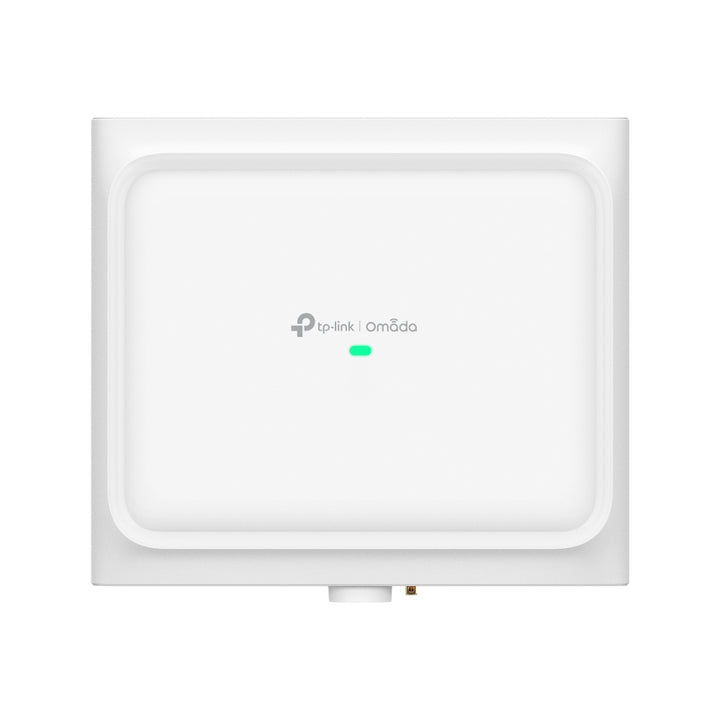

TP-Link Omada Tri-Band Omnidirectional BE11000 Indoor/Outdoor Wi-Fi 7 Access Point
Email sales@sourceit.com.sg or use Request for Quotation below and our team will confirm the latest price, availability and lead time.
PRODUCT DESCRIPTION
TP-Link Omada Tri-Band Omnidirectional BE11000 Indoor/Outdoor Wi-Fi 7 Access Point (EAP772-Outdoor) - 5 Years Local Warranty
The EAP772-Outdoor is Omada's first outdoor Wi-Fi 7 access point with 6 GHz coverage. It puts tri-band, six-stream Wi-Fi 7 into an IP68-rated omnidirectional enclosure for pole or wall mounting, with AFC to unlock the 6 GHz band outdoors where regulators allow, and runs on a single 2.5G 802.3at PoE+ cable.
Tri-Band Six-Stream Outdoor Wi-Fi 7, up to 9.3 Gbps
TP-Link lists 5765 Mbps on 6 GHz, 2882 Mbps on 5 GHz and 688 Mbps on 2.4 GHz — up to 9.3 Gbps combined — with MLO, 320 MHz channels on 6 GHz, 4K-QAM, OFDMA and MU-MIMO. Omada rates the AP for 380+ concurrent clients, enough for a busy courtyard, campus quad or warehouse yard.
6 GHz Band Unlocked by AFC
Automated Frequency Coordination lets the EAP772-Outdoor use the 6 GHz band at outdoor power levels, coordinating with a regional database to protect incumbent users. It is the reason this AP can offer 6 GHz outdoors at all — but availability depends on whether AFC is supported in the country of deployment, which TP-Link documents in a dedicated AFC FAQ.
True Tri-Band Omnidirectional Coverage
Omnidirectional antennas on all three bands give a recommended coverage of 300 m² (3,200 ft²) around the unit, with 2.4 GHz dual-polarised antennas for steadier reach. The AP has two operating modes — Indoor and Outdoor — with transmit-power limits published for each, so the same model can serve a covered atrium or an open car park.
Professional Hardware: IP68, 2.5G PoE+ and GNSS
The enclosure is IP68-rated and operates from -30 °C to 70 °C, suited to Singapore's heat and monsoon rain. A single 2.5G RJ-45 port carries data and 802.3at PoE+, with a maximum draw of 21.5 W. A built-in GNSS receiver (GPS, Galileo, GLONASS, BeiDou) supports location reporting, and BLE 5.2 is on board.
Easy Setup and Central Management with Omada SDN
Pole and wall mounting kits and a waterproof kit are included. Adopted into the Omada Cloud-Based, Hardware or Software Controller, the AP supports one-click setup, zero-touch provisioning (cloud), Omada Mesh, 802.11k/v/r seamless roaming, 24 SSIDs with VLAN mapping, 802.1X, WPA3 and OWE, managed alongside the rest of the Omada network.
Ideal For
Singapore schools, condominiums, hotels, resorts, F&B outdoor seating, logistics yards and campus grounds that need tri-band Wi-Fi 7 outdoors on an Omada network. Supplied by SourceIT with local Singapore warranty, GST invoice and project pricing on request.
EAP772-Outdoor Datasheet — Technical Specifications
General
| Model | EAP772-Outdoor |
| Official Product Name | Omada Tri-Band Omnidirectional BE11000 Indoor/Outdoor WiFi 7 Access Point |
| Brand | TP-Link Omada |
| Warranty | 5 Years Local Warranty (Singapore) |
Hardware Features
| Interface | 1× 2.5G Ethernet (RJ-45) Port (Support 802.3at PoE) |
| Button | Reset |
| Power Supply | 802.3at PoE |
| Max. Power Consumption | 21.5 W (PoE) |
| Dimensions (W × D × H) | 9.1 × 8.2 × 2.8 in (230 × 207.5 × 69.7 mm) |
| Antenna | 2.4 GHz: 2× 4 dBi; 5 GHz: 2× 6 dBi; 6 GHz: 2× 6 dBi |
| GNSS | L1 (1575.42 MHz) receiver supporting GPS, Galileo, GLONASS and BeiDou; receive sensitivity -164 dBm (tracking); integrated 3 dBi omnidirectional antennas |
| Bluetooth | BLE 5.2 |
| Weatherproof Enclosure | IP68 |
| Mounting | Pole/Wall Mounting (Kits included) |
Wireless Features
| Coverage | 300 m² (3,200 ft²) Recommended Omnidirectional Coverage |
| Concurrent Clients | 380+ |
| Wireless Standards | IEEE 802.11be/ax/ac/n/g/b/a |
| Frequency | 2.4 GHz, 5 GHz, 6 GHz |
| Signal Rate | 688 Mbps (2.4 GHz) + 2882 Mbps (5 GHz) + 5765 Mbps (6 GHz) |
| Wireless Functions | 4K-QAM; OFDMA; Multiple SSIDs: 24 (8 for each band); Enable/Disable Wireless Radio; Automatic Channel Assignment; Transmit Power Control; QoS (WMM); MU-MIMO; MLO; 320 MHz; Omada Mesh; Seamless Roaming (802.11k/v/r); Band Steering; Load Balance; Airtime Fairness; Beamforming; Rate Limit; Reboot Schedule; Wireless Schedule; Wireless Statistics based on SSID/AP/Client; Static IP/Dynamic IP |
| Wireless Security | Captive Portal Authentication; Access Control; Wireless MAC Address Filtering; Wireless Isolation Between Clients; SSID to VLAN Mapping; Rogue AP Detection; 802.1X Support; WPA/WPA2/WPA3-Personal and Enterprise; OWE |
| Transmission Power (CE) | Indoor Mode: <20 dBm (2.4 GHz, EIRP); <23 dBm (5 GHz band 1 & 2, EIRP); <28 dBm (5 GHz band 3, EIRP); <23 dBm (6 GHz, EIRP). Outdoor Mode: <20 dBm (2.4 GHz, EIRP); <28 dBm (5 GHz band 3, EIRP) |
| Transmission Power (FCC) | Indoor and Outdoor Mode: <25 dBm (2.4 GHz); <25 dBm (5 GHz); <25 dBm (6 GHz) |
TP-Link names this model a BE11000 access point, while the per-band rates it publishes total about 9.3 Gbps (688 + 2882 + 5765 Mbps); both figures are reproduced as published. The 320 MHz bandwidth is available on the 6 GHz band only, and outdoor 6 GHz use depends on AFC support in the country of deployment.
Management Features
| Omada App | Yes |
| Centralized Management | Omada Cloud-Based Controller; Omada Hardware Controller; Omada Software Controller |
| Cloud Access | Yes (requires an Omada controller) |
| Zero-Touch Provisioning | Yes (requires Omada Cloud-Based Controller) |
| Other | Email Alerts, Management MAC Access Control, SNMP v1/v2c, Local/Remote Syslog, SSH, Web-based Management, L3 Management, Multi-site Management, Management VLAN |
Environment & Certification
| Operating Temperature | -30–70 ℃ (-22–158 ℉) |
| Storage Temperature | -40–70 ℃ (-40–158 ℉) |
| Operating Humidity | 10–90% RH non-condensing |
| Storage Humidity | 5–90% RH non-condensing |
| Certification | CE, FCC |
| System Requirements | Microsoft Windows XP, Vista, 7, 8, 10, 11, Linux |
Compatibility & Software Support
The EAP772-Outdoor is part of the Omada ecosystem: gateways, switches and access points are managed together from one controller, under one set of policies, with one view of the network. Omada Mesh, Seamless Roaming, Cloud Access and Captive Portal require an Omada controller.
| Omada SDN Controller | Supported — Omada Cloud-Based Controller, Hardware Controller or Software Controller |
| Omada App | Supported — remote management from iOS and Android |
| Omada Cloud Access | Supported — requires an Omada controller |
| Standalone Mode | Supported — web-based management |
| AFC (6 GHz outdoor) | Supported — availability depends on regional AFC support (see TP-Link's AFC FAQ) |
| Client Requirements | Wi-Fi 7 features (MLO, 320 MHz, 4K-QAM, Multi-RUs, OFDMA, MU-MIMO) require clients that also support them |
Package Contents & Ordering Information
What’s in the Box
| Package Contents | Access Point EAP772-Outdoor, Waterproof Kit, Mounting Kits, Installation Guide |
| Power Adapter | Not listed — the EAP772-Outdoor is powered by 802.3at PoE |
Ordering Information
| Model | EAP772-Outdoor |
| Recommended Retail Price (incl. GST) | S$469.00 |
Datasheet & Downloads
Frequently Asked Questions — EAP772-Outdoor
Does the EAP772-Outdoor need an Omada Controller?
No. It can be managed standalone through its web interface. Adopting it into the Omada Cloud-Based, Hardware or Software Controller unlocks central configuration, zero-touch provisioning (cloud), Mesh, seamless roaming, captive portals and cloud/app access.
What PoE does it need?
802.3at (PoE+) on the 2.5G port. Maximum consumption is 21.5 W.
What warranty does SourceIT provide?
Five years local Singapore warranty. Every EAP772-Outdoor sold by SourceIT comes with a GST invoice.
Is stock held locally?
SourceIT holds fast-moving Omada lines in Singapore. Anything not in local stock is brought in on indent — ask us for the current lead time before committing to a project date.
Is this model available for project orders?
Yes. TP-Link supplies this model for project deployments; contact SourceIT with your bill of materials for pricing and lead time.
