TP-Link Omada Pro 48-Port 10G Stackable L3 Managed Aggregation Switch with 4 100G Slots
Email sales@sourceit.com.sg or use Request for Quotation below and our team will confirm the latest price, availability and lead time.
PRODUCT DESCRIPTION
TP-Link Omada Pro 48-Port 10G Stackable L3 Managed Aggregation Switch with 4 100G Slots (S7500-48XF4C) - 5 Years Local Warranty

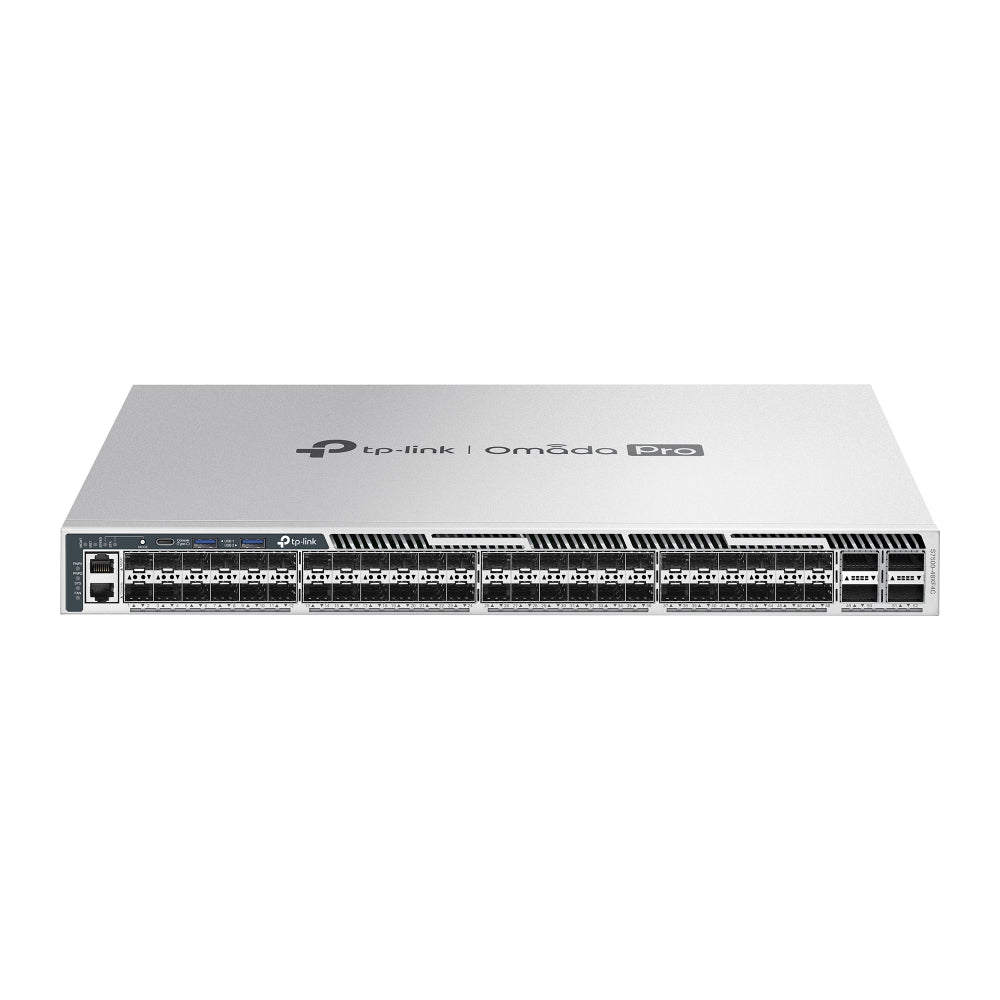

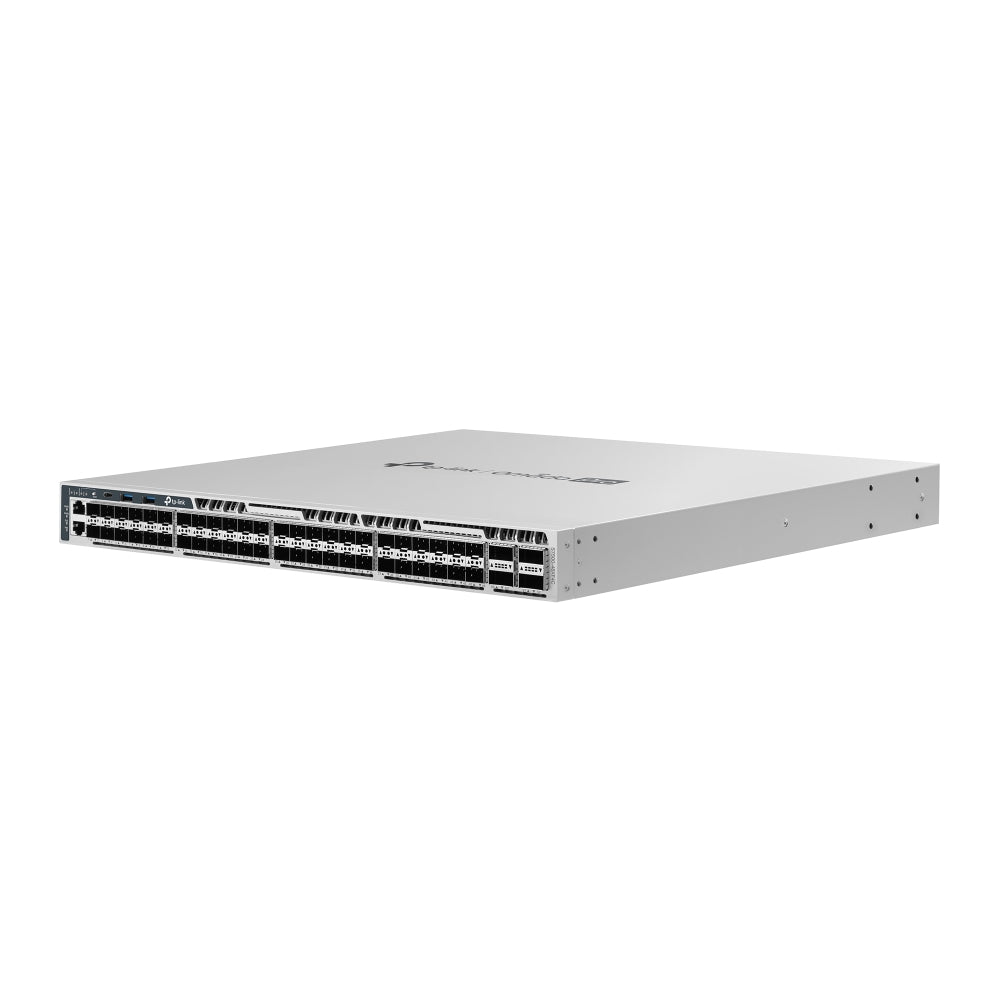

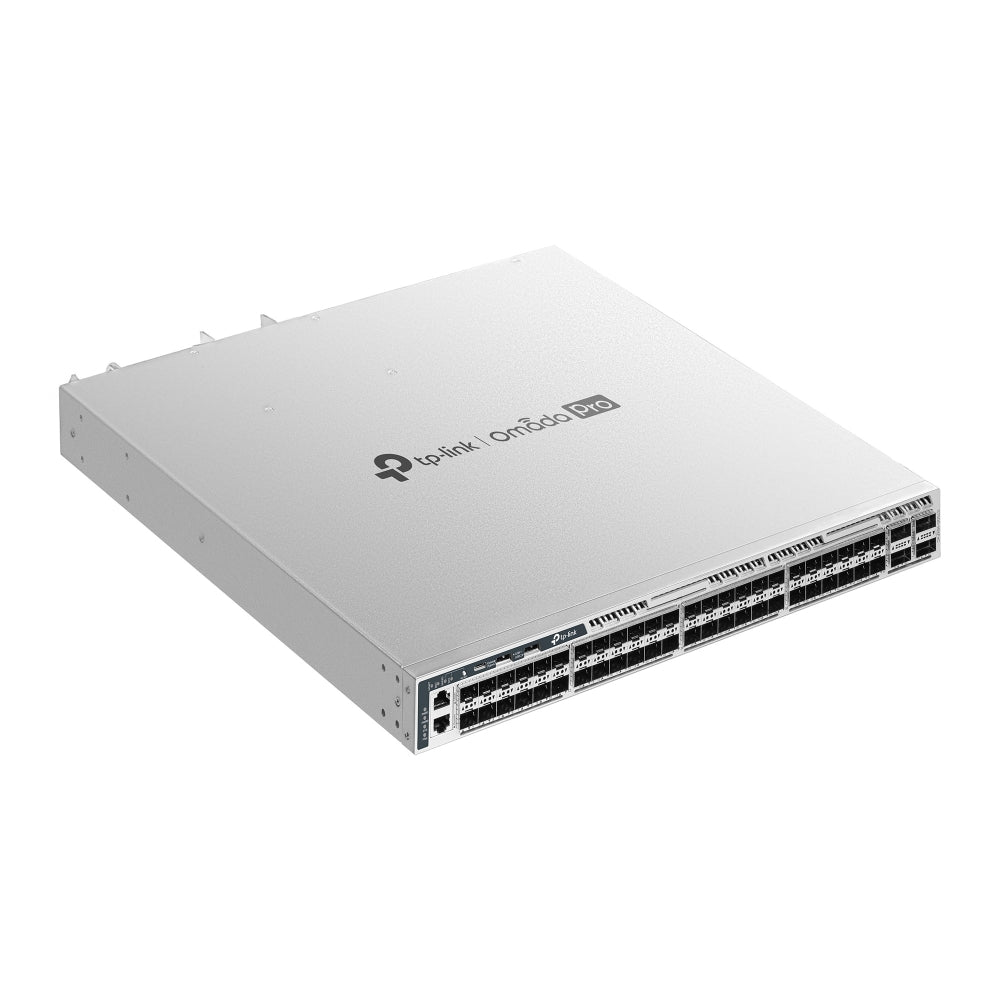

The S7500-48XF4C is a 1U 10G aggregation switch: 48× 1/10G SFP+ slots to collect uplinks from access-layer switches, and 4× 40/100G QSFP28 slots to carry that traffic up to the core or to stack. It brings OSPF, BGP, IS-IS, VRRP and PIM routing to the aggregation layer with 1,760 Gbps of switching capacity per unit.
48× 10G SFP+ With 100G Uplinks
Forty-eight 1/10G SFP+ slots aggregate the 10G uplinks from access switches across floors or buildings, and four 40/100G QSFP28 slots provide the path to the core. Switching capacity is 1,760 Gbps per unit and the forwarding rate 600 Mpps, with a 10 MB packet buffer and a 128 K MAC address table. TP-Link supports no more than 12 SM5310-T 10G RJ45 SFP+ modules and recommends leaving one column between every two of them.
Stack Up to 12 Units Over 100G
All four QSFP28 uplinks can be used as stacking ports, giving up to 800 Gbps of stacking bandwidth and up to 12 units in standalone mode. Stacking runs only over 100G DAC or 100G QSFP28 modules rather than 40G DAC or 40G QSFP.
Full Layer 3 at the Aggregation Layer
OSPFv2 (16 instances), OSPFv3, BGP, IS-IS with IPv6 and BFD, RIP and RIPng let the switch take part in the campus routing domain rather than just pass VLANs up. It holds 40,960 IPv4 network routes (shared with IPv6), 22,528 host routes and 45,056 dynamic ARP entries, with ECMP across up to 32 next hops per destination, VRRP v2/v3 (64 instances), PBR, uRPF and PIM-SM/DM/SSM multicast routing.
Hot-Swap Power and Cooling

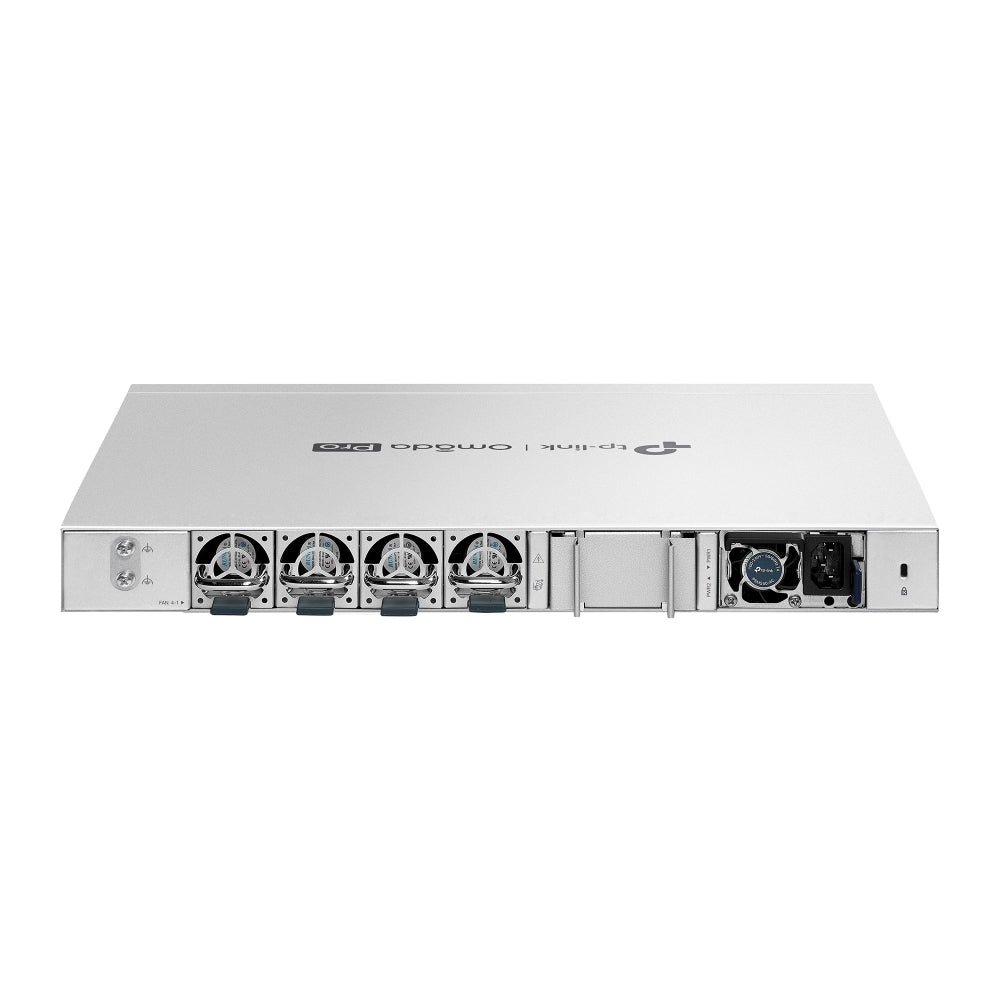

Two field-replaceable, hot-swappable power supply bays and four hot-swappable fans can be serviced in the rack. The switch ships with one PSM550-AC module; a second, redundant PSM550-AC is a separate purchase. ERPS ring protection and BFD fast failure detection round out the availability features.
Access Security for Every Edge Port
802.1X (port- and MAC-based, with VLAN assignment, MAB and guest VLAN), RADSEC, TACACS+ AAA, dynamic ARP inspection, IPv4 and IPv6 source guard, port security up to 64 MAC addresses per port, storm control and Secure Boot. Management traffic is protected with HTTPS (SSLv3/TLS 1.2) and SSHv2.
Centralized Management Through Omada Pro
TP-Link positions the S7500-48XF4C for its Omada Pro platform: the switch is managed centrally from the Omada Pro Cloud-Based, Hardware or Software Controller, with the Omada App and cloud access working through that controller. Zero-Touch Provisioning lets a replacement or new unit be pre-configured in the Omada Pro Cloud-Based Controller and pull its configuration on first boot, so a site does not need an engineer on hand with a console cable. Where a controller is not wanted, the switch is fully manageable on its own through the web GUI, CLI (console or telnet) and SNMPv1/v2c/v3.
Ideal For
Multi-floor and multi-building campuses aggregating 10G access-layer uplinks, schools, hospitals and enterprise sites standardising on Omada Pro with a 100G path to the core. Supplied by SourceIT with local Singapore warranty, GST invoice and project pricing on request.
S7500-48XF4C Datasheet — Technical Specifications
General
| Model | S7500-48XF4C |
| Official Product Name | Omada Pro 48-Port 10G Stackable L3 Managed Aggregation Switch with 4 100G Slots |
| Brand | TP-Link Omada |
| Product Line | S7500 Series campus switch (Omada Pro managed) |
| Warranty | 5 Years Local Warranty (Singapore) |
Hardware Features
| Interface | 48× 1/10Gbps SFP+ Slots**; 4× 40/100Gbps QSFP28 Slots; 2× USB 3.0 Ports; 1× RJ45 Console Port; 1× USB Type-C Console Port; 1× RJ45 Management Port |
| Fan Quantity | Four Field-replaceable and Hot-swappable Fans |
| Power Supply | Two Field-replaceable and Hot-swappable Power Supply Modules* (100–240 VAC, 50/60 Hz) |
| Dimensions (W x D x H) | 17.3 × 15.0 × 1.7 in (440 × 380 × 44 mm) |
| Mounting | Rackmountable |
| Max. Power Consumption | 105.7 W (110 V/60 Hz); 109.3 W (220 V/50 Hz) |
| Max. Heat Dissipation | 360.7 BTU/hr (110 V/60 Hz); 372.9 BTU/hr (220 V/50 Hz) |
Performance
| Packet Buffer Memory | 10 MB |
| Jumbo Frame | 9 KB |
| Stacking | Stacking Number: 12 (standalone mode); Stacking Port: 100G QSFP28 Slot (all uplink ports can be used as stacking ports)***; Stacking Bandwidth: Up to 800 Gbps (4 stacking ports) |
| Switching Capacity | 1760 Gbps per Unit |
| Packet Forwarding Rate | 600 Mpps |
| MAC Address Table | 128 K |
Layer 3 Features
| L3 Interface | 256 (IPv4, IPv6) |
| Static Route | 2,048 IPv4, 1,024 IPv6 |
| Host Route Table | Max 22,528 entries |
| IPv4 Network Router Entries | 40,960 (shared with IPv6 Network Router entries) |
| IPv6 Network Router Entries | 40,960 (shared with IPv4 Network Router entries) |
| ECMP | 768 entries, max 32 ECMP Nexthops per Destination |
| Static ARP | 1,024 static entries |
| Dynamic ARP / ND | 45,056 dynamic entries / 45,056 |
| DHCP Server | Max 64 IP pool, Max 8,000 IP entries |
| DHCPv4/v6 Relay | Yes |
| VRRP | Version v2/v3, Max 64 instances, Max 32 Virtual IP per instance |
| OSPFv2 | OSPF Instance: 16; Network Entries: 256; Area Entries for Stub or NSSA: 16 per instance; Area Range Entries: 16 per instance; Virtual-link Entries: 16 per instance |
| OSPFv3 | Area Entries for Stub or NSSA: 16 per instance; Area Range Entries: 16 per instance |
| RIPv1/v2 / RIPng | Network Entries: 256; Redistribute Entries: 20 / Yes |
| IS-IS | IS-IS Interfaces: 128; IS-IS Area Numbers: 3; Max Redistribute Configs: 10; IS-IS IPv6; IS-IS BFD |
| BGP | Max 20 redistribute configs |
| PIM-SM/PIM-DM/PIM-SSM | IP Multicast Route Entries: 1K; PIM Neighbors: 256; Max PIM Interfaces: 128 |
| IGMP | Version v1/v2/v3, Max 2,048 multicast groups |
| BFD | 16 template numbers, 8 session numbers |
| PBR / uRPF | Yes / Yes |
Layer 2, VLAN & Quality of Service
| L2 / L2+ Features | Link Aggregation; Spanning Tree Protocol; Port-based and VLAN-based Loopback Detection; 802.3x Flow Control; ERPS; Mirroring; RSPAN; MAC Address Table |
| Multicast | IGMP Snooping; MLD Snooping; Multicast VLAN Registration (MVR); Max Multicast Table: 4K (IPv4, IPv6); Fast Leave; Static Multicast Groups; Multicast Filtering; IGMP Snooping Authentication |
| Max VLAN Group | Max 4K VLAN Group (802.1q VLAN) |
| VLAN Types | 802.1Q Tagged VLAN; Multicast VLAN; Management VLAN; GVRP; Voice VLAN; Private VLAN |
| MAC VLAN Entries | 200 |
| VLAN VPN (QinQ) | Max 256 entries |
| Protocol VLAN | Protocol Template 16, Protocol VLAN 12 entries |
| Quality of Service | 8 Queues of Priority; Port Priority; IEEE 802.1p Priority; DSCP Priority; Queue Min-Bandwidth; Schedule Mode (SP, WRR, SP+WRR); Rate Limit; Storm Control; Voice VLAN; User-Defined OUI; Smoother Performance; QoS remark (802.1P Remark, DSCP Remark) |
Security
| Port Isolation / CPU-Defend | Yes / Yes |
| ARP Inspection | Dynamic ARP Inspection |
| DoS Defend / DHCP Filter | Yes / Yes |
| IP-MAC-Port Binding | 1,024 Entries; DHCP Snooping; ARP Inspection; IPv4 Source Guard |
| IPv6-MAC-Port Binding | 1,024 Entries; DHCPv6 Snooping; ND Detection; ND Snooping; IPv6 Source Guard |
| Static/Dynamic Port Security | Up to 64 MAC addresses per port |
| Broadcast/Multicast/Unknown-unicast Storm Control | kbps/ratio control mode |
| 802.1X | Port base authentication; Mac base authentication; VLAN Assignment; MAB; Guest VLAN; RADIUS authentication and accountability support |
| AAA | TACACS+ |
| Secure Management | HTTPS with SSLv3/TLS 1.2; SSHv2 |
| IP/Port/MAC-based Access Control | Yes |
| Secure Boot / RADSEC | Yes / Yes |
Management
| Omada App | Yes, through Omada Pro Controller |
| Centralized Management | Omada Pro Cloud-Based Controller, Omada Pro Hardware Controller, Omada Pro Software Controller |
| Cloud Access | Yes, through Omada Pro Controller |
| Zero-Touch Provisioning | Yes. Requiring the use of Omada Pro Cloud-Based Controller. |
| Management Features | Web-based GUI; Command Line Interface (CLI) through console port, telnet; SNMPv1/v2c/v3 (Trap/Inform, RMON 1, 2, 3, 9 groups); SDM Template; DHCP/BOOTP Client; 802.1ab LLDP/LLDP-MED; DHCP Auto Install; Dual Image, Dual Configuration; CPU Monitoring; Password Recovery; SNTP; System Log |
Environment
| Operating Temperature | -5 °C to 50 °C (23 °F to 122 °F) @ 300 meters; -5 °C to 45 °C (23 °F to 113 °F) @ 2,000 meters; -5 °C to 40 °C (23 °F to 104 °F) @ 3,000 meters |
| Storage Temperature | -40 °C to 70 °C (-40 °F to 158 °F) |
| Operating Humidity | 10–90% RH non-condensing |
| Storage Humidity | 5–90% RH non-condensing |
TP-Link Footnotes
*Ships with one PSM550-AC module by default, and another field-replaceable redundant power supply requires a separate purchase.
‡These functions require the use of the Omada Pro SDN Controller. Zero-Touch Provisioning requires the use of the Omada Pro Cloud-Based Controller.
△Supports 12 units of physical stacking in standalone mode.
**No more than 12× 10G RJ45 SFP+ modules (SM5310-T) are supported. And it is recommended to have one column interval between every two 10G RJ45 SFP+ modules.
***The 100G QSFP28 slots support stacking only through 100G DAC/100G QSFP28 modules rather than 40G DAC/40G QSFP modules.
Compatibility & Software Support
The S7500-48XF4C is an Omada Pro switch. TP-Link lists the Omada Pro controllers — not the standard Omada SDN controller — as its centralized-management platform, so plan the controller with the switch.
| Omada Pro SDN Controller | Supported — centralized management through the Omada Pro Cloud-Based Controller, Omada Pro Hardware Controller or Omada Pro Software Controller |
| Omada App | Supported — through an Omada Pro Controller |
| Cloud Access | Supported — through an Omada Pro Controller |
| Zero-Touch Provisioning | Supported — requires the Omada Pro Cloud-Based Controller |
| Standalone Management | Supported — web-based GUI, CLI (console port, telnet) and SNMPv1/v2c/v3 |
| Stacking Mode Limit | Up to 12 units in standalone mode |
| Transceivers & Cabling | 1/10G SFP+ slots (no more than 12× SM5310-T 10G RJ45 SFP+ modules); 40/100G QSFP28 slots — stacking only through 100G DAC/100G QSFP28 modules. |
TP-Link's note: these functions require the use of the Omada Pro SDN Controller. Zero-Touch Provisioning requires the use of the Omada Pro Cloud-Based Controller.
Package Contents & Ordering Information
What’s in the Box
| Package Contents | S7500-48XF4C Switch, Power Cord, RJ45 Console Cable, Quick Installation Guide, Rackmount Kit, Rubber Feet |
Ordering Information
| Model | S7500-48XF4C |
| Recommended Retail Price (incl. GST) | S$20,999.00 |
| Power Supply Shipped | 1× PSM550-AC (550 W AC Power Supply Module), installed by default |
| Redundant Power Supply | PSM550-AC — second module sold separately |
Datasheet & Downloads
Frequently Asked Questions — S7500-48XF4C
Does the S7500-48XF4C need an Omada controller?
No. The S7500-48XF4C can be run standalone through its web-based GUI or the CLI (console port or telnet). TP-Link lists the Omada Pro Cloud-Based, Hardware and Software Controllers for centralized management; the Omada App and cloud access work through an Omada Pro Controller, and Zero-Touch Provisioning requires the Omada Pro Cloud-Based Controller. Tell SourceIT which controller your site already runs and we will confirm the fit before you order.
Does the S7500-48XF4C ship with redundant power supplies?
Not as standard. The S7500-48XF4C has two field-replaceable, hot-swappable power supply bays (100–240 VAC, 50/60 Hz), but TP-Link ships it with one PSM550-AC module by default. The second, redundant module is a separate purchase — add a PSM550-AC to the order if the switch must keep running through a power-supply failure. SourceIT can supply it with the switch.
What warranty does SourceIT provide?
Five years local Singapore warranty. Every S7500-48XF4C sold by SourceIT comes with a GST invoice.
Is stock held locally?
Campus-class switches such as the S7500-48XF4C are typically brought in on indent rather than held on the shelf. Ask SourceIT for the current lead time before committing to a project date.
Can SourceIT quote this for a project or tender?
Yes. Send the bill of materials and we will quote the whole build — core and aggregation switching, access switches, power supply modules, transceivers and DAC cables — with local warranty and support.
Is this model available for project orders?
Yes. TP-Link supplies this model for project deployments; contact SourceIT with your bill of materials for pricing and lead time.
