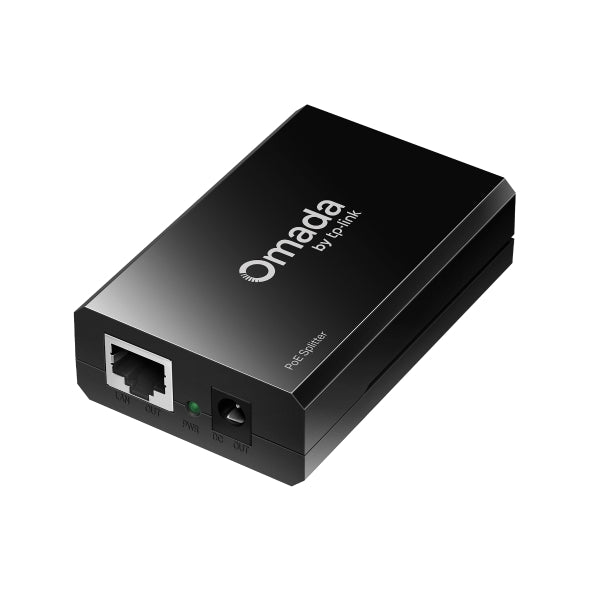

TP-Link Omada PoE Splitter Adapter
PRODUCT DESCRIPTION
TP-Link Omada PoE Splitter Adapter (TL-POE10R) - 3 Years Local Warranty
Power Non-PoE Devices Anywhere
The TL-POE10R splits a single PoE connection into separate data and power outputs, letting you run non-PoE devices - such as IP cameras, access points, and IP phones - in locations without a nearby power outlet. One Ethernet cable handles everything, simplifying installation and reducing clutter.
Selectable Voltage Output
A simple switch lets you choose 5V, 9V, or 12V DC output to match your device, making the splitter compatible with a wide range of equipment. This flexibility means a single adapter can serve many different powered devices around your home or office.
Gigabit Speed, Long Reach
With Gigabit Ethernet throughput, the TL-POE10R keeps your network fast while extending power and data up to 100 meters (328 ft) over Cat5e or better cabling. That long reach makes it easy to place devices exactly where you need them.
Plug and Play Simplicity
Fully compliant with IEEE 802.3af, the splitter works with standard PoE switches and injectors right out of the box - no configuration or software required. Just connect, select the voltage, and your device powers on.
Technical Specifications
- Standard: IEEE 802.3af compliant
- Speed: Gigabit (10/100/1000 Mbps)
- Power Output: 5V/2A, 9V/1A, or 12V/1A DC (selectable)
- Ports: 1 x RJ45 PoE input, 1 x RJ45 data output + DC power output
- Max Distance: Up to 100 m (328 ft) over Cat5e/Cat6
- Operation: Plug and play, no configuration required
- Dimensions: 80.8 x 54 x 24 mm
Ideal Use Case: Perfect for powering non-PoE IP cameras, wireless access points, or VoIP phones from an existing PoE switch or injector when no power outlet is available at the installation point.
